GA-7PTSH
Dual LGA2011 sockets motherboard for Intel® E5-2600 series processors
User's Manual
Rev. 1001
Copyright
© 2013 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
Table of Contents
Box Contents.................................................................................................................... |
|
|
5 |
GA-7PTSH Motherboard Layout...................................................................................... |
6 |
||
Chapter 1 Hardware Installation...................................................................................... |
8 |
||
1-1 |
Installation Precautions..................................................................................... |
8 |
|
1-2 |
Product Specifications...................................................................................... |
9 |
|
1-3 |
Installing the CPU........................................................................................... |
11 |
|
|
1-3-1 |
Installing the CPU................................................................................................... |
11 |
1-4 |
Installing the Memory...................................................................................... |
13 |
|
|
1-4-1 |
Four Channel Memory Configuration...................................................................... |
13 |
|
1-4-2 |
Installing a Memory ................................................................................................ |
14 |
|
1-4-3 |
DIMM Population Table .......................................................................................... |
14 |
1-5 |
Back Panel Connectors.................................................................................. |
15 |
|
1-6 |
Internal Connectors........................................................................................ |
17 |
|
Chapter 2 BIOS Setup................................................................................................... |
29 |
||
2-1 |
The Main Menu............................................................................................... |
31 |
|
2-2 |
Advanced Menu.............................................................................................. |
34 |
|
|
2-2-1 |
PCI Subsystem Settings......................................................................................... |
35 |
|
2-2-1-1 |
PCI Express Settings.............................................................................................. |
37 |
|
2-2-2 |
Runtime Error Logging............................................................................................ |
39 |
|
2-2-3 |
CPU Configuration.................................................................................................. |
40 |
|
2-2-3-1 |

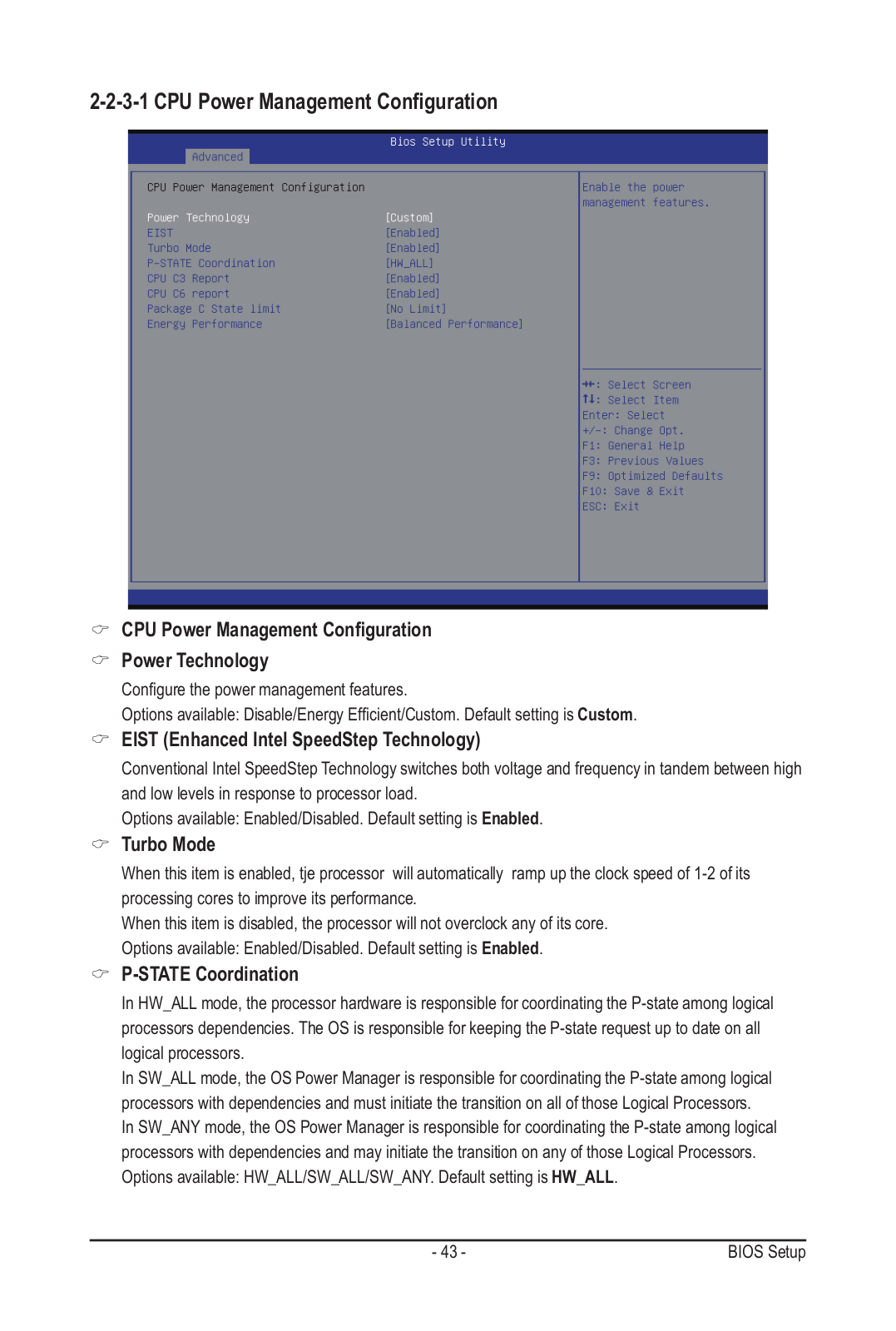

CPU Power Management Configuration................................................................. |
43 |
|
2-2-4 |
Intel TXT (LT-SX) Configuration.............................................................................. |
45 |
|
2-2-5 |
USB Configuration.................................................................................................. |
46 |
|
2-2-6 |
SATA Configuration................................................................................................. |
47 |
|
2-2-7 |

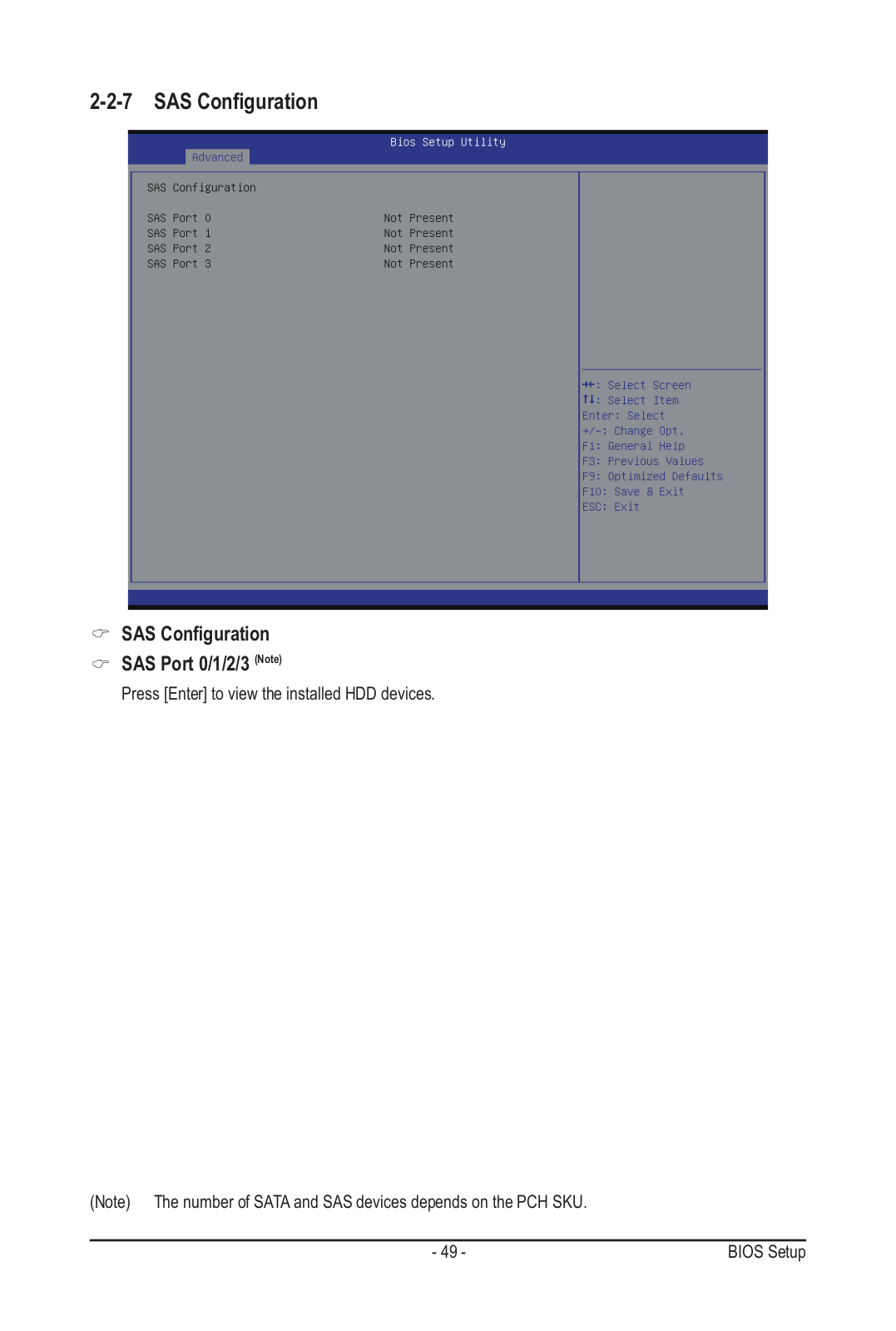

SAS Configuration................................................................................................... |
49 |
|
2-2-8 |
Info Report Configuration........................................................................................ |
50 |
|
2-2-9 |
Super IO Configuration........................................................................................... |
51 |
|
2-2-10 |
Serial Port Console Redirection............................................................................. |
53 |
|
2-2-11 |
Network Stack......................................................................................................... |
56 |
|
2-2-12 |
iSCSI Configuration................................................................................................. |
57 |
|
2-2-13 |

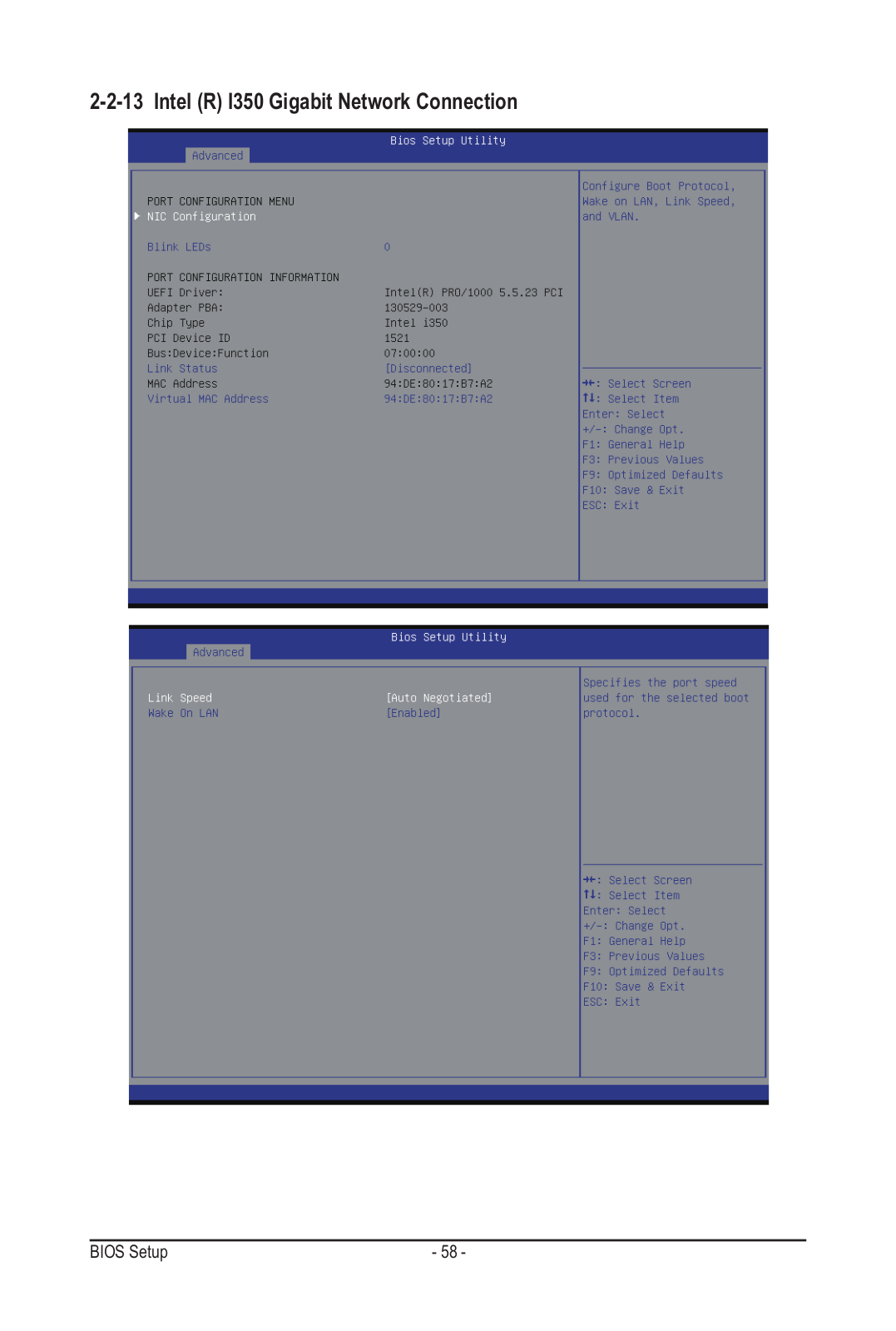

Intel (R) I350 Gigabit Network Connection.............................................................. |
58 |
2-3 |
Chipset Menu.................................................................................................. |
60 |
|
|
2-3-1 |
North Bridge............................................................................................................ |
61 |
|
2-3-1-1 |
IOH Configuration................................................................................................... |
64 |
|
2-3-1-2 |
QPI Configuration.................................................................................................... |
66 |
|
2-3-1-3 |
DIMM Information.................................................................................................... |
67 |
|
2-3-2 |

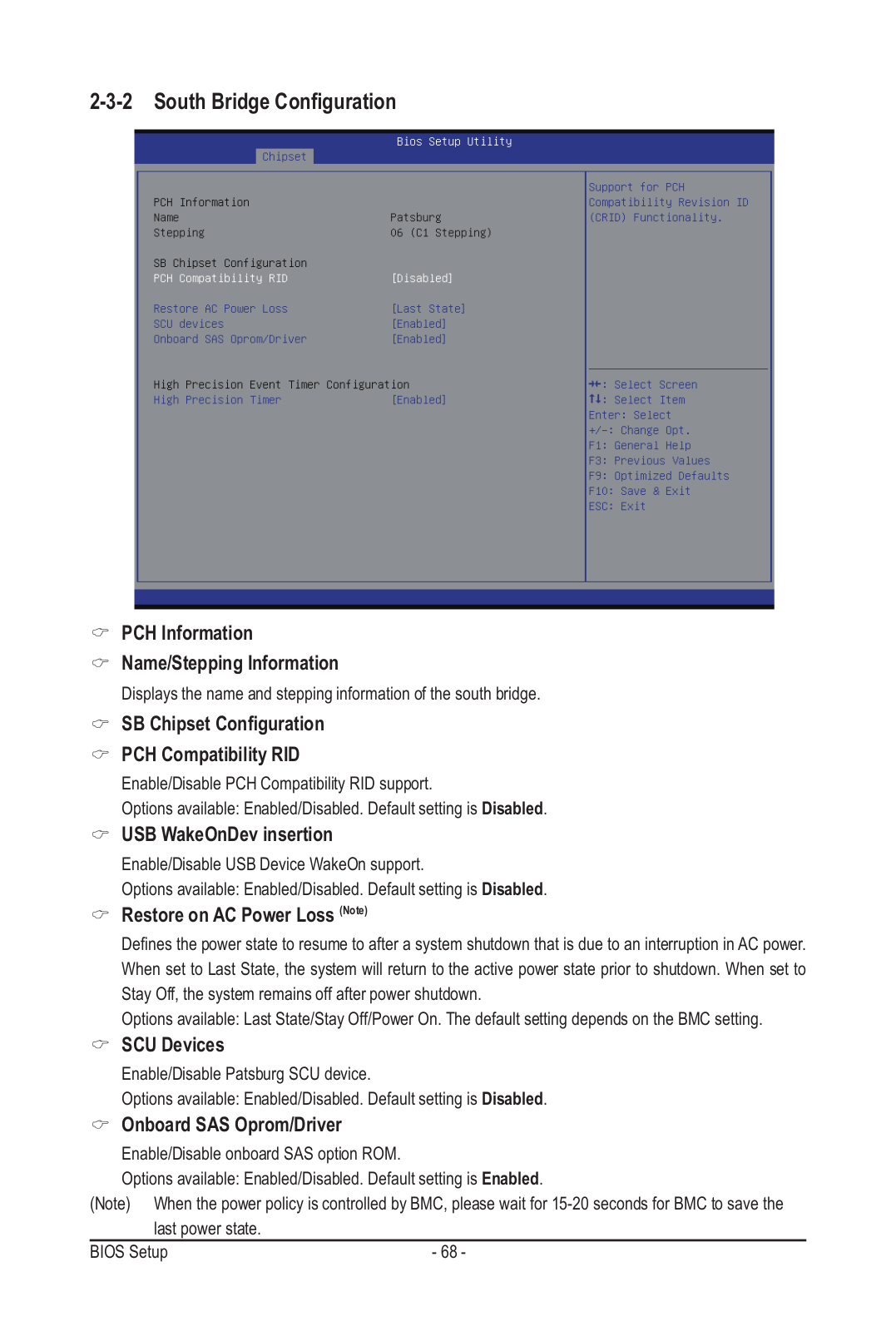

South Bridge Configuration..................................................................................... |
68 |
|
|
|
|
|
|
- 3 - |
|
|
2-3-3 |
Intel ME Subsystem................................................................................................ |
70 |
2-4 |
Security Menu................................................................................................. |
71 |
|
2-5 |
Server Management Menu............................................................................. |
72 |
|
|
2-5-1 |
BMC LAN Configuration.......................................................................................... |
73 |
|
2-5-2 |
BMC Function......................................................................................................... |
74 |
|
2-5-3 |
View FRU Information............................................................................................. |
75 |
|
2-5-4 |
System Event Log .................................................................................................. |
76 |
2-6 |
Boot Menu..................................................................................................... |
77 |
|
|
2-6-1 |
CSM16 Parameters ................................................................................................ |
79 |
|
2-6-2 |
CSM Parameters .................................................................................................... |
80 |
2-7 |

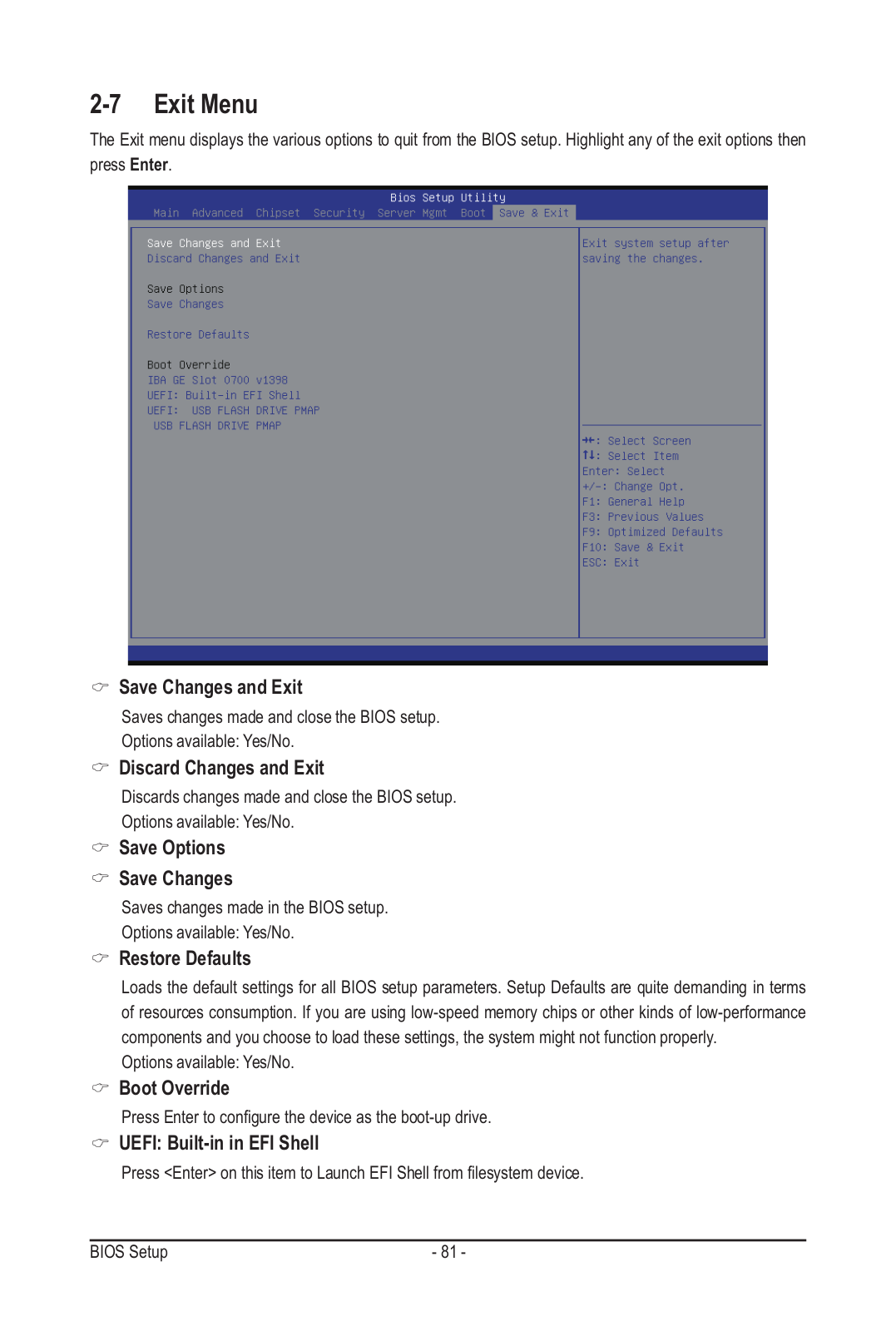

Exit Menu........................................................................................................ |
81 |
|
2-8 |
BIOS Beep Codes.......................................................................................... |
82 |
|
2-9 |
BIOS Recovery Instruction............................................................................. |
83 |
- 4 -
Box Contents
Motherboard
Driver CD
Two SATA cables
•The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice.
•The motherboard image is for reference only.
- 5 -
GA-7PTSH Motherboard Layout
|
50 |
49 |
|
|
51 |
48 |
|
|
52 |
47 |
43 |
|
1 |
46 44 |
|
|
|
||
|
2 |
45 |
|
|
3 |
5 |
|
|
4 |
|
|
9 |
8 |
6 |
|
7 |
|
||
10 11 |
|
||
|
12 |
13 |
|
|
40 39 |
38 37 |
34 |
|
41 |
36 |
|
42 |
35 |
33
25 |
26 |
32 |
14 |
|
24 |
27 |
|
15 |
21 |
22 23 |
28 29 |
30 |
|
|
16 |
|
|
1819 |
|
|
|
|
|
17 |
20 |
31 |
|
|||
|
|
|
|
|
|
|
|
|
|
Item |
|
|
|
Code |
Description |
||
|
1 |
FP_VGA1 |
|
|
Front VGA header |
|
||
|
2 |
VGA1 |
|
|
|
|
Rear VGA port |
|
|
3 |
COM2 |
|
|
Serial port cable header |
|
||
|
4 |
COM1 |
|
|
Serial port |
|
||
|
5 |
U47 |
|
|
|
|
ASPEED 2300 BMC chipset |
|
|
6 |
BMC_LED1 |
|
|
BMC readiness LED |
|
||
|
7 |
PCIE_2 |
|
|
PCI-E slot 2 (x8 slot/Proprietary/Running at x8) |
|
||
|
8 |
PWR_SW |
|
|
Power swith button |
|
||
|
9 |
ID_SW1 |
|
|
ID switch button |
|
||
|
10 |
NMI_BMCRST |
|
BMC Reset button (top)/NMI button (bottom) |
|
|||
|
11 |
SATAUS_LED |
|
System status LED |
|
|||
|
12 |
LAN1 |
|
|
|
|
LAN1 port |
|
|
13 |
LAN_LED |
|
|
LAN1 port and LAN2 port active LED header |
|
||
|
14 |
LAN2 |
|
|
|
|
LAN2 port |
|
|
15 |
MLAN1 |
|
|
BMC Management LAN port (top) / USB ports (bottom) |
|
||
|
16 |
SATA_SGPIO |
|
SATA SGPIO header |
|
|||
|
17 |
SATA0/1/2/3/4/5 |
|
SATA 6Gb/s connectors |
|
|||
|
18 |
IPMB1 |
|
|
IPMB connector |
|
||
|
19 |
RAID_KEY1 |
|
|
Intel RAID Selection connector(Optional) |
|
||
|
20 |
USB1 |
|
|
|
|
USB 2.0 header |
|
|
21 |
DDR3_P0_A0 |
|
Channel 1 slot 0 (for primary CPU) |
|
|||
|
22 |
DDR3_P0_A1 |
|
Channel 1 slot 1 (for primary CPU) |
|
|||
|
23 |
DDR3_P0_B0 |
|
Channel 2 slot 0 (for primary CPU) |
|
|||
|
24 |
DDR3_P0_B1 |
|
Channel 2 slot 1 (for primary CPU) |
|
|||
|
25 |
CPU0 |
|
|
|
|
Intel LGA2011 socket (Primary CPU) |
|
|
26 |
CPU1 |
|
|
|
|
Intel LGA2011 socket (Secondary CPU) |
|
|
27 |
DDR3_P1_H1 |
|
Channel 4 slot 1 (for secondary CPU) |
|
|||
|
28 |
DDR3_P1_H0 |
|
Channel 4 slot 0 (for secondary CPU) |
|
|||
|
29 |
DDR3_P1_G1 |
|
Channel 3 slot 1 (for secondary CPU) |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 6 - |
|
30 |
DDR3_P1_G0 |
Channel 3 slot 0 (for secondary CPU) |
31 |
SSI_2X9P2 |
18 pin power connector (for secondary CPU) |
32 |
F_PANEL |
Front panel header |
33 |
ACK_SEL |
4 Nodes System and Rack System switch jumper |
34 |
SSI_2X9P1 |
18 pin power connector (for primary CPU) |
35 |
DDR3_P1_F1 |
Channel 2 slot 1 (for secondary CPU) |
36 |
DDR3_P1_F0 |
Channel 2 slot 0 (for secondary CPU) |
37 |
DDR3_P1_E1 |
Channel 1 slot 1 (for secondary CPU) |
38 |
DDR3_P1_E0 |
Channel 1 slot 0 (for secondary CPU) |
39 |
DDR3_P0_C0 |
Channel 3 slot 0 (for primary CPU) |
40 |
DDR3_P0_C1 |
Channel 3 slot 1 (for primary CPU) |
41 |
DDR3_P0_D0 |
Channel 4 slot 0 (for primary CPU) |
42 |
DDR3_P0_D1 |
Channel 4 slot 1 (for primary CPU) |
43 |
BAT1 |
Battery socket |
44 |
PWR_DET |
PMBus header |
45 |
PCIE_1 |
PCI-E slot 1 (x16 slot/Proprietary/Running at x16) |
46 |
BIOS_RVCR1 |
BIOS recovery jumper |
47 |
SSB_ME1 |
ME Recovery jumper |
48 |
PASSWORD1 |
Clearing supervisor password jumper |
49 |
CLR_CMOS1 |
Clear CMOS jumper |
50 |
BIOS_WP1 |
BIOS Write Protect jumper |
51 |
FLASH_DP1 |
Flash descriptor security jumper |
52 |
BMC_FRB1 |
Force to Stop FRB Timer jumper |
- 7 -
Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures:
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.
- 8 - |
Hardware Installation |
1-2 |
Product Specifications |
||
|
|
|
|
|
CPU |
|
Support for Intel® Xeon® E5-2600 series processors in the LGA2011 package |
|
|
|
L3 cache varies with CPU |
|
|
|
Supports QuickPath Interconnect up to 8GT/s |
|
|
|
Enhanced Intel SpeedStep Technology (EIST) |
|
|
|
Support Intel Virtualization Technology (VT) |
|
Chipset |
|
Intel® C602 (Patsburg-A) Chipset |
|
Memory |
|
16 x 1.35V/1.5V DDR3 DIMM sockets supporting up to 128GB (UDIMM) and |
|
|
|
256GB (RDIMM) of system memory |
|
|
|
16 x 1.35V/1.5V DDR3 LRDIMM sockets supporting up to 512GB of system |
|
|
|
memory |
|
|
|
Four channel memory architecture |
|
|
|
Support for 800/1066/1333/1600 memory modules |
|
|
|
Support for ECC RDIMM/ UDIMM/ LRDIMM memory modules |
|
LAN |
|
Intel® I350 supports dual Gigabit ethernet LAN ports |
|
|
|
1 x Management LAN port |
|
Expansion Slots |
|
1 x PCI Express x16 slot, running at x16 (Gen3/PCIE_1/Proprietary slot) |
|
|
|
1 x PCI Express x8 slot, running at x8 (Gen3/PCIE_2/Proprietary slot |
|
|
|
|
|
Onboard |
|
ASPEED® AST2300 supports 16MB VRAM |
|
Graphics |
|
|
|
Storage Interface |
|
Intel® C602 controller |
|
(SATA) |
|
2 x SATA 6Gb/s connectors (SATA0/SATA1) |
|
|
|
4 x SATA 3Gb/s connectors (SATA2/SATA3/SATA4/SATA5) |
|
|
|
Support for Intel RSTe SATA RAID 0, RAID 1 |
|
USB |
|
Up to 4 USB 2.0 ports (2 on the back panel, 2 additional ports via the USB |
|
|
|
brackets connected to the internal USB headers) |
|
Internal |
|
2x9 pin 12V power connector |
|
Connectors |
|
2 x SATA 6Gb/s connectors |
|
|
|
4 x SATA 3Gb/s connectors |
|
|
|
1 x Front panel headers |
|
|
|
1 x SATA SGPIO header |
|
|
|
1 x Front panel VGA header |
|
|
|
1 x Serial port header |
|
|
|
1 x USB 2.0 header |
|
|
|
1 x RAID KEY header |
|
|
|
1 x IPMB connector |
Hardware Installation |
- 9 - |
Rear Panel I/O |
|
2 x USB 2.0 ports |
|
2 x 100/1000 RJ-45 LAN ports |
|
|
1 x 10/100 dedicated management LAN port |
|
|
1 x Serial port |
|
|
|
1 x VGA port |
|
1 x Power switch button |
|
|
1 x ID switch button |
|
|
1 x Reset button |
|
|
1 x BMC Reset button |
|
|
1 x NMI button |
|
|
1 x System status LED |
|
I/O Controller |
|
ASPEED® AST2300 BMC chip |
Hardware |
|
System voltage detection |
Monitor |
|
CPU/System temperature detection |
|
CPU/System fan speed detection |
|
|
CPU/System fan speed control |
|
|
|
* Whether the CPU/system fan speed control function is supported will depend on |
|
|
the CPU/system cooler you install. |
BIOS |
|
1 x 64 Mbits flash |
|
|
AMI BIOS |
Form Factor |
|
Propriety Form Factor; 6.5'' inch x 19.2" inch, 12 layers PCB |
* GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice.
- 10 - |
Hardware Installation |
1-3 Installing the CPU
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
•Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the standard requirements for the peripherals. If you wish to set the frequency beyond the standard specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Pin One Corner of the
CPU Socket
Alignment Key Alignment Key
LGA2011 CPU
Notch Notch
T r i a n g l e P i n O n e
Marking on the CPU
Notch Notch
- 11 - |
Hardware Installation |
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
•• Before installing the CPU, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the CPU.
•• To protect the socket contacts, do not remove the protective plastic cover unless the CPU is inserted into the CPU socket. Save the cover properly and replace it if the CPU is removed.
Lever A
Lever B
Step 1:
Push the lever closest to the "unlock" marking " " (below referred as lever A) down and away from
the socket to release it.
Step 3:
Gently press lever A to allow the load plate to rise. Open the load plate. (Note: DO NOT touch the socket contacts after the load plate is opened.)
Step 2:
Push the lever closest to the "lock" marking "" (below referred as lever B) down and away from the socket. Then lift the lever.
Step 4:
Hold the CPU with your thumb and index fingers. Align the CPU pin one marking (triangle) with the pin one corner of the CPU socket (or align the CPU notches with the socket alignment keys) and carefully insert the CPU into the socket vertically.
Lever A
Lever B
Step 5: |
|
Once the CPU is properly inserted, carefully replace |
|
the load plate. Then secure lever B under its |
|
retention tab. The protective plastic cover may pop |
|
off from the load plate during the process of engaging |
|
the lever. Remove the cover. Save the cover properly |
|
and always replace it when the CPU is not installed. |
|
Hardware Installation |
- 12 - |
Step 6:
Finally, secure lever A under its retention tab to complete the installation of the CPU.
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.
1-4-1 Four Channel Memory Configuration
This motherboard provides sixteen DDR3 memory sockets and supports Four Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.
Enabling Four Channel memory mode will be four times of the original memory bandwidth.
The four DDR3 memory sockets are divided into four channels each channel has two memory sockets as following:
Channel 1: DDR3_P0_A0/DDR3_P0_A1 (For pimary CPU); DDR3_P1_E0/DDR3_P1_E1 (For secondary CPU)
Channel 2: DDR3_P0_B0/DDR3_P0_B1 (For pimary CPU); DDR3_P1_F0/DDR3_P1_F1 (For secondary CPU)
Channel 3: DDR3_P0_C0/DDR3_P0_C1 (For pimary CPU); DDR3_P1_G0/ DDR3_P1_G1 (For secondary CPU)
Channel 4: DDR3_P0_D0/DDR3_P0_D1 (For pimary CPU); DDR3_P1_H0/DDR3_P1_H1 (For secondary CPU)
DDR3_P0_C0 |
DDR3_P1_E0 |
DDR3_P0_C1 |
DDR3_P1_E1 |
DDR3_P0_D0 |
DDR3_P1_F0 |
DDR3_P0_D1 |
DDR3_P1_F1 |
DDR3_P0_B1 |
DDR3_P1_H1 |
DDR3_P0_B0 |
DDR3_P1_H0 |
DDR3_P0_A1 |
DDR3_P1_G1 |
DDR3_P0_A0 |
DDR3_P1_G0 |
Due to CPU limitations, read the following guidelines before installing the memory in Four Channel mode.
1.Four Channel mode cannot be enabled if only one DDR3 memory module is installed.
2.When enabling Four Channel mode with two or four memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used for optimum performance.
Hardware Installation |
- 13 - |
1-4-2 |
Installing a Memory |
|
Before installing a memory module, make sure to turn off the computer and unplug the power |
|
cord from the power outlet to prevent damage to the memory module. |
|
Be sure to install DDR3 DIMMs on this motherboard. |
Installation Step: |
|
Step 1. |
Insert the DIMM memory module vertically into the DIMM slot, and push it down. |
Step 2. |
Close the plastic clip at both edges of the DIMM slots to lock the DIMM module. |
Note: |
For dual-channel operation, DIMMs must be installed in matched pairs. |
Step 3. |
Reverse the installation steps when you wish to remove the DIMM module. |
|
1 |
|
2 |
2
1-4-3 DIMM Population Table
|
1N or 2N |
DIMM1 |
DIMM0 |
|
|
|
1N or 2N |
DIMM1 |
DIMM0 |
|
1N |
Empty |
Single-Rank |
|
|
1N |
Empty |
Single-Rank |
|
|
|
|
|
|
|
|
|||
|
1N |
Empty |
Dual-Rank |
|
|
|
|
|
|
|
U-DIMM |
1N |
Empty |
Dual-Rank |
|||||
|
|
|
|
|
|
||||
R-DIMM |
1N |
Empty |
Quad-Rank |
|
|
|
|
|
|
|
2N |
Single-Rank |
Single-Rank |
||||||
|
|
|
|
|
|
|
|||
|
2N |
Single-Rank |
Single-Rank |
|
|
|
|
|
|
|
|
|
|
|
|
|
2N |
Dual-Rank |
Dual-Rank |
|
2N |
Dual-Rank |
Dual-Rank |
|
|
|
|
|
|
|
2N |
Quad-Rank |
Quad-Rank |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 14 - |
Hardware Installation |
1-5 Back Panel Connectors
Video Port
The video in port allows connect to video in, which can also apply to video loop thru function.
Serial Port
Connects to serial-based mouse or data processing devices.
Power Switch Button
Press the button to power on/off the system.
ID Switch Button
This button provide the selected unit idfication function.
BMC Reset Button
Press the button to reset the BMC.
NMI Button
The Non-Maskable Interrupt (NMI) button allows server generates a NMI to the processor if the multiplebit ECC errors occur, which effectively halt the server.
Status LED
The Status LED indicates the system health status. When the LED is solid on, check the following:
•Power module failure
•System fan failure
•Power supply voltage issue
•System temperature/voltage issue
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs.
KVM Server Management 10/100 LAN Port
The LAN port provides Internet connection with data transfer speeds of 10/100Mbps.
USB 2.0Port
The USB port supports the USB 2.0 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc.
Hardware Installation |
- 15 - |
|
|
|
|
|
|
|
|
|
|
Link |
|
|
|
|
Link/Activity LED: |
|||||
Speed LED |
|
|
|
|
|
Activity LED |
10/100 (MLAN) Speed LED: |
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
State |
Description |
|
|
State |
Description |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Green On |
100 Mbps data rate |
|
|
On |
Link between system and network or no |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Green Blink |
10 Mbps or 100 Mbps |
|
|
|
access |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
data rate |
|
|
Blinking |
Data transmission or receiving is occurring |
10/100 LAN Port |
|
|||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off |
10 Mbps data rate |
|
|
Off |
No data transmission or receiving is occurring |
Speed LED |
|
|
|
|
|
Link |
10/100/1000 (GbE) Speed LED: |
Link/Activity LED: |
||||||||||||
|
|
|
|
|
Activity LED |
|
|
|
|
|
||||||||||
|
|
|
|
|
State |
Description |
|
State |
Description |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Yellow On |
1 Gbps data rate |
On |
Link between system and network or no |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Yellow Blink |
Identify 1 Gbps data rate |
|
|
access |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Green On |
100 Mbps data rate |
|
Blinking |
Data transmission or receiving is occurring |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Green Blink |
Identify 100 Mbps data |
|
Off |
No data transmission or receiving is occurring |
|
10/100/1000 LAN Port |
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
rate |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off |
10 Mbps data rate |
|
|
|
•When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.
•When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.
Hardware Installation |
- 16 - |
1-6 |
Internal Connectors |
|
|||
20 |
|
19 |
|
|
|
21 |
|
18 |
|
|
|
22 |
|
17 |
|
|
|
6 |
|
16 13 |
14 |
|
|
7 |
|
|
|
|
1 |
|
|
|
|
|
|
|
12 |
|
|
|
15 |
|
|
|
|
|
|
|
|
|
|
|
10 |
|
11 |
|
|
|
|
|
5 |
3 |
9 4 |
8 |
2 |
|
|
||||
1) |
SSI_2X9P1 |
|
12) |
BMC_LED1 |
|
2) |
SSI_2X9P2 |
|
13) |
PWR_DET |
|
3) |
SATA0/1/2/3/4/5 |
14) |
BAT1 |
||
4) |
RAID_KEY1 |
|
15) |
ACK_SEL |
|
5) |
SATA_SGPIO |
|
16) |
BIOS_RVCR1 |
|
6) |
FP_VGA1 |
|
17) |
SSB_ME1 |
|
7) |
COM2 |
|
|
18) |
PASSWORD1 |
8) |
USB1 |
|
|
19) |
CLR_CMOS1 |
9) |
IPMB1 |
|
|
20) |
BIOS_WP1 |
10) |
F_PANEL |
|
21) |
FLASH_DP1 |
|
11) |
LAN_LED |
|
22) |
BMC_FRB |
Read the following guidelines before connecting external devices:
•First make sure your devices are compliant with the connectors you wish to connect.
•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
•After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
Hardware Installation |
- 17 - |
1/2) SSI_2X9P1/SSI_2X9P2 (2x9 12V Power Connectors)
With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation. The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected, the computer will not start.
•To meet expansion requirements, it is recommended that a power supply that can with stand high power consumption be used (1000W / 12V standby 2A or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable or unbootable system.
|
|
SSI_2X9P1 |
|
||
18 |
SSI_2X9P2 |
|
|||
|
10 |
|
|||
9 |
|
|
1 |
|
|
|
|
|
|
|
|
Pin No. |
|
Definition |
Pin No. |
|
Definition |
1 |
|
GND |
10 |
|
12VSB |
2 |
|
GND |
11 |
|
12V |
3 |
|
GND |
12 |
|
12V |
4 |
|
GND |
13 |
|
12V |
5 |
|
GND |
14 |
|
12V |
6 |
|
GND |
15 |
|
12V |
7 |
|
GND |
16 |
|
12V |
8 |
|
GND |
17 |
|
12V |
9 |
|
GND |
18 |
|
12V |
Hardware Installation |
- 18 - |
3)SATA0/SATA1 (SATA 6Gb/s Connectors) SATA2/SATA3/SATA4/SATA5 (SATA 3Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and 1.5Gb/s standard. Each SATA connector supports a single SATA device.
|
7 |
1 |
|
|
Pin No. |
Definition |
|
SATA4SATA2SATA0 |
1 |
GND |
|
2 |
TXP |
||
SATA5SATA3SATA1 |
|||
|
3 |
TXN |
|
|
4 |
GND |
|
|
5 |
RXN |
|
|
6 |
RXP |
|
|
7 |
GND |
• A RAID 0 or RAID 1 configuration requires at least two hard drives. If more than two hard drives are configured, the total number of hard drives must be an even number.
• A RAID 10 configuration requires four hard drives.
(Note) When a RAID configuration is built across the SATA 6Gb/s channels, the system performance of the RAID configuration may vary depends on the devices are connected.
4) RAID_KEY1 (RAID Selection Connector/Opional)
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
|
|
|||
Pin No. |
Definition |
|||
1 |
GND |
|||
2 |
SSB_SAS/SATA_RAID_KEY |
|||
3 |
GND |
- 19 - |
Hardware Installation |
5) SATA_SGPIO (SATA SGPIO Header)
1 |
|
|
|
|
|
|
|
2 |
|
|
|
||||||
Pin No. |
|
Definition |
||||||
1 |
|
|
|
SDIN |
||||
2 |
|
|
|
GND |
||||
3 |
|
|
|
SDOUT |
||||
4 |
|
|
|
SLOAD |
||||
5 |
|
|
|
SCLK |
||||
|
|
|
|
|
|
|
|
|
6)FP_VGA1 (Front VGA Header)
The Front VGA header provides switch function between front VGA and rear VGA. When the front VGA is enabled, the rear VGA function will be disabled.
1 2 |
Pin No. |
|
Definition |
|
|
||
|
1 |
|
VGA_FP_VS |
|
|
||
|
2 |
|
VGA_FP_HS |
|
|
||
|
3 |
|
VGA_FP_PWR |
|
|
||
11 12 |
4 |
|
VGA_FP_DDC_CLK |
||||
|
5 |
|
FP_N |
|
|
||
|
6 |
|
VGA_FP_DDC_DAT |
||||
|
7 |
|
VGA_FP_G |
|
|
||
|
8 |
|
GND |
|
|
||
|
9 |
|
VGA_FP_B |
|
|
||
|
10 |
|
GND |
|
|
||
|
11 |
|
VGA_FP_R |
|
|
||
|
12 |
|
No Pin |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Active Status |
Display |
|
|
|
FP_N |
|
H |
Rear VGA |
|
|
|
|
|
L |
Front VGA |
|
||
|
|
|
|
|
|
Hardware Installation |
- 20 - |
7) COM2 (Serial Port Header)
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional COM port cable, please contact the local dealer.
1 |
2 |
Pin No. |
Definition |
|
|
1 |
NDCDB_N |
|
|
2 |
NSINB |
|
|
3 |
NSOUTB |
9 |
10 |
4 |
NDTRB_N |
|
|
5 |
GND |
|
|
6 |
NDSRB_N |
|
|
7 |
NRTSB_N |
|
|
8 |
NCTSB_N |
|
|
9 |
NRIB_N |
|
|
10 |
No Pin |
8)USB1 (Front USB Header)
The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
|
|
Pin No. |
Definition |
9 |
1 |
1 |
Power (5V) |
10 |
2 |
2 |
Power (5V) |
|
|
3 |
USB DX- |
|
|
4 |
USB DY- |
|
|
5 |
USB DX+ |
|
|
6 |
USB DY+ |
|
|
7 |
GND |
|
|
8 |
GND |
|
|
9 |
No Pin |
|
|
10 |
NC |
- 21 - |
Hardware Installation |
10)F_PANEL (Front Panel Header)
Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and
negative pins before connecting the cables.
12 11
2 1
Pin No. Definition
1CTNR_PS_ON_N
2I2C_FCB_SCL
3PSU_PGD_PS
4I2C_FCB_SDA
5FCB_REQ_N
6BMC_LED_PWR_GRN_R_N
7BTN_FP_PER_N
8BMC_SYS_HLTH_LED_R_N
9ACK_N
10BMC_UID_LED_N
11GND
12BMC_UID_BUTTON_TTL_N
The front panel design may differ by chassis. A front panel module mainly consists of power switch, power LED, and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
11) LAN_LED (LAN1 port and LAN2 port active LED Header)
|
3 |
|
1 |
|
|
Pin No. |
Definition |
1 |
LED_NIC_LINK0_ACT_N |
2 |
P3V3_AUX |
3 |
LED_NIC_LINK1_ACT_N |
|
|
Hardware Installation |
- 22 - |
12) BMC_LED1 (BMC Firmware Readiness LED)
State |
Description |
On |
BMC firmware is initial |
Blinking |
BMC firmware is ready |
Off |
System is powered off |
13) PWR_DET (PMBus header)
|
|
Pin No. |
Definition |
|
1 |
5 |
1 |
SMB CLK |
|
2 |
SMB DATA |
|||
|
|
|||
|
|
3 |
SMB Alert |
|
|
|
4 |
GND |
|
|
|
5 |
3.3V Sense |
Hardware Installation |
- 23 - |
14)BAT1 (Battery)
The battery provides power to keep the values (such as BIOS configurations, date, and time information)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost.
•Always turn off your computer and unplug the power cord before replacing the battery.
•Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect model.
•Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain about the battery model.
•When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the battery (the positive side should face up).
•Used batteries must be handled in accordance with local environmental regulations.
15)ACK_SEL (4 Nodes System and Rack System switch Jumper)
1 |
1-2 |
Close: 4 Node System. |
|
||
1 |
2-3 |
Close: Rack System. |
|
Hardware Installation |
- 24 - |
16) BIOS_RVCR1 (BIOS Recovery Jumper)
1 1-2 Close: Normal operation. (Default setting)
1 2-3 Close: BIOS recovery mode.
17) SSB_ME1 (ME enable/disable Jumper)
1 |
1-2 Close: Normal operation. (Default setting) |
1 |
2-3 Close: Disable ME function. |
Hardware Installation |
- 25 - |
