G292-Z20
G292-Z22
HPC Server - 2U UP 8 x Gen4 GPU Server ( Microchip solution)
HPC Server - 2U UP 8 x Gen3 GPU Server
User Manual
Rev. 1.0
Copyright
© 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without
prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentation:
User Manual: detailed information & steps about the installation, conguration and use of this
product (e.g. motherboard, server barebones), covering hardware and BIOS.
User Guide: detailed information about the installation & use of an add-on hardware or
software component (e.g. BMC rmware, rail-kit) compatible with this product.
Quick Installation Guide: a short guide with visual diagrams that you can reference easily for
installation purposes of this product (e.g. motherboard, server barebones).
Please see the support section of the online product page to check the current availability of these
documents.
For More Information
For related product specications, the latest rmware and software, and other information please visit our website at
http://www.gigabyte.com
For GIGABYTE distributors and resellers, additional sales & marketing materials are available from our reseller
portal: http://reseller.b2b.gigabyte.com
For further technical assistance, please contact your GIGABYTE representative or visit
https://esupport.gigabyte.com/ to create a new support ticket
For any general sales or marketing enquiries, you may also message GIGABYTE server directly by email:
server.grp@gigabyte.com
Conventions
The following conventions are used in this user's guide:
NOTE!
Gives bits and pieces of additional
information related to the current topic.
CAUTION!
Gives precautionary measures to
avoid possible hardware or software problems.
WARNING!
Alerts you to any damage that might
result from doing or not doing specic actions.
Server Warnings and Cautions
Before installing a server, be sure that you understand the following warnings and cautions.
WARNING!
To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
• Unplug all the power cords from the power supplies to disconnect power to the equipment.
• Shock Hazard! Disconnect all power supply cords before servicing.
• Do not route the power cord where it can be walked on or pinched by items placed against it.
Pay particular attention to the plug, electrical outlet, and the point where the cord extends from
the server.
WARNING!
To reduce the risk of personal injury from hot surfaces, allow the drives
and the internal system components to cool before touching them.
WARNING!
This server is equipped with high speed fans. Keep away from hazardous
moving fan blades during servicing.
WARNING!
This equipment is not suitable for use in locations where children are
likely to be present.
WARNING!
This equipment is intended to be used in Restrict Access Location. The
access can only be gained by Skilled person.
Only authorized by well trained professional person can access the
restrict access location.
CAUTION!
• Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airow and improper cooling that can
lead to thermal damage.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type recommended by the manufacturer.
• Dispose of used batteries according to the manufacturer’s instructions.
Electrostatic Discharge (ESD)
CAUTION!
ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU
PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE,
PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP ATTACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER
WHEN HANDLING PARTS.
Always handle boards carefully. They can be extremely sensitive to ESD. Hold boards only by
their edges without any component and pin touching. After removing a board from its protective
wrapper or from the system, place the board component side up on a grounded, static free surface. Use a conductive foam pad if available but not the board wrapper. Do not slide board over
any surface.
System power on/off: To remove power from system, you must remove the system from
rack. Make sure the system is removed from the rack before opening the chassis, adding, or
removing any non hot-plug components.
Hazardous conditions, devices and cables: Hazardous electrical conditions may be
present on power, telephone, and communication cables. Turn off the system and disconnect the
cables attached to the system before servicing it. Otherwise, personal injury or equipment damage can result.
Electrostatic discharge (ESD) and ESD protection: ESD can damage drives,
boards, and other parts. We recommend that you perform all procedures in this chapter only at
an ESD workstation. If one is not available, provide some ESD protection by wearing an antistatic
wrist strap attached to chassis ground (any unpainted metal surface on the server) when handling
parts.
ESD and handling boards: Always handle boards carefully. They can be extremely
sensitive to electrostatic discharge (ESD). Hold boards only by their edges. After removing a
board from its protective wrapper or from the system, place the board component side up on a
grounded, static free surface. Use a conductive foam pad if available but not the board wrapper.
Do not slide board over any surface.
Installing or removing jumpers: A jumper is a small plastic encased conductor that slips
over two jumper pins. Some jumpers have a small tab on top that can be gripped with ngertips
or with a pair of ne needle nosed pliers. If the jumpers do not have such a tab, take care when
using needle nosed pliers to remove or install a jumper; grip the narrow sides of the jumper with
the pliers, never the wide sides. Gripping the wide sides can dam-age the contacts inside the
jumper, causing intermittent problems with the function con-trolled by that jumper. Take care to
grip with, but not squeeze, the pliers or other tool used to remove a jumper, or the pins on the
board may bend or break.
CAUTION!
Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery
only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Table of Contents
Chapter 1 Hardware Installation ...................................................................................11
1-1 Installation Precautions .................................................................................. 11
1-2 Product Specications .................................................................................... 12
1-3 System Block Diagram ................................................................................... 16
1-3-1 G292-Z20 ...............................................................................................................16
1-3-2 G292-Z22 ...............................................................................................................16
Chapter 2 System Appearance ..................................................................................... 17
2-1 Front View ...................................................................................................... 17
2-2 Rear View ....................................................................................................... 18
2-3 Front Panel Buttons and LEDs ....................................................................... 19
2-4 Rear System LAN LEDs ................................................................................. 20
2-5 Power Supply Unit (PSU) LED ....................................................................... 21
2-6 Hard Disk Drive LEDs .................................................................................... 22
Chapter 3 System Hardware Installation ......................................................................23
3-1 Removing Chassis Cover ............................................................................... 24
3-2 Removing and Installing the Fan Duct ........................................................... 25
3-3 Installing the CPU and Heat Sink ................................................................... 26
3-4 Installing the Memory ..................................................................................... 30
3-4-1 Eight Channel Memory Conguration .....................................................................30
3-4-2 Installing a Memory ...............................................................................................31
3-4-3 Processor and Memory Module Matrix Table .........................................................31
3-4-4 Memory Population Table .......................................................................................32
3-5 Installing the GPU Card ................................................................................. 33
3-6 Installing a PCI Express Card ........................................................................ 38
3-7 Installing the Hard Disk Drive ......................................................................... 41
3-8 Replacing the FAN Assembly ......................................................................... 42
3-9 Replacing the Power Supply .......................................................................... 46
3-10 Cable Routing ................................................................................................47
Chapter 4 Motherboard Components ...........................................................................53

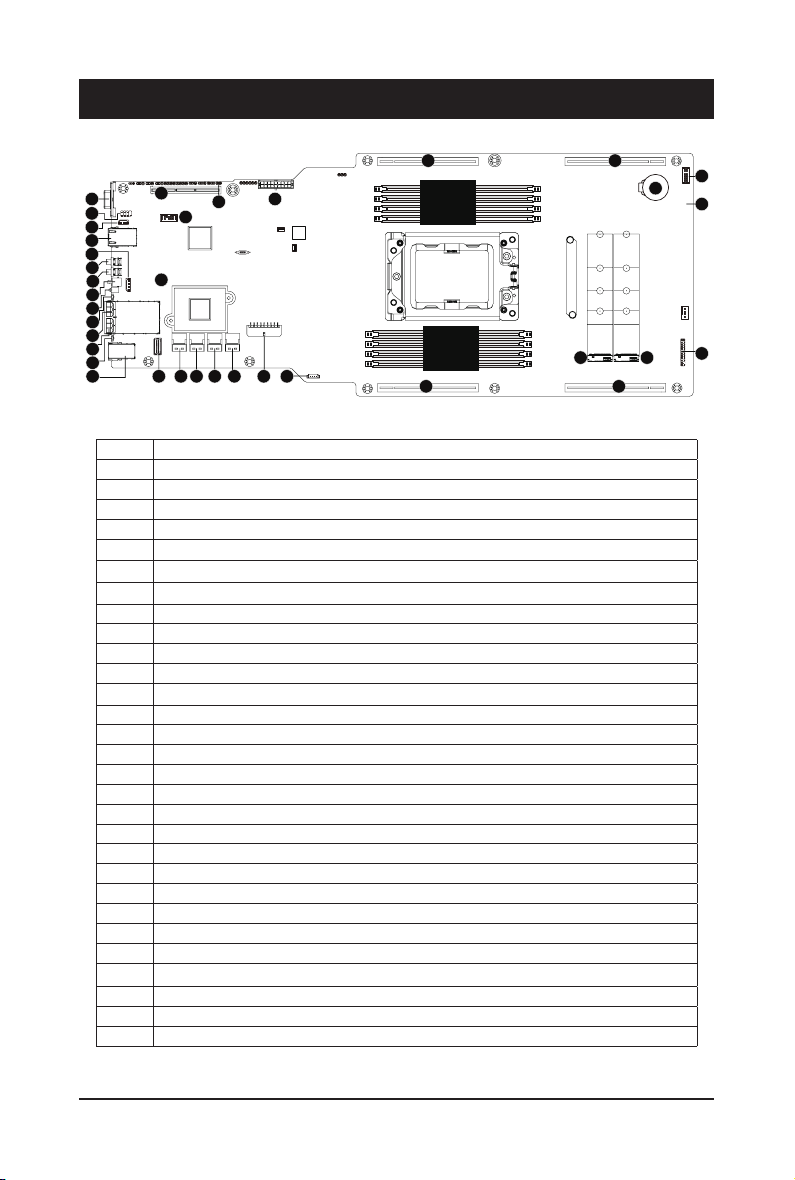

4-1 Motherboard Components ............................................................................. 53
4-2 Jumper Setting .............................................................................................. 55
Chapter 5 BIOS Setup ..................................................................................................57
5-1 The Main Menu .............................................................................................. 59
5-2 Advanced Menu ............................................................................................. 61
- 7 -
5-2-1 Trusted Computing .................................................................................................63
5-2-2 PSP Firmware Versions ..........................................................................................64
5-2-3 Legacy Video Select ...............................................................................................65
5-2-4 AST2500 Super IO Conguration ...........................................................................66
5-2-5 S5 RTC Wake Settings ...........................................................................................69
5-2-6 Serial Port Console Redirection .............................................................................70
5-2-7 CPU Conguration ..................................................................................................74
5-2-8 PCI Subsystem Settings .........................................................................................75
5-2-9 USB Conguration ..................................................................................................77
5-2-10 Network Stack Conguration ..................................................................................79
5-2-11 NVMe Conguration ...............................................................................................80
5-2-12 SATA Conguration.................................................................................................81
5-2-13 UEFI POST LOGO Conguration ...........................................................................82
5-2-14 AMD Mem Conguration Status .............................................................................83
5-2-15 Tls Auth Conguration ............................................................................................84
5-2-16 Intel(R) Ethernet Controller XI350 ..........................................................................85
5-2-17 VLAN Conguration ................................................................................................87
5-2-18 MAC IPv4 Network Conguration ...........................................................................88
5-2-19 MAC IPv6 Network Conguration ...........................................................................89
5-3 AMD CBS Menu ............................................................................................. 90
5-3-1 CPU Common Options ...........................................................................................91
5-3-2 DF Common Options ..............................................................................................96
5-3-3 UMC Common Options ........................................................................................101
5-3-4 NBIO Common Options ........................................................................................11 5
5-3-5 FCH Common Options .........................................................................................121
5-3-6 NTB Common Options .........................................................................................125
5-3-7 SOC Miscellaneous Control .................................................................................126
5-3-8 Workload Tuning ...................................................................................................127
5-4 AMD PBS Menu ........................................................................................... 128
5-4-1 RAS ......................................................................................................................129
5-5 Chipset Setup Menu ..................................................................................... 131
5-5-1 North Bridge .........................................................................................................132
5-5-2 Fabric Resource ...................................................................................................133
5-6 Server Management Menu ........................................................................... 134
5-6-1 System Event Log ................................................................................................136
5-6-2 View FRU Information ..........................................................................................137
5-6-3 BMC Network Conguration .................................................................................138
5-6-4 IPv6 BMC Network Conguration .........................................................................139
5-7 Security Menu .............................................................................................. 140
5-7-1 Secure Boot .........................................................................................................141
5-8 Boot Menu .................................................................................................... 143
- 8 -
5-8-1 UEFI NETWORK Drive BBS Priorities ................................................................145
5-8-2 UEFI Application Boot Priorities
................................................................. 146
5-9 Save & Exit Menu ......................................................................................... 147
5-10 BIOS POST Beep code (AMI standard) ....................................................... 148
5-10-1 PEI Beep Codes ...................................................................................................148
5-10-2 DXE Beep Codes .................................................................................................148
- 9 -
- 10 -
Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard/system contain numerous delicate electronic circuits and components which
can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully
read the service guide and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist
strap, keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power
supply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your
hardware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to
system components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
.
- 11 - Hardware Installation
1-2 Product Specications
NOTE:
We reserve the right to make any changes to the product specications and product-related information without prior notice.
CPU AMD EPYC™ 7003 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
Compatible with AMD EPYC™ 7002 series processor family
Socket
Socket SP3
Chipset
Memory 8 x DIMM slots
LAN 2 x SFP+ 10Gb/s LAN ports (Mellanox® ConnectX-4 Lx controller)
Video Integrated in Aspeed® AST2500
System on Chip
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz
Pin-to-Pin compatible with Mellanox® 25Gb/s LAN controller ( as an option)
1 x 10/100/1000 management LAN
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Hardware Installation - 12 -
Storage 8 x 2.5" hot-swappable HDD/SSD bays
2 x amber HDD trays compatible with Gen3 U.2 devices
6 x blue HDD trays compatible with SATA/SAS devices only
SAS card is required for SAS devices support
Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
1 x M.2 slot:
M-key
PCIe Gen3 x4
Supports NGFF-2242/2260/2280/22110 cards
1 x M.2 slot:
M-key
PCIe Gen3 x2
Supports NGFF-2242/2260/2280/22110 cards
SAS Supported via add-on SAS Card
RAID Depends on SAS Card
Expansion Slot
(G292-Z20)
• 8 x PCIe x16 slots (Gen4 x16 bus) for GPUs (Microchip solution)
• 2 x PCIe x16 (Gen4 x16 bus) Half-length low-prole slots
1 x M.2 slot:
• M-key
• PCIe Gen3 x4
• Supports NGFF-2242/2260/2280/22110 cards
1 x M.2 slot:
• M-key
• PCIe Gen3 x2
• Supports NGFF-2242/2260/2280/22110 cards
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
- 13 - Hardware Installation
Expansion Slot
(G292-Z22)
Internal I/O 1 x TPM header
Front I/O 1 x Power button with LED
Rear I/O 2 x USB 3.0
Backplane I/O 6 x SAS/SATA and 2 x NVMe ports
TPM 1 x TPM header with SPI interface
• 8 x PCIe x16 slots (Gen3 x16 bus) for GPU cards
• 2 x PCIe x16 (Gen4 x16 bus) Low-prole half-length slots
1 x M.2 slot:
• M-key
• PCIe Gen3 x4
• Supports NGFF-2242/2260/2280/22110 cards
1 x M.2 slot:
• M-key
• PCIe Gen3 x4
• Supports NGFF-2242/2260/2280/22110 cards
- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H)
- System is validated for population with a uniform GPU model
- Support is not provided for mixed GPU populations
- For the latest GPU cards QVL, please contact your GIGABYTE representative
4 x SlimSAS connectors
2 x M.2 slots
1 x Buzzer
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button
1 x VGA
2 x SFP+
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
Backplane P/N: 9CBPG083NR-00
Bandwidth: SATA 6Gb/s, SAS 12Gb/s and PCIe x4
TPM2.0 kit: CTM010
Hardware Installation - 14 -
Power Supply
System
Management
Operating
Properties
System
Dimension
2+0 2200W 80 PLUS Platinum hot-swappable power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Output:
Max 120 0W/ 10 0 -127 V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200 -240V
+12 .12 V/ 178.1A
+12Vsb/ 3.5A
NOTE: The system power supply requires C19 type power cord.
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
Dashboard
JAVA Based Serial Over LAN
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Prole
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Conguration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings
Operating temperature: 10°C to 35°C
Non-operating temperature: -40°C to 60°C
Operating humidity: 8 - 80% (non-condensing)
Non-operating humidity: 20% - 95% (non-condensing)
2U
448 (W) x 87.5 (H) x 800 (D) (mm)
- 15 - Hardware Installation
1-3 System Block Diagram
1-3 -1 G292-Z20
8-bay 2.5” SATA with 2-bay 2.5” Gen3 U.2
8-Channel DDR4, 8 x DIMMs
Speed up to 3200 MHz
NCSI
MAC
ASPEED
AST2500
BMC
PCIe3.0
x
PCIe3.0
USB2.0 x2
PCIe3.0 x1
LPC
2 x USB 3.0
2 x 10GbE
SFP+ LAN
MLAN
VGA
1-3-2 G292-Z22
ASM1042
Mellanox
ConnectX-4 Lx
10/100/1G
PHY(1ch)
1
x
8 x SATAIII
8
PCIe4.0 x8
AMD MILAN
“Zen3” Core
Socket SP3
TPM
Riser Card
PCIe switch
Microsemi
PCIe4.0 x16
PCIe switch
Microsemi
PCIe4.0 x16
PCIe switch
Microsemi
PCIe4.0 x16
PCIe switch
Microsemi
PCIe4.0 x16
PCIe4.0 x16
PCIe4.0
x
16
PCIe3.0 x4
PCIe3.0 x2
M.2
M.2
2 x PCIe x16 slots (GPU)
Riser Card
2 x PCIe x16 slots (GPU)
Riser Card
2 x PCIe x16 slots (GPU)
Riser Card
2 x PCIe x16 slots (GPU)
(Rear side)
PCIe x16 slot
(Rear side)
PCIe x16 slot
8-bay 2.5” SATA with 2-bay 2.5” Gen3 U.2
8 x SATAIII
2 x USB 3.0
2 x 10GbE
SFP+ LAN
MLAN
VGA
8-Channel DDR4, 8 x DIMMs
Speed up to 3200 MHz
ASM1042
Mellanox
ConnectX-4 Lx
10/100/1G
PHY(1ch)
NCSI
MAC
ASPEED
AST2500
BMC
PCIe3.0
PCIe3.0
x
1
x
USB2.0 x2
PCIe3.0 x1
LPC
AMD MILAN
“Zen3” Core
Socket SP3
8
PCIe4.0 x8
TPM
Hardware Installation - 16 -
Riser Card
PCIe3.0 x16
PCIe3.0 x16
PCIe3.0 x16
PCIe3.0 x16
PCIe4.0 x16
PCIe4.0
PCIe3.0 x4
PCIe3.0 x2
PLX
PLX
PLX
PLX
x
16
M.2
M.2
2 x PCIe x16 slots (GPU)
Riser Card
2 x PCIe x16 slots (GPU)
Riser Card
2 x PCIe x16 slots (GPU)
Riser Card
2 x PCIe x16 slots (GPU)
(Rear side)
PCIe x16 slot
(Rear side)
PCIe x16 slot
Chapter 2 System Appearance
2-1 Front View
1
2 3
HDD #0
HDD #1
HDD #2
HDD #3
HDD #4
HDD #5
HDD #6
HDD #7
No.
Description
1.
Front Panel LED and Buttons
2.
GPU Fan (GPU78_ FAN)
3.
GPU Fan (GPU56_FAN)
NOTE! The Orange Latch Supports NVMe
• Go to the section 2-3 Front Panel Buttons and LEDs for detail description of function
LEDs.
- 17 - System Appearance
2-2 Rear View
2 3 54 6 7 8
9
10
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
1
PSU1 PSU2
14
13
Description
System Fan (GPU12E_FAN)
VGA Port
PCIe Card Slot
Power Button with LED
ID Button
Reset Button
System Status LED
PCIe Card Slot
LAN Port #1/#2 Active/Link LED
USB 3.0 Port x 2
System Fan (GPU56E_FAN)
10G LAN Port x 2
NMI Button
Server Management LAN Port
11
12
- 18 - System Appearance
2-3 Front Panel Buttons and LEDs
1
4
2
5
3
No.
Name Color Status Description
Indicates a link between the system and the network or
no access.
Indicates data trasmission or receiving is occuring.
Indicates no data transmission or receiving is occuring.
On Indicates locating the HDD.
Blink Indicates accessing the HDD.
Blink Indicates HDD rebuilding.
Indicates system is not powered on or in ACPI S5 slate
(power off) or system is in ACPI S4 slate (hibernation mode).
1/2.
3.
4.
5.
LAN1/2
Active/
Link LED
HDD Status
LED
Power Button
with LED
ID Button
with LED
Green On
Green Blink
N/A Off
Green
Amber On Indicates HDD error.
Green /
Amber
N/A Off Indicates no HDD access or no HDD error.
Green On Indicates the system is powered on.
Green Blink System is in ACPI S1 slate (sleep mode).
N/A Off
-- -- Press this button to activate system identication.
System Appearance - 19 -
2-4 Rear System LAN LEDs
21
3 4
3 4
No. Name Color Status Description
Yellow On 1 Gbps data rate
Green On 100 Mbps data rate
N/A Off 10 Mbps data rate
Green
N/A Off No data transmission or reception is occurring.
Yellow On 10 Gbps data rate
Green On 1000 Mbps data rate
N/A Off 100 Mbps data rate
Green
N/A Off No data transmission or reception is occurring.
On Link between system and network or no access
Blink Data transmission or reception is occurring.
On Link between system and network or no access
Blink Data transmission or reception is occurring.
1.
2.
3.
4.
1GbE Speed
LED
1GbE Link /
Activity LED
10GbE
Speed LED
10GbE Link /
Activity LED
System Appearance - 20 -
2-5 Power Supply Unit (PSU) LED
Color Status Description
Off -- No AC power to all power supplies
Green
Green
Amber On
Amber
Blinking
0.5Hz
Blinking
2Hz
Blinking
0.5Hz
AC present / Only +12VSB on (PS off) or PSU in Smart Standby Mode
Power supply rmware update
AC cord unplugged / AC power lost but a second power supply in
parallel still having AC input power
Power supply critical events that cause a shutdown, such as: OTP,
OCP, UVP, OVP and fan failure
Power supply warning events where the power supply continues to
operate, such as: high temperature, high power, high current, slot fan
PSU LED
- 21 - System Appearance
2-6 Hard Disk Drive LEDs
LED#1
RAID SKU
Disk LED
(LED on
No RAID configuration
(via HBA)
RAID configuration
(via HW RAID Card or
SW RAID Card)
Back Panel)
Removed HDD Slot
(LED on Back Panel)
Disk LED
Removed HDD Slot
Locate
LED1
Green ON(*1)
Amber OFF
ON(*1)Green
OFFAmber
ON
Green
OFF
Amber
ON(*1)
Green
Amber
OFF
LED#2 (Reserved)
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON
Rebuilding
(Low Speed: 2 Hz)
(*3)
(*3)
HDD Fault
HDD
Access
BLINK (*2)
OFF
--
--
BLINK (*2)
OFF
--
--
HDD Present
(No Access)
OFF
OFF
--
--
OFF
OFF
--
--
HDD Present No HDD
ON
OFF
NOTE:
LED 2
Green
*1: Depends on HBA/Utility Spec.
*2: Blink cycle depends on HDD's activity signal.
*3: If HDD is pulled out during rebuilding, the disk status of this HDD is regarded as faulty.
System Appearance - 22 -
Chapter 3 System Hardware Installation
Pre-installation Instructions
Computer components and electronic circuit boards can be damaged electrostatic discharge.
Working on computers that are still connected to a power supply can be extremely dangerous.
Follow the simple guidelines below to avoid damage to your computer or injury to yourself.
• Always disconnect the computer from the power outlet whenever you are working inside the
computer case.
• If possible, wear a grounded wrist strap when you are working inside the computer case.
Alternatively, discharge any static electricity by touching the bare metal system of the computer
case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the components on the board
unless it is necessary to do so. Do not ex or stress the circuit board.
• Leave all components inside the static-proof packaging until you are ready to use the component
for the installation.
- 23 - System Hardware Installation
3-1 Removing Chassis Cover
Before you remove or install the system cover
• Make sure the system is not turned on or connected to AC power.
Follow these instructions to remove the system cover:
1. Remove the eight screws securing the cover.
2. Slide the cover towards the rear and remove the cover in the direction of the arrow.
System Hardware Installation - 24 -
3-2 Removing and Installing the Fan Duct
Follow these instructions to remove/install the fan duct:
1. Lift up to remove the fan duct
2. To install the fan duct, align the tabs at the front of the fan duct with the slots in the system fan
compartment as shown in the image below, and then push down the fan duct into chassis until its
rmly seats
- 25 - System Hardware Installation
3-3 Installing the CPU and Heat Sink
Read the following guidelines before you begin to install the heat Sink:
Always turn off the computer and unplug the power cord from the power outlet before installing the
heat sink to prevent hardware damage.
Unplug all cables from the power outlets.
Disconnect all telecommunication cables from their ports.
Place the system unit on a at and stable surface.
Open the system according to the instructions.
WARNING!
Failure to turn off the server before you start installing components may cause serious damage. Do
not attempt the procedures described in the following sections unless you are a qualied service
technician.
Follow these instructions to install the heatsink:
1. Loosen the four captive screws securing the heat sink in place in reverse the order (4g3g2g1).
2. Lift and remove the heatsink from the system.
3. To install the heatsink, reverse steps 1-2 while ensuring that you tighten the captive screws in
sequential order (1g2g3g4) as seen in the image below.
1
4
2
3
System Hardware Installation - 26 -
1
2
3
4
2
1
- 27 - System Hardware Installation
Follow these instructions to install the CPU:
External cap
1. Align and install the processor on the carrier, making sure to line up the triangle markers on the
corner of the CPU to the triangle mark on the corner of the CPU carrier.
2. Slide the carrier assembly into the channels of the carrier bracket
3. Close the carrier bracket so that it rmly latches on to the CPU socket.
4. Close the CPU socket cover.
5. Tighten and secure the CPU socket cover screws in the following order (3g2g1).
NOTE: When removing the CPU socket cover, loosen the screws in reverse order (1g2g3).
NOTE: Apply thermal compound evenly on the top of the CPU. Remove the protective cover from
the underside of the heat sink.
6. Align and place the heatsink onto the top of the CPU socket.
7. To secure the heatsink, tighten the four screws to the CPU socket.
8. Repeat steps 1-7 for the second CPU and heatsink.
9. To remove the heatsinks and CPUs, follow steps 1-7 in reverse order.
1
3
2
1
2
3
CPU
6
4
5
System Hardware Installation - 28 -
7
4
2
2
3
3
1
9
1
8
• When installing the heat sink over the CPU, use T30-Lobe driver to tighten the 4 captive nuts in
sequential order (1g2g3g4).
• The screw tightening torque: 8 ± 0.5kgf-cm (17.0± 1.0 lbf-in)
- 29 - System Hardware Installation
3-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
3- 4 -1 Eight Channel Memory Conguration
This motherboard provides 16 DDR4 memory sockets and supports Eight Channel Technology. After the
memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.
Enabling Four Channel memory mode will be four times of the original memory bandwidth.
DIMM_P0_H0
DIMM_P0_G0
DIMM_P0_F0
DIMM_P0_E0
21
CPU
DIMM_P0_A0
DIMM_P0_B0
DIMM_P0_C0
DIMM_P0_D0
System Hardware Installation - 30 -
3-4-2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on this motherboard.
Follow these instructions to install the Memory:
1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
2
1
2
3-4-3 Processor and Memory Module Matrix Table
Processor and Memory Module Matrix Table
CPU#
Channel A/I Channel B/J Channel C/K Channel D/L Channel E/M Channel F/N Channel G/O Channel H/P
8 DIMMs
CPU0 A1 B1 C1 D1 E1 F1 G1 H1
16 DIMMs
CPU0 A1A0 B1B0 C1C0 D1D0 E1E0 F1F0 G1G0 H1H0
16 DIMMs
CPU0 A1 B1 C1 D1 E1 F1 G1 H1
CPU1 I1 J1 K1 L1 M1 N1 O1 P1
32 DIMMs
CPU0 A1 B1 C1 D1 E1 F1 G1 H1A0 B0 C0 D0 E0 F0 G0 H0
CPU1 I1 J1 K1 L1 M1 N1 O1 P1I0 J0 K0 L0 M0 N0 O0 P0
- 31 - System Hardware Installation
3-4-4 Memory Population Table
• When only one DIMM is used, it must be populated in memory slot DIMM1.
EPYC Memory Speed based on DIMM Population (One DIMM per Channel)
DIMM
Typ e
RDIMM
LRDIMM
DIMM Population
DIMM 0
1R (1 Rank) 3200
2R or 2DR (2 Ranks) 3200
4DR (4 Ranks) 3200
2S2R (4 Ranks) 3200
2S4R (8 Ranks) 3200
Max EPYC 7003
DDR Frequency (MHz)
EPYC Memory Speed based on DIMM Population (Two DIMM per Channel)
DIMM
Typ e
RDIMM
LRDIMM
DIMM Population
DIMM 0 DIMM 1
-- 1R 3200
1R 1R 2933
-- 2R or 2DR 3200
1R 2R or 2DR 2933
2R or 2DR 2R or 2DR 2933
-- 4DR 3200
4DR 4DR 2933
-- 2S2R (4 Ranks) 3200
-- 2S4R (8 Ranks) 3200
2S2R (4 Ranks) 2S2R (4 Ranks) 2933
Max EPYC 7003
DDR Frequency (MHz)
System Hardware Installation - 32 -
3-5 Installing the GPU Card
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the
system is powered-down and all power sources have been disconnected from the server prior to
installing a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
• The PCI riser assembly does not include a riser card or any cabling as standard. To install a PCI
card, a riser card must be installed.
For GPU1/GPU2/GPU7/GPU8
Follow these instructions to install the GPU card:
1. [For GPU7/GPU8] Loosen and remove the two screws securing the PCI cage at the top of the system.
[For GPU1/GPU2] Loosen and remove the single screw at the top of the system and the two screws
at the rear of the system securing the PCI cage.
2. Pull the two plastic handles to lift up the PCI cage from the system.
3. Insert the card into the selected slot. Make sure that the card is properly seated.
4. Secure the GPU cards in place with two screws.
Top: GPU1 (PCIE_1_PCIE_1)
Top: GPU1 (PCIE_1_PCIE_1)
Boom: GPU2 (PCIE_1_PCIE_2)
Boom: GPU2 (PCIE_1_PCIE_2)
FRONTREAR FRONTREAR
Top: GPU7 (PCIE_4_PCIE_1)
Top: GPU7 (PCIE_4_PCIE_1)
Boom: : GPU8 (PCIE_4_PCIE_2)
Boom: : GPU8 (PCIE_4_PCIE_2)
- 33 - System Hardware Installation
(For GPU7/GPU8)
2
(For GPU1/GPU2)
1
1
Top: GPU1 (PCIE_1_PCIE_1)
Boom: GPU2 (PCIE_1_PCIE_2)
1
2
FRONTREAR FRONTREAR
System Hardware Installation - 34 -
Top: GPU7 (PCIE_4_PCIE_1)
Boom: : GPU8 (PCIE_4_PCIE_2)
1
2
2
4
3
- 35 - System Hardware Installation
For GPU3/GPU4/GPU5/GPU6
Follow these instructions to install the GPU card:
1. [For GPU5/GPU6] Loosen and remove the two screws securing the PCI cage at the top of the
system.
[For GPU2/GPU3] Loosen and remove the single screw at the top of the system and the two screws
at the rear of the system securing the PCI cage.
Pull the two plastic handles to lift up the PCI cage from the system.
2. Insert the card into the selected slot. Make sure that the card is properly seated.
3. Secure the GPU cards in place with two screws.
Top: GPU4 (PCIE_3_PCIE_2)
Boom: GPU3 (PCIE_3_PCIE_1)
Top: GPU6 (PCIE_2_PCIE_2)
Top: GPU6 (PCIE_2_PCIE_2)
Boom: GPU5 (PCIE_2_PCIE_1)
Boom: GPU5 (PCIE_2_PCIE_1)
Top: GPU1 (PCIE_1_PCIE_1)
Boom: GPU2 (PCIE_1_PCIE_2)
FRONTREAR FRONTREAR
1
System Hardware Installation - 36 -
FRONTREAR FRONTREAR
Top: GPU7 (PCIE_4_PCIE_1)
Boom: : GPU8 (PCIE_4_PCIE_2)
(For GPU3/GPU4)
1
2
1
2
1
2
2
4
3
- 37 - System Hardware Installation
3-6 Installing a PCI Express Card
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
Follow these instructions to install a PCI Express x8 card on right side of the
system:
1. Loosen and remove the two screws securing the PCI Express card bracket on the right side of the
system.
2. Remove the PCIe card bracket from the system.
3. Install the PCIe card into the bracket.
4. Secure the PCIe card to the bracket with one screw.
5. Install the PCIe card bracket with card back into the system, ensure that the connector on the
bracket is securely installed into the connector on the motherboard as shown.
6. Secure the PCIe card bracket with card to the system with two (2) screws.
1
System Hardware Installation - 38 -
1
2
4
5
3
4
Follow these instructions to install a PCI Express x16 card on left side of the
system:
1. Loosen the thumbnail screw securing the PCI Express card bracket on the left side of the system.
2. Remove the PCIe card bracket from the system.
3. Install the PCIe card into the bracket.
4. Secure the PCIe card to the bracket with one screw.
5. Install the PCIe card bracket with card back into the system, ensure that the connector on the
bracket is securely installed into the connector on the motherboard as shown.
6. Secure the PCIe card bracket with card to the system using the thumbnail screw.
1
2
4
5
3
4
- 39 - System Hardware Installation
IMPORTANT
If you are installing an add-on card and want to support NVMe hard drives, the OCP switch located
near the proprietary PCIe x8 mezzanine connector at the rear of the system (#37 in the 4-1
Motherboard Components section) must be set to off (labeled 1), as seen in the image below.
Once the OCP switch is set to off, the proprietary PCIe x8 mezzanine connector's functionality will
be disabled, and the Slimline 4i connectors for NVMe storage (#15 & #16 in the 4-1 Motherboard
Components section) will be enabled.
21
System Hardware Installation - 40 -
3-7 Installing the Hard Disk Drive
Read the following guidelines before you begin to install the Hard disk drive:
• Take note of the drive tray orientation before sliding it out.
• The tray will not t back into the bay if inserted incorrectly.
• Make sure that the HDD is connected to the HDD connector on the backplane.
Follow these instructions to install a 2.5" hard disk drive:
1. Press the release button.
2. Extend the locking lever.
3. Pull the locking lever to remove the HDD tray.
4. Slide the hard disk drive into the blank HDD tray.
5. Secure the hard drive to the tray with four (4) screws as shown. Do not over tighten the screws.
Slide the hard drive tray into the bay until it locks in place.
CAUTION!
We strongly recommend using enterprise level hard disk drives in the Gigabyte server system. For
more information of recommended HDDs, please visit the Gigabyte website:
https://www.gigabyte.com and search for the specic product QVL from Support & Downloads.
1
2
3
4
5
- 41 - System Hardware Installation
3-8 Replacing the FAN Assembly
CAUTION!
Before you remove or install the system fans follow these steps:
• Make sure the system is not turned on or connected to the AC power..
• Disconnect all necessary cable connections. Failure to observe these warnings could result in
personal injury or damage to the equipment.
GPU56E_FAN
GPU56_FAN
GPU78_FAN
SYS_FAN1
SYS_FAN2
GPU34_FAN
GPU12_FAN
Follow these instructions to replace the fan assembly:
[For GPU12_FAN/GPU24_FAN/GPU56_FAN/GPU78_FAN]
1. Disconnect the fan cable and then lift up the fan assembly from the chassis.
2. Reverse the previous steps to install the replacement fan assembly.
1
1
GPU12E_FAN
System Hardware Installation - 42 -
Airflow
2
direction
Airflow
2
direction
[For SYS_FAN1/SYS_FAN2]
1. Disconnect the fan cable and then lift up the fan assembly from the chassis.
2. Reverse the previous steps to install the replacement fan assembly.
1
- 43 - System Hardware Installation
Airflow
2
direction
[For GPU12E_FAN/GPU56E_FAN]
1. Disconnect the fan cable and then loosen and remove the screws securing the fan cage.
2. Remove the fan cage from the system
3. Reverse the previous steps to install the replacement fan assembly.
1
1
2
1
1
2
System Hardware Installation - 44 -
Airflow direction
3
4
4
4
3
4
CAUTION!
• To avoid fan cable damage, please make sure the fan cables are firmly seated in the cable
routing hooks.
- 45 - System Hardware Installation
3-9 Replacing the Power Supply
CAUTION!
• In order to reduce the risk of injury from electric shock, disconnect AC power from the power
supply before removing it from the system.
Follow these instructions to replace the power supply:
1. Pull up the power supply handle and press the retaining clip on the right side of the power supply
along the direction of the arrow.
2. At the same time, pull out the power supply using the handle.
3. Insert the replacement power supply rmly into the chassis. Connect the AC power cord to the
replacement power supply.
1
2
3
CAUTION!
• Please see the illustration below for installation sequence.
PSU1
Primary
System Hardware Installation - 46 -
PSU2
Secondary
3-10 Cable Routing
System Main Power
MB/Top Tray Connector
System Fan Power
- 47 - System Hardware Installation
CPU Power
1 x 3 Power
MB/Top Tray Connector
System Hardware Installation - 48 -
HDD Backplane Board Signal
HDD Backplane Board Signal
- 49 - System Hardware Installation
Power Distribution Board to HDD Backplane Board Power
SlimLine SAS #1
MB/Top Tray Connector
System Hardware Installation - 50 -
SlimLine SAS #2
MB/Top Tray Connector
Front Panel IO
- 51 - System Hardware Installation
SMD
System Hardware Installation - 52 -
Chapter 4 Motherboard Components
4-1 Motherboard Components
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15 16 17 18 19 20 21
34
35
36
32
33
21
Item Description
1 Rear VGA Port
2 Serial Port Connector
3 12V Standby Power Connector (for system power)
4 10/100/1000 Server Management LAN Por t
5 IPMB Connector
6 Power Button with LED
7 ID Button with LED
8 Reset Button (top)/ NMI Button (bottom)
9 System status LED
10 LAN Port #2 Active/Link LED
11 10G SFP+ LAN Port #2
12 10G SFP+ LAN Port #1
13 LAN Port #1 Active/Link LED
14 USB 3.0 Port x 2
15 HDD Back Plane Board Connector
16 SlimLine 4i connector #0 (support NVMe)
17 SlimLine 4i connector #1 (support NVMe)
18 SlimLine 4i connector #1 (SATA 6Gb/s signal/for SATA #0 - #3)
19 SlimLine 4i connector #2 (SATA 6Gb/s signal/for SATA #4 - #7)
20 2 x 9 Pin CPU Power Connector (Primary)
21 NMVe SMBus Connector
22 PCIe x16 slot #2
23 PCIe x16 slot #4
24 M.2 Connector #0 (PCIe Gen3 x4)
25 M.2 Connector #1 (PCIe Gen3 x2)
26 Front Pnel Header (primar y)
27 2 x 9 Pin CPU Power Connector (Secondary)
28 Front Panel Header (secondary/for power distribution board)
29 System Battery
DIMM_P0_H0
DIMM_P0_G0
DIMM_P0_F0
DIMM_P0_E0
CPU0
DIMM_P0_A0
DIMM_P0_B0
DIMM_P0_C0
DIMM_P0_D0
22
3031
24
23
28
29
27
26
25
- 53 - Motherboard Components
30 PCIe x16 slot #3
31 PCIe x16 slot #1
32 2 x 9 Pin System Power Connector (system main power)
33 Case Open Intrusion Header
34 Proprietar y PCIe x16 slot
35 TPM connector
36 Proprietary PCIe x8 slot x 2 (Mezzanine Slots For NCSI Switch Function)
Motherboard Components - 54 -
4-2 Jumper Setting
123
PMBUS
Address
Select
PSMB_SEL1
Clear CMOS
CLR_CMOS1
Core Chipset BMC
123
Default Enable
123
S3
Power On
Select
S3_MASK
21
BIOS
Recovery
BIOS_RCVR
Password
Clear
BIOS_PWD
Default Enable
123
Default Enable
EnableDefault
123
ON
OFF
NCSI Switch
21
Mezzanine Slot
Onboard LAN
- 55 - Motherboard Components
This page intentionally left blank
Motherboard Components - 56 -
Chapter 5 BIOS Setup
BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the
motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup,
saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that
allows the user to modify basic system conguration settings or to activate certain system features. When the
power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the
conguration values in the CMOS.
To access the BIOS Setup program, press the <DEL> key during the POST when the power is turned on.
• BIOS ashing is potentially risky, if you do not encounter any problems when using the current
BIOS version, it is recommended that you don't ash the BIOS. To ash the BIOS, do it with
caution. Inadequate BIOS ashing may result in system malfunction.
• It is recommended that you not alter the default settings (unless you need to) to prevent system
instability or other unexpected results. Inadequately altering the settings may result in system's
failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values.
(Refer to the Exit section in this chapter or introductions of the battery/clearing CMOS jumper in
Chapter 4 for how to clear the CMOS values.)
BIOS Setup Program Function Keys
<f><g> Move the selection bar to select the screen
<h><i> Move the selection bar to select an item
<+> Increase the numeric value or make changes
<-> Decrease the numeric value or make changes
<Enter> Execute command or enter the submenu
<Esc> Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
<F1> Show descriptions of general help
<F3> Restore the previous BIOS settings for the current submenus
<F9> Load the Optimized BIOS default settings for the current submenus
<F10> Save all the changes and exit the BIOS Setup program
- 57 - BIOS Setup
Main
This setup page includes all the items of the standard compatible BIOS.
Advanced
This setup page includes all the items of AMI BIOS special enhanced features.
(ex: Auto detect fan and temperature status, automatically congure hard disk parameters.)
AMD CBS
This setup page includes the common items for conguration of AMD motherboard-related information.
AMD PBS Option
This setup page includes the common items for conguration of AMD CPM RAS related settings.
Chipset
This setup page includes all the submenu options for conguring the functions of the North Bridge.
Server Management
Server additional features enabled/disabled setup menus.
Security
Change, set, or disable supervisor and user password. Conguration supervisor password allows you to
restrict access to the system and BIOS Setup.
A supervisor password allows you to make changes in BIOS Setup.
A user password only allows you to view the BIOS settings but not to make changes.
Boot
This setup page provides items for conguration of the boot sequence.
Save & Exit
Save all the changes made in the BIOS Setup program to the CMOS and exit BIOS Setup. (Pressing
<F10> can also carry out this task.)
Abandon all changes and the previous settings remain in effect. Pressing <Y> to the confirmation
message will exit BIOS Setup. (Pressing <Esc> can also carry out this task.)
BIOS Setup - 58 -
5-1 The Main Menu
Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use
arrow keys to move among the items and press <Enter> to accept or enter other sub-menu.
Main Menu Help
The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
Submenu Help
While in a submenu, press <F1> to display a help screen (General Help) of function keys available for the
menu. Press <Esc> to exit the help screen. Help for each item is in the Item Help block on the right side of
the submenu.
• When the system is not stable as usual, select the Restore Defaults item to set your system to
its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS
version.
- 57 - BIOS Setup
Parameter
Description
BIOS Information
Project Name
Project Version
Build Date and Time
Displays the project name information.
Displays version number of the BIOS setup utility.
Displays the date and time when the BIOS setup utility was created.
BMC Information
BMC Firmware Version
CPU Brand String / CPU Speed /
Processor Core / Microcode Patch
Total Memory
Memory Frequency
(Note3)
(Note3)
Displays BMC rmware version information.
Displays the technical information for the installed processor(s).
Displays the total memory size of the installed memory.
Displays the frequency information of the installed memory.
VR Information Version Displays VR version information.
AGESA PI Version PI Version Displays AGESA PI version information.
Onboard LAN Information
LAN1 MAC Address
LAN2 MAC Address
System Date
System Time
(Note1)
(Note2)
Displays LAN MAC address information.
Displays LAN MAC address information.
Sets the date following the weekday-month-day-year format.
Sets the system time following the hour-minute-second format.
(Note1) The number of LAN ports listed will depend on the motherboard / system model.
(Note2) This section will display capacity and frequency information of the memory that the customer has
installed.
BIOS Setup - 60 -
5-2 Advanced Menu
The Advanced Menu displays submenu options for conguring the function of various hardware components.
Select a submenu item, then press <Enter> to access the related submenu screen.
When Boot Mode Select is set to UEFI (Default)
- 57 - BIOS Setup
When "Boot Mode Select" is set to Legacy in the Boot > Boot Mode Select section
BIOS Setup - 62 -
5-2-1 Trusted Computing
Parameter
Conguration
Security Device Support
SPI TPM Support
Description
Enable/Disable BIOS support for security device. OS will not show
security device. TCG EFI protocol and INT1A interface will not be
available.
Options available: Enable/Disable. Default setting is Enable.
Select Enable to activate TPM support feature.
Options available: Enabled/Disabled. Default setting is Disabled
- 57 - BIOS Setup
5-2-2 PSP Firmware Versions
The PSP Firmware Versions page displays the basic PSP rmware version information. Items on this window
are non-congurable.
BIOS Setup - 64 -
5-2-3 Legacy Video Select
Parameter
OnBrd/Ext VGA Select
Description
Selects between onboard or external VGA support.
(Note)
Options available: Auto, Onboard, External. Default setting is Onboard.
(Note) This congurable option will be displayed when "Boot Mode Select" is set to Legacy in the
Boot > Boot Mode Select section.
- 57 - BIOS Setup
5-2-4 AST2500 Super IO Conguration
Parameter
AST2500 Super IO
Conguration
Super IO Chip Displays the super IO chip information
Serial Port 1/2
Conguration
BIOS Setup - 66 -
Description
Press [Enter] for conguration of advanced items.
5-2-4-1 Serial Port 1/2 Conguration
- 57 - BIOS Setup
Parameter
Serial Port 1/2 Conguration
(Note1)
Serial Port
Devices Settings
Change Settings
(Note2)
(Note2)
Description
Enable/Disable the Serial Port (COM). When set to Enabled allows you to
congure the Serial port 1/2 settings. When set to Disabled, displays no
conguration for the serial port.
Options available: Enabled/Disabled. Default setting is Enabled.
Displays the Serial Port 1/2 device settings.
Select an optimal settings for Super IO Device.
Options available for Serial Port 1:
Auto
IO=3F8h; IRQ=4;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Default setting is Auto.
Options available for Serial Port 2:
Auto
IO=2F8h; IRQ=3;
IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Default setting is Auto.
Please note that this item is congurable when Serial Port is set to
Enabled.
(Note1) Advanced items prompt when this item is dened.
(Note2) This item appears when Serial Port is set to Enabled.
BIOS Setup - 68 -
5-2-5 S5 RTC Wake Settings
Parameter
Description
Enable/Disable system wake on alarm event.
Options available: Disabled/Fixed Time. When Fixed Time enabled, system
Wake System from S5
(Note1)
will wake on the hr::min::sec specied.
Default setting is Disabled.
(Note1) Advanced items prompt when this item is dened.
- 57 - BIOS Setup
5-2-6 Serial Port Console Redirection
Parameter
Description
Select whether to enable console redirection for specied device. Console
COM1/2 Serial Over LAN
(Note))
redirection enables the users to manage the system from a remote
location.
Options available: Enabled/Disabled. Default setting is Disabled.
Press [Enter] to congure advanced items.
Please note that this item is congurable when COM1/Serial Over
LAN & COM2 Console Redirection is set to Enabled.
Terminal Type
– Selects a terminal type to be used for console redirection.
– Options available: VT100, VT100+, ANSI, VT-UTF8. Default setting
COM1/2 Serial Over LAN
Console Redirection Settings
is ANSI.
Bits per second
– Selects the transfer rate for console redirection.
– Options available: 9600, 19200, 38400, 57600, 115200. Default
setting is 115200.
Data Bits
– Selects the number of data bits used for console redirection.
– Options available: 7/8. Default setting is 8.
(Note) Advanced items prompt when this item is dened.
BIOS Setup - 70 -
Parameter
COM1/Serial Over LAN
Console Redirection Settings
(continued)
Description
Parity
– A parity bit can be sent with the data bits to detect some
transmission errors.
– Even: parity bit is 0 if the num of 1's in the data bits is even.
– Odd: parity bit is 0 if num of 1's in the data bits is odd.
– Mark: parity bit is always 1. Space: Parity bit is always 0.
– Mark and Space Parity do not allow for error detection.
– Options available: None, Even, Odd, Mark, Space. Default setting
is None.
Stop Bits
– Stop bits indicate the end of a serial data packet. (A start bit
indicates the beginning). The standard setting is 1 stop bit.
Communication with slow devices may require more than 1 stop
bit.
– Options available: 1/2. Default setting is 1.
Flow Control
– Flow control can prevent data loss from buffer overow. When
sending data, if the receiving buffers are full, a 'stop' signal can
be sent to stop the data ow. Once the buffers are empty, a 'start'
signal can be sent to re-start the ow. Hardware ow control uses
two wires to send start/stop signals.
– Options available: None, Hardware RTS/CTS. Default setting is
None.
VT-UTF8 Combo Key Support
– Enable/Disable the VT-UTF8 Combo Key Support.
– Options available: Enabled/Disabled. Default setting is Enabled.
Recorder Mode
(Note)
– When this mode enabled, only texts will be send. This is to capture
Terminal data.
– Options available: Enabled/Disabled. Default setting is Disabled.
Resolution 100x31
(Note)
– Enable/Disable extended terminal resolution.
– Options available: Enabled/Disabled. Default setting is Enabled.
Putty KeyPad
(Note)
– Selects FunctionKey and LeyPad on Putty.
– Options available: VT100, LINUX, XTERMR6, SC0, ESCN, VT400.
Default setting is VT100.
(Note) Advanced items prompt when this item is dened.
- 57 - BIOS Setup
Parameter
Legacy Console Redirection
Legacy Console Redirection
Settings
Serial Port for Out-of-Band
Management / Windows
Emergency Management
Services (EMS) Console
Redirection
(Note)
Serial Port for Out-of-Band
EMS Console Redirection
Settings
Description
Press [Enter] to congure advanced items.
Redirection COM Port
– Selects a COM port for Legacy serial redirection.
– Options available: COM1/Serial Over LAN, COM2. Default setting
is COM1/Serial Over LAN.
Resolution
– Selects the number of rows and columns used in Console
Redirection for legacy OS support.
– Options available: 80x24, 80x25. Default setting is 80x24.
Redirect After POST
– When Bootloader is selected, then Legacy Console Redirection
is disabled before booting to legacy OS. When Always Enable is
selected, then Legacy Console Redirection is enabled for legacy
OS.
– Options available: Always Enable, BootLoader. Default setting is
Always Enable.
EMS console redirection allows the user to congure Console Redirection
Settings to support Out-of-Band Serial Port management.
Options available: Enabled/Disabled. Default setting is Disabled.
Press [Enter] to congure advanced items.
Please note that this item is congurable when Serial Port for Out-of-
Band Management EMS Console Redirection is set to Enabled.
Out-of-Band Mgmt Port
– Microsoft Windows Emerency Management Service (EMS) allows
for remote management of a Windows Server OS through a serial
port.
– Options available: COM1/Serial Over LAN, COM2. Default setting
is COM1/Serial Over LAN.
Terminal Type
– Selects a terminal type to be used for console redirection.
– Options available: VT100, VT100+, ANSI, VT-UTF8. Default setting
is ANSI.
Bits per second
– Selects the transfer rate for console redirection.
– Options available: 9600, 19200, 38400, 57600, 115200. Default
setting is 115200.
(Note) Advanced items prompt when this item is dened.
BIOS Setup - 72 -
Parameter
Serial Port for Out-of-Band
EMS Console Redirection
Settings(continued)
Description
Flow Control
– Flow control can prevent data loss from buffer overow. When
sending data, if the receiving buffers are full, a 'stop' signal can
be sent to stop the data ow. Once the buffers are empty, a 'start'
signal can be sent to re-start the ow. Hardware ow control uses
two wires to send start/stop signals.
– Options available: None, Hardware RTS/CTS, Software Xon/Xoff.
Default setting is None.
- 57 - BIOS Setup
5-2-7 CPU Conguration
Parameter
SVM Mode
SMEE
CPU 0 Information
BIOS Setup - 74 -
Description
Enable/Disable the CPU Virtualization.
Options available: Enabled/Disabled. Default setting is Enabled.
Controls the Secure Memory Encryption Enable (SMEE) function.
Options available: Enabled/Disabled. Default setting is Enabled.
Press [Enter] to view more information related to CPU0.
5-2-8 PCI Subsystem Settings
- 57 - BIOS Setup
Parameter
PCI Bus Driver Version
(Note1)
PCIE_#
Lanes Conguration
GEN_# Lanes Conguration
Description
Displays the PCI Bus Driver version information.
Change the PCIe lanes.
Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8,
x4x4x4x4. Default setting is Auto.
PCIE_# I/O ROM
GEN_# I/O ROM
Onboard LAN Controller
Onboard LAN I/O ROM
(Note1
(Note1)
(Note2)
(Note2)
PCI Devices Common Settings
Above 4G Decoding
SR-IOV Support
When enabled, this setting will initialize the device expansion ROM
for the related PCI-E slot.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable the onboard LAN devices.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable the onboard LAN devices, and initializes device
expansion ROM.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable memory mapped I/O to 4GB or greater address
space (Above 4G Decoding).
Options available: Enabled/Disabled. Default setting is Enabled.
If the system has SR-IOV capable PCIe devices, this item Enable/
Disable Single Root IO Virtualization Support.
Options available: Enabled/Disabled. Default setting is Enabled.
(Note1) This section is dependent on the available PCIe Slot.
(Note2) This section is dependent on the available LAN controller.
BIOS Setup - 76 -
5-2-9 USB Conguration
Parameter Description
USB Conguration
USB Module Version Displays the USB version.
USB Controllers Displays the supported USB controllers.
USB Devices Displays the USB devices connected to the system.
Enable/disable the Legacy USB support fuction. AUTO option disables
Legacy USB Support
XHCI Hand-off
USB Mass Storage Driver
(Note)
Support
USB hardware delays and
time-outs
USB transfer time-out
USB resetr time-out Options available: 1 sec/5 sec/10 sec/20 sec. Default setting is 20 sec.
legacy support if no USB devices are connected. DISABLE option will
keep USB devices available only for EFI applications.
Options available: Auto/Enabled/Disabled. Default setting is Enabled.
Enable/Disable the XHCI (USB 3.0) Hand-off support.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable the USB Mass Storage Driver Support.
Options available: Enabled/Disabled. Default setting is Enabled.
The time-out value for Control, Bulk, and Interrupt transfers.
Options available: 1 sec/5 sec/10 sec/20 sec. Default setting is 20 sec.
(Note) This item is present only if you attach USB devices.
- 57 - BIOS Setup
Parameter Description
Device reset time-out
Device power-up delay
Mass Storage Devices
AMI Virtual CDROM0 1.00 /
AMI HDisk0 1.00 / Generic
Flash Disk 8.07 / ADATA USB
Flash Drive 1100
USB mass storage device Start Unit command time-out.
Options available: 10 sec/20 sec/30 sec/40 sec. Default setting is 20 sec.
Maximum time the device will take before it properly reports itself to the
Host Controller. "Auto" uses default value: for a Root port it is 100 ms, for
a Hub port the delay is taken from Hub descriptor.
Options available: Auto/Manual. Default setting is Auto.
Mass storage device emulation type. AUTO enumerates devices
according to their media format. Optical drives are emulated as CDROM,
drives with no media will be emulated according to a drive type.
Options available: Auto/Floppy/Forced FDD/Hard Disk/CD-ROM. Default
setting is Auto.
BIOS Setup - 78 -
5-2-10 Network Stack Conguration
Parameter
Network Stack
Ipv4 PXE Support
Ipv4 HTTP Support
Ipv6 PXE Support
Ipv6 HTTP Support
PXE boot wait time
Media detect count
Description
Enable/Disable the UEFI network stack.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable the Ipv4 PXE feature.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable the Ipv4 HTTP feature.
Options available: Enabled/Disabled. Default setting is Disabled.
Enable/Disable the Ipv6 PXE feature.
Options available: Enabled/Disabled. Default setting is Enabled.
Enable/Disable the Ipv6 HTTP feature.
Options available: Enabled/Disabled. Default setting is Disabled.
Wait time in seconds to press ESC key to abort the PXE boot.
Press the <+> / <-> keys to increase or decrease the desired values.
Number of times the presence of media will be checked.
Press the <+> / <-> keys to increase or decrease the desired values.
- 57 - BIOS Setup
5-2-11 NVMe Conguration
Parameter
NVMe Conguration
BIOS Setup - 80 -
Description
Displays the NVMe devices connected to the system
5-2-12 SATA Conguration
Parameter
SATA Conguration
Description
Displays the installed HDD devices information. System will automatically
detect HDD type.
- 57 - BIOS Setup
5-2-13 UEFI POST LOGO Conguration
Parameter
UEFI Conguration
Output Device Type
BIOS Setup - 82 -
Description
Select output device.
Options available: First loaded Device,Onboard Device,External Device,
Specic Device.
Default setting is Onboard Deviceevice.
5-2-14 AMD Mem Conguration Status
Parameter
CPU0/1
Description
Press [Enter] to view the memory conguration status related to CPU 0/1.
- 57 - BIOS Setup
5-2-15 Tls Auth Conguration
Parameter Description
Press [Enter] for conguration of advanced items.
Enroll Cert
– Press [Enter] to enroll a certicate
• Enroll Cert Using File
Server CA Conguration
Client Cert Conguration
• Cert GUID
– Commit Changes and Exit
– Discard Changes and Exit
Delete Cert
Press [Enter] for conguration of advanced items.
Input digit character in 1111111-2222-3333-4444-1234567890ab
format.
BIOS Setup - 84 -
5-2-16 Intel(R) Ethernet Controller XI350
BIOS Setup - 85 -
Parameter
Firmware Image Properties
NIC Conguration
Blink LEDs
UEFI Driver
Adapter PBA
Device Name
Chip Type
PCI Device ID
PCI Address
Link Status
MAC Address
Virtual MAC Address
Description
Press [Enter] to congure advanced items.
Press [Enter] to congure advanced items.
Link Speed
– Allows for automatic link speed adjustment.
– Options available: Auto Negotiated, 10 Mbps Half, 10 Mbps Full,
100 Mbps Half, 100 Mbps Full. Default setting is Auto Negotiated.
Wake On LAN
– Enables power on of the system via LAN. Note that conguring
Wake on LAN in the operating system does not change the value of
this setting, but does override the behavior of Wake on LAN in OS
controlled power states.
– Options available: Enabled/Disabled. Default setting is Enabled.
Identies the physical network port by blinking the associated LED.
Press the numeric keys to adjust desired values.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
Displays the technical specications for the Network Interface Controller.
- 57 - BIOS Setup
5-2-17 VLAN Conguration
Parameter
Enter Conguration Menu
BIOS Setup - 87 -
Description
Press [Enter] to congure advanced items.
Create new VLAN
VLAN ID
– Sets VLAN ID for a new VLAN or an existing VLAN.
– Press the <+> / <-> keys to increase or decrease the desired values.
– The valid range is from 0 to 4094.
Priority
– Sets 802.1Q Priority for a new VLAN or an existing VLAN.
– Press the <+> / <-> keys to increase or decrease the desired values.
– The valid range is from 0 to 7.
Add VLAN
– Press [Enter] to create a new VLAN or update an existing VLAN.
Congured VLAN List
Remove VLAN
– Press [Enter] to remove an existing VLAN.
5-2-18 MAC IPv4 Network Conguration
Parameter Description
Congured
Enable DHCP
Local IP Address
Local NetMask
Local Gateway
Local DNS Servers
(Note)
(Note)
(Note)
(Note)
(Note)
Save Changes and Exit Press [Enter] to save all congurations.
Indicates whether network address is congured successfully or not.
Options available: Enabled/Disabled. Default setting is Disabled.
Options available: Enabled/Disabled. Default setting is Enabled.
Press [Enter] to congure local IP address.
Press [Enter] to congure local NetMask.
Press [Enter] to congure local Gateway
Press [Enter] to congure local DNS servers
(Note) This item appears when Congured is set to Enabled.
- 57 - BIOS Setup
5-2-19 MAC IPv6 Network Conguration
Parameter
Enter Conguration Menu
BIOS Setup - 89 -
Description
Press [Enter] to congure advanced items.
Displays the MAC Address information.
Interface ID
– The 64 bit alternative interface ID for the device. The string is colon
separated. e.g. ff:dd:88:66:cc:1:2:3.
DAD Transmit Count
– The number of consective Neighbor solicitation messages sent while
performing Duplicate Address Detection on a tentative address.
A value of zero indicates that Duplicate Address Detection is not
performed.
Policy
– Options available: automatic/manual. Default setting is automatic.
Save Changes and Exit
– Press [Enter] to save all congurations.
5-3 AMD CBS Menu
AMD CBS menu displays submenu options for configuring the CPU-related information that the BIOS
automatically sets. Select a submenu item, then press [Enter] to access the related submenu screen.
- 57 - BIOS Setup
5-3-1 CPU Common Options
Parameter Description
CPU Common Options
Performance Press [Enter] for conguration of advanced items.
Prefetcher settings Press [Enter] for conguration of advanced items.
Core Watchdog Press [Enter] for conguration of advanced items.
From a workaround for GCC/C000005 issue for XV Core on CZ A0,
RedirectForReturnDis
Platform First Error Handling
Core Performance Boost
Global C-State Control
Power Supply Idle Control
SEV ASID Count
setting MSRC001_1029 Decode Conguration (DE_CFG) bit 14
[DecfgNoRdrctForReturns] to 1.
Options available: Auto, 1, 0. Default setting is Auto.
Enable/Disable PFEH, cloak individual banks, and mask deferred error
interrupts from each bank.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable/Disable the Core Performance Boost function.
Options available: Auto/Disabled. Default setting is Auto.
Controls the IO based C-state generation and DF C-states.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Congures the Power Supply Idle Control.
Options available: Auto, Low Current Idle, Typical Current Idle. Default
setting is Auto.
Species the maximum valid ASID, which affects the maximum system
physical address space.
Options available: Auto, 253 ASIDs, 509 ASIDs. Default setting is Auto.
BIOS Setup - 91 -
Parameter Description
SEV-ES ASID Space Limit
Control
Streaming Stores Control
Local APIC Mode
ACPI_CST C1 Decaration
MCA error thresh enable
SMU and PSP Debug Mode
Xtrig7 Workaround
PPIN Opt-in
SNP Memory (RMP Table)
Coverage
SMEE
Action on BIST Failure
Fast Short REP MOVSB
Enhanced REP MOVSB/
STOSB
REP-MOV/STOS Steaming
X3D
IBS hardware work around
Space limit control for SEV-ES ASIDs.
Options available: Auto/Manual. Default setting is Auto.
Enable/Disable the Streaming Stores functionality.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Sets the Local APIC Mode.
Options available: Auto, xAPIC, x2APIC. Default setting is Auto.
Determines whether or not to declare the C1 state to the OS..
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable MCA error thresholding.
Options available: Auto, False, True. Default setting is Auto.
When this option is enabled, specic uncorrected errors detected by the
PSP FW or SMU FW will hand and not reset the system.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Options available: Auto, No Workaround, Bronze Workaround, Sliver
Workaround. Default setting is Auto.
Enable/Disable the PPIN feature.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enabled: Enter system memory is covered.
Options available: Auto, Enabled, Disabled, Custom.
Default setting is Auto.
Control secure memory encryption enable.
Options available: Auto, Enabled, Disabled.
Default setting is Auto.
Action to take when a CCD BIST failure is detected.
Options available: Auto, Do nothing, Down-CCD.
Default setting is Auto.
Default is 1, cab be set to zero for analysis purpose as long as OS supports
it.
Options available: Enabled, Disabled.
Default setting is Enabled.
Default is 1, cab be set to zero for analysis purpose as long as OS supports
it.
Options available: Enabled, Disabled.
Default setting is Enabled.
Allows REP-MOV/STOS to use non-caching streaming stores for large
sizes.
Options available: Enabled, Disabled.
Default setting is Enabled.
Override of X3D technology.
Options available: Auto, Disable, 1 stack, 2 stack, 4 stack.
Default setting is Auto.
Set if using IBS execution sampling without software workaround for
erratum 1,285. May impac performance..
Options available: Enabled, Auto.
Default setting is Enabled.
- 57 - BIOS Setup
5-3-1-1 Performance
Parameter Description
Performance
(Note1)
OC Mode
Custom Core Pstates
CCD/Core/Thread Enablement
SMT Control
Option Available: Normal Operation, Customized
Default setting is Normal Operation.
Allows you to accept or decline enabling Custom Core Pstates. When
accepted, you can disable or customize core pstates.
Allows you to accept or decline enabling CCDs, processor cores and
threads. When accepted, you can control the number of CCDs to be
used, the number of cores to be used, and whether to enable or disable
Simultaneous Multithreading Technology (SMT) support.
Can be used to disable symmetric multithreading. To re-enable SMT, a
POwer CYCLE is needed after select the 'Enable' option. Select 'Auto' base
on BIOS PCD. (PcdAmdSmtMode) default setting.
Option Available: Enable, Disable.
Default setting is Disable.
(Note1) Advanced items are congurable when this item is dened.
BIOS Setup - 93 -
5-3-1-2 Prefetcher Settings
Parameter Description
Prefetcher settings
L1 Stream HW Prefetcher
L1 Stride Prefetcher
L1 Region Prefetcher
L2 Stream HW Prefetcher
L2 Up/Down Prefetcher
Enable/Disable L1 Stream HW Prefetcher.
Options available: Auto, Enable, Disabled. Default setting is Enable.
Use memory access history of individual instruction to fetch additional lines
Enable/Disable L1 Stream HW Prefetcher.
Options available: Auto, Enable, Disable. Default setting is Auto.
Use memory access history to fetch additional lines when the data access
for a given instruction tends to be followed by other data accesses.
Options available: Auto, Enable, Disable. Default setting is Enable.
Enable/Disable L2 Stream HW Prefetcher.
Options available: Auto, Enable, Disabled. Default setting is Enable.
Use memory access history to determine whether to fetch the next or
previous line for all memory accesses. .
Options available: Auto, Enable, Disable. Default setting is Auto.
- 57 - BIOS Setup
5-3-1-3 Core Watchdog
Parameter Description
Core Watchdog
Core Watchdog Timer Enable
Enable/Disable CPU Watchdog Timer.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
BIOS Setup - 95 -
5-3-2 DF Common Options
Parameter Description
DF Common Options
Scrubber Press [Enter] for conguration of advanced items.
Memory Addrssing Press [Enter] for conguration of advanced items.
ACPI Press [Enter] for conguration of advanced items.
Link Press [Enter] for conguration of advanced items.
Disable DF to external IP
sync ood propagation
Disable DF sync ood
propagation
Frezze DF module queues on
error
CC6 memory region encryption
System probe lter
Memory Clear
PSP error injection support
Enable/Disable SyncFlood to UMC & downstream slaves.
Options available: Auto, Sync ood disabled, Sync ood enabled.
Default setting is Auto.
Enable/Disable DF Sync Flood propagation.
Options available: Auto, Sync ood disabled, Sync ood enabled.
Default setting is Auto.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Controls whether or not the CC6 save/restor memory is encrypted.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable/Disable Systme probe lter.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable/Disable the Memory Clear feature.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable/Disable PSP error injection support.
Options available: False/True. Default setting is False.
- 57 - BIOS Setup
5-3-2-1 Scrubber
Parameter Description
Scrubber
Provide a value that is the number of hours to scrub memory.
DRAM scrub time
Poison scrubber control
Redirect scrubber control
Redirect scrubber limit
Options available: Auto, Disabled, 1 hour, 4 hours, 8 hours, 16 hours, 24
hours, 48 hours. Default setting is Auto.
Enable/Disable the Poison scrubber control feature.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable/Disable the Redirect scrubber control feature.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Sets the redirect scrubber limit.
Options available: Auto, 2, 4, 8, Innite. Default setting is Auto.
BIOS Setup - 97 -
5-3-2-2 Memory Addressing
Parameter Description
Memory Addressing
NUMA nodes per socket
Memory inerleaving
Memory interleaving size
1TB remap
DRAM map inversion
Location of private memory
regions
Species the number of desired NUMA nodes per socket.
Options available: Auto, NPS0, NPS1, NPS2, NPS4. Default setting is NPS4.
Enable/Disable the Memory interleaving feature.
Options available: Auto/Disabled. Default setting is Auto.
Controls the memory interleaving size. This determines the starting address of
the interleave (bit 8, 9, 10 or 11).
Options available: Auto, 256Bytes, 512Bytes, 1KB, 2KB. Default setting is Auto.
Enable/Disable to remap DRAM out of the space just below the 1TB boundary.
The ability to remap depends on DRAM conguration, NPS, and interleaving
selection, and may not always be possible.
Options available: Auto, Do not remap, Attempt to remap.
Default setting is Auto.
Enable/Disable the DRAM map inversion function.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Control whether or not the rpivate memory regions (PSP, SMU, and CC6) are
at the top of DRAM or distributed. Note that distributed requires memory on
all dies. Note that it will always be at the top of DRAM if some dies don't have
memory regardless of this.
Options available: Auto, Distributed, Consolidated. Default setting is Auto.
- 57 - BIOS Setup
5-3-2-3 ACPI
Parameter Description
ACPI
ACPI SRAT L3 Cache As
NUMA Domain
ACPI SLIT Distance Control
ACPI SLIT remote relative
distance
Enable/Disable the ACPI SRAT L3 Cache As NUMA Domain function.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Determines how the SLIT distances are declared.
Options available: Auto/Manual. Default setting is Auto.
Sets the remote socket distance for 2P systems as near (2.8) or far (3.2).
Options available: Auto, Near, Far. Default setting is Auto.
BIOS Setup - 99 -
5-3-2-4 Link
Parameter Description
Link
GMI encryption control
xGMI encryption control
CAKE CRC perf bounds
Control
4-link xGMI max speed
3-link xGMI max speed
xGMI TXEQ Mode
xGMI 18GACOFC
Enable/Disable GMI link encryption.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Enable/Disable xGMI link encryption.
Options available: Auto, Enabled, Disabled. Default setting is Auto.
Options available: Auto/Manual. Default setting is Auto.
Species the max speed of 4-link xGMI.
Options available: Auto, 10.667Gbps, 13Gbps, 16Gbps, 18Gbps.
Default setting is 10.667Gbps.
Species the max speed of 3-link xGMI.
Options available: Auto, 10.667Gbps, 13Gbps, 16Gbps, 18Gbps.
Default setting is 10.667Gbps.
Congures xGMI TXEQ/RX vetting Mode.
Options available: Auto, TXEQ_Disabled, TXEQ_Lane, TXEQ_Link,
TXEQ_RX_Vet. Default setting is 10.667Gbps.
Congures xGMI 18GACOFC.
Options available: Auto, Enable, Disable. Default setting is Auto.
