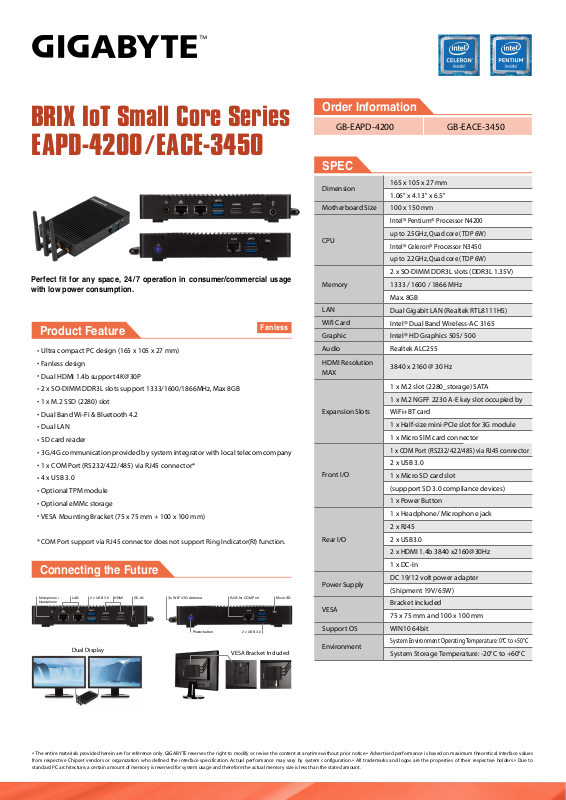

BRIX IoT Small Core Series
EAPD-4200/EACE-3450
Perfect fit for any space, 24/ 7 operation in consumer/commercial usage with low power consumption.
Product Feature |
Fanless |
|
Ultra compact PC design (165 x 105 x 27 mm)
Fanless design
Dual HDMI 1.4b support 4K@30P
2 x SO-DIMM DDR3L slots support 1333/1600/1866MHz, Max 8GB
1 x M.2 SSD (2280) slot
Dual Band Wi-Fi & Bluetooth 4.2
Dual LAN
SD card reader
3G/4G communication provided by system integrator with local telecom company
1 x COM Port (RS232/422/485) via RJ45 connector*
4 x USB 3.0
Optional TPM module
Optional eMMc storage
VESA Mounting Bracket (75 x 75 mm + 100 x 100 mm)
* COM Port support via RJ45 connector does not support Ring Indicator(RI) function.
Connecting the Future
Microphone / |
|
LAN |
2 x USB 3.0 |
HDMI |
DC-IN |
|
3 x Wi-Fi/3G Antenna |
|
RJ45 for COM Port |
|
Micro SD |
||||||||
|
|
|
|
||||||||||||||||
Headphone |
|
|
|
|
|
|
|
|
|
|
|
Power button |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dual Display |
|
|
|
|
|
|
2 x USB 3.0 |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
VESA Bracket Included |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Order Information
GB-EAPD-4200 GB-EACE-3450
SPEC
Dimension |
165 x 105 x 27 mm |
|||
1.06" x 4.13" x 6.5" |
||||
|
|
|||
Motherboard Size |
100 x 150 mm |
|||
|
|
Intel® Pentium® Processor N4200 |
||
|
|
|
|
|
CPU |
up to 2.5GHz, Quad core (TDP 6W) |
|||
Intel® Celeron® Processor N3450 |
||||
|
|
|||
|
|
|
|
|
|
|
up to 2.2GHz, Quad core (TDP 6W) |
||
|
|
2 x SO-DIMM DDR3L slots (DDR3L 1.35V) |
||
|
|
|
|
|
Memory |
1333 / 1600 / 1866 MHz |
|||
|
|
Max. 8GB |
||
LAN |
Dual Gigabit LAN (Realtek RTL8111HS) |
|||
Wifi Card |
Intel® Dual Band Wireless-AC 3165 |
|||
Graphic |
Intel® HD Graphics 505/ 500 |
|||
Audio |
Realtek ALC255 |
|||
HDMI Resolution |
3840 x 2160 @ 30 Hz |
|||
MAX |
||||
|
|
|||
|
|
|
|
|
|
|
1 x M.2 slot (2280_storage) SATA |
||
|
|
|
|
|
|
|
1 x M.2 NGFF 2230 A-E key slot occupied by |
||
Expansion Slots |
WiFi+BT card |
|||
|
|
|
|
|
|
|
1 x Half-size mini-PCIe slot for 3G module |
||
|
|
1 x Micro SIM card connector |
||
|
|
|
|
|
|
|
1 x COM Port (RS232/422/485) via RJ45 connector |
||
|
|
2 x USB 3.0 |
||
Front I/O |
|
|||
1 x Micro SD card slot |
||||
|
|
(suppport SD 3.0 compliance devices) |
||
|
|
|
||
|
|
1 x Power Button |
||
|
|
1 x Headphone/ Microphone jack |
||
|
|
|
||
|
|
2 x RJ45 |
||
Rear I/O |
2 x USB3.0 |
|||
|
|
2 x HDMI 1.4b 3840 x2160@30Hz |
||
|
|
1 x DC-In |
||
Power Supply |
DC 19/12 volt power adapter |
|||
(Shipment 19V/65W) |
||||
|
|
|||
VESA |
Bracket included |
|||
75 x 75 mm and 100 x 100 mm |
||||
|
|
|||
Support OS |
WIN10 64bit |
|||
Environment |
System Environment Operating Temperature: 0°C to +50°C |
|||
|
|
|||
System Storage Temperature: -20°C to +60°C |
||||
|
|
|||
|
|
|
|
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
