Page 1
R-12-02-091220
BX2000+
USER'S MANUAL
1. Support Suspend To RAM Function.
2. CPU Over Voltage Select (Magic Booster).
3. Support Dual BIOS and BIOS Write Protection.
4. System power on by PS/2 Mouse: First, enable this function
in CMOS Setup, then you can power on the system by double
clicking the right or left button of your PS/2 Mouse.
5. System power on by Keyboard: If your ATX power supply
supports 300 mA 5V Stand-By current (depends on the
specification of keyboards) , you can power on your system
by entering password from the keyboard after setting the
“Keyboard power on” password in CMOS Setup.
6. Supports 3 steps ACPI LED.
7. Modem Ring-On (COM A , B).
8. Wake-Up on LAN (The ATX power supply supports larger
than 720 mA 5V Stand-By current).
Pentium II / III / Celeron Processor MAINBOARD
REV. 1.2 Second Edition
Page 2
Page 3
BX2000+
1
The author assumes no responsibility for any errors or omissions which may
appear in this document nor does it make a commitment to update the
information contained herein.
Third-party brands and names are the property of their respective owners.
Sound Blaster is a registered trademark of Creative Technology Ltd in the
United States and certain other countries. Sound Blaster-LINK and SB-LINK
are trademarks of Creative Technology Ltd.
Dec. 20, 1999 Taipei, Taiwan
Page 4
Quick Installation Guide
2
I. Quick Installation Guide :
CPU SPEED SETUP
The system bus speed is selectable between 66 / 100 MHz. The user can select
the system bus speed and change the DIP SWITCH
(SW)
selection to set up
the CPU speed for 233 - 800MHz processor.
Pentium II / III
CPU
1 2 3 4 5 6 7 8
233 / 66MHz
OFF OFF ON ON ON OFF OFF ON
266 / 66MHz
ON ON OFF ON ON OFF OFF ON
300 / 66MHz OFF ON OFF ON ON OFF OFF ON
333 / 66MHz
ON OFF OFF ON ON OFF OFF ON
366 / 66MHz
OFF OFF OFF ON ON OFF OFF ON
400 / 66MHz
ON ON ON OFF ON OFF OFF ON
433 / 66MHz
OFF ON ON OFF ON OFF OFF ON
466 / 66MHz
ON OFF ON OFF ON OFF OFF ON
500 / 66MHz
OFF OFF ON OFF ON OFF OFF ON
533 / 66MHz
ON ON OFF OFF ON OFF OFF ON
* 566 / 66MHz OFF ON
OFF OFF ON OFF OFF ON
350 / 100MHz
OFF OFF ON ON OFF OFF OFF OFF
400 / 100MHz
ON ON OFF ON OFF OFF OFF OFF
450 / 100MHz
OFF ON OFF ON OFF OFF OFF OFF
500 / 100MHz
ON OFF OFF ON OFF OFF OFF OFF
550 / 100MHz
OFF OFF OFF ON OFF OFF OFF OFF
600 / 100MHz
ON ON ON OFF OFF OFF OFF OFF
650 / 100MHz
OFF ON ON OFF OFF OFF OFF OFF
700 / 100MHz
ON OFF ON OFF OFF OFF OFF OFF
750 / 100MHz
OFF OFF ON OFF OFF OFF OFF OFF
800 / 100MHz
ON ON OFF OFF OFF OFF OFF OFF
*
850 / 100MHz OFF ON OFF OFF OFF OFF OFF OFF
«
We don’t recommend you to setup your CPU ratio above 8 nth, it
doesn’t support now.
Page 5
BX2000+
3
Main Clock Table
CLK 5 6 7 8
66 MHz
ON OFF OFF ON
152 MHz
ON OFF ON OFF
142MHz
ON ON OFF OFF
100 MHz OFF OFF OFF OFF
112MHz OFF OFF ON OFF
124 MHz OFF ON ON OFF
133 MHz OFF ON OFF OFF
PCI Run 44.3 MHz
133 MHz ON ON ON OFF
PCI Run 33.3 MHz
«
Note: We don’t recommend you to setup your system speed to 152,
142, 112, 124 or 133MHz because these frequencies are not the
standard specifications for CPU, Chipset and most of the
peripherals. Whether your system can run under 152, 142, 112, 124
or 133MHz properly will depend on your hardware configurations:
CPU, SDRAM, Cards, etc.
Frequency Table:
DIP SWITCH (SW)
FREQ. RATIO
1 2 3 4
X 3 ON OFF ON ON
X 3.5 OFF OFF ON ON
X 4 ON ON OFF ON
X 4.5 OFF ON OFF ON
X 5 ON OFF OFF ON
X 5.5 OFF OFF OFF ON
X 6 ON ON ON OFF
X 6.5 OFF ON ON OFF
X 7 ON OFF ON OFF
X 7.5 OFF OFF ON OFF
X 8 ON ON OFF OFF
X 8.5 OFF ON OFF OFF
X 9 ON OFF OFF OFF
X 9.5 OFF OFF OFF OFF
«
We don’t recommend you to setup your CPU ratio above 8 nth, it
doesn’t support now.
Page 6
Quick Installation Guide
4
Page 7
BX2000+
5
1. Pentium II / Celeron 233 / 66 MHz FSB
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
SW
ON
8
7
6
5
4
3
2
1
OFF
2. Pentium II / Celeron 266 / 66 MHz FSB
3. Pentium II / Celeron 300 / 66 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
4. Pentium II / Celeron 333 / 66 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
SW
ON
8 7 6 5 4 3 2 1
OFF
Page 8
Quick Installation Guide
6
5. Pentium II / Celeron 366 / 66MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
6. Pentium II / Celeron 400 / 66MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
7. Pentium II / Celeron 433 / 66MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
8. Pentium II / Celeron 466 / 66MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
9. Pentium II / Celeron 500 / 66MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
10. Pentium II / Celeron 533 / 66MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
Page 9
BX2000+
7
11. Pentium II / Celeron 566 / 66MHz FSB (Reserve)
SW
ON
8 7 6 5 4 3 2 1
OFF
12. Pentium II 350 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
13. Pentium II 400 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
14. Pentium III 450 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
15. Pentium III 500 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
16. Pentium III 550 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
«
Page 10
Quick Installation Guide
8
17. Pentium III 600 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
18. Pentium III 650 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
19. Pentium III 700 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
20. Pentium III 750 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
21. Pentium III 800 / 100 MHz FSB
SW
ON
8 7 6 5 4 3 2 1
OFF
22. Pentium III 850 / 100 MHz FSB (Reserve)
SW
ON
8 7 6 5 4 3 2 1
OFF
« We don’t recommend you to setup your CPU ratio above 8 nth, it
doesn’t support now.
«
Page 11
BX2000+
9
II. Jumper setting :
SPK : External Speaker/ Internal Buzzer Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE

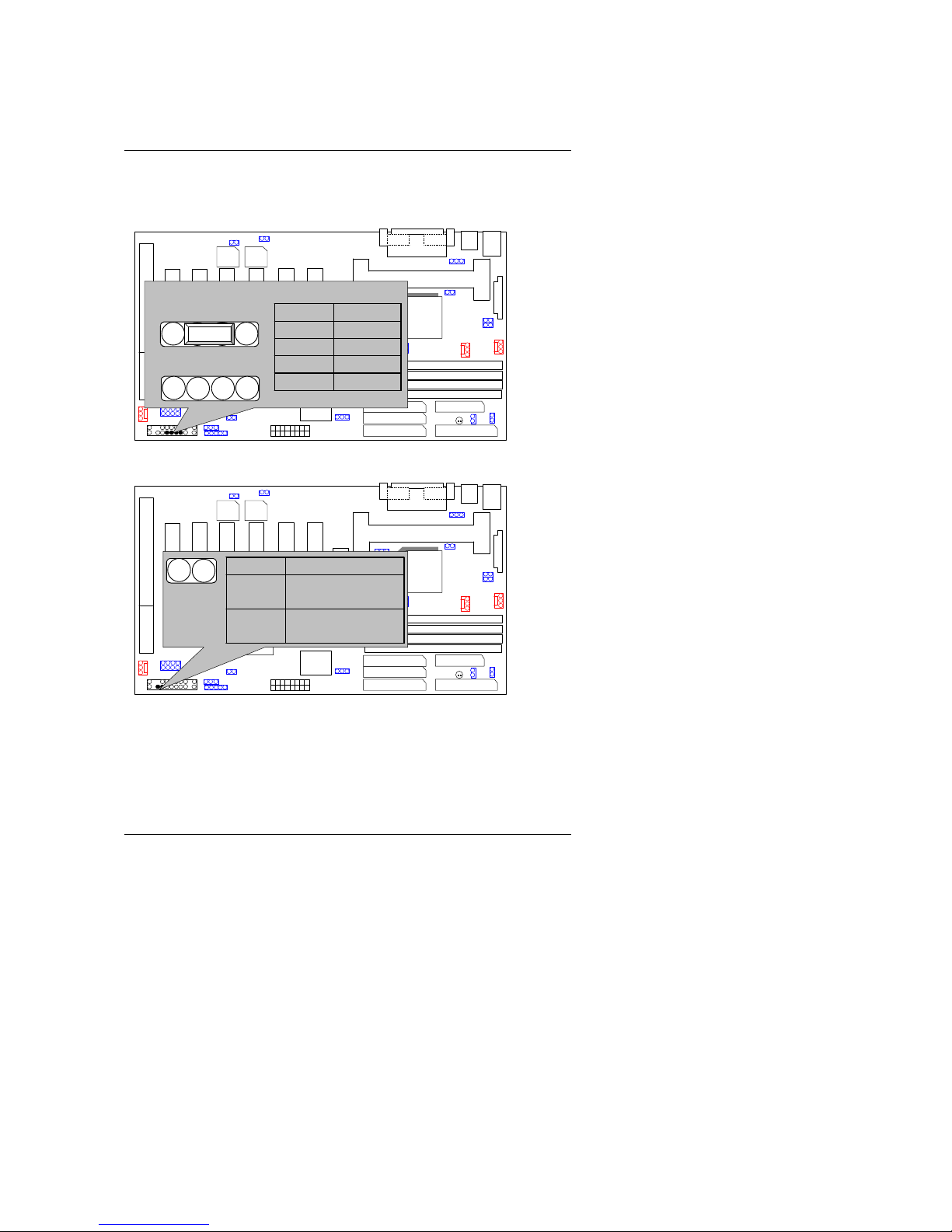

PIN No. Function
1 VCC
2 VCC
3 Data
4 Data
External Speak
Default:
Internal Buzzer
+
1
+
1
RST : Reset Switch
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PIN No. Function
Open
Normal
Operation
Close Reset Hardware
System
PROMISE
Page 12
Quick Installation Guide
10
PW LED : Power LED Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
LED +
2
LED −
3
LED −
+
− −

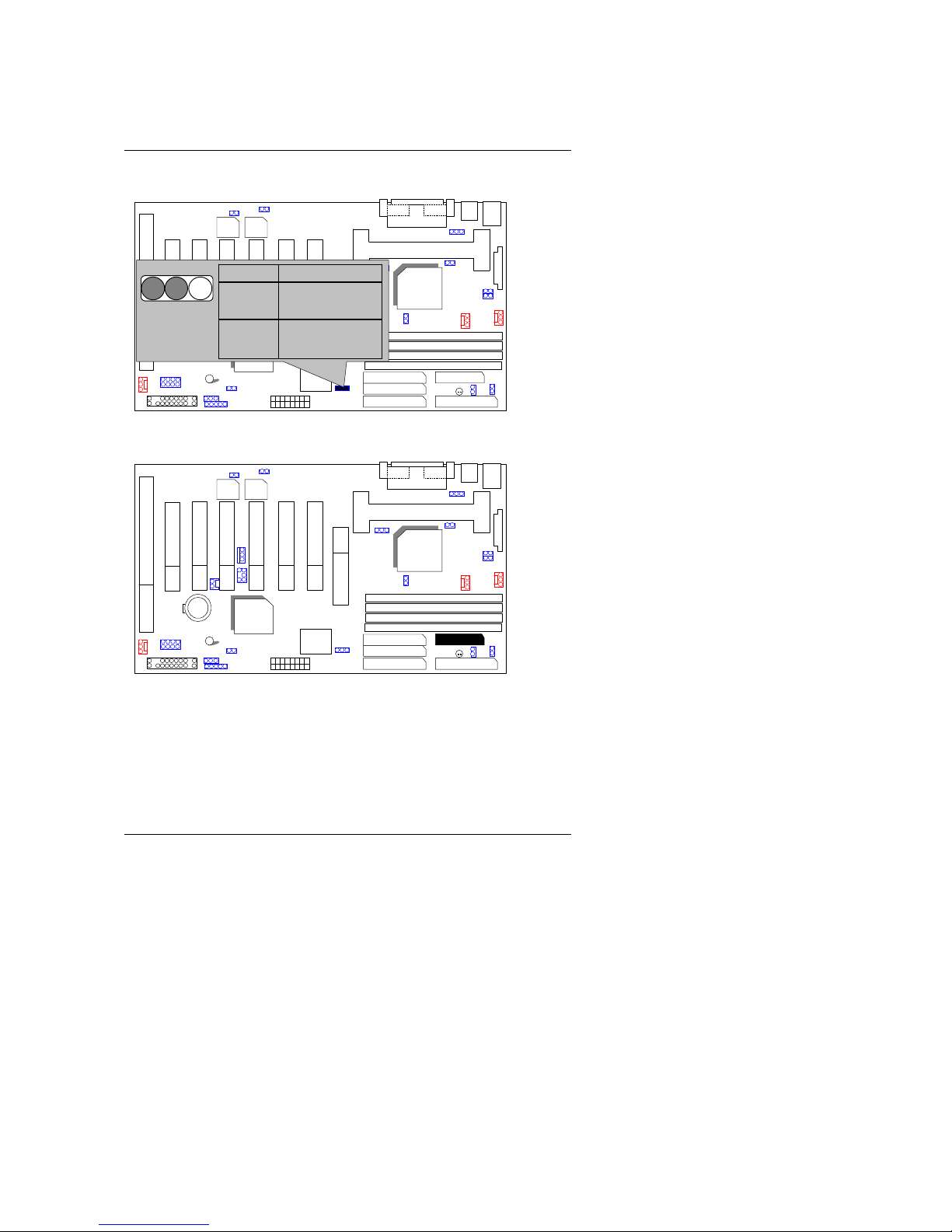

HD : IDE Hard Disk Active LED
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
LED +
2
LED −
+
−
Page 13
BX2000+
11
IR : Infrared Connector (Optional)
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
IR data output
2 GND
3 IR data input
4 NC
5 VCC (+5V)
1
GN : Green Function Switch
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
Open
Normal Operation
Close Entering Green
Mode
Page 14
Quick Installation Guide
12
GD : Green LED
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
LED +
2
LED −
+
−
Soft Power: Soft Power Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
Open
Normal Operation
Close Power On/Off
Page 15
BX2000+
13
ATX POWER: ATX Power Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
Pin No. Function
3,5,7,13,1
5-17
GND
1,2,11 3.3V
4,6,19,20 VCC
10 +12V
12 -12V
18 -5V
8 Power Good
9 5V SB stand by+5V
14 PS-ON(Soft On/Off)
1
11
PS/2 Mouse / Keyboard Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PS/2 Mouse/ Keyboard
Pin No. Function
1 Data
2 NC
3 GND
4 VCC(+5V)
5 Clock
6 NC
PS/2 Keyboard
PS/2 Mouse
1
2
3
4
5
6
Page 16
Quick Installation Guide
14
USB : USB Port
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PIN No. Function
1
USB V0
2 USB D03
USB D0+
4 GND
5
USB V1
6 USB D17 USB D1+
8 GND
1 2
3
4
8
7
6 5
PROMISE
CPU FAN : CPU Cooling Fan Power Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
GND
2 +12V
3 SENSE
1
Page 17
BX2000+
15
POWER FAN : Power Fan Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
GND
2 +12V
3 SENSE
1
PANEL (SYSTEM) FAN : Panel (System) Fan Connector
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
GND
2 +12V
3 SENSE
1
Page 18
Quick Installation Guide
16
IDE1: For Primary IDE Port
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
PROMISE
IDE2: For Secondary IDE Port
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
PROMISE
Page 19
BX2000+
17
ULTRA66-1: For Ultra66 Primary IDE Port
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
PROMISE
ULTRA66-2: For Ultra66 Secondary IDE Port
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
PROMISE
Page 20
Quick Installation Guide
18
JP4 :ATA66 Disable / Enable
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1-2
close
ATA66 Disable
2-3
close
ATA66 Enable
(Default)
3 2 1
FLOPPY : Floppy Port
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
PROMISE
Page 21
BX2000+
19
LPT PORT / COM A / COM B
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
COM B
COM A
LPT PORT
PROMISE
JP1 : PS/2 Keyboard Power On Selection
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PIN No. Function
1-2
close
PS/2 Keyboard Power on
Enabled
2-3
close
PS/2 Keyboard Power on
Disabled (Default)
1 2 3
PROMISE
Page 22
Quick Installation Guide
20
J15: System After AC Back
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PIN No. Function
Open
Soft Off (Default)
Close Full On
1
PROMISE
JP7: Wake On LAN
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
+5V SB
2 GND
3
Signal
3
2
1
Page 23
BX2000+
21
JP8:SB-LINK Creative PCI Sound Card Support (Optional)
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1
Signal
2 GND
3 NC
4 Signal
5 GND
6 Signal
1
2
5 6
JP11 : System Acceleration
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1-2 close
For 100MHz Turbo and other
frequencies.
2-3 close For 100MHz Normal(Default)
3 2 1
Page 24
Quick Installation Guide
22
JP12 : Case Open
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PIN No. Function
1
Signal
2 GND
1
PROMISE
JP14 : Clear CMOS Function
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
1-2 close
Clear CMOS
2-3 close Normal (Default)
1 2 3
Page 25
BX2000+
23
JP13 / JP17 : Close STR Enable
(If you want to use STR Function, please set jumper JP13 & JP17
Closed.)
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
JP17
PIN No. Function
1
Signal
2 GND
If you use INTEL i740 Chipset
AGP Card, please set jumper JP17
/JP13 “OPEN”, because i740 not
support STR Function.
PROMISE
PIN No. Function
1
Signal
2 GND
1
JP13
JP16 : STR LED Connector & DIMM LED
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
STR LED Connector
External.
PROMISE
+
DRAM LED
(Indicate)
Page 26
Quick Installation Guide
24
J18: Ring Pwr On: Internal Modem Ring Power On
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PIN No. Function
1
Signal
2 GND
1
PROMISE
JP20 & JP21 : Close for Voodoo
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
Open
Normal (Default)
Close
Close for Voodoo III
VGA Card
JP20
JP21
Open
Close
Page 27
BX2000+
25
JP22 : BIOS Flash ROM Write Protection
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
Open
Normal(Default)
Close Write Protection
JP22
Open
Close
When you add/update new device
, set Jumper JP22 to “Open”, thi s
need to be enable to update BIOS
data.
T3 : FPUSB
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
Pin No. Definition
1 VCC
2 USB D0-
3 USB D0+
4 GND
5 VCC
6 USB D17 USB D1+
8 GND
1
4 8
5
Page 28
Quick Installation Guide
26
JP3 : Over Voltage (Magic Booster)
(When JP3 set “Open”, CPU Voltage is rising 10%)
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
PIN No. Function
Open
Turbo
Close Normal (Default)
JP3
Open
Close
BAT1:Battery
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
PROMISE
+
Danger of explosion if battery is
incorrectly replaced.
Replace only with the same or
equivalent type recommended by the
manufacturer.
Dispose of used batteries according
to the manufacturer’s instructions.
Page 29
BX2000+
27
III. Top Performance Test Setting:
The following performance data list is the testing results of some popular
benchmark testing programs.
Users have to modify the value for each item in chipset features as follow
for top performance setting.
Page 30
Quick Installation Guide
28
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (Different Hardware & Software
configuration will result in different benchmark testing results.)
•
CPU Pentium III 667MHz processor
•
DRAM (128x1) MB BUFFALO SEC KOREA 928
KM48S8030CT-GH)
•
CACHE SIZE 256 KB included in CPU
•
DISPLAY Gigabyte GA-660Plus (Driver 4.00.1381.0208,4.0.0)
•
STORAGE Onboard IDE (IBM DJNA-371350)
•
Promise Ultra Driver Driver Rev 1.44 (BIOS 0728)
•
O.S. Windows NT™ 4.0 SPK5
•
DRIVER Display Driver at 1024 x 768 x 16bit colors x 75Hz.
Intel Pentium III 667MHz
Processor
667MHz ( 100 x 6.5 )
Winbench99
CPU mark99
60.4
FPU Winmark99
3490
Business Disk Winmark99
5110
Hi-End Disk Winmark99
11600
Business Graphics Winmark99
306
Hi-End Graphics Winmark99
608
Winstone99
Business Winstone99
40.5
Hi-End Winstone99
35.7
Page 31
Page 32
Suspend To RAM Installation
28
IV. Suspend to RAM Installation
A.1 Introduce STR function:
Suspend-to-RAM (STR) is a Windows 98 ACPI sleep mode function. When
recovering from STR (S3) sleep mode, the system is able, in just a few
seconds, to retrieve the last “state” of the system before it went to sleep and
recover to that state. The “state” is stored in memory (RAM) before the
system goes to sleep. During STR sleep mode, your system uses only
enough energy to maintain critical information and system functions,
primarily the system state and the ability to recognize various “wake up”
triggers or signals, respectively.
A.2 STR function Installation
Please use the following steps to complete the STR function installation.
Step-By-Step Setup
Step 1:
To utilize the STR function, the system must be in Windows 98 ACPI mode.
Putting Windows 98 into ACPI mode is fairly easy.
There are two ways to accomplish this:
1. Setup with Windows 98 CD:
A. Insert the Windows 98 CD into your CD-ROM drive, select Start, and
then Run.
B. Type (without quotes)
“D:\setup /p j”
in the window provided. Hit the
enter key or click OK.
(In Windows 98 second edition version, all the bios version dated
12/01/99 or later are ACPI compatible. Just type" D:\Setup", the
operating system will be installed as ACPI mode).
C. After setup completes, remove the CD, and reboot your system
(This manual assumes that your CD-ROM device drive letter is D:).
Page 33
BX2000+
29
2. Update from Windows98 APM mode:
If your Windows 98 system is in APM mode, use the following steps
to update your system to ACPI mode.
1. When Windows 98 finishes loading, open the “Control Panel” in
Windows 98 “My Computer” area.
2. Double click the “System” item.
Page 34
Suspend To RAM Installation
30
3. Select the “Device Manager” tab and then the “System Devices” item.
Double click the “Plug and Play BIOS” item or select “Properties”
4. Select the “Driver” item and “Update Driver”
Page 35
BX2000+
31
5. The “Update Device Driver Wizard” will appear.
Press the “Next” button
6. In the “Update Device Driver Wizard” window, select the “Display a list of
all the drivers in a specific location, so you can select the driver you want.”
Then press the “Next” button “
Page 36
Suspend To RAM Installation
32
7. Select the “Show all hardware” item → then select the “Advance
Configuration and Power Interface (ACPI) BIOS” and press the “Next”
button.
8. “Update Driver Warning” will show up and ask “Are you sure you want to
use this driver?” Select the “Yes” button.
Page 37
BX2000+
33
9. “Update Device Driver Wizard” will show up again. Select the “Next”
button and start copying files to the system.
10. When complete, press the “Finish” button.
11. Restart your computer. Your system will start up using the ACPI mode.
Page 38
Suspend To RAM Installation
34
Step 2:
To use STR Function, you will need to set motherboard jumpers JP13 &
JP17 closed per the figure below (i.e., put a jumper over both pins at
each location).
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
JP17
PIN No. Function
1
Signal
2 GND
If you use INTEL i740 Chipset
AGP Card, please set jumper JP17
/JP13 “OPEN”, because i740 not
support STR Function.
PROMISE
PIN No. Function
1
Signal
2 GND
1
JP13
Step 3:
Power on the computer and as soon as memory counting starts, press <Del>.
You will enter BIOS Setup. Select the item
“POWER MANAGEMENT
SETUP”,
then select
“ACPI Suspend Type: Suspend to RAM”
. Remember
to save the settings by pressing "ESC" and choose the
“SAVE & EXIT
SETUP”
option.
Congratulation! You have completed the installation and now can use the STR
function.
Page 39
BX2000+
35
A.3 How to put your system into STR mode?
There are two ways to accomplish this:
1. Choose the “Stand by” item in the “Shut Down Windows” area.
A. Press the “Start” button and then select “Shut Down”
B. Choose the “Stand by” item and press “OK”
Page 40
Suspend To RAM Installation
36
2. Define the system ”power on” button to initiate STR sleep mode:
A. Double click “My Computer” and then “Control Panel”
B. Double click the “ Power Management” item.
Page 41
BX2000+
37
C. Select the “Advanced” tab and “Standby” mode in Power Buttons.
Step 4:
Restart your computer to complete setup.
Now when you want to enter STR sleep mode, just momentarily press the
“Power on” button..
A.4 How to recover from the STR sleep mode?
There are six ways to “wake up” the system:
1. Press the “Power On” button
2. Use the “Keyboard Power On” function.
3. Use the “Mouse Power On” function
4. Use the “Resume by Alarm” function
5. Use the “Modem Ring On” function
6. Use the “Wake On LAN” function.
Page 42
Suspend To RAM Installation
38
A.5 Notices & Limitations:
1. In order for STR to function properly, several hardware and software
requirements must be satisfied:
A. Your ATX power supply must comply with the ATX 2.01 specification
(provide more than 720 mA 5V Stand-By current).
B. Your SDRAM must be PC-100 compliant.
2. Jumper JP16 is provided to connect to the STR LED in your system
chassis. [Your chassis may not provide this feature.] The STR LED will
be illuminated when your system is in STR sleep mode.
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
1
STR LED Connector
External.
PROMISE
+
DRAM LED
(Indicate)
3. The following is a listing of popular peripherals which have been
successfully tested, on an individual basis, to function correctly in an STR
environment. NOTE: All combinations of these peripherals have NOT
been tested and therefore we do not warrant any particular combination.
A. VGA Card:
(1) AGP: Winfast L2300 Driver Ver.: 7-1-1998
(2) AGP: ATi 3D RAGE Pro AGP 2X Driver Ver.: 535
(3) AGP: ATi RAGE TURBO AGP Driver Ver.: 535
(4) AGP: GA-600 Driver Ver.: win95.342
Page 43
BX2000+
39
B. VGA +Sound Card:
(1) AGP: Winfast L2300 Driver Ver.: 7-1-998
Sound: Creative PCI64 Driver Ver.: 3-18-1998
(2) AGP: ATi 3D RAGE Pro x2 Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
(3) AGP: ATi RAGE TURBO AGP Driver Ver.:535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
(4) AGP: GA-600 Driver Ver.: win95.342
Sound: Creative PCI64 Driver Ver.: 3-18-1998
C. VGA + LAN Card:
AGP Card: Winfast L2300 Driver Ver.: 7-1-1998
ATi 3D RAGE Pro AGP 2X Driver Ver.: 535
ATi RAGE TURBO AGP Driver Ver.: 535
GA-600 Driver Ver.: win95.342
LAN Card: Intel E100B(82557) Driver
Ver.: WIn98 embedded
Intel PILA8461(82558B) Driver Ver.: WIn98 embedded
Intel PILA8465(82558) Driver Ver.: WIn98 embedded
SMC9432TX Driver Ver.: WIn98 embedded
SMC EtherPower Driver Ver.: WIn98 embedded
D-Link DFE-500TX Driver Ver.: WIn98 embedded
D-Link DE-530CT Driver Ver.: WIn98 embedded
D-Link DE-220P Driver Ver.: WIn98 embedded
3COM 3C900 Driver Ver.: 10-29-1998
3COM 3C905B-TX Driver Ver.: 10-29-1998
3COM 3C905 Driver Ver.: 10-29-1998
Digital LM-P100TX Driver Ver.: WIn98 embedded
Digital DE500-BA Driver Ver.: WIn98 embedded
Adaptec ANA-6911/TX Driver Ver.: WIn98 embedded
Page 44
Suspend To RAM Installation
40
D. VGA +Sound+LAN Card:
(1)AGP: Winfast L2300 Driver Ver.: 7-1-1998
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: Intel PILA8461(82558B) Driver Ver.: WIn98 embedded
(2) AGP: Winfast L2300 Driver Ver.: 7-1-1998
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: Intel PILA8465(82558) Driver Ver.: WIn98 embedded
(3)AGP: Winfast L2300 Driver Ver.: 7-1-1998
Sound: Creative PCI64 Driver Ver.: 3-18-1998
Lan: 3COM 3C905B-TX Driver Ver.: 10-29-1998
(4)AGP: ATi 3D RAGE Pro AGP 2X Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: Intel PILA8461(82558B) Driver Ver.: WIn98 embedded
(5) AGP: ATi 3D RAGE Pro AGP 2X Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: Intel PILA8465(82558) Driver Ver.: WIn98 embedded
(6)AGP: ATi 3D RAGE Pro AGP 2X Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: 3COM 3C905B-TX Driver Ver.: 10-29-1998
(7)AGP: ATi RAGE TURBO AGP Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: Intel PILA8461(82558B) Driver Ver.: WIn98 embedded
(8)AGP: ATi RAGE TURBO AGP Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: Intel PILA8465(82558) Driver Ver.: WIn98 embedded
(9)AGP: ATi RAGE TURBO AGP Driver Ver.: 535
Sound: Creative PCI64 Driver Ver.: 3-18-1998
LAN: 3COM 3C905B-TX Driver Ver.: 10-29-1998
Page 45
BX2000+
41
E. SDRAM:
(1) SDRAM: Apacer (AM2V168A1T8) 32MB
(2) SDRAM: Trandscend (MITSUBISHI M5M4V16S30BTP –10) 32MB
(3) SDRAM: BUFFALO(NEC D4516821AG5-A10-75F) 32MB
(4) SDRAM: HYUNDAI (HYUNDIA 7V75A400 DTFG-10P) 32MB
(5) SDRAM: ATP (SEC KM48S2020CT-G8 ) 32MB
(6) SDRAM: CRUCIAL (MICRON MT48LC2M8A-8) 32MB
(7) SDRAM: BUFFALO (FUJITSU 81F16822D-102LFN M00) 32MB
(8) SDRAM: UMAX (MITSUBISHI M5M4V16S30DTP –8) 32MB
(9) SDRAM: UMAX (MITSUBISHI M5M4V16S30BTP –10) 32MB
(10) SDRAM: ARMAS (NEC D4564841G5-A10) 64MB
(11) SDRAM: SAMSUNG (SEC KM48S8030CT-GA) 64MB
(12) SDRAM: BUFFALO (MICRON MT48LC2M8A1-8) 64MB
(13) SDRAM: ADTEC (MITSUBISH M5M4V64S30ATP-8) 128MB
(14) SDRAM: (NEC D4564441G5-A10-9JF) 256MB
F. Power Supply:
Vender Model Spec.
(1). HIGH POWER HPC-250G1 REV:A0-01 (5VSB 1A)
(2). PC WINNER ST-235ATX (5VSB 1.5A)
(3). Enhance ATX-725B (5VSB 1A)
(4). Enhance ATX-723B (5VSB 1A)
(5). Sseasanic SS-200FS (5VSB 1A)
(6). SPI FSP-235-60GT (5VSB 0.8A )
(7). ETASIS EPR-2305 (5VSB 0.8A)
(8). DVE DSP-ATX-230 (5VSB 0.75A)
4. Limitation List:
a. Don’t get into STR mode right away when the system just resume
from STR mode, Please wait a few seconds to let the system
completely restore the last status’s data.
b. SCSI HD devices are not supported for STR function for now on.
c. If you use a ZIP of external connector type, please modify the item
“Parallel Port Mode” of “INTEGRATED PERIPHERALS” in your
BIOS setting to “ECP or ECP+EPP” mode.
Page 46
Suspend To RAM Installation
42
d. If your PS/2 Mouse fails in “Mouse Power On” function, please
contact your vendor and update your Mouse Driver.
Page 47
Page 48
Introduce Dual BIOS
42
V. Introduce Dual BIOS
A. What is Dual BIOS Technology?
Dual BIOS means that there are two system BIOS (ROM) on the
motherboard, one is the Main BIOS and the other is Backup BIOS. Under
the normal circumstances, the system works on the Main BIOS. If the
Main BIOS is corrupted or damaged, the Backup BIOS can take over while
the system is powered on. This means that your PC will still be able to run
stably as if nothing has happened in your BIOS.
B. How to use Dual BIOS?
a. Boot Screen
Award Modular BIOS v 4.51PG, An Energy Star Ally
Copyright (C) 1984-98, Award Software, Inc.
Intel 440BX AGPSet BIOS for XXX Vx.x
Check System Health ok , Vcore =2.00V
Pentium III-MMX CPU at 600MHz
<CPU ID:0652 Patch ID:0014>
Memory Test :16384K OK
Award Plug and Play BIOS Extension Vx.x
Copyright (C ) 1998, Award software, Inc.
<Press F1 to enter Dual BIOS Utility>
Press DEL to enter SETUP
03/29/1999-I440BX-8671-2A69KG0EC- 00
Press F1 to enter Dual BIOS Utility
Page 49
BX2000+
43
b. Dual BIOS Utility
c. Dual BIOS Item explanation:
Wide Range Protection: Disabled(Default), Enabled
Status 1:
If any failure (ex. Update ESCD failure, checksum error or reset…)
occurs in the Main BIOS , just before the Operating System is loaded
and after the power is on, and that the Wide Range Protection is set to
“Enable”, the PC will boot from Backup BIOS automatical ly.
Status 2:
If the ROM BIOS on peripherals cards(ex. SCSI Cards, LAN Cards,..)
emits signals to request restart of the system after the user make any
alteration on it, the boot up BIOS will not be changed to the Backup
BIOS.
Dual BIOS Utility V6.60.g.01K
(C) 1999, Gigabyte Technology Co., LTD.
Wide Range Protection :Disabled
Halt On BIOS Defects :Disabled
Auto Recovery :Enabled
Boot From :Main BIOS
BIOS Recovery :Main to Backup
F3: Load Default F5:Start BIOS Recovery
F7: Save And Restart F9:Exit Without Saving
Use <Space> key to toggle setup
Page 50
Introduce Dual BIOS
44
Halt On BIOS Defects : Disabled(Default), Enabled
If the BIOS occurs a checksum error or the Main BIOS occurs a WIDE
RANGE PROTECTION error and Halt On BIOS Defects set to Enable, the
PC will show messages on the boot screen, and the system will pause and
wait for the user’s instruction.
If Auto Recovery :
Disabled
, it will show
<or the other key to continue.>
If Auto Recovery :
Enabled
, it will show
<or the other key to Auto
Recover.>
Auto Recovery : Enabled(Default), Disabled
When one of the Main BIOS or Backup BIOS occurs checksum failure,
the working BIOS will automatically recover the BIOS of checksum failure.
(In the Power Management Setup of the BIOS Setting, if ACPI Suspend
Type is set to Suspend to RAM, the Auto Recovery will be set to Enable
automatically.)
(If you want to enter the BIOS setting, please press
“Del”
key when the
boot screen appears.)
Boot From : Main BIOS(Default), Backup BIOS
Status 1:
The user can set to boot from main BIOS or Backup BIOS.
Status 2:
If one of the main BIOS or the Backup BIOS fails, this item
“Boot From :
Main BIOS(Default)”
will become gray and will not be changed by user.
BIOS Recovery : Main to Backup
Auto recovery message:
BIOS Recovery: Main to Backup
The means that the Main BIOS works normally and could automatically
recover the Backup BIOS.
BIOS Recovery: Backup to Main
The means that the Backup BIOS works normally and could
automatically recover the Main BIOS.
(This auto recovery utility is set by system automatically and can’t be
changed by user.)
Page 51
BX2000+
45
DualBIOS
TM
Technology FAQ
GIGABYTE Technology is pleased to introduce DualBIOS technology, a hot
spare for your system BIOS. This newest “Value- added” feature, in a long
series of innovations from GIGABYTE, is available on GA-BX2000+
motherboard. Future GIGABYTE motherboards will also incorporate this
innovation.
What’s DualBIOSTM?
On GIGABYTE motherboards with DualBIOS there are physically two BIOS
chips. For simplicity we’l l call one your “Main BIOS” and the other we’l l call
your “Backup” BIOS (your “hot spare”). If your Main BIOS fails, the Backup
BIOS almost automatically takes over on your next system boot. Almost
automatically and with virtually zero down time! Whether the problem is a
failure in flashing your BIOS or a virus or a catastrophic failure of the Main BIOS
chip, the result is the same - the Backup BIOS backs you up, almost
automatically.
Page 52
Introduce Dual BIOS
46
I. Q: What is DualBIOSTM technology?
Answer:
DualBIOS technology is a patented technology from Giga-Byte Technology.
The concept of this technology is based on the redundancy and fault tolerance
theory. DualBIOSTM technology simply means there are two system BIOSes
(ROM) integrated onto the motherboard. One is a main BIOS, and the other is
a backup BIOS. The mainboard will operate normally with the main BIOS,
however, if the main BIOS is corrupt or damaged for various reasons, the
backup BIOS will be automatically used when the system powered-On. Your
PC will operate as before the main BIOS was damaged, and is completely
transparent to the user.
II. Q: Why does anyone need a motherboard with DualBIOSTM
technology?
Answer:
In today’s systems there are more and more BIOS failures. The most common
reasons are virus attacks, BIOS upgrade failures, and/or deterioration of the
BIOS (ROM) chip itself.
1. New computer viruses are being found that attack and destroy the system
BIOS. They may corrupt your BIOS code, causing your PC to be unstable
or even not boot normally.
2. BIOS data will be corrupted if a power loss/surge occurs, or if a user resets
the system, or if the power button is pressed during the process of
performing a system BIOS upgrade.
3. If a user mistakenly updates their mainboard with the incorrect BIOS file,
then the system may not be able to boot correctly. This may cause the PC
system hang in operation or during boot.
4. A flash ROM's life cycle is limited according to electronic characteristics.
The modern PC utilizes the Plug and Play BIOS, and is updated regularly.
If a user changes peripherals often, there is a slight chance of damage to
the flash ROM.
With Giga-Byte Technology’s patented DualBIOSTM technology you can
reduce the possibility of hangs during system boot up, and/or loss BIOS data
due to above reasons. This new technology will eliminate valuable system
down time and costly repair bills cause by BIOS failures.
Page 53
BX2000+
47
III. Q: How does DualBIOSTM technology work?
Answer:
1. DualBIOSTM technology provides a wide range of protection during the boot
up procedure. It protects your BIOS during system POST, ESCD update,
and even all the way to PNP detection/assignment.
2. DualBIOSTM provides automatic recovery for the BIOS. When the first BIOS
used during boot up does not complete or if a BIOS checksum error occurs,
boot-up is still possible. In the DualBIOSTM utility, the "Auto Recovery"
option will guarantee that if either the main BIOS or backup BIOS is
corrupted, the DualBIOSTM technology will use the good BIOS and correct
the wrong BIOS automatically.
3. DualBIOSTM provides manual recovery for the BIOS. DualBIOSTM
technology contains a built-in flash utility, which can flash your system
BIOS from backup to main and/or visa versa. There is no need for an
OS-dependent flash utility program.
4. DualBIOSTM contains a one-way flash utility. The built-in one-way flash
utility will ensure that the corrupt BIOS is not mistaken as the good BIOS
during recovery and that the correct BIOS (main vs. backup) will be flashed.
This will prevent the good BIOS from being flashed.
IV. Q: Who Needs DualBIOSTM technology?
Answer:
1. Every user should have DualBIOSTM technology due to the advancement of
computer viruses.
Everyday, there are new BIOS-type viruses discovered that will destroy your
system BIOS. Most commercial products on the market do not have
solutions to guard against this type of virus intrusion. The DualBIOSTM
technology will provide a state-of-the-art solution to protect your PC:
Case I.) Vicious computer viruses may wipe out your entire system BIOS.
With a conventional single system BIOS PC, the PC will not be functional
until it is sent for repairs.
Case II.) If the "Auto Recovery" option is enabled in the DualBIOSTM utility,
and if a virus corrupts your system BIOS, the backup BIOS will
automatically reboot the system and correct the main BIOS.
Case III.) A user may override booting from the main system BIOS. The
DualBIOSTM utility may be entered to manually change the boot sequence to
Page 54
Introduce Dual BIOS
48
boot from the backup BIOS.
Page 55
BX2000+
49
2. During or after a BIOS upgrade, if DualBIOSTM detects that the main BIOS is
corrupt, the backup BIOS will take over the boot-up process automatically.
Moreover, it will verify the main and backup BIOS checksums when
booting-up. DualBIOSTM technology examines the checksum of the main
and backup BIOS while the system is powered on to guarantee your BIOS
operates properly.
3. Power Users will have the advantage of having two BIOS versions on their
mainboard. The benefit is being able to select either version BIOS to suit the
performance system needs.
4. Flexibility for high-end desktop PCs and workstation/servers. In the
DualBIOSTM utility, the option can be set, "Halt On When BIOS Defects," to
be enabled to halt your system with a warning message that the main BIOS
has been corrupted. Most workstation/servers require constant operation to
guarantee services have not been interrupted. In this situation, the "Halt On
When BIOS Defects" message may be disabled to avoid system pauses
during normal booting. Another advantage you gain from Giga-Byte’s
DualBIOSTM technology is the ability to upgrade from dual 2 Mbit BIOS to
dual 4 Mbit BIOS in the future if extra BIOS storage is need.
Page 56
Page 57
BX2000+
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE.......................................................................................................1-1
1.2. KEY FEATHERS............................................................................................1-1
1.3. PERFORMANCE LIST...................................................................................1-2
1.4. BLOCK DIAGRAM..........................................................................................1-3
1.5. INTRODUCE THE PENTIUM II / III PROCESSORS................................. 1-4
1.6. WHAT IS AGP?..............................................................................................1-5
2. SPECIFICATION
2.1. HARDWARE ..................................................................................................2-1
2.2. SOFTWARE...................................................................................................2-2
2.3. ENVIRONMENT.............................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING..................................................................................................3-1
3.2. MAINBOARD LAYOUT..................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS...........................3-2
3.4. DRAM INSTALLATION..................................................................................3-7
3.5. CPU SPEED SETUP......................................................................................3-7
3.6. CMOS RTC & ISA CFG CMOS RAM............................................................3-8
3.7. SPEAKER CONNECTOR INSTALLATION...................................................3-9
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION.................3-9
3.9. POWER LED CONNECTOR INSTALLATION..............................................3-9
3.10. IDE & ATAPI DEVICE INSTALLATION.......................................................3-9
Page 58
Table of Contents
2
3.11. PERIPHERAL DEVICE INSTALLATION.....................................................3-9
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION............................................3-9
4. BIOS CONFIGURATION
4.1. ENTERING SETUP........................................................................................4-1
4.2. CONTROL KEYS ...........................................................................................4-1
4.3. GETTING HELP.............................................................................................4-2
4.3.1. Main Menu .....................................................................................4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu..........................4-2
4.4. THE MAIN MENU...........................................................................................4-2
4.5. STANDARD CMOS SETUP MENU...............................................................4-4
4.6. BIOS FEATURES SETUP .............................................................................4-8
4.7. CHIPSET FEATURES SETUP......................................................................4-13
4.8. POWER MANAGEMENT SETUP.................................................................4-17
4.9. PNP/PCI CONFIGURATION........................................................................4-22
4.10. LOAD BIOS DEFAULTS..............................................................................4-24
4.11. LOAD PERFORMANCE DEFAULTS ..........................................................4-25
4.12. INTEGRATED PERIPHERALS....................................................................4-26
4.13. SPUERVISOR PASSOWORD/USER PASSWORD ..................................4-31
4.14. IDE HDD AUTO DETECTION.....................................................................4-32
4.15. SAVE & EXIT SETUP ..................................................................................4-33
4.16. EXIT WITHOUT SAVING ............................................................................4-34
Appendix A: Ultra66 Driver Install Produce..................................................A-1
Page 59
BX2000+
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the
BX2000+
motherboard. It is a Pentium II / III / Celeron
Processor based PC / AT compatible system with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
q
Intel Pentium II / III / Celeron Processor based PC / AT compatible main
board.
q
Slot 1 supports Pentium II / III / Celeron processor running at 233-800
MHz.
q
Intel 440BX chipset, Supports AGP / SDRAM / Ultra DMA/33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
q
Supports 4xDIMMs using 3.3V SDRAM DIMM module.
q
Supports Intel LDCM
Network Manageability.
q
Supports 8 MB – 1GB SDRAM memory on board.
q
Supports ECC or Non-ECC type DRAM module.
q
1xAGP slot, 6xPCI Bus slots, 1xISA Bus slots.
q
Supports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
q
Promise Chipset supports 2 channels Ultra DMA66/33 IDE Port for 4 IDE
Device.
q
Supports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
q
Supports 4xUSB ports (Front Panel USBx2, Back Panel USBx2), 1xPS/2
Mouse & 1xPS/2 Keyboard.
q
Licensed AWARD BIOS, 2M bits FLASH ROM.
q
Support
Dual BIOS
and
BIOS Write Protection
.
q
Support Suspend To RAM Function.
q
Support
CPU Over Voltage Select (Magic Booster
).
Page 60
Introduction
1-2
q
30.5 cm x 19.5 cm ATX SIZE form factor, 4 layers PCB.
Page 61
BX2000+
1-3
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (Different Hardware & Software
configuration will result in different benchmark testing results.)
•
CPU Pentium III 667MHz processor
•
DRAM (128x1) MB BUFFALO SEC KOREA 928
KM48S8030CT-GH)
•
CACHE SIZE 256 KB included in CPU
•
DISPLAY Gigabyte GA-660Plus (Driver 4.00.1381.0208,4.0.0)
•
STORAGE Onboard IDE (IBM DJNA-371350)
•
Promise Ultra Driver Driver Rev 1.44 (BIOS 0728)
•
O.S. Windows NT™ 4.0 SPK5
•
DRIVER Display Driver at 1024 x 768 x 16bit colors x 75Hz.
Intel Pentium III 667MHz
Processor
667MHz ( 100 x 6.5 )
Winbench99
CPU mark99
60.4
FPU Winmark99
3490
Business Disk Winmark99
5110
Hi-End Disk Winmark99
11600
Business Graphics Winmark99
306
Hi-End Graphics Winmark99
608
Winstone99
Business Winstone99
40.5
Hi-End Winstone99
35.7
Page 62
Introduction
1-4
1.4. BLOCK DIAGRAM
24MHz
14.318MHz
33 MHz
33MHz
IDE Bus
PCI Bus
ISA
Bus
AGP Bus
COM Ports
USB Bus
Ultra DMA/33
IDE Ports
14.318MHz
48 MHz
14.318MHz
I/O
CHIPSET
ITE 8671
AGP
Host Bus
INTEL
82443BX
CHIPSET
PIIX4
82371EB
CHIPSET
SLOT 1
66MHz
66 /
100 MHz
66 /
100 MHz
33 MHz
66 /
100 MHz
3.3V SDRAM
DIMM Sockets
ICS 9248-63 /
9279-01
FPUSB
BPUSB
Promise
LPT Port
Floppy Port
Keyboard
PS/2 Mouse
33 MHz
Ultra DMA66/33
IDE Ports
Page 63
BX2000+
1-5
1.5. INTRODUCE THE Pentium II / III Processors
Figure 1: Universal Retention Mechanism & attach Mount
Figure 2:OEM Pentium II Processor
Page 64
Introduction
1-6
Figure 3: OEM Pentium III Processor
1.6 What is AGP?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs.32-Bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used the port can transmit
data at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used
to transmit the data address on a separate line in order to speed up the
transaction.
Page 65
Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•
CPU
−
Pentium II/III/Celeron processor 233 – 800 MHz.
−
242 pins 66 / 100MHz slot1 on board.
•
PROTECTION
−
Supports
CPU Over Voltage Select
(
Magic Booster
).
−
Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−
Automatically slow down CPU speed when "CPU
Overheat".
−
Intel LDCM supported.
−
H/W monitor power status (±5V, ±12V, VGTL,5VSB,
CPU voltage & CMOS battery voltage).(Optional)
•
SPEED
−
66/100 MHz system speed.
−
66 MHz AGP bus speed. (2X mode 133MHz)
−
33 MHz PCI-Bus speed.
−
8 MHz AT bus speed.
•
DRAM MEMORY
−
4 banks 168 pins DIMM module sockets on board.
−
Use 8 / 16 / 32 / 64 / 128 / 256 MB DIMM module
DRAM.
−
8 ~ 1GB SDRAM.
−
Supports 3.3V SDRAM.
−
Supports ECC or Non-ECC type DRAM.
−
Supports
Suspend To RAM
Function.
•
CACHE MEMORY
−
32 KB L1 cache memory included in CPU.
−
L2 cache memory included in CPU
(depends on CPU type)
−
Supports DIB speed mode for L2 Cache.
•
I/O BUS SLOTS
−
6 33MHz Master / Slave PCI-BUS.
−
1 8MHz 16 bits ISA BUS.
−
1 66MHz / 133MHz AGP bus.
Page 66
BX2000+
2-2
•
IDE PORTS
−
2 Ultra DMA/33 Bus Master IDE channels onboard.
(Using IRQ14,15)
−
Support Mode 3,4 IDE & ATAPI CD – ROM.
−
Promise Chipset supports 2 Channels Ultra
DMA66/33 IDE Port for 4 IDE device.
•
I/O PORTS
−
Supports 2 16550 COM ports.
−
Supports 1 SPP/EPP/ECP LPT port.
−
Supports 1 Floppy port.
−
Supports 4 USB ports.
−
Supports PS/2 Mouse & PS/2 Keyboard.
•
GREEN FUNCTION
−
Suspend mode support.
−
Green switch & ACPI LED support.
−
IDE & Display power down support.
−
Monitor all IRQ / DMA / Display / I/O events.
•
BIOS
−
2M bits FLASH ROM.
−
Support
Dual BIOS
and
BIOS Write Protection
.
−
Supports Plug & Play, DMI , ACPI Function.
•
DIMENSION
−
ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•
DRIVER
−
IUCD.
•
BIOS
−
Licensed AWARD BIOS.
−
AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•
O.S.
−
Operation with MS-DOS, Windows95,
Windows98, WINDOWS NT™, OS/2, NOVELL and
SCO UNIX.
2.3. ENVIRONMENT
•
Ambient Temp.
−
0°C to +50°C (Operating).
• Relative Hum.
−
0 to +85% (Operating).
•
Altitude
−
0 to 10,000 feet (Operating).
•
Vibration
−
0 to 1,000 Hz.
•
Electricity
−
4.9 V to 5.2 V. (Max. 20A current at 5V.)
Page 67
Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
• The
BX2000+
main board.
•
The Universal Retention Mechanism & Attach Mount
•
USER’S MANUAL for main board.
• Cable set for DMA66/33 device, Floppy device.
•
CD for main board Utility.
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The
operator should be wearing an anti static wristband, grounded at the same
point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and handling
damages on the board before proceeding.
After opening the main board carton, extract the system board and place it only
on a grounded anti-static surface component side up. Again inspect the board
for damage. Press down on all of the socket IC's to make sure that they are
properly seated. Do this only on with the board placed on a firm flat surface.
M
DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.
Page 68
BX2000+
3-2
3.2. MAINBOARD LAYOUT
CPU
Intel
440BX
PIIX4
BX2000+
Main
BIOS
Backup
BIOS
SW
JP12
JP17
JP22
JP7
JP18
JP8
T3
BAT
System
(Panel)
FAN
T4
JP9
JP14
J15
BZ1
JP4
Ultra66-2
Ultra66-1
IDE1
IDE2
Floppy
JP16
JP13
LED1
Bank 3
Bank 2
Bank 1
Bank 0
Power FAN
CPU
FAN
JP20
JP21
JP3
JP11
JP1
PS/2
USB
COMB
COMA
LPT
ATX PWR
AGP
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
PCI 6
ISA 1
PROMISE
×
Figure 3.1Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
t
I/O Ports Connector
USB USB port.
PS/2 For PS/2 Keyboard / Mouse port.
IDE 1 For Primary IDE port.
IDE 2 For Secondary IDE port.
Ultra66-1 For Ultra DMA66 Primary IDE port.
Ultra66-2 For Ultra DMA66 Secondary IDE port.
Floppy For Floppy port
COM B For Serial port2 (COM B).[Support External Modem Ring On]
COM A For Serial port1 (COM A).[Support External Modem Ring On]
LPT For LPT port.
ATX
POWER
For ATX Power Connector.
t
Slot 1
For Pentium
II / III / Celeron Processor installed
t
CPU FAN : CPU Cooling FAN Power Connector
Pin No. Function
1 GND.
2 +12V
Page 69
Hardware Installation
3-3
3 SENSE
t
POWER FAN : POWER FAN Power Connector
Pin No. Function
1 GND.
2 +12V
3 SENSE
t
PANEL(SYSTEM) FAN: PANEL(SYSTEM) FAN Power Connector
Pin No. Function
1 GND.
2 +12V
3 SENSE
t
J15 : System After Ac Back
Pin No. Function
Open Soft Off (Default)
Close Full On
t
JP1 : PS/2 Keyboard Power On Selection
Pin No. Function
1-2 close PS/2 Enabled Keyboard power on.
2-3 close PS/2 Disabled Keyboard power on.(Default)
t
JP11 : System Acceleration
1-2 close For 100MHz Turbo and other frequencies
2-3 close For 100MHz Normal (Default)
t
JP7 : Wake on LAN Connector
Pin No. Function
1 +5VSB
2 GND
3 CTRL-Signal
t
JP12 : Case Open
Pin No. Function
1 Signal
2 GND
Page 70
BX2000+
3-4
t
JP18 SB-LINK : For PCI Sound Card Connector (Optional)
Pin No. Function
1 Signal
2 GND
3 NC
4 Signal
5 GND
6 Signal
t
JP9 IR: INFRARED Connector (Optional)
Pin No. Function
1 IR DATA OUTPUT
2 GND
3 IR DATA INPUT
4 NC
5 VCC (+5V)
t
JP14 : CLEAR CMOS
Pin No. Function
1-2 close Clear CMOS
2-3 close Normal (Default)
t
JP13 / JP17 :Close STR Enable
Pin No. Function
1 Signal
2 GND
t
JP8 Ring Pwr On : Internal Modem Ring Power On.
Pin No. Function
1 Signal
2 GND
t
JP20 & JP21 : Close for Voodoo
Pin No. Function
Open Normal (Default)
Close Close for Voodoo III VGA Card.
t
JP3 : Over Voltage (Magic Booster)
Pin No. Function
Page 71
Hardware Installation
3-5
Open Turbo.
Close Normal (Default)
t
JP4 : ATA66 Disable / Enable
Pin No. Function
1-2 close Disabled
2-3 close Enabled (Default)
t
JP22 : BIOS Flash ROM Write Protection
Pin No. Function
Open Normal (Default)
Close Write Protection
t
T3 : FPUSB
Pin No. Function
1 VCC
2 USB D03 USB D0+
4 GND
5 VCC
6 USB D17 USB D1+
8 GND
T4 : 2*11PIN Jumper
PW : Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RE : Reset Switch
T4
PW
P+P−P
−
H+
RE
SPKR
GN
G−
1
1
1
1
H−
GN
G+
Page 72
BX2000+
3-6
Open: Normal Operation
Short: For Hardware Reset System
Page 73
Hardware Installation
3-7
P+P−P−: Power LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (−)
PIN 3 : LED cathode (−)
SPKR : External Speaker Connector
PIN 1 : VCC (+)
PIN 2 : VCC
PIN 3 : Data
PIN 4 : Data (−)
H+H−: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode (−)
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
G−G+: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (−)
1
1
1
1
+
−
Page 74
BX2000+
3-8
3.4. DRAM INSTALLATION
The main board can be installed with 8 / 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must be 67~100 MHz for SDRAM
when system bus speed is set to 66MHz. When system bus speed is set to
100MHz, 100MHz SDRAM is required. The DRAM memory system on main
board consists of bank 0, 1, 2 & bank 3.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 8 MB ~1GB
SDRAM. The DRAM installation position refer to Figure 3.1, and notice the Pin
1 of DIMM module must match with the Pin 1 of DIMM socket. Insert the DRAM
DIMM module into the DIMM socket at Vertical angle. If there is a wrong
direction of Pin 1, the DRAM DIMM module could not be inserted into socket
completely.
3.5. CPU SPEED SETUP
The system bus speed can be set to 66 / 100MHz form the DIP SWITCH (SW).
The user can change the DIP SWITCH selection to set up the CPU speed for
different processors.
Pentium II / III
CPU
1 2 3 4 5 6 7 8
233 / 66MHz
OFF OFF ON ON ON OFF OFF ON
266 / 66MHz
ON ON OFF ON ON OFF OFF ON
300 / 66MHz
OFF ON OFF ON ON OFF OFF ON
333 / 66MHz
ON OFF OFF ON ON OFF OFF ON
366 / 66MHz
OFF OFF OFF ON ON OFF OFF ON
400 / 66MHz
ON ON ON OFF ON OFF OFF ON
433 / 66MHz
OFF ON ON OFF ON OFF OFF ON
466 / 66MHz
ON OFF ON OFF ON OFF OFF ON
500 / 66MHz
OFF OFF ON OFF ON OFF OFF ON
533 / 66MHz
ON ON OFF OFF ON OFF OFF ON
* 566 / 66MHz
OFF ON OFF OFF ON OFF OFF ON
350 / 100MHz
OFF OFF ON ON OFF OFF OFF OFF
400 / 100MHz
ON ON OFF ON OFF OFF OFF OFF
450 / 100MHz OFF ON OFF ON OFF OFF OFF OFF
500 / 100MHz
ON OFF OFF ON OFF OFF OFF OFF
550 / 100MHz
OFF OFF OFF ON OFF OFF OFF OFF
Page 75
Hardware Installation
3-9
600 / 100MHz
ON ON ON OFF OFF OFF OFF OFF
650 / 100MHz
OFF ON ON OFF OFF OFF OFF OFF
700 / 100MHz
ON OFF ON OFF OFF OFF OFF OFF
750 / 100MHz
OFF OFF ON OFF OFF OFF OFF OFF
800 / 100MHz
ON ON OFF OFF OFF OFF OFF OFF
* 850 / 100MHz
OFF ON OFF OFF OFF OFF OFF OFF
«
We don’t rec ommend you to setup your CPU ratio above 8 nth, it
doesn’t support now.
Main Clock Table
CLK 5 6 7 8
66 MHz
ON OFF OFF ON
152 MHz
ON OFF ON OFF
142MHz
ON ON OFF OFF
100 MHz
OFF OFF OFF OFF
112MHz OFF OFF ON OFF
124 MHz OFF ON ON OFF
133 MHz OFF ON OFF OFF
PCI Run 44.3 MHz
133 MHz ON ON ON OFF
PCI Run 33.3 MHz
M
The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from metal
surface when the CPU is installed onto main board.
3.6. CMOS RTC & ISA CFG CMOS RAM
There're RTC & CMOS RAM on board; they have a power supply from external
battery to keep the DATA inviolate & effective. The RTC is a REAL-TIME
CLOCK device, which provides the DATE & TIME to system. The CMOS RAM
is used for keeping the information of system configuration, so the system can
automatically boot OS every time. Since the lifetime of internal battery is 5
years, the user can change a new Battery to replace old one after it cannot
work.
M
Danger of explosion if battery is incorrectly replaced.
M
Replace only with the same or equivalent type recommended by the
manufacturer.
M
Dispose of used batteries according to the manufacturer’s instructions.
Page 76
BX2000+
3-10
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 - Pins connector
SPKR
is used to connect speaker. Anode connects +, Cathode connects −.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET function.
The system will do a cold start after the RESET switch is pushed and released
by user. The RESET switch is a 2 PIN connector and should be installed to
RST
on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has Power LED lamp on the panel of case. The Power LED will light on
off or flash to indicate which step on the system. The connector should be
connected to
PWR
of main board in correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (
IDE1, IDE2
) on board, which following
ATAPI standard SPEC. Any one IDE port can connected to two ATAPI devices
(IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI devices can exist
in a system. The
HD
is the active LED port for ATAPI devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the main board can be
mounted into the case and fixed by screw. To complete the main board
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of four PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and prepare to power-on the system.
Page 77
Hardware Installation
3-11
Loading...
