Gigabyte AM2 Processor Motherboard GA-M57SLI-S4 User Manual
GA-M57SLI-S4
AMD Socket AM2 Processor Motherboard
User's Manual
Rev. 1002
12ME-M57SLI4R-1002R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Motherboard
GA-M57SLI-S4
Jun. 7, 2006
Jun. 7, 2006
Motherboard
GA-M57SLI-S4
Copyright
© 2006 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to
change without prior notice.
Product Manual Classification
In order to assist in the use of this product, Gigabyte has categorized the user manual in the
following:
For quick installation, please refer to the "Hardware Installation Guide" included with the
product.
For detailed product information and specifications, please carefully read the
"Product User Manual".
For detailed information related to Gigabyte's unique features, please go to "Technology
Guide" section on Gigabyte's website to read or download the information you need.
For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw
- 4 -
Table of Contents
Item Checklist ................................................................................................................. 6
Optional Accessories ...................................................................................................... 6
GA-M57SLI-S4 Motherboard Layout ............................................................................. 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Considerations Prior to Installation .................................................................... 9
1-2 Feature Summary .......................................................................................... 10
1-3 Installation of the CPU and CPU Cooler ....................................................... 12
1-3-1 Installation of the CPU ......................................................................................... 12
1-3-2 Installation of the CPU Cooler ............................................................................ 13
1-4 Installation of Memory .................................................................................... 14
1-5 Installation of Expansion Cards ...................................................................... 16
1-6 Setup of SLI (Scalable Link Interface) Configuration ....................................... 17
1-7 I/O Back Panel Introduction ........................................................................... 20
1-8 Connectors Introduction .................................................................................. 21
Chapter 2 BIOS Setup ................................................................................................ 31
The Main Menu (For example: BIOS Ver. : F3c)...................................................... 32
2-1 Standard CMOS Features ............................................................................. 34
2-2 Advanced BIOS Features.............................................................................. 36
2-3 Integrated Peripherals ..................................................................................... 38
2-4 Power Management Setup ............................................................................. 42
2-5 PnP/PCI Configurations................................................................................. 44
2-6 PC Health Status ........................................................................................... 45
2-7 MB Intelligent Tweaker(M.I.T.) ....................................................................... 47
2-8 Load Fail-Safe Defaults ................................................................................... 49
2-9 Load Optimized Defaults ................................................................................. 49
2-10 Set Supervisor/User Password ..................................................................... 50
2-11 Save & Exit Setup......................................................................................... 51
2-12 Exit Without Saving ....................................................................................... 51
- 5 -
Chapter 3 Drivers Installation ...................................................................................... 53
3-1 Install Chipset Drivers .................................................................................... 53
3-2 Software Applications ..................................................................................... 54
3-3 Driver CD Information .................................................................................... 54
3-4 Hardware Information ..................................................................................... 55
3-5 Contact Us..................................................................................................... 55
Chapter 4 Appendix ................................................................................................... 57
4-1 Unique Software Utilities ................................................................................ 57
4-1-1 EasyTune 5 Introduction ..................................................................................... 57
4-1-2 Xpress Recovery2 Introduction ......................................................................... 58
4-1-3 Flash BIOS Method Introduction ........................................................................ 60
4-1-4 Configuring SATA Hard Drive(s) ........................................................................ 69
4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 83
4-2 Troubleshooting ............................................................................................... 88
- 6 -
Item Checklist
IDE Cable x 1 & FDD Cable x 1
SATA 3Gb/s Cable x 4
I/O Shield
SLI Bridge (GC-DGBR2-RH) x 1
Retention Bracket x 1
* The items listed above are for reference only, and are subject to change without notice.
Optional Accessories
2 Ports USB2.0 Cable (Part Number: 12CR1-1UB030-51/R)
4 Ports USB2.0 Cable (Part Number: 12CR1-1UB030-21/R)
2 Ports SATA Power Cable (Part Number: 12CF1-2SERPW-01R)
2 Ports IEEE1394 Cable (Part Number: 12CF1-1IE008-01R)
- 7 -
GA-M57SLI-S4 Motherboard Layout
KB_MS
CPU_FAN
Socket AM2
ATX
GA-M57SLI-S4
USB
LAN1
CD_IN
F_AUDIO
AUDIO
BIOS
SYS_FAN
FDD
PCIE_16_1
PCIE_1
IT8716
IDE1
PCIE_2
SPDIF_I
DDRII_1
DDRII_2
DDRII_3
DDRII_4
F2_1394
F1_1394
TSB43AB23
PCIE_12V
PCIE_16_2
PCI1
BATTERY
F_PANEL
CI
PWR_FAN
CODEC
ATX_12V
nVIDIA
®
nForce 570-SLI
LPT
USB
1394
COMA
SPDIF_O
SPDIFO_OPT
PCIE_3
PCI2
PWR_LED F_USB3
F_USB2
F_USB1
CLR_CMOS
Marvell
88E1116
CPU_FAN
Only for PCB REV. 1.0.
Only for PCB REV. 1.1.
SATAII6
SATAII5
SATAII4
SATAII1
SATAII2
SATAII3
- 8 -
Block Diagram
AMD
Socket AM2
CPU
CPUCLK+/-(200MHz)
Hyper Transport Bus
2 PCI
PCI Bus
3 PCI Express x 1
PCI Express Bus
nVIDIA
®
nForce 570-SLI
3 IEEE1394
TSB43AB23
DDRII 800/667/533/400MHz DIMM
Dual Channel Memory
6 SATA 3Gb/s
10 USB
Ports
Line-Out
MIC
CODEC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
ATA33/66/100/133
IDE Channel
x1
PCI-ECLK
(100MHz)
PCI-ECLK
(100MHz)
PCI Express x 8
LPC BUS
Floppy
LPT Port
COM Port
PS/2 KB/Mouse
LAN
RJ45
Marvell
8E1116
IT8716
x1
BIOS
x1
PCI Express x 16
SLI
Hardware Installation- 9 -
English
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic
pad or within a electrostatic shielding container.
5. Please verify that the power supply is switched off before unplugging the power supply connector
from the motherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers
are required for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the
information in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with
the motherboard circuit or its components.
5. Please make sure there are no leftover screws or metal components placed on the motherboard
or within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Instances of Non-Warranty
1. Damage due to natural disaster, accident or human cause.
2. Damage as a result of violating the conditions recommended in the user manual.
3. Damage due to improper installation.
4. Damage due to use of uncertified components.
5. Damage due to use exceeding the permitted parameters.
6. Product determined to be an unofficial Gigabyte product.
Chapter 1Hardware Installation
GA-M57SLI-S4 Motherboard - 10 -
English
1-2 Feature Summary
CPU Socket AM2 for AMD AthlonTM 64 FX / AthlonTM 64 X2 Dual-Core /
AthlonTM 64 / SempronTM processor
Front Side Bus 2000MHz
Chipset nVIDIA® nForce 570-SLI
LAN Marvell 88E1116 phy (10/100/1000Mbit)
Audio Onboard Realtek ALC883 CODEC chip
Supports High Definition Audio
Supports 2 / 4 / 6 / 8 channel audio
Supports SPDIF In/Out connection
Supports CD In connection
IEEE 1394 Onboard T.I. TSB43AB23 chip
3 IEEE1394a ports
Storage nVIDIA® nForce 570-SLI
- 1 FDD connector, allowing connection of 2 FDD devices
- 1 IDE connectors with UDMA 33/ATA 66/ATA 100/ATA 133 support,
allowing connection of 2 IDE devices
- 6 SATA 3Gb/s connectors (SATAII1, SATAII2, SATAII3, SATAII4, SATAII5,
SATAII6), allowing connection of 6 SATA 3Gb/s devices
- Supports data striping (RAID 0), mirroring (RAID 1), striping+mirroring
(RAID 0+1), and RAID 5 for Serial ATA
O.S Support Microsoft Windows 2000/XP
Memory 4 DDRII DIMM memory slots (supports up to 16GB memory)
(Note 1)
Supports dual channel DDRII 800/667/533/400 DIMMs
Supports 1.8V DDRII DIMMs
Expanstion Slots 2 PCI Express x16 slots
3 PCI Express x1 slots
2 PCI slots
Internal Connectors 1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
1 IDE connector
6 SATA 3Gb/s connectors
1 CPU fan connector
1 system fan connector
1 power fan connector
1 front panel connector
1 front audio connector
1 CD In connector
1 SPDIF In connector
3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
2 IEEE1394 connectors for additional 2 ports by cables
1 power LED connector
Hardware Installation- 11 -
English
(Note 1) Due to the limitation of Windows 32-bit operating system, when more than 4GB of physical
memory is installed, the actual memory available for the operating system will be less than
4GB; Windows 64-bit operating system doesn't have such limitation.
(Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
(Note 3) EasyTune functions may vary depending on different motherboards.
Rear Panel I/O 1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 SPDIF out port (coaxial)
1 SPDIF out port (optical)
1 COMA port
4 USB 2.0/1.1 ports
1 IEEE1394 port
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In / Surround Speaker Out (Rear
Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
I/O Control IT8716 chip
Hardware Monitor System voltage detection
CPU temperature detection
CPU / Power / System fan speed detection
CPU warning temperature
CPU fan failure warning
Supports CPU Smart Fan function
(Note 2)
BIOS 1 4Mbit flash ROM
Use of licensed AWARD BIOS
Additional Features Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune
(Note 3)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
Bundle Software Norton Internet Security (OEM version)
Form Factor ATX form factor; 30.5cm x 23.4cm
GA-M57SLI-S4 Motherboard - 12 -
English
1-3 Installation of the CPU and CPU Cooler
1-3-1 Installation of the CPU
Fig.1
Position lever at a 90 degree angle.
Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly.
Rather than applying force, please change the positioning of the CPU.
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the pin 1 marking (the small triangle) on the CPU. If you install the
CPU in the wrong direction, the CPU will not insert properly. If this occurs, please
change the insert direction of the CPU.
3. Please add an even layer of heat paste between the CPU and CPU cooler.
4. Please make sure the CPU cooler is installed on the CPU prior to system use,
otherwise overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It
is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the required standards for the peripherals. If you wish to set
the frequency beyond the proper specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.
Fig.2
Pin 1 location on the socket and processor.
Gently place the CPU into position making sure that the CPU pins fit
perfectly into their holes. Once the CPU is positioned into its socket,
place one finger down on the middle of the CPU and gently press the
metal lever back into its original position.
Pin One
Check the CPU pins to see that none are bent. Move the socket lever to the unlocked position as shown
in Fig. 1 (90o to the plane of the motherboard) prior to inserting the CPU. The pin 1 location is designated
on the CPU by a small triangle that corresponds to a triangle marking on the socket as shown in Fig.
2. Align the CPU to the socket and gently lower it into place. Do not force the CPU into the socket.
Socket Lever
Hardware Installation- 13 -
English
1-3-2 Installation of the CPU Cooler
The CPU cooler may adhere to the CPU as a result of hardening of the heat paste. To prevent
such an occurrence, it is suggested that either thermal tape rather than heat paste be used for
heat dissipation or using extreme care when removing the CPU cooler.
Fig.1
Before installing the CPU cooler, please first add an even layer of heat
paste on the surface of the CPU. Install all the CPU cooler components
(Please refer to the cooler manual for detailed installation instructions).
Fig.2
Please connect the CPU cooler power connector to the CPU_FAN connector located on the motherboard so that the CPU cooler can properly
function to prevent CPU overheating.
GA-M57SLI-S4 Motherboard - 14 -
English
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer power
is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be installed in
only one direction. If you are unable to insert the module, please switch the direction.
1-4 Installation of Memory
The motherboard supports DDRII memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one direction.
The memory capacity used can differ with each slot.
Fig.1
The DIMM socket has a notch, so the DIMM memory module can
only fit in one direction. Insert the DIMM memory module vertically
into the DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to lock the
DIMM module.
Reverse the installation steps when you wish to remove the
DIMM module.
Notch
DDR II
Hardware Installation- 15 -
English
Dual Channel Memory Configuration
The GA-M57SLI-S4 supports the Dual Channel Technology. After operating
the Dual Channel Technology, the bandwidth of Memory Bus will double.
Due to CPU limitation, if you wish to operate the Dual Channel Technology, follow the guidelines below:
1. Dual Channel mode will not be enabled if only one memory module is installed.
2. To enable Dual Channel mode with two memory modules (it is recommended to use memory
modules of identical brand, size, chips, and speed), you must install them into DIMM sockets
of the same color.
3. To enable Dual Channel mode with four memory modules, it is recommended to use memory
modules of identical brand, size, chips, and speed.
The following is a Dual Channel Memory configuration table:
(DS: Double Side, SS: Single Side, "--": Empty)
DIMM Socket
2 memory modules
4 memory modules
DDRII_1 DDRII_2 DDRII_ 3 DDRII_4
DS/SS DS/SS - - - -
- - - - DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
If two memory modules are to be used to achieve Dual Channel mode, we recommend
installing them in DDRII_1 and DDRII_2 DIMM sockets.
GA-M57SLI-S4 Motherboard - 16 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
Installing a PCI Express x16 expansion card:
To install a VGA card or to release an
installed card, users can also press the
latch on the back of the drawable bar as
the picture to the left shows.
Please carefully pull out the small whitedrawable bar at the end of the PCI Express x16 slot when you try to install/
uninstall the VGA card. Please align the
VGA card to the onboard PCI Express
x16 slot and press firmly down on the
slot. Make sure your VGA card is locked
by the small white-drawable bar.
Hardware Installation- 17 -
English
1-6 Setup of SLI (Scalable Link Interface) Configuration
NVIDIA nForce 570-SLI offers blistering graphics performance with the ability to bridge two NVIDIA SLIready PCI ExpressTM graphics cards! The SLI design takes advantage of the increased bandwidth of
the PCI ExpressTM bus architecture, features hardware and software innovations within NVIDIA GPU
(graphics processing unit) and the NVIDIA nForce 570-SLI chipset. Together, the NVIDIA SLI technologies work seamlessly to allow two graphics cards to operate in parallel and share the work and deliver
heart-pounding PC performance. This section introduces steps to configure an SLI system on the GAM57SLI-S4 motherboard.
The exact power requirements will depend on your overall system configurations. You need
a power supply that can provide sufficient and stable power to your system and the two SLI
graphics cards. Please refer to the table below to check recommended power for different
systems.
Before you begin--
If you wish to enable the SLI function, install two SLI-ready graphics cards into the PCIE_16_1 and
PCIE_16_2 slots. (It is recommended to use graphics cards of identical brand and chips. For example:
GIGABYTE GV-NX76T256D-RH).
If you want to set up a single graphics card system, we recommend installing the graphics card on the
PCIE_16_1 slot to ensure better display performance.
GA-M57SLI-S4 Motherboard - 18 -
English
place this part on the top of
the bridge connector.
retention bracket
Connecting Two Graphics Cards:
Step 1: Observe the steps in "1-5 Installation of Expansion Cards"
and install two SLI-ready graphics cards of the same
model to the PCIE_16_1 and PCIE_16_2 slots.
Step 3: In order to securely fix the bridge connector beween the
two cards, you must install the retention bracket included with the motherboard and secure the retention
bracket to the chassis back panel with a screw.
Gold edge connector on the top
of graphics card
Female slots on the bridge
connector
Step 2: Insert the SLI bridge (the GC-DGBR2-RH) to the SLI gold
edge connector on top of both cards. Make sure the two
mini female slots on the bridge connector securely fit
onto the SLI gold edge connetors of both cards.
Step 4: Plug the display cable into the graphics card which on
the PCIE_16_1 slot
(Note)
.
(Note) If you want to enable the SLI function, you must plug the display cable into the graphics card
which on the PCIE_16_1 slot.
Hardware Installation- 19 -
English
Graphics Card Driver Setting:
Step 1: After installing graphics card driver in operating system,
right-click the NVIDIA icon in your system tray and then
select NVIDIA Display. The NVIDIA control panel will
appear.
Step 2: Select SLI multi-GPU from the side menu and then
select the Enable SLI multi-GPU checkbox in the SLI
multi-GPU dialog box. System will restart after you
click Apply. Then the SLI configuration is completed.
GA-M57SLI-S4 Motherboard - 20 -
English
1-7 I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the
keyboard to the lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
SPDIF_O (COATIAL)
The SPDIF coaxial output port is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby Digital Decoder via a coaxial cable.
SPDIFO_OPT (OPTICAL)
The SPDIF optical output port is capable of providing digital audio to external speakers or
compressed AC3 data to an external Dolby Digital Decoder via an optical cable.
COMA (Serial Port)
Connects to serial-based mouse or data processing devices.
IEEE 1394 Port
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, high bandwidth and hot plug.
USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also
make sure your OS supports USB controller. If your OS does not support USB controller, please
contact OS vendor for possible patch or driver upgrade. For more information please contact your
OS or device(s) vendors.
LAN Port
The provided Internet connection is Gigabit Ethernet , providing data transfer speeds of 10/100/
1000Mbps.
Center/Subwoofer Speaker Out
The default Center/Subwoofer Speaker Out jack. Center/Subwoofer speakers can be connected to
Center/Subwoofer Speaker Out jack.
Surround Speaker Out (Rear Speaker Out)
The default Surround Speaker Out (Rear Speaker Out) jack. Rear surround speakers can be
connected to Surround Speaker Out (Rear Speaker Out) jack.
Side Speaker Out
The default Side Speaker Out jack. Surround side speakers can be connected to Side Speaker Out
jack.
Hardware Installation- 21 -
English
1-8 Connectors Introduction
Line In
The default Line In jack. Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out (Front Speaker Out)
The default Line Out (Front Speaker Out) jack. Stereo speakers, earphone or front surround
speakers can be connected to Line Out (Front Speaker Out) jack.
MIC In
The default MIC In jack. Microphone must be connected to MIC In jack.
In addition to the default speakers settings, the ~ audio jacks can be reconfigured to perform
different functions via the audio software. Only microphones still MUST be connected to the
default Mic In jack ( ). Please refer to the 2-/4-/6-/8- channel audio setup steps for detailed
software configuration information.
7
16
19
9
2
4
14
5
13
12
1) ATX_12V
2) ATX (Power Connector)
3) PCIE_12V
4) CPU_FAN
5) SYS_FAN
6) PWR_FAN
7) FDD
8) IDE1
9) S_ATA1 / 2 / 3 / 4 / 5 / 6
10) BATTERY
11) F_PANEL
12) PWR_LED
13) F_AUDIO
14) CD_IN
15) SPDIF_I
16) F_USB1 / F_USB2 / F_USB3
17) F1_1394 / F2_1394
18) C I
19) CLR_CMOS
3
8
9
1115161718
10
4
Only for PCB REV. 1.0. Only for PCB REV. 1.1.
GA-M57SLI-S4 Motherboard - 22 -
English
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
1/2) ATX_12V / ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
components on the motherboard. Before connecting the power connector, please make sure that
all components and devices are properly installed. Align the power connector with its proper
location on the motherboard and connect tightly.
The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is recommended that a power supply that can withstand high power consumption be used (400W or
greater). If a power supply is used that does not provide the required power, the result can lead
to an unstable system or a system that is unable to start.
If you use a 24-pin ATX power supply, please remove the small cover on the power connector on
the motherboard before plugging in the power cord ; otherwise, please do not remove it.
131
24
12
43
21
Pin No. Definition
13 3.3V
14 -12V
15 GND
16 PS_ON(soft On/Off)
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V (Only for 24-pin ATX)
24 GND(Only for 24-pin ATX)
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5V SB(stand by +5V)
10 +12V
11 +12V(Only for 24-pin ATX)
12 3.3V(Only for 24-pin ATX)
Hardware Installation- 23 -
English
4/5/6) CPU_FAN / SYS_FAN / PWR_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin/4-pin (only for
CPU_FAN) power connector and possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire
indicates a positive connection and requires a +12V power voltage. The black connector wire is
the ground wire (GND).
Remember to connect the CPU/system/power fan cable to the CPU_FAN/SYS_FAN/PWR_FAN
connector to prevent CPU damage or system hanging caused by overheating.
3) PCIE_12V (Power Connector)
The PCIE_12V power connector supplies extra power to the PCIE x 16 slot. Connect this
connector depending on your system requirements.
1
PIin No. Definition
1NC
2 GND
3 GND
4 +12V
1
CPU_FAN
1
SYS_FAN
1
PWR_FAN
Only for PCB REV. 1.0.
Only for PCB REV. 1.1.
CPU_FAN
CPU_FAN
Pin No. Definition
1 GND
2 +12V / Speed Control
3 Sense
4 Speed Control
CPU_FAN :
Pin No. Definition
1 GND
2 +12V
3 Sense
SYS_FAN / PWR_FAN :
GA-M57SLI-S4 Motherboard - 24 -
English
7) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to
the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and
2.88MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD
connector.
234
133
8) IDE1 (IDE Connector)
An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one
IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive).
If you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the
other as Slave (for information on settings, please refer to the instructions located on the IDE device).
Before attaching the IDE cable, please take note of the foolproof groove in the IDE connector.
2
40
1
39
Hardware Installation- 25 -
English
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
9) SATAII1 / 2 / 3 / 4 / 5 / 6 (SATA 3Gb/s Connectors, Controlled by nForce 570-SLI)
SATA 3Gb/s can provide up to 300MB/s transfer rate. Please refer to the BIOS setting for the SATA
3Gb/s and install the proper driver in order to work properly.
17
1
7
10) BATTERY
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer.
Dispose of used batteries according to the manufacturer's
instructions.
If you want to erase CMOS...
1. Turn off the computer and unplug the power cord.
2. Gently take out the battery and put it aside for about one minute.
(Or you can use a metal object to connect the positive and
negative pins in the battery holder to make them short for five
seconds.)
3. Re-install the battery.
4. Plug the power cord in and turn on the computer.
SATAII6
SATAII5
SATAII4
SATAII1
SATAII2
SATAII3
GA-M57SLI-S4 Motherboard - 26 -
English
11) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis
front panel to the F_PANEL connector according to the pin assignment below.
1
2
19
20
HD-
HD+
RES+
RES-
NC
IDE Hard Disk Active LED
Reset Switch
SPEAK-
MSG-
MSG+
PW-
PW+
Message LED/
Power/
Sleep LED
Speaker Connector
SPEAK+
Power
Switch
MSG (Message LED/Power/Sleep LED) Pin 1: LED anode(+)
(Yellow) Pin 2: LED cathode(-)
PW (Power Switch) Open: Normal
(Red) Cl ose : Power On/Off
SPEAK (Speaker Connector) Pin 1: Power
(Amber) Pin 2- Pin 3: NC
Pin 4: Data(-)
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
(Blue) Pin 2: LED cathode(-)
RES (Reset Switch) Open: Normal
(Green) Close: Reset Hardware System
NC ( Purple) NC
Hardware Installation- 27 -
English

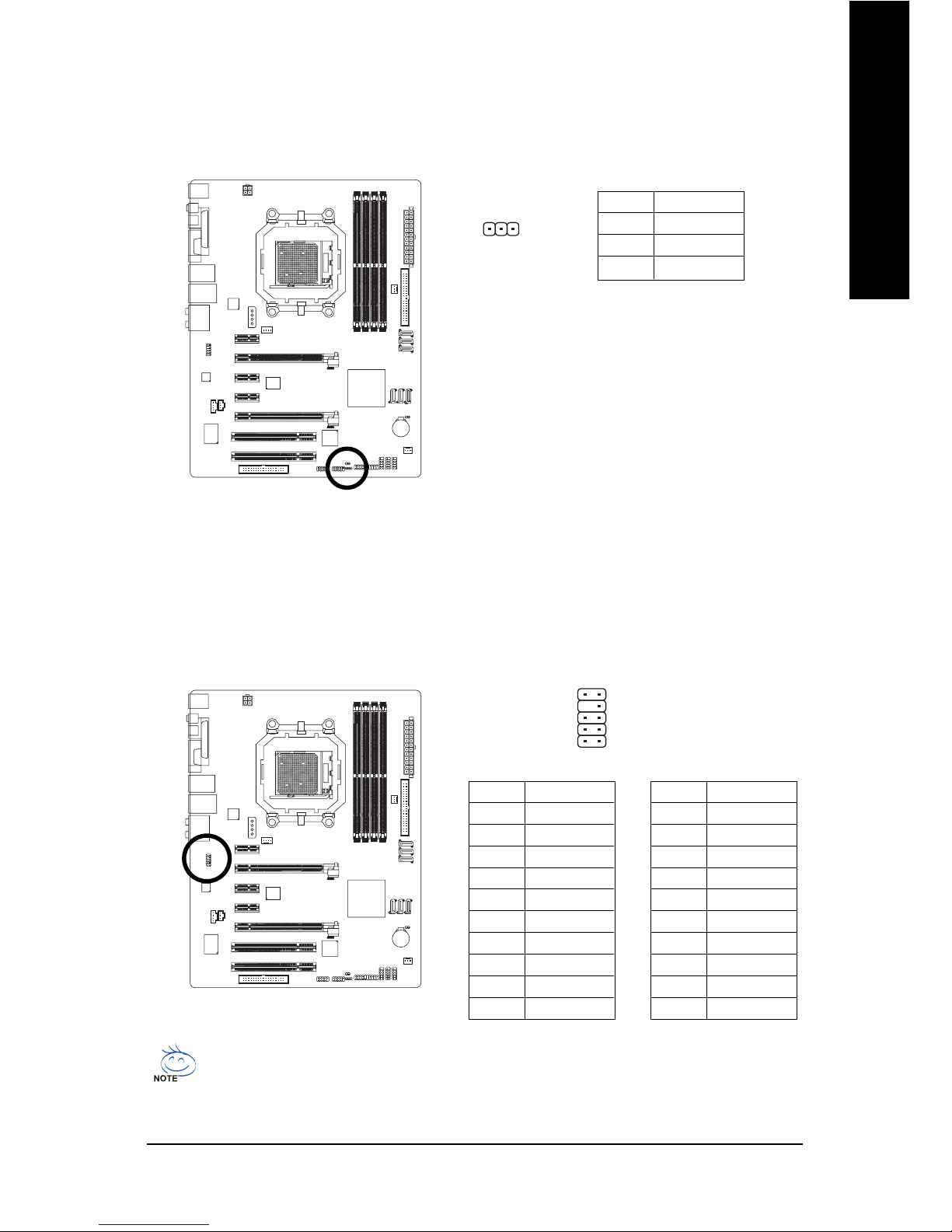

12) PWR_LED
The PWR_LED connector is connected with the system power indicator to indicate whether the
system is on/off. It will blink when the system enters suspend mode.
Pin No. Definition
1 MPD+
2 MPD-
3 MPD-
1
13) F_AUDIO (Front Audio Connector)
This connector supports either HD (High Definition) or AC97 front panel audio module. If you wish
to use the front audio function, connect the front panel audio module to this connector. Check the pin
assignments carefully while you connect the front panel audio module. Incorrect connection
between the module and connector will make the audio device unable to work or even damage it.
For optional front panel audio module, please contact your chassis manufacturer.
1
2
910
By default, the audio driver is configured to support HD Audio. To connect an AC97 front panel
audio module to this connector, please refer to the instructions on page 83 about the software
settings.
Pin No. Definition
1 MIC
2 GND
3 MIC Power
4NC
5 Line Out (R)
6NC
7NC
8 No Pin
9 Line Out (L)
10 NC
AC'97 Audio:
Pin No. Definition
1 MIC2_L
2 GND
3 MIC2_R
4 -ACZ_DET
5 LINE2_R
6 FSENSE1
7 FAUDIO_JD
8 No Pin
9 LINE2_L
10 FSENSE2
HD Audio:
GA-M57SLI-S4 Motherboard - 28 -
English
14) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
15) SPDIF_I (SPDIF In Connector)
Use SPDIF IN feature only when your device has digital output function. Be careful with the polarity
of the SPDIF_I connector. Check the pin assignment carefully while you connect the SPDIF cable,
incorrect connection between the cable and connector will make the device unable to work or even
damage it. For optional SPDIF cable, please contact your local dealer.
Pin No. Definition
1 Power
2 SPDIFI
3 GND
1
Hardware Installation- 29 -
English
16) F_ USB1 / F_USB2 / F_USB3 (Front USB Connector)
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional front USB cable, please contact your
local dealer.
10 9
21
1
9
2
10
17) F1_1394 / F2_1394 (Front IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, highbandwidth and hot plug. Be careful with the polarity of the IEEE1394 connector.
Check the pin assignment carefully while you connect the IEEE1394 cable, incorrect connection
between the cable and connector will make the device unable to work or even damage it. For
optional IEEE1394 cable, please contact your local dealer.
Pin No. Definition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB Dy-
5 USB DX+
6 USB Dy+
7 GND
8 GND
9 No Pin
10 NC
Pin No. Definition
1TPA+
2TPA-
3 GND
4 GND
5 TPB+
6 TPB-
7 Power (12V)
8 Power (12V)
9 No Pin
10 GND
Loading...
