USER INSTRUCTIONS FOR GET
12k BTU SPLIT PORTABLE AIR CONDITIONER
MODEL No. GPACU12H
CONTENTS
Introduction
Safety Notes

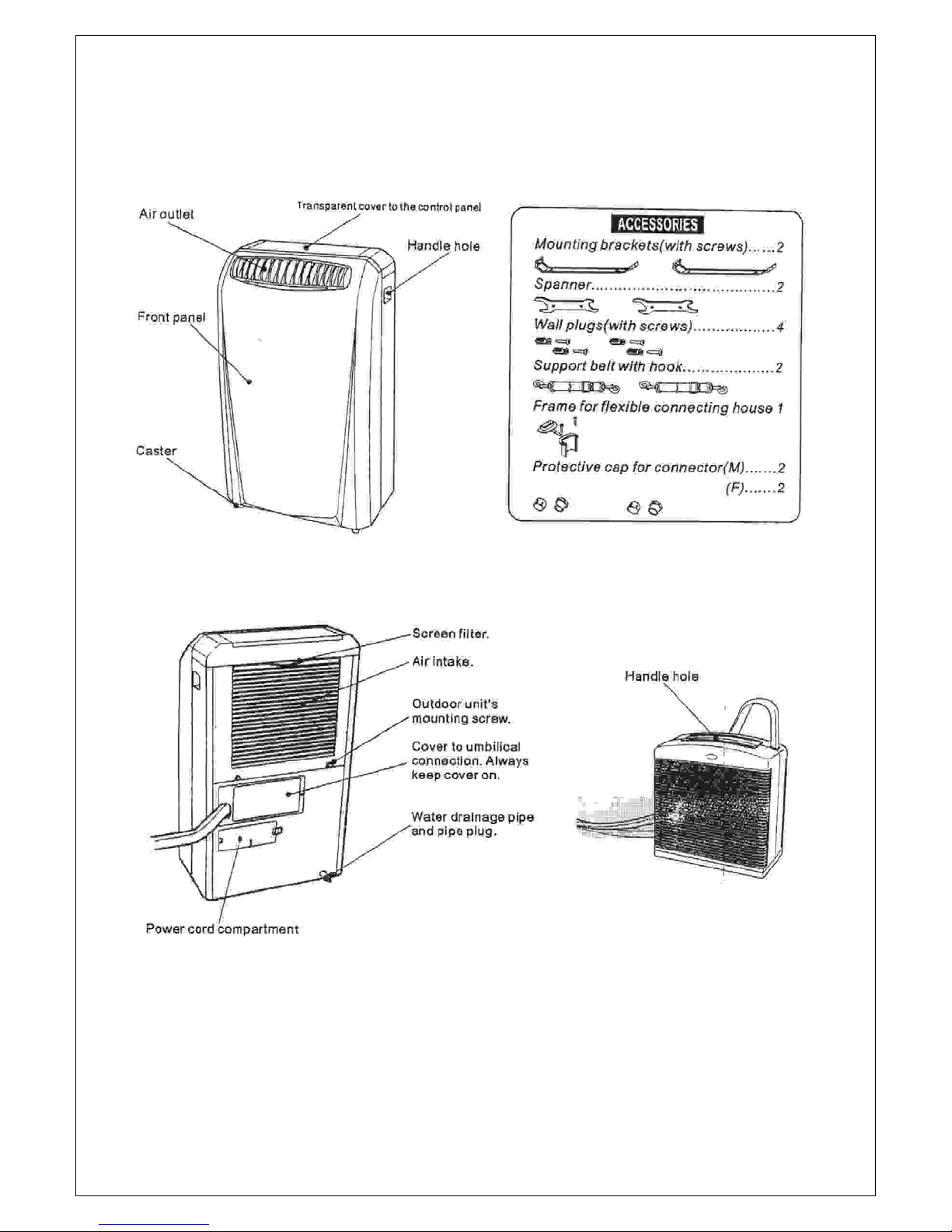

Identification of parts
Installation of the Indoor unit
Installation of the Outdoor unit
Operation instructions
Disconnection and reconnection
Trouble shooting
Maintenance
Energy saving tips
Specification
Introduction
Thank you for choosing this split air conditioner to provide you and your family
with all of the “Home Comfort” requirements for your home, or office. The
appliance can be moved from room to room within your home and set-up in
just minutes.
It is a multi-functional room air exchanging, air-processing appliance,
designed to offer you the functions of: Air Conditioning, Dehumidifying, and
Independent Fan control.
This manual will provide you with valuable information necessary for the
proper care and maintenance for your new appliance. Read these instructions
fully before operating the unit and retain them for future reference. If properly
maintained your appliance will give you many years of trouble free operation.
SAFETY NOTES
1. Do not connect to any AC socket outlet that is damaged.
2. Do not use in the following locations:Next to a source of fire.
An area where oil is likely to splash.
An area exposed to direct sunlight.
An area where water is likely to splash
Near a bath, shower or a swimming pool
In a greenhouse
3. Never insert your finger or any foreign objects into the air outlet or any other openings
in the machine. Take special care to warn children of these dangers.
4. Always store the unit upright in order to maintain the compressor in a proper working
condition. If not, leave the unit upright for at least 24 hours before operating.
5. Always unplug the unit before cleaning.
6. Do not cover the unit.
7. Do not place the back of the indoor unit closer that 10cm from a wall.
8. Do not place the indoor unit close to curtains or drapes in case they fall against the
unit and block the rear intake.
9. If the supply cord of this appliance becomes damaged, it must be replace by a
qualified engineer.
10. This appliance is fitted with an approved BS 1363 13A 3 pin plug and a 13A BS 1362
fuse. In the event of either requiring replacement ensure that equivalent rated and
approved components are used. See plug replacement details below.
11. IMPORTANT:
the installer must ensure that the air replacement is sufficient for both the unit used as
an air conditioner and the fuel burning appliance
If the indoor unit is sited in a room containing a fuel burning appliance,
If the plug is damaged and requires replacement, follow the wiring instructions supplied with
the new plug.
1. The green and yellow wire must be
connected to the terminal marked with
the letter E or the earth symbol.
2. The blue wire must be connected to
the terminal marked with the letter N.
3. The brown wire must be connected
to the terminal marked with the letter L.
4. A 13 amp plug to BS 1363 must be
fitted with a 13 Amp fuse to BS 1362.
For your safety and protection, this unit is earthed through the power cord plug when plugged
into a matching earthed wall socket. If you are not sure whether the wall sockets in your
home are properly earthed, consult a qualified electrician. Do not use plug adaptors or
extension cords with this unit.
PLUG REPLACEMENT
Warning
In order to ensure the long, reliable and safe functioning of the air conditioner,
the following safety points should be observed.
