Instruction Manual
from software version 1.61
(Instruction version 1.97)
e-mail: service@glp.de
Internet: http://www.glp.de
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
2
Notes:
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
3
Table of contents
1 Description of Device.............................................................................................. 4
1.1 Safety Instructions ............................................................................................ 5
2 Preparation and Installation ................................................................................... 6
2.1 Mounting ........................................................................................................... 6
2.1.1 Mounting on the floor (upright) ............................................................. 7
2.1.1 Mounting in hanging position (Head down) .......................................... 7
2.1.2 Mounting in sideways position ............................................................. 8
2.2 Securing the device .......................................................................................... 8
2.3 Connections ...................................................................................................... 9
2.3.1 Power Supply....................................................................................... 9
2.3.2 DMX ..................................................................................................... 9
3 The Menu Field ........................................................................................................ 9
4
4 Changing Gobos and the Effect wheel ................................................................ 22
4.1 Changing Gobos and the Effect wheel ........................................................... 22
4.1.1 General remarks for changing gobos ................................................. 22
4.1.2 Changing rotating gobos .................................................................... 23
4.1.3 Changing the effect wheel ................................................................. 26
5
5 Colored Error Code ............................................................................................... 28
6
6 Maintaining and Cleaning the IImmpprreessssiioonn SSppoott oonnee .......................................... 28
6.1 Safety regulations ........................................................................................... 28
6.2 Maintenance Intervals (rule-of-thumb) ............................................................ 29
7 Technical Specifications ...................................................................................... 30
8 Index ....................................................................................................................... 31
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
4

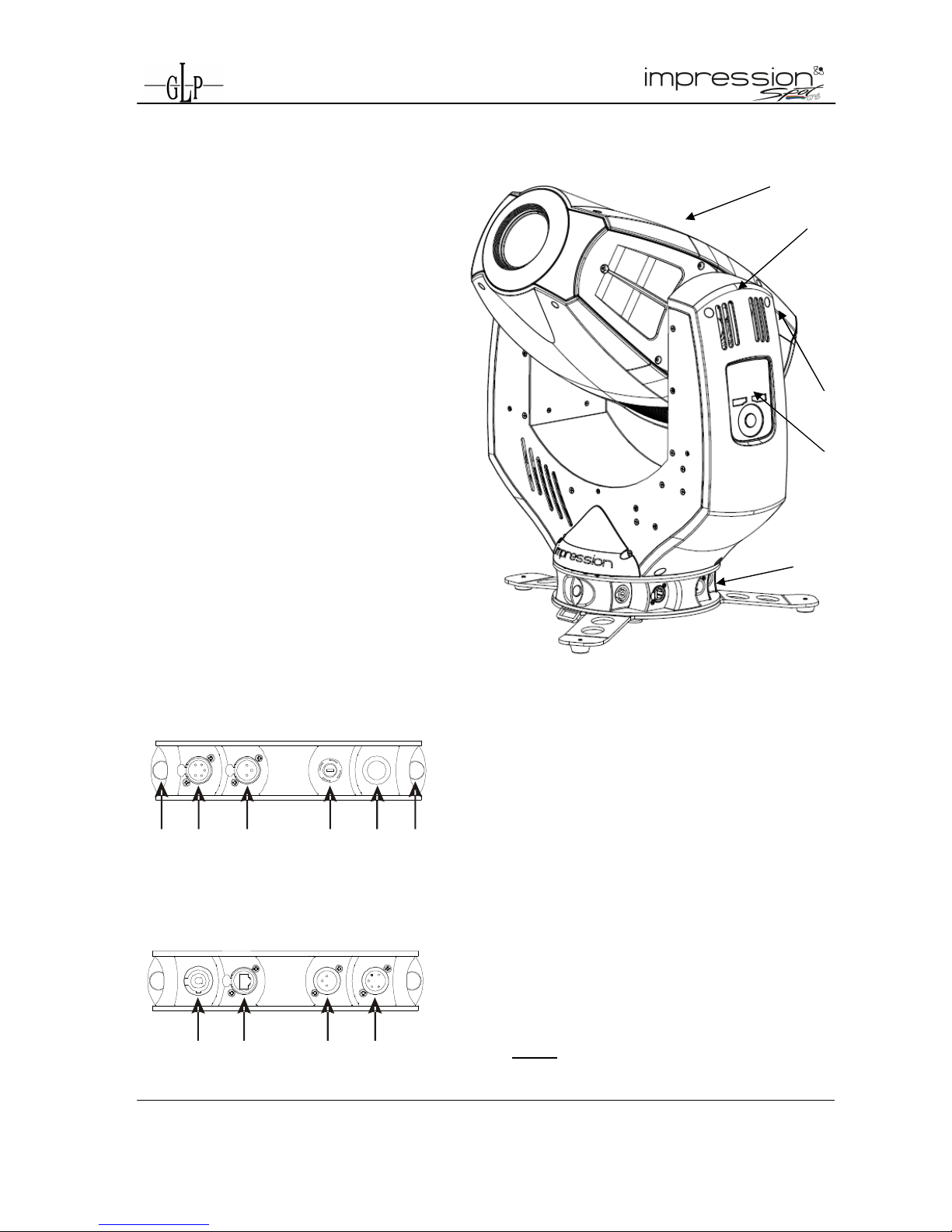

Description of Device
1. Moving Head
2. Arm with various cooling vents
3. Tilt-lock to secure and lock the
tilt movement
4. Backlight LCD graphical menu
(data entry)
5. Base with various connectors
and Camlock mounting
system
6. DMX- Output (5 Pin)
7. DMX- Output (3 Pin)
8. Micro-fuse 6.3x32mm, T8A
9. Power Switch
10. 2x Safety wire points
11. Neutrik Powercon (Mains power
input)
12. Blank panel (primed for Ethernet)
13. DMX- Input (3 Pin)
14. DMX- Input (5 Pin)
Note: Only connect one cable to the
DMX Input / Output at the same time!
Base Side 2
11 12 13 14
Base Side 1
10 6 7 8 9 10
1
2
3
4
5
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
5
1.1 Safety Instructions
The IImmpprreessssiioonn SSppoott oonnee
is an advanced technology product.
To guarantee smooth operation, it is necessary to follow the
following instructions.
The manufacturer of this device will not take responsibility of
damages through any disregard of the information in this user
manual. Warranty claims will also be cancelled in the event of
the system casing being opened.
1. Make sure that before powering up the fixture, the fans and air inlets are
clean and not blocked by anything.
2. Before powering up the fixture, ensure that the moving head part of the
fixture can rotate unhindered through its full range of movement.
3. A safety distance of at least 0.5 m to any easily flammable material (e.g.
decoration material) must be adhered to.
4. Attention! Don’t touch the device during operation. Parts of the fixture can
become hot and can cause injuries and / or damages.
5. Use only one DMX Input / Output at the same time.
6. Never look directly into the beam of light or one of the LEDs. Never use
optical apertures with a distance less than 0.5 m to observe the beam of
light. LED Class 2M. Not following these precautions can result in serious
injury to your eyes and in particular, your retina.
Attention:
LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Avoid direct radiation to your eyes!
7. To ensure proper operation, you must also follow the installation guide
described in chapter 1 of this manual. Operating the IImmpprreessssiioonn SSppoott oonnee
without suitable mounting devices can increase the risk of an accident.
8. The IImmpprreessssiioonn SSppoott oonnee features a unique small and lightweight design
with no specific carrying handles. Care needs to be shown when handling
the fixture to ensure that no unnecessary damage should occur. Fragile
areas include the LCD display and cover on one side arm and the front
bezel. Pressure in these areas could result in damages which will not be
covered by the standard warranty.
9. Repair, maintenance and installation work should only be performed by
qualified or GLP certified staff. You need to pay attention to the common
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
6
rules of technology that are not explicitly mentioned in this manual.
10. Use only original spare parts. Any structural modification on the system will
terminate all warranty claims.
11. Please keep this instruction manual for future reference.
1 Preparation and Installation
1.1 Mounting
The IImmpprreessssiioonn SSppoott oonnee is fully operational whether it hangs or is mounted to
a wall. It can also be operated while standing on the floor. Keep a safety
distance of 0.5 m from any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified personal only.
For the various mounting positions of the IImmpprreessssiioonn SSppoott oonnee (standing on
the floor, sideways or hanging) different accessories kits are available. Using
any required kits, along with the standard mounting connectors on the base of
the fixture, will ensure a safe and firm installation.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
7
1.1.1 Mounting on the floor (upright)
To operate the IImmpprreessssiioonn SSppoott oonnee in an upright position, please use
the dedicated floor-stand which is shipped with all original fixtures. The
floor stand is mounted to the base of the
fixture using the two Camlock quarter turn
fasteners. Line up and engage the camlock
connectors from the floor stand into the base
of the fixture and turn the two fasteners 90°
to lock them. Do the opposite to release
them again. On both sides you'll find eyelets
to pull though a ratchet strap. This allows
additional bracing of the floor-stand during
upright operation.
1.1.1 Mounting in hanging position (Head down)
To operate the IImmpprreessssiioonn SSppoott oonnee in a hanging position, two omega
brackets can be mounted directly to the bottom of the base using the
four Camlock connectors.
M10
Gewinde
Camlock
Camlock
Camlock
Eyelet
thread
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
8
1.1.2 Mounting in sideways position
To operate the IImmpprreessssiioonn SSppoott oonnee in a sideways position, please use
an additional mounting bar, available from GLP or one of their agents.
This mounting bar is fixed via the four camlock quick-release connectors.
Two half-couplers or clamps are then used to hang fixture. This
technique is necessary to cope with the additional torque in this
mounting position. Never use the "Mounting in hanging position"
technique described above to secure the fixture in a sideway position, as
the fixtures base can become damaged, and a secure installation cannot
be assured.
1.2 Securing the device
Regardless of the mounting method of the IImmpprreessssiioonn SSppoott oonnee you'll have to
use a secondary safety wire. This safety wire can be attached to the fixture by
threading it through one of the two holes provided on the base of the fixture.
Ensure that the safety wire is securely fastened through the fixture and the
fixtures mounting support. Install a safety wire that can hold at least 10 times
the weight of the fixture.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
9
1.3 Connections
1.3.1 Power Supply
Autosensing ~100-240 Volt AC, 50-60 Hz, earth contact type plug via
Powercon
Connected load 450 VA (W) <=> T8A (micro-fuse 6.3x32mm)
Disconnect from the mains supply before changing the fuse and
use only the above described micro-fuse type.
1.3.2 DMX
USITT DMX-512 Standard input/output via 3 pin and 5 pin connectors.
3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]
5 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4/5 n.c.
Ethernet (Artnet II compatible, ACN ready)
Neutrik RJ-45 plug (for Neutrik EtherCon connector with body)
2
The Menu Field
You’ll find the control board on the side of the arm. It allows you to make all necessary
adjustments of the IIMMPPRREESSSSIIOONN SSppoott OOnnee.. With the Menu-key you get into the main menu.
Afterwards you can navigate through the menu with the Touchwheel. Push the Enter-key to
get to the next menu level or to confirm your settings. Select ON/ OFF function settings with
the Touchwheel. Confirm and save with the Enter-key. Push the Back-key to cancel the
entry and go back to the main menu.
Impression spot.one
1
V1.60
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
10
Back
- Enter
Layer 1 Layer 2 Layer 3 Layer 4 Notes
DMX Start
Address
Set the DMX start address
Personality Pan/Tilt
Pan/Tilt settings
Pan invert
Selects Inverse Pan, on or off
Tilt invert
Selects Inverse Tilt, on or off
Feedback
Automatic position feedback selection for
pan/tilt movement
Color
Dimmer
Curve
Set the Dimmer Curve
DMX Address
Set the DMX start address
Mode
Allows selection of the desired DMX Mode
Compressed
Fixture works in "Compressed" mode see
also section 4
Normal
Fixture works in "Normal" mode see also
section 4
HighResolution
Fixture works in "High Resolution" mode
see also section 4
Hold Values
Defines whether the last DMX signal is
stored, or the lamp is switched OFF in case
of signal interruption
Manual
Manual control of all system functions
Pan
Manual control
Tilt
Manual control
Colorwheel
Manual control
Red
Manual control
Green
Manual control
Blue
Manual control
Shutter
Manual control
Dimmer
Manual control
Color temp.
Manual control
Special
Manual control
Movement
Manual control
Movement
Speed
Manual control
Zoom
Manual control
Focus
Manual control
Gobo1
Manual control
Gobo 1 rot.
Manual control
Gobo 2
Manual control
Gobo 2 rot.
Manual control
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
11
Effectwheel
Manual control
Effectwheel
rot.
Manual control
Prism
Manual control
Iris
Manual control
Artnet
Artnet adjustment
Priority
Set the priotity of Artnet and DMX input
(Artnet, DMX or Merge)
DMX/RDM
out
Set the output of Artnet oder DMX
Universe
Set the Universe
IP Mode
Set the Artnet Mode (10.x.x.x oder 2.x.x.x)
Custom IP
Set the manual IP address
Custom
Subnet
Manual set of the Subnet address
Custom
Gateway
Manual set of the Gateway address
Display
Adjustments for the Display
Blackout
Sets the display On or Off
Auto-Rot
Display will rotate automatically
Display Inv
Display will rotate manual
Brightness
Display backlight
Set Default
Resetting all functions to original values
Status Version
Shows the current software version
Reset
Hardware
Hardware reset adjust
All
Reset all boards
Head
Reset only headboard
GI
Reset only Gobo & Iris
FZP
Reset only Focus, Zoom, Prism
Pan
Reset only Pan
Tilt
Reset only Tilt
Temperatures
Display all temperatures
LED Info
Display the values for the LED´s
Red
Current value for red
Green
Current value for green
Blue
Current value for blue
Error Status
Shows the error status
Timer
Shows the life time
DMX Input
Shows the current DMX signal per DMX
channel
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
12
Pan
Instantaneous value for pan
Tilt
Instantaneous value for tilt
Colorwheel
Instantaneous value for color
Red
Instantaneous value for red
Green
Instantaneous value for green
Blue
Instantaneous value for blue
Shutter
Instantaneous value for shutter
Dimmer
Instantaneous value for dimmer
Colortemp.
Instantaneous value for color temp.
Special
Instantaneous value for special
Movement
Instantaneous value for movement
Movement
Speed
Instantaneous value for movement speed
Zoom
Instantaneous value for zoom
Focus
Instantaneous value for focus
Gobo1
Instantaneous value for gobo1
Gobo 1 rot.
Instantaneous value for gobo 1 rot.
Gobo 2
Instantaneous value for gobo 2
Gobo 2 rot.
Instantaneous value for gobo 2 rot.
Effectwheel
Instantaneous value for effect wheel
Effectwheel
rot.
Instantaneous value for effect wheel rot.
Prisma
Instantaneous value for prism
Iris
Instantaneous value for iris
DMX Quality
Shows the DMX Quality
Service Adjust
Adjustments for all functions. Use code to
enter calibration. (only for authorized
persons)
Pan
Adjust for pan
Tilt
Adjust for tilt
Gobo1
Adjust for gobo 1
Gobo 1 rot.
Adjust for gobo 1 rotation
Gobo 2
Adjust for gobo 2
Gobo 2 rot.
Adjust for gobo 2 rotation
Effectwheel
Adjust for effect wheel
Effectwheel
rot.
Adjust for effect wheel rotation
Prisma
Adjust for prism
Prisma End
Pos.
Adjust for prism end position
Prisma
Index
Adjust for prism index
Iris
Adjust for iris
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
13
Zoom
Adjust for zoom
Focus
Adjust for focus
Adjust
Default set
Set all adjustments to default
Factory
Adjust
Factory internal adjustments
Testmode
Test mode
Error Log
Shows all errors in lifetime
DMX Channels
Normal-Mode 24 DMX Channels
Channel
Func
tion Time and Value
DMX
HEX %
1) PAN
- coarse
0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos +
2,6° (16 Bit)
0..255 00..FF 0..100
3) Tilt- coarse
0 .. 280° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos +
1,2° (16 Bit)
0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red 8..15 08..0F 3..5,5
Color 02 - Amber 16..23 10..17 6..8,5
Color 03 – Yellow warm 24..31 18..1F 9..12,5
Color 04 - Yellow 32..39 20..27 13..15,5
Color 05 – Green 40..47 28..2F 16..18,5
Color 06 – Turquoise 48..55 30..37 19..21,5
Color 07 – Cyan 56..63 38..3F 22..24,5
Color 08 - Blue 64..71 40..47 25..27,5
Color 09 - Lavender 72..79 48..4F 28..30,5
Color 10 - Malve 80..87 50..57 31..34,5
Color 11 – Magenta 88..95 58..5F 35..37,5
Color 12 - Pink 96..103 60..67 38..40,5
White - CTO Color temp.
3200K
104..111 68..6F 41..43,5
White Color temp.
5600K
112..119 70..77 44..46,5
White – CTB Color temp.
7200K
120..127 78..7F 47..49,5
Rainbow Effect Stop Stop 128 80 50
Rainbow Effect slow – fast
Color 01 -> Color 12
129..255 81..FF 51..100
6) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green
Color mixing system -
Green
0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Shutter pulse random slow – fast 16..47 10..2F 6..18,5
Shutter ramp up slow – fast 48..79 30..4F 19..31
Shutter ramp down slow – fast 80..111 50..6F 32..43
Shutter ramp up/down slow – fast 112..143 70..8F 44..56
Random strobe slow – fast 144..159 90..9F 57..62
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
14
Strobe effect pause 5s …0,1s 160..199 A0..C7 63..77
Strobe effect slow - fast 1 Hz .. 25 Hz 200..241 C8..F1 78..95
Shutter open 242..255 F2..FF 96..100
10) Dimmer
Dimmer 0% - 100% 0..255 0..FF 0..100
11) Color
temp.
No color temperature
correction
0..7 0..07 0..2,5
Continuous color
temperature correction
between 7200k - 3200k
Applicable for ALL
colors 5)
8..255 08..FF 3..100
12) Gobo Shake &
Special
Gobo Shake for Gobowheel
1+2 off
0 .. 15 00..0F 0..5,5
Gobo Shake Gobowheel 1 Speed 1 Size 1..8 16..23 10..17 6..9
Speed 2 Size 1..8 24..31 18..1F 9,5..12
Speed 3 Size 1..8 32..39 20..27 12,5..15
Speed 4 Size 1..8 40..47 28..2F 15,5..18
Speed 5 Size 1..8 48..55 30..37 18,5..21,5
Speed 6 Size 1..8 56..63 38..3F 22..24,5
Speed 7 Size 1..8 64..71 40..47 25..27,5
Speed 8 Size 1..8 72..79 48..4F 28..30,5
Gobo Shake Gobowheel 2 Speed / Size see
Gobo Shake
Gobowheel 1
80..143 50..90 31..56
Gobo Shake Gobowheel
1+2
Speed / Size see
Gobo Shake
Gobowheel 2
144..207 91..CF 56,5..81
Reset 1
Only Head 250..253 FA..FC 98..99
Reset 2
All Funktions 254..255 FD..FF 100
13) Move
ment
No movement 0 0 0
Movement
Size Phase
PAN 1 0° 01..01
1 90° 02..03
1 180° 04..05
1 270° 06..07
PAN 2 0° 08..09
2 90° 10..11
2 180° 12..13
2 270° 14..15
PAN 3 0° 16..17
3 90° 18..19
3 180° 20..21
3 270° 22..23
PAN 4 0° 24..25
4 90° 26..27
4 180° 28..29
4 270° 30..31
TILT size / phase see also
PAN
32..63 20..3F 13..25
PAN / TILT size / phase see also
PAN
64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also
PAN
96..127 60..7F 38..50
Circle size / phase see also
PAN
128..159 80..9F 51..62
Circle (inverse) size / phase see also
PAN
160..191 A0..BF 63..75
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
15
Lying eight size / phase see also
PAN
192..223 C0..DF 76..87
Random movement size see also PAN 224..255 E0..FF 88..100
14) Speed
Pan/Tilt relative movement 0..1 00..01 0..0,5
Pan/Tilt
Pan/Tilt slow – fast
Use this channel 14) also
for the speed of the
movements (channel 13).
Pan Min. 660°
Pan Max. 660°
Tilt Min. 280°
Tilt Max. 280°
2..255 02..FF 1..100
15) Zoom
Stepless adjustable Zoom 10° – 32° 0 .. 255 0..F F 0..100
16) Focus
Stepless adjustable Focus infinity – near 0 .. 255 0..FF 0..100
17) Gobo1
Gobo 1 (open,)
0…15 00..0F 0..5,9
(indexed)
Gobo 2 16..31 10..1F 6..11,9
Gobo 3 32..47 20.. 2F 12..17,9
Gobo 4 48..63 30.. 3F 19.. 24,5
Gobo 5 64..79 40..4F 25..30,5
Gobo 6 80..95 50..5F 31..37,5
Gobo 96..111 60..6F 38..43,5
Gobo 8 112..126 70..82 44..48
Gobo rotation STOP 127 7F 49
Gobo rotation, slow-fast,
CW
128..192 80..C0 50..76
Gobo rotation, fast-slow,
CCW
193..255 C1..FF 77..100
18) Gobo 1
Gobo position 0 ... 540° 0..127 00..7F 0..49
Posi./Rot
Gobo rotation STOP 128..129 80..81 50
Gobo rotation, slow-fast,
CW
130..192 82..C0 51..75
Gobo rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Gobo rotation STOP 254..255 FD..FF 99..100
19)Gobo2
Gobo 1 (open)
0…15 00..0F 0..5,9
(indexed)
Gobo 2 16..31 10..1F 6..11,9
Gobo 3 32..47 20.. 2F 12..17,9
Gobo 4 48..63 30.. 3F 19.. 24,5
Gobo 5 64..79 40..4F 25..30,5
Gobo 6 80..95 50..5F 31..37,5
Gobo 7 96..111 60..6F 38..43,5
Gobo 8 112..126 70..82 44..48
Gobo rotation STOP 127 7F 49
Gobo rotation, slow-fast,
CW
128..192 80..C0 50..76
Gobo rotation, fast-slow,
CCW
193..255 C1..FF 77..100
20) Gobo 2
Gobo position 0 ... 540° 0..127 00..7F 0..49
Posi./Rot
Gobo rotation STOP 128..129 80..81 50
Gobo rotation, slow-fast,
CW
130..192 82..C0 51..75
Gobo rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Gobo rotation STOP 254..255 FD..FF 99..100
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
16
21) Effect wheel
swing
Stepless swing of the
"Motion Wheel"
0 - 100% 0..255 00..FF 0..100
Rotating stop 0..1 00..01 00..1
22) Effect wheel
Rotating slow - fast CW 1..128 01..80 1..50
Posi./Rot
Rotating fast - slow CCW 129...254 81..FD 51..99
Rotating stop 254..255 FD..FF 99..100
23) Prism
Prism swing out 0..5 00..05 0..2
Prism position 0 ... 540° 6..127 06..7F 0..50
Prism rotation stop 128..129 80..81 50,1
Prism rotation, slow-fast,
CW
130..192 82..C0 51..75
Prism rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Prism rotation stop 254..255 FD..FF 99.100
24) Iris
Iris open – closed 0..131 00..83 00..52
Compress-Mode 20 DMX Channels
Channel
Func
tion Time and Value
DMX
HEX %
1) PAN
- coarse
0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos +(16
Bit)
0..255 00..FF 0..100
3) Tilt
- coarse
0 .. 280° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos +
(16 Bit)
0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red 8..15 08..0F 3..5,5
Color 02 - Amber 16..23 10..17 6..8,5
Color 03 – Yellow warm 24..31 18..1F 9..12,5
Color 04 - Yellow 32..39 20..27 13..15,5
Color 05 – Green 40..47 28..2F 16..18,5
Color 06 – Turquoise 48..55 30..37 19..21,5
Color 07 – Cyan 56..63 38..3F 22..24,5
Color 08 - Blue 64..71 40..47 25..27,5
Color 09 - Lavender 72..79 48..4F 28..30,5
Color 10 - Malve 80..87 50..57 31..34,5
Color 11 – Magenta 88..95 58..5F 35..37,5
Color 12 - Pink 96..103 60..67 38..40,5
White - CTO Color temp.
3200K
104..111 68..6F 41..43,5
White Color temp.
5600K
112..119 70..77 44..46,5
White – CTB Color temp.
7200K
120..127 78..7F 47..49,5
Rainbow Effect Stop 128 80 50
Rainbow Effect slow – fast
Color 01 -> Color 12
129..255 81..FF 51..100
6) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green
Color mixing system -
Green
0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Shutter pulse random slow – fast 16..47 10..2F 6..18,5
Shutter ramp up slow – fast 48..79 30..4F 19..31
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
17
Shutter ramp down slow – fast 80..111 50..6F 32..43
Shutter ramp up/down slow – fast 112..143 70..8F 44..56
Random strobe slow – fast 144..159 90..9F 57..62
Strobe effect pause 5s …0,1s 160..199 A0..C7 63..77
Strobe effect slow - fast 1 Hz .. 25 Hz 200..241 C8..F1 78..95
Shutter open 242..249 F2..F9 95,5..96,5
RESET 1
Only Head 250 FA 97
RESET 2
All Funktions 251 FB 98
Shutter open 252..255 FC..FF 99..100
10) Dimmer
Dimmer 0% - 100% 0..255 0..FF 0..100
11) Zoom
Stepless adjustable Zoom 10° – 32° 0 .. 255 0..F F 0..100
12) Focus
Stepless adjustable Focus infinity – near 0 .. 255 0..FF 0..100
13)Gobo1
Gobo 1 (open)
0…15 00..0F 0..5,9
(indexed)
Gobo 2 16..31 10..1F 6..11,9
Gobo 3 32..47 20.. 2F 12..17,9
Gobo 4 48..63 30.. 3F 19.. 24,5
Gobo 5 64..79 40..4F 25..30,5
Gobo 6 80..95 50..5F 31..37,5
Gobo 96..111 60..6F 38..43,5
Gobo 8 112..126 70..82 44..48
Gobo rotation STOP 127 7F 49
Gobo rotation, slow-fast,
CW
128..192 80..C0 50..76
Gobo rotation, fast-slow,
CCW
193..255 C1..FF 77..100
14) Go
bo 1
Gobo position 0 ... 540° 0..127 00..7F 0..49
Posi./Rot
Gobo rotation STOP 128..129 80..81 50
Gobo rotation, slow-fast,
CW
130..192 82..C0 51..75
Gobo rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Gobo rotation STOP 254..255 FD..FF 99..100
15)Gobo2
Gobo 1 (open, fast)
0…15 00..0F 0..5,9
(indexed)
Gobo 2 16..31 10..1F 6..11,9
Gobo 3 32..47 20.. 2F 12..17,9
Gobo 4 48..63 30.. 3F 19.. 24,5
Gobo 5 64..79 40..4F 25..30,5
Gobo 6 80..95 50..5F 31..37,5
Gobo 7 96..111 60..6F 38..43,5
Gobo 8 112..126 70..82 44..48
Gobo rotation STOP 127 7F 49
Gobo rotation, slow-fast,
CW
128..192 80..C0 50..76
Gobo rotation, fast-slow,
CCW
193..255 C1..FF 77..100
16) Gobo 2
Gobo position 0 ... 540° 0..127 00..7F 0..49
Posi./Rot
Gobo rotation STOP 128..129 80..81 50
Gobo rotation, slow-fast,
CW
130..192 82..C0 51..75
Gobo rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Gobo rotation STOP
254..255 FD..FF 99..100
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
18
17) Effect wheel
swing
Stepless swing of the
"Motion Wheel"
0 - 100% 0..255 00..FF 0..100
Rotating stop 0..1 00..01 00..1
18) Effect wheel
Rotating slow - fast CW 1..128 01..80 1..50
Posi./Rot
Rotating fast - slow CCW 129...254 81..FD 51..99
Rotating stop 254..255 FD..FF 99..100
19) Prism
Prism swing out 0..5 00..05 0..2
Prism position 0 ... 540° 6..127 06..7F 0..50
Prism rotation stop 128..129 80..81 50,1
Prism rotation, slow-fast,
CW
130..192 82..C0 51..75
Prism rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Prism rotation stop 254..255 FD..FF 99.100
20) Iris
Iris open – closed 0..131 00..83 00..52
Hi
gh Resolution (Extended)
-
Mode 31
DMX Channels
Kanal
Funktion
Zeiten und Werte
DMX
HEX %
1) PAN
- coarse
0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + (16
Bit)
0..255 00..FF 0..100
3) Tilt
- coarse
0 .. 280° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + (16
Bit)
0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red 8..15 08..0F 3..5,5
Color 02 - Amber 16..23 10..17 6..8,5
Color 03 – Yellow warm 24..31 18..1F 9..12,5
Color 04 - Yellow 32..39 20..27 13..15,5
Color 05 – Green 40..47 28..2F 16..18,5
Color 06 – Turquoise 48..55 30..37 19..21,5
Color 07 – Cyan 56..63 38..3F 22..24,5
Color 08 - Blue 64..71 40..47 25..27,5
Color 09 - Lavender 72..79 48..4F 28..30,5
Color 10 - Malve 80..87 50..57 31..34,5
Color 11 – Magenta 88..95 58..5F 35..37,5
Color 12 - Pink 96..103 60..67 38..40,5
White - CTO Color temp.
3200K
104..111 68..6F 41..43,5
White Color temp.
5600K
112..119 70..77 44..46,5
White – CTB Color temp.
7200K
120..127 78..7F 47..49,5
Rainbow Effect Stop 128 80 50
Rainbow Effect slow – fast
Color 01 ->Color
129..255 81..FF 51..100
6) Red
- coarse
Color mixing system – Red 0 - 100% 0..255 00..FF 0..100
7) Red
-
fine
Color mixing system – Red-
low
0..255 00..FF 0..100
8) Green
- coarse
Color mixing system – Green 0 - 100% 0..255 00..FF 0..100
9) Green
- fine
Color mixing system –
Green-low
0..255 00..FF 0..100
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
19
10) Blue
- coarse
Color mixing system – Blue 0 - 100% 0..255 00..FF 0..100
11) Blue
-
fine
Color mixing system – Blue-
low
0..255 00..FF 0..100
12) Shu
tter
Shutter closed 0..15 00..0F 0..5,5
Shutter pulse random slow – fast 16..47 10..2F 6..18,5
Shutter ramp up slow – fast 48..79 30..4F 19..31
Shutter ramp down slow – fast 80..111 50..6F 32..43
Shutter ramp up/down slow – fast 112..143 70..8F 44..56
Random strobe slow – fast 144..159 90..9F 57..62
Strobe effect pause 5s …0,1s 160..199 A0..C7 63..77
Strobe effect slow - fast 1 Hz .. 25 Hz 200..241 C8..F1 78..95
Shutter open 242..255 F2..FF 96..100
13)Dimmer
-
coarse
Dimmer 0% - 100% 0..255 0..FF 0..100
14) Dimmer
- fine
Dimmer low 0..255 0..FF 0..100
15) Color temp.
No color temperature
correction
0..7 0..07 0..2,5
Continuous color temperature
correction between 7200k -
3200k
Applicable for ALL
colors 5)
8..255 08..FF 3..100
1
2) Gobo Shake &
Special
Gobo Shake for Gobowheel
1+2 off
0 .. 15 00..0F 0..5,5
Gobo Shake Gobowheel 1 Speed 1 Size 1..8 16..23 10..17
6..9
Speed 2 Size 1..8 24..31 18..1F 9,5..12
Speed 3 Size 1..8 32..39 20..27 12,5..15
Speed 4 Size 1..8 40..47 28..2F 15,5..18
Speed 5 Size 1..8 48..55 30..37 18,5..21,5
Speed 6 Size 1..8 56..63 38..3F 22..24,5
Speed 7 Size 1..8 64..71 40..47 25..27,5
Speed 8 Size 1..8 72..79 48..4F 28..30,5
Gobo Shake Gobowheel 2 Speed / Size see
Gobo Shake
Gobowheel 1
80..143 50..90 31..56
Gobo Shake Gobowheel 1+2 Speed / Size see
Gobo Shake
Gobowheel 2
144..207 91..CF 56,5..81
Reset 1
Only Head 250..253 FA..FC 98..99
Reset 2
All Funktions 254..255 FD..FF 100
17) Zoom
coarse
Stepless adjustable Zoom 10° – 32° 0 .. 255 0..F F 0..100
18) Zoom fine
Zoom low (0% - 100%) 0..255 0..FF 0..100
19) Focus
coarse
Stepless adjustable Focus infinity – near 0 .. 255 0..FF 0..100
20) Focus fine
Focus low (0% - 100%) 0..255 0..FF 0..100
21)Gobo1
Gobo 1 (open)
0…15 00..0F 0..5,9
(indexed
)
Gobo 2 16..31 10..1F 6..11,9
Gobo 3 32..47 20.. 2F 12..17,9
Gobo 4 48..63 30.. 3F 19.. 24,5
Gobo 5 64..79 40..4F 25..30,5
Gobo 6 80..95 50..5F 31..37,5
Gobo 7 96..111 60..6F 38..43,5
Gobo 8 112..126 70..82 44..48
Gobo rotation STOP 127 7F 49
Gobo rotation, slow-fast, CW 128..192 80..C0 50..76
Gobo rotation, fast-slow,
CCW
193..255 C1..FF 77..100
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
20
22) Gobo 1
Gobo position 0 ... 540° 0..127 00..7F
0..49
Posi./Rot
coarse
Gobo rotation STOP 128..129 80..81
50
Gobo rotation, slow-fast, CW 130..192 82..C0 51..75
Gobo rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Gobo rotation STOP 254..255 FD..FF 99..100
23) Gobo 1 rot fine
Gobo 1 rot. low (0% - 100%) 0..255 0..FF 0..100
24)Gobo2
Gobo 1 (open)
0…15 00..0F 0..5,9
(indexed)
Gobo 2 16..31 10..1F 6..11,9
Gobo 3 32..47 20.. 2F 12..17,9
Gobo 4 48..63 30.. 3F 19.. 24,5
Gobo 5 64..79 40..4F 25..30,5
Gobo 6 80..95 50..5F 31..37,5
Gobo 7 96..111 60..6F 38..43,5
Gobo 8 112..126 70..82 44..48
Gobo rotation STOP 127 7F 49
Gobo rotation, slow-fast, CW 128..192 80..C0 50..76
Gobo rotation, fast-slow,
CCW
193..255 C1..FF 77..100
25) Gobo 2
Gobo position 0 ... 540° 0..127 00..7F
0..49
Posi./Rot
coarse
Gobo rotation STOP 128..129 80..81
50
Gobo rotation, slow-fast, CW 130..192 82..C0 51..75
Gobo rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Gobo rotation STOP 254..255 FD..FF 99..100
26) Gobo 2 rot fine
Gobo 2 rot. Low (0% - 100%) 0..255 0..FF 0..100
27) Effect wheel
swing
Stepless swing of the "Motion
Wheel"
0 - 100% 0..255 00..FF 0..100
Rotating stop 0..1 00..01 00..1
28) Effect wheel
Rotating slow - fast CW 1..128 01..80 1..50
Posi./Rot
Rotating fast - slow CCW 129...254 81..FD 51..99
Rotating stop 254..255 FD..FF 99..100
29
) Prism
Prism swing out 0..5 00..05
0..2
Prism position 0 ... 540° 6..127 06..7F
0..50
Prism rotation stop 128..129 80..81
50,1
Prism rotation, slow-fast, CW 130..192 82..C0 51..75
Prism rotation, fast-slow,
CCW
193..253 C1..FD 76..99
Prism rotation stop 254..255 FD..FF 99.100
30
) Iris coarse
Iris open – closed 0..131 00..83 00..52
31
) Ir
is fine
Iris low 0..255 00..FF 00..100
Locking and unlocking the Control Panel
The Display will auto look automatically if the Touch Panel will not use for 10s. To unlook the Touch
Panel you have to press one of the menu buttons for 2s..
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
21
1)
Colors
The predefined colors can be used as start colors for the Rainbow effect. First select a desired start
color, then activate the rainbow effect. All
IImmpprreessssiioonn SSppoott OOnne
e
will then begin from that color
and execute the rainbow effect synchronously. Different
IImmpprreessssiioonn SSppoott OOnne
e
can have different
start colors but will still execute the rainbow effect synchronously. If you choose a color different from
the ones marked with 1) in the tables above the rainbow start-color will be red.
2)
Rainbow-effect Stop
will pause this function. After resuming the rainbow-effect will be continued with the current color.
3)
The Rainbow-effect
will run synchronously only if it is started from one of the predefined colors (see also 1) before).
4)
Attention:
Please note that shutter frequencies over 10 Hz are prohibited in some countries. Especially
frequencies in the range of 5 - 12 Hz can possibly cause epileptic seizures continuous blink
irritation with a latency period of min. 70 ms. Please also refer to the relevant legislation of each
country (For Germany for example: BGI 810-4 (Anhang 2) "Sicherheit bei Produktionen und
Veranstaltungen - Scheinwerfer").
5)
Color Temperature
At anytime the IIMMPPRREESSSSIIOONN SSppoott OOnnee can be used the color correction for every RGB color.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
22
33
Changing Gobos and the Effect wheel
3.1 Changing Gobos and the Effect wheel
The IImmpprreessssiioonn SSppoott OOnnee iiss equipped both with Aluminum- and Glass gobos
(outside diameter 27 mm, image size 20 mm). When using customized Gobos
like company logos and writing the recommended image size is 18 mm. You
can use either Aluminum (thickness = 0.5 mm) or glass gobos (thickness = 1.1 -
3.0 mm).
There are two gobo wheels with rotating gobos, with all gobos being
interchangeable.
3.1.1 General remarks for changing gobos
All gobos or other optical effects have a dedicated mounting direction.
To prevent undesired damages and to optimize the optical performance
of your gobos, all gobos should be mounted with their reflecting side
towards the LED light source.
a) Aluminum gobos must be mounted with their unpainted side towards
the LED light source, and the black painted side towards the front
lens.
b) Glass gobos must be mounted with their reflecting, or coated side,
towards the LED light source.
To find out which is the coated side of a glass gobo, take a pencil
and place the point gently on the gobo. If you have touched the
coated side, there will be no distance between the pencil tip and its
reflection in the gobo. If you have touched the uncoated side, there
will be a small distance between the pencil tip and its reflection
Attention: Customized gobos like company logos, or those with
writing also need to be placed in the holder with the correct
orientation to ensure that the projected image reads correctly. Place
the side of the gobo which reads correctly towards the LED light
engine to ensure that it projects properly. Remember that the
reflective side of the gobo should also be towards the LED light
source, so please instruct the gobo manufacturer accordingly when
having customized gobos made.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
23
c) Glass Gobos with a structured surface must be mounted with the
structured surface towards the LED light source and the flat side
towards the front lens.
3.1.2 Changing rotating gobos
1) Open the fixture, using the quarter turn screws on the top cover.
2) Press the gobo holder at the outer part of the wheel carefully out of
the hub. Pull it softly out of the central spring holder jig.
3) Now the gobo itself can be exchanged inside the gobo holder.
Remove the concentric spring with a small screwdriver or gripping
pliers. Change the gobo and put the spring in again.
4) Place the gobo holder back into the central spring holder jig in the
middle of the gobo wheel and snap it into place. You can open the
central spring holder with a bent screwdriver through a hole from the
opposite side of the wheel.
5) Push the gobo holder in the dedicated hub.
Attention: There must be no gap between the gobo holder and the
wheel afterwards. Check for a tight fit.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
24
Gobowheel 1 (Rotation Gobos Ø 27 mm )
Position
1
4 Circles
2
Vertical Bars
3
Two Light Tunnels
4
Triangles Random
5
Dash Mini
6
Dots Medium
7
Starry Night Dense
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
25
Gobowheel 2 (Rotation Gobos Ø 27 mm)
Position
1
Cone
2
Leaves Foliage
3
Teeth
4
Shreds
5
Angry Hurricane
6
Shredded Earth
7
Diamond Pattern
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
26
3.1.3 Changing the effect wheel
1) Open the fixture.
2) Release the mechanical stop of the effect and move it up.
3) The Effect wheel can now be tilt out by hand.
4) The wheel itself is clipped on the wheel axis.
5) To remove it please use a slotted screwdriver and lift it out carefully
from the wheel axis of the effect wheel.
6) Attention: Don't pull the effect wheel out by grapping it with the
hands at the border!
7) Change Effect wheel as desired and close the module in reverse
order again.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
27
Effect wheel insertion and spares:
STANDARD
SPARE SPARE
SPARE SPARE
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
28
44
Colored Error Code
These state match to the following errors of the Impression Spot one:
Color
Meaning
Comment
Red critical state
PCB could not find
Yellow
abnormal
state
PCB send error back (hall sensor not found, encoder error,
…)
Green normal state Reset successful / finished error freet
White neutral
Reset activ, no state determined at the moment
55
Maintaining and Cleaning the IImmpprreessssiioonn SSppoott oonnee
The IImmpprreessssiioonn SSppoott oonnee is a low maintenance fixture. It is only necessary to clean
the lenses, air inlets and outlets from time to time. For safe operation it is absolutely
essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues
must not build up on, or within, the fixture. If they do, the fixture's light output will be
significantly reduced, and damages to the fixture may occur. Regular cleaning will not
only ensure the maximum light output, but will also allow the fixture to operate
reliably throughout its entire life. Under no circumstances should alcohol or
solvents be used to clean the fixture or its lenses!
5.1 Safety regulations
• Disconnect the fixture from the mains power before commencing any
maintenance work!
• Wait minimum 15 minutes after removing the power to allow the fixture to
cool down.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
29
5.2 Maintenance Intervals (rule-of-thumb)
The maintenance schedule of any given fixture depends on the installation
environment. Hence no specific guidelines can be given. The cleaning intervals
given below are suggestions, based on practical experience. We suggest that
you start with these and develop your own maintenance schedule as you see
the fixtures performance in your specific environment.
Maintenance Task Interval How
Outside optic weekly soft cloth and glass cleaning fluid
Gobos yearly vacuum cleaner, airbrush, etc.
Glass gobos yearly soft cloth and glass cleaning fluid
Prism yearly soft cloth and glass cleaning fluid
Iris
yearly vacuum cleaner, airbrush, etc.
Inside lens yearly soft cloth no glass cleaning fluid
Fan and air channel monthly vacuum cleaner, airbrush, etc.
Moveable parts yearly suitable fatty oil
Attention:
• Never let optical parts come into contact with oil or fat.
• Before running the fixture wait until all parts are touch dry.
• Never touch lenses with bare fingers.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
30
6 Technical Specifications
Power supply
Power consumption
700 VA (Watt)
Power input
Auto sensing 100-240 V AC, 50-60 Hz
Fuse protection
Micro-fuse 6.3x32 mm, T8A
Operational Parameters
Max. ambient temp.
45°C / 113°F (integrated overheating switch)
Mounting position
Any (See Mounting chapter)
Lighting System - Additive Color mixing
LED type
400W RGB LED Chipset
Lifetime
20.000 h
Shutter / Dimmer (8/16 Bit)
Strobe Effect with variable speed between 1 & 50 flashes per second, Random strobe,
Pulse effects
Continuous dimmer 0 - 100%
Prism (8 Bit)
Rotating 3-facet prism, bi-directional and variable in speed
Focus (8/16 Bit)
Motor driven focus from near (1 mtr.) to infinity
Iris (8Bit)
High speed iris 100% - 4% (0,2 Sec. opening time)
Effect wheel (8/16 Bit)
Rotating and indexable effect wheel, bi-directional and variable in speed.
Interchangeable for different patterns
Zoom (8/16 Bit)
Zoom range 10° - 32°
Gobos (8/16 Bit)
Gobo wheel 1 & 2: each 7 interchangeable rotating and indexed gobos plus open, variable
speed and bi-directional
Gobo dimensions:Glass gobo thickness: 1.1 - 3.0mm
Aluminium gobo thickness: 0.5mm / Outside diameter: 27 mm / Image size: max. 20 mm.
For customized gobos like company logos and text the recommended image size is 18 mm.
DMX Control
Standard USITT DMX-512, 3/5 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
Pan / Tilt (8/16 Bit) - 3 phase stepper motor
Pan- movement 660° (Position Feedback)
Tilt- movement 280° (Position Feedback)
Weights and Measures
Width of the base
472 mm / 18.6 inch.
Length of the base
230mm / 9 inch.
Height (head vertical)
618mm / 24.3 inch.
Fixt
ure weight
23 kg / 50.7 lbs.
Floor
stand
weight
2 kg / 4.4 lbs.
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
31
7 Index
A
Anleitung Version ............................................ 1
B
BGV C1............................................................ 6
C
Changing Effect wheel ................................... 26
Circumference ............................................... 29
Cleaning......................................................... 28
D
Description of Device ....................................... 4
DIN VDE 0711-217 .......................................... 6
DMX ................................................................. 9
E
e-mail ............................................................... 1
Enter-key ......................................................... 9
Eyelets ............................................................. 7
G
Geräteübersicht ............................................. 4
Gobowechsel ................................................. 22
H
Half-couplers (clamps) ..................................... 8
I
Internet............................................................. 1
L
LED Class 2M ................................................. 5
M
Maintenance .................................................. 28
Menu Field ...................................................... 9
Menüfeld ........................................................ 9
Micro-fuse ....................................................... 9
Mode-key ........................................................ 9
Mounting ........................................................ 6
Mounting in hanging Position .......................... 7
Mounting on the Floor ..................................... 7
O
Optical parts ................................................ 29
P
Pan- Movement ............................................. 30
Power Supply ................................................ 9
Powercon (Netzanschluss .............................. 4
S
Safety distance ............................................... 6
Safety Instructions .......................................... 5
Secure the Device ......................................... 8
Software Version ............................................. 1
T
Tilt- Movement .............................................. 30
U
Up/Down-keys ................................................ 9
V
VBG 70 ........................................................... 6
W
Warranty claims .............................................. 6
Wartung ....................................................... 22
Weights and Measures ................................. 30
GLP German Light Products GmbH
(Instruction version 1.97) / from software version 1.61
32
Loading...
