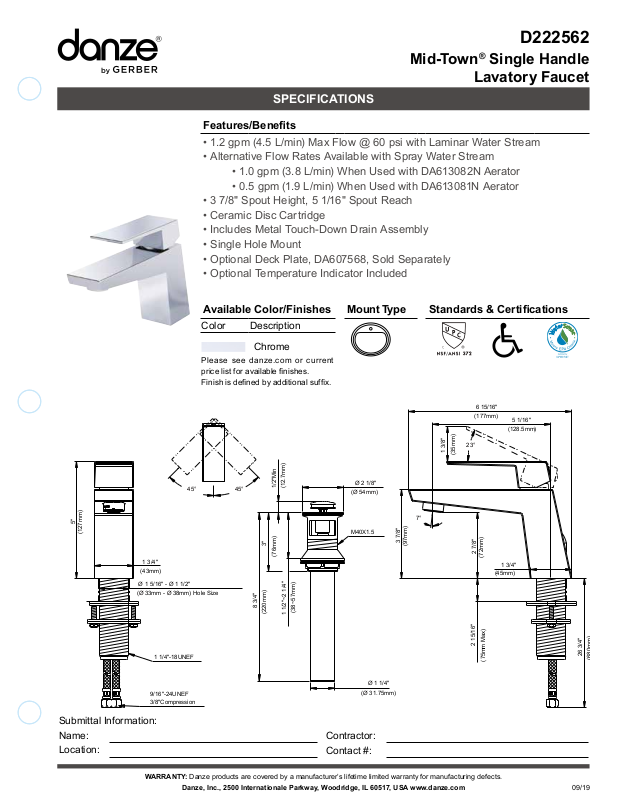

Gerber D222562BS, D222562, D222562BN Specifications

(680mm)

D222562

Mid-Town® Single Handle

Lavatory Faucet

SPECIFICATIONS

Features/Benets

• 1.2 gpm (4.5 L/min) Max Flow @ 60 psi with Laminar Water Stream

• Alternative Flow Rates Available with Spray Water Stream

• 1.0 gpm (3.8 L/min) When Used with DA613082N Aerator

• 0.5 gpm (1.9 L/min) When Used with DA613081N Aerator

• 3 7/8" Spout Height, 5 1/16" Spout Reach

• Ceramic Disc Cartridge

• Includes Metal Touch-Down Drain Assembly

• Single Hole Mount

• Optional Deck Plate, DA607568, Sold Separately

• Optional Temperature Indicator Included

Available Color/Finishes Mount Type Standards & Certications

Color Description

Chrome

Please see danze.com or current

price list for available nishes.
Finish is dened by additional sufx.

6 15/16"

(177mm)

23°

1 3/8"

(35mm)

1/2"Min

45°45°

5"

(127mm)

1 3/4"

(43mm)

Ø 1 5/16" - Ø 1 1/2"

(Ø 33mm - Ø 38mm) Hole Size

1 1/4"-18UNEF

9/16"-24UNEF
3/8"Compression

(12.7mm)

3"

(76mm)

8 3/4"

(220mm)

(38~57mm)

1 1/2"~2 1/4"

Ø 2 1/8"

(Ø 54mm)

M40X1.5

Ø 1 1/4"

(Ø 31.75mm)

7°

3 7/8"

(97mm)

2 7/8"

2 15/16"

(72mm)

( mm Max)75

1 3/4"

(45mm)

5 1/16"

(128.5mm)

26 3/4"

Submittal Information:
Name:
Location:

WARRANTY: Danze products are covered by a manufacturer’s lifetime limited warranty for manufacturing defects.

Contractor:
Contact #:

Danze, Inc., 2500 Internationale Parkway, Woodridge, IL 60517, USA www.danze.com

09/19
