Geovision GV-Mini Specsheet

- 1 -

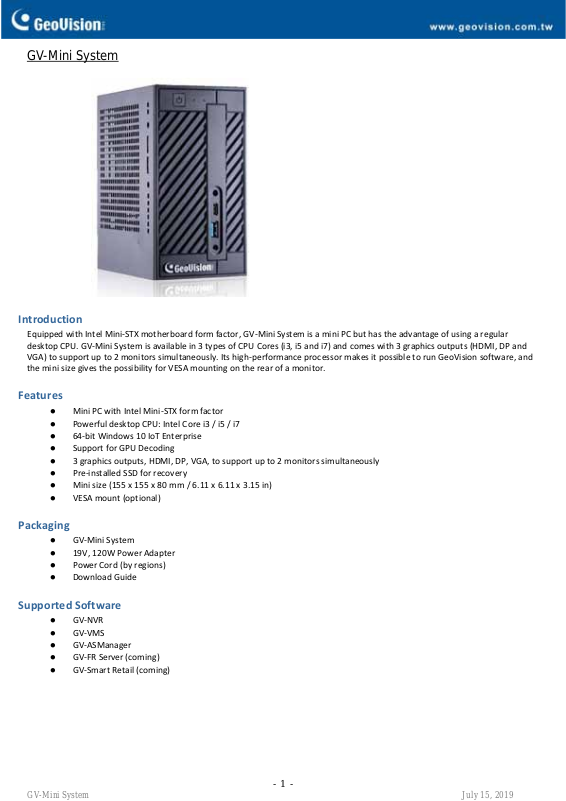

GV-Mini System

Introduction

Equipped with Intel Mini-STX motherboard form factor, GV-Mini System is a mini PC but has the advantage of using a regular
desktop CPU. GV-Mini System is available in 3 types of CPU Cores (i3, i5 and i7) and comes with 3 graphics outputs (HDMI, DP and
VGA) to support up to 2 monitors simultaneously. Its high-performance processor makes it possible to run GeoVision software, and
the mini size gives the possibility for VESA mounting on the rear of a monitor.

Features

⚫ Mini PC with Intel Mini-STX form factor
⚫ Powerful desktop CPU: Intel Core i3 / i5 / i7
⚫ 64-bit Windows 10 IoT Enterprise
⚫ Support for GPU Decoding
⚫ 3 graphics outputs, HDMI, DP, VGA, to support up to 2 monitors simultaneously
⚫ Pre-installed SSD for recovery
⚫ Mini size (155 x 155 x 80 mm / 6.11 x 6.11 x 3.15 in)
⚫ VESA mount (optional)

Packaging

⚫ GV-Mini System
⚫ 19V, 120W Power Adapter
⚫ Power Cord (by regions)
⚫ Download Guide

Supported Software

⚫ GV-NVR
⚫ GV-VMS
⚫ GV-ASManager
⚫ GV-FR Server (coming)
⚫ GV-Smart Retail (coming)

GV-Mini System July 15, 2019

- 2 -

Specifications

System

CPU

Intel Core i3

Intel Core i5

Intel Core i7

OS

64-bit Windows 10 IoT Enterprise

Memory

8 GB DDR4 2400 MHz (4 GB x 2)

GV-FR Server/GV-Smart Retail: 8 GB DDR4 2400 MHz (4 GB x 2)
GV-NVR/GV-VMS/GV-ASManager: 16 GB DDR4 2400 MHz (8 GB x 2)

Graphics

Intel® HD Graphics

Audio

Realtek Audio

LAN

Intel® Gigabit LAN

OS SSD

GV-FR Server/GV-Smart Retail: 256 GB MLC SSD
GV-NVR/GV-VMS/GV-ASManager: 64 GB MLC SSD

Internal
Storage
Interface

GV-FR Server/GV-Smart Retail: 2.5” HDD/SSD x 1
GV-NVR/GV-VMS/GV-ASManager: 2.5” HDD/SSD x 2

Front I/O

- Power Button, Power LED and HDD LED

- USB 3.1 Gen 1 (Type-A)

- USB 3.1 Gen 1 (Type-C)

- Headphone jack for mic input

- Microphone jack

Rear I/O

- VGA

- HDMI

- DisplayPort

- USB 3.1 Gen 1 (Type-A)

- USB 2.0

- LAN

- DC Jack

- COM port

Note: Three graphics output options, VGA, HDMI and DP, support two monitors simultaneously.

Power

19V, 120W Power Adapter

Environment

Operating
Temp.

0 ~ 35 °C / 32 ~ 95 °F

Physical

Color

Black

Dimensions
(W x H x D)

155 x 155 x 80 mm / 6.11 x 6.11 x 3.15 in

Net Weight

1.92 kg / 4.23 lb

VESA Bracket

The bracket allows for mounting the unit on the rear of a computer monitor.

Note: All specifications are subject to change with notice.

Accessories

Overview

GV-Mini System July 15, 2019
