Georg Fischer 2285 Specifications

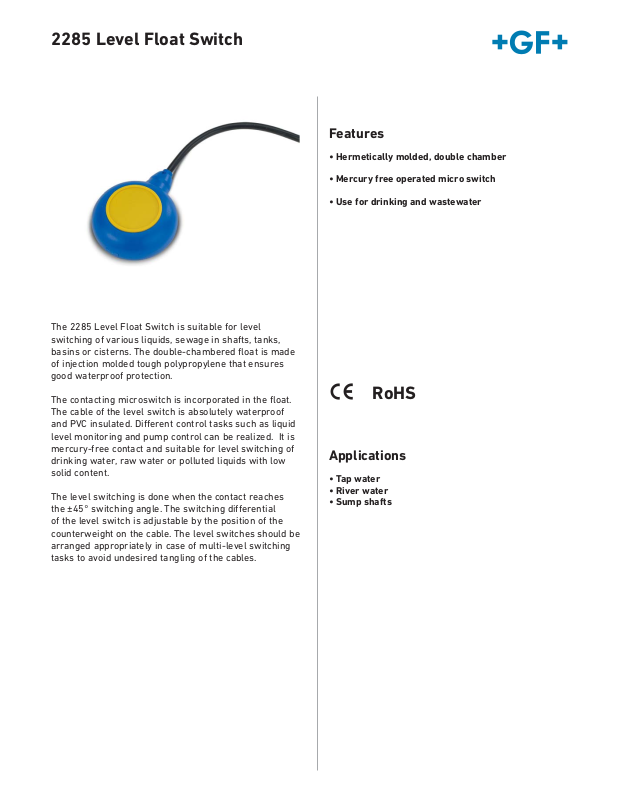

2285 Level Float Switch

The 2285 Level Float Switch is suitable for level
switching of various liquids, sewage in shafts, tanks,
basins or cisterns. The double-chambered float is made
of injection molded tough polypropylene that ensures
good waterproof protection.

Features

• Hermetically molded, double chamber

• Mercury free operated micro switch

• Use for drinking and wastewater

The contacting microswitch is incorporated in the float.
The cable of the level switch is absolutely waterproof
and PVC insulated. Different control tasks such as liquid
level monitoring and pump control can be realized. It is
mercury-free contact and suitable for level switching of
drinking water, raw water or polluted liquids with low
solid content.

The level switching is done when the contact reaches
the ±45° switching angle. The switching differential
of the level switch is adjustable by the position of the
counterweight on the cable. The level switches should be
arranged appropriately in case of multi-level switching
tasks to avoid undesired tangling of the cables.

RoHS

Applications

• Tap water

• River water

• Sump shafts

Dimensions

54.5 106.5

49.5

122.6

154.5

Specifi cations

Float Switch

General

Type 2285-P-6C-Y

Cable Length 5 m (16.5 ft), 10 m (33 ft), 20 m (66 ft)

Switching Angle ± 45°

Mass 250 g (0.55 lb), without cable

Environmental

Medium Temperature 0 °C … +50 °C (+32 °F…+122 °F)

Medium Density min. 0,8g/cm3

Medium Pressure 0.1 Mpa (1 bar g - 14.5 psi g)

Enclosure

Enclosure material PP PP

Cable Material PVC

Ingress Protection IP 68, NEMA 6P IP 68, NEMA 6P

Electrical

Microswitch 250V AC, 3A No/Nc

Cable 9 mm (0.35 inch) / 3 x 1 mm2 (AWG 17)

Standards & Approvals

General Approvals CE, RoHS

Counterweight

Wiring

Ordering Information

Mfr. Part No. Code Description

2285-P-6C-5 159 300 280 Level fl oat, PP, cable PVC 5 m (16.5 ft), microswitch No/Nc

2285-P-6C-10 159 300 281 Level fl oat, PP, cable PVC 10 m (33 ft), microswitch No/Nc

2285-P-6C-20 159 300 282 Level fl oat, PP, cable PVC 20 m (66 ft), microswitch No/Nc

2285-P-weight 159 300 289 Counterweight for 2285 fl oat

Rev B (4/15)

Brown

Blue

Black

Brown
Black

kék

Brown
Black

kék

High
level

Low
level
