Georg Fischer 2282 Specifications

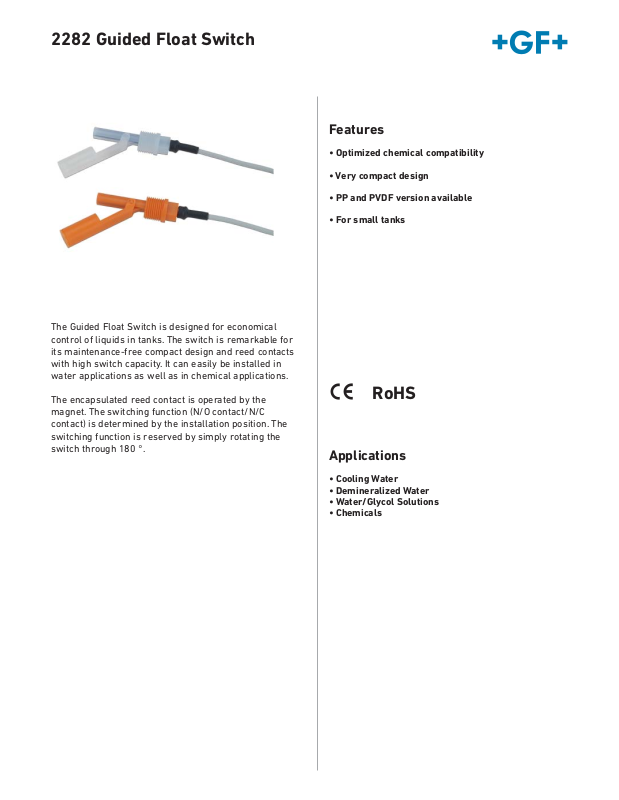

2282 Guided Float Switch

The Guided Float Switch is designed for economical
control of liquids in tanks. The switch is remarkable for
its maintenance-free compact design and reed contacts
with high switch capacity. It can easily be installed in
water applications as well as in chemical applications.

Features

• Optimized chemical compatibility

• Very compact design

• PP and PVDF version available

• For small tanks

The encapsulated reed contact is operated by the
magnet. The switching function (N/O contact/N/C
contact) is determined by the installation position. The
switching function is reserved by simply rotating the
switch through 180 °.

RoHS

Applications

• Cooling Water

• Demineralized Water

• Water/Glycol Solutions

• Chemicals

Dimensions

81 mm (3.19 in.)

68 mm (2.68 in.)

N.O.

N.C.

G½ or ½ in.- 14 NPT

Specifi cations

General

Type 2282-Y-YY-Y

Environmental

Max. Temperature -65 °C … +100 °C (-85 °F… +212 °F)

Max. Pressure 1 MPa (10 bar) 145 psi

Medium Density >0.6 g/cm3

Enclosure

Enclosure/fl oat material PP or PVDF

Cable material PVC

Ingress Protection IP68, NEMA 6P

Process Connection 1/2” BSP, NPT

Electrical

Outputs Reed contact

Contact Resistance max. 80 mΩ

Max. Voltage rating 230 V AC/DC

Max. Current rating 2 A / 40 VA

Cable Type AWG 20, 2-Core, PVC, 1 m

Contact components N/O or N/C depending on the installation

ø17.5 mm
(0.69 in.)

Ordering Information

Mfr. Part No. Code Description

Versions with BSP thread

N.O.

N.C.

Rev B (4/15)

2282-P-6OB 159 300 261 PP body, cable, 1/2" BSP

2282-P-6OB 159 300 263 PVDF body, cable, 1/2" BSP

Versions with NPT thread

2282-P-6CN 159 300 265 PP body, cable, 1/2" NPT

2282-V-6CN 159 300 267 PVDF body, cable, 1/2" NPT
