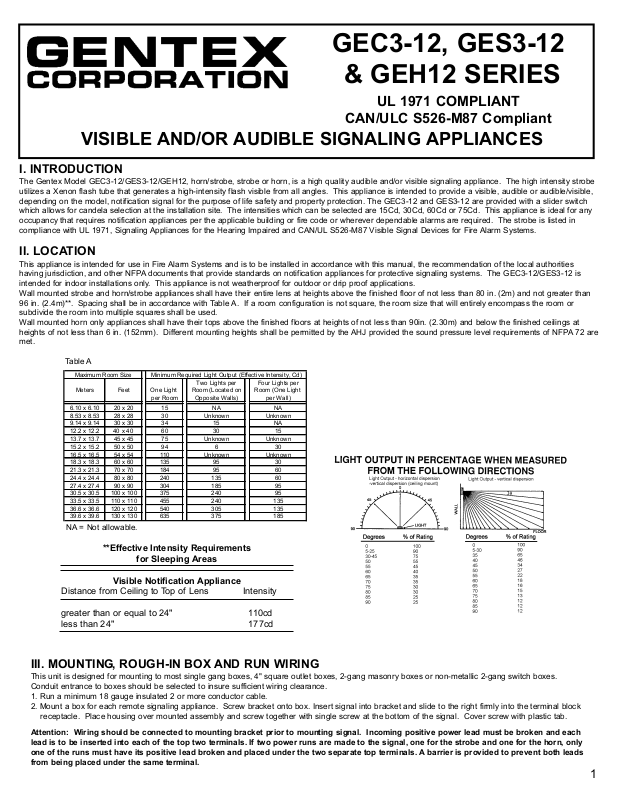

Gentex GEH12, GEC3-12, GES3-12 User Manual

I. INTRODUCTION

The Gentex Model GEC3-12/GES3-12/GEH12, horn/strobe, strobe or horn, is a high quality audible and/or visible signaling appliance. The high intensity strobe utilizes a Xenon flash tube that generates a high-intensity flash visible from all angles. This appliance is intended to provide a visible, audible or audible/visible, depending on the model, notification signal for the purpose of life safety and property protection. The GEC3-12 and GES3-12 are provided with a slider switch which allows for candela selection at the installation site. The intensities which can be selected are 15Cd, 30Cd, 60Cd or 75Cd. This appliance is ideal for any occupancy that requires notification appliances per the applicable building or fire code or wherever dependable alarms are required. The strobe is listed in compliance with UL 1971, Signaling Appliances for the Hearing Impaired and CAN/UL S526-M87 Visible Signal Devices for Fire Alarm Systems.

II. LOCATION

This appliance is intended for use in Fire Alarm Systems and is to be installed in accordance with this manual, the recommendation of the local authorities having jurisdiction, and other NFPA documents that provide standards on notification appliances for protective signaling systems. The GEC3-12/GES3-12 is intended for indoor installations only. This appliance is not weatherproof for outdoor or drip proof applications. Wall mounted strobe and horn/strobe appliances shall have their entire lens at heights above the finished floor of not less than 80 in. (2m) and not greater than 96 in. (2.4m)**. Spacing shall be in accordance with Table A. If a room configuration is not square, the room size that will entirely encompass the room or subdivide the room into multiple squares shall be used. Wall mounted horn only appliances shall have their tops above the finished floors at heights of not less than 90in. (2.30m) and below the finished ceilings at heights of not less than 6 in. (152mm). Different mounting heights shall be permitted by the AHJ provided the sound pressure level requirements of NFPA 72 are met.

Two Lights per Four Lights per

Meters Feet One Light Room (Located on Room (One Light

per Room Opposite Walls) per Wall)

6.10 x 6.10 20 x 20 15 NA NA

8.53 x 8.53 28 x 28 30 Unknown Unknown

9.14 x 9.14 30 x 30 34 15 NA

12.2 x 12.2 40 x 40 60 30 15

13.7 x 13.7 45 x 45 75 Unknown Unknown

15.2 x 15.2 50 x 50 94 6 30

16.5 x 16.5 54 x 54 110 Unknown Unknown

18.3 x 18.3 60 x 60 135 95 30

21.3 x 21.3 70 x 70 184 95 60

24.4 x 24.4 80 x 80 240 135 60

27.4 x 27.4 90 x 90 304 185 95

30.5 x 30.5 100 x 100 375 240 95

33.5 x 33.5 110 x 110 455 240 135

36.6 x 36.6 120 x 120 540 305 135

39.6 x 39.6 130 x 130 635 375 185

Maxi mum Roo m Siz e

Minimum Required Light Output (Effective Intensity, Cd)

III. MOUNTING, ROUGH-IN BOX AND RUN WIRING

This unit is designed for mounting to most single gang boxes, 4" square outlet boxes, 2-gang masonry boxes or non-metallic 2-gang switch boxes. Conduit entrance to boxes should be selected to insure sufficient wiring clearance.

1. Run a minimum 18 gauge insulated 2 or more conductor cable.

2. Mount a box for each remote signaling appliance. Screw bracket onto box. Insert signal into bracket and slide to the right firmly into the terminal block receptacle. Place housing over mounted assembly and screw together with single screw at the bottom of the signal. Cover screw with plastic tab.

Attention: Wiring should be connected to mounting bracket prior to mounting signal. Incoming positive power lead must be broken and each lead is to be inserted into each of the top two terminals. If two power runs are made to the signal, one for the strobe and one for the horn, only one of the runs must have its positive lead broken and placed under the two separate top terminals. A barrier is provided to prevent both leads from being placed under the same terminal.

GEC3-12, GES3-12

& GEH12 SERIES

UL 1971 COMPLIANT

CAN/ULC S526-M87 Compliant

VISIBLE AND/OR AUDIBLE SIGNALING APPLIANCES

**Effective Intensity Requirements

for Sleeping Areas

Visible Notification Appliance

Distance from Ceiling to Top of Lens Intensity

greater than or equal to 24" 110cd less than 24" 177cd

NA = Not allowable.

Table A

CAUTION: A jumper card is provided to test for correct wiring in the supervisory mode only. DO NOT pass alarm current through the jumper.

NOTE: All strobes are designed to flash as specified with continuous applied voltage. This appliance is not recommended for use on coded or pulsing

signaling circuits. However, use of the AVSM control module is permitted to synchronize the strobe and/or mute the horn.

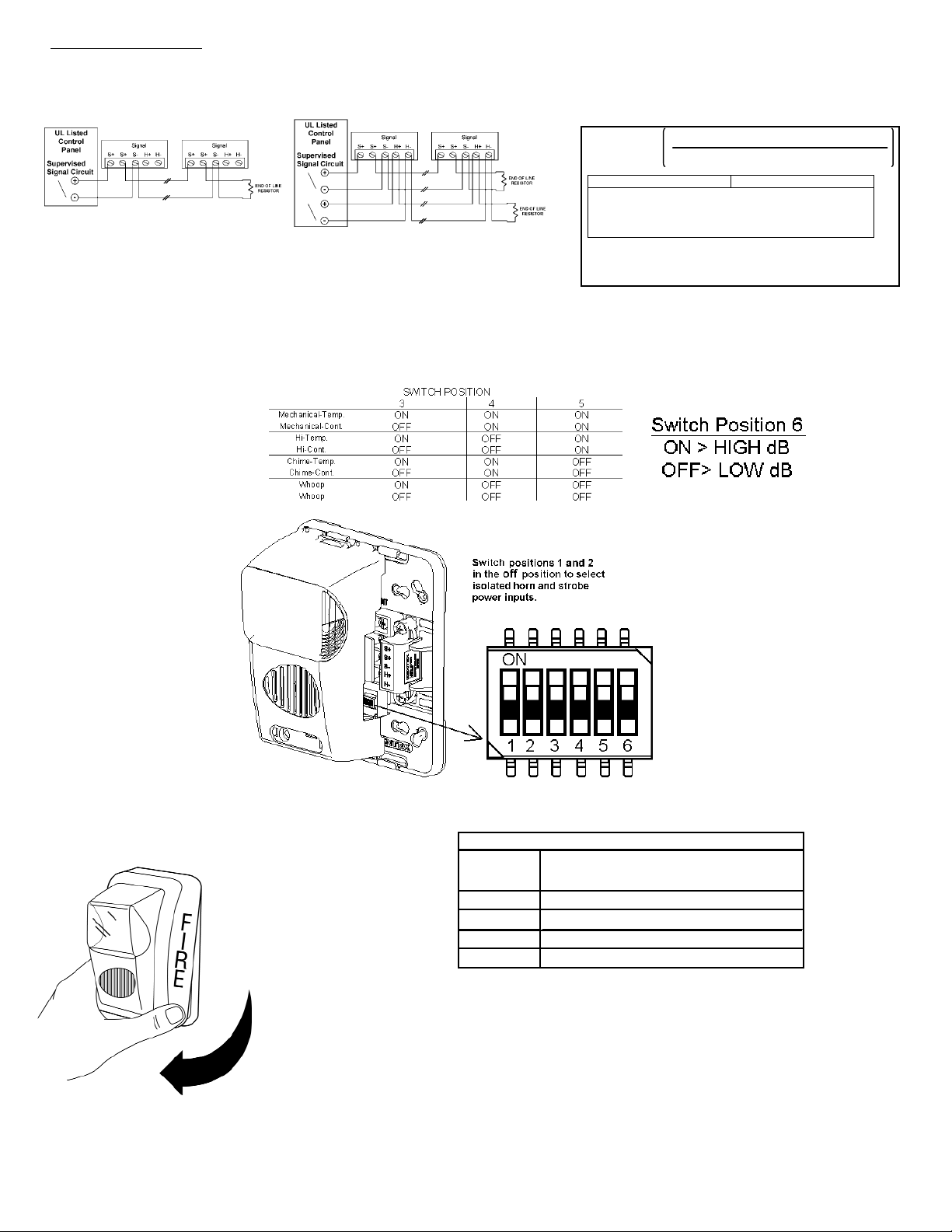

IV. WIRING

Wiring for independent synchronized strobes and horn. Using this method you may:

· Use only two wires to synchronize the temporal horn and strobe with the ability to mute the horn (place switches 1 and 2 up on the GEC3-12).

· Mute the horn only when the temporal horn option has been selected.

Wiring for synchronized parallel (unison) horn/strobe operation. Using this method you may:

· Use only two wires to synchronize the temporal horn and strobe without the ability to mute the horn (place switches 1 and 2 up on the GEC3-12).

· Choose either temporal or continuous horn with the temporal horn synchronized.

· Also wire the control module (AVSM) to only the strobe input power terminals, set the horn to continuous mode and power it from a coded source. NOTE: For this option, switches 1 and 2 on the GEC3-12 (Fig.1) must be down to isolate power to the audible and visible portion of the circuit.

(GEC3-12 & GES3-12 ONLY)

CheckmateTMVoltage Verification Access Holes:

It is often necessary to confirm the voltage drop along a line of devices. The access holes are provided in the back of the terminal block to allow the voltage to be measured directly without removing the device. Typically this would be done at the end of the line to confirm design criteria. Most measurements will be taken using the S+ and S- locations although access is provided to other locations.

NOTE: Care should be taken to not short the test probes.
