Page 1
IPCam SECURE300W
User’s Manual
Version 1.0
Page 2
KYE Systems Corp. 1
Index
INTRODUCTION .................................................................................. 2
FEATURES AND BENEFITS............................................................. 2
PACKAGE CONTENTS...................................................................... 4
SYSTEM REQUIREMENTS ............................................................... 5
HARDWARE OVERVIEW................................................................... 6
HARDWARE INSTALLATION......................................................... 11
SECURITY........................................................................................... 14
CONNECTING THE CAMERA BEHIND A ROUTER....................... 15
USING THE SETUP WIZARD.......................................................... 18
USING THE CONFIGURATION MENU.......................................... 26
WEB CONFIGURATION UTILITY................................................... 27
VIEW VIDEO-ACTIVEX MODE........................................................ 52
VIEW IMAGE-JAVA MODE .............................................................53
IPVIEW SE .......................................................................................... 55
APPENDIX .......................................................................................... 79
Page 3
IPCam SECURE300W User’s Manual
KYE Systems Corp. 2
Introduction
Congratulations on your purchase of our IPCam SECURE300W!
Unlike a PC Camera, the IPCam SECURE300W is a standalone system with a built-in CPU and Web server that transmits real-time and high quality video images for monitoring. The IPCam SECURE300W can be accessed remotely and controlled from any PC/Notebook over the Intranet or Internet via a web browser. The simple installation procedures and web-based interface allow you to integrate it into your network easily. With comprehensive applications supported, the IPCam SECURE300W is your best solution for remote monitor, high quality, and high performance video images.
Features and Benefits
Simple to Use
The IPCam SECURE300W is a standalone system with built-in CPU requiring no special hardware or software such as PC frame grabber cards. The IPCam SECURE300W supports both ActiveX mode (for Internet Explorer users) and Java mode (for Internet Explorer and Netscape Navigator users). Therefore, all that is required is a web browser software such as Internet Explorer 5.0 or above or Netscape
6.0 or above. Just plug and view the picture from the IPCam SECURE300W with a valid IP Address.
Page 4
KYE Systems Corp. 3
Support IEEE 802.11g wireless LAN or Ethernet/Fast
Ethernet
The IPCam SECURE300W provides IEEE802.11 wireless LAN or Ethernet/Fast Ethernet connectivity, making the IPCam SECURE300W easy to integrate into your existing network environment.
Support Variety of Platforms
The IPCam SECURE300W supports TCP/IP networking, SMTP e­mail, HTTP and other Internet related protocols, and can be utilized in a mixed operating system environment such as Windows, Unix, and Mac. It can be integrated easily into other www/Intranet applications.
Web Configuration
Applying a standard web browser, the administrator can configure and manage IPCam SECURE300W directly from its own web page via the Intranet or Internet. That means you can access the IPCam SECURE300W at any time from anywhere in the world. Up to 64 users name and password are permitted with privilege setting controlled by the administrator.
Remote Utility
The powerful IPView SE application assigns the administrator with a pre-defined user ID and password, allowing the administrator to modify the IPCam SECURE300W settings from the remote site via Intranet or Internet. When new firmware is available, you can also
Page 5
IPCam SECURE300W User’s Manual
KYE Systems Corp. 4
upgrade remotely over the network for added convenience. Users are also allowed to monitor the image, and take snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the IPCam SECURE300W can provide the ideal solution for live video images over the Intranet and Internet for remote monitoring. The IPCam SECURE300W allows remote access from a web browser for live image viewing and allows an administrator to manage and control the IPCam SECURE300W anywhere and any time in the world. Apply the IPCam SECURE300W to monitor various objects and places such as homes, offices, banks, hospitals, child-care centers, amusement parks and other varieties of industrial and public monitoring. The IPCam SECURE300W can also be used for intruder detection; in addition, it can capture still images for archiving and many more applications.
Package Contents
　 Genius IPCam SECURE300W 　 Quick Installation Guide 　 CD-ROM with Software and Manual 　 Camera Stand with screws and Mounting Bracket 　 Cat. 5 Ethernet Cable 　 Power Adapter 　 IEEE 802.11g Antenna
Page 6
KYE Systems Corp. 5
System Requirements
　 Networking
a. Local Area Network: 10Base-T Ethernet or 100Base-
TX Fast Ethernet.
b. Wireless Local Area Network: IEEE 802.11g Wireless
Router or Access Point.
　 Accessing the IPCam SECURE300W
a. For Web Browser Users
- Operating System: Microsoft® Windows® 98SE / ME/ 2000/XP
- CPU: Intel Pentium II, 266 MHz or above
- Memory Size: 32MB (64MB recommended)
- Resolution: 800x600 or above
- Microsoft® Internet Explorer 5.0 or above (ActiveX & JAVA Mode – Image View for Windows OS and JAVA Mode – Image View for other OS); Netscape 6.0 or above (JAVA Mode – Image View)
b. For IPView SE Application Users
- Operating System: Microsoft® Windows® 98SE / ME/ 2000/XP.
- CPU: Intel Pentium III, 450 MHz or above
- Memory Size: 128 MB (256 MB recommended)
- Resolution: 800x600 or above
Page 7
IPCam SECURE300W User’s Manual
Hardware Overview
This section describes features of the IPCam SECURE300W.

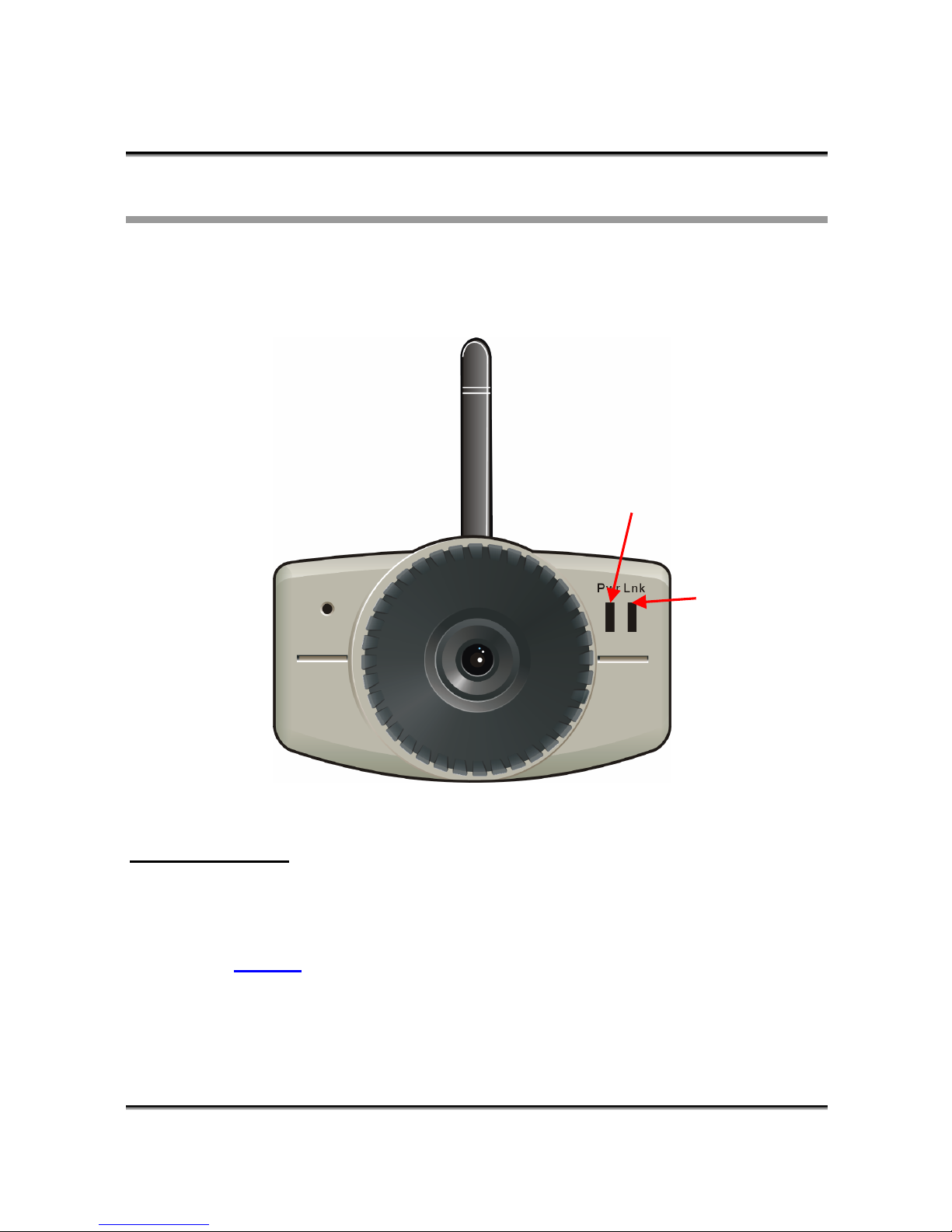

Front Panel
① Power LED
② Link LED
1. Power LED
The Power LED is positioned on the right side of the IPCam SECURE300W’s lens while facing the IPCam SECURE300W.
A steady
BLUE light confirms that the IPCam SECURE300W is
powered on.
KYE Systems Corp. 6
Page 8
2. Link LED
The Link LED is positioned on the right side of the IPCam SECURE300W’s lens while facing the IPCam SECURE300W. It is located to the right of the Power LED
A steady
ORANGE light confirms that the camera has good
connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to indicate that the IPCam SECURE300W is receiving/sending data from/to the network.

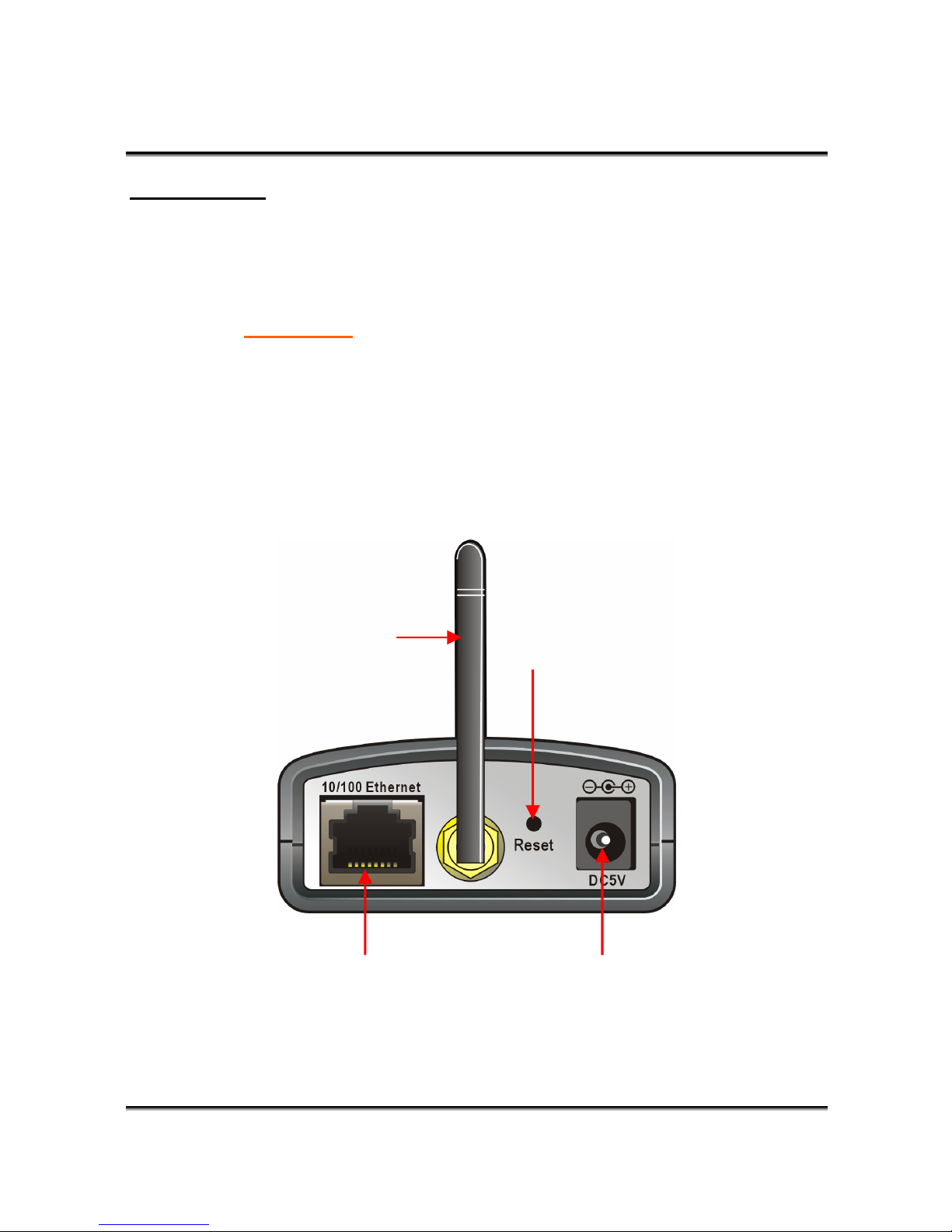

Rear Panel
② External Antenna
③ Reset Button
① Network Cable Connector ④ DC Power Connector
KYE Systems Corp. 7
Page 9
IPCam SECURE300W User’s Manual
KYE Systems Corp. 8
1. Network Cable Connector
The IPCam SECURE300W’s rear panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair cable). The port supports the N-Way protocol and “Auto-MDIX” function, allowing the IPCam SECURE300W to automatically detect or negotiate the transmission speed of the network.
2. External Antenna
The rotatable external antenna allows you to adjust its position to obtain the maximum signal.
3. Reset Button
Reset will be initiated when the reset button is pressed once, and Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed continuously for three seconds or when Power LED begins to light up. Release the reset button and the Power LED will begin to flash, indicating the IPCam SECURE300W is changing to factory reset. When factory reset is completed, the IPCam SECURE300W will be set to default on channel 11 and SSID is set as “NULL String” (This default setting will let the IPCam SECURE300W connect to ANY access point on the infrastructure network). The IP address will also return to the default setting as 192.168.0.20.
4. DC Power Connector
The DC power input connector is located on the IPCam SECURE300W’s rear panel, and is labeled DC5V with a single jack
Page 10
socket to supply power to the IPCam SECURE300W. Power will be generated when the power supply is connected to a wall outlet.
Note: Using the power supply with different voltage rating will damage the IPCam SECURE300W.

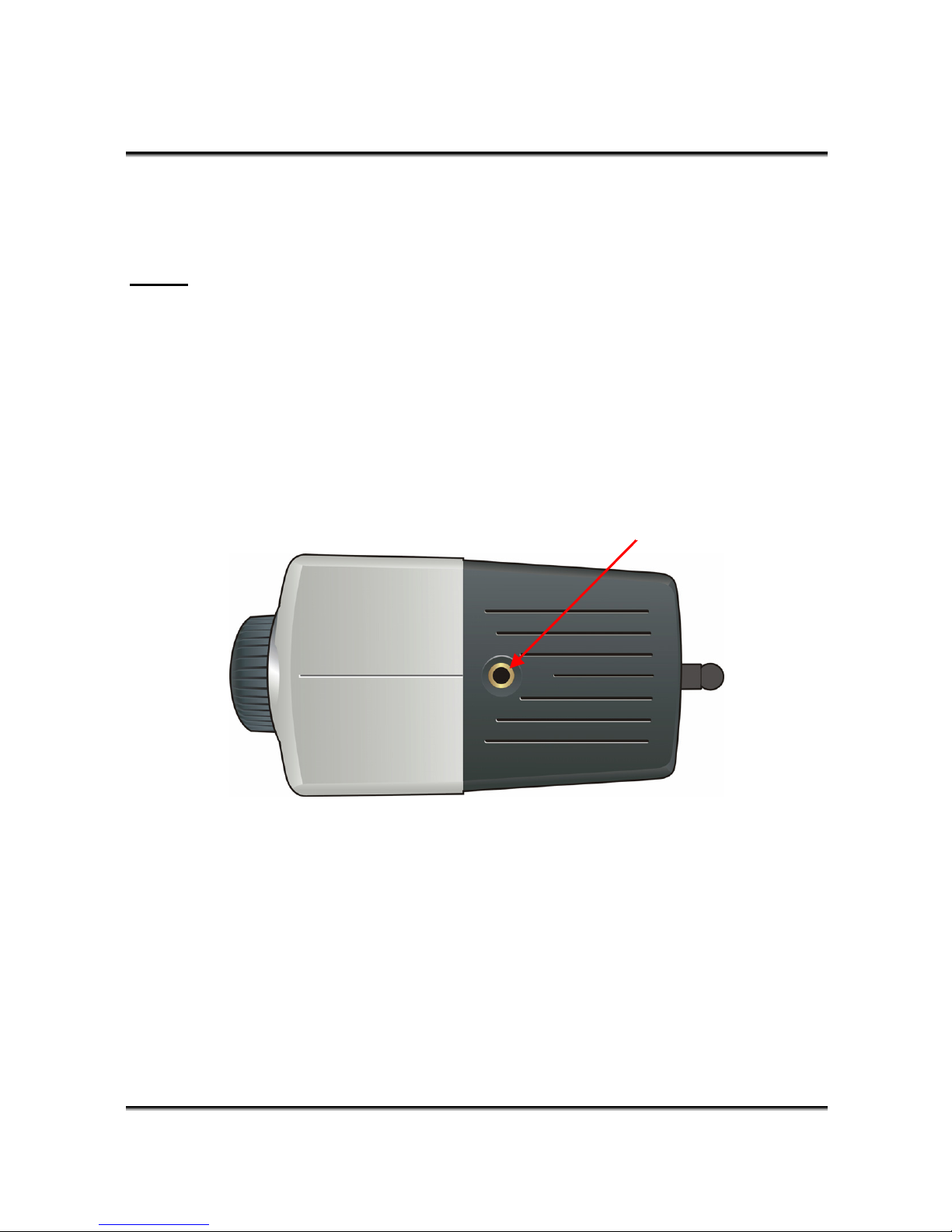

Top/Bottom Panel
Top Panel
KYE Systems Corp. 9
Screw Hole
Page 11
IPCam SECURE300W User’s Manual

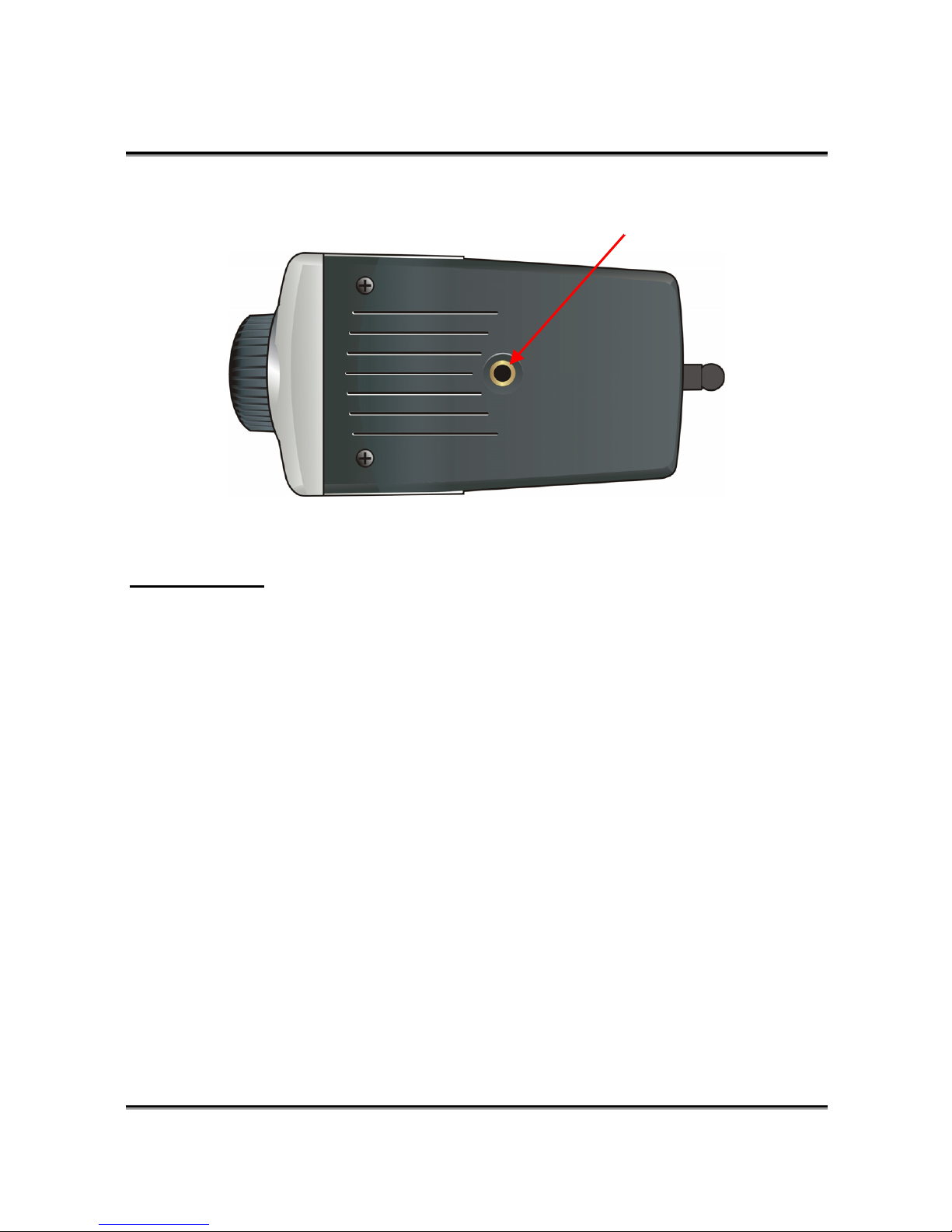

Bottom Panel
KYE Systems Corp. 10
Screw Hole
Screw Hole
Located on the top/bottom panel of the camera, the screw hole is used to connect the camera stand onto the camera by attaching the screw head on the camera stand into the screw hole of the camera.
Page 12
Hardware Installation

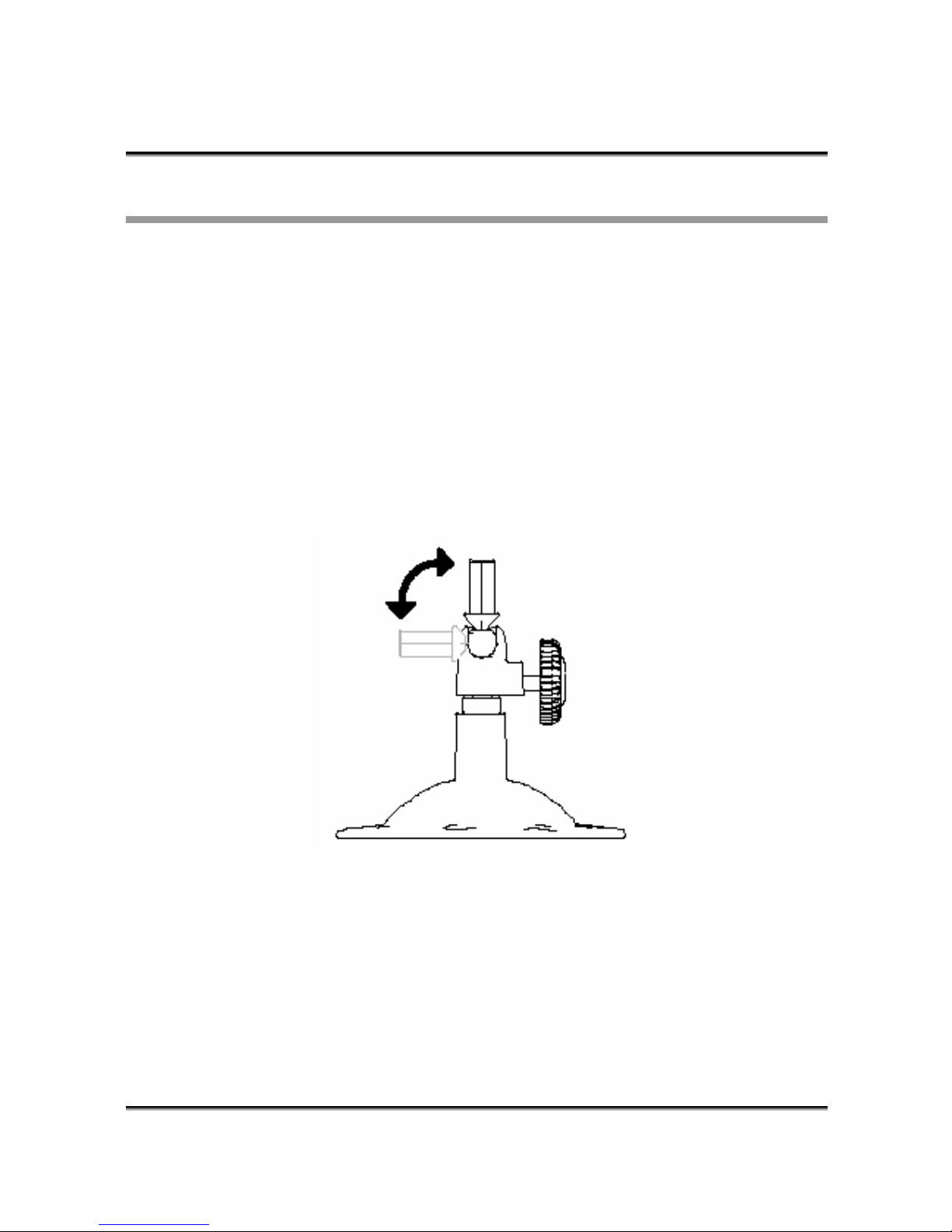

Attach the Camera to the Stand
The IPCam SECURE300W comes with a camera stand (optional) with a swivel ball screw head that can be attached to the IPCam SECURE300W's bottom screw hole. Attach the camera stand to the IPCam SECURE300W and station it for your application. There are three holes located in the base of the camera stand allowing the IPCam SECURE300W to be mounted on the ceiling or any wall securely.
KYE Systems Corp. 11
Page 13
IPCam SECURE300W User’s Manual

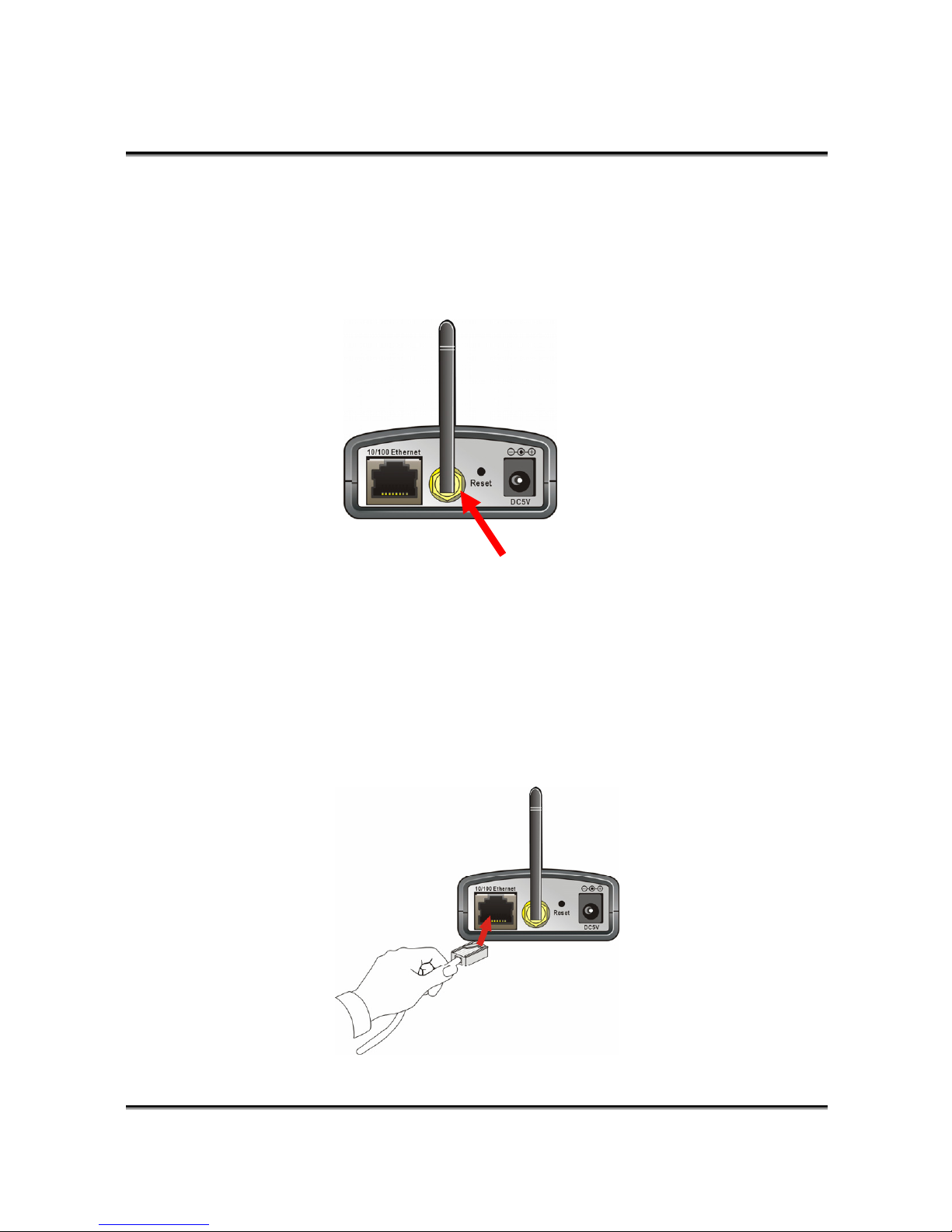

Attach the Antenna
Please attach the Antenna to the antenna connector located on the back of the IPCam SECURE300W.
Connect the Cat 5 Ethernet Cable
If you would like use the IPCam SECURE300W in the wired networking environment, you can connect an Ethernet cable to the network cable connector located on the IPCam SECURE300W’s rear panel, and then attach it to the network. The port also supports MDI/X, which allows the use of either straight through or crossover cables.
KYE Systems Corp. 12
Page 14

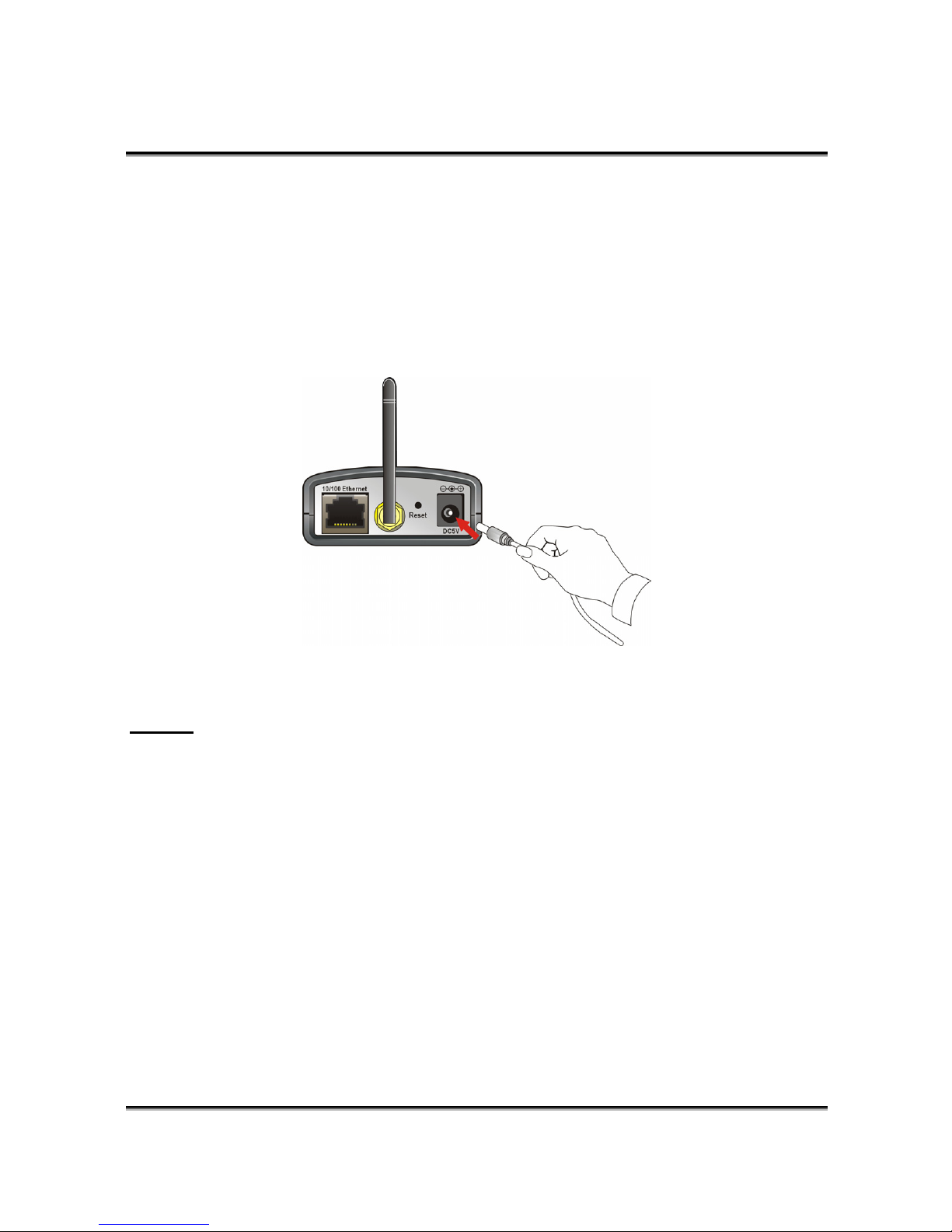

Attach the Power Supply
Attach the external power supply to the DC power input connector located on IPCam SECURE300W’s rear panel, and then connect it to your local power supply.
Note:
You can confirm power source is supplied from the LED indicators. The Power LED on the IPCam SECURE300W should be illuminated.
KYE Systems Corp. 13
Page 15
IPCam SECURE300W User’s Manual
KYE Systems Corp. 14
Security
To ensure the highest security and prevent unauthorized usage of the IPCam SECURE300W the Administrator has the exclusive privilege to access the System Administration for settings and control requirements to allow users the level of entry and authorize the privileges for all users. The IPCam SECURE300W supports multi­level password protection and access to the IPCam SECURE300W is strictly restricted to the user who has a “User Name” and “User Password” that is assigned by the Administrator.
The administrator can release a public user name and password so when remote users access the IPCam SECURE300W they will have the right to view the image transmitted by the IPCam SECURE300W.
Note: Since the default settings are Null String, it is highly recommended to set the "Admin ID" and "Admin Password" for the first time when you use the IPCam SECURE300W. Once the ID and Password are defined, only the administrator has access to management the IPCam SECURE300W. This procedure should be done as soon as possible since the security features with the IPCam SECURE300W will not be enabled until the "Admin ID" and "Admin Password" is defined.
Page 16
KYE Systems Corp. 15
Connecting the Camera behind a Router
Step 1: Hardware Installation
Follow the “Hardware Installation” section to setup the IPCam SECURE300W itself.
Step 2: Look up the IP address you have with your
computer while connecting to the Internet.
For configuring the IPCam SECURRE300W, you will to assign the IP Address which is correspondent to the networking settings.

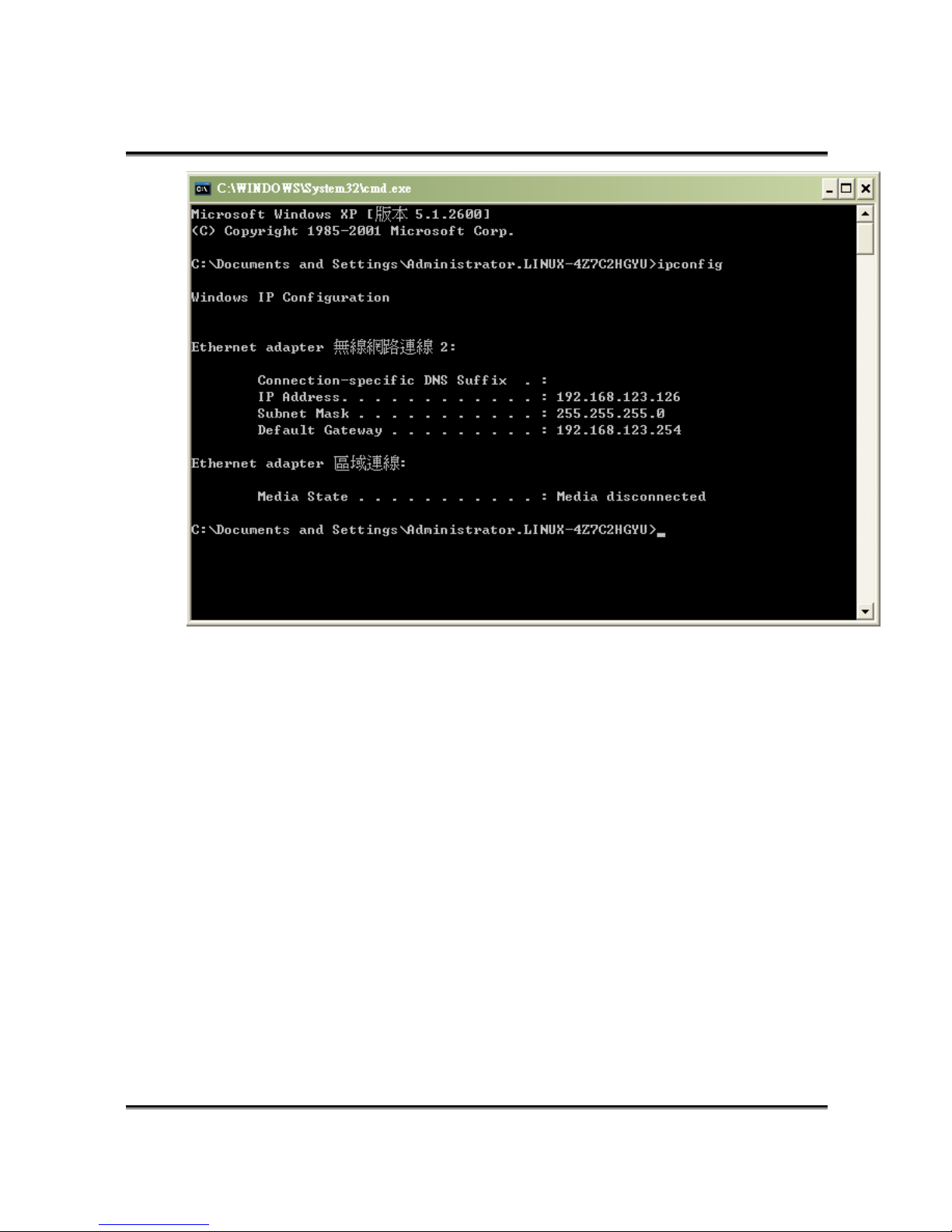

The “ipconfig” command can be used to look up the IP address of connecting to the Internet.
Start a DOS window: StartÆProgramÆAccessoriesÆCommand PromptÆType ÆipconfigÆ Press “Enter”
You will see the networking settings.
Page 17
IPCam SECURE300W User’s Manual
Step 3: Disconnect the Internet and Connect the Camera
For configuring the IPCam SECURE300W, you will need to disconnect the Internet first and connect the IPCam SECURE300W directly to the computer through Cat. 5 Ethernet cable.
Step 4: Change the IPCam SECURE300W settings
The default IP Address of the IPCam SECURE300W is
192.168.0.20. Before configuring the IPCam SECURE300W, you will need to change the networking settings of the computer. In that way, the computer can communicate with the IPCam SECURE300W.
KYE Systems Corp. 16
Page 18
KYE Systems Corp. 17
Therefore, you have to change the computer networking settings to correspond to the IPCam SECURE300W.
StartÆProgramÆControl PanelÆNetworkÆRight click on “Network”Æ Double click on “TCP/IP” ÆType the IP Address of 192.168.0.X(you can use any value between 1 to 254, except 20)ÆType the Subnet Mask: 255.255.255.0Æ Click on “Save” and then exit.
Step 5: Configure the IPCam SECURE300W
Open the Internet BrowserÆ Type the IP Address of
192.168.0.20Æ Click on “System Administration” to configure the IPCam SECURE300W.
For more information about the configuration, please refer to the “Web Configureaiotn Utility”
Note: If your router has UPnP function, I will suggestion you to enable the UPnP function of the IPCam SECURE300W. After enabling the UPnP function, you can link to the IPCam SECURE300W directly from “My Networking Places”.
Page 19
IPCam SECURE300W User’s Manual
Using the Setup Wizard
The Setup Wizard is a convenient tool that will guide you through the installation of the IPCam SECURE300W easily and quickly

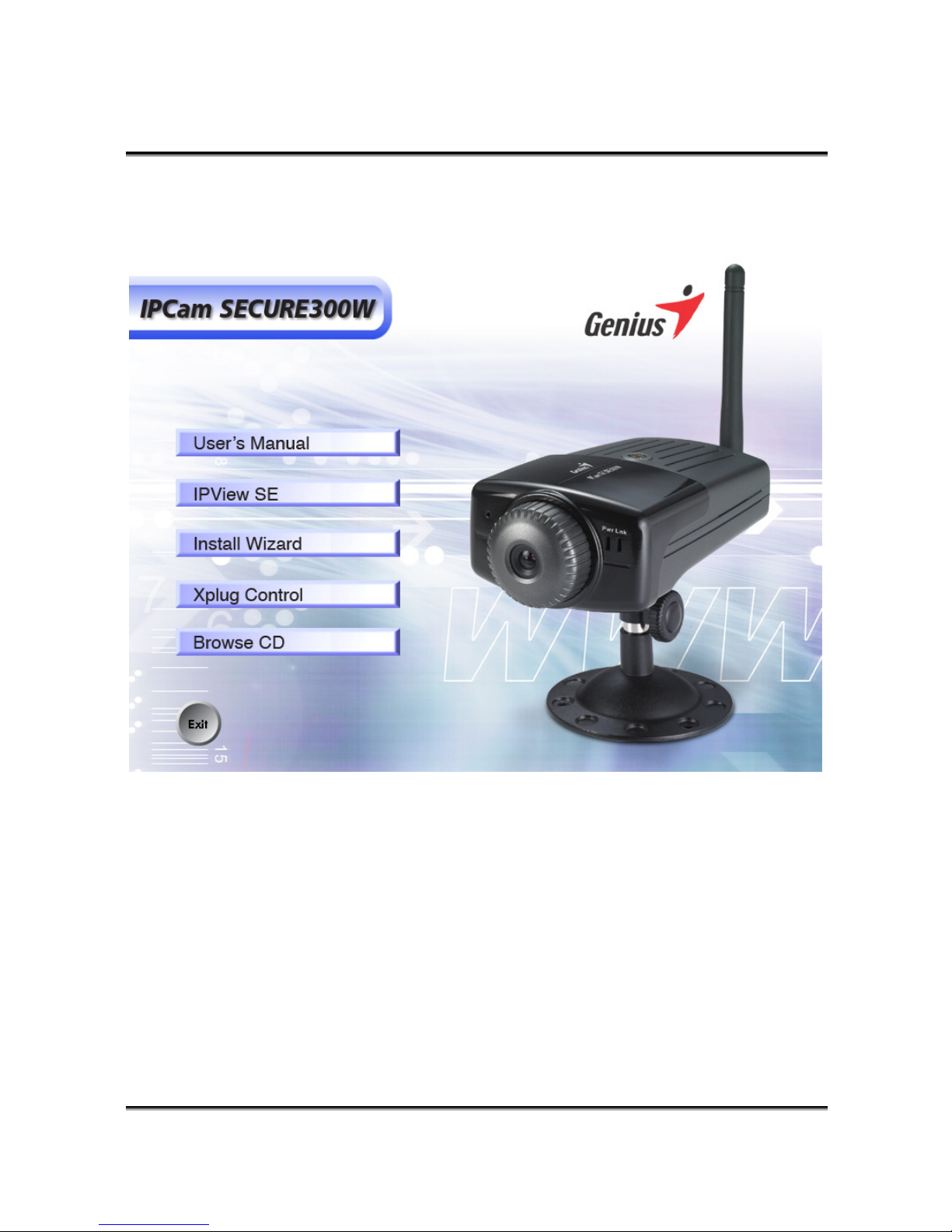

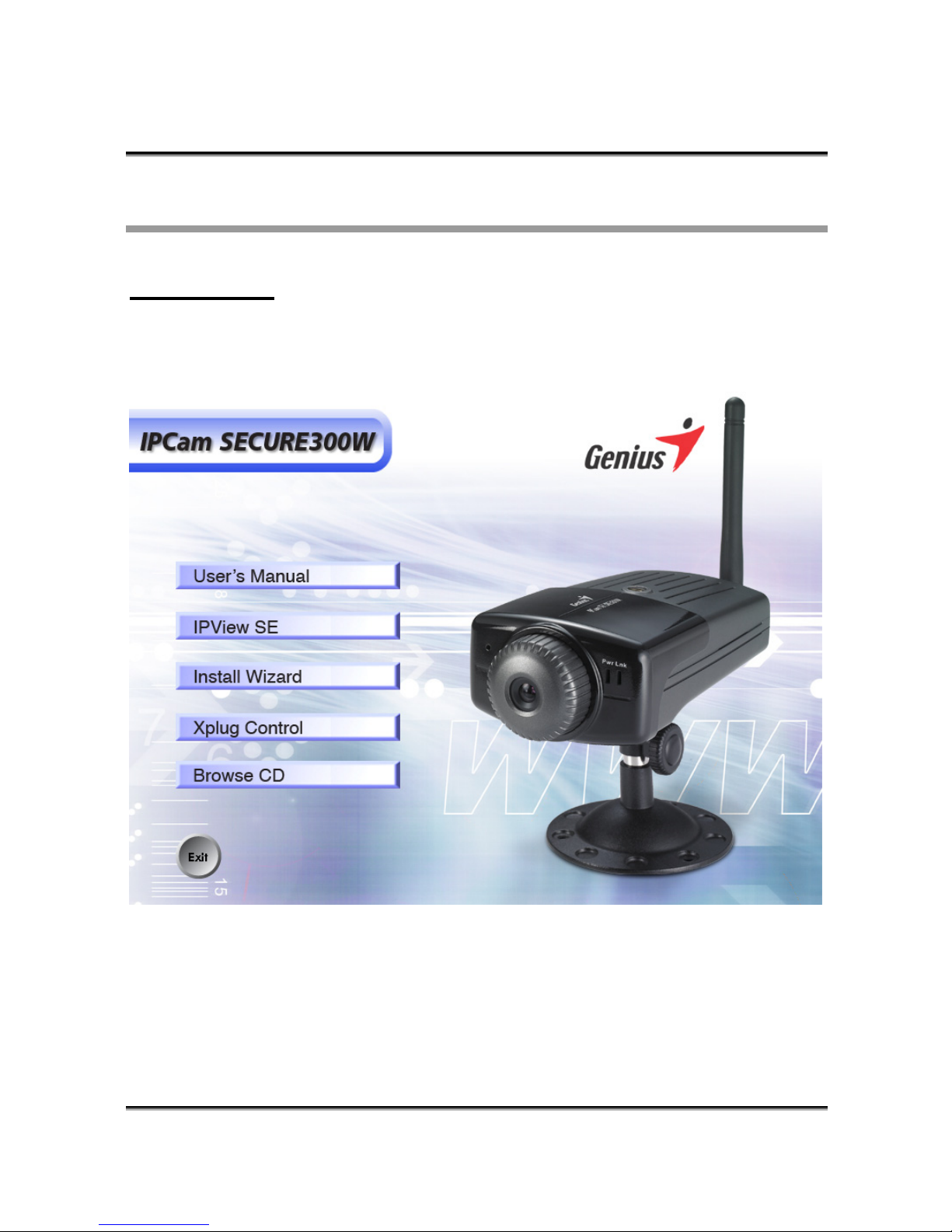

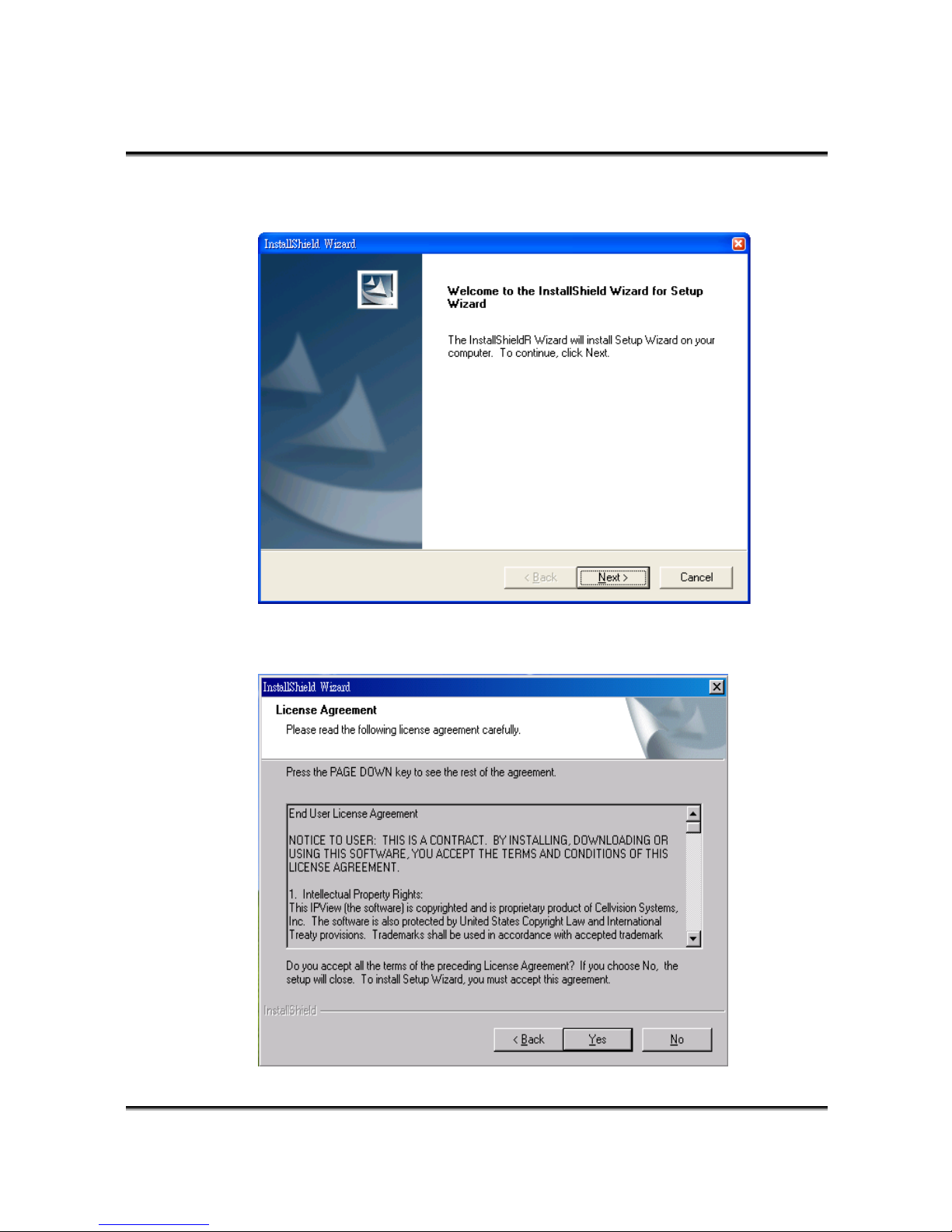

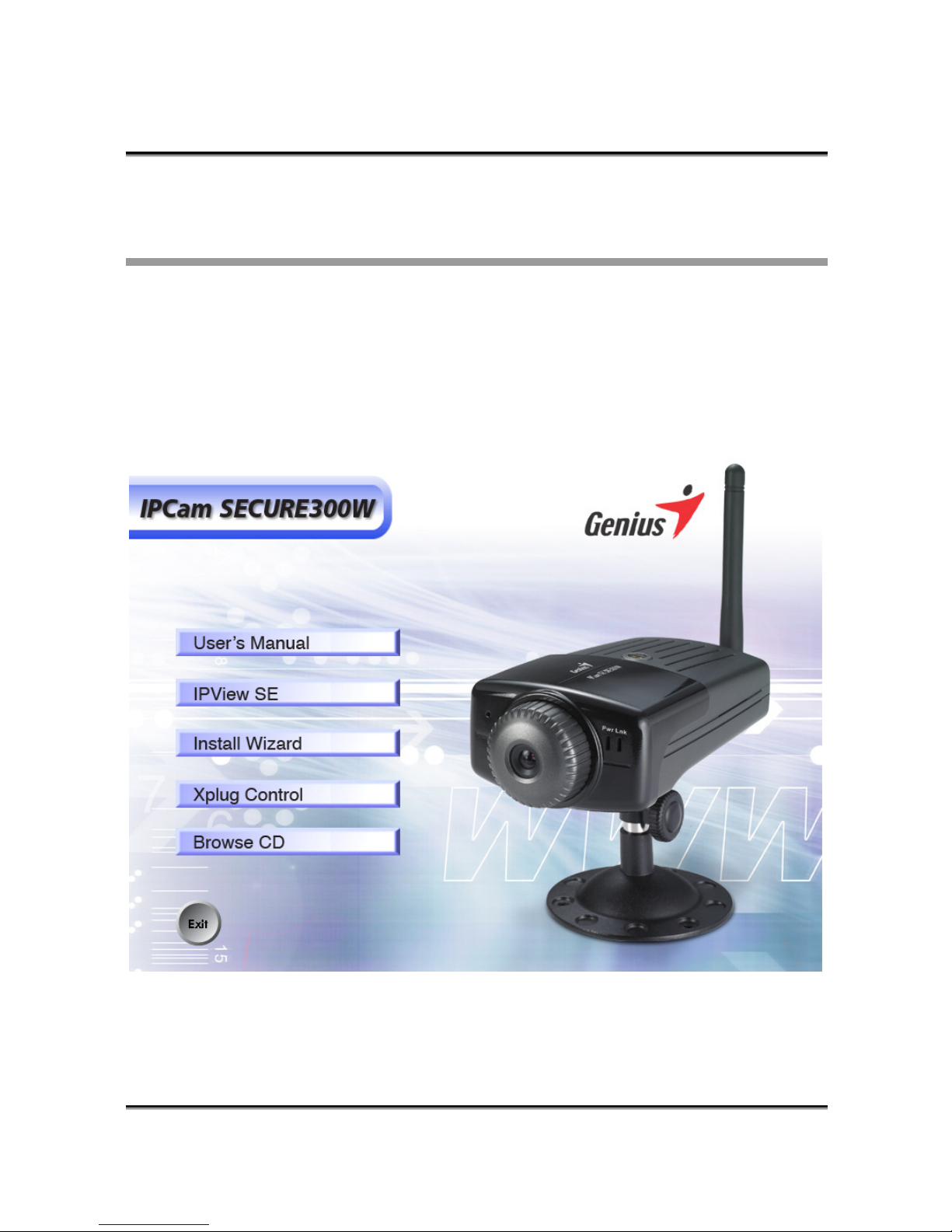

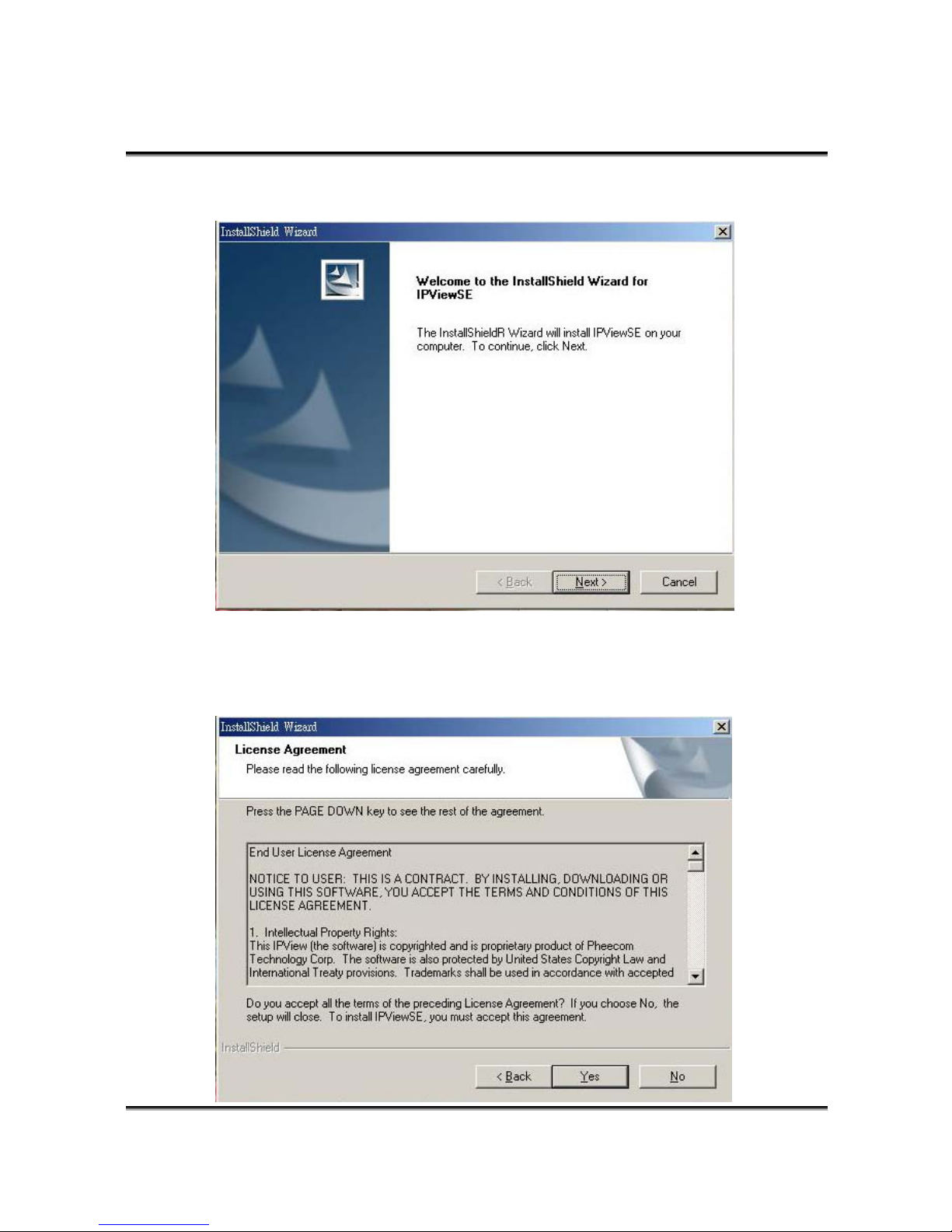

Insert the Installation CD into your CD-ROM drive. Click Install
Wizard.
KYE Systems Corp. 18
Page 20

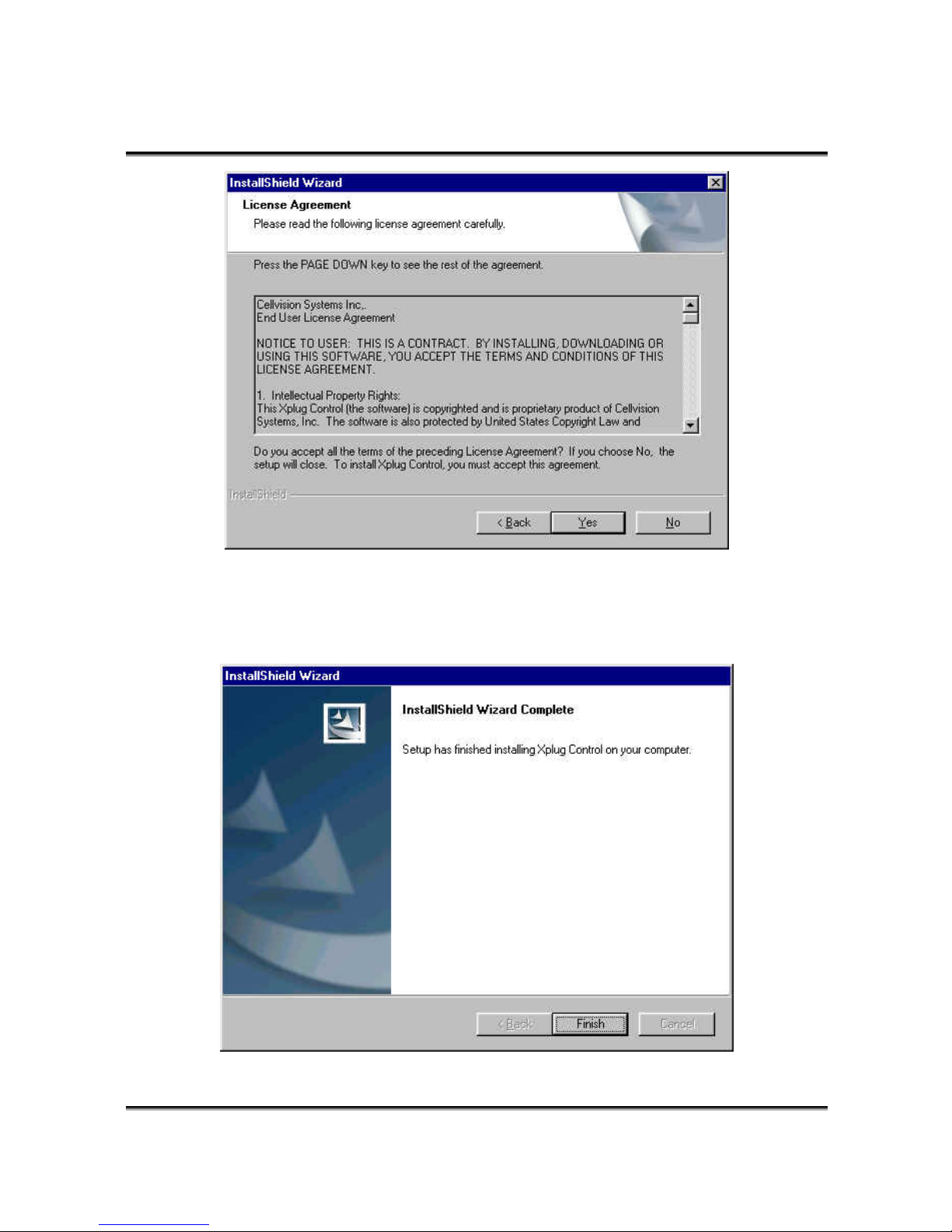

Click Next
Click Yes
KYE Systems Corp. 19
Page 21
IPCam SECURE300W User’s Manual

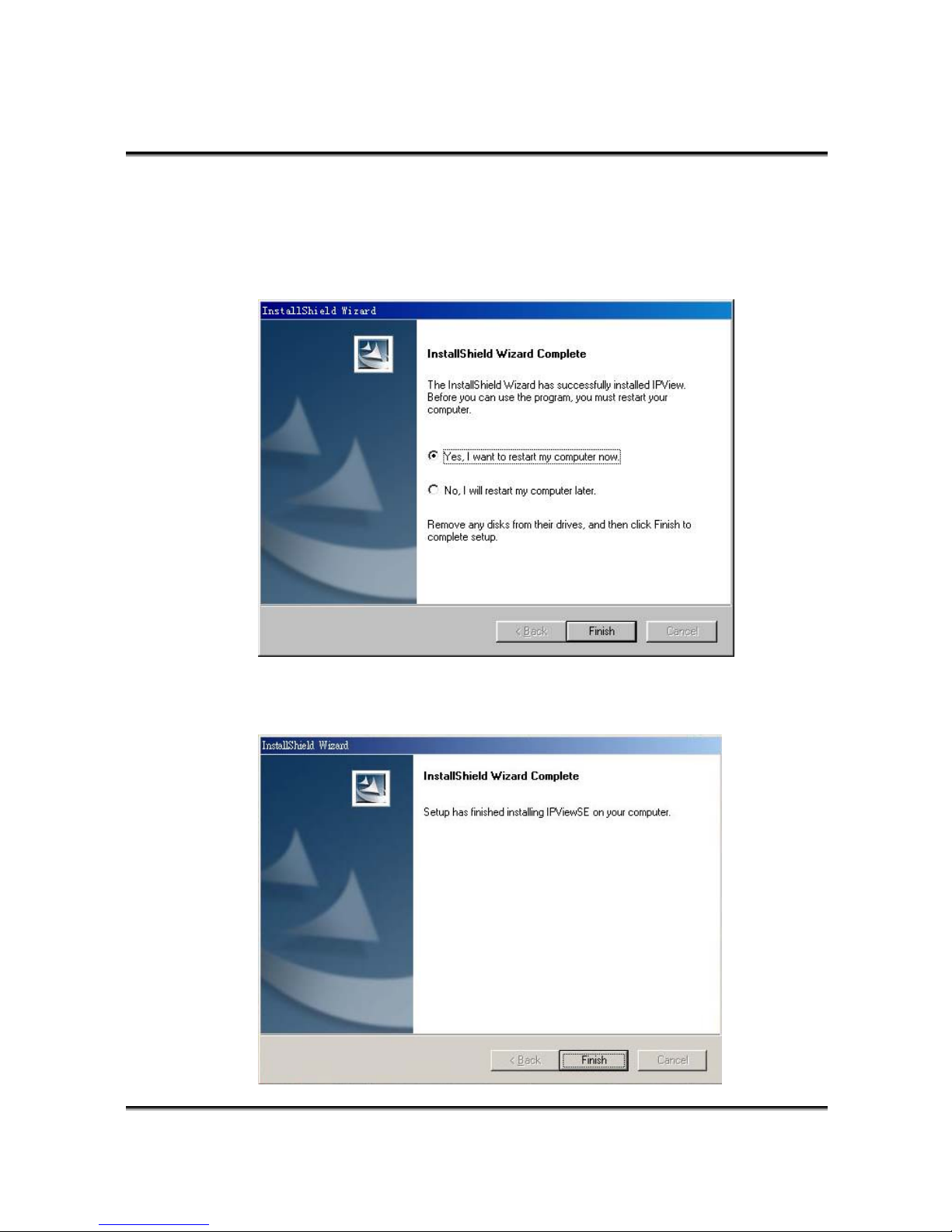

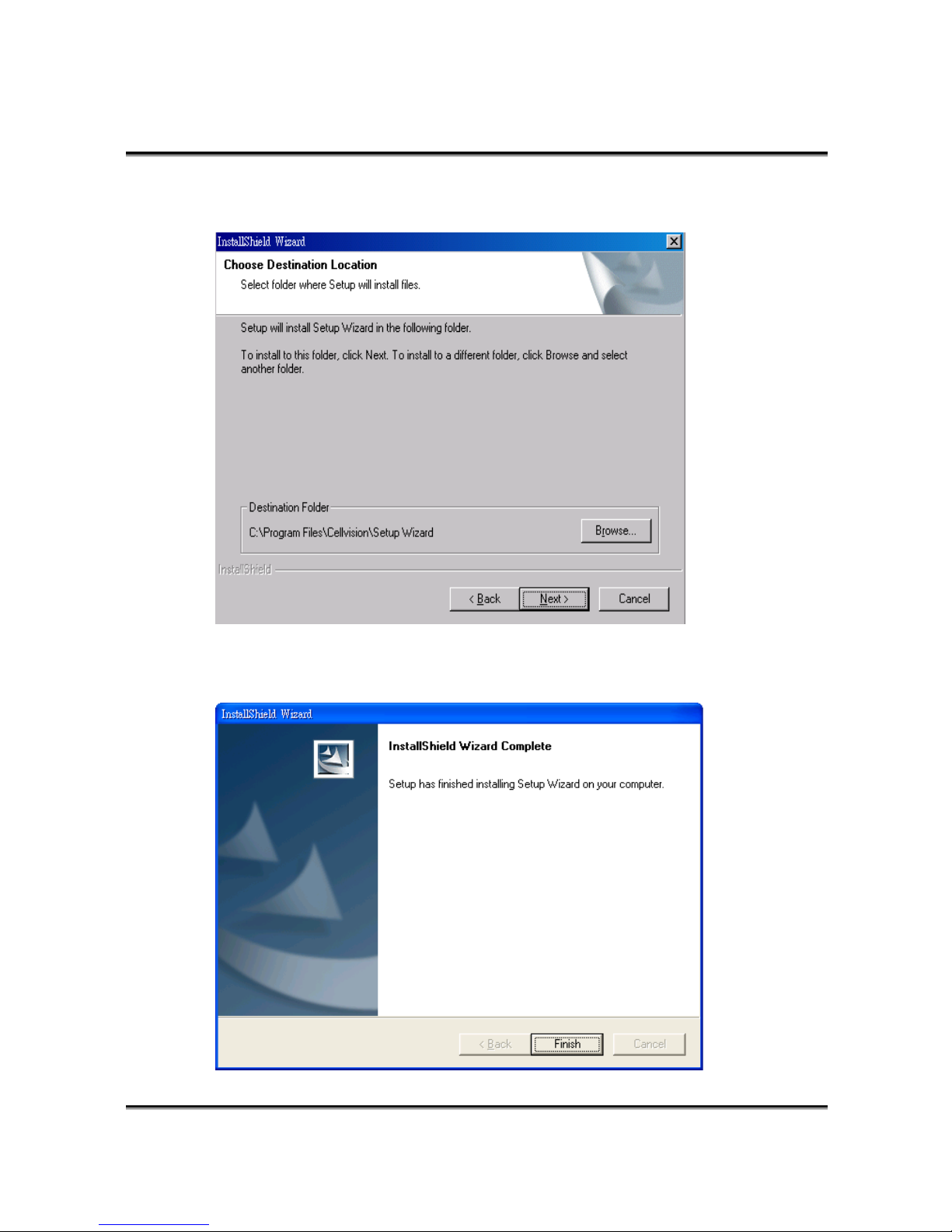

Click Next
Click Finish
KYE Systems Corp. 20
Page 22

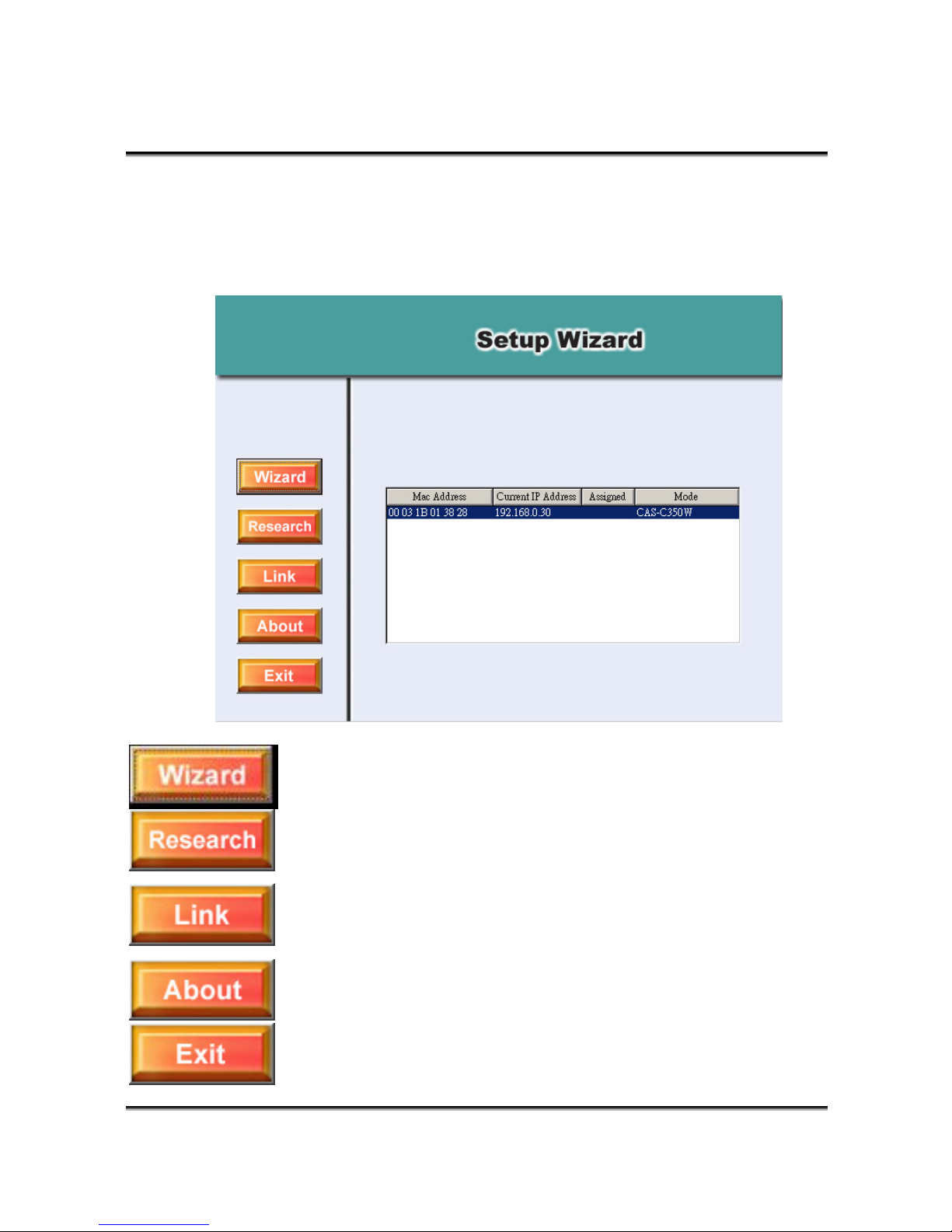

To run the Setup Wizard, click on Start -> Programs -> Setup Wizard. When you launch the Setup Wizard, the main window will
appear as shown and the IPCam SECURE300W’s default IP Address will be displayed on the screen.
KYE Systems Corp. 21
Click Wizard to begin configuring the selected camera.
Click Research allows you to search the connected
camera again.

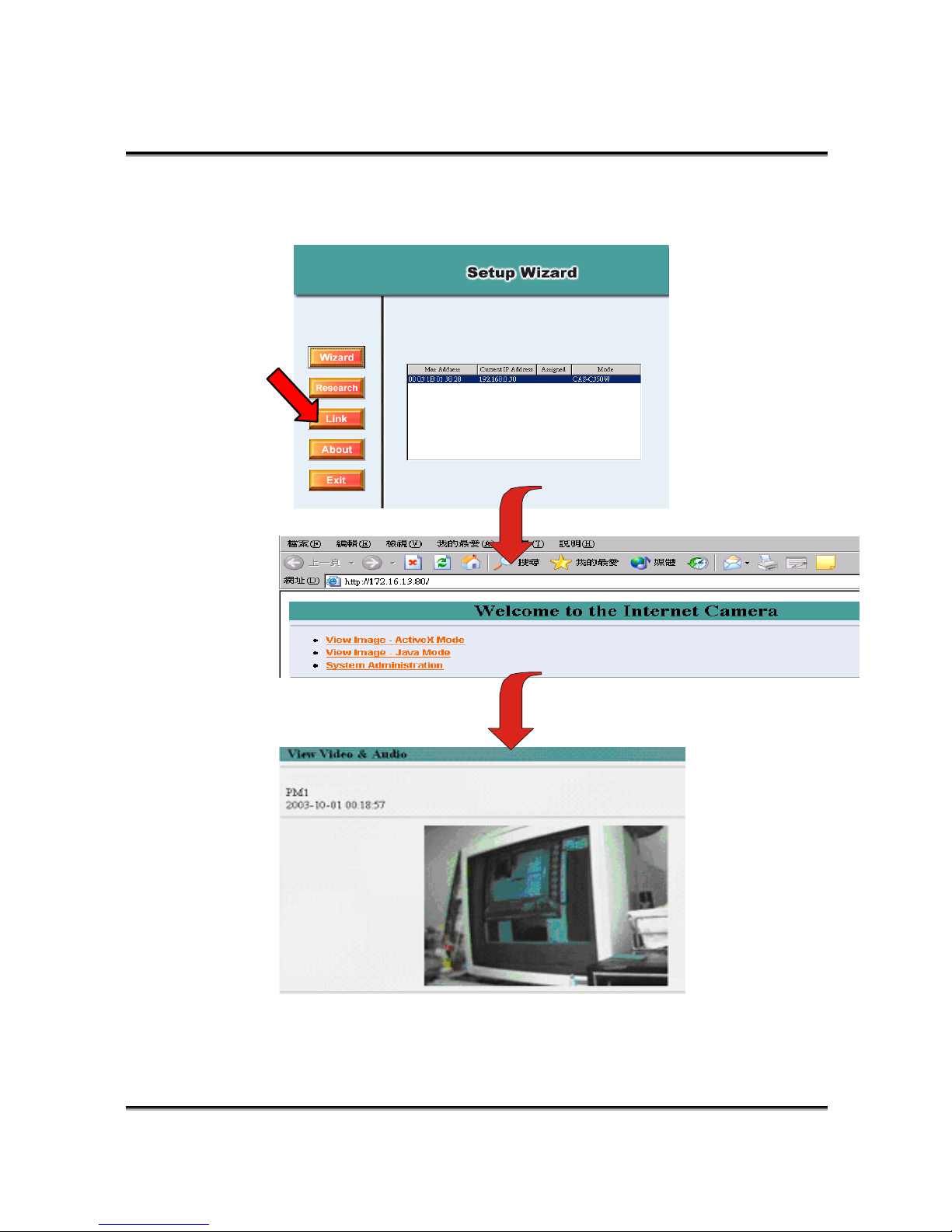

Click Link to launch the web browser and view the
images.
Click About to show the general information of the
selected camera.
Click Exit to close the Setup Wizard.
Page 23
IPCam SECURE300W User’s Manual

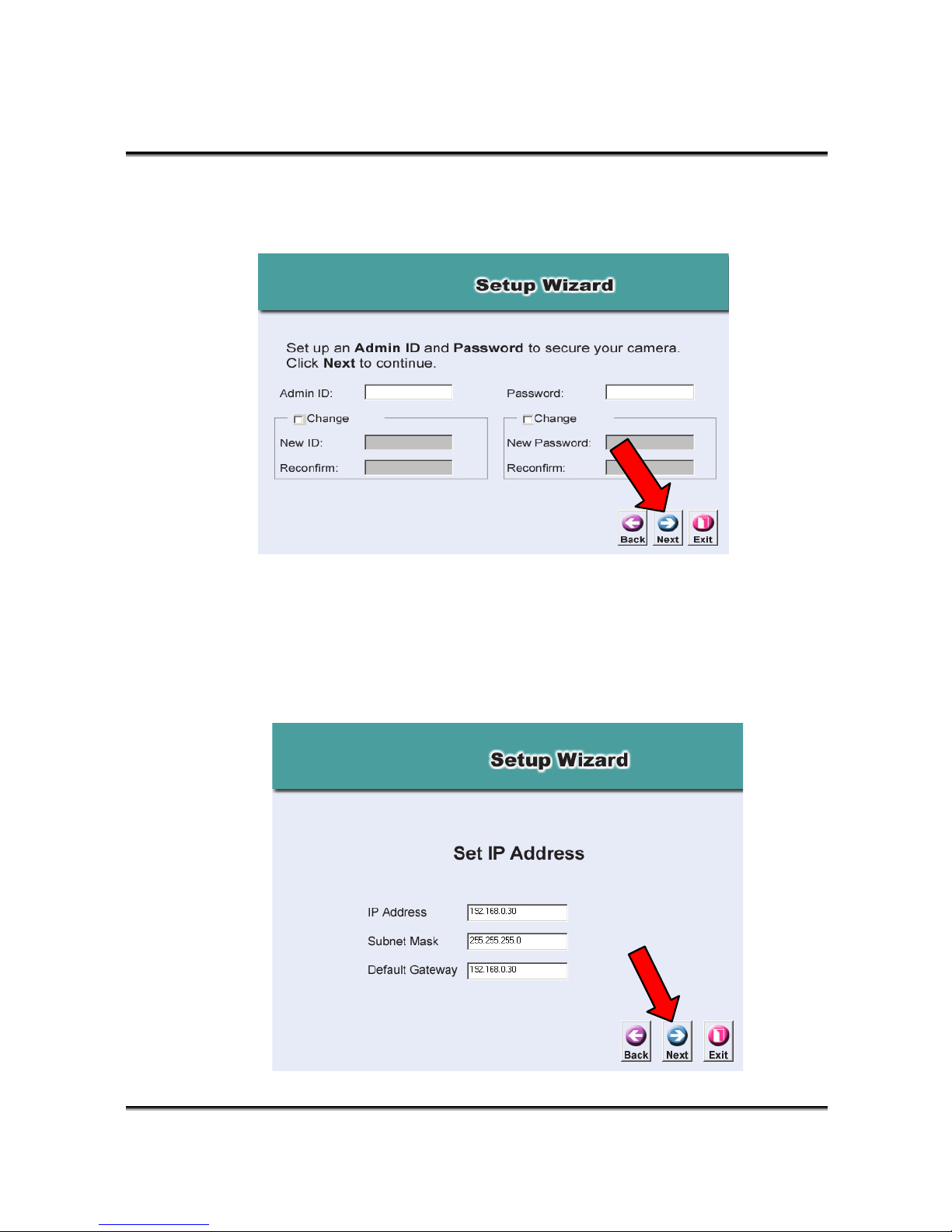

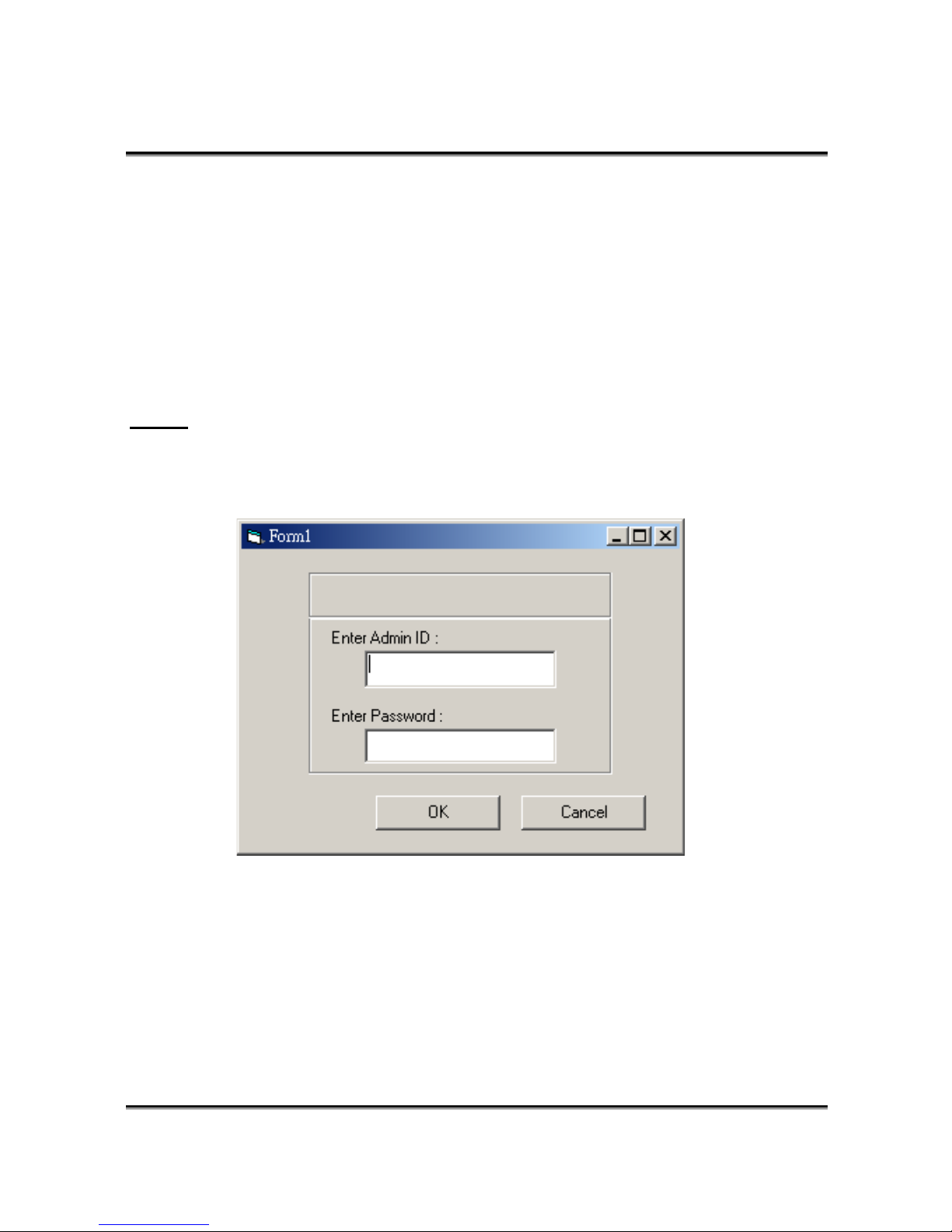

Changing the Admin ID and Password
By default settings, the Admin ID and Password are blank. For security purpose, you are recommended to change the Admin ID and Password immediately
Click Wizard to begin. The dialog box as shown appears, asking you to enter the Admin ID and Password. Click OK
Note: We don’t set up the Admin ID and Password for the default value. So, just click “OK” to continue
KYE Systems Corp. 22
Page 24
If required, select the Change box and enter the new Admin ID and Password. Click Next
The settings of IP Address, Subnet Mask and Default Gateway must correspond with your camera and networking settings. Please check with your network administrator for correct settings. Click Next
KYE Systems Corp. 23
Page 25
IPCam SECURE300W User’s Manual

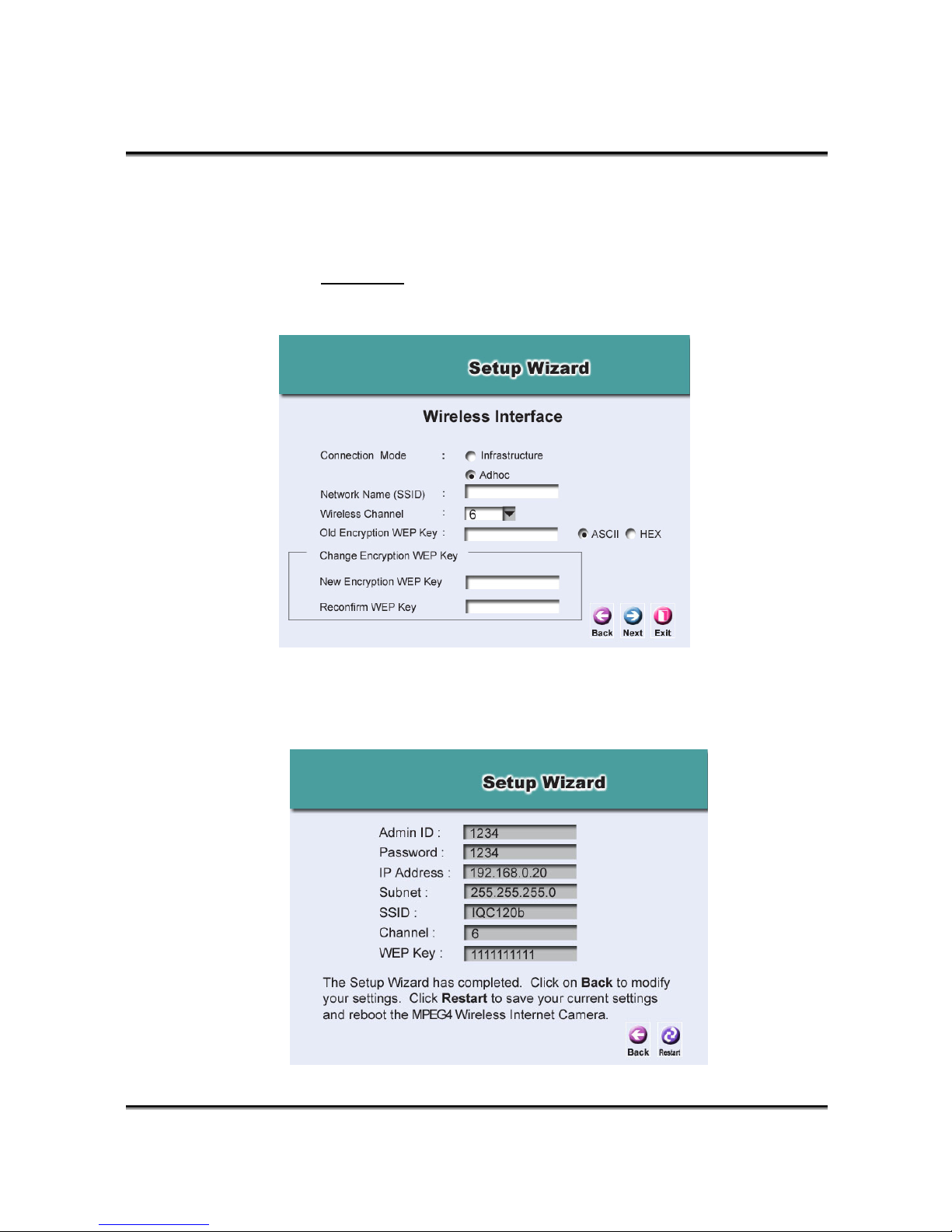

The Connection Mode depends on how your camera is connected to your network. Click Infrastructure for use with a router or Adhoc for peer-to- peer. The Network Name, Wireless Channel, and Encryption Key
MUST correspond with your wireless network
settings.
This window displays the settings you set up. For any change, click Back to modify your settings. Otherwise, click Restart to save and apply the settings.
KYE Systems Corp. 24
Page 26
Once the configuration is complete, you will return to the main window. Click Link to launch the web browser and view the images.
KYE Systems Corp. 25
Page 27
IPCam SECURE300W User’s Manual
KYE Systems Corp. 26
Using the Configuration Menu
After completing the Setup Wizard, you are ready to use the IPCam SECURE300W.
Through the Web-based Configuration, you can access and configure the IPCam SECURE300W easily. To open up the main configuration page, please click on Link or simply enter the IP address of the IPCam SECURE300W on the web browser.
Note:
The IP address of the computer connected to the IPCam SECURE300W
MUST correspond with the IPCam SECURE300W’s IP address. The computer and the IPCam SECURE300W then are able to communicate in the same segment.
After the IP address is entered from the web browser, the IPCam SECURE300W Welcome screen will appear with a still image. There will be three choices to set up or view the IPCam SECURE300W:

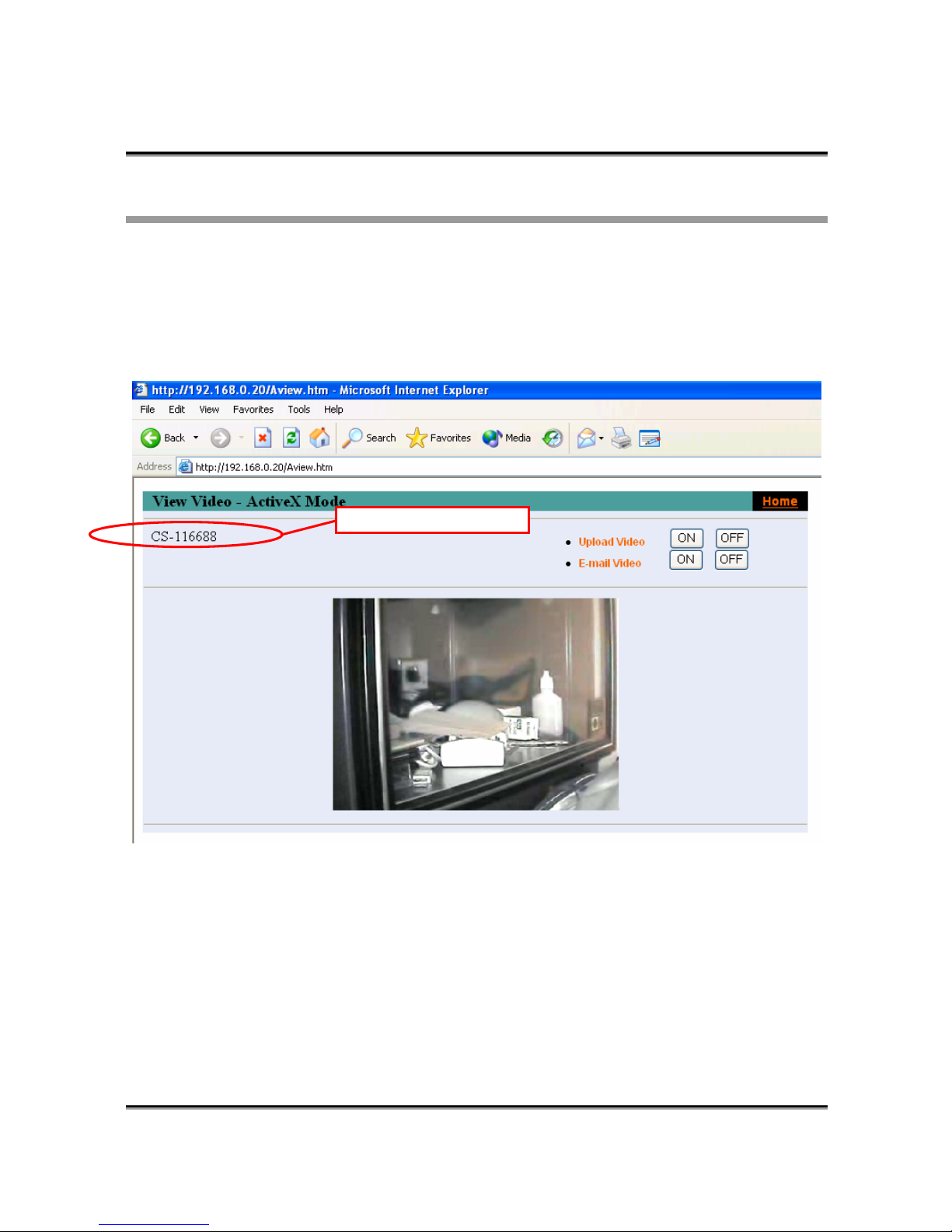

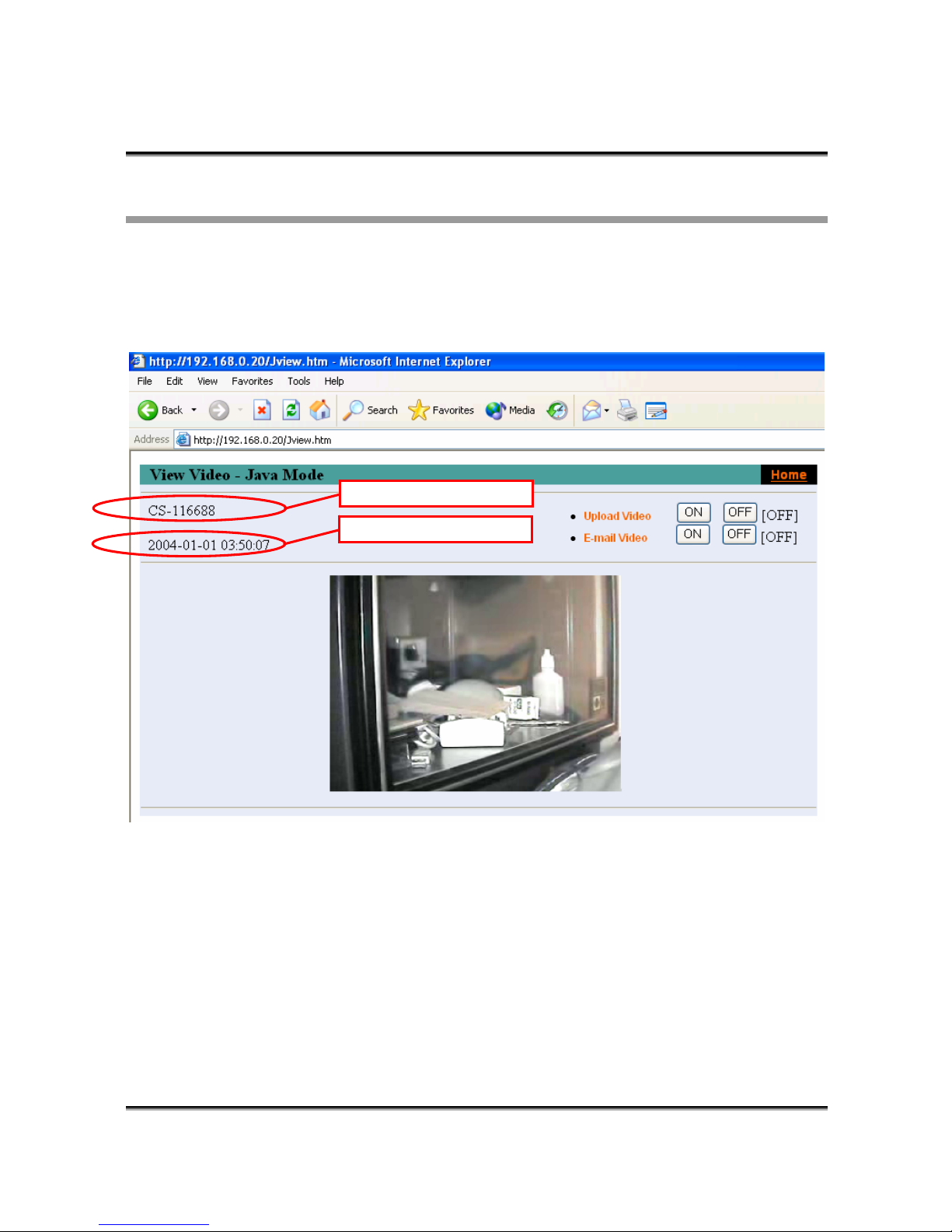

View Video-ActiveX Mode View Video-Java Mode System Administration
Page 28
KYE Systems Corp. 27
Web Configuration Utility
After clicking on “System Administration” to access the settings required for the IPCam SECURE300W, there will be several options in the Configuration page to choose from to set up the IPCam SECURE300W and they are as follows:
Management
System Video Wireless Network User
Configuration
System Video Wireless Network User
Tools

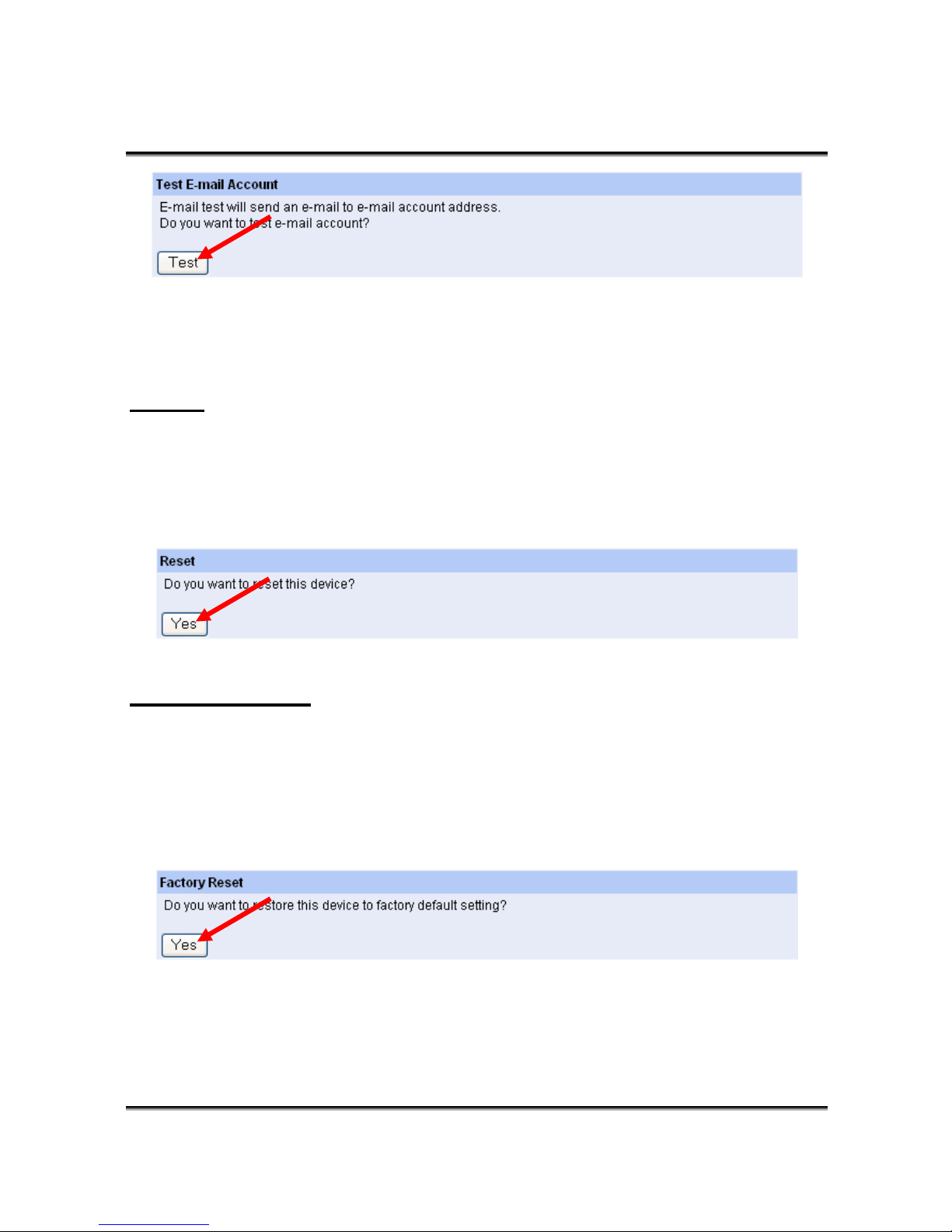

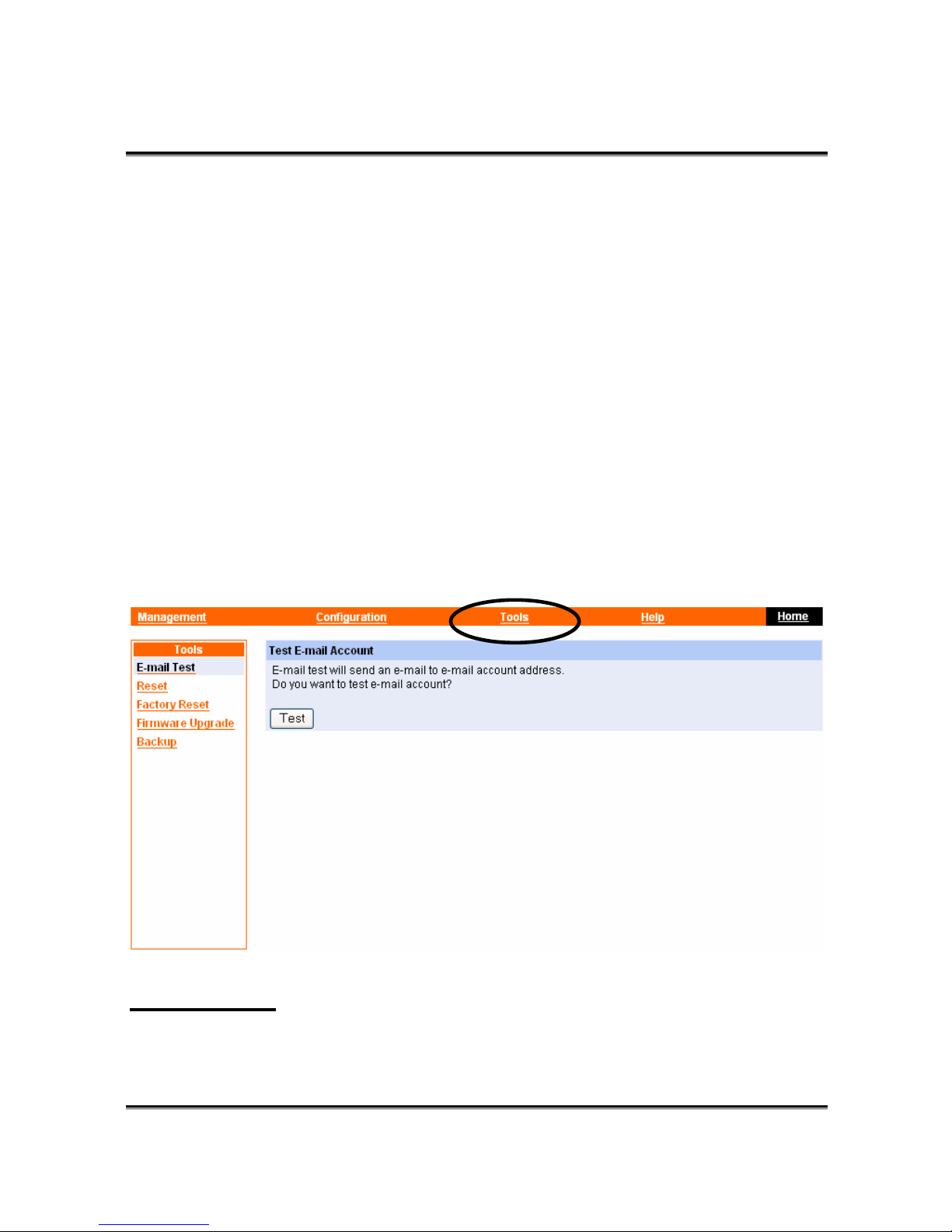

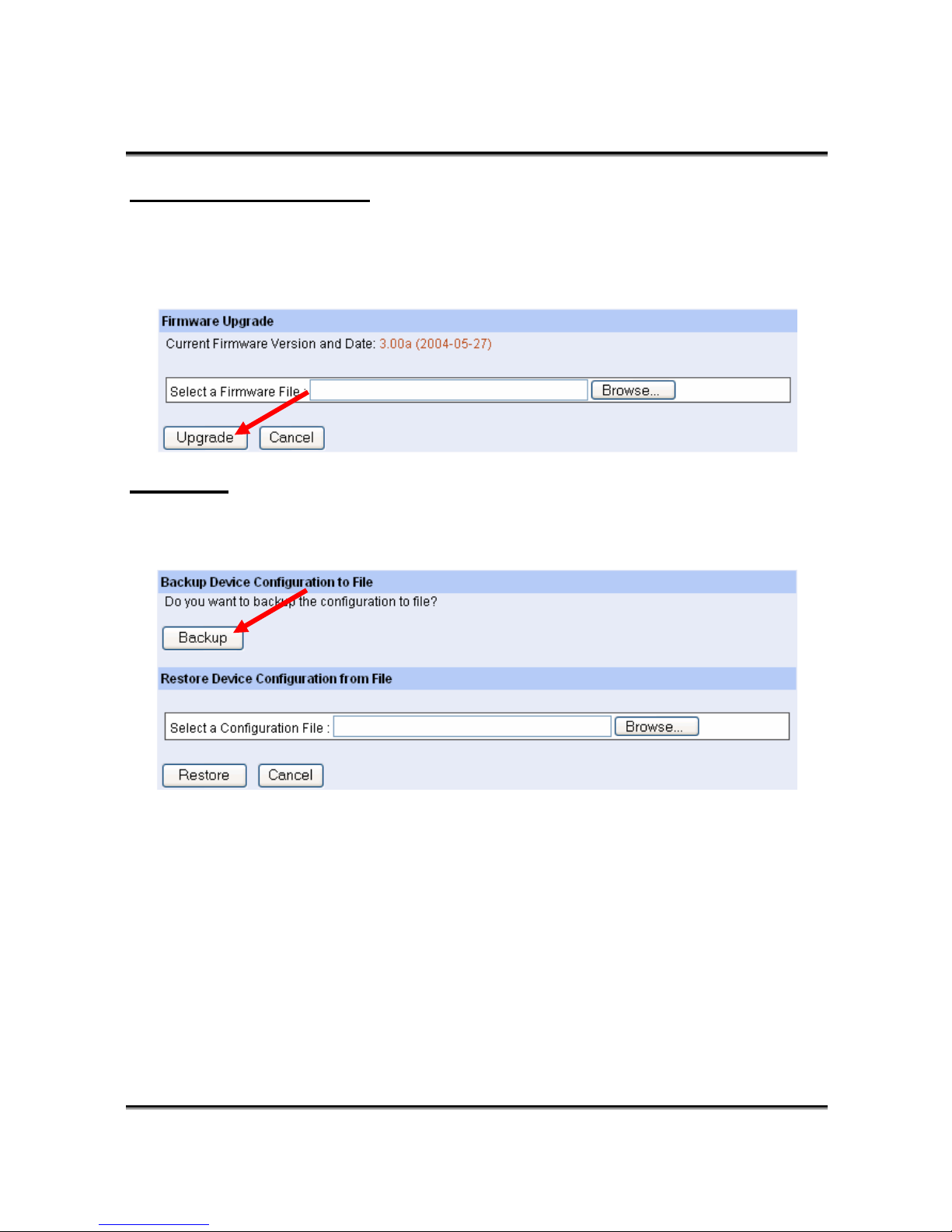

E-mail test Reset Factory Reset Firmware Upgrade Backup

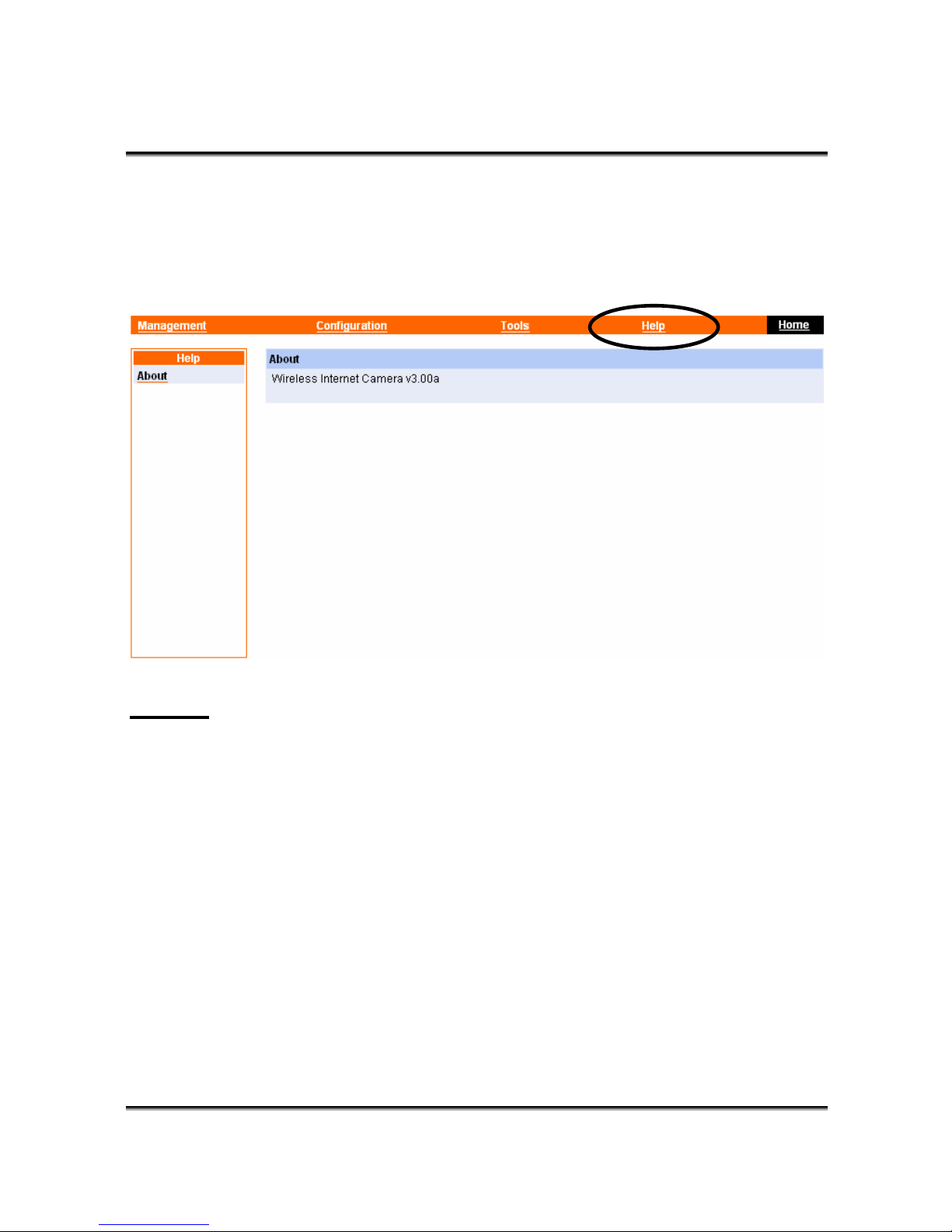

Help
About
Home
Page 29
IPCam SECURE300W User’s Manual
System Administration

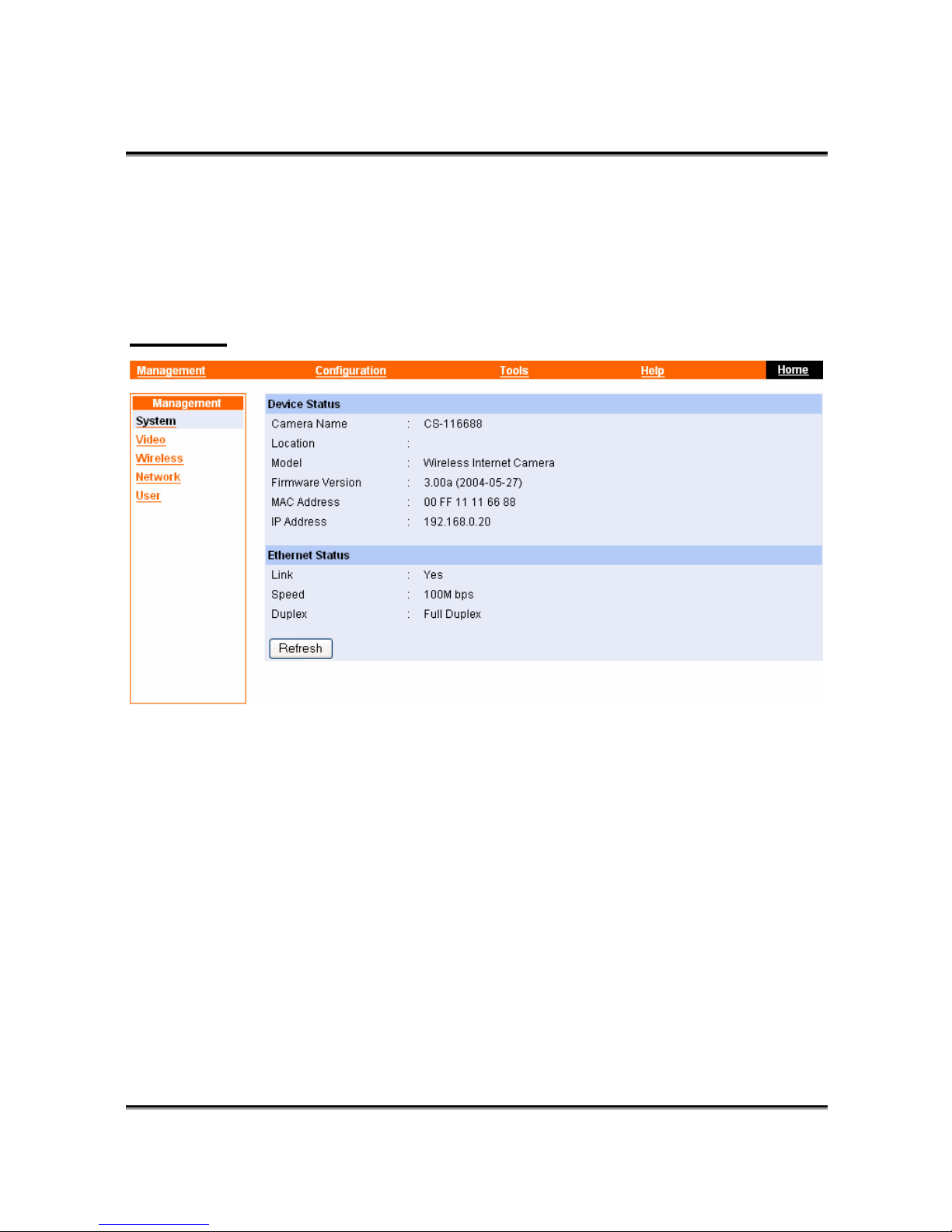

The Management window contains the information of your configuration. Click the items in the left column to view your settings, including: System, Video, Wireless, Network, and User.
System
Device Status:
The information about the camera, including the Camera Name, Location, Model, Firmware Version, MAC Address and IP Address, can be found in this field.
Ethernet Status:
You can monitor the networking status in this field, including the Link (network connection), Speed, and the Duplex mode.
KYE Systems Corp. 28
Page 30

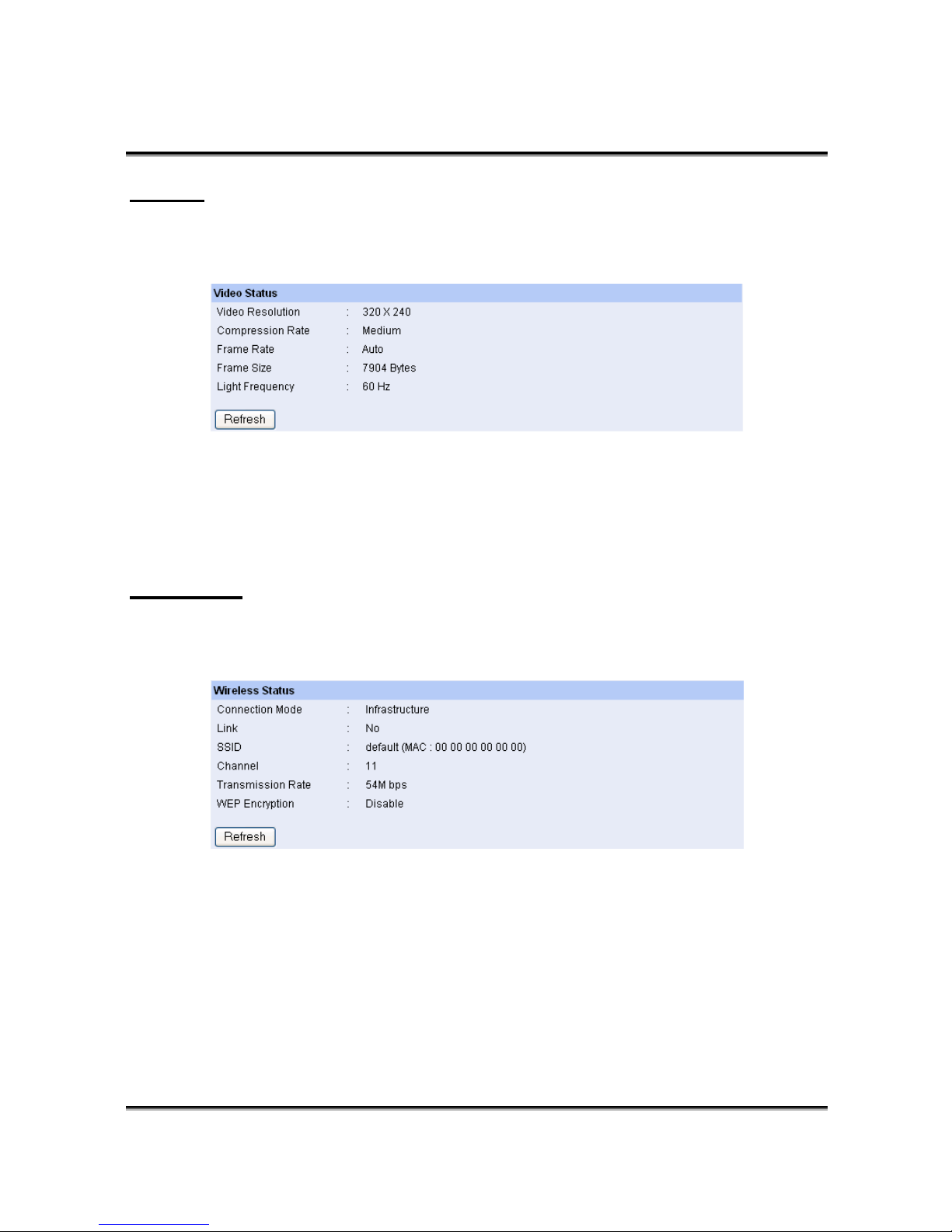

Video
Click the Video item in the left column to display the video configuration of your camera.
- Video Status: The video configuration about the camera,
including the Video Resolution, Compression Rate, Frame Rate, Frame Size and IP Address, can be found in this field.

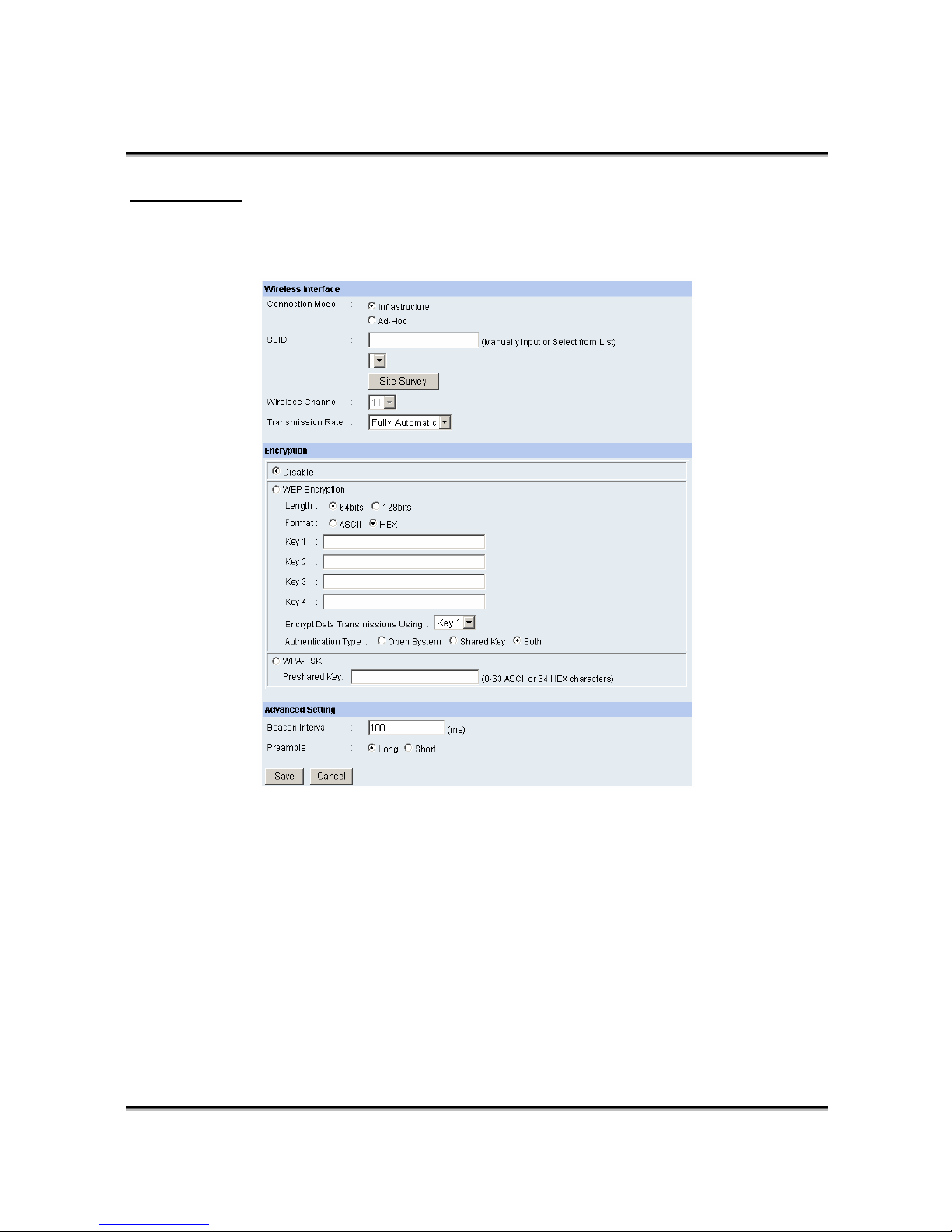

Wireless
Click the Wireless item in the left column to display the information of the wireless LAN.
- Wireless Status: The items in this field display the
information of the wireless LAN, such as the Connection Mode (Infrastructure or Ad-Hoc), Link, SSID, Channel, Transmission Rate, and WEP Encryption.
KYE Systems Corp. 29
Page 31
IPCam SECURE300W User’s Manual

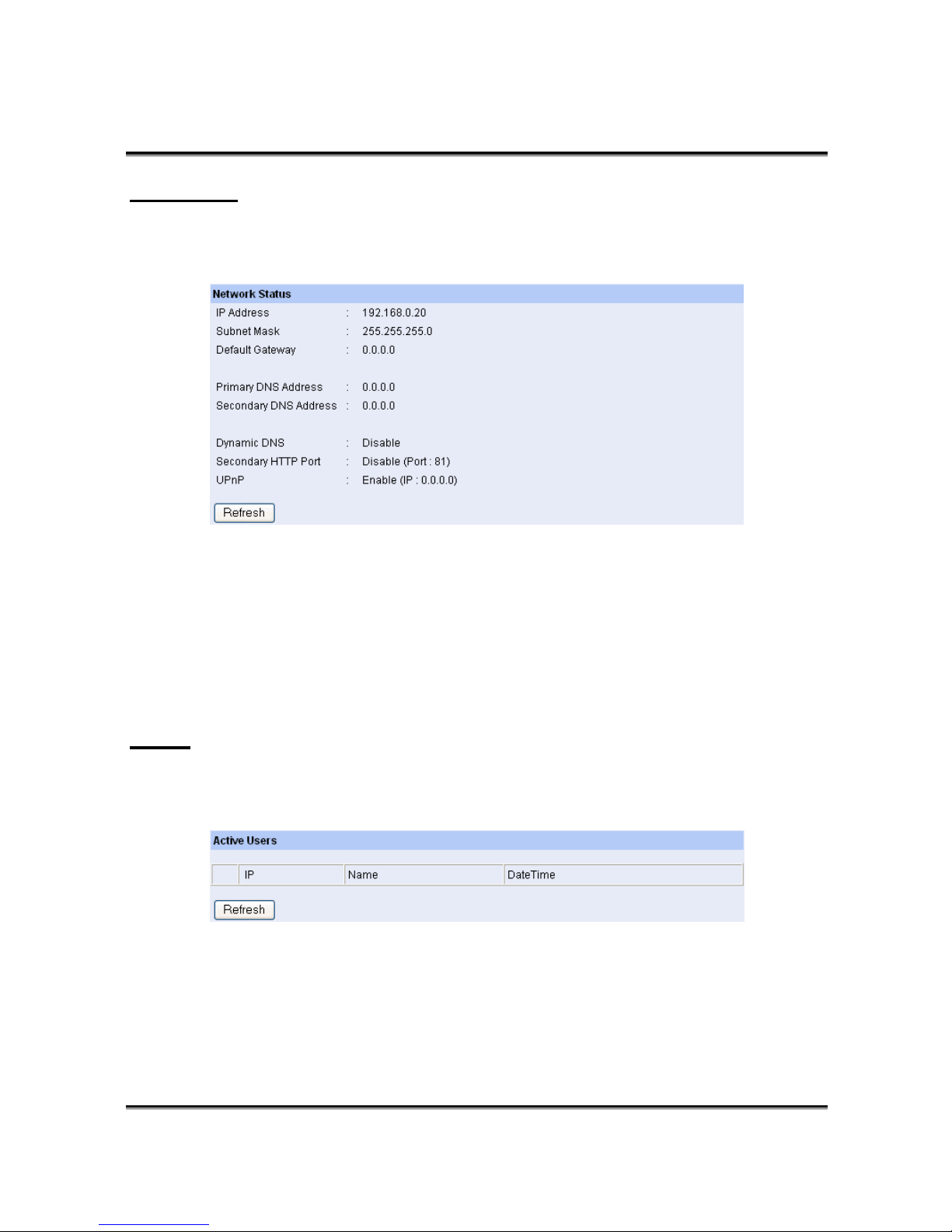

Network
Click the Network item in the left column to display the information of the LAN.
- Network Status: The items in this field display the
information of the LAN, such as the IP Address, Subnet Mask, Default Gateway, Primary DNS Address, Secondary DNS Address, Dynamic DNS, Secondary HTTP Port, and UPnP.
User

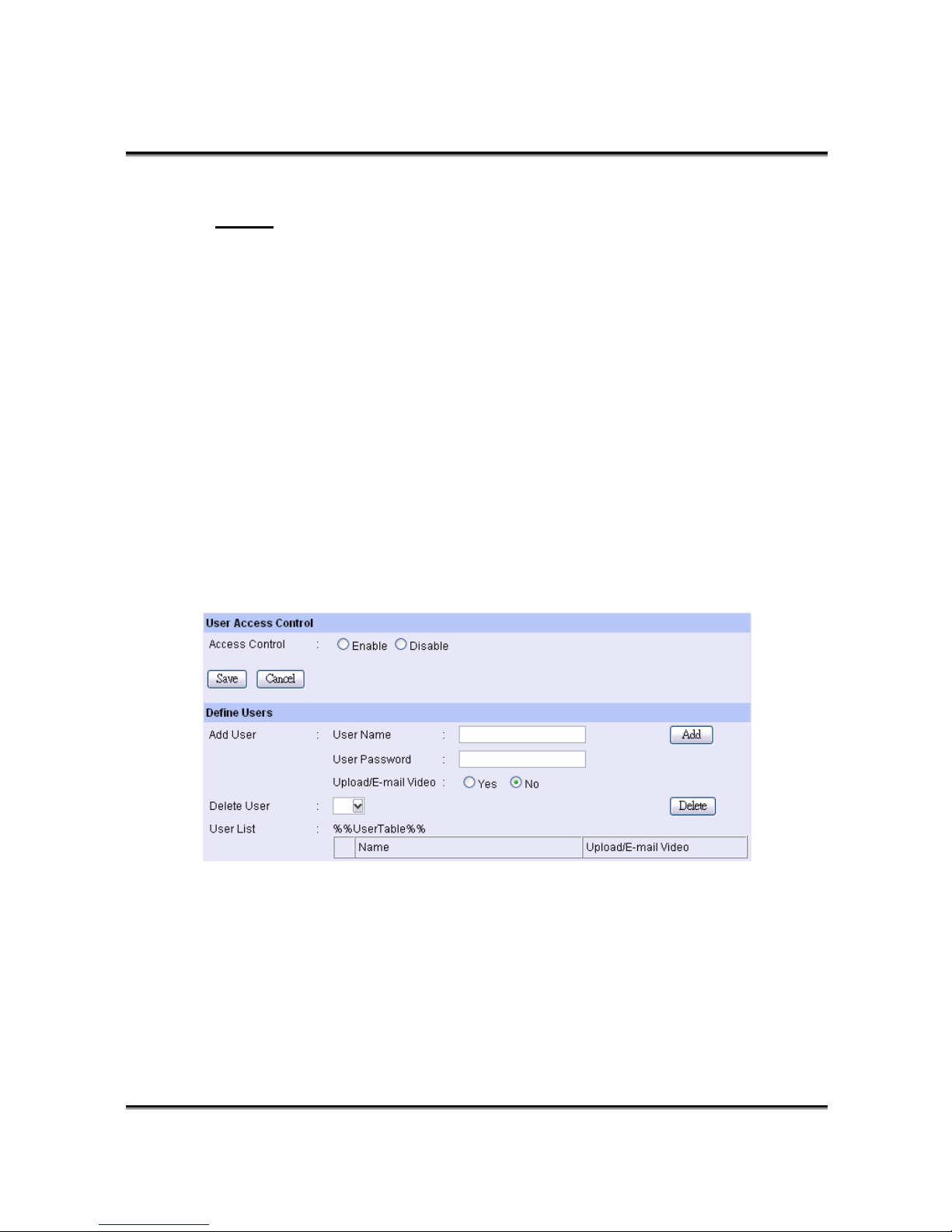

Click the User item in the left column to display the user(s) information.
- Active Users: The items in this field display the user(s)
information, including the user(s) IP address, Name, and DateTime.
KYE Systems Corp. 30
Page 32
System Administration J Configuration
The Configuration window contains commands for settings that are required to input key details to setup the camera for operation. Click Configuration in the top menu bar and the Configuration window will appear as below:
KYE Systems Corp. 31

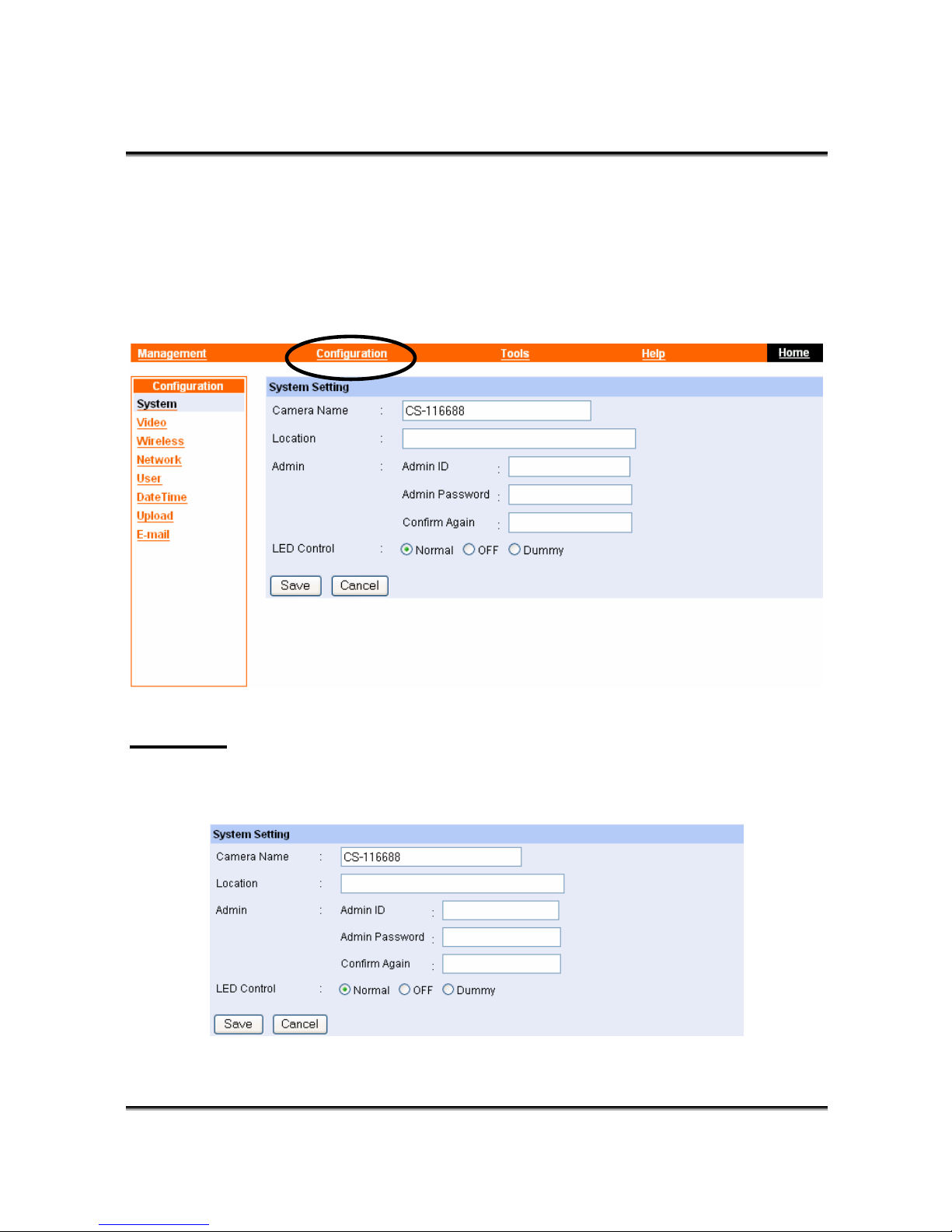

System

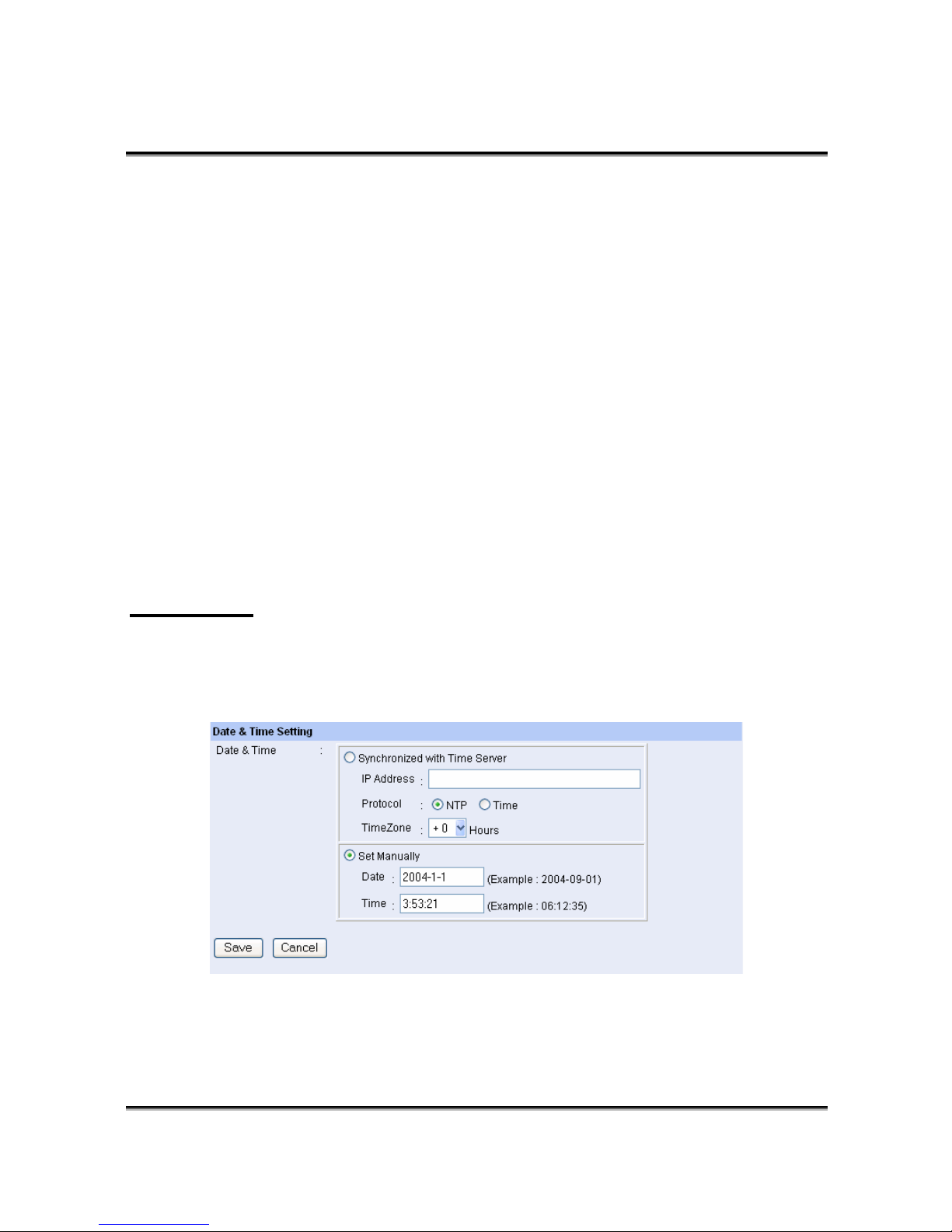

Click the System item in the left column to setup the basic configuration of your camera.
Page 33
IPCam SECURE300W User’s Manual
KYE Systems Corp. 32
- System Setting: In this field, you can configure the basic
information of your camera.
• Camera Name: This field is used to enter a descriptive
name for the device. The default setting for the Camera Name is CS-xxxxxx, where xxxxxx is the last six digits of the MAC Address. The maximum length is 32 (printable ASCII).
• Location: This field is used to enter a descriptive name
for the location used by the camera (optional).
• Admin: This field is used to enter the administrator name
along with the password to access the System Administration settings. Be sure to enter the password twice to confirm the details once in the Admin Password field and again in the Confirm Password field. The default setting for administrator is blank space (Null String), and you need to key in the administrator name with a maximum length of 12 (printable ASCII) characters and enter the administrator password with a maximum length of 8 (printable ASCII) characters. It is highly recommended to set the Admin ID and Admin Password as soon as possible to enable security option for the IPCam SECURE300W to function.
• LED Control: This option allows the user to setup the
LED illumination as desired. This feature provides the flexibility when surveillance activity is ON. There are three options as follows:
Normal
Power - Steady On of the LED indicator. Link - Steady On of the LED indicator. When WLAN activity is present the LED indicator will flash steadily.
OFF
Power - LED indicator is off. Link – LED indicator is off.
Page 34
Dummy
Power - Steady On of the LED indicator. Link - Steady On of the LED indicator with random flashing.
The default setting for the LED control is Normal. When you have configured the LED control, the correct illumination will be set after 1 minute.
Video
Click the Video item in the left column to setup the image configuration of your camera.
- Video Setting: In this field, you can configure the basic
information of your camera.
• Video Resolution: Select the desired video resolution
format, including
160x120, 320x240 (default) and
640x480.
• Compression Rate:
Select the desired compression rate with five levels from Very Low to Very High. Higher video compression rate will generate more
KYE Systems Corp. 33
Page 35
IPCam SECURE300W User’s Manual
KYE Systems Corp. 34
compact file size with less video quality and vise­versa. The default setting is Medium.
• Frame Rate: Select the frame rate desired with default
setting at Auto for optimal frame rate.
• Brightness Control: Adjust the brightness level with
default setting at 64.
• Contrast Control: Adjust the contrast level with default
setting at 64.
• Saturation Control: Adjust the saturation with default
setting at 64.
• Light Frequency: Adjust the light frequency to suit your
area of operation from the options either 50 Hz or 60 Hz (default).
• Mirror: Select Horizontal Mirror to display the
image in a horizontal mirror mode, or Vertical Mirror to display the image in a vertical mirror mode.
• Anti-Flicker:
If you capture a flicker image because of the environment factor (for example, high light of lamp), please select this item to solve the problem.
Page 36
Wireless
Click the Wireless item in the left column to setup the wireless LAN configuration of your camera.
- Wireless Interface
• Connection Mode: Use this option to determine the type
of wireless communication for your camera. There are two choices: Infrastructure mode and Ad-Hoc mode. The default setting is Infrastructure.
• SSID: The SSID (Service Set Identifier) is the name
assigned to the wireless network. It will auto-detect and display the SSID of wireless network connected in this box (it displays default initially). This default setting
KYE Systems Corp. 35
Page 37
IPCam SECURE300W User’s Manual
KYE Systems Corp. 36
will let the camera connect to ANY access point under the infrastructure network mode. To connect the camera to a specific access point on the network, please make sure to set the SSID of the camera to correspond with the access point’s SSID for communication. Type any string up to 32 characters long (spaces, symbols, and punctuation are not allowed) in the Network Name box. To connect the camera to an Ad-Hoc wireless workgroup, make sure to set the same wireless channel and SSID to match with the PC/Notebook’s configuration for direct wireless communication.
• Wireless Channel: This pull-down menu provides the
wireless channel for communication. A "channel" is a range of frequencies to be used in communication between the camera and access point in Infrastructure mode, or the camera and PC/Notebook in Ad-Hoc mode. Select the appropriate channel from the list provided depending on the regulatory region where the unit is sold. The default setting is at channel 11.
• Transmission Rate: Select the data transmit rate from
this pull-down menu. The default setting is Fully Automatic.
- WEP Encryption
• WEP Encryption: Wireless network communications
can be intercepted easily. WEP (Wired Equivalent Privacy) is an encryption method specified by the IEEE
802.11g standard to make any intercepted communications extremely difficult to interpret by
Page 38
KYE Systems Corp. 37
unauthorized parties. The default setting for this
option is Disable.
• WEP Key Format: To enable WEP Encryption, you
should decide the encryption format first by selecting the ASCII or HEX option, and then input the WEP key (in the following Key 1~4 box).
ASCII input format:
ASCII format causes each character you type to be interpreted as an eight-bit value. All unaccented upper- and lower-case Western European characters that can be input through your keyboard's typing zone are valid. To setup a 64­bit WEP key, input 5 ASCII characters. For example, ‘12345’. To setup an 128-bit WEP key, input 13 ASCII characters. For example, ‘1234567890123’. These character counts result in bit counts of 40 and 104 respectively; the camera will automatically pad your input to a bit count of 64 or 128.
HEX input format:
Hex format causes each pair of characters you type to be interpreted as an eight-bit value in hexadecimal (base 16) notation. Only the digits 0 through 9 and the letters A through F (in upper or lower case) are valid. To setup a 64-bit WEP key, input 10 HEX format. For example, ‘3132333435’, which is the same with ASCII input ‘12345’. To setup an 128-bit WEP key, input 26 HEX format. For example, ‘31323334353637383930313233’, which is the same with ASCII input ‘1234567890123’. These character counts result in bit counts of 40 and 104, respectively; the IPCam SECURE300W will automatically pad your input to a bit count of 64 or 128.
• Encrypt Data Transmissions Using: Use this pull-down
menu to decide to use Key 1, 2, 3 or 4 for encryption).
• WPA-PSK: This item is used to secure your wireless
network in pre-shared key mode (8-63 ASCII or 64
Page 39
IPCam SECURE300W User’s Manual
KYE Systems Corp. 38
HEX characters). If you enable this function, each user must enter a pass phrase to access the network.
- Advanced Setting: In this field, you can setup more
advanced configuration.
• Beacon Interval: This option defines time interval
between two images sent.
• Preamble: A preamble is a signal used in wireless
environment to synchronize the transmitting timing including Synchronization and Start frame delimiter. Please NOTE that if you want to change the Preamble type into Long or Short, please check the setting of access point.
• Authentication Type: Open System communicates the
key across the network. Shared Key allows communication only with other devices with identical WEP settings. The default setting is Both.
Page 40
Network

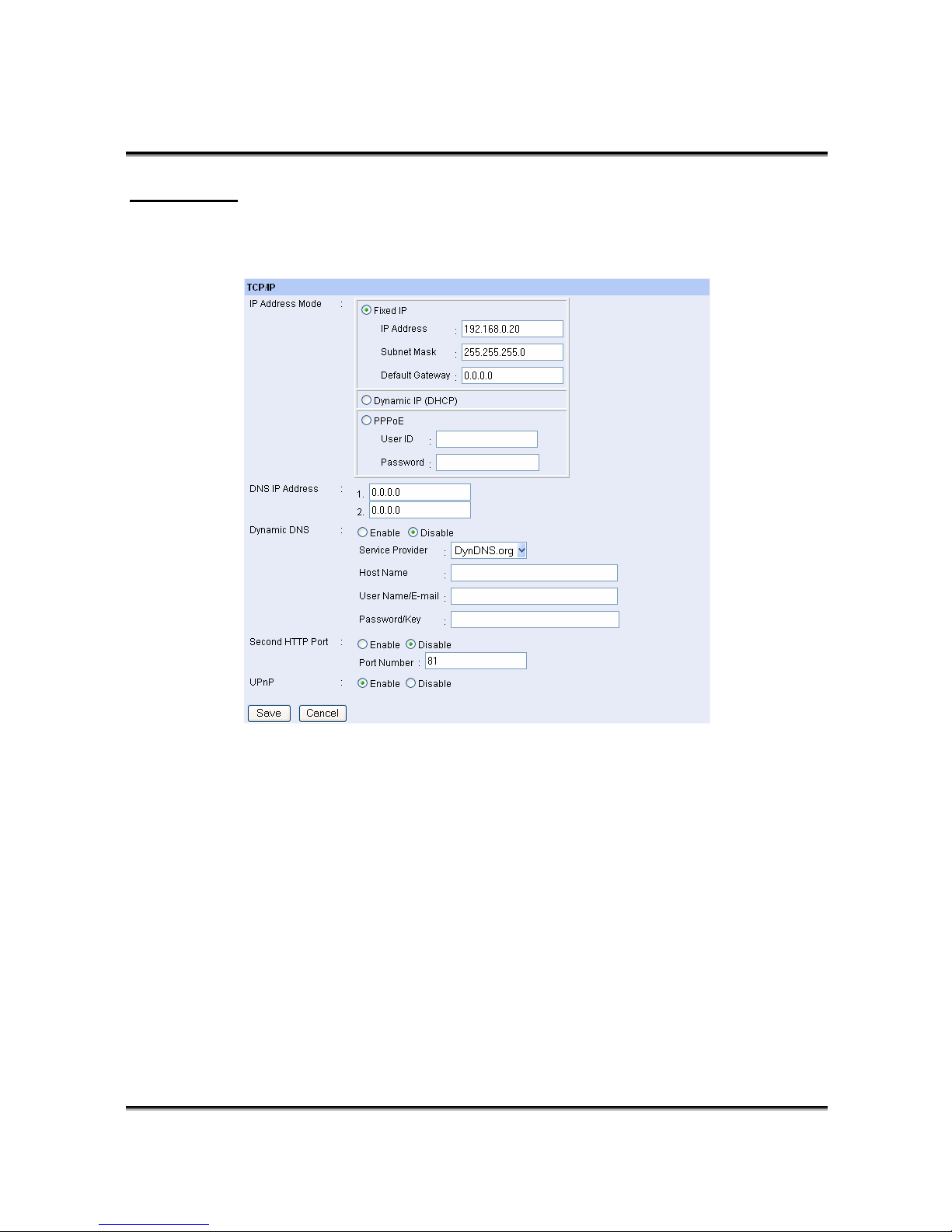

Click the Network item in the left column to setup the LAN configuration of your camera.
- TCP/IP: The items in this field display the information of
the wireless LAN, such as the Connection Mode (Infrastructure or Ad-Hoc), Link, SSID, Channel, Transmission Rate, and WEP Encryption.
• IP Address Mode: This field provides your with three
options to select the IP Address Mode: Fixed IP – You can select this option and enter the IP address directly. The default settings are:
• IP Address – 192.168.0.20
• Subnet Mask – 255.255.255.0
• Default Gateway – 0.0.0.0
KYE Systems Corp. 39
Page 41
IPCam SECURE300W User’s Manual
KYE Systems Corp. 40
Dynamic Address (DHCP) – If your network uses the DHCP server, select this option. According to this setting, the camera will be assigned an IP address from the DHCP server automatically. Every time when the camera starts up, please make sure that the DHCP server is set to assign a static IP address to your camera. PPPoE – If your application requires a direct connection from an ADSL modem through the camera’s RJ-45 LAN port, click this option and enter the User ID and Password into the respective boxes. (You should have an ISP PPPoE account.) The camera will get an IP address from the ISP as starting up.
• DNS IP Address: DNS (Domain Name System) server
is an Internet service that translates domain names into IP addresses. Enter at least one DNS IP Address in this field.
• Dynamic DNS:
Dynamic DNS (Domain Name Service) is a method of keeping a domain name linked to a changing (dynamic) IP address. With most Cable and DSL connections, you are assigned a dynamic IP address and that address is used only for the duration of that specific connection. With the IPCam SECURE300W, you can set up your DDNS service and the IPCam SECURE300W will automatically update your DDNS server every time it receives a different IP address. Depending on the service, this update may take a few hours. If you are using a DDNS connection, click the Enable button and enter in your User Name, Password, and Domain Name. Second HTTP Port: The default port for communication is via port 80, and you can change it according to your
Page 42
KYE Systems Corp. 41
network configuration. Select Enable from the option and enter the desired port number in the following box.
By default, port 80 (Web server port) is open. If these ports are available for use, you DO NOT have to open a second port and can proceed to the next section. If port 80 is not available (for example, if you are already using port 80 to run a Web server or your ISP blocks access on port 80*) you MUST open a second port and designate a new Web server port (800, 801, 802,…etc)
Please note that some ISPs block traffic on commonly used ports like port 80 to disallow consumers from putting a server on their network. Be sure to check with your ISP so that you can open the appropriate ports accordingly. If your ISP does not pass traffic on port 80, you will need to change the Web server port the camera uses from 80 to something else, like 800. If you are behind a residential gateway, you will need to open a corresponding port on your gateway as well. Not all gateways are the same, please refer to your gateway’s user’s manual for specific instructions on how to forward ports.
• UPnP:
The built-in UPnP support allows computers
running Windows® XP/Me to recognize the IPCam SECURE300W and automatically add it to your network. The IPCam SECURE300W can be instantly accessed and viewed from “My Network Places” as a device on the network. You can configure the IPCam SECURE300W directly. Check the Enable option to enable the function of your camera.
Page 43
IPCam SECURE300W User’s Manual
Note:
-The networking equipment for the Internet access (i.e. wireless AP router) must have UPnP feature. The UPnP function with the IPCam SECURE300W then works.
- When you enable the UPnP function, you may get another IP address, which is not assigned by you. Don’t worry about that unknown IP address, which is just given by the router. You only need to work with the IP Address you assigned to the IPCam SECURE300W.
• User
Click the User item in the left column to add, edit and delete users for your camera.
- User Access Control:
• Access Control: The administrator has the authority to
give permission for the privilege to control the device to users by selecting Enable or Disable. The default setting is No.
- Define Users: Use this field to add or delete users for your
camera.
KYE Systems Corp. 42
Page 44
• Add User: Enter the user name in this box, and enter the
user’s password assigned by the administrator. The maximum password length is 8 (printable ASCII). The administrator has the authority to give permission for the privilege to control the Upload/E-mail Video control to the users by selecting Yes or No to activate the Upload/E-mail Video. To add a new user’s name, enter the necessary information first and click the Add button.
• Delete User: Select the user you want to delete from the
pull-down menu, and then click the Delete button.
• User List: This list displays the current users status of
your camera.
DateTime
Click the DateTime item in the left column to setup time and date for your camera, providing correct information for the remote users who might be thousands of miles away from the camera’s location.
- Date & Time: You can set up time and date manually or
automatically by selecting the Synchronized with Time Server option.
KYE Systems Corp. 43
Page 45
IPCam SECURE300W User’s Manual
KYE Systems Corp. 44

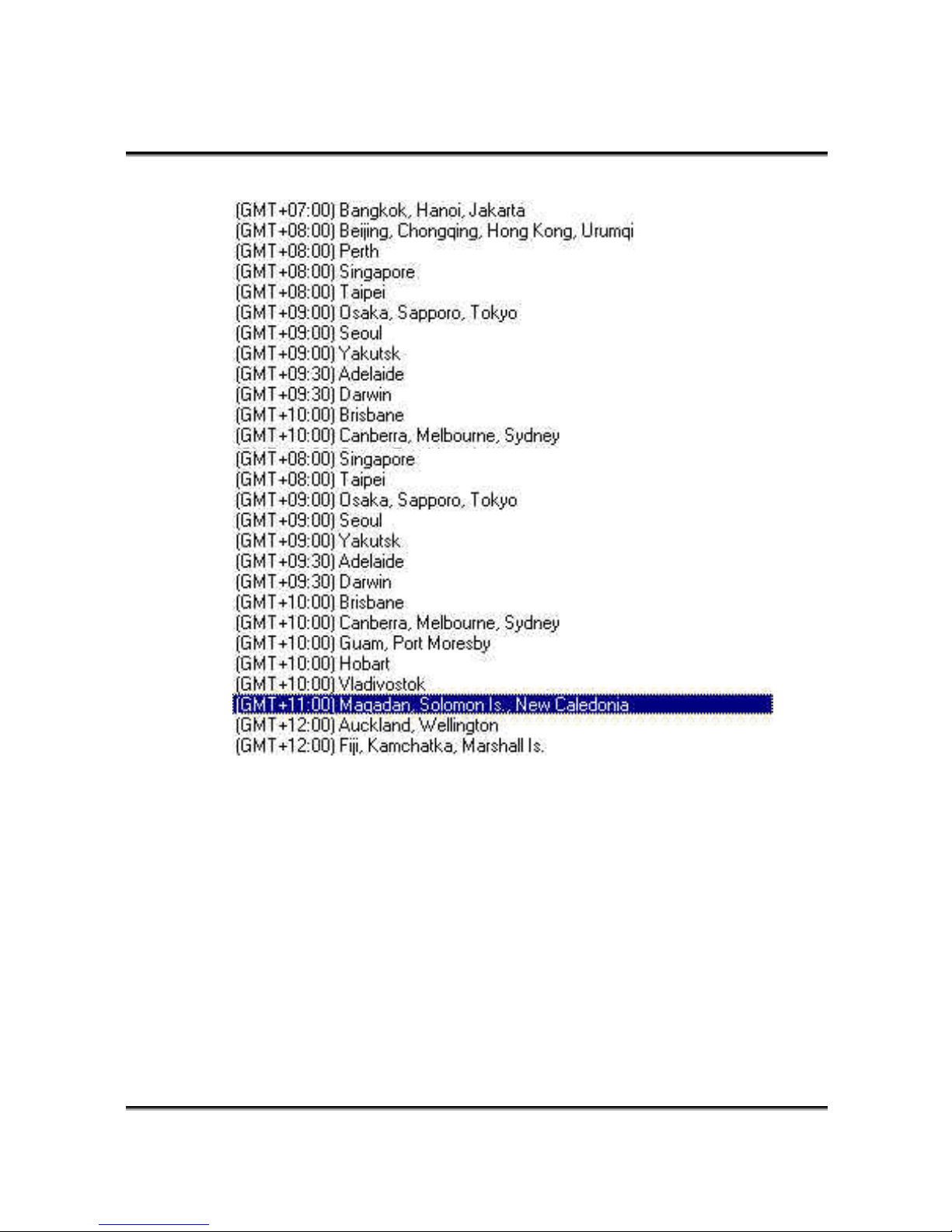

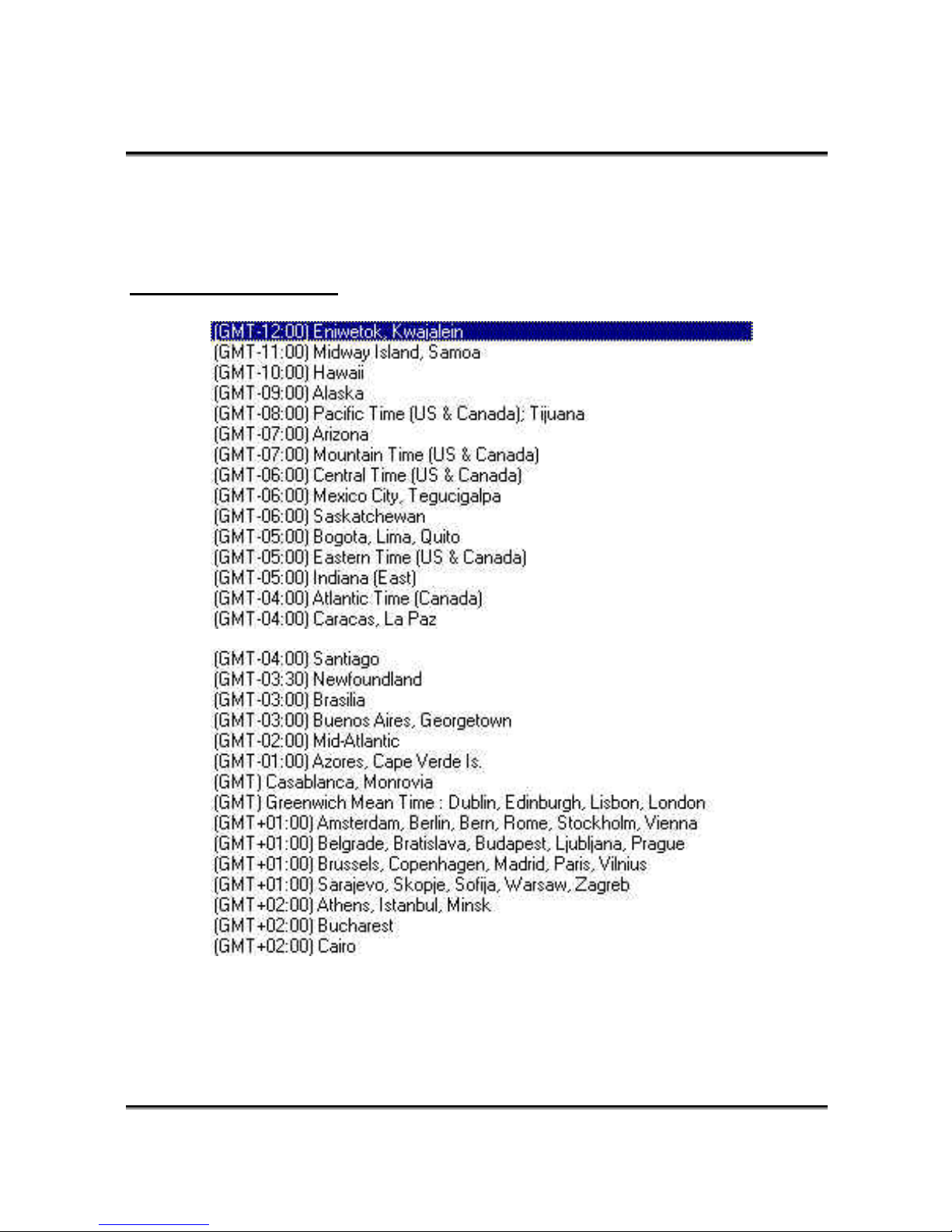

• Synchronized with Time Server: Select this option and
the time will be based on GMT setting. The time will be synchronized every 10 minutes. When selecting this option, you have to enter the required information in the following fields: IP Address – Enter the IP Address of the Time Server in this box. Protocol – Two options of NTP or Time are available for your selection to link with the Time Server. The default setting is NTP. TimeZone – Select the time zone for the region from the pull-down menu.
• Set Manually: Select this option to set the time manually.
The system administrator must enter the date and time in the respective field manually.
Upload

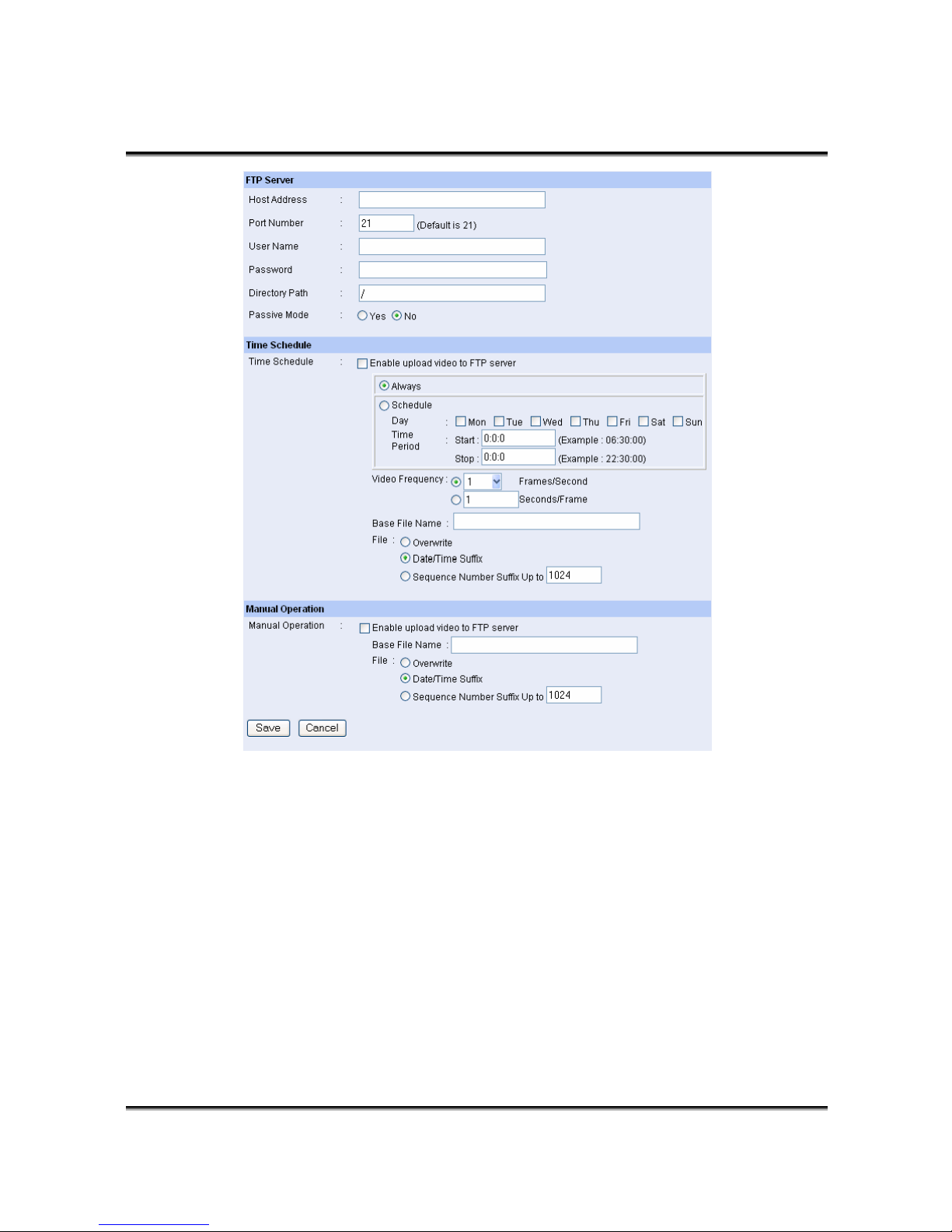

Click the Upload item in the left column to setup configuration for FTP server, time schedule and manual operation.
Page 46
- FTP Server: This field contains the following six basic
settings for your FTP server.
• Host Address: The IP Address of the target FTP server.
• Port Number: The standard port number for the FTP
server is Port 21, and it’s also the default setting. If the FTP server uses a specific port, please confirm the IT manager.
• User Name: Enter the user name in this field.
• Password: Enter the user password in this field to login
to the FTP server.
KYE Systems Corp. 45
Page 47
IPCam SECURE300W User’s Manual
KYE Systems Corp. 46
• Directory Path: Enter an existing folder name in this
field, and the images will be uploaded to the given folder.
• Passive Mode: This function depends on your FTP
server. Please check with your IT manager if the FTP server uses passive mode. The default setting is No.
- Time Schedule: Select the “Enable upload video to FTP
server” option and enter the relevant information, such as
the schedule, video frequency and base file name.
• Schedule: You can 1.) Choose Always to always upload
the video to FTP server, or 2.) Set the Schedule to manage the uploading task. In the Schedule option, you can set the Day and Time Period option.
• Video Frequency: There are two ways to set the video
frequency: 1.) Set Auto/1/2/3 frames per second, or 2.) Set the time in seconds for every frame.
• Base File Name: Enter the file name to make sure that
the images could be saved as the base file name.
• File: Since you may not upload only one image to the
FTP server, you can choose the filing rule, including
Overwrite, Date/Time Suffix, and set up the Sequence Number.
- Manual Operation: When you click the Upload Video
button in view video screen, it will start to upload the image. The setting refers to Base File Name and File information above.
E-mail
Click the E-mail item in the left column to setup configuration for E­mail account, time schedule and manual operation settings.
Page 48

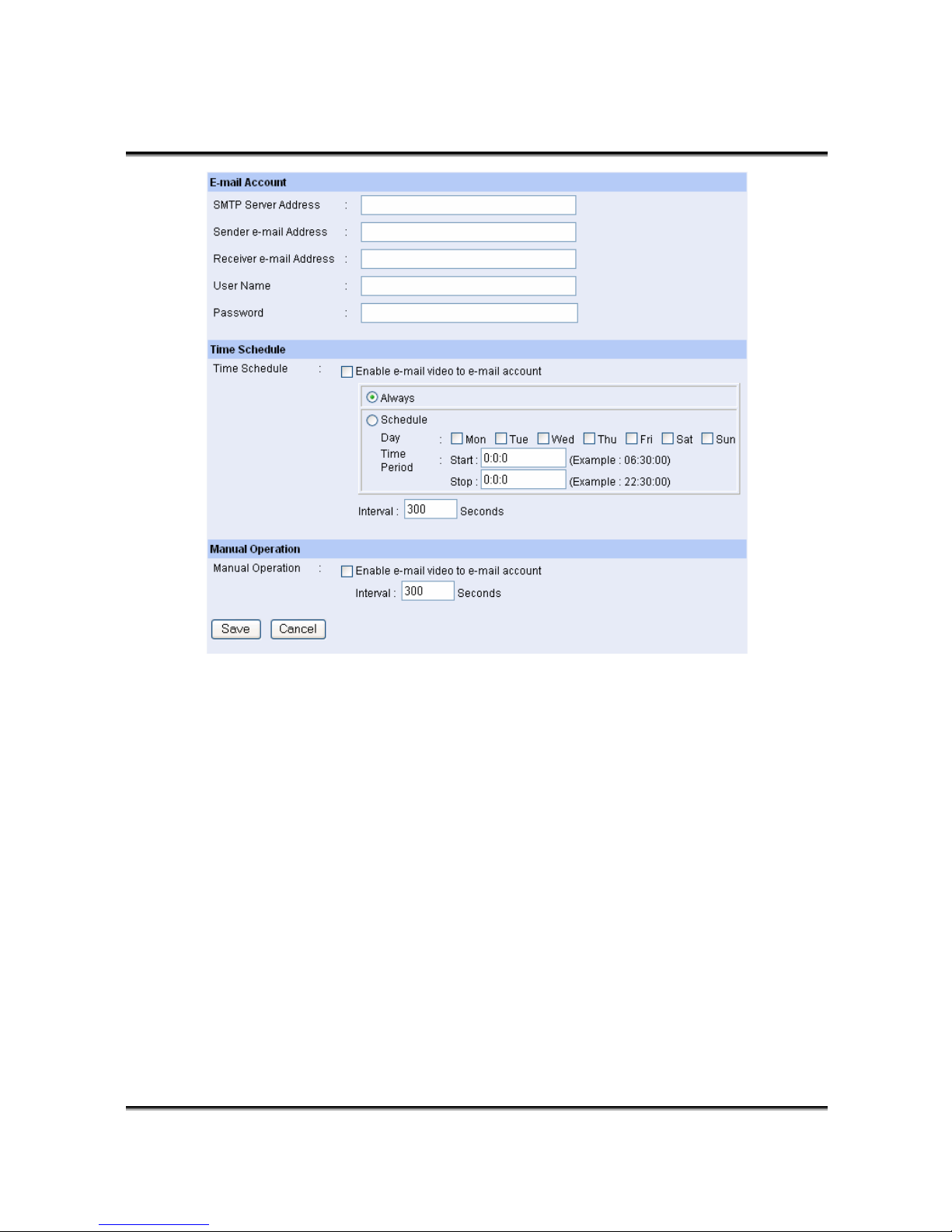

- E-mail Account: This field contains the following six
basic settings for your FTP server.
• SMTP Server Address: SMTP (Simple Mail Transfer
Protocol) is a protocol for sending e-mail messages between servers you need to input the mail server address in this field.
• Sender e-mail Address: Enter the e-mail address of the
user who will send the e-mail.
• Receiver e-mail Address: Enter the e-mail address of
the user who will receive the e-mail.
• User Name: Enter the user name in this field.
• Password: Enter the user password in this field to login
receiver’s mail server.
KYE Systems Corp. 47
Page 49
IPCam SECURE300W User’s Manual
- Time Schedule: Select the “Enable-mail video to e-mail
account” option to set schedule to send e-mail. Please refer
to the instruction in “Upload” section. The Interval option is to define time interval between two images sent.
- Manual Operation: When you click the E-mail Video
button in view video screen, it will start to e-mail image. The Interval option is to define time interval between two images sent.
System Administration J Tools
The Tools window contains commands for restarting the camera. Click Tools in the top menu bar and the Tools window will appear as below:
E-mail Test
Click the E-mail Test item in the left column to test your e-mail account.
KYE Systems Corp. 48
Page 50
- Test E-mail Account: Click the Test button to test the e-
mail account you provided.
Reset
If you want to reset this device, Click the YES button from this option, and you can restart the camera just like turning the device off and on and saved settings are retained. If you do not want to reset the camera, exit this window without clicking YES.
Factory Reset
If you want to factory reset this device? Click the YES button from this option, and you can resume all factory default settings for the camera. If you do not want to restore the factory settings, exit this window without clicking YES. Please NOTE that you have to configure the network settings again after a Factory Reset.
KYE Systems Corp. 49
Page 51
IPCam SECURE300W User’s Manual

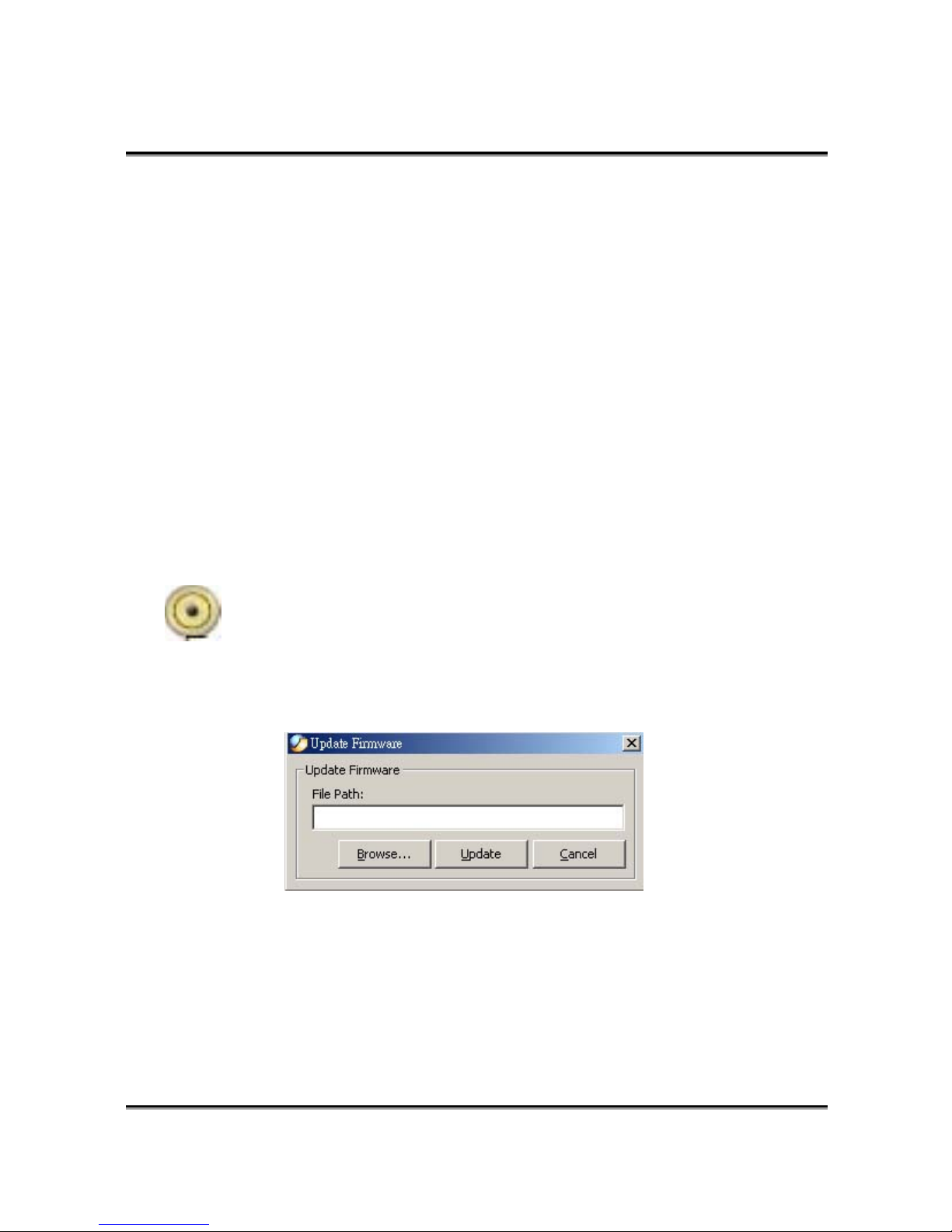

Firmware Upgrade
When new firmware is available, you can upgrade it through this window. Click the Browse… button to point to the firmware file, and then click Update to start upgrading.
Backup
Click the Backup item in the left column to backup the current configuration.
- Backup Device Configuration to File: Do you really want to backup the configuration to file? Click the Backup button from this option, and you can save the current configuration to file.
- Restore Device Configuration from File: You can resume the device configuration from saved file in the computer. Click the Browse… button to point to the file, and then click Restore to start restoring.
KYE Systems Corp. 50
Page 52
System Administration J Help
The Help window provides the basic information of the camera. Click Help in the top menu bar and the Help window will appear as below:
About
Displays the camera’s model name and version.
Once the configuration is completed, click Home to return to the Welcome screen and select the desired View Video option either through ActiveX Mode or Java Mode as described in the next section.
Then, position the camera to the desired location appropriately for your purpose. Followed by adjustment of the camera focus, done manually by turning the lens clockwise or anti-clockwise to the desire image quality. Please refer to Appendix F for detailed instruction.
KYE Systems Corp. 51
Page 53
IPCam SECURE300W User’s Manual
View Video-ActiveX Mode
To view video images from the browser, click View Image – ActiveX Mode from the Welcome screen to access the video images
from Internet Explorer as illustrated below:
Camera Name
Camera Name: The Camera name will be displayed when the Camera Name field is entered in the Web Configuration setting under Configuration.
In the View Video – ActiveX Mode, you are allowed to use the Upload Video and E-mail Video options. Simply click the desired selection ON or OFF to utilize the options for each of the functions.
KYE Systems Corp. 52
Page 54
View Image-Java Mode
To view video images from the browser, click View Image – Java Mode from the Welcome screen to access the video images from
Internet Explorer or Netscape browser as illustrated below:
Date and Time
Camera Name
Camera Name: The Camera name will be displayed when the Camera Name field is entered in the Web Configuration setting under Configuration.
Date and Time: The date/time of the camera will be displayed here.
KYE Systems Corp. 53
Page 55
IPCam SECURE300W User’s Manual
KYE Systems Corp. 54
In the View Video – Java Mode, you are allowed to use the Upload Video and E-mail Video options. Simply click the desired selection
ON or OFF to utilize the options for each of the functions.
NOTE:
1. Please refer to the appendix on how to install ActiveX, including
1.) install to the Web Server, and 2.) install to your Local PC.
2. The administrator has the authority to set the upload video function through the setting in the Upload option under Configuration.
2. The administrator has the authority to set the e-mail video function through the setting in the E-mail option under Configuration.
This chapter describes the IPView SE, which is a powerful software application designed with a user-friendly interface for ease of control and navigation requirements.
Page 56
IPView SE
Installation
Insert the CD-ROM into the CD-ROM drive to initiate the auto-run program. Once completed, a menu screen will appear as below:
To install the IPView SE application, click the "IPView SE" button to activate the installation procedure for the application program.
KYE Systems Corp. 55
Page 57
IPCam SECURE300W User’s Manual

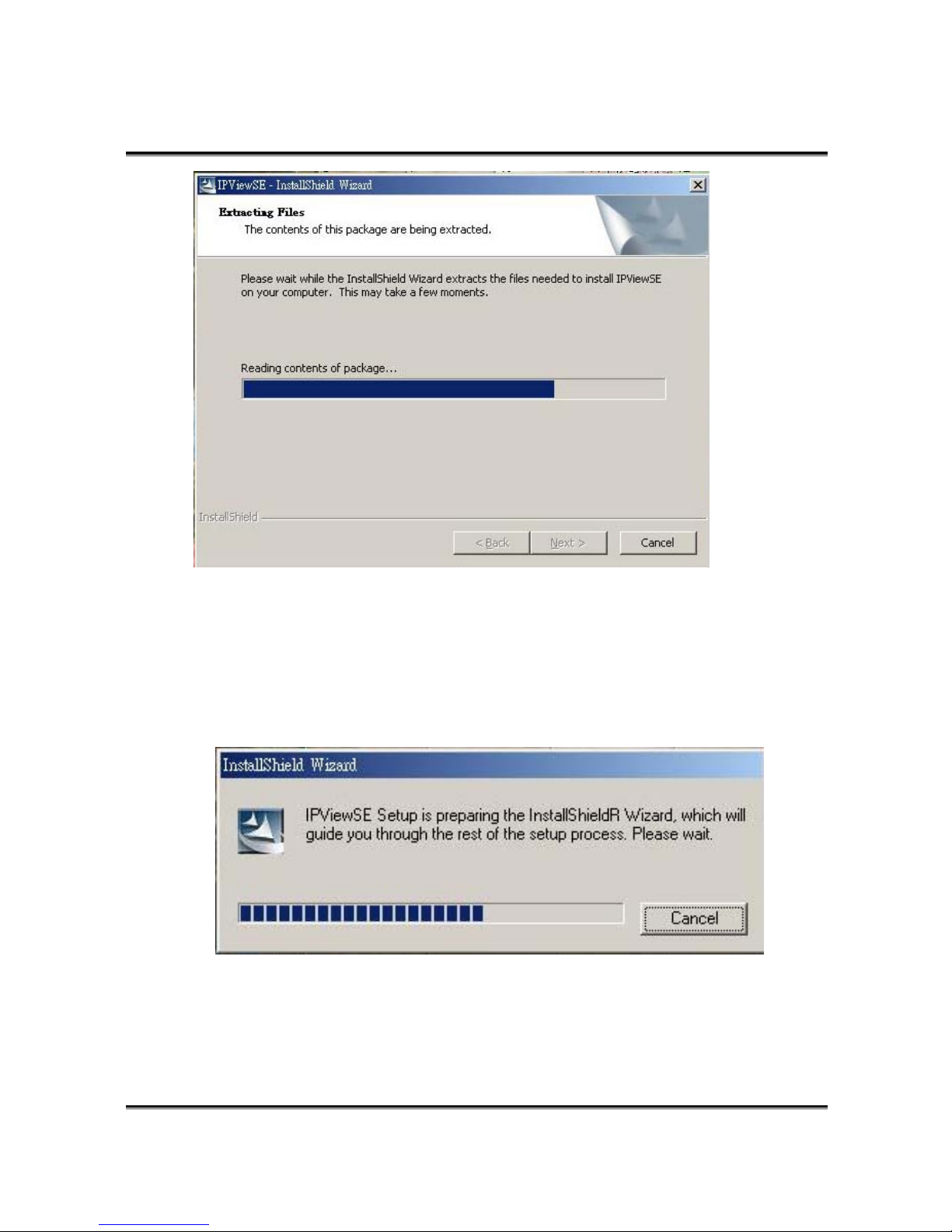

Once executed, you will be asked to select the desired language. Select the language you want and click “OK” to continue.
KYE Systems Corp. 56
Page 58
The Welcome screen will appear as below. Click the Next button.
The License Agreement window will appear as below. Read the details carefully and click the Yes button.
KYE Systems Corp. 57
Page 59
IPCam SECURE300W User’s Manual

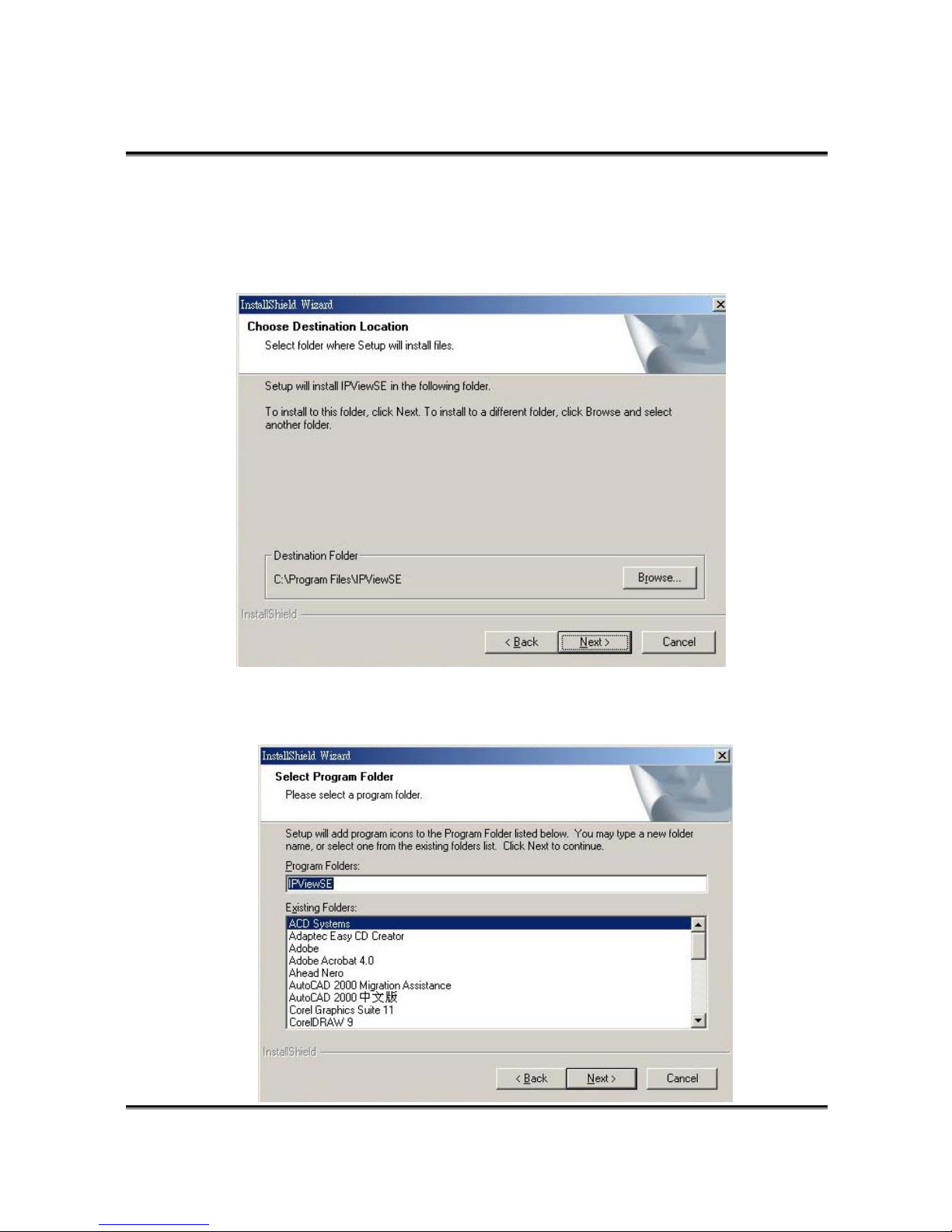

In the following window, you may click Next to accept the recommended destination location or click Browse to select another location. After specifying the desired destination location, click Next.
The following window allows you to select the folder where the IPView SE application will be located, click Next to continue.
KYE Systems Corp. 58
Page 60
Please wait until one of the following two dialog boxes to appear. If the system has to restart, select “Yes, I want to restart my computer now” and click the Finish button to complete the installation procedure.
Otherwise, you may simply click the Finish button to complete the installation procedure.
KYE Systems Corp. 59
Page 61
IPCam SECURE300W User’s Manual

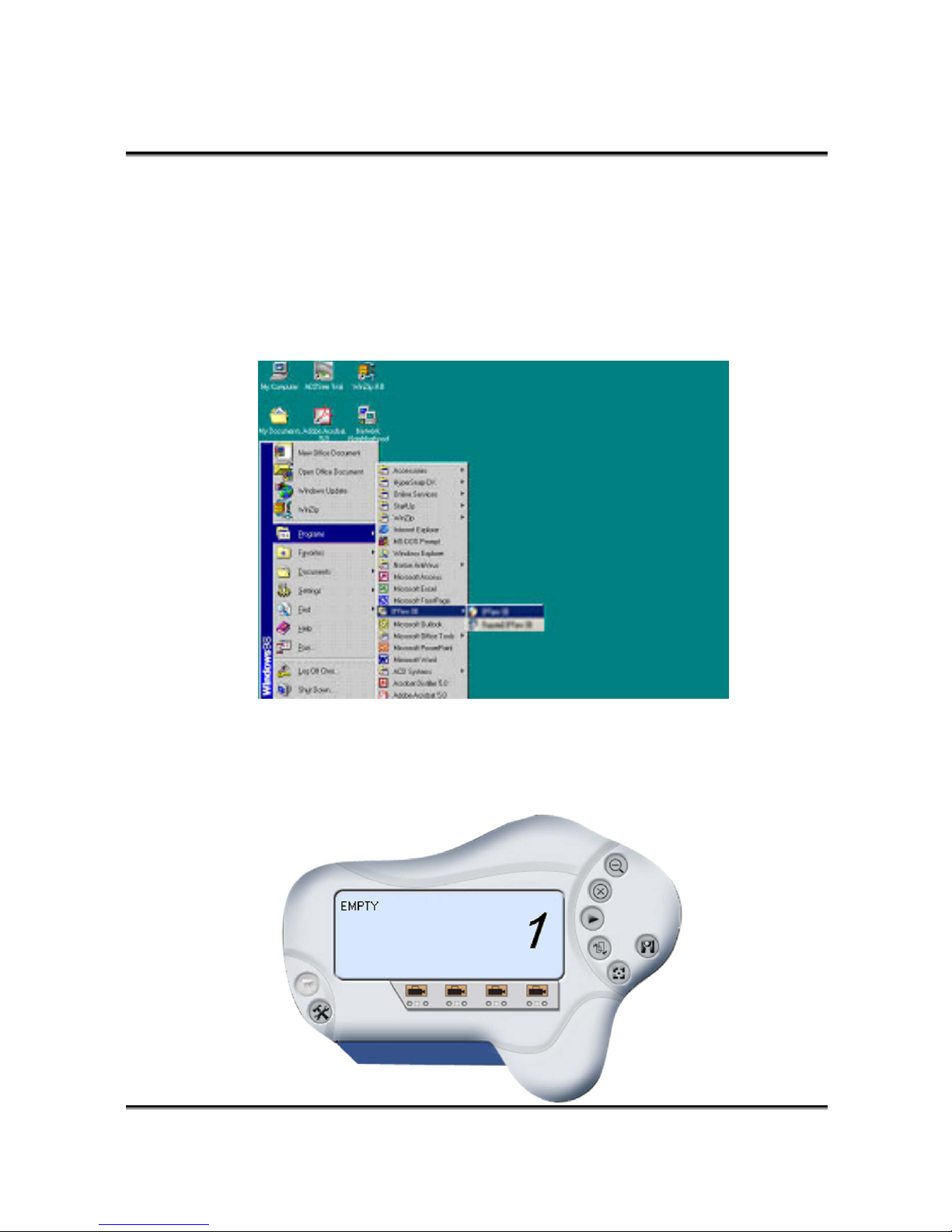

After successfully installing the IPView SE, the application program for the IPCam SECURE300W is automatically installed to \Programs\Files directory.
To start running the IPView SE, click Start > Programs > IPView SE > IPView SE.
KYE Systems Corp. 60
Once login, the IPView SE application is executed and the interface of IPView SE will appear in the default List View format as bellow:
Page 62
Getting Started
IPView SE is responsible for the management of preview, configuration, and searching of each camera.
It is designed with a user-friendly interface for ease of control and navigation requirements as illustrated below.

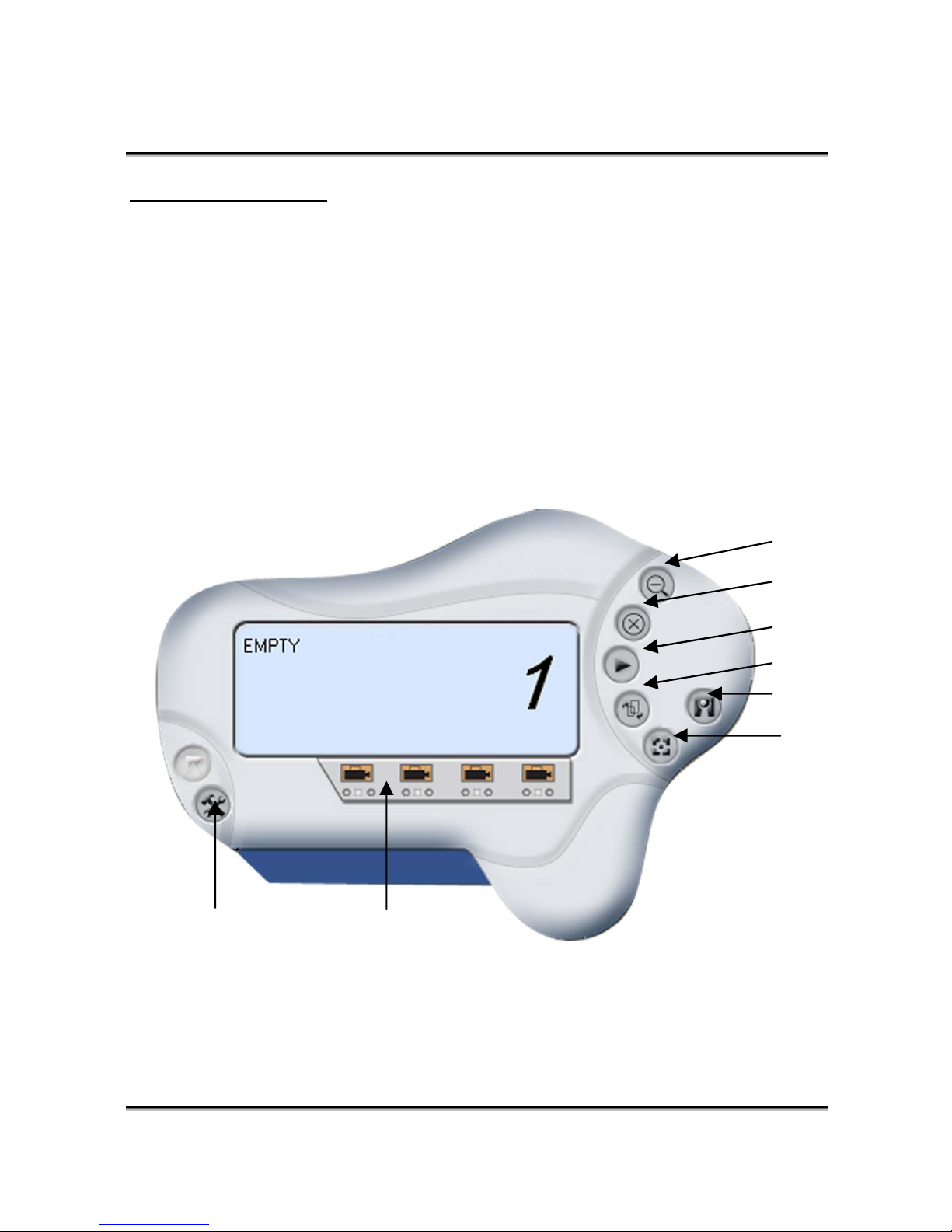

IPView SE control panel
Add Camera
System Config
Minimize
Exit
Play
Scan
About
Combine
KYE Systems Corp. 61
Page 63
IPCam SECURE300W User’s Manual

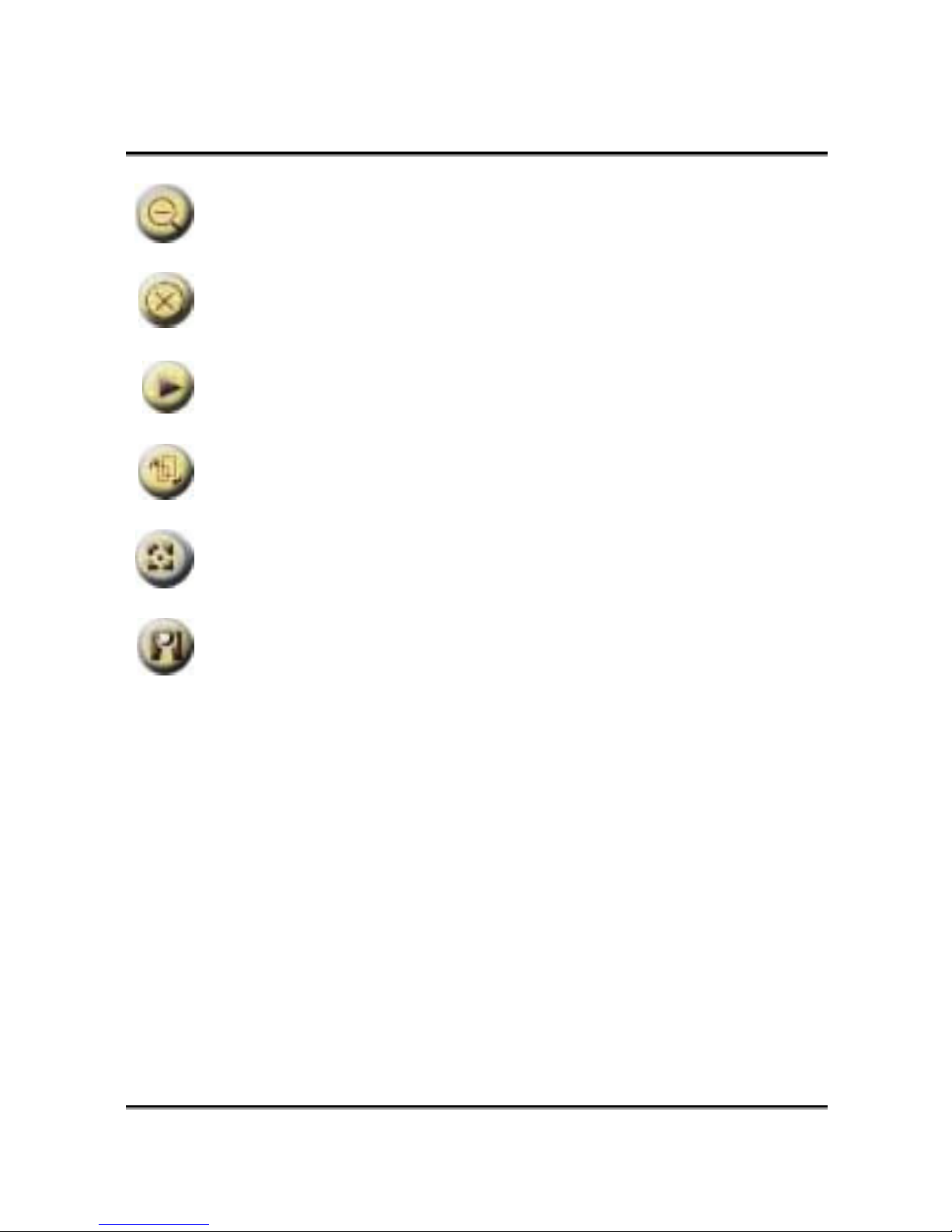

Minimize
To minimize the control panel.
Exit
To close IPView SE.
Play
To play back the recorded file.
Scan
To display each camera one by one.
Combine
To combine all display windows in one.
About
To display the information of IPView SE.
KYE Systems Corp. 62
Page 64

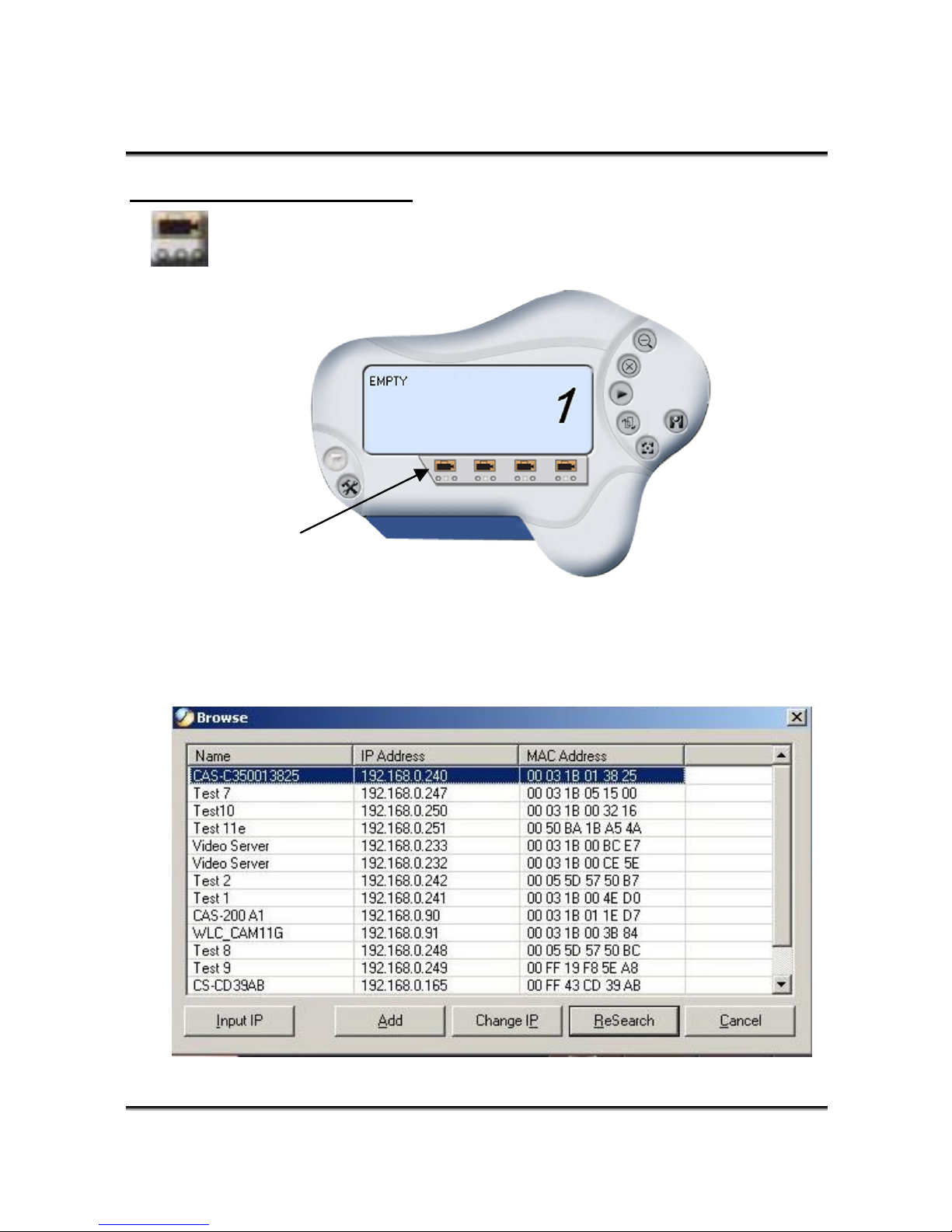

How to Add a Camera
Add Camera
Add Camera
To add a new camera, click the Add Camera button. An Add Camera dialog box will appear as illustrated below.
KYE Systems Corp. 63
Page 65
IPCam SECURE300W User’s Manual

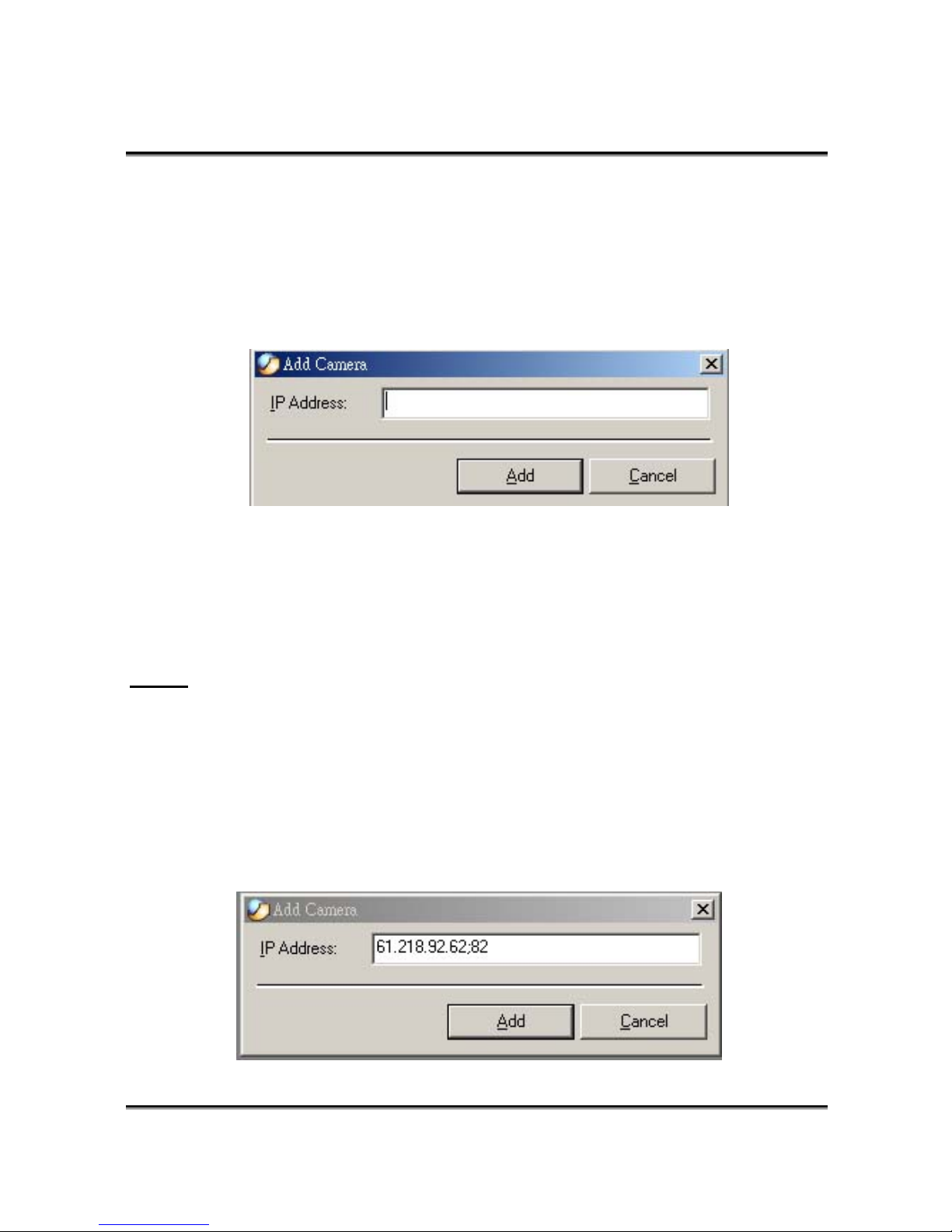

You must select the camera and click the Add button to add a new camera.

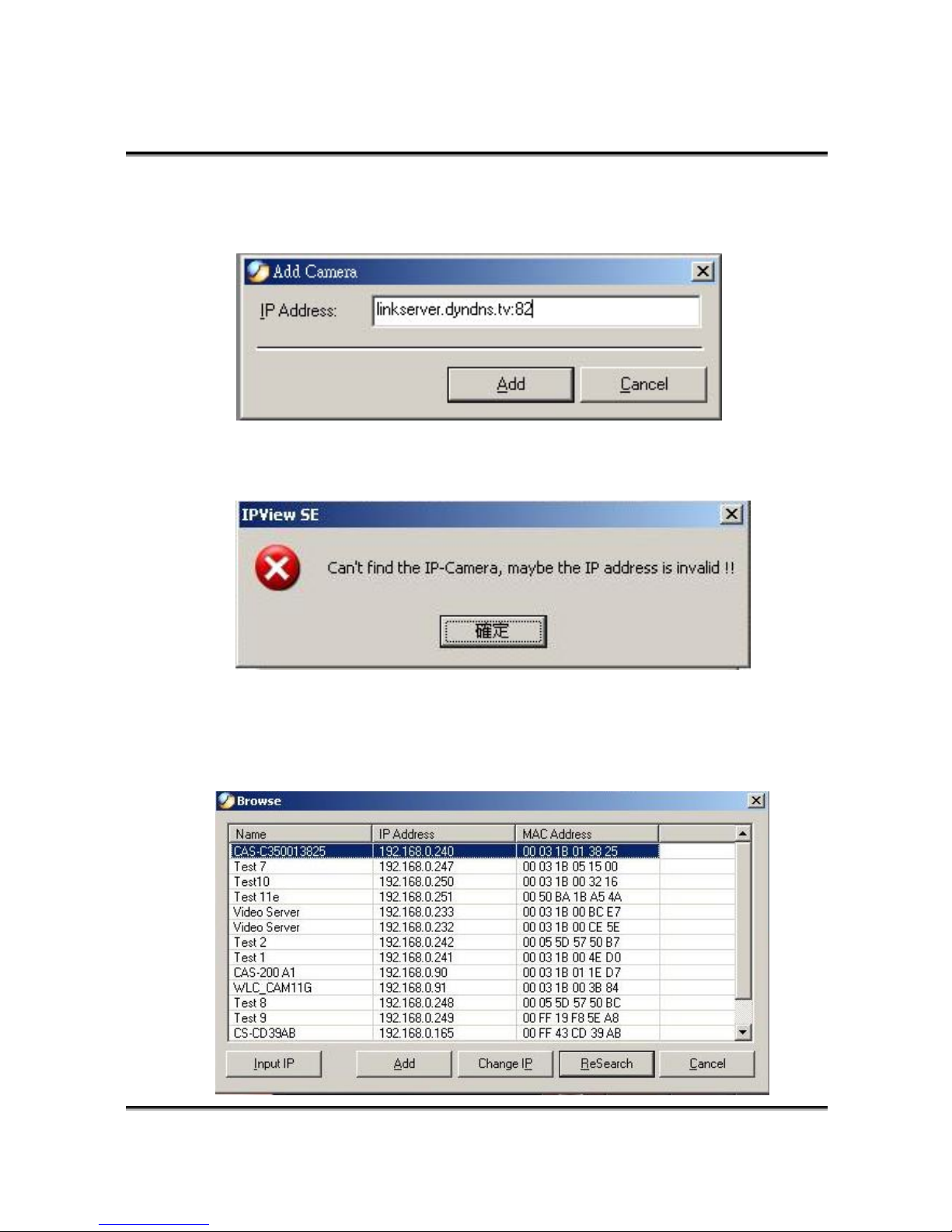

You can select the Input IP button, an Input IP dialog box will appear as illustrated below.
Enter the IP Address of the camera in the specified field and click the Add button to add a new camera.
Note:
1. If you want to add a camera through the Internet, you must key in a physical IP Address.
2. When the camera is installed behind Gateway and the Open Second Port of camera/Port Forwarding of Gateway function is enabled, the Gateway IP address has to be entered with the Port Number as below:
KYE Systems Corp. 64
Page 66
3. At the same time, the Gateway IP address can be replaced by URL as below:
4. If you forget the IP Address that you want to add, a dialog box will appear to notify you of the error.

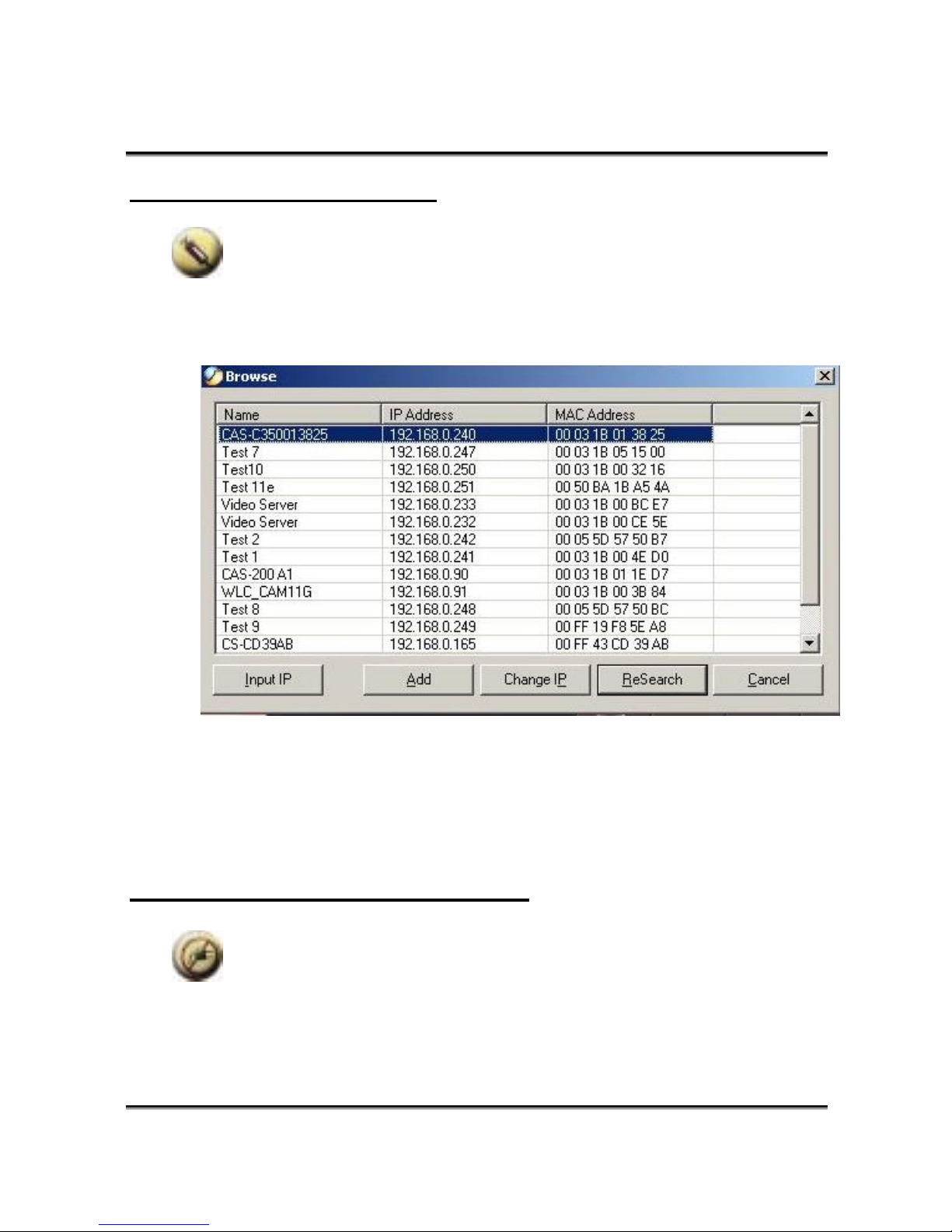

If you are unsure of the IP Address of the camera, you can click the Browse button, the Browse Camera dialog box will appear with a blank screen as illustrated below.
KYE Systems Corp. 65
Page 67
IPCam SECURE300W User’s Manual
You must select the camera and click the Add button to add a new camera.

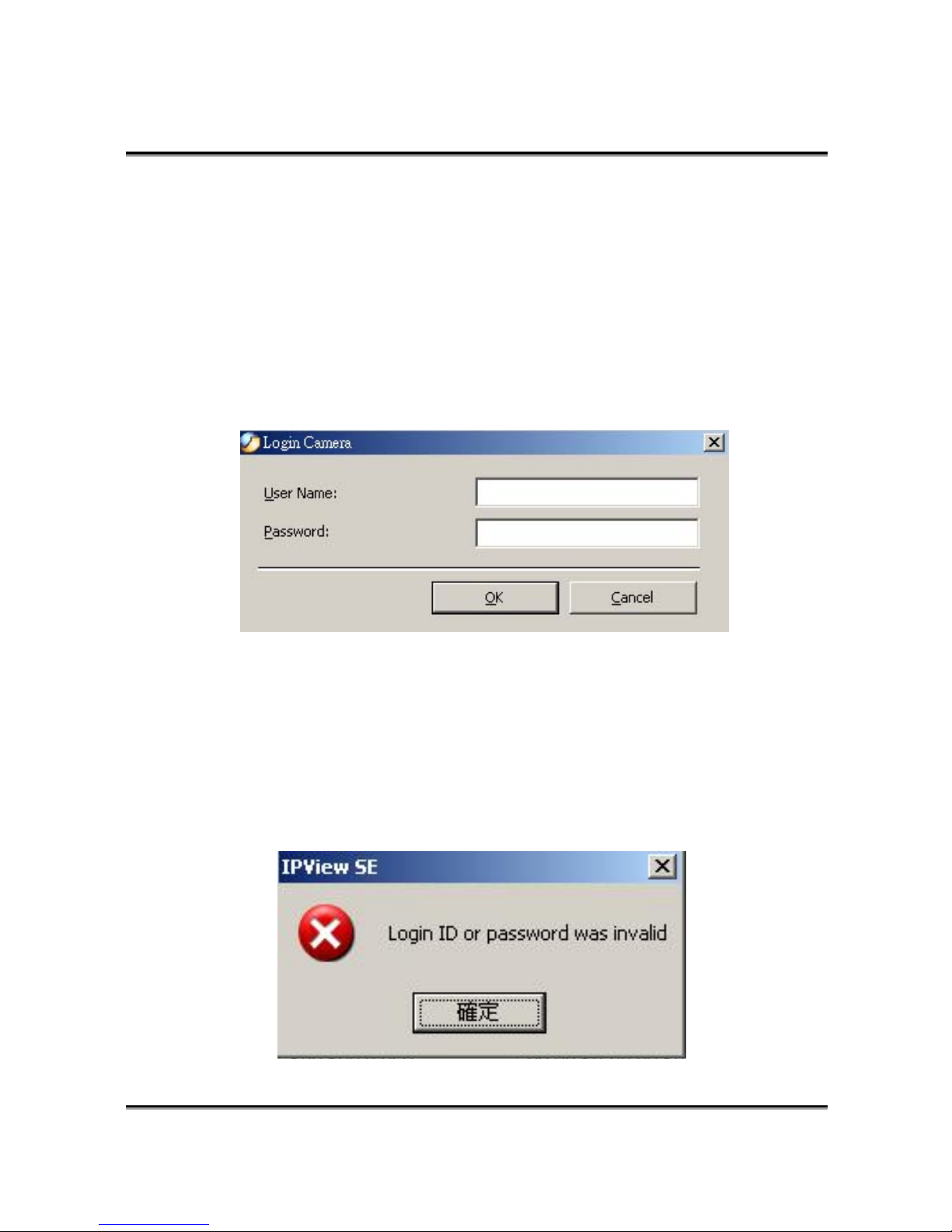

If the Login Camera dialog box appears, make sure to enter the correct User Name and Password and click the OK button. Then, the camera will be added into IPView SE in list format. If the User Name and Password is entered incorrectly, the camera will not be added into IPView SE.
KYE Systems Corp. 66
The above dialog box will appear only if administrator has already set up the User Name and Password in the Web Configuration setting.
If you forget to highlight the camera you want to add, a dialog box will appear to notify you of the error.
Page 68
Make sure to save any changes you have made to keep the information updated.
Note :
You are allowed to add only one camera at a time.

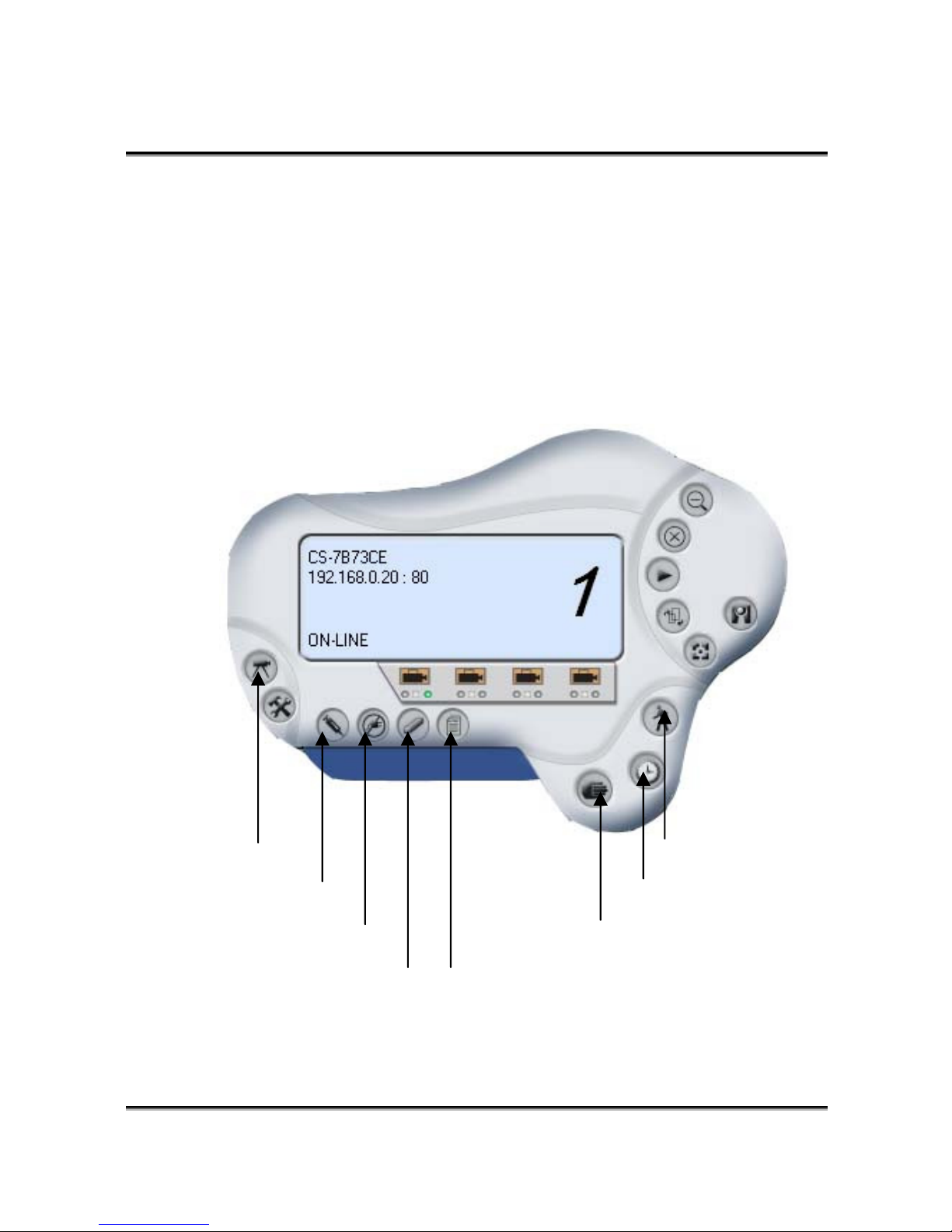

When the user adds the camera, four icons will appear, including: “Assign IP to Camera”, “Connect/Disconnect”, “Erase”, “Extra Information”.
Extra Information
Manual record
Schedule record
Motion record
Erase
Connect / Disconnect
Assign IP to Camera
Camera Config
KYE Systems Corp. 67
Page 69
IPCam SECURE300W User’s Manual
How to Change Camera
Assign IP of New Camera
To change camera, click the “Assign IP of Camera” button. An Assign IP of Camera dialog box will appear as illustrated below.
You must select the camera and click the Add button to add a new camera.
Connect/Disconnect the Image
Connect the Image
Click the “Connect/Disconnect” button and the preview screen will appear with the video image.
KYE Systems Corp. 68
Page 70

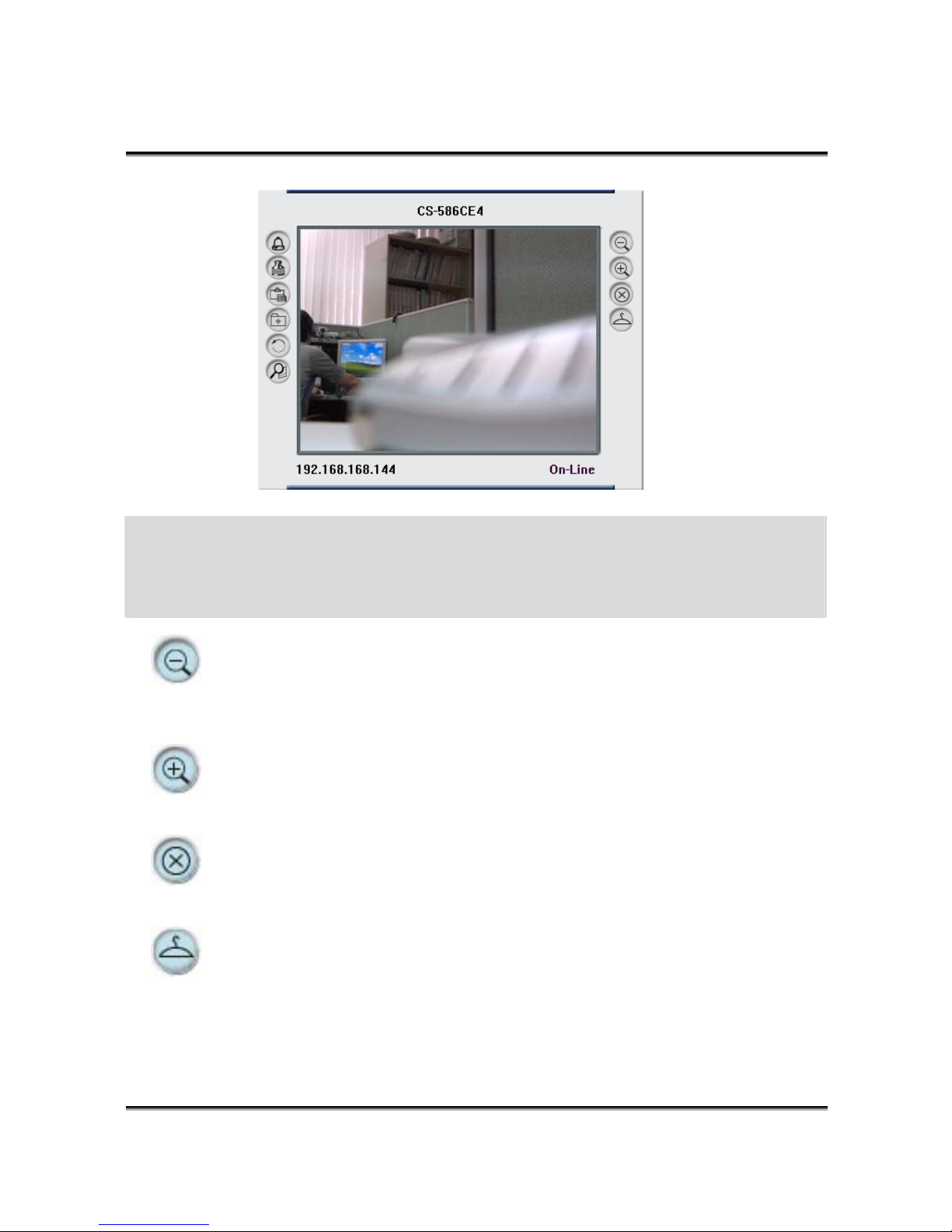

NOTE: When a new camera is added, it is connected. You can see the image right away. If you click the “Connect/ Disconnect” button, it will be in disconnect, also, no image is shown.
Minimize
Click to minimize the display screen of the camera.
Maximize Click to maximize the display screen of the camera.
Close Click to close the display screen of the camera.
Always on top Click to have the display screen always appear on the top of the window.
KYE Systems Corp. 69
Page 71
IPCam SECURE300W User’s Manual
Wake up control panel Click to open the control panel again when it is closed.
Color setting Click to adjust color of the image.
View list
Click to check the event list of the camera.
Snapshot Click to snapshot a picture from the camera.
Rotate image Click to rotate the image of the camera.
Zoom
Click to zoom in/out the image of the Internet Camera.
Disconnect the Image
Click the “Connect/Disconnect” button, and the camera will be disconnected.
KYE Systems Corp. 70
Page 72

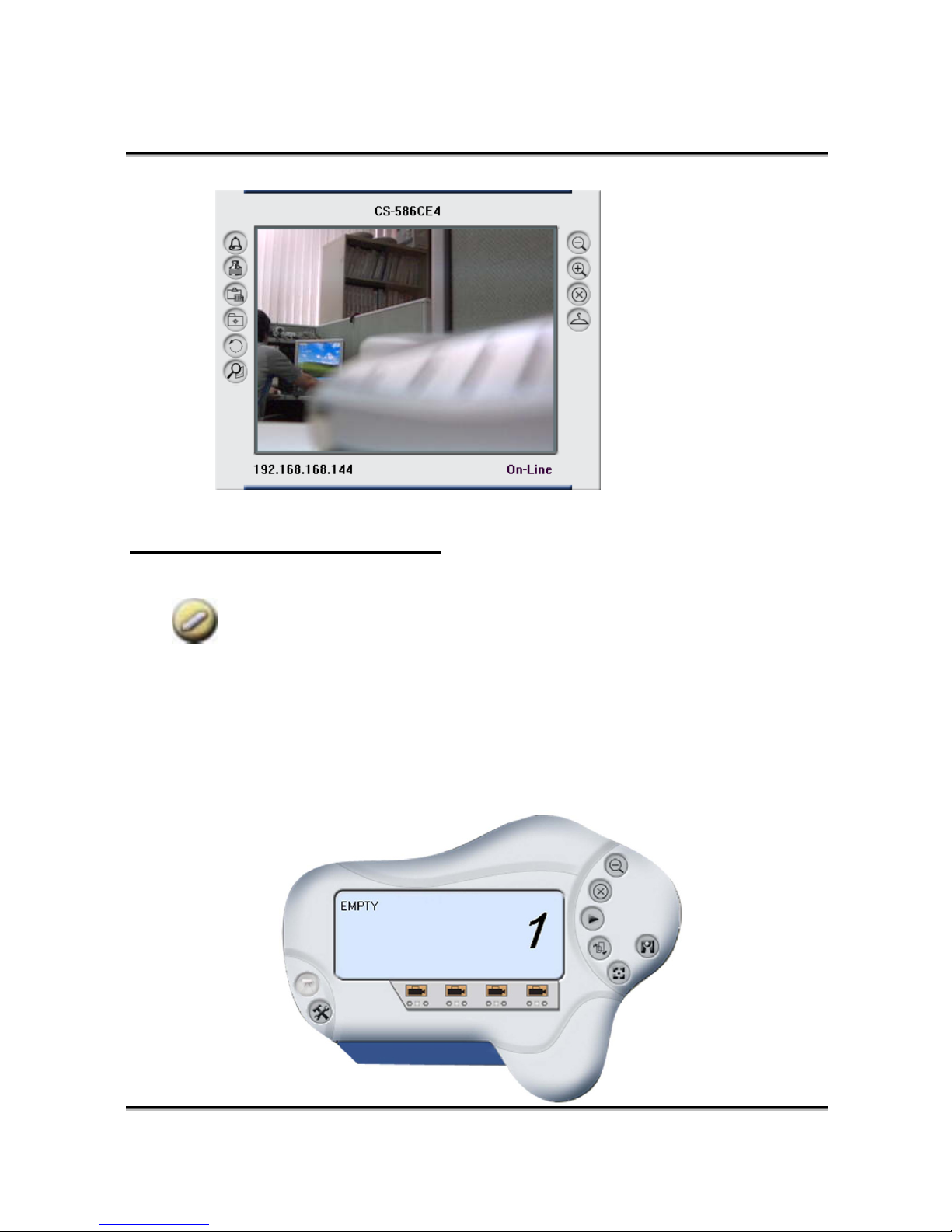

How to Delete a Camera
Erase Camera
To delete a camera, you must select the camera to delete from the IPView SE control
panel. Then, click the “Erase Camera” button.
After deleting the camera, the IPView SE control
panel will appear
as below.
KYE Systems Corp. 71
Page 73
IPCam SECURE300W User’s Manual

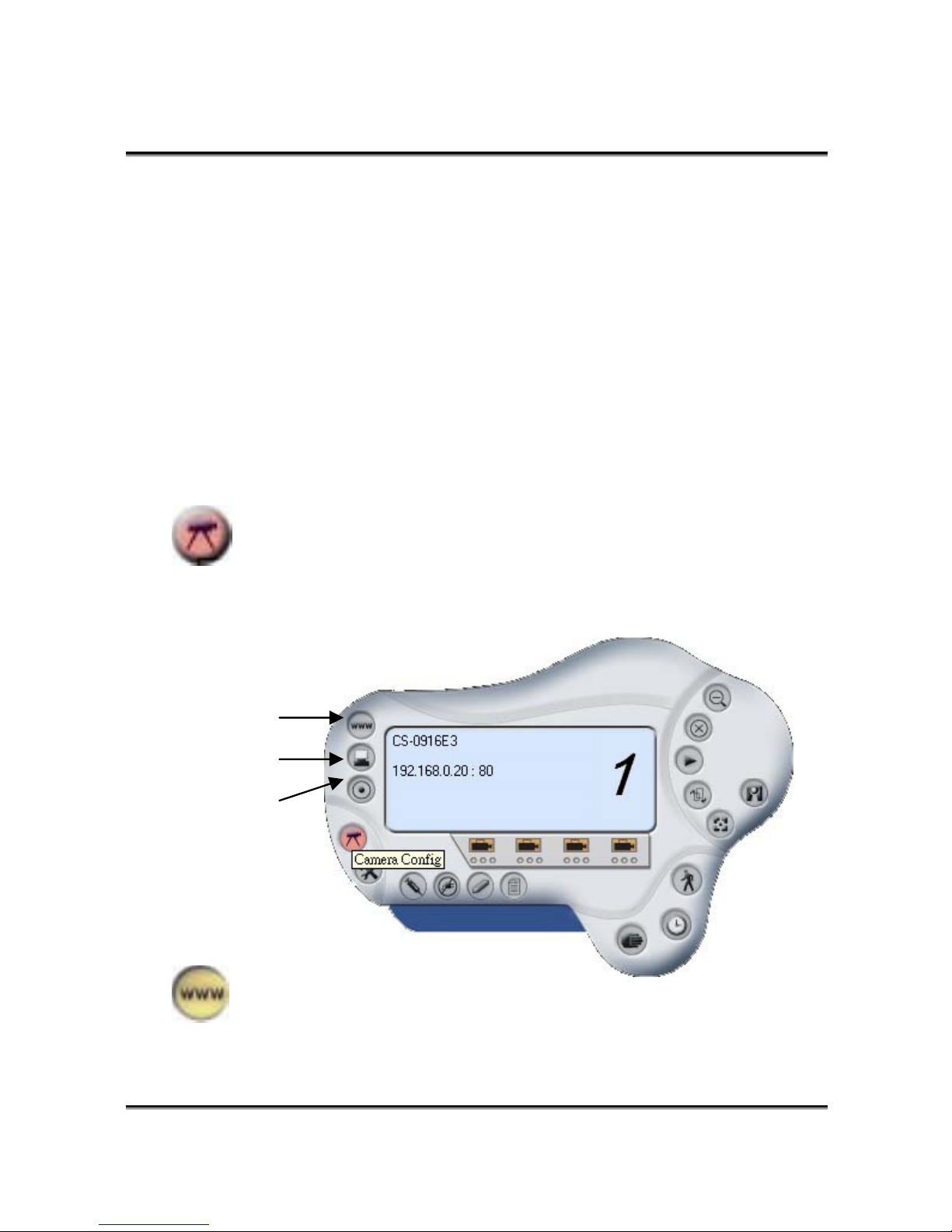

Extra Information
Extra Information
The screen displays the camera’s information.
How to Adjust the Property Setting
System Configure

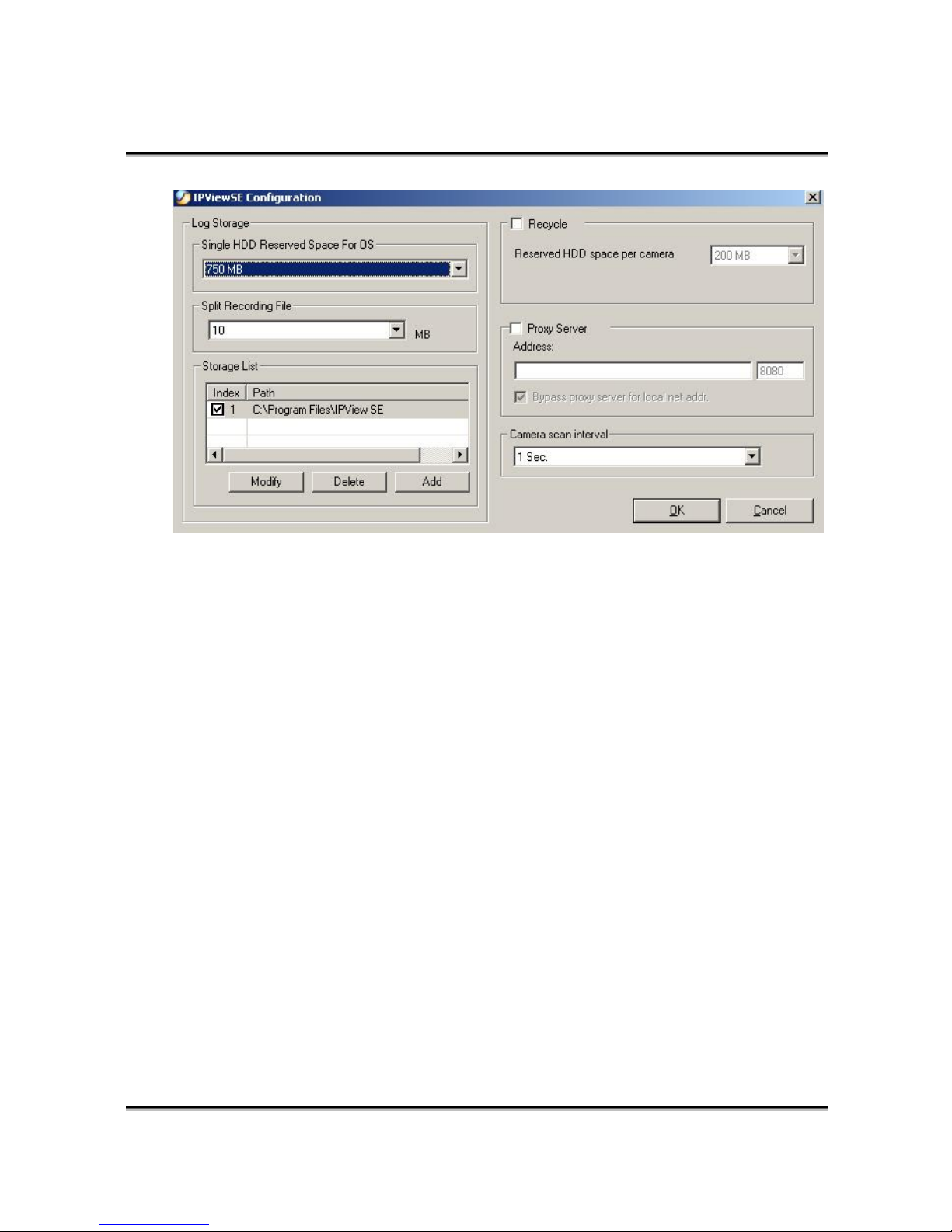

From the control panel, select the button and the dialog box will appear as shown below.
KYE Systems Corp. 72
Page 74
Log Storage:
1. Single HDD Reserve Space
This option permits reserved HDD space from 500 MB to 1000 MB.
2. Split Recording File
From this option, you can adjust the file size for recording the video images (the default setting is 10MB). If the recorded video files reach the file size, video images will be recorded into another file automatically. By File Size - permits recording by file size from 10 MB to 50 MB.
3. Storage List
This option is used to define the path to save image files.
The software will create a camera name folder as the “Storage List” which is allowed to create up to 16 File Path.
KYE Systems Corp. 73
Page 75
IPCam SECURE300W User’s Manual
Recycle:
When you enabled this function, it will recycle the HDD space once the disk space is less than the size defined. The size defined can be from 200 MB to 50000 MB.
Proxy Server:
Select this option to enable the Proxy Server support.
Camera Scan Delay:
It allows you to display for each camera one by one. The time interval for each camera can be from 1 Sec. to 20 Sec.
Camera Configure
Click the “Camera Config” button and it will activate the Camera Setting, Motion Setting and Update Firmware buttons.
Camera Setting
Motion Setting
Update Firmware
Camera Setting
Please refer to the “Web Configuration” section.
KYE Systems Corp. 74
Page 76

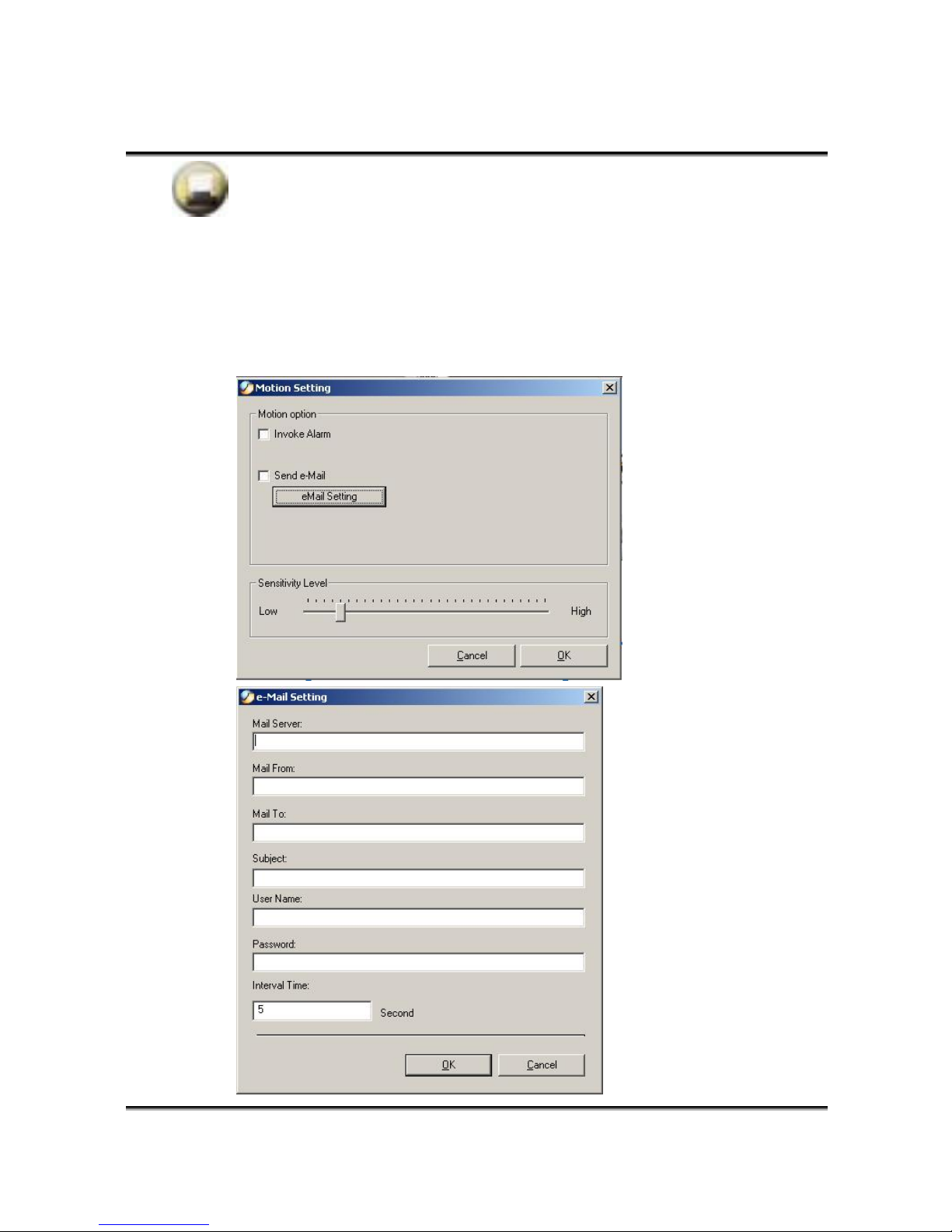

Motion Setting
You can adjust the sensitivity level and choose the Invoke Alarm options to work with the motion detection function. Besides the Alarm Beep, Send Email can be enabled when motion detected. The user can define the time interval to Send E-mail.
KYE Systems Corp. 75
Page 77
IPCam SECURE300W User’s Manual
Mail Server: Mail Server IP or name.
Mail From: E-Mail Address of sender.
Mail To: E-Mail Address of receiver.
Subject: Can be any information to high light the message.
User Name: Enter the user name in this field.
Password: Enter the user password in this field to login receiver’s
mail server
Interval Time: The time interval to send next E-Mail is by second.
Update Firmware
Enter the File Path and click the Update button, the firmware will be updated automatically.
KYE Systems Corp. 76
Page 78

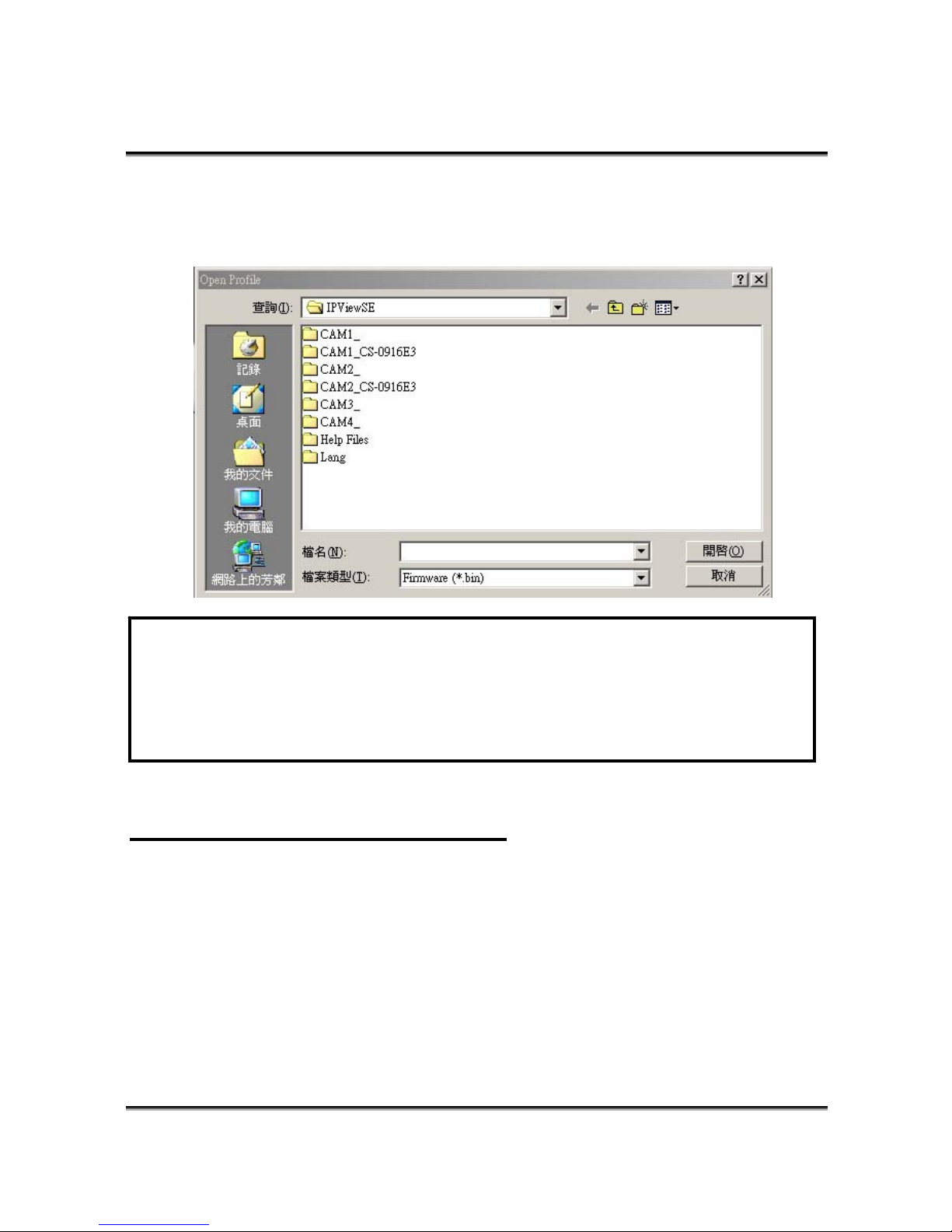

If you are unsure of the File path, you can click the Browse button, the Browse dialog box will appear as illustrated below.
Warning
During firmware update process, please make sure no interruptions will occur as it might possibly cause serious damage to the Internet Camera.
Adjust the Recording Setting
There are three ways to start recording an image - Motion Record, Schedule Record & Manual Record.
KYE Systems Corp. 77
Page 79
IPCam SECURE300W User’s Manual

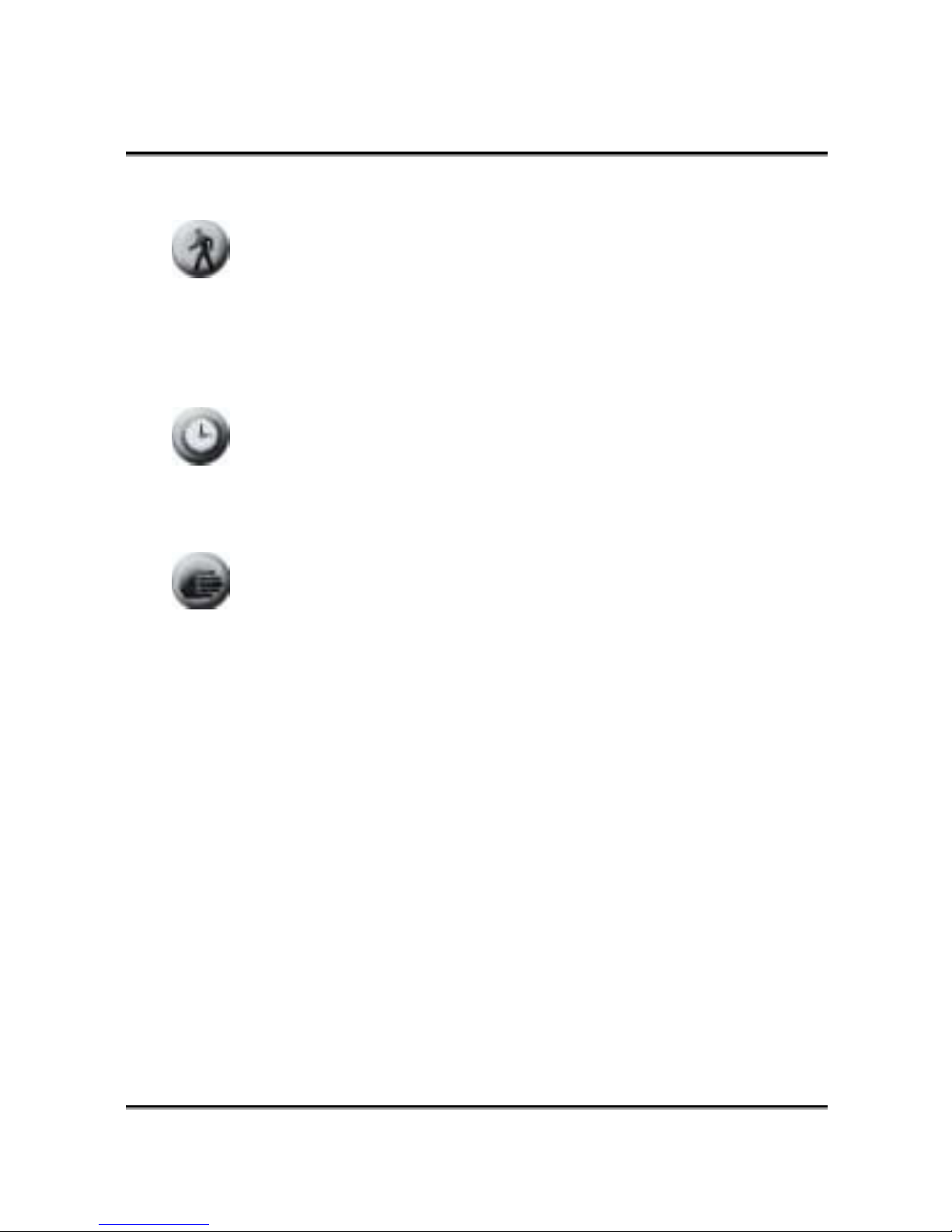

Motion Record
This option allows the camera to trigger recording by motion detected. You can adjust the sensitivity level and choose the warning options when motion is detected from motion setting.
Schedule Record
This option allows the camera to trigger recording as schedule defined. The schedule is set by date or weekday.
Manual Record
This option allows the camera to trigger recording manually.
KYE Systems Corp. 78
Page 80
KYE Systems Corp. 79
Appendix
Frequently Asked Questions
Internet Camera Features
Q: What is an Internet Camera? A: The IPCam SECURE300W is a standalone system connecting
directly to an Ethernet or Fast Ethernet network and supported by the wireless transmission based on the IEEE 802.11g standard. It is different from a conventional PC Camera, the IPCam SECURE300W is an all-in-one system with built-in CPU and web­based solutions providing a low cost solution that can transmit high quality video images for monitoring. The IPCam SECURE300W can be managed remotely, accessed and controlled from any PC/Notebook over the Intranet or Internet via a web browser.
Q: What is the maximum number of users that can be allowed to access the IPCam SECURE300W simultaneously? A: Maximum number of users that can log onto the IPCam SECURE300W at the same time is 64. Please keep in mind the overall performance of the transmission speed will slow down when many users are logged on.
Q: What algorithm is used to compress the digital image? A: The IPCam SECURE300W utilizes the JPEG image compression
technology providing high quality images for users. JPEG is adopted since it is a standard for image compression and can be applied to
Page 81
IPCam SECURE300W User’s Manual
KYE Systems Corp. 80
various web browser and application software without the need to install extra software.
Q: Can I change the wireless antenna attached to the IPCam SECURE300W? A: The wireless antenna can be changed for a variety of reasons such as extending the wireless transmission range, however, please consult authorized distributors before attempting as the connectors must be SMA connector type.
Q: What is the wireless transmission range for the IPCam SECURE300W?
A:
Generally the wireless distance can go up to 100 meters indoors and up to 300 meters outdoors. The range is limited by the number of walls, ceilings, or other objects that the wireless signals must pass through. Typical ranges vary depending on the types of materials and background Radio Frequency (RF) noise in your home or business and the configuration setting of your network environment.
Internet Camera Installation
Q: Can the Internet Camera be used out-doors? A: The IPCam SECURE300W is not weatherproof. It needs to be
equipped with a weatherproof case to be used outdoors and it is not recommended.
Q: What network cabling is required for the IPCam SECURE300W? A: The IPCam SECURE300W uses Category 5 UTP cable allowing
10 Base-T and 100 Base-T networking.
Page 82
KYE Systems Corp. 81
Q: Can the IPCam SECURE300W be setup as a PC-cam on the computer? A: No, the IPCam SECURE300W is an Internet Camera used only on Ethernet and Fast Ethernet network and supported by wireless transmission.
Q: Can the IPCam SECURE300W be connected on the network if it consists of only private IP addresses? A: The IPCam SECURE300W can be connected to LAN with private IP addresses.
Q: Can the IPCam SECURE300W be installed and work if a firewall exists on the network? A: If a firewall exists on the network, port 80 is open for ordinary data communication. You will need to do port forwarding by opening a port to the camera. Please refer to your firewall’s product manual for detailed instructions.
Ping Your IP Address
The PING (Packet Internet Groper) command can determine whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It can also provide a very useful tool to confirm if the IP address conflicts with the IPCam SECURE300W over the network.
Follow the step-by-step procedure below to utilize the PING command. However, you must disconnect the IPCam SECURE300W from the network first.
Page 83
IPCam SECURE300W User’s Manual
KYE Systems Corp. 82
Start a DOS window. Type ping x.x.x.x, where x.x.x.x is the IP address of the IPCam SECURE300W.
The succeeding replies as illustrated below will provide useful explanation to the cause of the problem with the IPCam SECURE300W IP address.
Trouble Shooting
Q: I cannot access the IPCam SECURE300W from a web browser. A1: The possible cause might be the IP Address for the IPCam
SECURE300W is already being used by another device. To correct the possible problem, you need to first disconnect the IPCam SECURE300W from the network. Then run the PING utility (follow the instructions in the section of “PING Your IP Address”).
A2: Another possible reason is the IP Address is located on a different subnet. To fix the problem, run the PING utility (follow the instructions in the section of “PING Your IP Address”). If the utility returns “no response” or similar, the finding is probably correct, then you should proceed as follows:
In Windows 95/98/2000 and Windows NT, double check the IP Address of the IPCam SECURE300W is within the same subnet as your workstation.
Click “Start”, “Setting”, “Control Panel”, and the “Network” icon. Select TCP/IP from the “Network” dialog box and from the “TCP/IP Properties” dialog box click “Specify an IP address”.
Page 84
KYE Systems Corp. 83
If the IPCam SECURE300W is situated on a different subnet than your workstation, you will not be able to set the IP address from this workstation. To verify make sure the first 3 sections of the IP address of the IPCam SECURE300W corresponds to the first 3 sections of the workstation. Therefore the IP address of the IPCam SECURE300W must be set from a workstation on the same subnet. A3: Other possible problems might be due to the network cable. Try replacing your network cable. Test the network interface of the product by connecting a local computer to the unit, utilizing a standard Crossover (hub to hub) Cable. If the problem is not solved the IPCam SECURE300W might be faulty.
Q: Why does the Power LED not light up constantly? A: The power supply used might be at fault. Confirm that you are
using the provided power supply DC 5V for the IPCam SECURE300W and verify that the power supply is well connected.
Q: Why does the Link LED not light up properly? A1: There might be a problem with the network cable. To confirm
that the cables are working, PING the address of a known device on the network. If the cabling is OK and your network is reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
A2: The network device utilized by the IPCam SECURE300W is not functioning properly such as hubs or switches. Confirm the power for the devices are well connected and functioning.
A3: The wireless connection might be at fault. In ad-hoc mode make sure the IPCam SECURE300W wireless channel and SSID is set to
Page 85
IPCam SECURE300W User’s Manual
KYE Systems Corp. 84
match the PC/Notebook wireless channel and SSID for direct communication.
Under infrastructure mode make sure the SSID on the PC/Notebook and the IPCam SECURE300W must match with the access point’s SSID.
Q: Why does the IPCam SECURE300W work locally but not externally? A1: Might be caused from the firewall protection. Need to check the Internet firewall with your system administrator.
A2: The default router setting might be a possible reason. Need to double check if the configuration of the default router settings is required.
Q: Why does a series of broad vertical white line appears through out the image? A: A likely issue is that the CMOS sensor becomes overloaded when the light source is too bright such as direct exposure to sunlight or halogen light. You need to reposition the IPCam SECURE300W into a more shaded area immediately as this will damage the CMOS sensor.
Q: There is bad focus on the IPCam SECURE300W, what should be done? A1: The focus might not be correctly adjusted for the line of sight. You need to adjust the IPCam SECURE300W focus manually as described in Adjust Internet Camera Focus.
Page 86
KYE Systems Corp. 85
A2: There is no adaptor fitted with your C-type lens. If you have previously changed the supplied CS-type lens, you may have unintentionally installed a C-type lens without fitting the adaptor first.
Q: Noisy images occur how can I solve the problem? A1: The video images might be noisy if the IPCam SECURE300W
is used is a very low light environment. To solve this issue you need more lighting.
A2: There might be wireless transmission interference. Make sure there are no other wireless devices on the network that will affect the wireless transmission.
Q: There is poor image quality, how can I improve the image? A1: A probable cause might be the incorrect display properties
configuration for your desktop. You need to open the Display Properties on your desktop and configure your display to show at least 65’000 colors for example at least 16-bit.
NOTE: Applying only 16 or 256 colors on your computer will produce dithering artifacts in the image.
A2: The configuration on the IPCam SECURE300W image display is incorrect. Through the Web Configuration Image section you need to adjust the image related parameter for improve images such as brightness, contrast, hue and light frequency. Please refer to the Web Configuration section for detail information.
Q: There are no images available through the web browser. A: The ActiveX might be disabled. If you are viewing the images
from Internet Explorer make sure ActiveX has been enabled in the
Page 87
IPCam SECURE300W User’s Manual
Internet Options menu. Alternatively, you can use the Java Applet for viewing the required images.
Time Zone table
KYE Systems Corp. 86
Page 88
KYE Systems Corp. 87
Page 89
IPCam SECURE300W User’s Manual
Xplug Control Installation
Installation To Web Server
Important Information
It is highly recommended to install the Xplug Control application to the Web Server for IE 5.0. It must be installed to a Public Domain with Fixed IP address.
1. Installation:
Copy the “xplug.ocx” file to any WEB Server table.
2. Setting (Configuration):
From the Web Configuration menu select “System” and under the “Loading ActiveX From” input web server location (
http://www.web server location.com/).
Once the settings are completed, the user now is able to access the Internet Camera from the web browser by selecting the image view – ActiveX mode.
Installation To Local PC
KYE Systems Corp. 88
Page 90
Insert the CD-ROM into the CD-ROM drive to initiate the auto-run program. Once completed, a menu screen will appear as below:
To install Xplug Control, click the “Xplug Control" button to activate the installation procedure for the plug-in program.

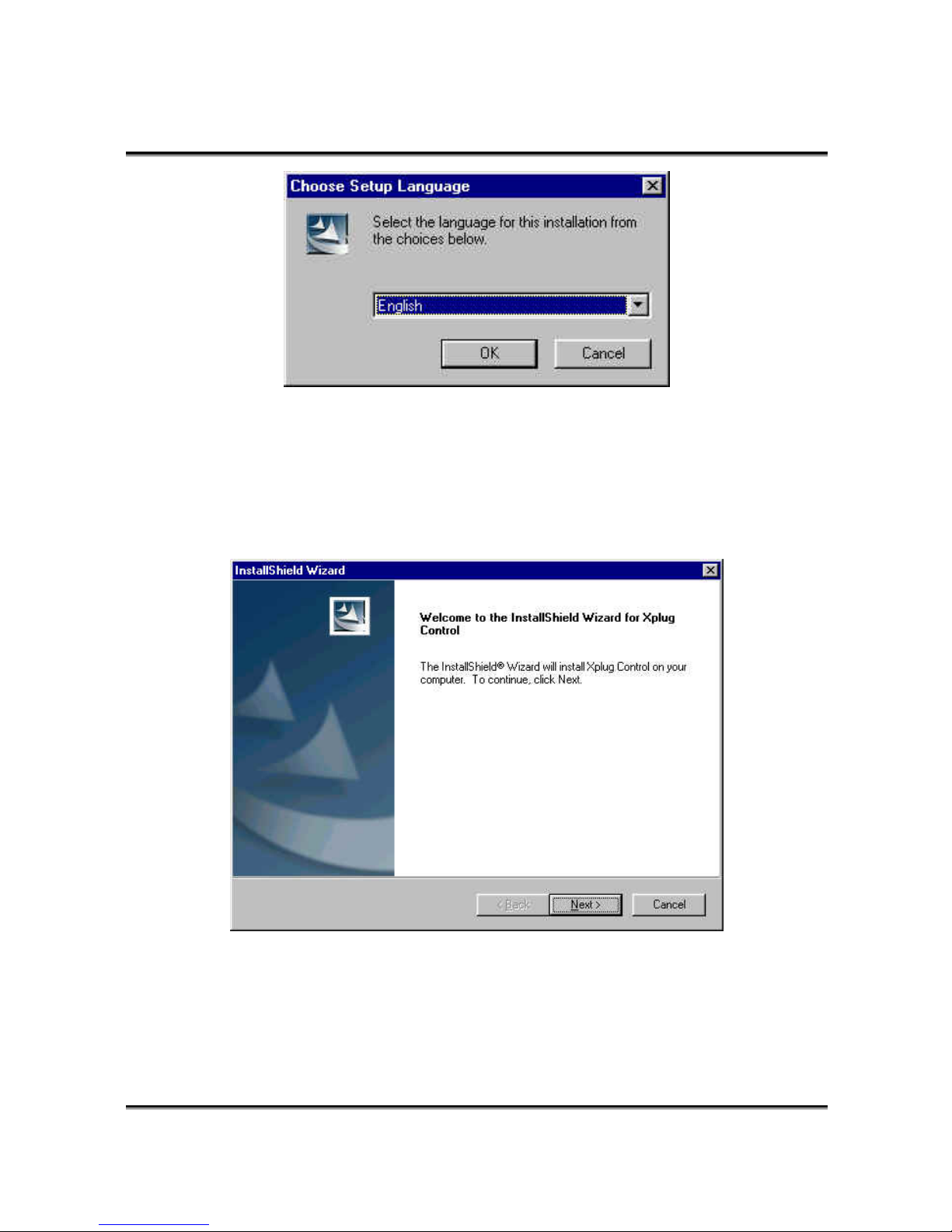

Once executed, a prompt will appear requesting the input of the desired language selection. Make the desired selection and click “OK” to continue.
KYE Systems Corp. 89
Page 91
IPCam SECURE300W User’s Manual
The Welcome screen will appear. Click the “Next” button to proceed with the installation.
The License Agreement prompt will appear as below. Read the details carefully and click the “Yes” button to continue with the installation procedure.
KYE Systems Corp. 90
Page 92
Click the “Finish” button to complete Setup of the Xplug Control Utility program for the IPCam SECURE300W.
KYE Systems Corp. 91
Page 93
IPCam SECURE300W User’s Manual
Adjust Internet Camera Focus
To adjust the focus of the lens, you need to turn the lens slowly in either clockwise or anti-clockwise direction until the desired image appears. DO NOT over turn the lens in either of the directions, as it will be out of focus.
NOTE: You can further adjust the IPCam SECURE300W's image quality through System Administration – Image of Web Configuration. Please refer to Web Configuration section for further details.
Warning
Direct exposure to sunlight may cause permanent damage to the CMOS sensor. Therefore do not expose the Internet Camera’s lens directly to sunlight. When operation is required in glaring light environment, it is recommended to use an iris lens.
The Internet Camera is designed for indoor usage and if your application requires prolong exposure to sunlight, a sun visor is recommended to protect the Internet Camera.
KYE Systems Corp. 92
Page 94
KYE Systems Corp. 93
Specification
Video specification
Resolution: 640 x 480 pixel Sensor: Color CMOS sensor Lens: f: 6.0 mm, F: 1.8 Gain control: Automatic Exposure: Automatic White Balance: Automatic
Image (Video Setting)
Image compression: JPEG Frame rate: 30fps @ QCIF, 25fps @ CIF,
10fps @ VGA
Compression Rate selection: 5 levels: Very low/Low/
Middle/High/Very high
Frame rate setting: 1, 5, 7, 15, 20, Auto (depends on
the video format)
Video resolution: 160x120, 320x240, 640x480
Digital Zoom: Supported Horizontal/ Vertical mirror: Supported
Hardware Interface
LAN Connector: One RJ-45 port, 10/100M auto-
sensed, Auto-MDIX Wireless LAN: Built-in 802.11g wireless LAN Communication protocol: HTTP, FTP, TCP/IP, UDP, ARP,
ICMP, BOOTP, DHCP, PPPoE,
SMTP, DDNS, UPnP
Page 95
IPCam SECURE300W User’s Manual
KYE Systems Corp. 94
CPU: RDC R2880 RAM: 8MB Flash ROM: 2MB OS: RTOS Power Supply: DC 5V, switching type Power consumption: 5 Watt (1000mA x 5V) LED Indicator: Power LED (Blue) Activity LED (Orange)
Software
Browser: Internet Explorer 5.0 or above; Netscape 6.0 or above Application Software: IPView SE OS supported: Microsoft Windows 98SE/ME/ 2000/XP, Windows NT4.0
Operating environment
Operating temperature: 5OC ~ 40OC Storage temperature: -25
O
C ~ 50OC
Humidity: 5% ~ 95%, non-condensing
EMI
FCC, CE, VCCI Class B
Page 96
KYE Systems Corp. 95
Glossary of Terms
NUMBERS
10BASE-T
10BASE-T is Ethernet over UTP Category III,IV, or V unshielded twisted-pair media.
100BASE-TX
The two-pair twisted-media implementation of 100BASE­T is called 100BASE-TX.
802.11g
An IEEE standard for wireless local area networks. It offers transmissions speeds at up to 54 Mbps in the 2.4­GHz band.
A
Access point
It is the hardware interface between a wireless LAN and a wired LAN. The access point attaches to the wired LAN through an Ethernet connection.
Applet
Applets are small Java programs that can be embedded in an HTML page. The rule at the moment is that an applet can only make an Internet connection to the computer from that the applet was sent.
ASCII
American Standard Code For Information Interchange, it is the standard method for encoding characters as 8-
b
it sequences of binary numbers, allowing a maximum of 256 characters.
ARP
Address Resolution Protocol. ARP is a protocol that resides at the TCP/IP Internet layer that delivers data on
Page 97
IPCam SECURE300W User’s Manual
KYE Systems Corp. 96
the same network by translating an IP address to a physical address.
AVI
Audio Video Interleave, it is a Windows platform audio and video file type, a common format for small movies and videos.
B
BOOTP
Bootstrap Protocol is an Internet protocol that can automatically configure a network device in a diskless workstation to give its own IP address.
C
Communication
Communication has four components: sender, receiver, message, and medium. In networks, devices and application tasks and processes communicate messages to each other over media. They represent the sender and receivers. The data they send is the message. The cabling or transmission method they use is the medium.
Connection
In networking, two devices establish a connection to communicate with each other.
D
DHCP
Dynamic Host Configuration Protocol was developed by Microsoft for assigning
dynamic IP addresses to devices
Page 98
KYE Systems Corp. 97
on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected. DHCP also supports a mix of static and dynamic IP addresses. This simplifies the task for network administrators because the software keeps track of IP addresses rather than requiring an administrator to manage the task. This means a new computer can be added to a network without the hassle of manually assigning it a unique IP address. DHCP allows the specification for the service provided by a router, gateway, or other network device that automatically assigns an IP address to any device that requests one
DNS
Domain Name System is an Internet service that translates domain names into IP addresses. Since domain names are alphabetic, they're easier to remember. The Internet however, is really based on IP addresses every time you use a domain name the DNS will translate the name into the corresponding IP address. For example, the domain name www.network_camera.com might translate to
192.167.222.8.
E
Enterprise network
An enterprise network consists of collections of networks connected to each other over a geographically dispersed area. The enterprise network serves the needs of a widely distributed company and operates the company’s mission­critical applications.
Ethernet
The most popular LAN communication technology. There are a variety of types of Ethernet, including 10 Mbps
Page 99
IPCam SECURE300W User’s Manual
KYE Systems Corp. 98
(traditional Ethernet), 100 Mbps (Fast Ethernet), and 1,000 Mbps (Gigabit Ethernet). Most Ethernet networks use Category 5 cabling to carry information, in the form of electrical signals, between devices. Ethernet is an implementation of CSMA/CD that operates in a bus or star topology.
F
Fast Ethernet
Fast Ethernet, also called 100BASE-T, operates at 10 or 100Mbps per second over UTP, STP, or fiber-optic media.
Firewall
Firewall is considered the first line of defense in protecting private information. For better security, data can be encrypted. A system designed to prevent unauthorized access to or from a private network
. Firewalls are frequently used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially Intranets all messages entering or leaving the intranet pass through the firewall, which examines each message and blocks those that do not meet the specified security criteria.
G
Gateway
A gateway links computers that use different data formats together.
Group
Groups consist of several user machines that have similar characteristics such as being in the same department.
H
Page 100
KYE Systems Corp. 99
HEX
Short for hexadecimal refers to the base-16 number system, which consists of 16 unique symbols: the numbers 0 to 9 and the letters A to F. For example, the decimal number 15 is represented as F in the hexadecimal numbering system. The hexadecimal system is useful because it can represent every byte (8 bits) as two consecutive hexadecimal digits. It is easier for humans to read hexadecimal numbers than binary numbers.
I
IEEE
Institute of Electrical and Electronic Engineers.
Intranet
This is a private network, inside an organization or company, that uses the same software you will find on the public Internet. The only difference is that an Intranet is used for internal usage only.
Internet
The Internet is a globally linked system of computers that are logically connected based on the Internet Protocol (IP). The Internet provides different ways to access private and public information worldwide.
Internet address
To participate in Internet communications and on Internet Protocol-based networks, a node must have an Internet address that identifies it to the other nodes. All Internet addresses are IP addresses
IP
Internet Protocol is the standard that describes the layout of the basic unit of information on the Internet (the packet) and also details the numerical addressing format used to
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
