Genius IPCAM SECURE300 User Manual

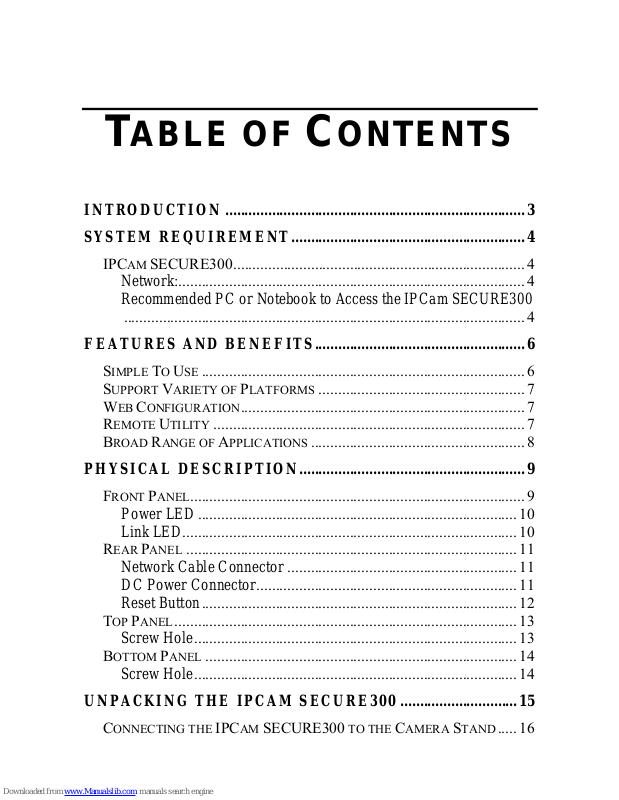

TABLE OF CONTENTS
INTRODUCTION .............................................................................3
SYSTEM REQUIREMENT............................................................4
IPCAM SECURE300........................................................................... 4
Network:......................................................................................... 4
Recommended PC or Notebook to Access the IPCam SECURE300
....................................................................................................... 4
FEATURES AND BENEFITS......................................................6
SIMPLE TO USE ................................................................................... 6
SUPPORT VARIETY OF PLATFORMS ..................................................... 7
WEB CONFIGURATION......................................................................... 7
REMOTE UTILITY ................................................................................ 7
BROAD RANGE OF APPLICATIONS ....................................................... 8
PHYSICAL DESCRIPTION..........................................................9
FRONT PANEL...................................................................................... 9
Power LED.................................................................................. 10
Link LED...................................................................................... 10
REAR PANEL ..................................................................................... 11
Network Cable Connector ........................................................... 11
DC Power Connector................................................................... 11
Reset Button................................................................................. 12
TOP PANEL ........................................................................................ 13
Screw Hole................................................................................... 13
BOTTOM PANEL ................................................................................ 14
Screw Hole................................................................................... 14
UNPACKING THE IPCAM SECURE300..............................15
CONNECTING THE IPCAM SECURE300 TO THE CAMERA STAND .....16
1
HARDWARE INSTALLATION ..................................................17
1 CONNECT AN ETHERNET CABLE ..................................................... 17
2 ATTACH THE EXTERNAL POWER SUPPLY......................................... 18
SECURITY........................................................................................19

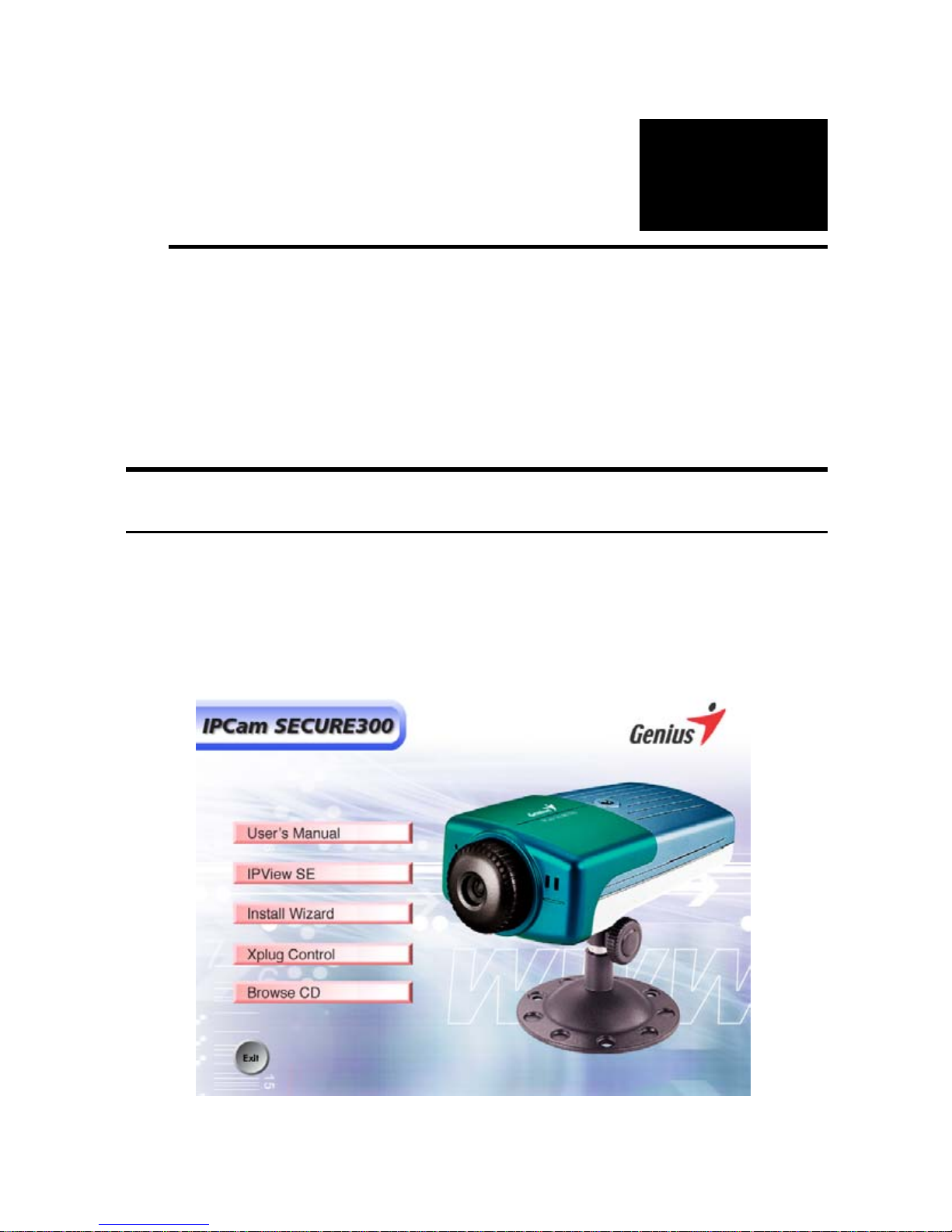

SOFTWARE INSTALLATION ...................................................21
WEB CONFIGURATION....................................................................... 21
MAIN MENU IMAGE .......................................................................... 23
SYSTEM ADMINISTRATION ................................................................ 24
SYSTEM ADMINISTRATION ................................................................ 24
System Administration – System.................................................. 24
System Administration - Image.................................................... 32

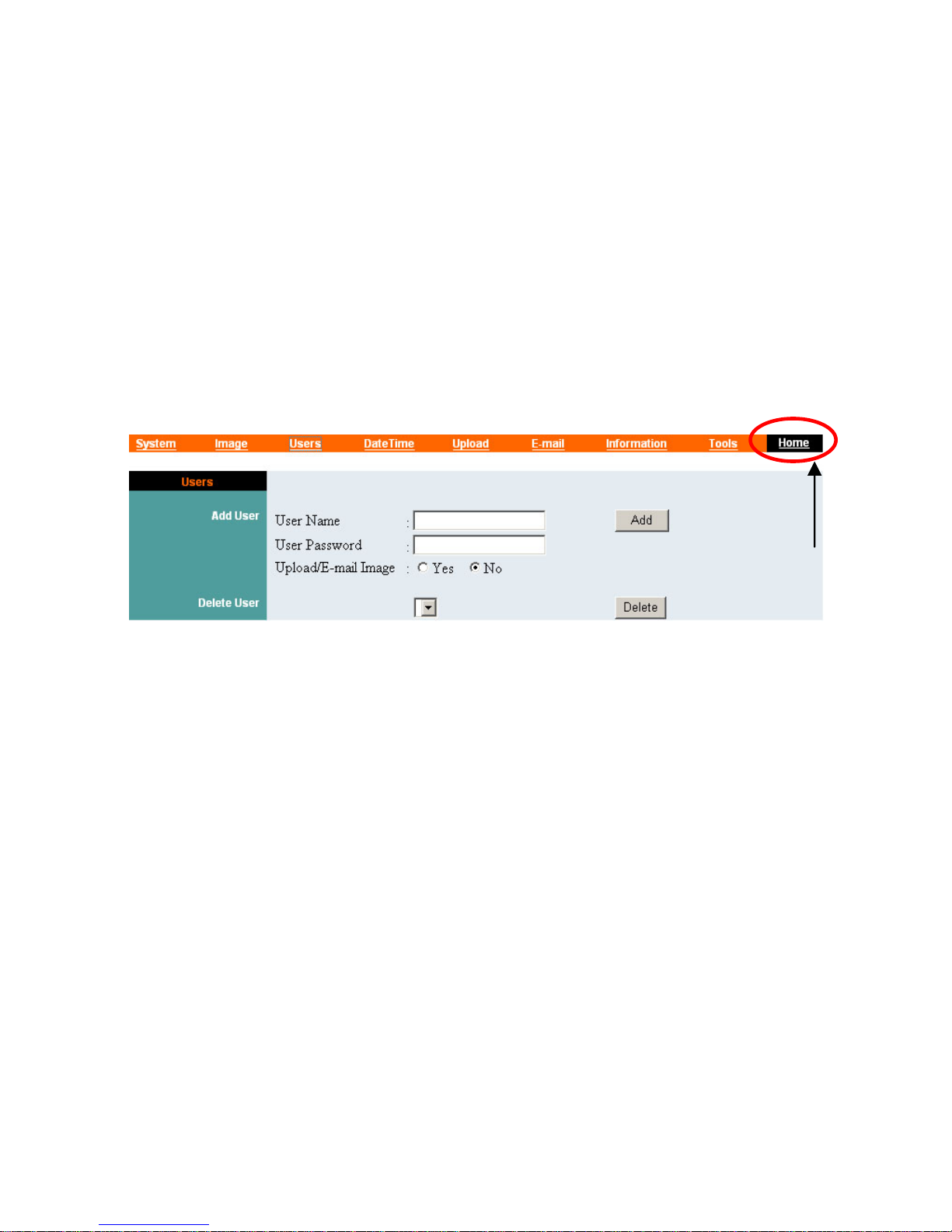

System Administration - Users..................................................... 34

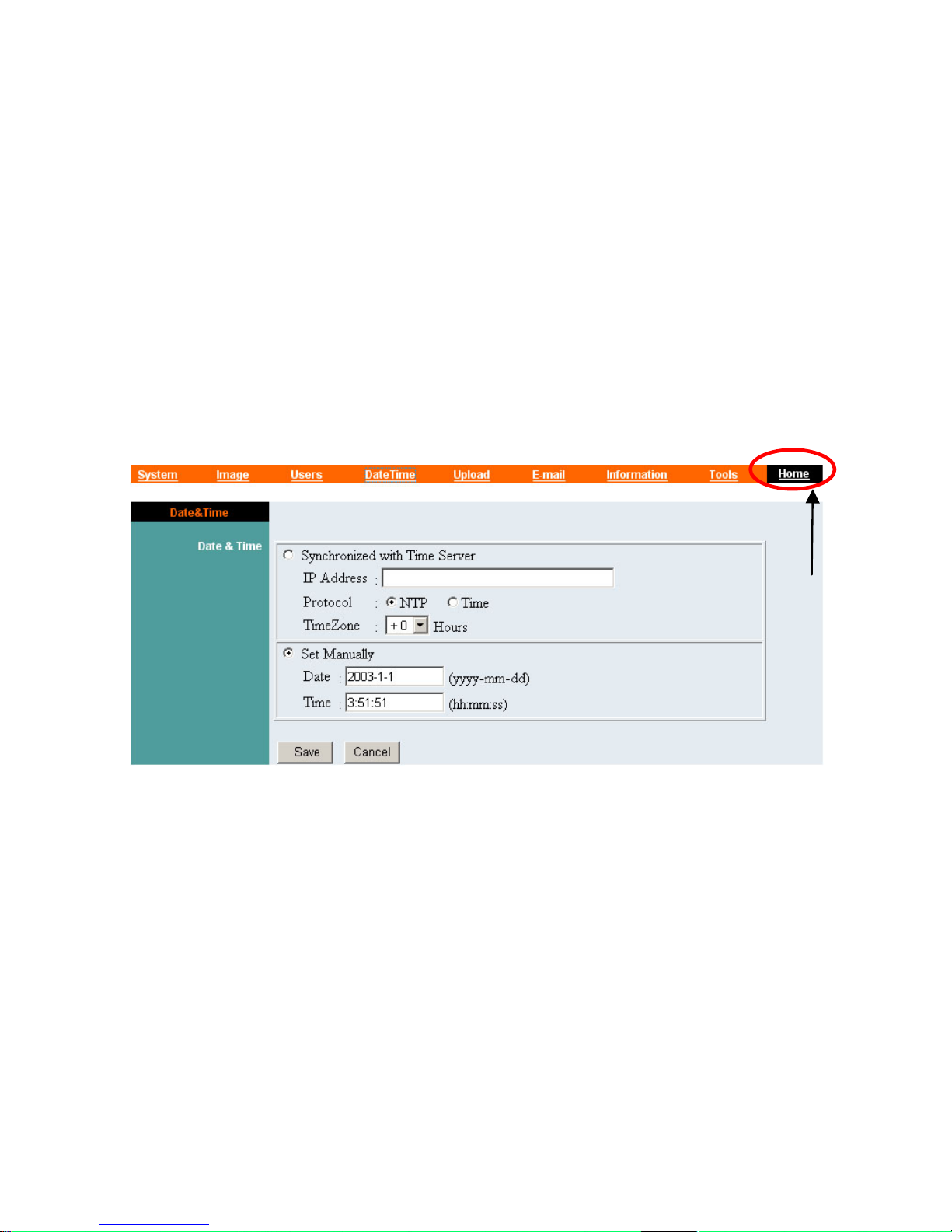

System Administration – DateTime.............................................. 36
System Administration – Upload................................................. 38

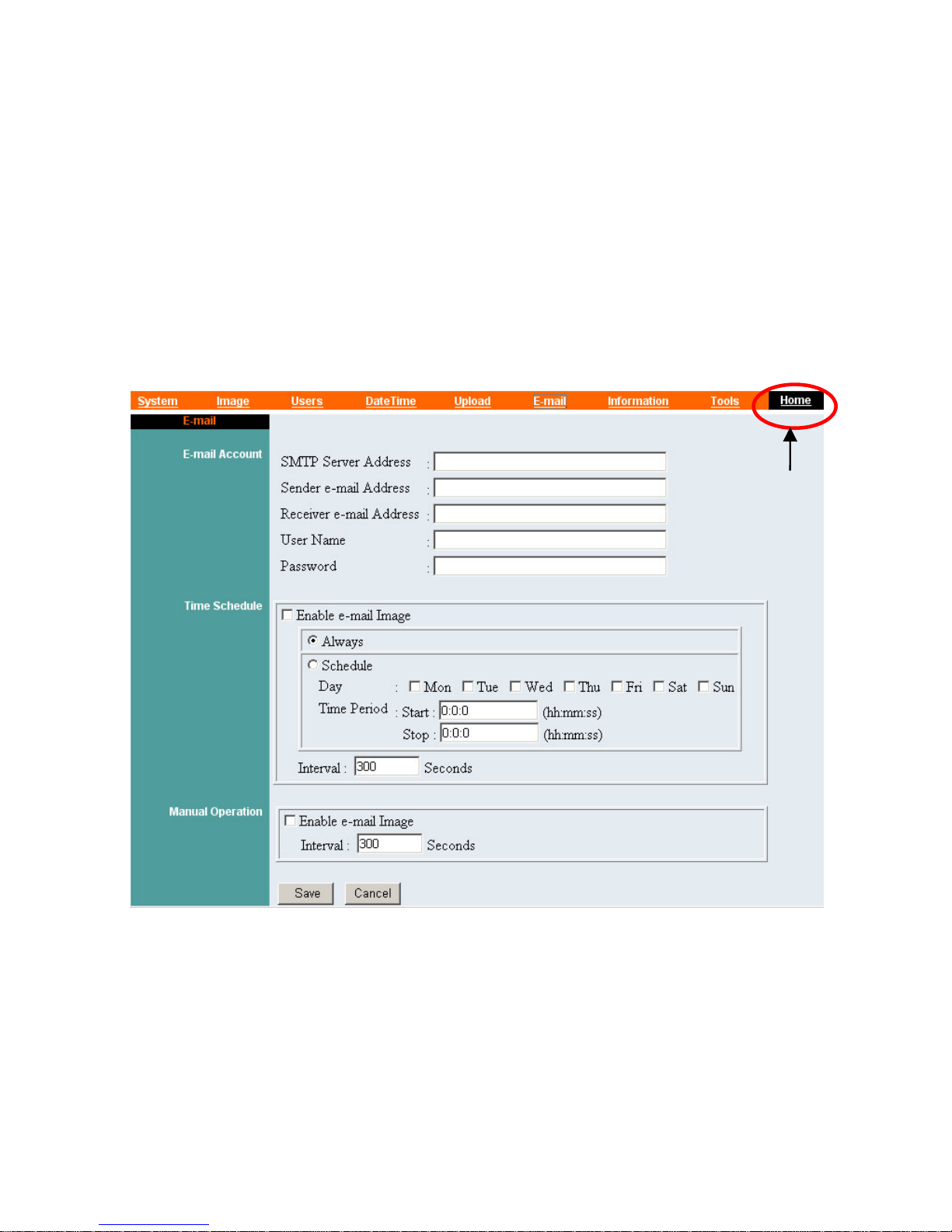

System Administration – E-mail................................................... 41

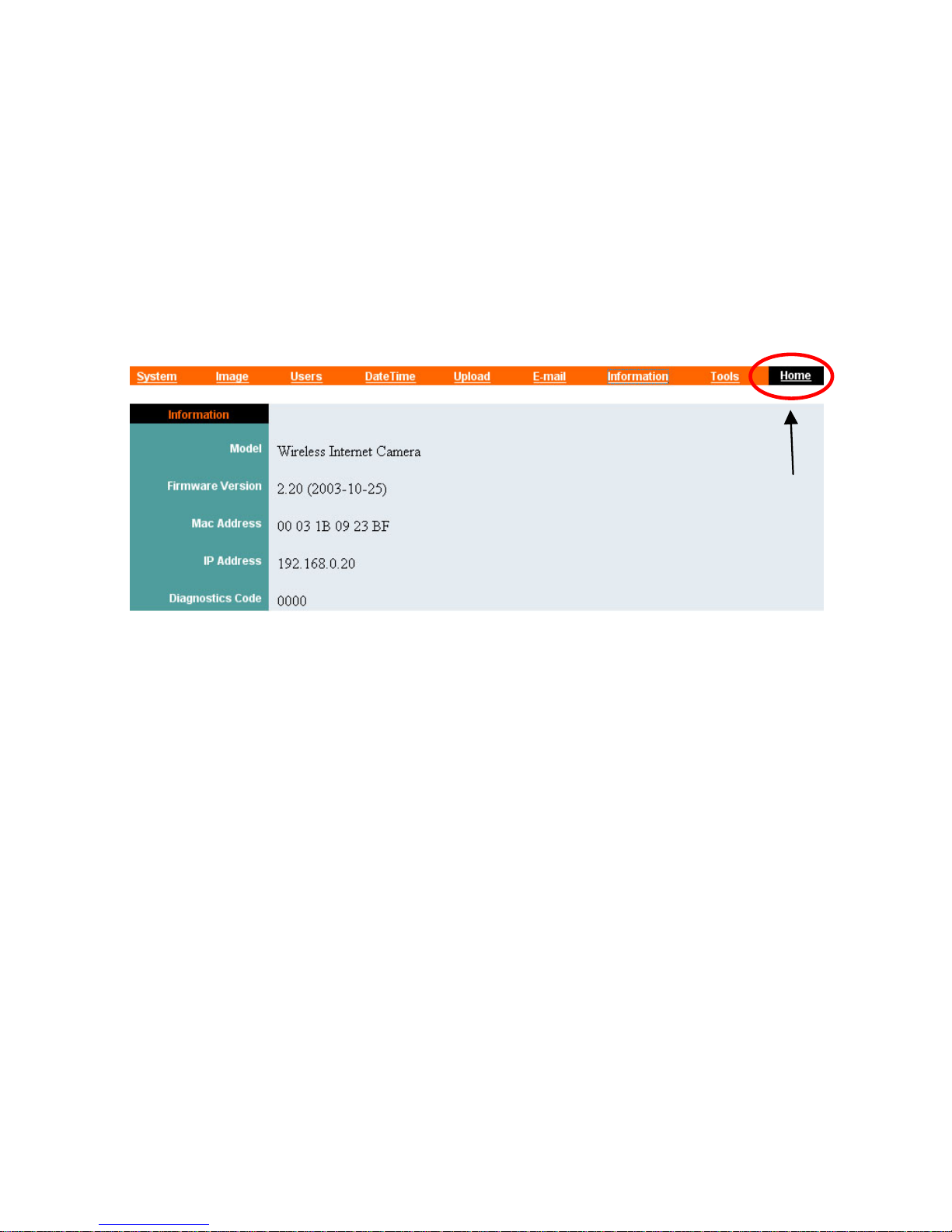

System Administration - Information........................................... 43

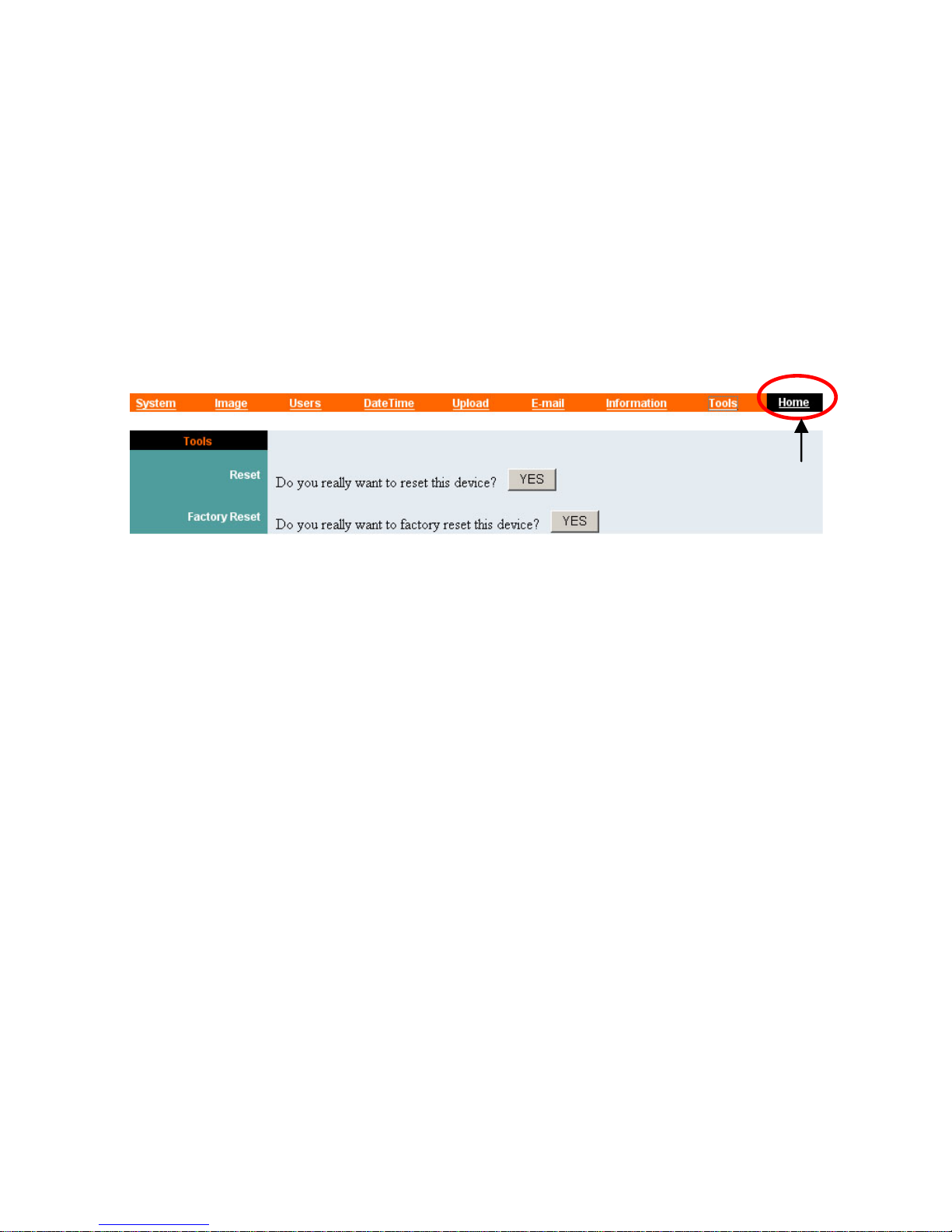

System Administration - Tools..................................................... 44

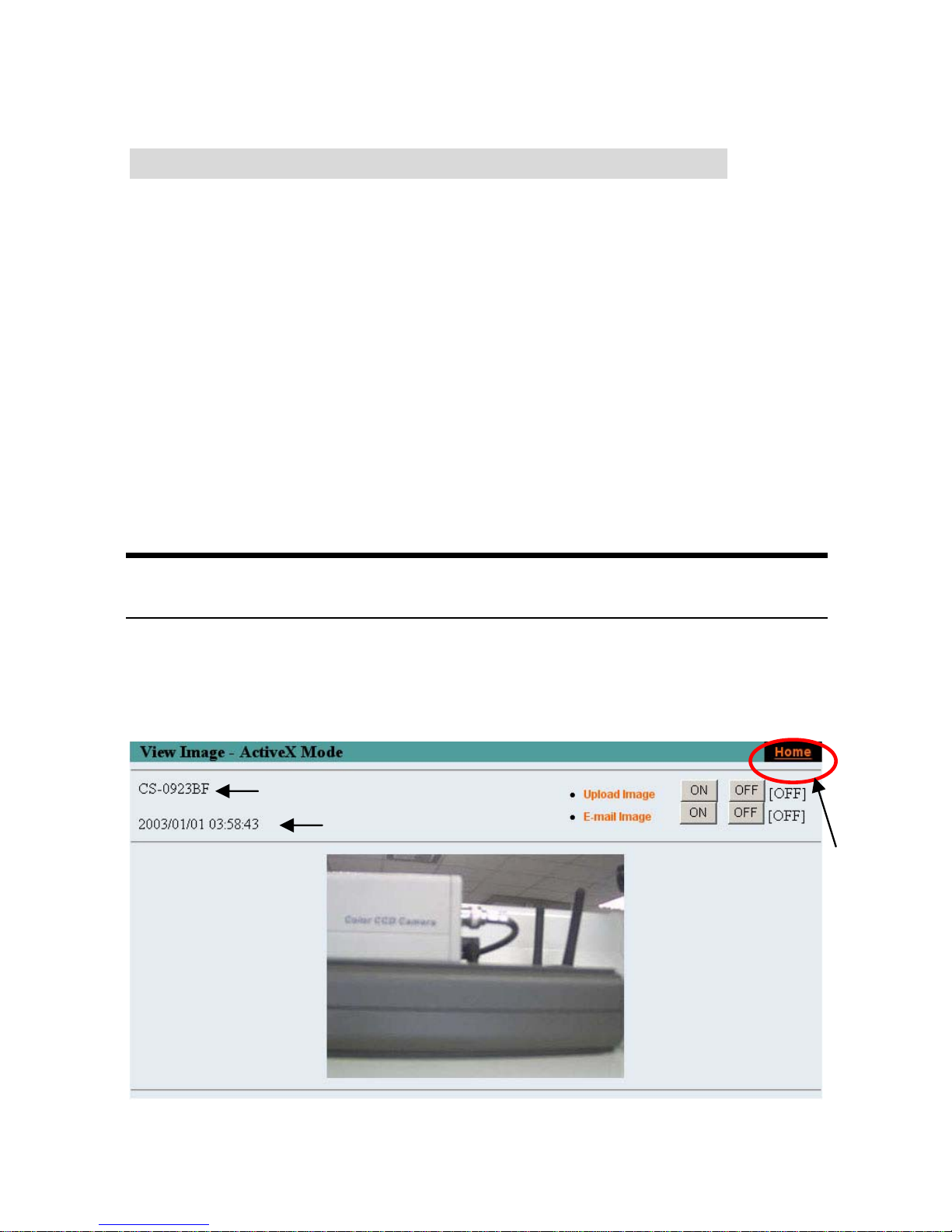

VIEW IMAGE – ACTIVEX MODE ........................................................45
VIEW IMAGE – JAVA MODE............................................................... 47
IPCAM SECURE300 APPLICATION .....................................49
APPLICATIONS................................................................................... 50
IPCAM SECURE300 APPLICATION DIAGRAMS ................................ 51

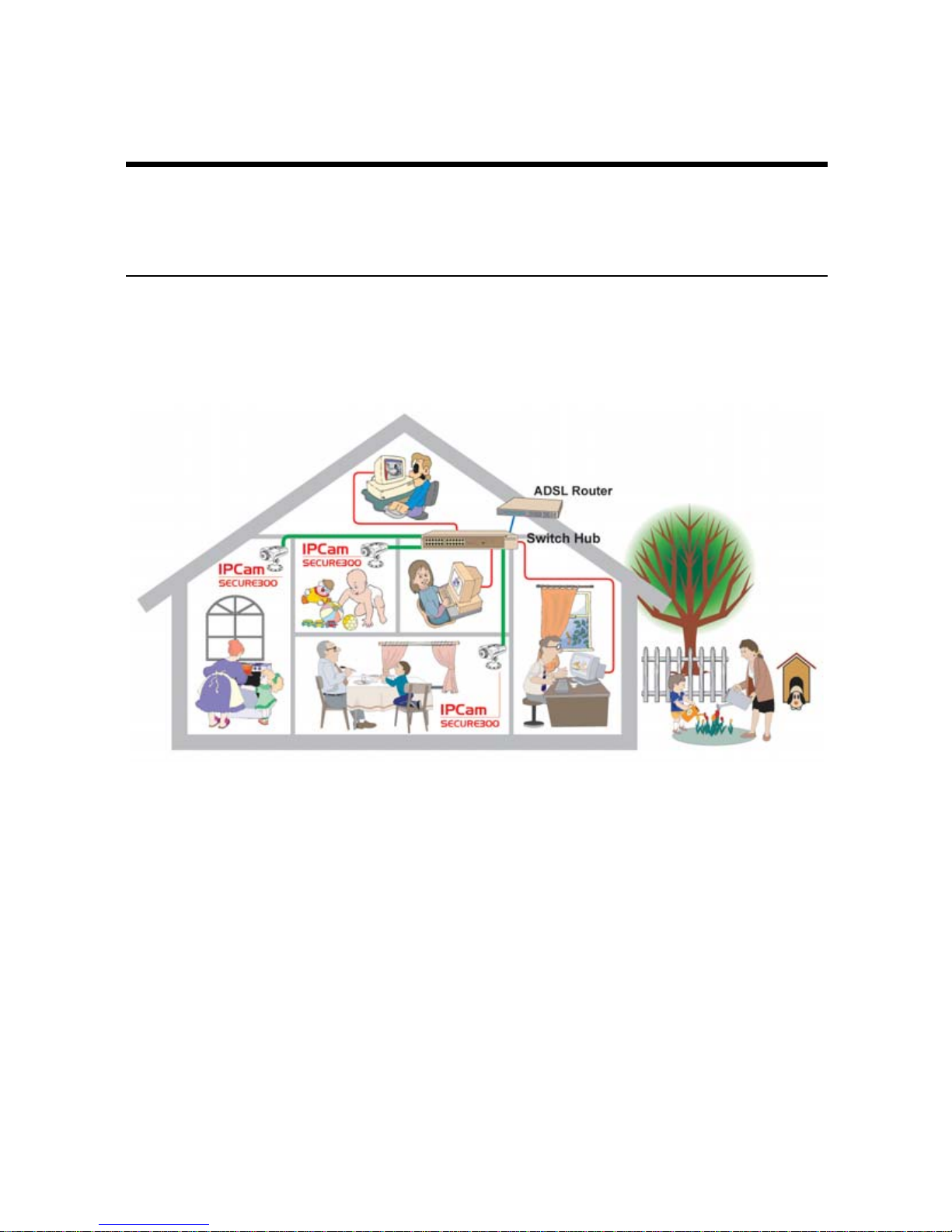

Home Applications.......................................................................51
IPVIEW SE APPLICATION.......................................................52

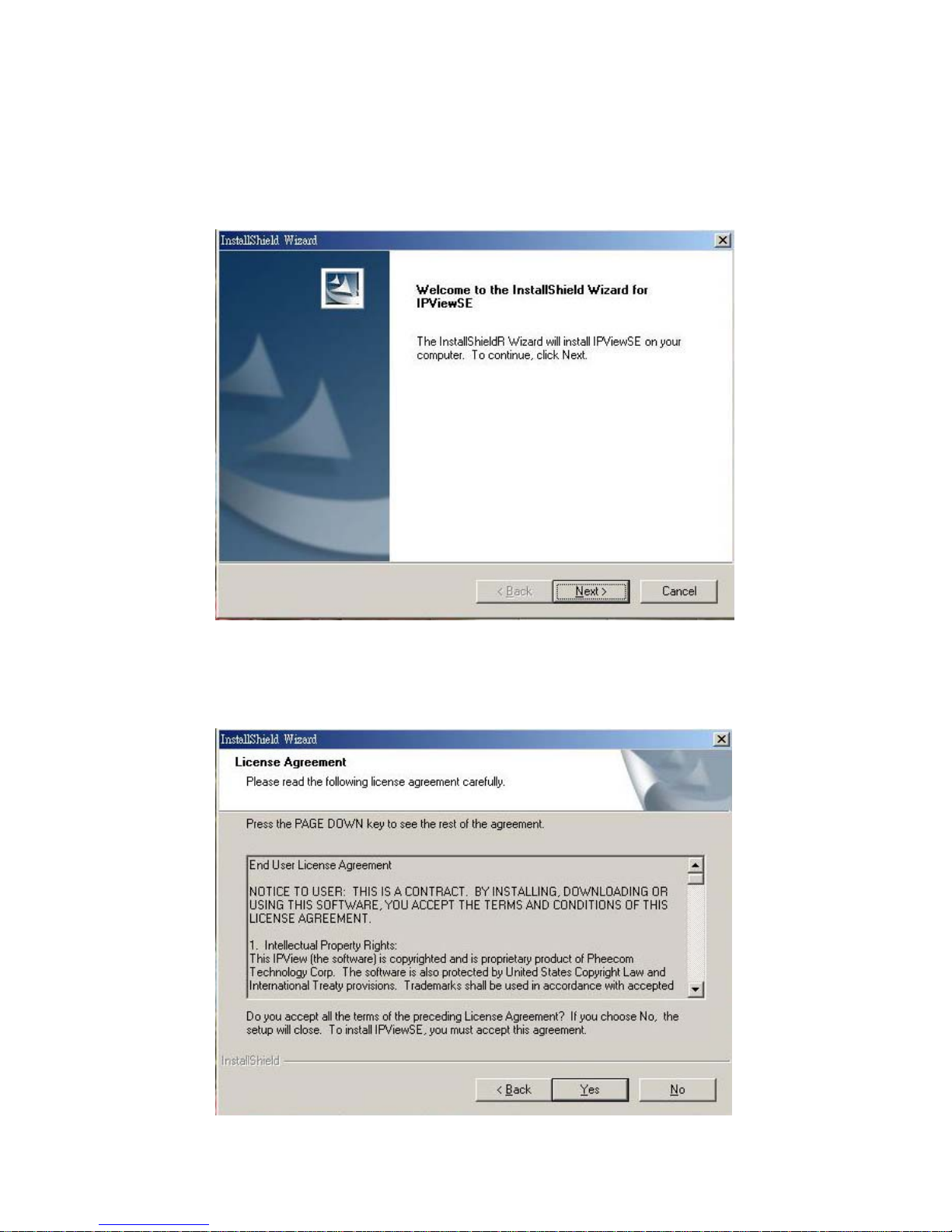

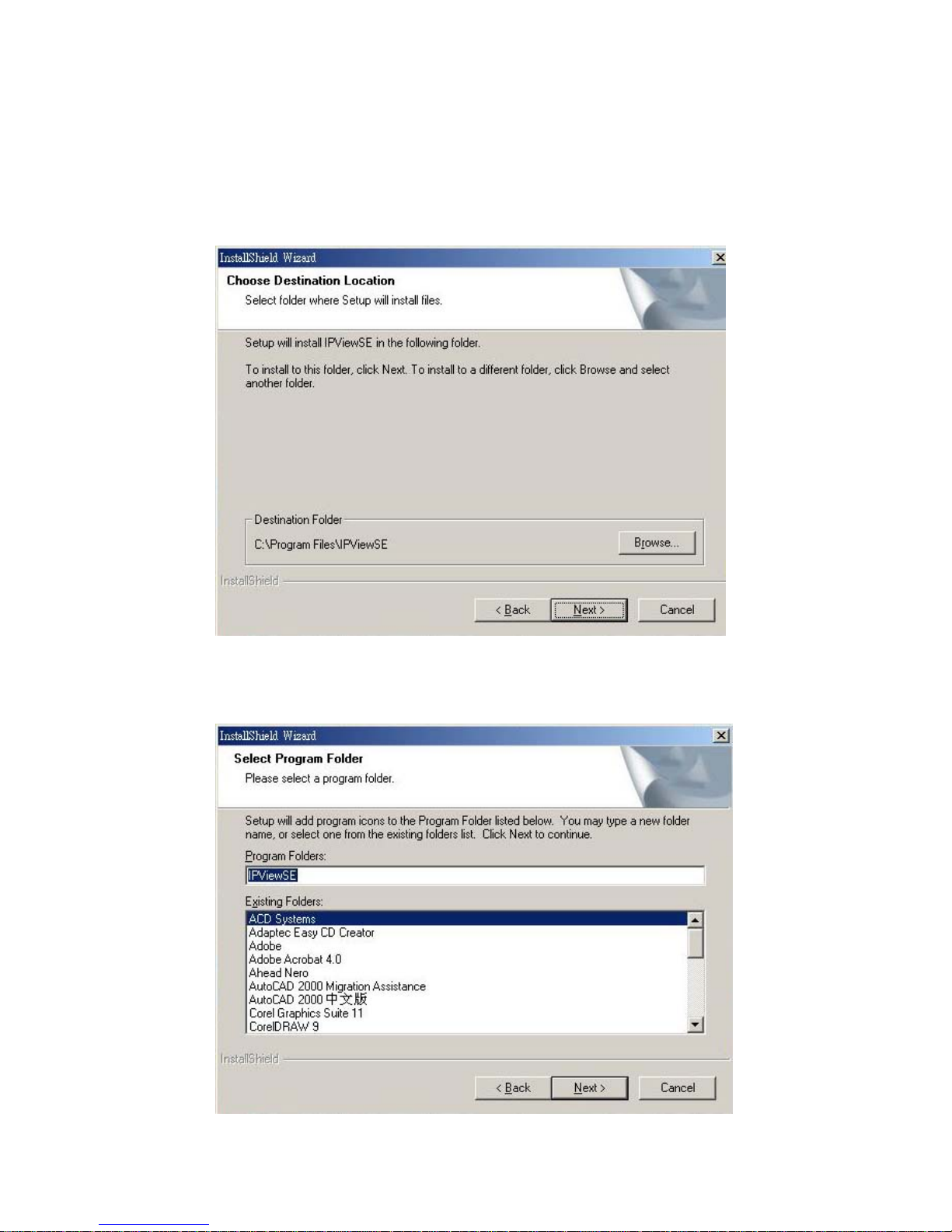

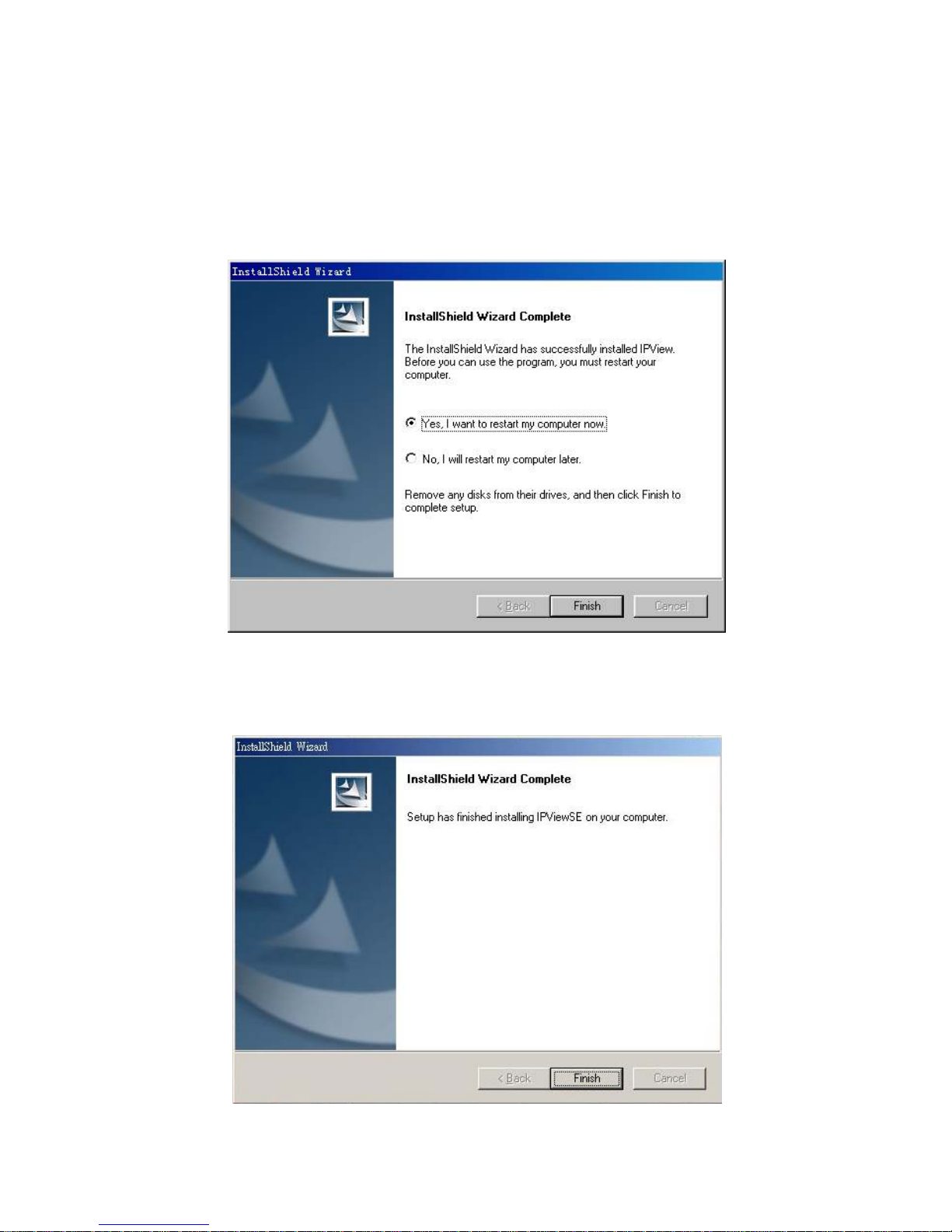

INSTALLATION................................................................................... 52

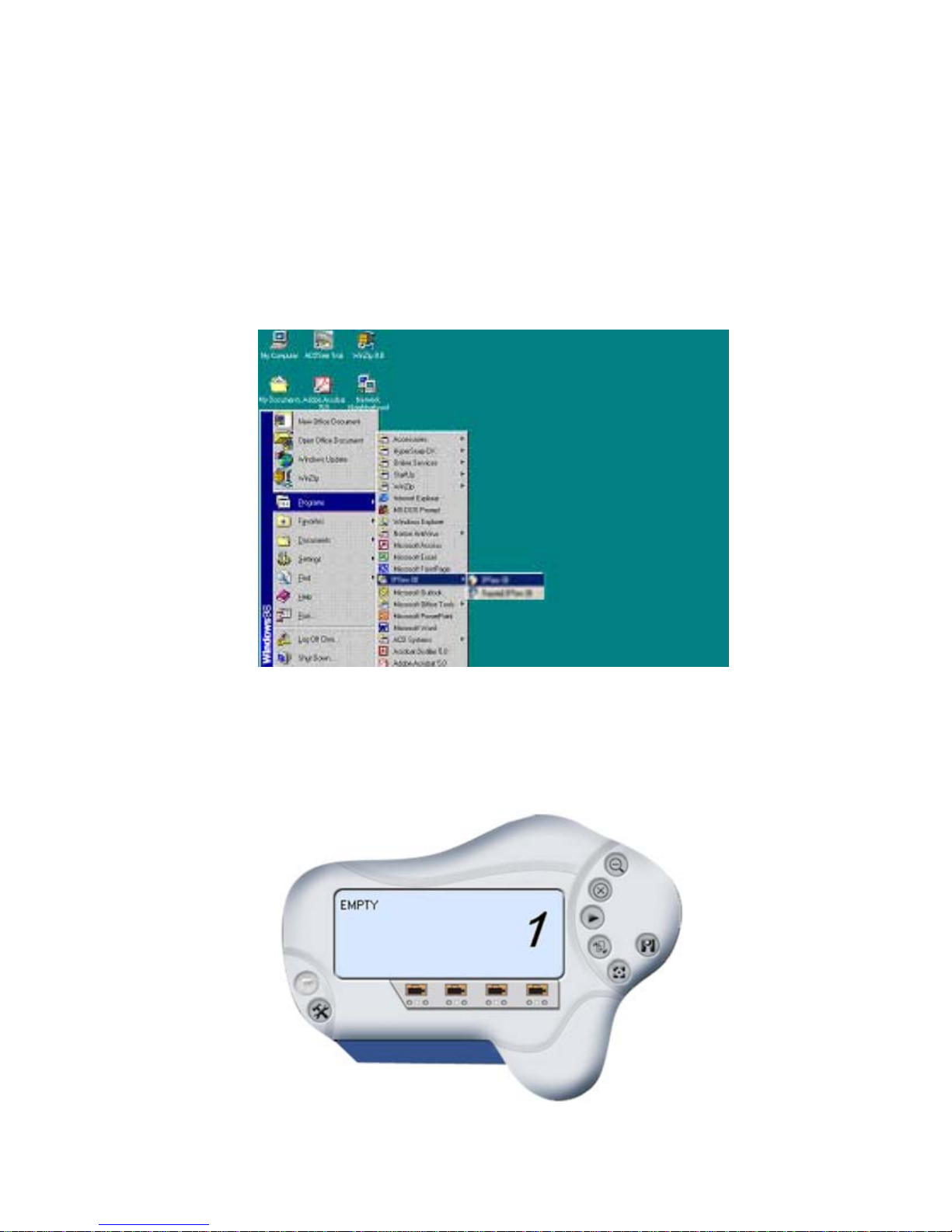

GETTING STARTED....................................................................58
IPVIEW SE ........................................................................................ 58

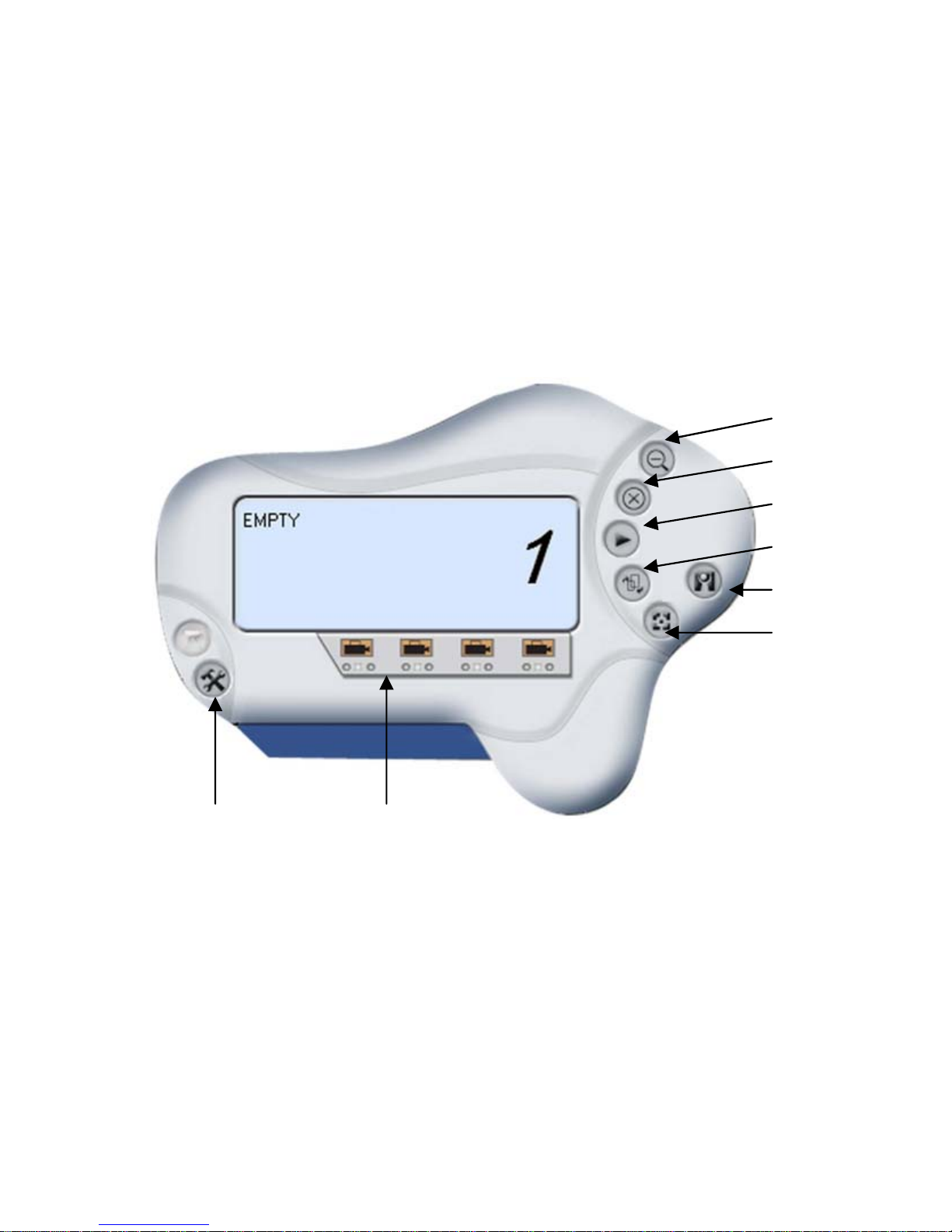

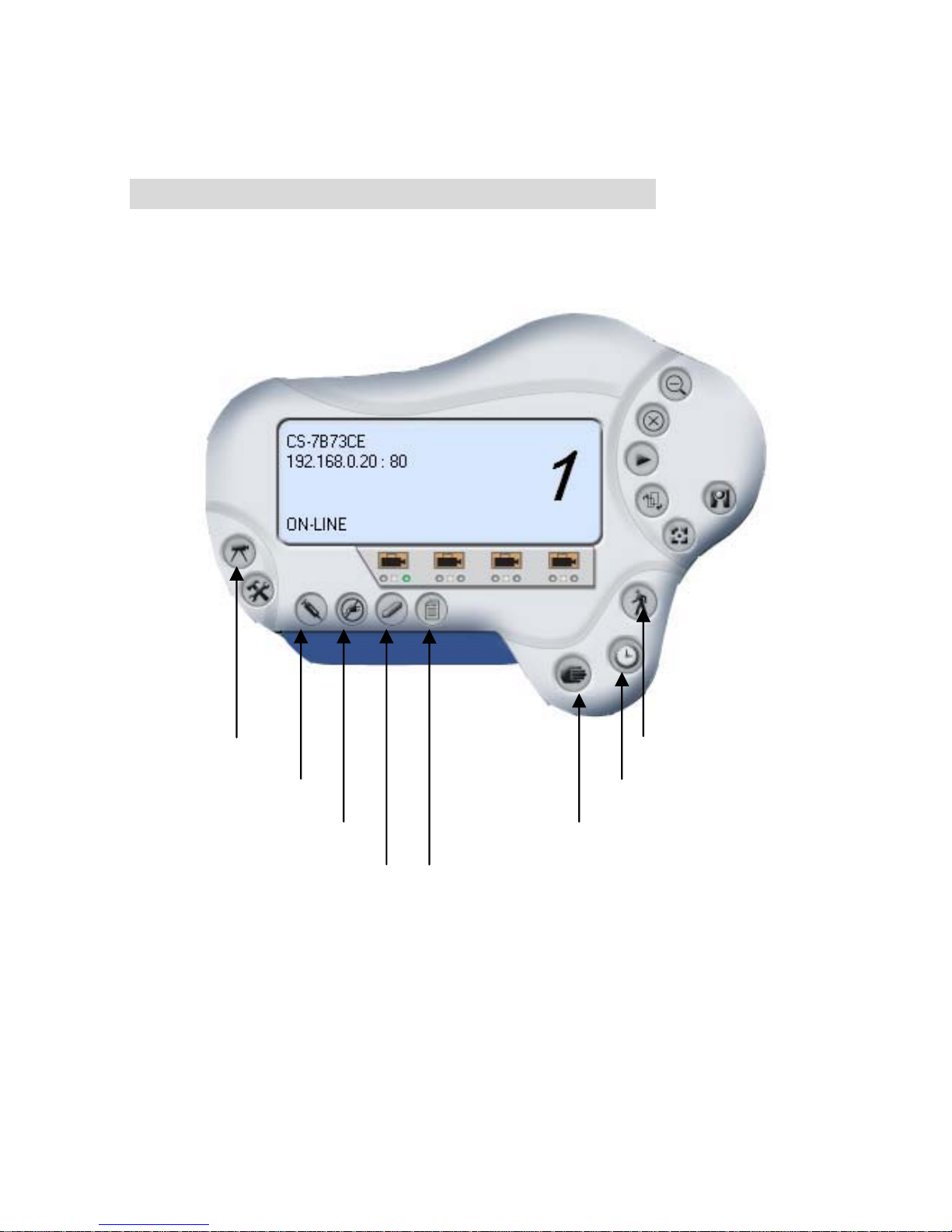

IPView SE control panel.............................................................. 59
Minimize ......................................................................................60
Exit............................................................................................... 60
Play.............................................................................................. 60
2
Scan .............................................................................................60
Combine....................................................................................... 60
About............................................................................................ 60
HOW TO ADD A CAMERA .................................................................. 61

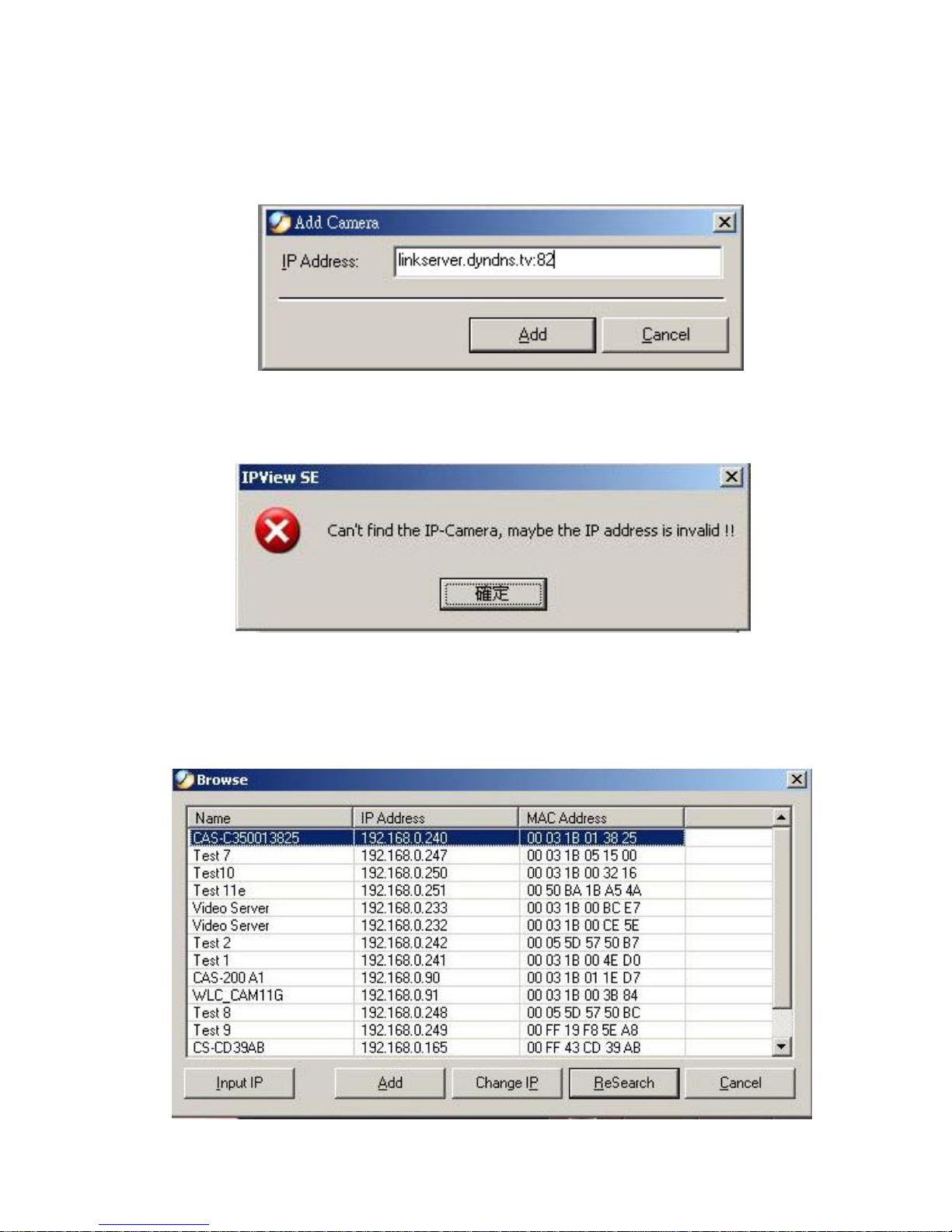

Add Camera................................................................................. 61
HOW TO CHANGE CAMERA ............................................................... 66
Assign IP of New Camera............................................................ 66
HOW TO CONNECT / DISCONNECT THE IMAGE................................... 67
Connect the Image....................................................................... 67
Disconnect the Image................................................................... 70
HOW TO DELETE A CAMERA ............................................................. 71
Erase Camera.............................................................................. 71

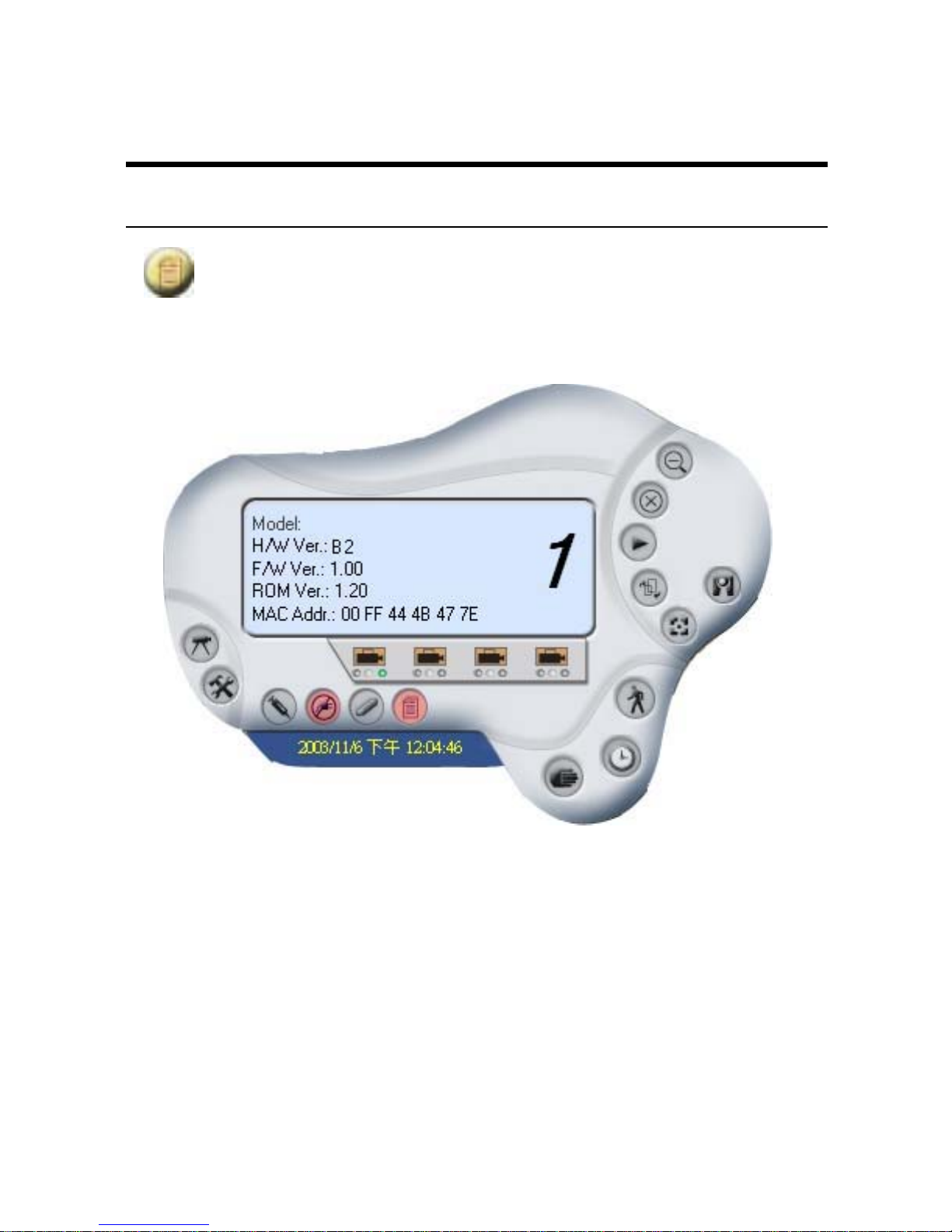

EXTRA INFORMATION........................................................................ 72
Extra Information........................................................................ 72
HOW TO ADJUST THE PROPERTY SETTING......................................... 73

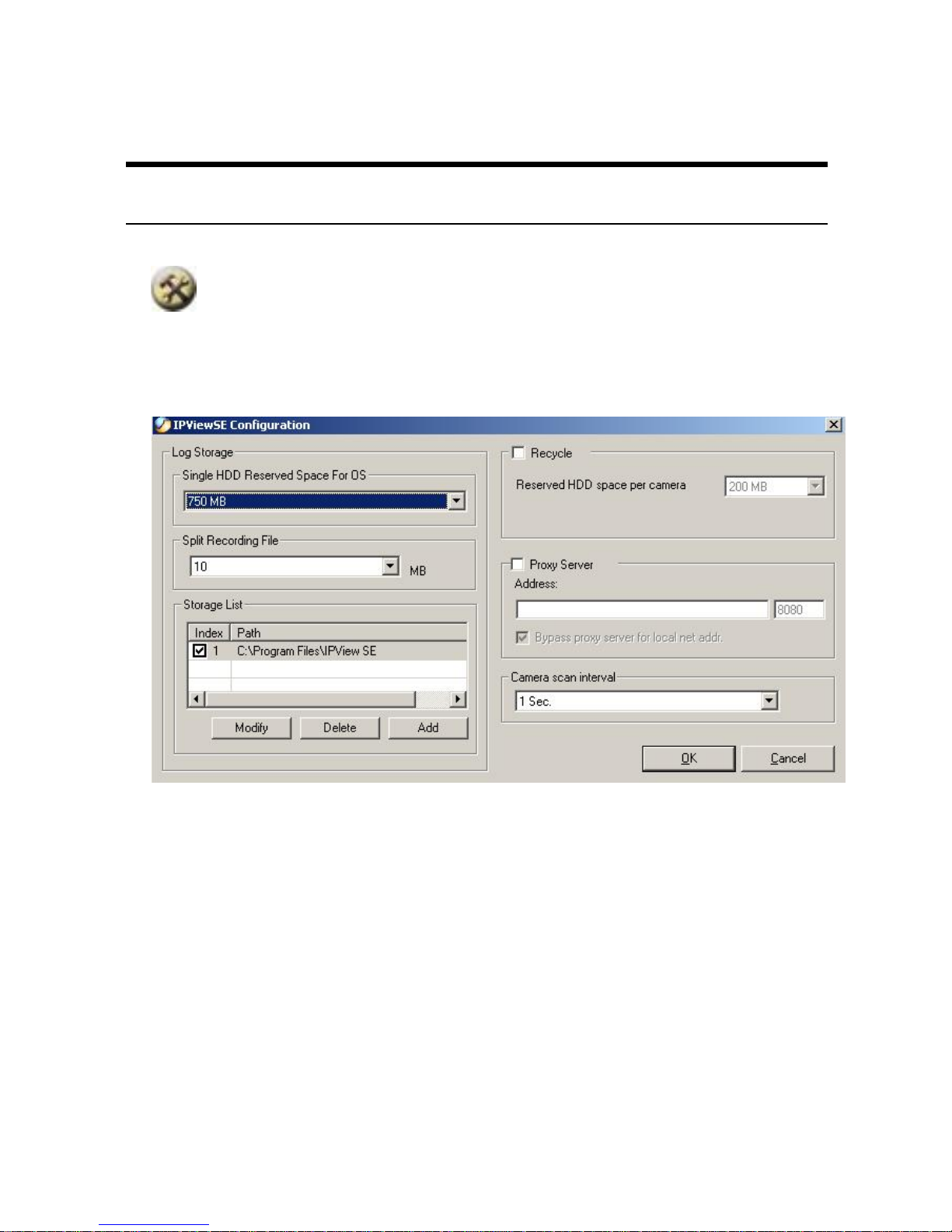

System Configure......................................................................... 73

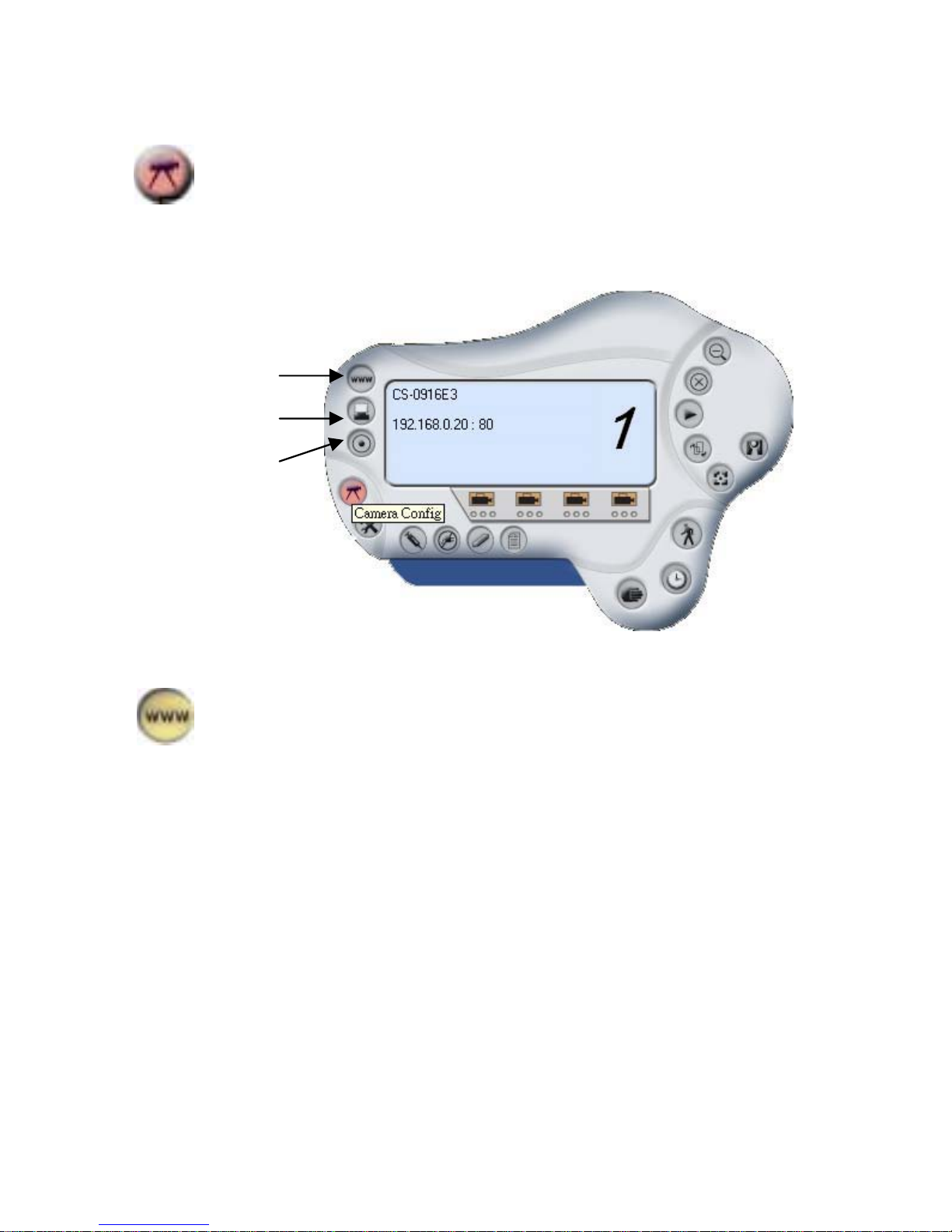

Camera Configure....................................................................... 75
Camera Setting ............................................................................ 75

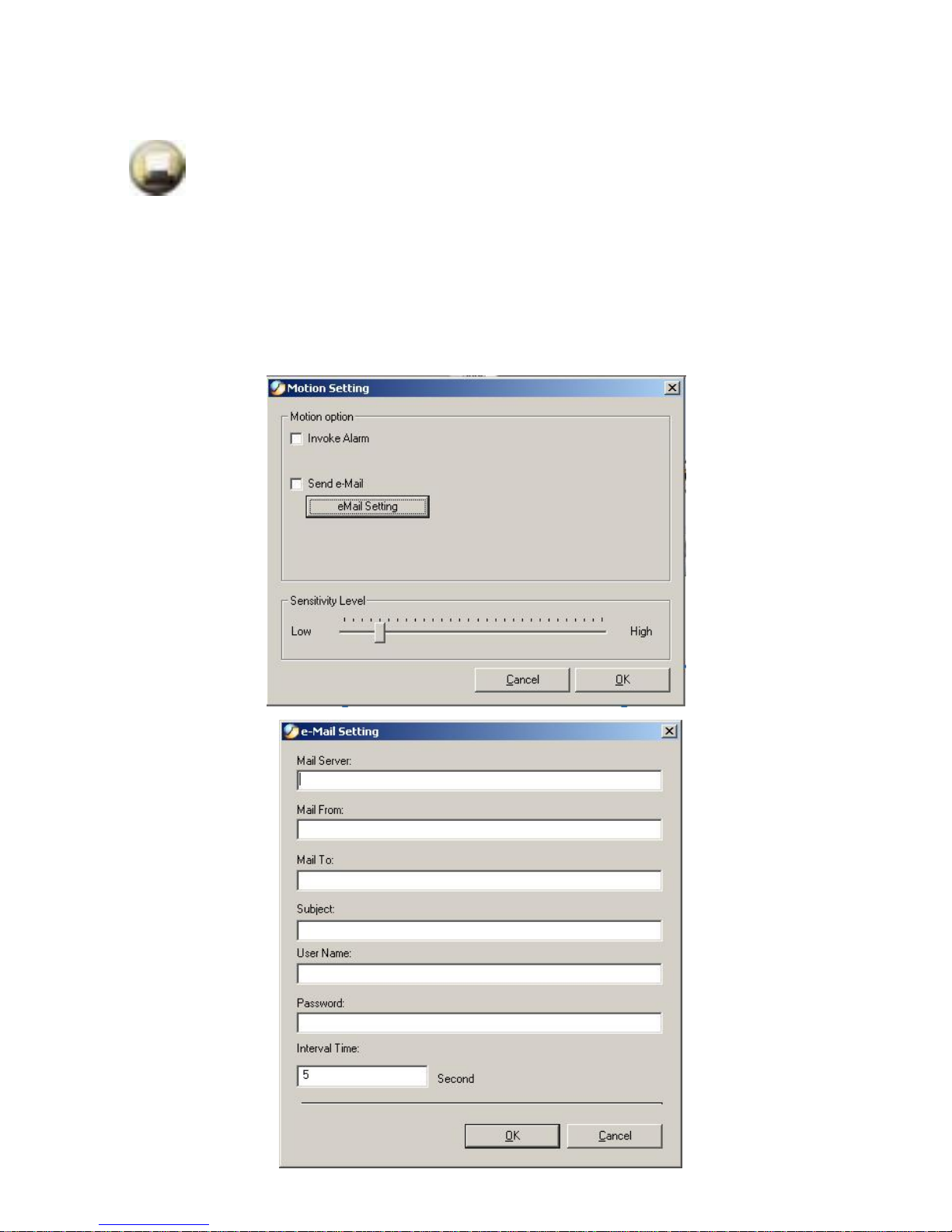

Motion Setting.............................................................................. 76

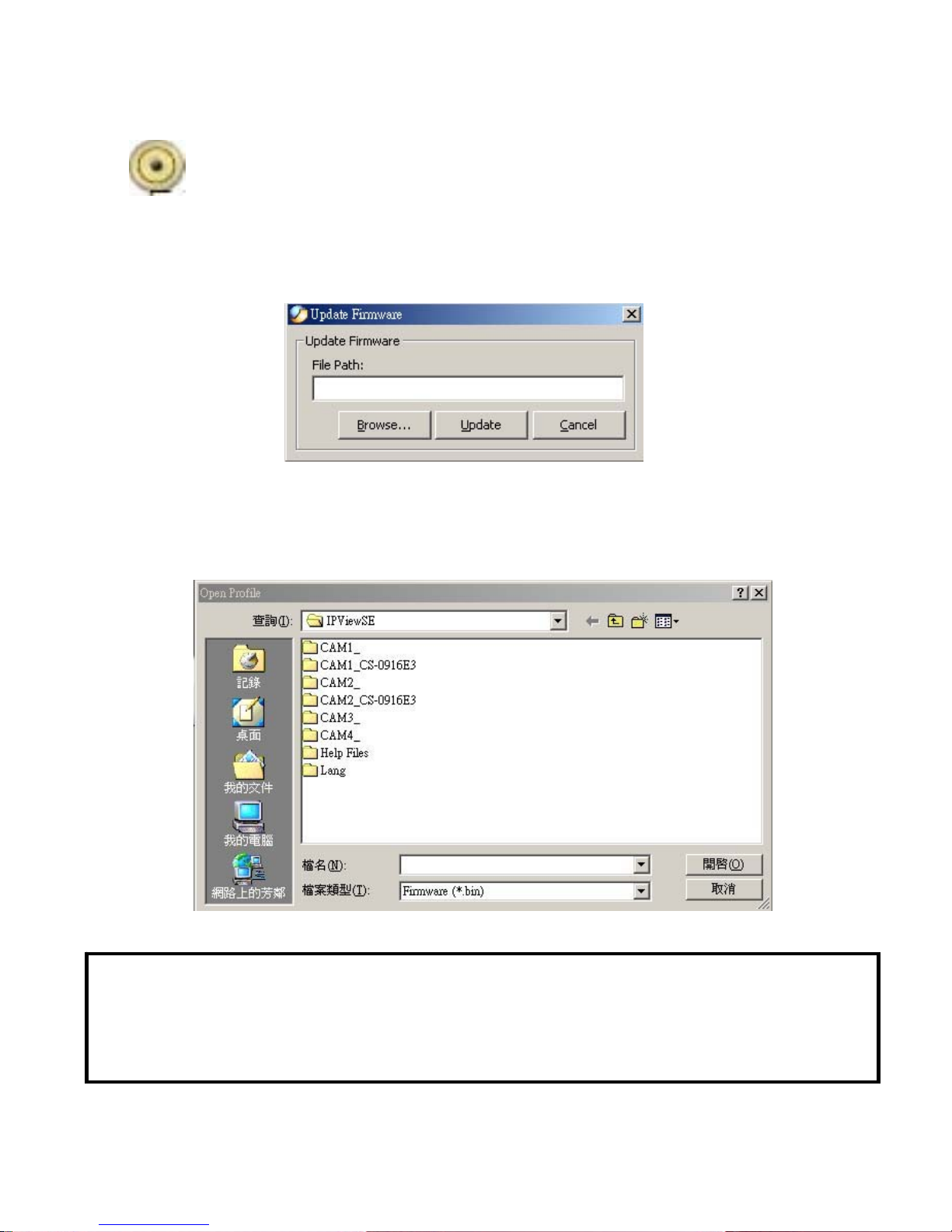

Update Firmware......................................................................... 78

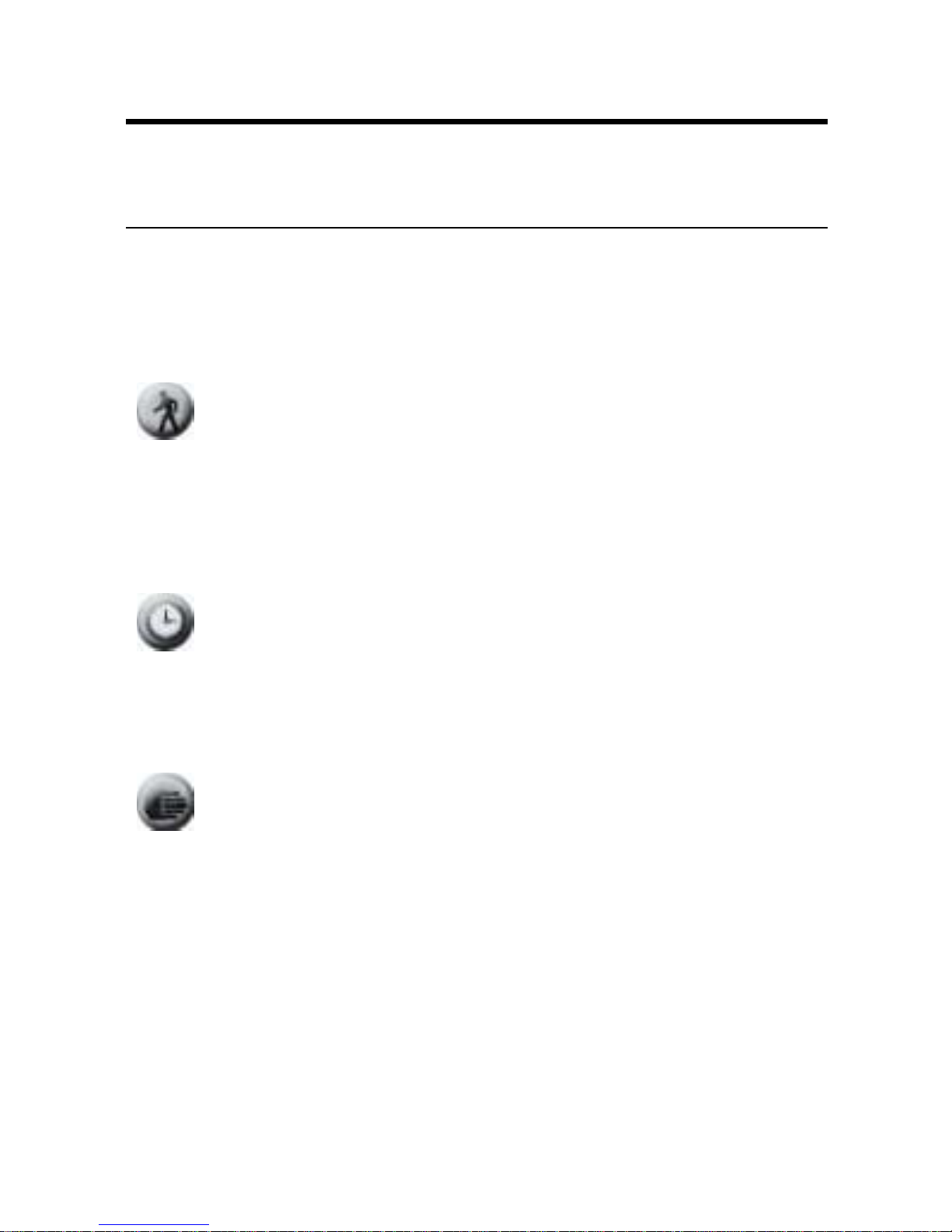

HOW TO ADJUST THE RECORDING SETTING ...................................... 79
Motion Record ............................................................................. 79
Schedule Record.......................................................................... 79
Manual Record............................................................................ 79
APPENDIX .......................................................................................80
A FREQUENTLY ASKED QUESTIONS .................................................. 80
B PING YOUR IP ADDRESS............................................................... 83
C TROUBLE SHOOTING ...................................................................... 84

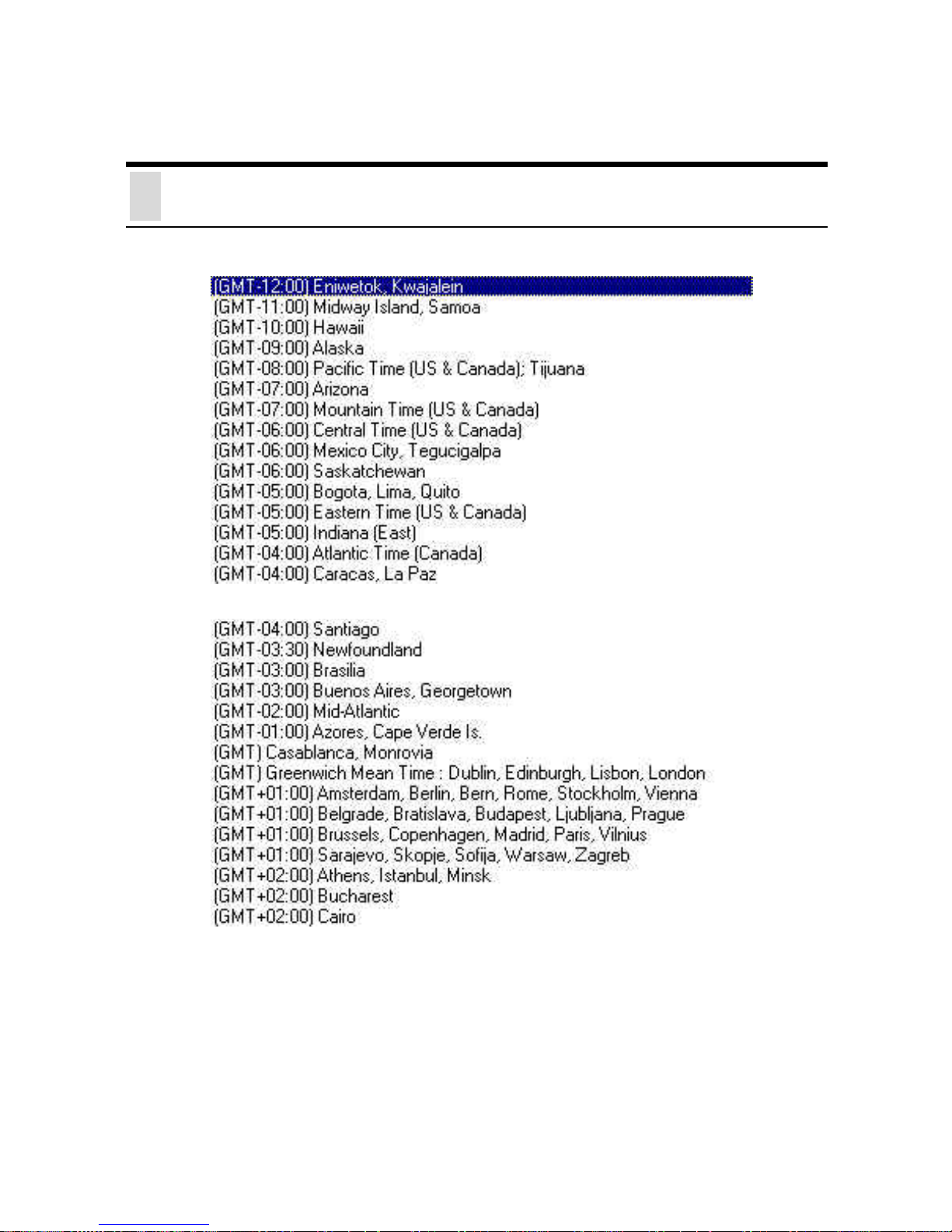

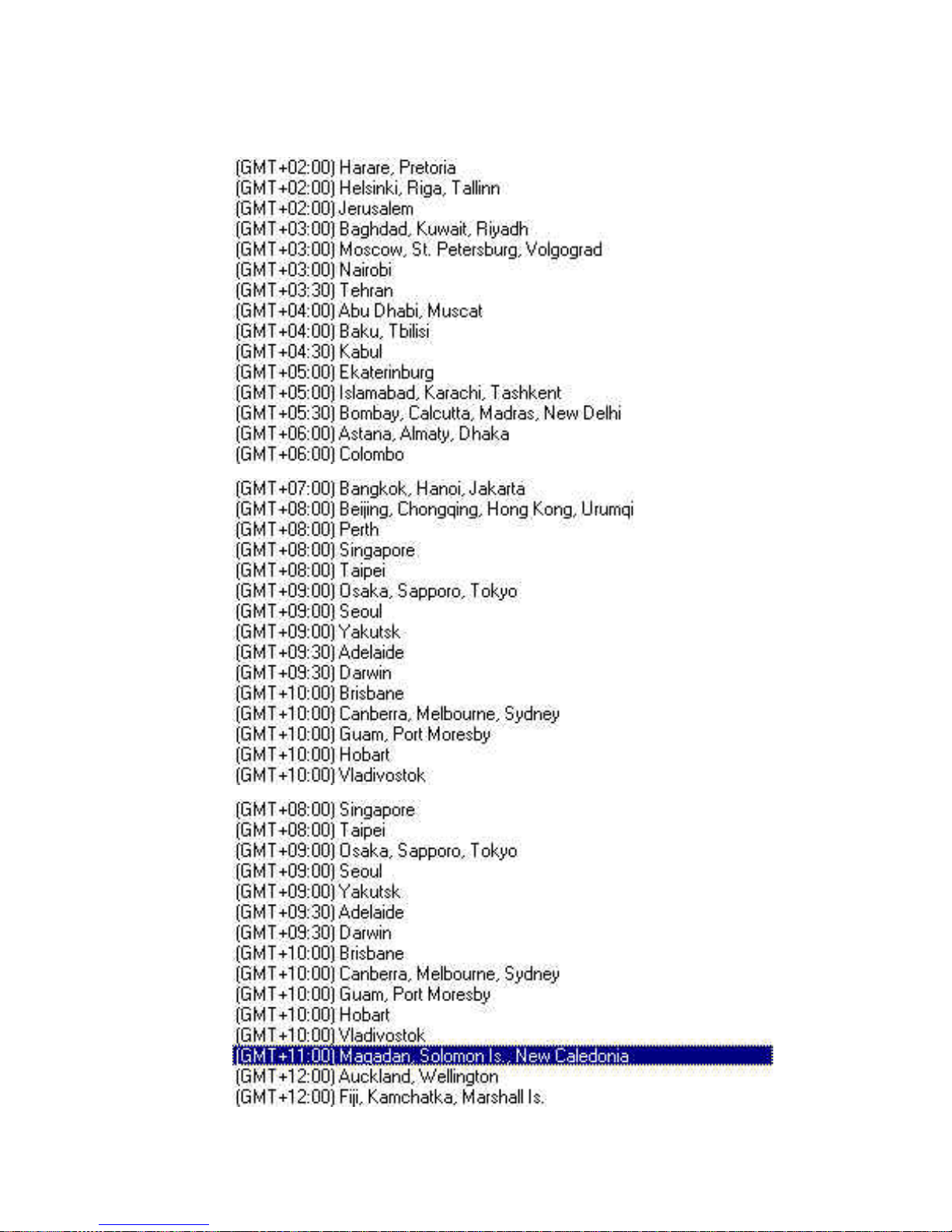

D TIME ZONE TABLE......................................................................... 88

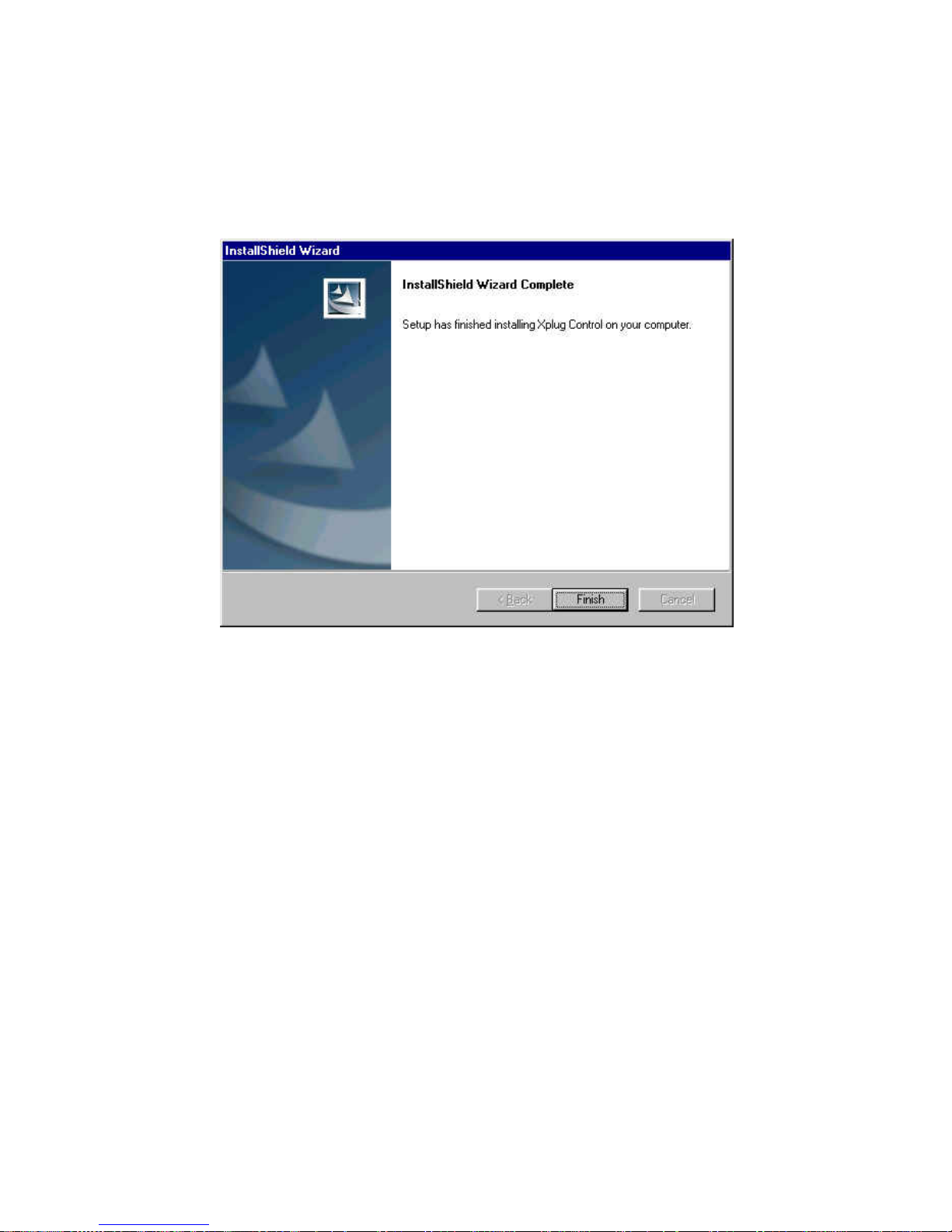

E XPLUG CONTROL INSTALLATION ................................................... 90
F ADJUST IPCAM SECURE300 FOCUS ............................................. 94
G SPECIFICATION .............................................................................. 95
HGLOSSARY OF TERMS ..................................................................... 98
3
1
INTRODUCTION
Thank you for the purchase of the IPCam SECURE300
connecting directly to an Ethernet or Fast Ethernet. It is different
from the conventional PC Camera, the IPCam SECURE300 is a
standalone system with built-in CPU and web-based solutions
providing a low cost solution that can transmit high quality video
images for monitoring. The IPCam SECURE300 can be
managed remotely, accessed and controlled from any
PC/Notebook over the Intranet or Internet via a web browser.
The simple installation procedures and web-based interface offers
easy integration to your network application environments
coupled with many applications such as remote monitoring for a
cost-effective solution.
4
2
SYSTEM
REQUIREMENT
IPCam SECURE300
Network:
Local Area Network: 10Base-T Ethernet or 100Base
TX Fast Ethernet
Recommended PC or Notebook to
Access the IPCam SECURE300
Web Browser:
System requirement:
CPU: Pentium II, 266 MHz or above
Memory Size: 32 MB (64 MB recommended)
VGA card resolution: 800x600 or above
• Internet Explorer 5.0 or above (ActiveX & JAVA Mode –
Image View for Windows OS and JAVA Mode – Image
View for other OS)
• Netscape 6.0 or above (JAVA Mode – Image View)
5
IPView SE Application:
Support OS: Win 98 SE, Win 2000, Win Me, Win XP
System requirement for IPView SE:
CPU: Pentium III, 450 MHz or above
Memory Size: 128 MB (256 MB recommended)
VGA card resolution: 800x600 or above
6
3
FEATURES AND
BENEFITS
This section describes the features and benefits of the IPCam
SECURE300
Simple To Use
The IPCam SECURE300 is a standalone system with built-in
CPU requiring no special hardware or software such as PC frame
grabber cards. The IPCam SECURE300 supports both ActiveX
mode (for Internet Explorer users) and Java mode (for Internet
Explorer and Netscape Navigator users). Therefore, all that is
required is a web browser software such as Internet Explorer 5.0
or above or Netscape 6.0 or above. Just plug and view the picture
from your IPCam SECURE300 with a valid IP Address.
7
Support Variety of Platforms
The IPCam SECURE300 supports TCP/IP networking, SMTP email, HTTP and other Internet related protocols, and can be
utilized in a mixed operating system environment such as
Windows, Unix, and Mac. It can be integrated easily into other
www/Intranet applications.
Web Configuration
Applying a standard web browser, the administrator can configure
and manage the IPCam SECURE300 directly from its own web
page via the Intranet or Internet. Up to 64 users name and
password are permitted with privilege setting controlled by the
administrator.
Remote Utility
The powerful IPView SE application assigns the administrator
with a pre-defined user ID and password, allowing the
administrator to modify the IPCam SECURE300 settings from
the remote site via Intranet or Internet. When new firmware is
available, you can also upgrade remotely over the network for
added convenience. Users are also allowed to monitor the image,
and take snapshots.
8
Broad Range of Applications
With today’s high-speed Internet services, the IPCam
SECURE300 can provide the ideal solution for live video images
over the Intranet and Internet for remote monitoring. The IPCam
SECURE300 allows remote access from a web browser for live
image viewing and allows administrator to manage and control
the IPCam SECURE300 anywhere and any time in the world.
Apply the IPCam SECURE300 to monitor various objects and
places such as homes, offices, banks, hospitals, child-care centers,
amusement parks and other varieties of industrial and public
monitoring. The IPCam SECURE300 can also be used for
intruder detection; in addition, it can capture still images for
archiving and many more applications.
9
4
PHYSICAL
DESCRIPTION
This section describes the externally visible features of the IPCam
SECURE300.
Front Panel
Link LED
Power LED
10
Power LED
The Power LED is positioned on the right side of the IPCam
SECURE300’s lens while facing the IPCam SECURE300.
A steady blue light confirms that the IPCam SECURE300 is
powered on.
Link LED
The Link LED is positioned on the right side of the IPCam
SECURE300’s lens while facing the IPCam SECURE300. It is
located right of the Power LED
A steady orange light confirms that the camera has good
connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to
indicate that the IPCam SECURE300 is receiving/sending data
from/to the network.
Rear Panel
Network Cable
Connector
DC Power
Connector
Reset Button
10/100 Ethernet
DC 5V
Reset
Network Cable Connector
The IPCam SECURE300’s rear panel features an RJ-45
connector for connections to 10Base-T Ethernet cabling or
100Base-TX Fast Ethernet cabling (which should be Category 5
twisted-pair cable). The port supports the NWay protocol,
allowing the IPCam SECURE300 to automatically detect or
negotiate the transmission speed of the network.
DC Power Connector
The DC power input connector is located on the IPCam
SECURE300’s rear panel, and is labeled DC 5V with a single
jack socket to supply power to the IPCam SECURE300. Power
will be generated when the power supply is connected to a wall
outlet.
11
12
Reset Button
Reset will be initiated when the reset button is pressed once, and
Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds or when Power LED begins to
light up. Release the reset button and the Power LED will begin
to flash, indicating the IPCam SECURE300 is changing to factory
reset. When factory reset is completed, the IPCam SECURE300
will be set to default value. The IP address will also return to the
default setting as 192.168.0.20.
Top Panel
Screw Hole
Screw Hole
Located on the top panel of the IPCam SECURE300, the screw
hole is used to connect the camera stand onto the IPCam
SECURE300 by attaching the screw head on the camera stand
into the screw hole of the IPCam SECURE300.
13
Bottom Panel
Screw Hole
Screw Hole
Located on the bottom panel of the IPCam SECURE300, the
screw hole is used to connect the camera stand onto the IPCam
SECURE300 by attaching the screw head on the camera stand
into the screw hole of the IPCam SECURE300.
14
15
5
UNPACKING THE
IPCAM SECURE300
Carefully remove all items from the package. In addition to this
User’s Guide, be certain that you have:
• One IPCam SECURE300
• One Installation CD-ROM
• One Quick Installation Guide
• One DC power adapter suitable for your country’s
electric power
• One Camera Stand
• One RJ-45 Ethernet Cable
Connecting the IPCam
SECURE300 to the Camera Stand
The IPCam SECURE300 comes
with a camera stand (optional) with a
swivel ball screw head that can be attached
to the 's bottom
screw hole. Attach the camera stand to
the IPCam SECURE300 and station
it for your application. There are three holes
located in the base of the camera stand
allowing the IPCam SECURE300 to
be mounted on the ceiling or any wall
securely.
16
6
HARDWARE
INSTALLATION
This section describes the Hardware installation procedure for the
IPCam SECURE300.
1 Connect an Ethernet cable
Connect an Ethernet cable to the
network cable connector located
on the IPCam SECURE300’s
rear panel, and then attach it to
17
10/100 Ethernet
DC 5V
Reset
the network.
2 Attach the external power supply
Attach the external power
10/100Ethernet
DC 5V
Reset
supply to the DC power input
connector located on
IPCam SECURE300’s rear panel,
and then connect it to your local
power supply.
Note:
Confirm power source is supplied
from the LED indicators label
Power on the IPCam SECURE300
Is illuminated.
18
19
7
SECURITY
To ensure the highest security and prevent unauthorized usage of
the IPCam SECURE300 the Administrator has the exclusive
privilege to access the System Administration for settings and
control requirements to allow users the level of entry and
authorize the privileges for all users. The IPCam SECURE300
supports multi-level password protection and access to the IPCam
SECURE300 is strictly restricted to define the user who has a
"User Name" and "User Password" that is assigned by the
Administrator.
Administrator can release a public user name and password so
when remote users access the IPCam SECURE300 they will have
the right to view the image transmitted by the IPCam
SECURE300.
Note:
Since the default settings are Null String, it is highly
recommended to set the "Admin ID" and "Admin Password"
when you are the first time to use the IPCam SECURE300. Once
the ID and Password are defined, only the administrator has the
access to management the IPCam SECURE300. This procedure
should be done as soon as possible since the security features with
20
the IPCam SECURE300 will not be enabled until the "Admin ID"
and "Admin Password" is defined.
21
8
SOFTWARE
INSTALLATION
This section describes the Software installation procedure of the
IPCam SECURE300 for Web Configuration and IPView SE
application.
Web Configuration
The IPCam SECURE300 must be configured through its built-in
Web-based Configuration.
Extensive knowledge of LAN will be helpful in setting up the
IPCam SECURE300
From the web browser, enter the default IP address to access the
Welcome screen of the IPCam SECURE300. To configure your
IPCam SECURE300, type http://192.168.0.20 in the address box.
The number is the default IP address of your IPCam SECURE300.
Then, press [Enter]
.
Note:
The PC’s IP address must correspond with the IPCam
SECURE300’s IP address in the same segment for the two
devices to communicate. Therefore, if your PC’s IP address
doesn’t not correspond with the IPCam SECURE300’s IP
address, you MUST modify your PC’s IP address at first.
22
Main Menu Image
After the default IP address is entered from the browser, the
IPCam SECURE300 Welcome screen will appear with a still
image. There will be three options to choose from to set-up and
view your IPCam SECURE300, including:
z View Image – ActiveX Mode
z View Image – Java Mode
z System Administration
23
24
System Administration
Click “System Administration” from the Welcome screen to
access the settings required for the IPCam SECURE300.
There will be several options in the System menu bar to choose
from to set your IPCam SECURE300, including:
z System
z Image
z Users
z Date Time
z Upload
z E-mail
z Information
z Tools
System Administration
System Administration – System
The System menu contains commands for settings that are
required for inputting key details to set-up the IPCam
SECURE300 for operation.
Click "System" in the system administration menu bar, and the
System screen will appear as illustrated below:
25
26
Click “Home” to
return to Welcome
Screen
Camera Name:
This field is used to enter a descriptive name for the device.
The default setting for the Camera Name is CS-xxxxxx, where
xxxxxx is the last six digit of the MAC Address. The maximum
length is 32 (Printable ASCII).
Location:
This field is used to enter a descriptive name for the location used
by the IPCam SECURE300.
Admin:
This field is used to enter the Administrator ID along with the
password to access the System Administration settings. Be sure
to enter the password twice to confirm the details once in the
Admin Password field and again in the Confirm Password field.
The default setting for Admin is blank space (Null String), and
you need to key in the Admin ID with a maximum length of 12
(Printable ASCII) characters and enter the Admin Password with
a maximum length of 8 (Printable ASCII) characters.
It is highly recommended to set the Admin ID and Admin
Password as soon as possible to enable security option for the
IPCam SECURE300 to function.
IP Assignment:
27
Important Information
Access to the IPCam SECURE300 is done through assigning a proper
IP address. Please make sure to use a vacant IP address when you
assign the IP address for the IPCam SECURE300. This will prevent
errors from occurring if the IP address is overlapped.
28
There are two options to select from the IP Assignment:
Manually Assign or Assign Automatically Using.
Manually Assign
You can click “Manually Assign” and directly enter the IP
address.
The default settings are as follows:
• Default IP – 192.168.0.20
• Subnet Mask – 255.255.255.0
• Default Gateway – 0.0.0.0
Assign Automatically Using
If your network is using RARP, BOOTP or DHCP server, you
can click “Assign Automatically Using” and then click
“RARP”, “BOOTP” or “DHCP”. Under this setting the IPCam
SECURE300 will automatically assign an IP address from RARP,
BOOTP or DHCP server. Every time when the camera starts up,
please make sure that the DHCP server is set to assign a static IP
address to your camera.
If your application requires direct connection from an ADSL
modem through the IPCam SECURE300’s RJ-45 LAN port, and
you also have an ISP PPPoE account, click “PPPoE” option and
enter the Service Name, User ID and Password into the respective
fields. The IPCam SECURE300 will get an IP address from the
ISP as starting up.
29
DNS IP Address:
DNS (Domain Name System) server is an Internet service that
translates domain names into IP addresses. Enter at least one
DNS IP Address.
Dynamic DNS:
The Dynamic DNS service allows you to alias a dynamic IP
address to a static hostname in any of the domains, allowing your
computer to be more easily accessed from various locations on
the Internet.
LED Control:
The LED control allows user to setup the LED illumination as
desired. This feature provides the flexibility when surveillance
activity is ON.
There are three options as follows:
z Normal –
Power - Steady On of the LED indicator.
Link - Steady On of the LED indicator. When
LAN activity is present the LED indicator will
flash steadily.
z OFF –
Power - LED indicator is off
Link – LED indicator is off
z Dummy –
Power - Steady On of the LED indicator.
Link -
Steady On of the LED indicator with
random flashing.
The default setting for the LED control is at Normal. When you
have configured the LED control, the correct illumination will be
set after 1 minute.
Loading...
