Genius 1080P 30fps, 720P 30fps, 720P 60fps Quick Start Manual

 English

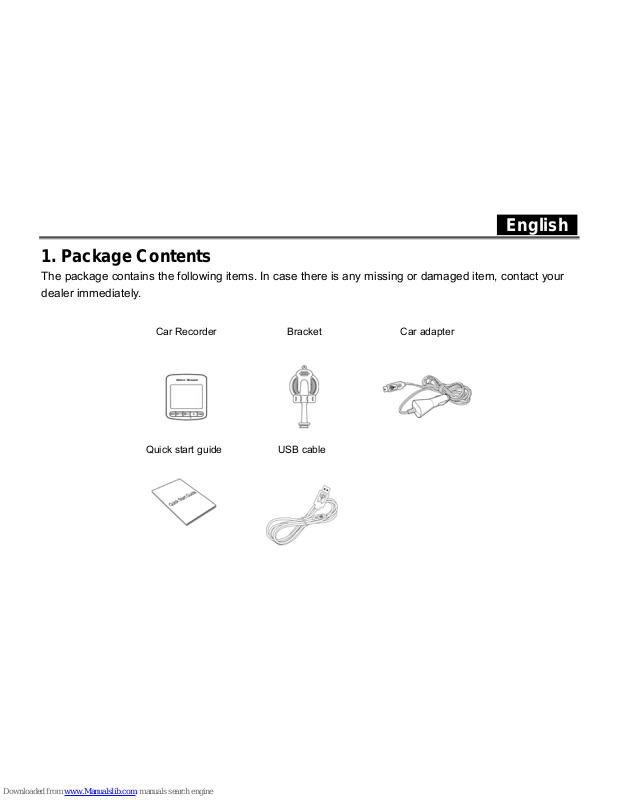

1. Package Contents

The package contains the following items. In case there is any missing or damaged item, contact your

dealer immediately.

Car Recorder Bracket Car adapter

Quick start guide USB cable

 English

2. Product Overview

No. Item

1 Car suction cup
2 Memory Card Slot

Power Switch (On /
off)

3

4 USB Connector
5 T buckle
6 Speaker
7 Reset Button
8 LCD Panel

9 LED Light
10 HD TV OUT
11 MIC
12 Wide Angle Lens
13AV out Slot
14 MENU/Mode
15 Playback/Return
16 Lock file/OK
17 UP(▲)
18 Down ( )/LCD off

 English

3. Mount to Windshield

1. Attach the DVR to the T-buckle bracket. Slide the tripod into the
DVR, ensure that it is fixed in tightly.

2. Place the device in an appropriate place on the windshield, so it
does not obstruct the driver’s view.

3. Attach the bracket to the windshield. Push down on the suction
cup of the bracket and use the side pump to pump out any
excess air ensuring a tight seal.

4. Adjust the angle.

5. Use the car adapter cable
and connect to the cigarette
lighter.

Note:

The orange LED lights up while the battery is charging.
If the outside temperature reaches 45°C or above, the car adapter still can supply power to the device, but it will not charge

the Lithium battery. This is the characteristic of a Lithium battery and not a malfunction.


