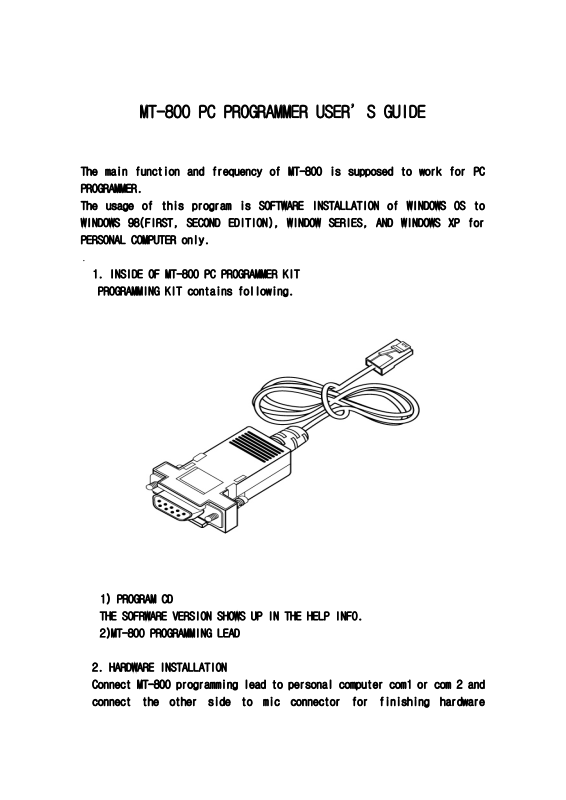

MT-800 PC PROGRAMMER USER’S GUIDE

The main function and frequency of MT-800 is supposed to work for PC
PROGRAMMER.
The usage of this program is SOFTWARE INSTALLATION of WINDOWS OS to
WINDOWS 98(FIRST, SECOND EDITION), WINDOW SERIES, AND WINDOWS XP for
PERSONAL COMPUTER only.
.

1. INSIDE OF MT-800 PC PROGRAMMER KIT
PROGRAMMING KIT contains following.

1) PROGRAM CD
THE SOFRWARE VERSION SHOWS UP IN THE HELP INFO.

2)MT-800 PROGRAMMING LEAD

2. HARDWARE INSTALLATION
Connect MT-800 programming lead to personal computer com1 or com 2 and
connect the other side to mic connector for finishing hardware

installation.

3. SOFTWARE INSTALLATION
There’s a CD include in the programming kit and inside of CD,
there’s program called MT-800.EXE FILE, click that file, then it
appears to be like below, and that would be end of the software
installation.

※Importance of PC PROGRAM

1) Before start PC PROGRAM, make sure for read or write program, to
follow steps below.
1-1) for write

MONITOR BUTTON + POWER ON

WRITE → DISPLAY AT THE LCD
MODE BUTTON
WRITE NOW → DISPLAY AT THE LCD

1-2) for read

MONITOR BUTTON + POWER ON
CHANNEL UP OR DOWN BUTTON
READ → DISPLAY AT THE LCD
MODE BUTTON
READ NOW → DISPLAY AT THE LCD

4. Model selection
If install MJT-800.EXE file in the computer, it appears model selection
block window and will blank, but right now the program is set for only
MT-800, so no need to select the extra and get to programming right away.

5. Setting up for system option
