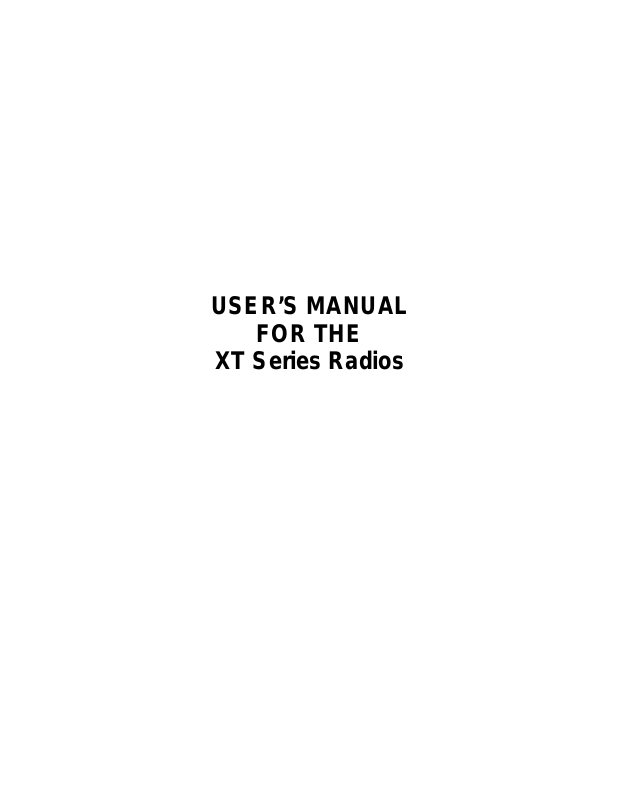

USER’S MANUAL

FOR THE

XT Series Radios

XT-Series Genex Portable LMR radio

- Function description

1. power on& volume control

(1) Power On

Turn radio on by turning the power/volume Rotary switch
clockwise out of detent. When radio turns on, it make beep
sound.

(2) Power Off

Turning the power /volume rotary switch counterclockwise out

of detent

(3) Volume up/down

Adjusting level of volume by turning Volume rotary switch.

2. Channel Selecting (Up/Down)

User can choose a channel by adjusting Channel rotary switch

3. RX Operation

1) Busy condition is that unit is receiving a signal fixed in its channel
Unit in the busy condition will be operated according to a fixed input
of tone and two Tone. Unit out of busy condition will remain LED Off

2) Correct Call
If a incoming signal has same tone as a fixed input of tone in
selected channel,
This signal is called “Correct Unit will open Audio with Green LED, If
a incoming signal is not correct call, LED will be On in orange.

3) Monitor Operation
Whenever Monitor button is pressed, Audio must be opened
regardless of the condition of busy or correct call.

- Monitor On : press Monitor button in left side of radio, Audio will be
opened.

If press Monitor button for five seconds, Monitor button will be
locked and then a opened audio will be maintained, even
though user release monitor button. If user release monitor
button within five seconds, Monitor function will be Off and then
Audio will be controlled by a incoming signal.

To be out of Monitor condition, Just press monitor again.

4) Scan operation

- Normal scan On : Press Sacn Button on the left side of radio for two
seconds,
User can initiate scan with beep sound. If no conversation is detected

on any channel in the scan list, Radio will make Error beep sound,

Once Scan starts, LED will flash in order of the following step
repeatedly as below
RED ==? GREED ===? Orange
It indicates that Scan is on progress.
To stop scanning, Press Scan button again for a two seconds,
Radio will go back to the original channel used before start a scan
and then radio stops flashing LED.
If a conversation is detected a correct call, radio will stop on that
channel and user will be able to hear the conversation. If
programmed for normal scan TX, you will be able to transmit on
that active channel during the programmable scan delay time. The
scan delay time is the amount of time. Radio will stay on that
channel once activity has cased. The radio will resume scanning
once the scan delay time has expired. Scanning will continue until
the channel is changed or press scan button again.

- Scan channel Delete : To temporarily delete a channel from the
scan list,
simply press the scan button for a short time while stopped on
the channel
to be detected. This will remove that channel from the scan list
until the
channel is changed or the radio’s power is reset. When power is
restored
or the scan list channel position is again selected, the original
dealer
programmed scan list will be activated.

- Priority Scan On : A single channel is programmed as the “

Priority” channel.

The radio will constantly monitor this channel with flashing LED
while scanning and when the radio has stopped on an active
channel. If a call is detected on the “priority” channel, the radio
will automatically move to, and remain on the “ Priority” channel
as long as the priority conversation takes places. “priority”
channel activity takes precedence over all other conversations.

- Priority Scan Off : To be out of “Priority scan” Just change

Channel.
