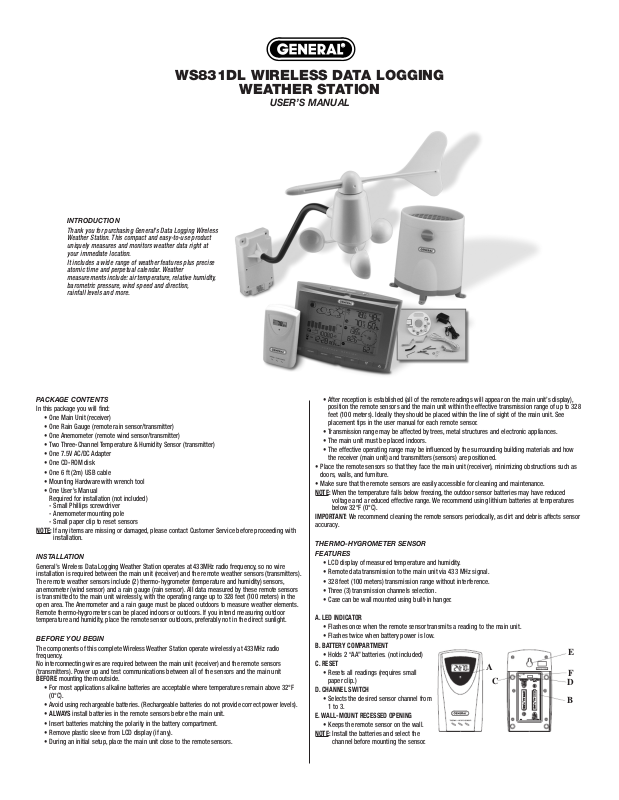

Thank you for purchasing General’s Data Logging Wireless
Weather Station. This compact and easy-to-use product
uniquely measures and monitors weather data right at
your immediate location.
It includes a wide range of weather features plus precise
atomic time and perpetual calendar. Weather
measurements include: air temperature, relative humidity,
barometric pressure, wind speed and direction,
rainfall levels and more.
WEATHER STATION
USER’S MANUAL
PACKAGE CONTENTS
In this package you will find:
• One Main Unit (receiver)
• One Rain Gauge (remote rain sensor/transmitter)
• One Anemometer (remote wind sensor/transmitter)
• Two Three-Channel Temperature & Humidity Sensor (transmitter)
• One 7.5V AC/DC Adapter
• One CD-ROM disk
• One 6 ft (2m) USB cable
• Mounting Hardware with wrench tool
• One User’s Manual
Required for installation (not included)
- Small Phillips screwdriver
- Anemometer mounting pole
- Small paper clip to reset sensors
NOTE
: If any items are missing or damaged, please contact Customer Service before proceeding with
installation.
INSTALLATION
General’s Wireless Data Logging Weather Station operates at 433MHz radio frequency, so no wire
installation is required between the main unit (receiver) and the remote weather sensors (transmitters).
The remote weather sensors include (2) thermo-hygrometer (temperature and humidity) sensors,
anemometer (wind sensor) and a rain gauge (rain sensor). All data measured by these remote sensors
is transmitted to the main unit wirelessly, with the operating range up to 328 feet (100 meters) in the
open area. The Anemometer and a rain gauge must be placed outdoors to measure weather elements.
Remote thermo-hygrometers can be placed indoors or outdoors. If you intend measuring outdoor
temperature and humidity, place the remote sensor outdoors, preferably not in the direct sunlight.
BEFORE YOU BEGIN
The components of this complete Wireless Weather Station operate wirelessly at 433MHz radio
frequency.
No interconnecting wires are required between the main unit (receiver) and the remote sensors
(transmitters). Power up and test communications between all of the sensors and the main unit
BEFORE mounting them outside.
• For most applications alkaline batteries are acceptable where temperatures remain above 32°F
(0°C).
• Avoid using rechargeable batteries. (Rechargeable batteries do not provide correct power levels).
• ALWAYS install batteries in the remote sensors before the main unit.
• Insert batteries matching the polarity in the battery compartment.
• Remove plastic sleeve from LCD display (if any).
• During an initial setup, place the main unit close to the remote sensors.
• After reception is established (all of the remote readings will appear on the main unit’s display),
position the remote sensors and the main unit within the effective transmission range of up to 328
feet (100 meters). Ideally they should be placed within the line of sight of the main unit. See
placement tips in the user manual for each remote sensor.
• Transmission range may be affected by trees, metal structures and electronic appliances.
• The main unit must be placed indoors.
• The effective operating range may be influenced by the surrounding building materials and how
the receiver (main unit) and transmitters (sensors) are positioned.
• Place the remote sensors so that they face the main unit (receiver), minimizing obstructions such as
doors, walls, and furniture.
• Make sure that the remote sensors are easily accessible for cleaning and maintenance.
: When the temperature falls below freezing, the outdoor sensor batteries may have reduced
NOTE
voltage and a reduced effective range. We recommend using lithium batteries at temperatures
below 32°F (0°C).
IMPORTANT: We recommend cleaning the remote sensors periodically, as dirt and debris affects sensor
accuracy.
THERMO-HYGROMETER SENSOR
FEATURES
• LCD display of measured temperature and humidity.
• Remote data transmission to the main unit via 433 MHz signal.
• 328 feet (100 meters) transmission range without interference.
• Three (3) transmission channels selection.
• Case can be wall mounted using built-in hanger.
A. LED INDICATOR
• Flashes once when the remote sensor transmits a reading to the main unit.
• Flashes twice when battery power is low.
B. BATTERY COMPARTMENT
• Holds 2 “AA” batteries. (not included)
C. RESET
• Resets all readings (requires small
paper clip.)
D. CHANNEL SWITCH
• Selects the desired sensor channel from
1 to 3.
E. WALL-MOUNT RECESSED OPENING
• Keeps the remote sensor on the wall.
NOTE
: Install the batteries and select the
channel before mounting the sensor.
G
D
C
F
H
E
A
B
BATTERY INSTALLATION
D
G
H
I
E
F
• Remove the screws from the battery compartment with a small Phillips screwdriver.
Set the channel 1 through 3. The switch is located in the battery compartment. Set one sensor to
•
Channel 1 and the second sensor to Channel 2, etc. The sensors must operate on
separatechannels.
• Install 2 “AA” batteries matching the polarities shown in the battery compartment.
• Replace the battery compartment door and secure the screws.
• Secure the thermo-hygrometer remote sensor in the desired location.
OUNTING
M
• The remote thermo-hygrometer sensor can be placed on the flat surface or mounted on the wall in
ertical position.
v
• Use the wall mount hardware and screws provided when mounting the thermo-hygrometer sensor
on the wall.
PLACEMENT TIPS:
• The remote thermo-hygrometer sensor should be placed in the area with a free air circulation
and sheltered from the direct sunlight and an extreme weather conditions.
• Ideally, place the thermo-hygrometer sensor above the natural surfaces (such as a grassy lawn).
• Avoid placing the thermo-hygrometer sensor near sources of heat such as chimneys and heating
elements.
• Avoid areas that collect or radiate heat from the sun, such as metal, brick/concrete structures,
paving,
or patio decks.
The best location for temperature measurements is 4 feet (1.25meters) above the ground.
•
RAIN GAUGE
FEATURES
• Precipitation measurement.
• Remote rainfall data transmission to the main unit via 433 MHz signal.
• 100 feet (30 meters) transmission range without interference.
• Built-in installation level.
A. RAIN GAUGE BUCKET
Contains electronic components.
B. KNOB
Secures the top on the rain gauge bucket.
C. RAIN GAUGE FEET
Secures the rain gauge in
place.
D. FUNNEL-SHAPED TOP WITH
BATTERY COMPARTMENT
Contains battery compartment
and rainfall counting
electronics.
E. BATTERY COMPARTMENT
Holds two “AA” batteries.
F. SCREWS
Secures battery compartment
cover.
G. BUILT-IN LEVEL WITH BUBBLE
Ensures level rain gauge
mounting for proper operation.
H. BUCKET SEE-SAW MECHANISM
Collects the rainfall in one of its containers and self-empties once full.
I. PROTECTIVE SCREEN
Protects the rain gauge funnel from debris.
BATTERY INSTALLATION
• Unlock the funnel-shaped top on the rain gauge by turning both knobs on the sides in an anticlockwise direction.
• Remove the funnel-shaped top lifting it off the rain gauge bucket.
• Remove 7 small screws from the battery compartment cover using a small Phillips screwdriver.
• Insert 2 “AA” batteries (not included), matching the polarities as shown in the battery
compartment.
• Replace the battery compartment door and secure the screws.
• Insert the funnel-shaped top into the rain gauge bucket and secure it in place by turning the knobs
clockwise.
MOUNTING
• Make sure that the rain gauge bucket is level – check inside built-in level for bubble center.
• Place the protective screen over the top to protect the rain gauge from the debris.
• Where practical, mount the rain gauge in place with wood screws (not included).
• Make sure that the rain gauge is in open area where precipitation falls directly into the gauge’s
bucket,
ideally 2-3 feet above the ground.
PLACEMENT TIPS
• The rain gauge should be placed in an open area away from the walls, fences, trees and other
coverings which may reduce the amount of rain falling into the bucket. Additionally, trees and
rooftops may be sources of pollen and debris.
• To avoid the rain shadow effects, place the rain gauge horizontally, on the distance corresponding
to two to four times the height of any nearby obstruction.
• It is important to locate the unit where rain can flow away freely.
ANEMOMETER (WIND SENSOR)
EATURES
F
• Wind speed and wind direction measurement.
• Remote wind speed and wind direction data transmission to the main unit via 433 MHz signal.
• Operating range 100 feet (30 meters).
• Wall or pole mount.
A. WIND VANE - Indicates wind direction.
B. WIND CUPS - Measures wind speed.
C. ANEMOMETER BASE
• Holds battery compartment.
• Allows mounting the anemometer vertically.
D. ANEMOMETER ARM
Connects battery to anemometer
head assembly.
. WIND CUPS SHAFT
E
Holds wind cups on the a
nemometer arm.
F. BATTERY COMPARTMENT
Holds 2 “AA” batteries.
G. WALL MOUNT SCREW OPENINGS - Allows securing the anemometer in place.
H. BATTERY COVER - Secures battery compartment on the anemometer base.
ASSEMBLY
Slide the wind cups on to the anemometer rotating shaft. Do not use force.
•
• Insert the Allen Wrench (provided) into the wind cup set screw opening. Tighten the set screw to
secure wind cups to the rotating shaft.
Test to ensure cups are securely fastened to the shaft.
•
BATTERY INSTALLATION
• Remove four (4) screws from the battery compartment with a small Phillips screwdriver.
Open the battery compartment and install 2 “AA” batteries (not included) matching the polarities
•
shown.
• Replace the battery compartment door and secure the screws.
LIGNING
A
• Point the wind direction vane to the north (use a compass or map if necessary).
• Press the button inside the “SET” opening located inside battery compartment with a paper clip.
“SET” selects a new direction for NORTH and, when pressed repeatedly, alternates between the
factory default NORTH and user selected NORTH.
: Repeat this procedure after changing the batteries.
NOTE
MOUNTING
Mount the anemometer onto a vertical surface, using the fittings provided.
PLACEMENT TIPS:
• The anemometer should be mounted in an open area with a free air flow; away from the nearby
trees, buildings or other structures.
• For optimal performance, mount the anemometer at 33 feet (10meters) above the ground in
unobstructed area.
MAIN UNIT
The main unit measures pressure, indoor temperature, humidity, and receives atomic time data from
the US Atomic Clock and outdoor measurements from remote sensors. It should be placed indoors.
FEATURES
TIME
• Precise time and date set via RF signals from US Atomic clock.
• 12 or 24 hour time format.
• Manual adjustment of time and date.
• Calendar displaying date with month and day in 6 languages English, German, French, Italian,
Spanish and Dutch.
• Time Zones for over 100 pre-programmed world cities.
• Moon Phase calendar and historical data for the past and future 39 days.
• Dual crescendo alarms with programmable snooze.
WEATHER
• Weather forecast for the next 12 to 24 hour in seven large icons: Sunny, Partly Cloudy, Cloudy,
Light Rain, Heavy Rain, Unstable Weather and Snowy.
• Barometric pressure in imperial or metric units.
• Altitude adjustment for pressure compensation.
• 24 hour barometric pressure history chart.
• Multiple weather alerts including: Hi/Low temperature, Daily Rainfall, Hi wind gust and Hi wind
speed alerts.
• Indoor/Outdoor Temperature & Humidity in up to 3 remote locations (additional sensors required).
• Dew point and comfort level indicators.
• Wind direction, speed and wind gust averages and memory.
• Rainfall amount with minimum and maximum memory.
• 200 weather records without PC connection.
• PC software (included) and USB port.
• Operating range from 100 feet (30 meters) up to 328 feet (100 meters).
DISPLAY
IABCDEFG
J
K
L
Radio Controlled
Clock Signal Status
Clock Module icon
Time/Date Display
Single Alarm
Weekly/City/Second
Year/UTC time Display
Weekly Alarm
Battery Status
• Light sensor detects low light conditions and LCD lights up automatically when adapter is connected.
OWER
P
• Open the battery compartment door on the back of the main unit.
• Insert four (4) “AA” batteries according to the polarities shown and replace the battery
compartment door.
• Connect 7.5V AC/DC adapter provided to the main display unit and plug into the wall power outlet.
NOTE
: The AC/DC adaptor connection is required for automatic backlight control. When the main unit
operates solely on the battery power, the auto backlight control functions are disabled.
• When placing the main unit on the table or other horizontal surface, connect the table stand to the
ack of the unit.
b
• When mounting the main unit on the wall or vertical surface, detach the table stand and use the
mounting hardware provided.
PLACEMENT TIPS
• Make sure that the main unit is locating within the operating range of all remote sensors.
Ideally the remote sensors should be mounted within the line of sight of the main unit.
•
• Transmission range may be affected by trees, metal structures and electronic appliances.
Test reception before permanently mounting all the remote sensors.
•
void placing the main unit in the following areas:
A
• Direct sunlight and surfaces emitting and radiating heat, such as heating ducts or air conditioners.
Areas with interference from the wireless devices (such as cordless phones, radio headsets, baby
•
listening devices) and electronic appliances.
UTTONS AND CONTROLS
B
INITIAL SET UP
1. Power up each of the remotes as instructed in previous sections.
. Then power up the main display.
2
3. Once the main unit is powered, the display will briefly show all available LCD segments for a
moment.
. IMPORTANT: Do not press any buttons during the set up process which typically takes about
4
The display functions will be automatically set including local altitude and pressure parameters. The
isplay will show the pressure and“inHg” (inches of Mercury) flashing. You will know that the unit
d
s finished when the display shows the default settings for the pressure and altitude (sea level)
i
Indoor/outdoor temperature and humidity readings, remote sensors readings, etc.
any settings can be changed or customized to your preference, after the display has stabilized
M
5-10 minutes.
• The pressure parameters during Initial Setup (See Pressure and Weather Forecast Window).
The time, the date and the weekday language (See Clock and Alarm Window).
•
• The location data will determine the time zone (See Appendix - City Codes).
IMPORTANT: If after the initial setup, the altitude or other parameters are not displayed, or dotted lines
CONNECTING THE WEATHER STATION TO A PC
To collect data from your weather station, connect the main unit to the computer via the USB cable
provided.
Insert the CD-ROM into available drive and install the software following the software install
instructions for the install wizard.
OTE
N
OPERATION AND WINDOW SELECTION
The main unit has five different operating windows each displaying unique data. When a specific
window is selected the corresponding icon will start flashing. Press the UP ▲ button on the main unit
to cycle through the windows clockwise or DOWN ▼ anti-clockwise.
The basic operation of your weather station has been designed to work straight out of the box 10
minutes after power is provided to the main unit. You will have to select a city location following the
steps identified under INITIAL SETUP before proceeding.
CLOCK AND CALENDAR DISPLAYS
are displayed, for example (—.- -) you may have to restart the main unit to reset the unit.
Check our website periodically for useful tips and the latest versions of PC Weather Connect
:
oftware.
s
CLOCK AND ALARMS WINDOW
To alternate your view of the 5 Clock & Calendar displays, briefly press the SET button:
1. Time with the Day of the week.
2. Time with the City abbreviation.
3. Time with the Seconds.
4. Month/ Day/ Year or Day/ Month/ Year.
5. Current UTC Time (Coordinated Universal Time).
MAIN UNIT CONTROL BUTTONS
A. UP ▲- Selects the next available window counter-clockwise.
B. DOWN ▼- Selects the next available window clockwise.
C. SET- Alternates the parameters for the selected window.
- Increases parameters.
- Decreases parameters.
- If depressed and held, enters into the programming mode or changes
parameter’s units.
- Pressed again closes programming mode and confirms selected parameters.
D. CHANNEL- Manually selects the channel # for receiving temperature and humidity
sensor data.
- Enables the temperature and humidity channel auto-scan modes.
E. MEMORY- Records: moon phase, temperature, humidity, rainfall and wind records.
Then stores in memory.
- Moon phase: determined by the day of month interval.
- Sets and stores pressure & altitude units in Memory.
F. HISTORY- Allows displaying the sea-level pressure history.
G. ALARM/CHART- Displays alarm times and programmed alerts for temperature, rainfall and
H. SENSOR
– AUTO, ON, OFF - Sets the light sensor to: automatic, on or off.
I. SENSITIVITY
– HIGH/LOW- Adjusts the automatic light sensor sensitivity.
J. LIGHT/SNOOZE- Illuminates the display backlight for 5 seconds.
K. AC/DC ADAPTOR - Connects main unit to the power outlet through the AC to 7.5V DC adapter
INPUTprovided.
L. USB PORT- USB Port provides PC connectivity.
wind.
- Press and hold, to enter the alarm/alert programming mode.
- Press and hold in pressure and forecast window, to view different bar charts.
- Activates Snooze delay for alarms (programmable 1 to 15 minutes).
SELECTING CLOCK AND ALARM WINDOW
Press main unit UP ▲ or DOWN ▼ until the clock iconnext to the time/date display continues to
flash.
INITIAL SETTINGS: CITY, TIME, DATE AND LANGUAGE
• With the Clock and Alarm icon flashing, press and hold SET button until the day of week language
abbreviation “ENG” will flash.
• Press UP▲ or DOWN ▼ to select the desired language for day of the week in English, German,
French, Italian, Spanish or Dutch.
• Press SET to confirm selection.
• Select the desired City Code flashing (LAX is Los Angeles for example) for your area by pressing
UP▲ or DOWN▼. This will set the unit to the appropriate time zone for your location. Refer to
table, back of this book, for a list of available cities.
• Press SET to confirm the city selection.
• Press UP▲ or DOWN ▼ to select the correct year.
• Press SET to confirm year selection.
• Press UP▲ or DOWN ▼ to select the correct month.
• Press SET to confirm selection.
• Press UP▲ or DOWN ▼ to select the correct date.
• Press SET to confirm selection.
• Press UP▲ or DOWN ▼ to select the correct order of month & year. (M…D).
• Press SET to confirm selection.
• Press UP▲ or DOWN ▼ to select either 12 hour(AM/PM) or 24 hour time (24:00).
• Press SET to confirm selection.
• Press UP▲ or DOWN ▼ to select the correct hour.
• Press SET to confirm selection.
• Press UP▲ or DOWN ▼ to select the correct minute.
• Press SET to confirm selection and to complete the initial programming for your weather station.
After programming is completed, the display will return to the default Clock and Alarm Window.
NOTE
: If you do not complete this sequence your entries will be lost.
NOTE
: Press and hold SET anytime during the setup to return to normal Clock and Alarm Window and
all previous settings will be cancelled.
Loading...
+ 5 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
