A
Front View
Top View
G
D
C
F
B
E
H

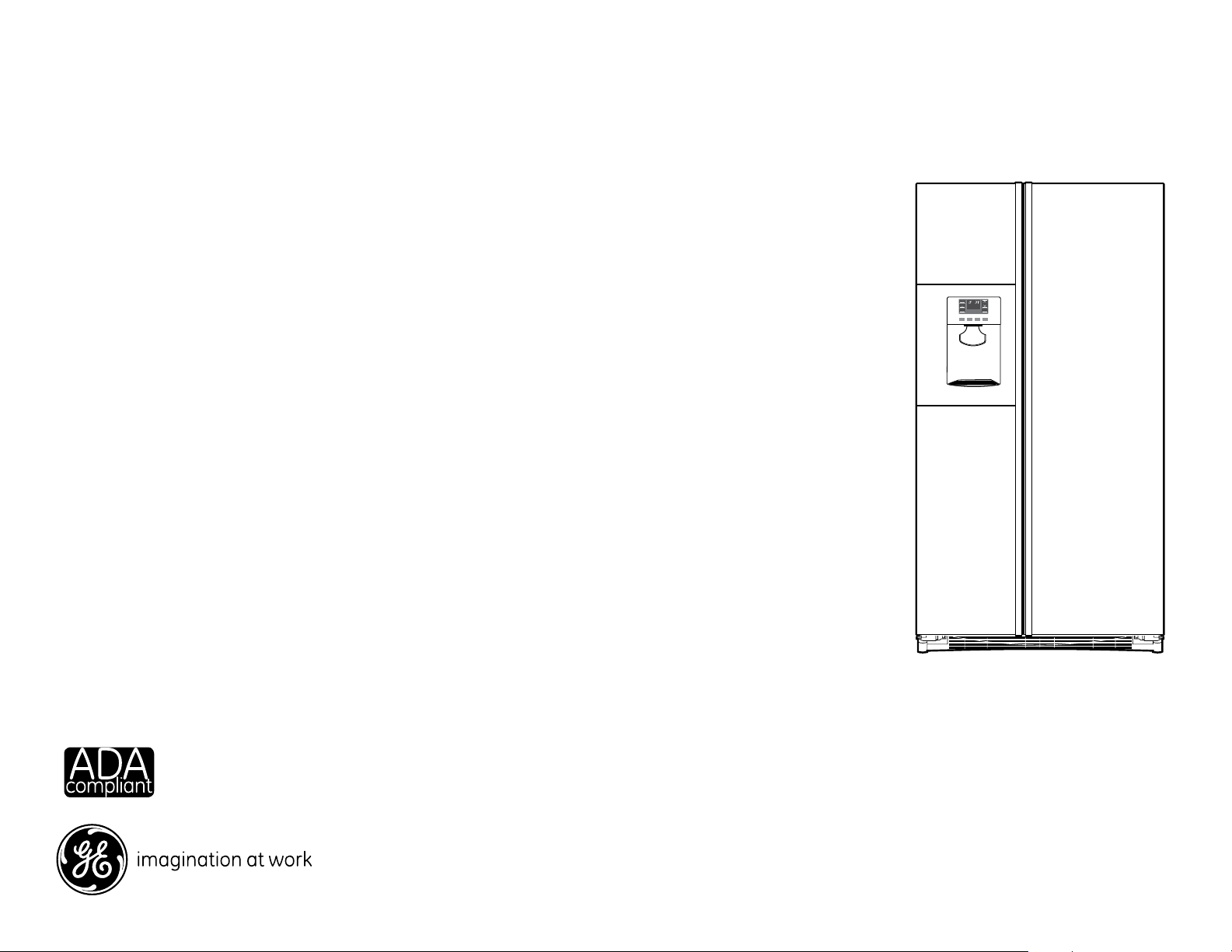

PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 70-3/8*
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 41-3/8
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
* Height to top of door trim (in.): 70-1/4
† Water hook-up fits in back air clearance when calculating
installation depth.
If installed against a wall, allow clearance of 13-15/16" on
freezer side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-5/8".
Allow additional space for any necessary leveling adjustments.
†
†
†
†
68-3/4
23-7/8
27-1/8
29-5/8
46
1/8
1
1
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 5/08
210225
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
70"*†
23 cu. ft. models
72-1/2"*
25 cu. ft. models
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Rough-In Dimensions and Installation Information (in inches)
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to be used or anticipated, see collar
trim installation for different rough-in dimensions
* The rough-in dimensions of 70" for 23 cu. ft. models and 72-
1/2" for 25 cu. ft. models are minimum and measured from the
finished floor to top of opening (or the underside of the overhead
cabinets). For Models with Trim Kit: If frameless style cabinets
are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4" (70-1/4") to height of opening for 23
cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for
additional clearance between the cabinet doors and the top of
refrigerator trim when the cabinet doors are in open position.
† Model PSDW3YGX is 71-3/4"
For answers to your Monogram,
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
®
GE Profile™ or
Listed by
Underwriters
Laboratories
Specification Revised 5/08
210225
70"*
36-1/8"
24-1/2"*
1/2" minimum
*The rough-in dimension of 70" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/4") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Side trim must be installed
flush with the gasket contact
surface on the case.
Refrigerator
Case
Side TrimDoor Gasket
Overhead
Cabinet
Cabinet
Door
Top Trim
Case
1"
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Rough-In Dimensions and Installation Information (in inches)

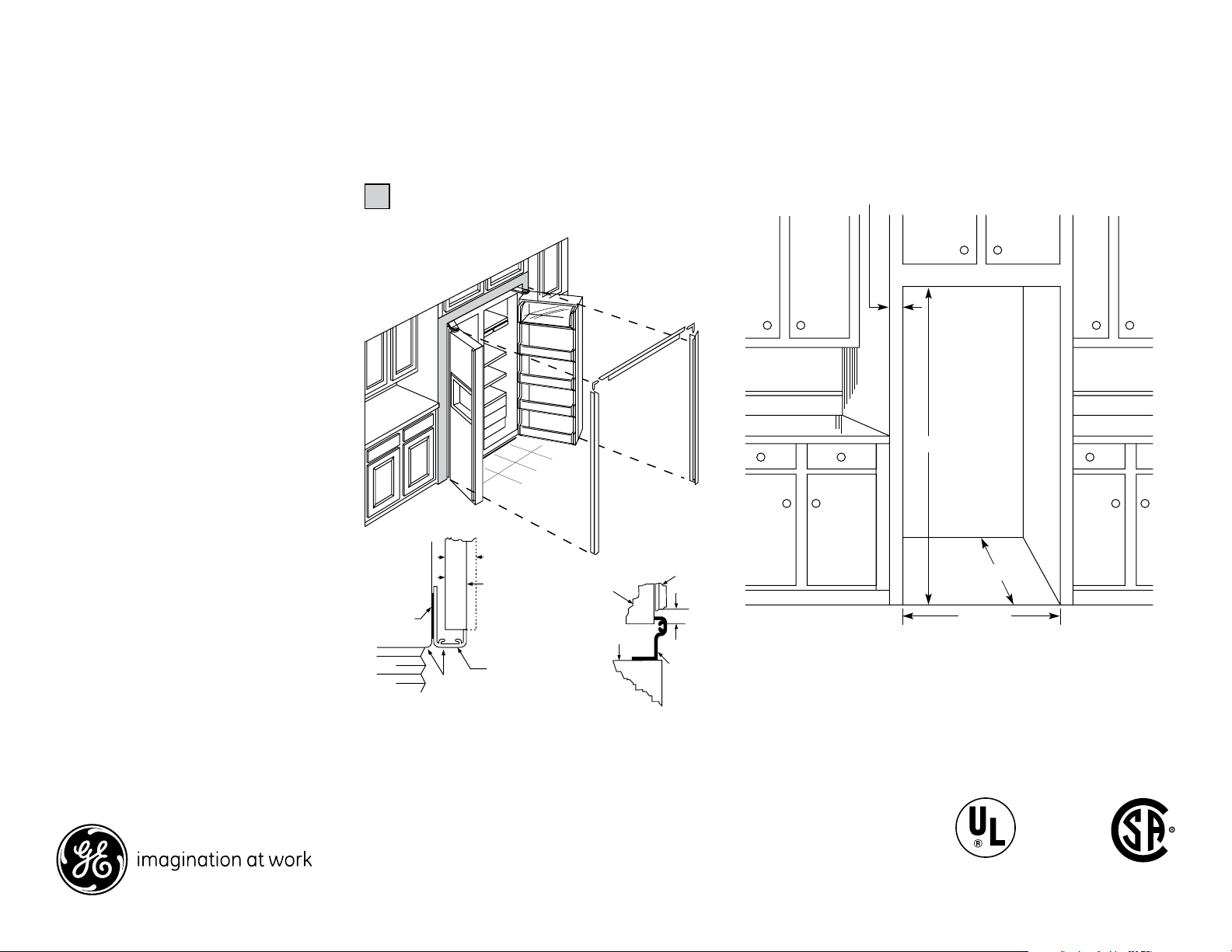

Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit
above the refrigerator should extend out
to the same depth as the side panels. The
refrigerator opening must have minimum
dimensions of 70" high x 36-1/8" wide x
24-1/2" deep as shown at right. If there is
an overhead cabinet, allow 1" for cabinet
door clearance with the top trim piece so
the cabinet doors can be opened without
hitting the top trim. If 1/2" side panels are
used, then side trim and panel will be even.
If 3/4" side panels are used, then some of
the side panel will extend beyond the trim
and must be finished.
IMPORTANT: Before finalizing specifications
for your GE Profile Counter-Depth
Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for
refrigerator installation with collar
• Be sure to allow for 1/2" or 3/4" side
panels in addition to the 36-1/8"
minimum.
Typical Installation
Shaded areas represent front surfaces of side panels and
overhead cabinet or soffit that contacts trim.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 5/08
210225
Fr eezer Panel
Without Dispenser
Fr eezer Panel
With Dispenser
Fr esh Food
Panel
Cut
out
1/8 1/8
14-15/32 14-15/32
14-15/32
33-5/8
17-7/8
19 -15/32
5/16
Cut
out
Cut
out
1/8
5/16 5/16
FRONT
67-9/32 67-9/32
FRONT FRONT
Alternate
water
line location
through floor
1/2"
Top View
Alternate
water
line location
through floor
1/2"
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
Top View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
5/16"
1/8"
1/4" Max.
Panels 1/4" thick
or less
PSIC3RGX
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Door Panel Dimensions and Installation Information (in inches)
Order your own custom wood panels to match cabinetry
or other decor.
Panels up to 1/4" thick will fit door frame with no special
preparation. Add filler behind material thinner than 1/4"
for proper fit.
Weight Limits: Total weight of panels (i.e., both freezer
panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.
NOTE: Panels up to 3/4” will require special routing area
around handles. Dimensions may vary depending on
depth of panel.
IMPORTANT: Before finalizing specifications for your
GE Profile Counter-Depth Refrigerator, please NOTE:
• A minimum of 36-1/8" is required for refrigerator
installation with collar
• Be sure to allow for 1/2" or 3/4" side panels in addition
to the 36-1/8" minimum.
without Dispenser
Detail C
Freezer Panel
with Dispenser
Fresh Food
Panel
Installation of Water OutletsFreezer Panel
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
(Fresh Food panel shown)
Notch required at top
corner as noted.
Listed by
Underwriters
Laboratories
Specification Revised 5/08
210225
PSIC3RGX
*
GE Profile™ Counter-Depth 23.3 Cu. Ft. Side-By-Side Refrigerator
Features and Benefits
• Counter-depth configuration - Counter-depth configuration makes it possible to have the look of a
built-in without the added expense
• ClimateKeeper
help provide even cooling
• Dispenser with LED lighting and UltraFlow100 - This bright dispenser pours up to 100 ounces of
water per minute
• Quick Ice
• TurboCool
• Integrated Ice
• Integrated shelf support system - Strong shelf supports add a contemporary look
• Adjustable ClearLook
shelf space
• Adjustable, slide-out spillproof glass shelves - Adjustable shelves are designed to make clean up
quick and easy
™
system - Electronic controls, multiple electronic sensors and a multi-flow air system
™
setting - Speed up your icemaker to keep up with your life
™
setting - Restores proper temperature to the refrigerator after frequent door openings
™
system - Designed to give you more room to store your favorite frozen foods
™
door bins - Store gallon containers with ease in the door and free up valuable
• GE water filtration - one year filter - Removing impurities means fresh-tasting water for your family
• FrostGuard
™
technology - Controlled defrosting keeps frozen foods from feeling the burn
• Premium quiet design - Enjoy the sound of GE’s most advanced sound control system
• Model PSIC3RGXWV - White
• Model PSIC3RGXCV - Bisque
• Model PSIC3RGXBV - Black
Specification Revised 5/08
210225
