GENERAL ELECTRIC PSHW6YGXSS, PSHF6YGXWW, PSHF6YGXBB, PSHF6VGXWW, PSHF6VGXBB User Manual

...
GEAppliances.com
Refrigerators
Profile Side by Side
200D8074P050 49-60635 02-10 GE
La section française commence à la page 46
La sección en español empieza en la página 88
Safety Instructions . . . . . . . . . . .2–4
Operating Instructions
Care and Cleaning . . . . . . . . . . . . .16, 17
ClimateKeeper2
™
. . . . . . . . . . . . . . . . . . . .6

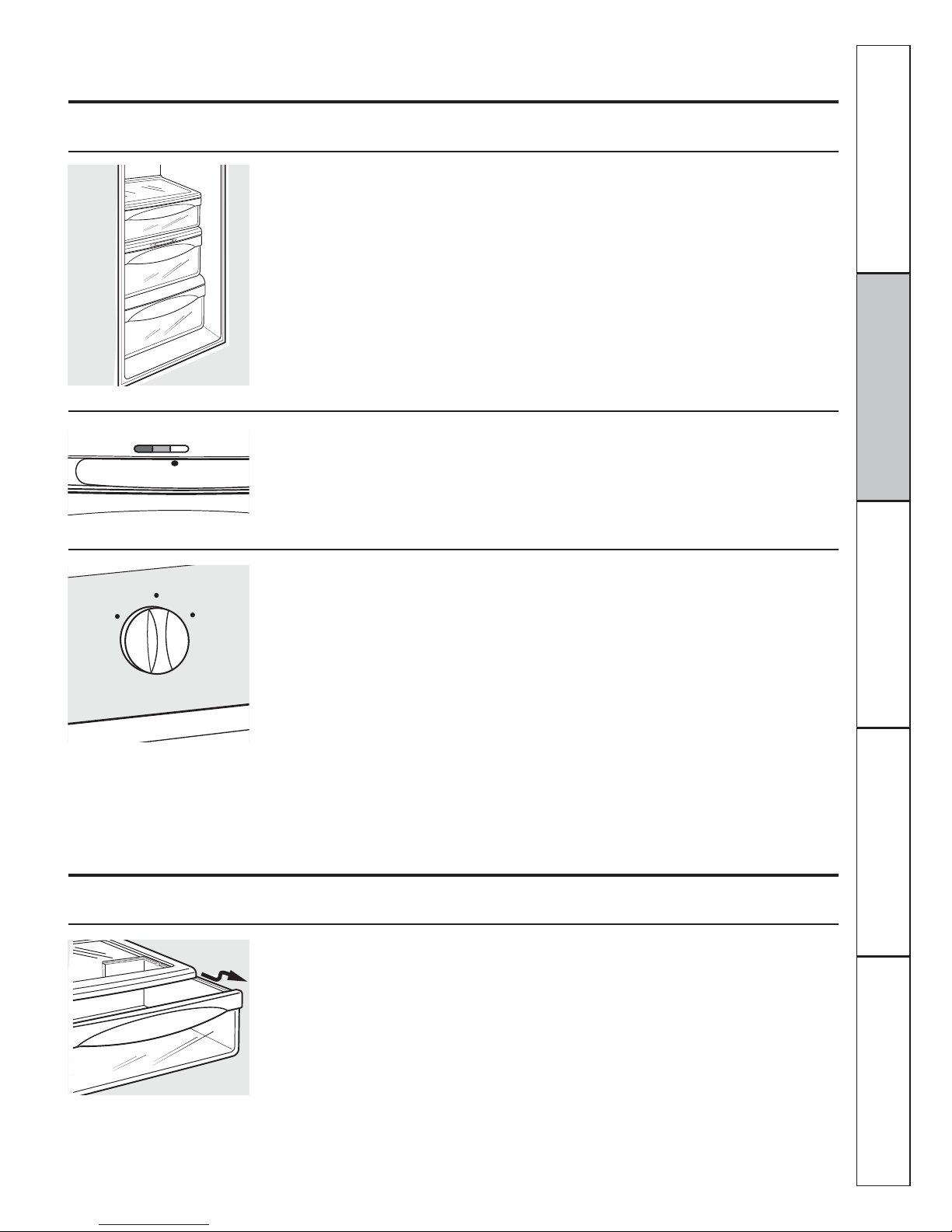

Crispers and Pans . . . . . . . . . . . . . . . . .13
CustomCool
™
. . . . . . . . . . . . . . . . . . . . .7, 8
Ice and Water Dispenser . . . . . . .15–16
QuickFreeze
™
. . . . . . . . . . . . . . . . . . . . . . .9
Quick Ice . . . . . . . . . . . . . . . . . . . . . . . . . .15
Refrigerator Doors . . . . . . . . . . . . . . . . .12
Replacing the Light Bulbs . . . . . . . . . .18
Set Features . . . . . . . . . . . . . . . . . . . . . . . .6

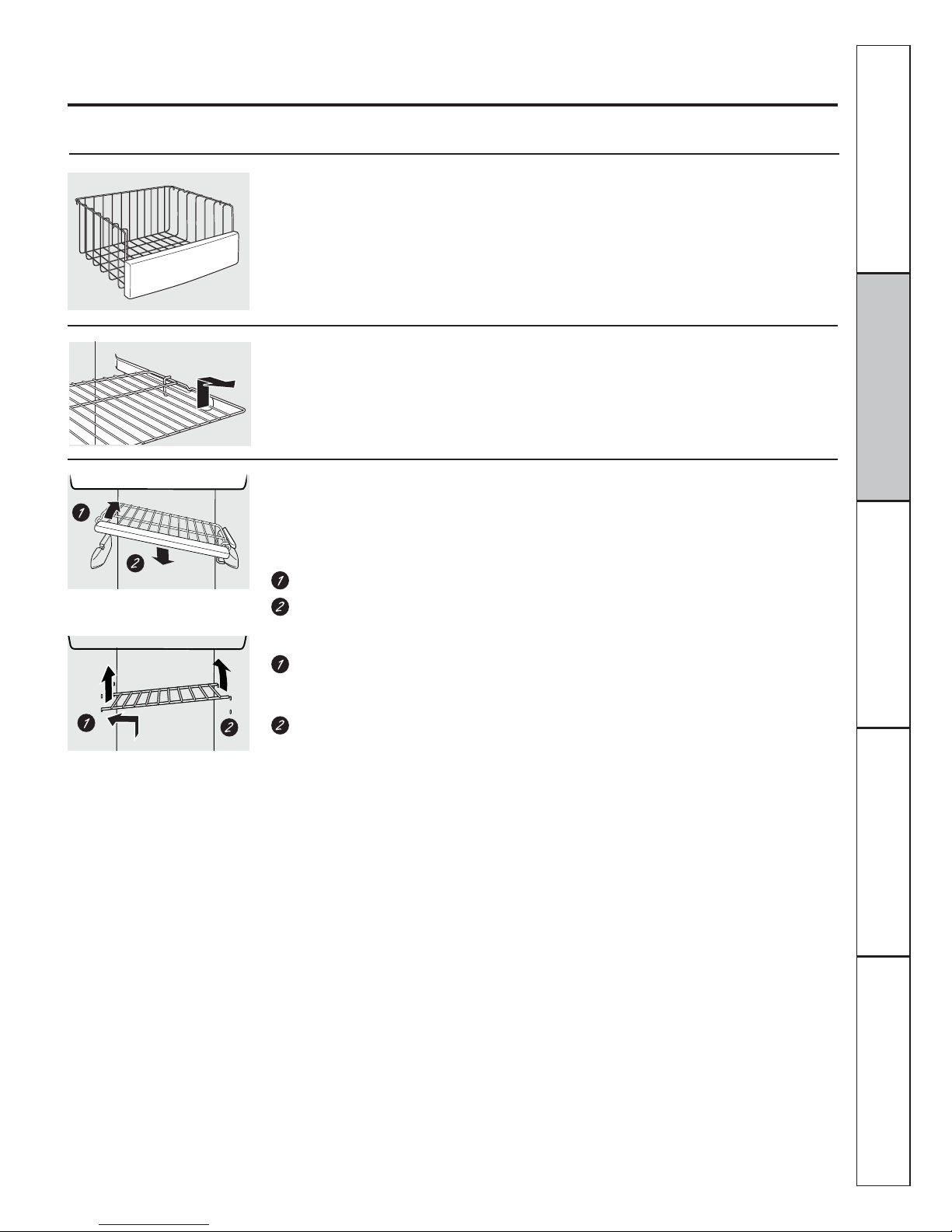

Shelves and Bins . . . . . . . . . . . . . . .10, 11
Temperature Controls . . . . . . . . . . . . . . .5
TurboCool
™
. . . . . . . . . . . . . . . . . . . . . . . . .6

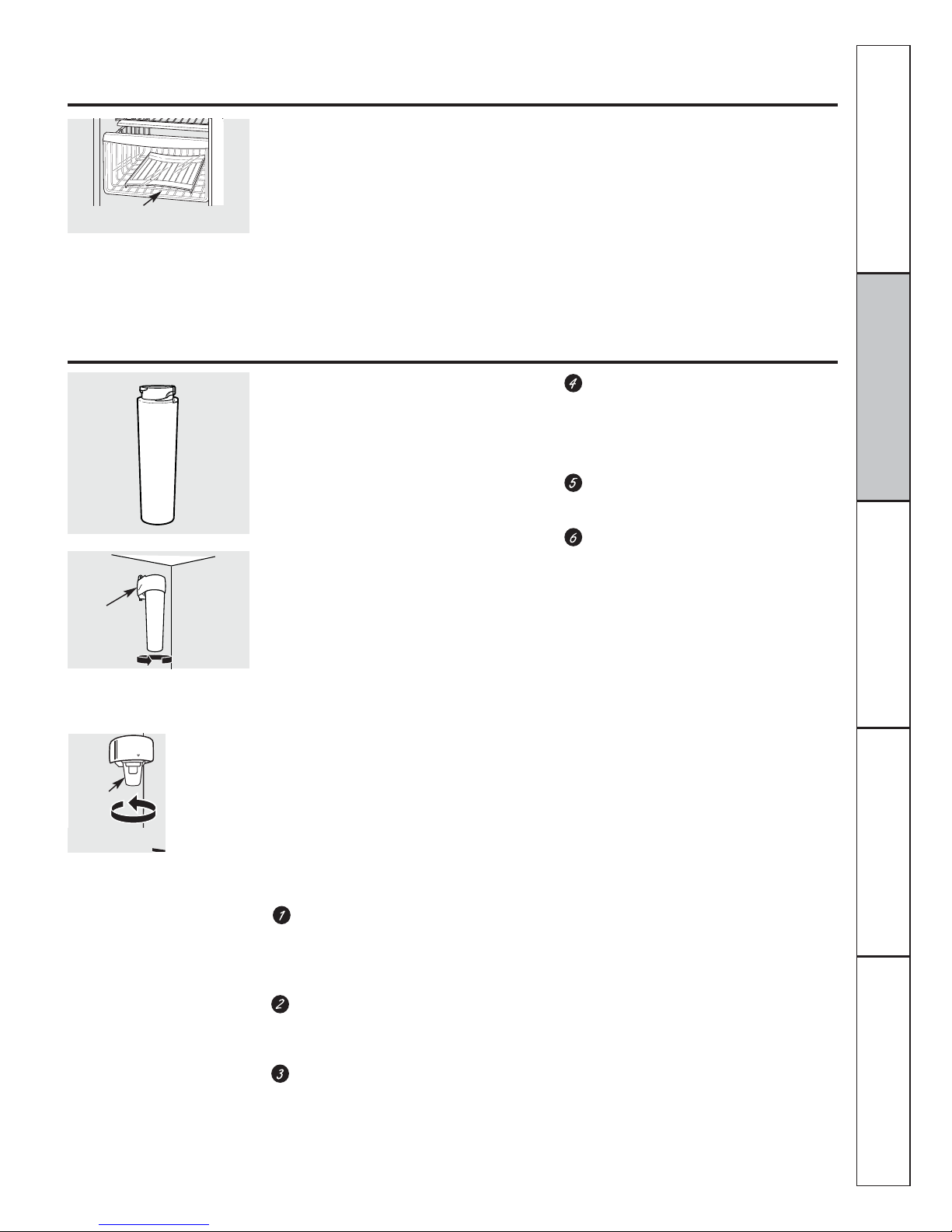

Water Filter . . . . . . . . . . . . . . . . . . . . . . . . .9
Installation Instructions
Installing the Refrigerator . . . . . .28–31
Moving the Refrigerator . . . . . . . .24–27
Preparing to Install
the Refrigerator . . . . . . . . . . . . . . . . . . . .23

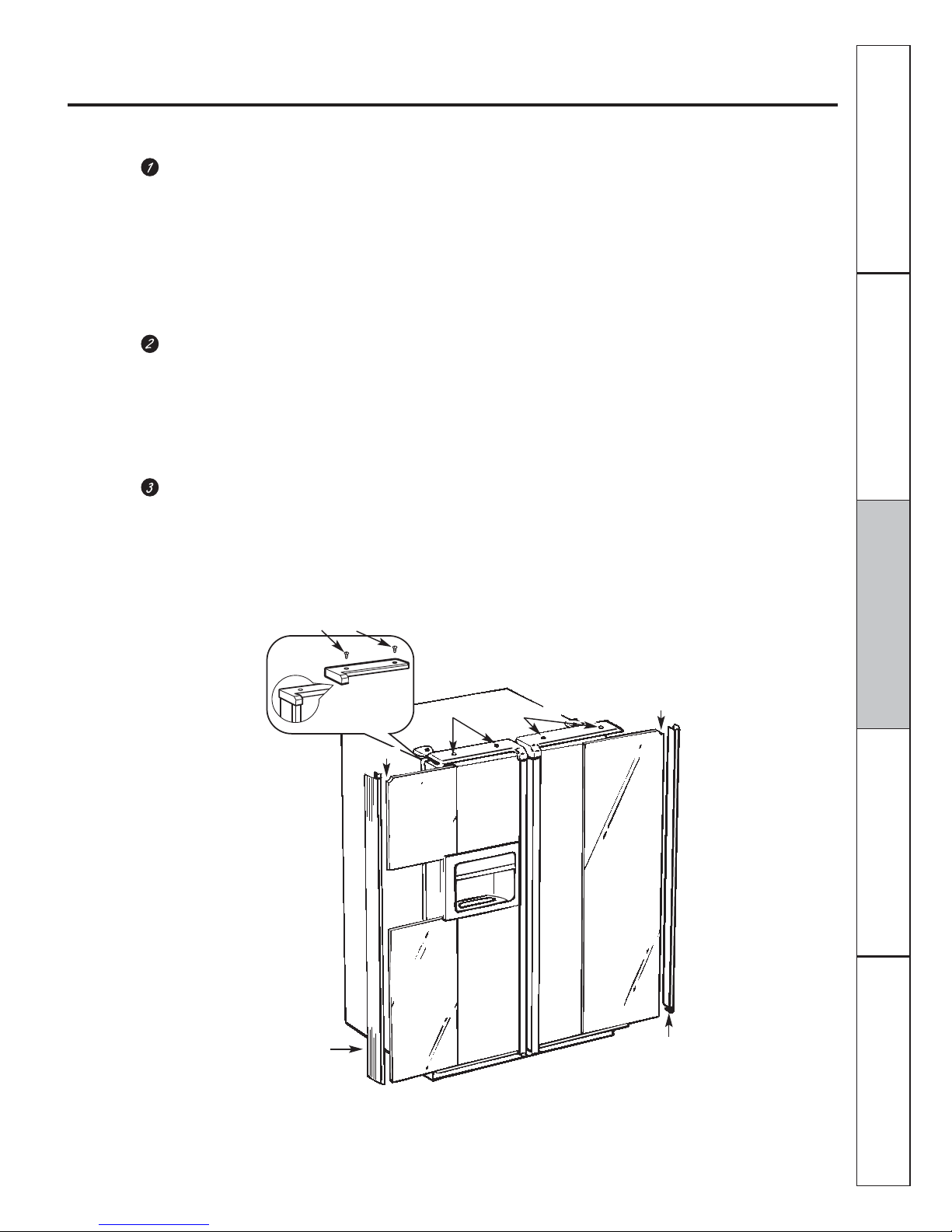

Trim Kits and Panels . . . . . . . . . . .19–22

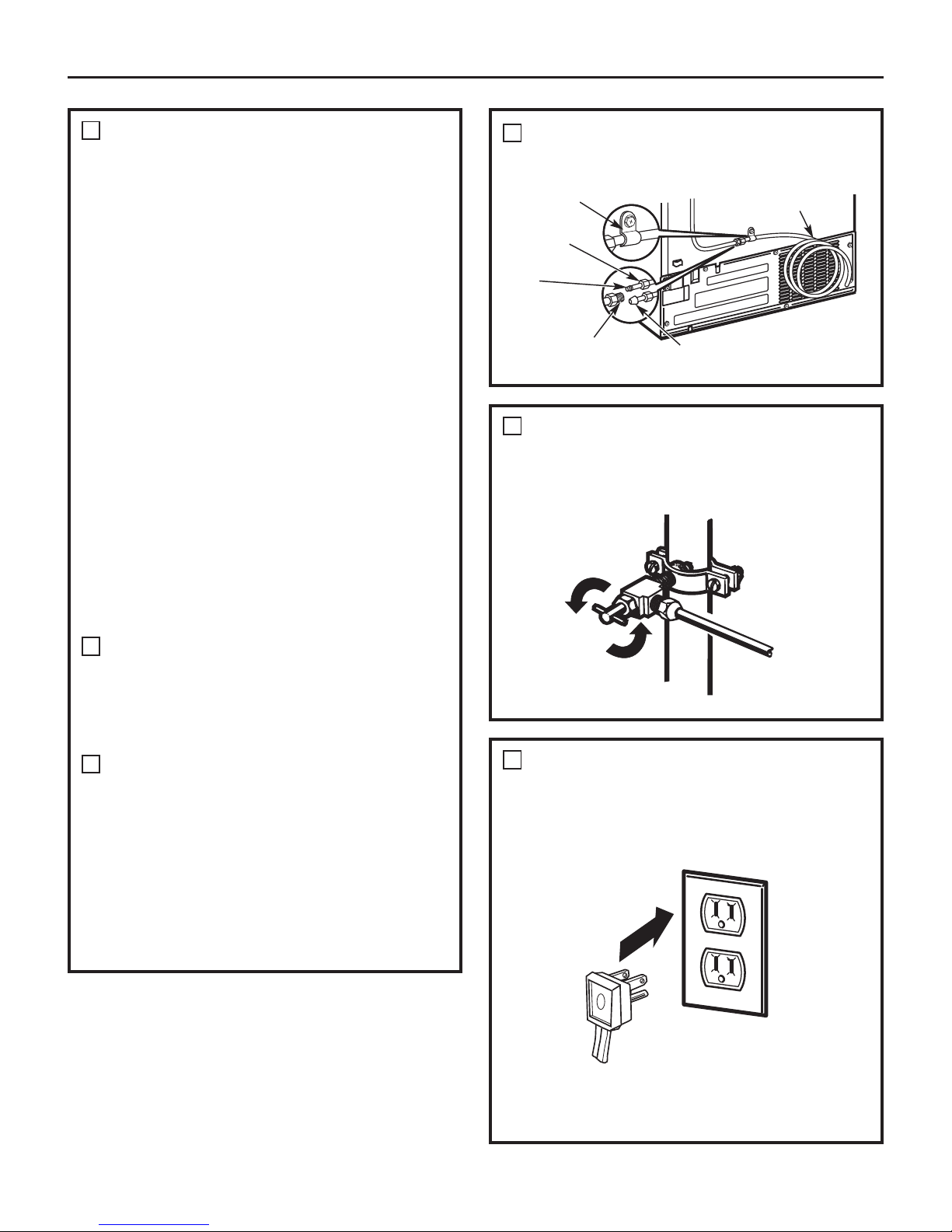

Water Line Installation . . . . . . . . .32–34
Troubleshooting Tips . . . . . .36–38
Normal Operating Sounds . . . . . . . . . .35
Consumer Sup port
Consumer Support . . . . . . . .Back Cover
Product Registration . . . . . . . . . . . .43, 44
State of California Water
Treatment Device Certificate . . . . . . .42
Warranty (Canadian) . . . . . . . . . . . . . . .39
Warranty (U.S.) . . . . . . . . . . . . . . . . . . . .40
Réfrigérateurs
Profile Côte à Côte
Refrigeradores
Profile Lado a Lado
Models 23, 25, 26, 27 and 29
Write the model and serial numbers here:
Model # __________________________ Serial # __________________________
Find these numbers on a label inside the refrigerator compartment at the top on the right side.
Owner ’s Manual
and Installation
Manuel d’utilisation
et d’installation
Manual del propietario
e instalación
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
2
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner’s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
This refrigerator must be properly installed
and located in accordance with the Installation Instructions before it is used.
Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other appliance.
In refrigerators with automatic icemakers,
avoid contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the icemaker. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.
Keep fingers out of the “pinch point” areas;
clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.
Unplug the refrigerator before cleaning and making
repairs.
NOTE: We strongly recommend that any servicing be performed by a qualified individual.
Non-LCD models: Setting either or both controls
to 0 (off) does not remove power to the light circuit.
LCD models: Turning the cooling system off does
not remove power to the light circuit.
Do not refreeze frozen foods which have thawed
completely.
Always clean the CustomCool
™
Tray after thawing
food.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
GEAppliances.com
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous…even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.
Before You Throw Away Your Old Refrigerator or Freezer:
Take off the doors.
Leave the shelves in place so that children may not
easily climb inside.
Refrigerants
All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
DANGER! RISK OF CHILD ENTRAPMENT
3
4
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO C ONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
If the outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.
When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
About the temperature controls. GEAppliances.com
NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not
removed during installation, remove it now.
The temperature controls are preset in the factory at 37°F (3°C) for the refrigerator compartment and 0°F (-18°C) for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.
Refrigerator temperatures can be adjusted between 34°F and 46°F (1°C to 8°C), and the freezer temperatures can be adjusted between –6°F and +8°F (–21°C to –13°C).
To change the Refrigerator temperature: LCD Models: Access By: Home > Refrigerator Activate By: Using the arrows to select the desired
temperature. You must press ENTER to set the new temperature.
To change the Freezer temperature: Access By: Home > Freezer Activate By: Using the arrows to select the desired
temperature. You must press ENTER to set the new temperature.
Once the desired temperature has been set, the display will return to the HOME screen and show the set temperatures underneath the actual temperature display for several seconds. Several adjustments may be required. Each time you adjust the controls, allow 24 hours for the refrigerator to reach the temperature you have set.
Non-LCD Models: To change the temperature, press and release the FREEZER
TEMP/FRIDGE TEMP pad. The SET light will come on and
the display will show the set temperature. To change the temperature, tap either the or pad until the desired temperature is displayed.
Once the desired temperature has been set, the temperature display will return to the actual refrigerator and freezer temperatures after 5 seconds. Several adjustments may be required. Each time you adjust the controls, allow 24 hours for the refrigerator to reach the temperature you have set.
The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.
Turning the cooling system off: LCD models: Turning the cooling system OFF stops cooling in both
the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.
LCD Models: Access By: Home > Options > Information and Settings >
Cooling System Off To turn the cooling system back on, press the touch screen
and press the ON button.
Activate By: Pressing ENTER. Non-LCD Models:
Press and release the FREEZER TEMP/FRIDGE TEMP pad. Press to set freezer temperature to 5. The display will show OFF. To turn the unit back on, press the FREEZER TEMP/FRIDGE TEMP pad. Press to set the freezer and refrigerator temperatures to the preset points of 0°F (-18°C) for the freezer and 37°F (3°C) for the refrigerator.
When the unit is turned back on, it will take up to 24 hours to stabilize.
The Performance Air-Flow System is designed to maximize temperature control in the refrigerator and freezer compartments. This unique special feature consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on the bottom portion of the freezer rear wall. Placing food in front of the louvers on these components will
not affect performance. Although the Air Tower and the Air Tunnel can be removed, doing so will affect temperature performance. (For removal instructions, on-line, contact us at ge.com or call 800.GE.CARES. In Canada, contact us at geappliances.ca or call 1.800.561.3344.)
Performance Air Flow System
5
LCD models
Not all features are on all models. Your controls will look like one of the following:
>
>
>
>
6
About TurboCool.
™
How it Works
TurboCool
™
rapidly cools the refrigerator
compartment in order to more quickly cool foods. Use TurboCool when adding a large amount of food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period.
Once activated, the compressor will turn on immediately and the fans will cycle on and off at high speed as needed for eight hours. The compressor will continue to run until the refrigerator compartment cools to approximately 34°F (1°C), then it will cycle on and off to maintain this setting. After 8 hours, or if TurboCool is pressed again, the refrigerator compartment will return to the original setting.
How to Use LCD Models:
Access By: Home > Options > Refrigerator
Options > TurboCool
Activate By: Pressing ON. Deactivate By: Pressing OFF.
Non-LCD Models:
Press SET FEATURES. The refrigerator temperature display will show TurboCool and/or TC. Press ON/OFF.
After TurboCool is complete, the refrigerator compartment will return to the original setting.
NOTES:
The refrigerator temperature cannot be changed during TurboCool.
The freezer temperature is not affected during TurboCool.
When opening the refrigerator door during TurboCool, the fans will continue to run if they have cycled on.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
About ClimateKeeper2.
™
(on some models)
How it Works
The ClimateKeeper2
™
is the industry’s most advanced refrigeration system, delivering optimum temperature and humidity performance to keep food garden fresh longer and reduce freezer burn, while maintaining E star-level efficiency.
The ClimateKeeper2 system features two evaporators—one for the refrigerator and one for the freezer.
This provides two separate cooling systems, and separates the airflow between the fresh food and freezer compartments during normal cooling operations.*
This ensures that the humidity levels in the fresh food compartment are significantly higher than in a conventional system,** allowing fresh produce and other unsealed foods to retain their moisture content and freshness longer. Moisture sensitive foods such as fresh fruit, salads, rice, etc., can now be stored on open shelves without excessive moisture loss. Due to the higher humidity in
the refrigerator, you may on occasion experience fog or small amounts of moisture in the refrigerator compartment. This is normal and may come and go as different food loads and environmental conditions change. Wipe dry with a paper towel if desired.
The separate airflow system minimizes the mixing of air between the two compartments, which reduces fresh food odor transfer to improve the taste of ice.
The ClimateKeeper2 system also reduces the number of defrosting cycles in the freezer evaporator, thereby reducing freezer burn.
*Freezer air is used in the CustomCool
feature.
**Testing shows a higher level of humidity in
the Fresh Food section in ClimateKeeper2 refrigerators versus conventional units.
About Set Features.
This pad is used to select the following features: TurboCool, Quick Ice, Door Alarm and Water Filter.
Pressing SET FEATURES repeatedly will cycle through all of the available features and then
exit the mode. If no key is pressed, the mode will exit and return to displaying features currently set.
LCD Models Only
T
URBOCOOL
7
Empty the pan. Place the Chill/Thaw tray
in the pan. Place the items on the tray
and close the pan completely.
LCD Models: Access by: Home > Options > Refrigerator
Options > CustomCool Pan Non-LCD Models:
Select the ExpressThaw™, ExpressChill
™
or SelectTemp™pad. The display and SET light will come on. Tap the pad until the light appears next to the desired setting.
Use the following chart to determine the best setting to use.
ExpressChill can be set to 15, 30 or 45
minutes. The default is 15 minutes.
To stop a feature before it is finished:
For LCD Models:
Go into that feature’s menu and press the OFF button.
For Non-LCD Models:
Tap that feature’s pad until no options are selected and the display is off.
During ExpressThaw and
ExpressChill,the display on the
controls will count down the time in the cycle (on some models).
After the ExpressThaw cycle is
complete, the pan will reset to the MEATsetting (32°F [0°C]) to help preserve thawed items until they are used.
The displayed actual temperature of
the CustomCool pan may vary slightly from the SET temperature based on usage and operating environment.
NOTE:For food safety reasons, it is recommended that foods be wrapped in plastic wrap when using ExpressThaw. This will help contain meat juices and improve thawing performance.

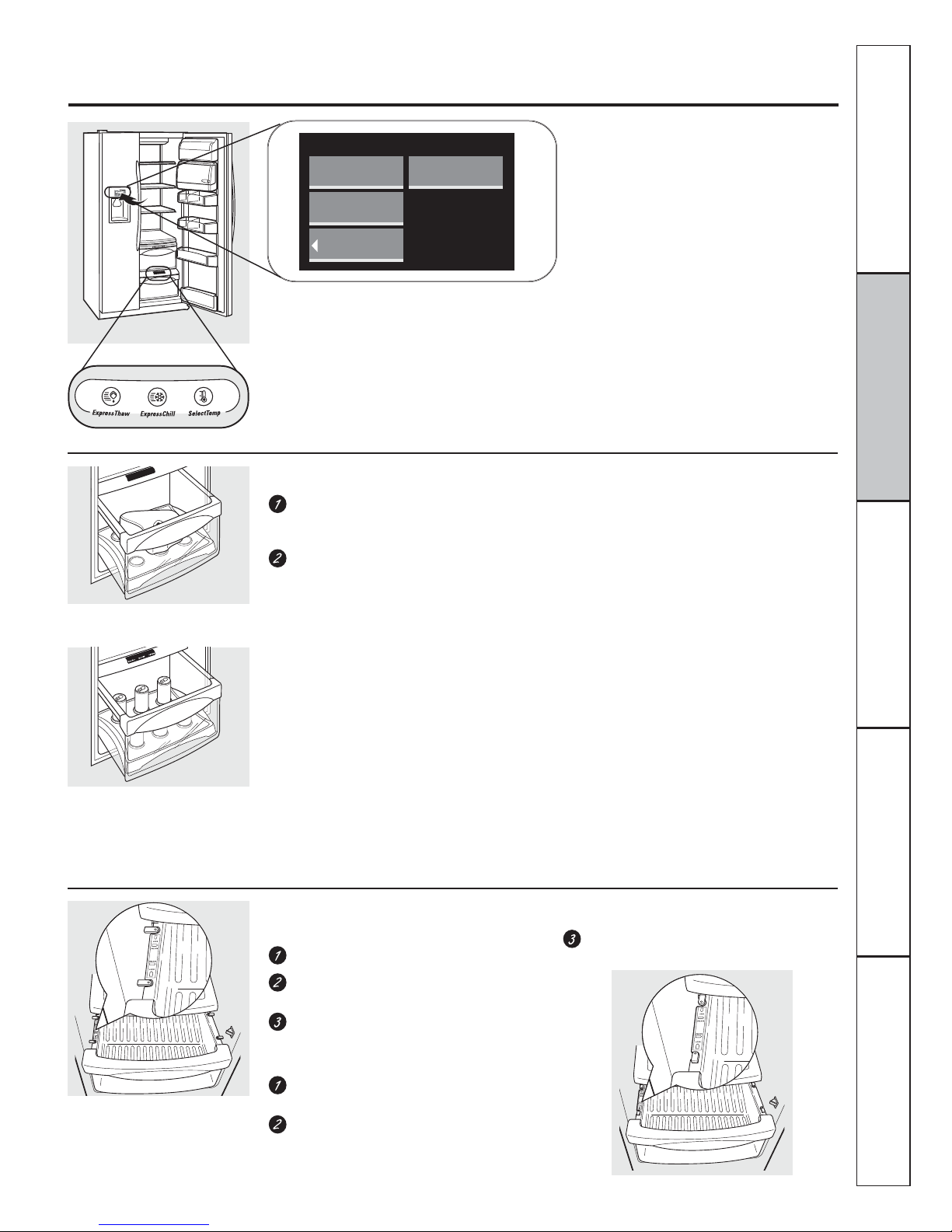

About CustomCool™. (on some models) GEAppliances.com
The CustomCool
™
feature is used to quickly chill items, thaw items or hold the pan at a specific temperature. This feature is a system of dampers, a fan, a temperature thermistor and a heater.
The pan is tightly sealed to prevent temperature fluctuations in the rest of the refrigerator. The controls for this pan are located on the dispenser with the temperature controls.
How to Use
ExpressThaw
™
To remove:
Pull the drawer out to the stop position.
Rotate all four swing locks to the unlock
position.
Lift the front of the drawer up and out.
To replace:
Make sure all four swing locks are in
the unlock position.
Place the sides of the drawer into
the drawer supports, making sure
the swing locks fit on the drawer slots.
Lock all four swing locks by rotating them
to the lock position.
How to Remove and Replace the Drawer
ExpressChill
™
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
LCD Models Only
How it Works
REFRIGERATOR OPTIONS
BACK
BEVERAGE
CENTER
CUSTOM COOL
PAN
TURBOCOOL
LCD Models Only
8
About CustomCool™. (on some models)
CustomCool™Chart
NOTE:Results may vary depending on packaging, starting temperature and other food traits.
ExpressThaw
™
0.5 Lb. (4 hours)
Hamburger Patties (0.5 lb)Individually Wrapped
Filet Mignon (0.5 lb)
1.0 Lb. (6 hours)
Chicken Breasts (1.0 lb)Ground Beef (1.0 lb)Steak (1.0 lb)
2.0 Lbs. (10 hours)
Chicken Breasts (2.0 lbs)Ground Beef (2.0 lbs)Steak (2.0 lbs)
3.0 Lbs. (12 hours)
Chicken Breasts (3.0 lbs)Ground Beef (3.0 lbs)Steak (3.0 lbs)
ExpressChill
™
15 Minutes
1 Beverage Can (12 oz)2 Small Juice Boxes (6–8 oz each)
30 Minutes
2 to 6 Beverage Cans (12 oz each)2 Plastic 20 oz Bottles of Beverage4 to 6 Small Juice Boxes
(6–8 oz each)
3 Foil Juice PacketsWine (750 ml bottle)
45 Minutes
2 Liter of Beverage1/2 Gallon of JuiceGelatin–1 package
SelectTemp
™
Citrus Setting (43°F [6°C])
Oranges, Lemons, Limes, Pineapple,
Cantaloupe
Beans, Cucumbers, Tomatoes,
Peppers, Eggplant, Squash
Produce Setting (35°F [2°C])
Strawberries, Raspberries, Kiwifruit,
Pears, Cherries, Blackberries, Grapes, Plums, Nectarines, Apples
Asparagus, Broccoli, Corn,
Mushrooms, Spinach, Cauliflower, Kale, Green Onion, Beets, Onions
Meat Setting (32°F [0°C])
Raw Meat, Fish and Poultry
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
Some CustomCool models feature a beverage center. It is designed to store beverages at colder temperatures. Select this feature if you like to keep extra-chilled refreshments on hand.
Access by: Home > Options > Refrigerator Options > Beverage Center
Activate by: Pressing ON. Deactivate by: Pressing OFF.
How to Use the Beverage Center (LCD models only)
B
EVERAGE
C
ENTER
To remove:
Remove dairy bin first . Holding
the bottom of the dairy bin, lift the front
straight up, then lift up and out.
Holding left and right side of beverage
center, lift straight up and out.
Leave adapter in place.
To replace:
Engage backside of beverage center in
molded supports on adapter. Then push down on the sides of the beverage center. The beverage center will lock into place.
Replace dairy bin.
How to Remove and Replace the Beverage Center (LCD models only)
Dairy Bin
Adapter
Beverage Center
About QuickFreeze.
™
(on some models) GEAppliances.com
The QuickFreeze plate is only to be used with the QuickFreeze feature. Use QuickFreeze to freeze items faster to enhance food preservation.
How to Use
Place food (wrapped in plastic wrap) on QuickFreeze plate. Turn the feature on via the LCD controls.
Some LCD Models Only: Access By: Home > Options > Freezer Options
> QuickFreeze Activate By: Using the arrows to select
the time and pressing Enter.
Deactivate By: Pressing OFF. NOTE:While the QuickFreeze feature is
enabled, the actual freezer temperature may drop as low as –3°F (–19°C). This is normal.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
About the water filter.
Water Filter Cartridge
The water filter cartridge is located in the back upper right corner of the refrigerator compartment.
When to Replace the Filter
LCD Models:
A pop-up screen will appear on the LCD screen to remind you to replace the water filter. You can check the status of the water filter manually.
Access By: Home > Options > Dispenser Options > Reset Water Filter
Non-LCD Models:
There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.
The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.
Removing the Filter Cartridge
If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down.
Installing the Filter Cartridge
There is an adapter attached to the top of the new filter cartridge.
The adapter must be removed before installing the cartridge. To remove the adapter, turn it to the left about 1/4 turn.
Fill the replacement cartridge with water
from the tap to allow for better flow from
the dispenser immediately after installation.
Line up the arrow on the cartridge and
the cartridge holder. Place the top of the new
cartridge up inside the holder. Do not push it up into the holder.
Slowly turn it to the right until the filter
cartridge stops. DO NOT OVERTIGHTEN.
As you turn the cartridge, it will automatically raise itself into position. The cartridge will rotate about 1/2 turn.
Run water from the dispenser for 5 minutes
to clear the system and prevent sputtering.
LCD Models:
Press FILTER REPLACED button to confirm
replacement.
Non-LCD Models: Press the SET FEATURESpad until REPLACE WATER FILTERis lit. Press and hold the ON/OFF pad for 3 seconds. WATER FILTER IS RESET will show in the window.
NOTE:A newly installed water filter cartridge may cause water to spurt from the dispenser.
Filter Bypass Plug
You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.
Replacement Filters: To order additional filter cartridges in the United
States, visit our Website, ge.com, or call GE Parts and Accessories, 800.626.2002.
MSWF Suggested Retail $36.95–$41.95 USD
Customers in Canada should consult the yellow pages for the nearest Mabe Service Center.
Place the top of the cartridge up inside the cartridge holder and slowly turn it to the right.
QuickFreeze Plate
Filter Bypass Plug
SmartWater
Cartridge Holder
9
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
10
About the shelves and bins.
Refrigerator Door Bins and Freezer Door T ilt-Out Bins
Bins
The larger refrigerator door bins and freezer tilt-out door bins are adjustable.
To remove: Lift the front of the bin straight up, then lift up and out.
To replace or relocate: Engage the back side of the bin in the molded supports on the door. Then push down on the front of the bin. Bin will lock in place.
The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the snugger near the rear and move it back and forth to fit your needs.
Not all features are on all models.
Refrigerator bin
Freezer tilt-out bin
Snugger
QuickSpace™Shelf
This shelf splits in half and slides under itself for storage of tall items on the shelf below.
This shelf can be removed and replaced or relocated just like Slide-Out Spillproof Shelves.
On some models, this shelf cannot be used in the lowest position.
Slide-Out Spillproof Shelf
The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.
To remove:
Slide the shelf out until it reaches the stop, then press down on the tab and slide the shelf straight out.
To replace or relocate:
Line the shelf up with the supports and slide it into place. The shelf can be repositioned when the door is at 90° or more. To reposition the shelf, slide the shelf past the stops and angle downward. Slide shelf down to the desired position, line up with the supports and slide into place.
Make sure you push the shelves all the way back in before you close the door.
Press tab and pull shelf forward to remove
Top freezer bin
CAUTION:
Be careful when placing items in the top bin. Make sure that items do not block or fall into the ice chute.
GEAppliances.com
Not all features are on all models.
Slide-Out Freezer Shelves
To remove, slide out to the stop position,
lift the front past the stop position and slide out.
Make sure you push the shelves all the way back in before you close the door.
Freezer Baskets
To remove,push the basket all the way to
the back of the freezer. Lift up until the back pins are disengaged. Lift the entire basket up and pull out.
Make sure you push the baskets all the way back in before you close the door.
Fixed Freezer Shelves
There are two types of fixed freezer shelves.
To remove this type of shelf:
Lift the shelf up at the left side.
Bring the shelf out.
To remove this type of shelf:
Lift up the left side of the shelf and slide it left into the center of the shelf supports.
Rotate the right side of the shelf up and out of the shelf supports.
NOTE FOR DISPENSER MODELS: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
11
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
12
About the refrigerator doors.
Refrigerator Doors
The refrigerator doors may feel different than the ones you are used to. The special door opening/closing feature makes sure the doors close all the way and are securely sealed.
When opening and closing the door, you will notice a stop position. If the door is opened past this stop point, the door will remain open to allow you to load and unload food more easily. When the door is only partially open, it will automatically close.
The resistance you feel at the stop position will be reduced as the door is loaded with food.
When the door is only partially open, it will automatically close.
Beyond this stop the door will stay open.
Door Alignment
If doors are uneven, adjust the refrigerator door.
Using a 7/16”wrench, turn the door
adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)
After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.
7/16” Wrench
Raise
About the crispers and pans. GEAppliances.com
13
About crisper removal.
Not all features are on all models.
Crisper Removal
Crispers can easily be removed by pulling the drawer straight out and lifting the drawer up and over the stop location.
If the door prevents you from taking out the drawers, first try to remove the door bins. If this does not offer enough clearance, the refrigerator will need to be rolled forward until the door opens enough to slide the drawers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out.
Not all features are on all models.
Fruit and Vegetable Crispers
Excess water that may accumulate in the bottom of the drawers should be wiped dry.
On some models, the bottom drawer has full extension slides that allow full access to the drawer.
Adjustable Humidity Crispers
Slide the control all the way to the HI setting to provide high humidity recommended for most vegetables.
Slide the control all the way to the LO setting to provide lower humidity levels recommended for most fruits.
HI LO
Convertible Deli Pan
The convertible deli pan has its own cold air duct to allow a stream of cold air from the freezer compartment or fresh food compartment to flow to the pan.
The variable temperature control regulates the air flow from the Climate Keeper Air Tower.
Set the control to the coldest setting to store fresh meats.
Set the control to cold to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. The cold air duct is turned off. Variable settings between these extremes can be selected.
C
O
L
D
C
O
L
D
E
S
T
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
About the automatic icemaker.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
14
Automatic Icemaker
The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.
If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O (off) position.
When the refrigerator has been connected to the water supply, set the power switch to the l (on) position.
The icemaker will fill with water when it cools to 15°F (–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.
You will hear a buzzing sound each time the icemaker fills with water.
Throw away the first few batches of ice to allow the water line to clear.
Be sure nothing interferes with the sweep of the feeler arm.
When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.
If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.
Special note about dispenser models:
Dispenser models have a tilt-out ice bin.
The bin can be tilted out as shown in the illustrations, and it will hold itself up while you take ice out or turn the icemaker power switch on and off. Be sure to put the bin back in place before closing the door.
To restore your ice level from an empty
bucket stage, the following steps are recommended:
12 hours after the first batch of ice has fallen into the bin, dispense 3 to 4 cubes.
After an additional 6 hours, dispense 3 to 4 cubes again.
These steps will restore your ice level in the shortest amount of time.
NOTE:In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Lift the bin, then pull it
forward until the bin stops.
Icemaker
Feeler Arm
Power Switch
Green Power Light
Lower the bin to access ice
or reach the power switch.
NOTE: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin.
On dispenser models, to reach the power switch:
To rem o v e :
Removing and Replacing the Ice Storage Bin on Dispenser Models
When replacing the ice bin:
Set the power switch to the O (off) position before removing the ice bin.
Always be sure to press it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the bin back again.
Pull the bin straight out, then lif t past the stop position.
Rotate
Drive Mechanism
About the ice and water dispenser. (on some models) GEAppliances.com
To Use the Dispenser
Select CUBED, CRUSHED or WATER. Press the glass gently against the top
of the dispenser cradle. The spill shelf is not self-draining. To reduce water
spotting, the shelf and its grille should be cleaned regularly.
If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.
CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.
Locking the Dispenser
Press the LOCK or
LOCK CONTROLS
pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.
Dispenser Light
The LIGHT pad turns the night light in the dispenser on and off. The light also comes on
when the dispenser cradle is pressed. On some models, if this light burns out, it should be replaced with a 6 watt 12V maximum bulb.
Door Alarm
Use Door Alarm to sound if either door is open for more than 3 minutes. The alarm will stop once the door is closed. For LCD models, a popup screen will appear. The alarm can be silenced by touching the LCD screen.
LCD Models: Access By: Home > Options > Information and
Settings > Settings > Door Alarm
Access By: Pressing ON. Deactivate By: Pressing OFF.
Non-LCD Models: Press the SET FEATURESpad once and DOOR
ALARM will blink. Press ON/OFF and the door
alarm will be set and the icon will turn solid. Press ON/OFF again to turn the alarm off.
Spill Shelf
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
Precise Fill (on some models)
Quick Ice
This water dispenser is equipped with a feature called “precise fill.” This feature allows you to choose a precise amount of water (cups or ounces) that you would like dispensed. Pints and Liters are also available for LCD models.
LCD Models Access By: Home > Options > Dispenser Options >
Precise Fill > Set Amount Activate By: Using the arrow buttons to select
the desired amount. Press MORE UNITS to select between CUPS, OUNCES, PINTS or LITERS.
Non-LCD Models
Press the PRECISE FILL CUPS/OZ pad. The WATER pad will light and the CRUSHED and CUBED ice pads will turn off. The last unit used will be displayed.
Press the PRECISE FILL pad again to toggle between cups and ounces.
If you selected OUNCES, press the or pad to select the number of ounces you would like to have dispensed between 2–99 ounces. The default is 8 ounces.
If you selected CUPS, press the or pad to select the amount you would like to have dispensed. They are displayed as 1/4, 1/3, 1/2, 2/3 and 3/4, with the highest amount being 16 3/4 cups. The default is 1 cup.
Press the cup against the cradle and water will begin dispensing. It will automatically stop when the amount set has been dispensed. The display will show the amount of water dispensed, beep, then reset after 5 seconds.
NOTE: Do not leave the dispenser unattended when water is being dispensed.
If you would like to stop dispensing water before the specified amount has been dispensed, just remove the cup from the cradle. The display will show the amount that has been dispensed for 5 seconds. If the cup switch is pressed again within that time, the dispenser will continue up to the set amount. If not, the display will return to the set amount.
When you need to speed up ice production, use the Quick Ice feature. While this feature is turned on, the freezer fan runs continuously for 48 hours, or until the feature is turned OFF. During this period, ice production will increase up to 40%. Models with the integrated ice feature system require at FIRST USE at least half an 8 oz. glass of ice to be dispensed every 6 to 12 hours. This will help the icemaker fill the bucket properly so that dispensing is better.
How to Use LCD Models:
Access by: Home > Options > Freezer Options >
Quick Ice
Activate by: Pressing ON. Deactivate by: Pressing OFF.
Non-LCD Models:
Press the SET FEATURESpad twice and QUICK ICE will blink. Press ON/OFF to turn the feature on, then again to turn it off.
15
>
>
>
>
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
16
Cleaning the Outside
The dispenser drip area, beneath the grille,
should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.
The dispenser cradle. Before cleaning, lock the dispenser by pressing and holding the LOCK or LOCK CONTROLS pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. Rinse thoroughly and wipe dry.
The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth.
The stainless steel panels and door handles
(on some models) can be cleaned with a commercially available stainless steel cleaner. A spray-on stainless steel cleaner works best.
Do not use appliance wax or polish on the stainless steel.
Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent . Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint . Do not use scouring pads, powdered cleaners , bleach or cleaners containing bleach because these products can scratch and weaken the paint f inish.
Cleaning the Inside
To help prevent odors, leave an open box
of baking soda in the fresh food and freezer compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.
Use warm water and baking soda solution— about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.
Use of any cleaning solution other than that which is recommended, especially
those that contain petroleum distillates, can crack or damage the interior of the refrigerator.
Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully . Bumping tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts in the dishwasher.
The chill/thaw tray is dishwasher safe.
Dispenser drip area.
Care and cleaning of the refrigerator.
About the ice and water dispenser. (on some models)
Important Facts About Your Dispenser
Do not add ice from trays or bags to
the storage drawer. It may not crush or dispense well.
Avoid overfilling glass with ice and use
of narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.
Beverages and foods should not be
quick-chilled in the ice storage drawer. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.
To keep dispensed ice from missing
the glass, put the glass close to, but not touching, the dispenser opening.
Some crushed ice may be dispensed
even though you selected CUBED. This happens occasionally when a few cubes accidentally get directed to the crusher.
After crushed ice is dispensed, some
water may drip from the chute.
Sometimes a small mound of snow
will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.
17
For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.
Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator.
If the temperature can drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding.
GEAppliances.com
Behind the Refrigerator
Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.
Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.
When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line.
Preparing for Vacation
Preparing to Move
Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.
When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright position during moving.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
18
Replacing the lights
Setting the controls to OFF does not remove power to the light circuit. Not all features are on all models.
Refrigerator Compartment (on some models)
There is an LED lighting display in the top and sides of the fresh food compartment and in the rear and side of the freezer compartment on some models.
If this assembly needs to be replaced, call GE Service at 1.800.432.2737 in the United States or 1.800.561.3344 in Canada.
LED Lighting Display
19
Trim kits and decorator panels.
Read these instructions completely and carefully.
Before You Begin
Some models are equipped with trim kits that allow you to install door panels . You can order pre-cut black, white, bisque or stainless steel decorat or panels from GE Parts and Accessories ,
800.626.2002, or you can add wood panels to match your kitchen cabinets .
Panels less than 1/4” (6 mm) thick
When installing wood panels less than 1/4” (6 mm) thick, you need to create a filler panel, such as 1/8”
cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cut decorator panels, pre-cut filler panels are included in the kit . The combined thickness of the decorator
or wood panel and the filler panel should be 1/4” (6 mm).
For CustomStyle™models
3/4” (19 mm) or Raised P anel
A raised panel design screwed or glued to a 1/4” (6 mm) thick backing, or a 3/4” (19 mm) routed board can be used. The raised portion of the panel must be fabricated to permit clearances of at least 2” (5.1 cm) from
the handle side for fingertip clearance.
Panels thicker than 1/4” (6 mm), up to 3/4” (19 mm) max, will require that the outer 5/16” (8 mm) of panel perimeter be no thicker than 1/4” (6 mm).
Weight limitations for custom panels: Fresh Food 38 lbs. (17 kg) max. Freezer Door 28 lbs. (13 kg) max.
2”(5.1 cm) Clearance Handle Side
Appearance Panel
Refrigerator Door
1/4”(6 mm) Thick Backing
3/4” (19 mm)
Panels 1/4”thick or less
Panels thicker than 1/4”(6 mm)
1/4”max
1/4”(6 mm) max
3/4”(19 mm)
5/16” (8 mm)
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
20
Trim kits and decorator panels.
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser Fresh Food Panel
Cutout
5/16”
(8 mm)
14
15
⁄32”
(36.8 cm)
67
9
⁄32”
(170.9 cm)
1/8” (3 mm)
FRONT
17
7
⁄8”
(45.4 cm)
14
15
⁄32”
(36.8 cm)
33
5
⁄8”
(85.4 cm)
FRONT
67
9
⁄32”
(170.9 cm)
19
15
⁄32”
(49.5 cm)
FRONT
23‘ Dimensions for Custom Wood Panels
The areas at the top of the panels need to be cut out of the panels.
25‘
CustomStyle™Dimensions for Custom Wood Panels
The areas at the top of the panels need to be cut out of the panels.
Cutout
1/8” (3 mm)
Cutout
1/8” (3 mm)
5/16”
(8 mm)
5/16”
(8 mm)
Freezer Panel
Without Dispenser
Freezer Panel
With Dispenser Fresh Food Panel
Cutout
5/16”
(8 mm)
14
15
⁄32”
(36.8 cm)
69”
(175.3 cm)
1/8” (3 mm)
FRONT
17”
(43.2 cm)
14
15
⁄32”
(36.8 cm)
36
1
⁄4”
(92.0 cm)
FRONT
69”
(175.3 cm)
19
15
⁄32”
(49.5 cm)
FRONT
Cutout
1/8” (3 mm)
Cutout
1/8” (3 mm)
5/16”
(8 mm)
5/16”
(8 mm)
21
Inserting the door panels.
Attach the Top Trim on the Freezer and Fresh Food Doors.
The Top Trim can be found inside the refrigerator compartment.
With a T-20 Torxdriver, attach the Top Trim, using two screws on each Top Trim piece, to the top of each
door. Hand tighten only. Make sure that the top of each panel fits snugly behind the lip of the Top Trim.
Insert the Freezer Panel and Fresh Food Panel.
Carefully push the freezer panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel. Repeat for fresh food panel.
If your model has a dispenser, this step only applies to the fresh food panel and top freezer panel.
Insert the Bottom Freezer Panel (on dispenser models).
Carefully push the panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel.
Cut-Out
Cut-Out
Top Trim Screws
Top Freezer Panel
Bottom Freezer Panel
Side Trim
Side Trim
Fresh Food Panel
Read these instructions completely and carefully.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions
Installation
Instructions
Top Trim Screws
22
Install the Side Trim.
These pieces are tucked inside the refrigerator door handle.
Do not remove the protective film on the outside of the Side Trim until the Side Trim is installed.
Fit the bottom of the Side Trim under the Bottom Trim as illustrated.
Hold the Side Trim against the front face of the decorator panels and fit the Side Trim under the Top Trim. Make sure the magnetically attached Side Trim is fitted correctly and that you are satisfied with the appearance of all the parts.
Side Trim
Side Trim
Bottom Trim
Top Trim
Inserting the door panels.
Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions
Installation
Instructions
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•
IMPORTANT — Save these instructions
for local inspector’s use.
•
IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Completion time – Refrigerator Installation
30 minutes Water Line Installation
30 minutes
• Proper installation is the responsibility of
the installer.
• Product failure due to improper installation is
not covered under the Warranty.
If the refrigerator has already been installed, remove the base grille (see Step 2 in Moving
the Refrigerator), then skip to Step 5 in Installing the Refrigerator.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
In Canada, call 1.800.561.3344 or Visit our Website at: geappliances.ca
Installation
Refrigerator
Instructions
Models 23, 25, 26, 27 and 29
If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your
dealer, by visiting our Website at ge.com (in Canada at geappliances.ca) or from Parts and Accessories,
800.626.2002 (in Canada 1.888.261.3055).
PREPARATION WATER SUPPLY TO THE ICEMAKER
TOOLS YOU WILL NEED
23
Phillips Head Screwdriver
3/8” and 5/16” Socket 1/2” and 7/16” Wrench
Plastic Putty Knife
1/8” Hex Wrench
24
Installation Instructions
LOADING THE RERIGERATOR ONTO A HAND TRUCK
Leave all tape and door pads on doors until the refrigerator is in its final location.
To move the refrigerator, use a padded hand truck. Center the refrigerator on the hand truck and secure the strap around the refrigerator.
DO NOT OVERTIGHTEN THE STRAP.
1
REMOVE THE BASE GRILLE
Remove the grille by removing the two Phillips head screws.
2
If the refrigerator must go through
any entrance that is less than 38” wide,
the doors must be removed. Proceed to Step 3.
DO NOT remove the handles.
If all entrances are more than 38” wide, skip to Installing the Refrigerator.
DISCONNECT THE WATER COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a water line from the cabinet into the bottom hinge on the freezer door that must be disconnected.
To disconnect, push in on the white collar of the coupling and pull out the tubing.
3
White collar
Bottom freezer hinge
MOVING THE REFRIGERATOR
25
Installation Instructions
DISCONNECT THE POWER COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the cabinet into the bottom hinge on the freezer door that must be disconnected.
To disconnect, pull apart at the coupling.
4
Bottom freezer hinge
DISCONNECT THE ELECTRICAL CONNECTORS (on some models)
If the refrigerator has a refreshment center,
there are electrical connectors (harnesses) from the cabinet into the bottom hinge on the refrigerator door that must be disconnected.
To disconnect, pull apart each connector.
5
Bottom refrigerator hinge
CLOSE THE FREEZER AND REFRIGERATOR DOORS
6
REMOVE THE FREEZER DOOR
Remove the freezer door top hinge cover (if equipped) by either squeezing it and pulling it up or by prying it off with a plastic putty knife.
Remove the two 5/16” or 1/8” hex head
screws, then lift the hinge straight up to free the hinge pin.
Open the freezer door to 90.°
7
A
C
B
5/16” or 1/8” hex head
90°
26
Installation Instructions
MOVING THE REFRIGERATOR (CONT.)
REMOVE THE FREEZER DOOR (cont.)
As one person slowly lifts the freezer door up and off the bottom hinge, the second person should carefully guide the water line and power line (harness) through the bottom hinge.
Set the door on a non-scratching surface with the inside up.
7
D
E
90°
REMOVE THE REFRIGERATOR DOOR
Remove the refrigerator door top hinge cover (if equipped) by either squeezing it and pulling it up or by prying it off with a plastic putty knife.
8
A
REMOVE THE REFRIGERATOR DOOR (cont.)
Remove the two 5/16” or 1/8” hex head
screws, then lift the hinge straight up to free the hinge pin.
Open the refrigerator door to 90.°
8
B
C
5/16” or 1/8” hex head
90°
27
Installation Instructions
REMOVE THE REFRIGERATOR DOOR (cont.)
Lift the refrigerator door up and off the bottom hinge.
If the refrigerator has a refreshment center,
one person should slowly lift the door up and off the bottom hinge and the second person should carefully guide the electrical lines (harnesses) through the bottom hinge.
Set the door on a non-scratching surface with the inside up.
8
D
E
90°
REPLACING THE DOORS
To replace the doors, simply reverse steps 3 through 8.
However, please note the following:
• When lowering the doors onto the bottom
hinges, make sure the second person carefully guides the tube and harnesses through the holes in the hinges.
• When connecting the water line, make sure
you insert the tubing all the way to the mark.
• Do not pinch the tubing and harnesses when
placing the doors on the bottom hinges.
• When connecting the power line and the
electrical lines (refreshment center models only), be sure that the connectors are seated together fully.
9
Mark
Refreshment Center Models Only
DIMENSIONS AND SPECIFICATIONS (for 23‘ CustomStyle
™
models)
DIMENSIONS AND SPECIFICATIONS
28
Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Do not install the refrigerator where
the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.
• Do not install the refrigerator where
the temperature will go above 100°F (37°C) because it will not perform properly.
• Install it on a floor strong enough to support it
fully loaded.
CLEARANCES
Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections:
23‘ (33” wide),
23‘/25‘ CustomStyle
™
25‘,26‘, 27‘, 29‘
Sides 1/8” (4 mm) 1/8” (4 mm) Top 1” (25 mm) 1” (25 mm) Back 1/2” (13 mm) 1” (25 mm)
70
1
⁄4”(178.4 cm)
36”
(91.4 cm)
24” (61 cm)
24”(61 cm) Cabinet
Water
Electrical
3/4”(19 mm) Airspace (1/2”[13 mm] Gap + 1/4”[6 mm] Wall Plates)
25”(63.5 cm) Countertop
DIMENSIONS AND SPECIFICATIONS (for 25‘ CustomStyle
™
models)
*72
1
/4” (183.5 cm) required for full adjustment
of mobility wheels. If cabinets installed above refrigerator have doors that are flush to the top of the opening for the refrigerator, then an
additional 1/8” may be required to provide
clearance for cabinet doors to open freely.
36”
(91.4 cm)
24” (61 cm)
72
1
⁄4”(183.5 cm)*
29
Installation Instructions
CONNECTING THE REFRIGERATOR TO THE HOUSE WATER LINE (icemaker and dispenser models)
A cold water supply is required for automatic icemaker and dispenser operation. If there is not a cold water supply, you will need to
provide one. See Installing the Water Line
section.
NOTES:
• Before making the connection to
the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.
• If your refrigerator does not have a water
filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect
™
Refrigerator Tubing Kit , you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.
If you are using copper tubing, place a
compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply.
If you are using the GE SmartConnect
™
tubing, the nuts are already assembled
to the tubing.
If you are using copper tubing, insert
the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.
If you are using GE SmartConnect
™
tubing,
insert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks.
1
A
B
Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.
1/4”Tubing
Tubing Clamp
1/4” Compression Nut
Ferrule (sleeve)
SmartConnect™Tubing
Refrigerator Connection
C
TURN ON THE WATER SUPPLY
Turn the water on at the shutoff valve (house water supply) and check for any leaks.
2
PLUG IN THE REFRIGERATOR
Before plugging in the refrigerator, make sure
the icemaker power switch is set to the O (off )
position.
See the grounding information attached to the power cord.
3
LEVEL THE REFRIGERATOR (cont.)
To adjust the rollers on 23
‘/25‘
CustomStyle
™
models:
Turn the front roller adjusting screws
clockwise to raise
the refrigerator,
counterclockwise to lower it. Use a 3/8” hex
wrench with extension, or an adjustable wrench.
These models also have rear adjustable rollers so you can align the refrigerator with your
kitchen cabinets. Use a 3/8” hex wrench with
extension to turn the screws for the rear rollers—
clockwise to raise the refrigerator, counterclockwise to lower it.
30
Installation Instructions
INSTALLING THE REFRIGERATOR (CONT.)
PUT THE REFRIGERATOR IN PLACE
Move the refrigerator to its final location.
4 5
LEVEL THE REFRIGERATOR
The refrigerator can be leveled by adjusting the rollers located near the bottom hinges.
Rollers have three purposes:
• Rollers adjust so the door closes easily when
opened about halfway. (Raise the front about
5/8” [16 mm] from the floor.)
• Rollers adjust so the refrigerator is firmly
positioned on the floor and does not wobble.
• Rollers allow you to move the refrigerator
away from the wall for cleaning.
To adjust the rollers on 23‘ (33” wide), 25‘,26‘, 27‘ and 29‘ models:
• Turn the roller
adjusting screws
clockwise to raise
the refrigerator,
counterclockwise to lower it. Use
a 3/8” hex socket
or wrench, or an adjustable wrench.
5
Rollers
Roller adjusting screw
Roller adjusting screws
LEVEL THE DOORS
Adjust the refrigerator door to make the doors even at the top.
To align:
Using a 7/16” wrench, turn the door adjusting
screw to the right to raise the door, to the left to lower it.
NOTE:
A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.
After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.
6
A
B
Doors should be even at top
Raise
7/16” wrench
Raise
Loading...
+ 102 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
