GENERAL ELECTRIC PSF26NGW User Manual

www.GEAppliances.com

Refrigerators

Profile Side by Side

200D2600P023 49-60238-2 02-03 JR

La section française commence à la page 46

La sección en español empieza en la página 88

Safety Instructions . . . . . . . . . . .2–4

Operating Instructions

Automatic Icemaker . . . . . . . . . . .14

Care and Cleaning . . . . . . . . . .16, 17

Crispers and Pans . . . . . . . . . . . . .13

CustomCool

™

. . . . . . . . . . . . . . . .7, 8

Ice and Water Dispenser . . . . . . . .15

Refrigerator Doors . . . . . . . . . . . .12

Replacing the Light Bulbs . . . . . . .18

Shelves and Bins . . . . . . . . . . .10, 11

Temperature Controls . . . . . . . . . . .5

TurboCool

™

. . . . . . . . . . . . . . . . . . .6

Water Filter . . . . . . . . . . . . . . . . . . .9

Installation Instructions

Installing the Refrigerator . . . .28–31

Moving the Refrigerator . . . . .24–27

Preparing to Install

the Refrigerator . . . . . . . . . . . . . . .23

Trim Kits and Panels . . . . . . . .19–22

Water Line Installation . . . . . .32–34

Troubleshooting Tips . . . . . . .36–38

Normal Operating Sounds . . . . . .35

Consumer Support

Consumer Support . . . . .Back Cover

Performance Data Sheet . . . . . . . .41

Product Registration . . . . . . . .43, 44

State of California Water

Treatment Device Certificate . . . . .42

Warranty (Canadian) . . . . . . . . . . .39

Warranty (U.S.) . . . . . . . . . . . . . . .40

Réfrigérateurs

Profile Côte à Côte

Refrigeradores

Profile Lado a Lado

Models 23, 25, 26, 27 and 29

Write the model and serial numbers here:

Model # __________________________

Serial # __________________________

Find these numbers on a label inside the refrigerator compartment at the top on the right side.

Owner’s Manual

and Installation

Manuel d’utilisation

et d’installation

Manual del propietario

e instalación

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

Use this appliance only for its intended purpose as described in this Owner’s Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

■

■ This refrigerator must be properly installed

and located in accordance with the Installation Instructions before it is used.

■

■ Do not allow children to climb, stand or hang

on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

■

■ Do not touch the cold surfaces in the freezer

compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.

■

■ Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

■

■ In refrigerators with automatic icemakers,

avoid contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the icemaker. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

■

■ Keep fingers out of the “pinch point” areas;

clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

■

■ Unplug the refrigerator before cleaning and

making repairs.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

■

■ Setting either or both controls to 0 (off) does not

remove power to the light circuit.

■

■ Do not refreeze frozen foods which have

thawed completely.

■

■ Always clean the CustomCool™Tray after thawing

food.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

GEAppliances.com

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous…even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may

not easily climb inside.

Refrigerants

All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

DANGER! RISK OF CHILD ENTRAPMENT

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

If the outlet is a standard 2-prong outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

USE OF ADAPTER PLUGS (Adapter plugs not permitted in Canada)

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT USE the refrigerator until a proper ground has been established.

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

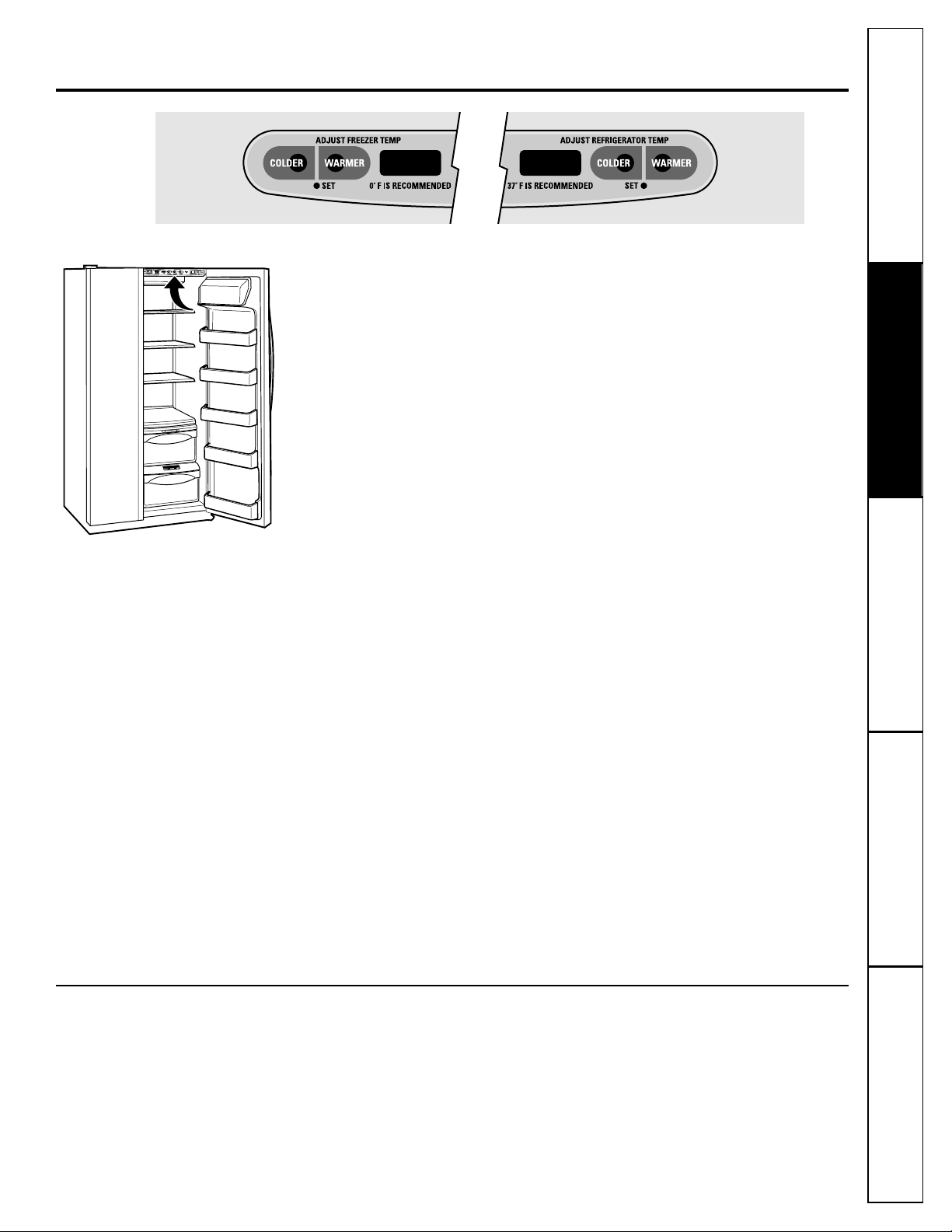

About the temperature controls. GEAppliances.com

The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.

The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.

Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.

The Performance Air-Flow System is designed to maximize temperature control in the refrigerator and freezer compartments. This unique special feature consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on the bottom portion of the freezer rear wall. Placing food in front of the louvers on these components will not

affect performance. Although the Air Tower and the Air Tunnel can be removed, doing so will affect temperature performance. (For removal instructions, on-line, 24 hours a day, contact us at GEAppliances.com or call 800.GE.CARES. In Canada, contact us at geappliances.ca or call

1.800.361.3400.)

Performance Air Flow System

To change the temperature, press and release the WARMER or COLDER pad. The SET light will come

on and the display will show the set temperature. To change the temperature, tap either the WARMER or COLDER pad until the desired temperature is displayed. Refrigerator temperatures can be adjusted between 34°F and 44°F and the freezer temperatures can be adjusted between –6°F and +6°F.

Once the desired temperature has been set, the temperature display will return to the actual refrigerator and freezer temperatures after 5 seconds. Several adjustments may be required. Each time you adjust controls, allow 24 hours for the refrigerator to reach the temperature you have set.

To turn the cooling system off, tap the WARMER pad for either the refrigerator or the freezer until the display shows OFF. To turn the unit back on, press the COLDER pad for either the refrigerator or freezer. The SET light will illuminate on the side you selected. Then press the COLDER pad again (on the side where the SET light is illuminated) and it will go to the preset points of 0°F for the freezer and 37°F for the refrigerator. Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

About TurboCool.

™

How it Works

TurboCool rapidly cools the refrigerator

compartment in order to more quickly cool foods. Use TurboCool when adding a large amount of food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature or when putting away warm leftovers. It can also be used if the refrigerator has been without power for an extended period.

Once activated, the compressor will turn on immediately and the fans will cycle on and off at high speed as needed for eight hours. The compressor will continue to run until the refrigerator compartment cools to approximately 34°F (1°C), then it will cycle on and off to maintain this setting. After 8 hours, or if TurboCool is pressed again, the refrigerator compartment will return to the original setting.

How to Use

Press TurboCool. The refrigerator temperature display will show TC.

After TurboCool is complete, the refrigerator compartment will return to the original setting.

NOTES: The refrigerator temperature

cannot be changed during TurboCool.

The freezer temperature is not affected during TurboCool.

When opening the refrigerator door during TurboCool, the fans will continue to run if they have cycled on.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

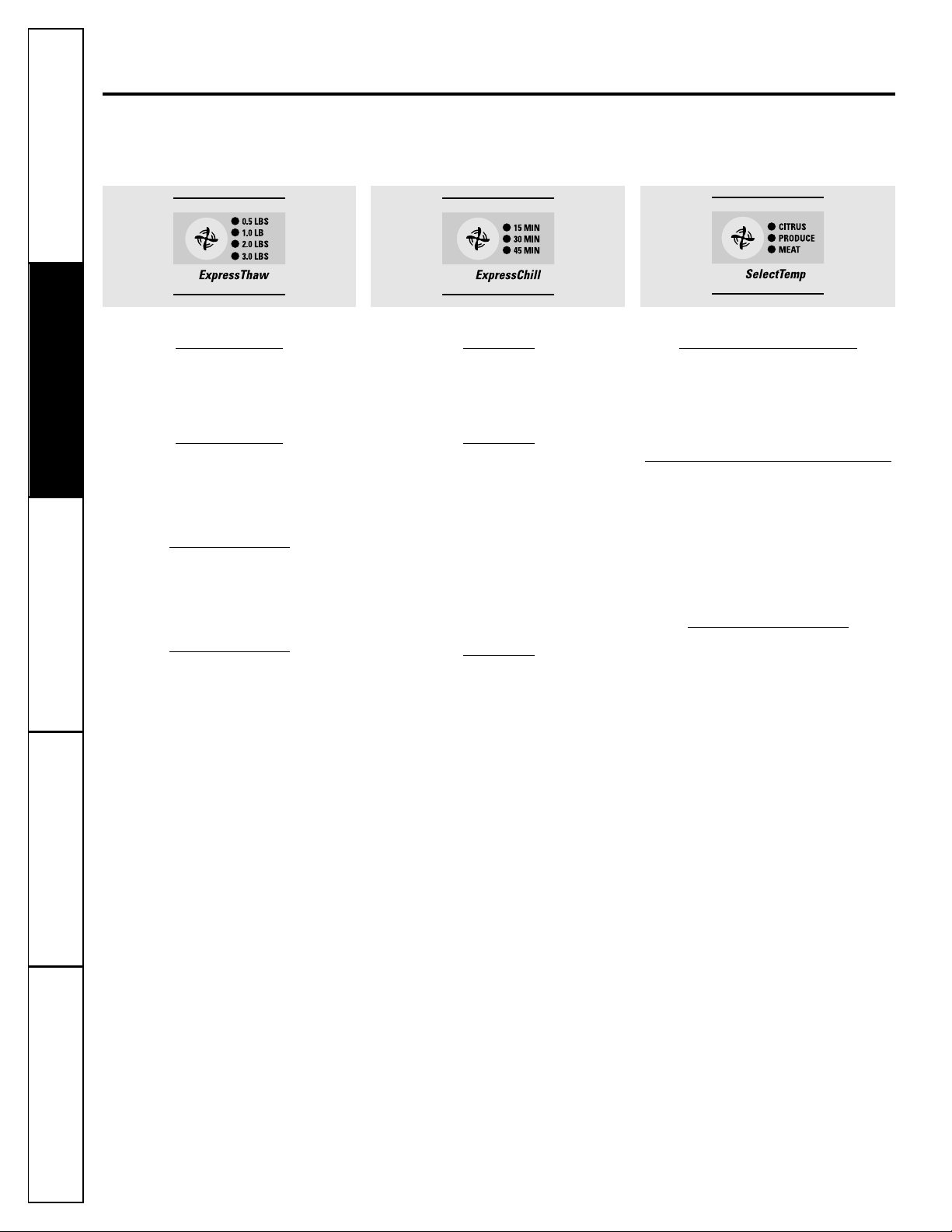

Empty the pan. Place the Chill/Thaw

tray in the pan. Place the items on the

tray and close the pan completely.

Select the ExpressThaw,™ExpressChill

™

or SelectTemp™pad. The display and

SET light will come on. Tap the pad

until the light appears next to the desired setting. Use the chart to determine the best setting to use.

■ To stop a feature before it is

finished, tap that feature’s pad until no options are selected and the display is off.

■ During ExpressThaw™and

ExpressChill,™the display on the

controls will count down the time in the cycle.

■ After the ExpressThaw

™

cycle is complete, the pan will reset to the MEAT setting (31°F) to help preserve thawed items until they are used.

■ The displayed actual temperature of

the CustomCool pan may vary slightly from the SET temperature based on usage and operating environment.

NOTE: For food safety reasons, it is recommended that foods be wrapped in plastic wrap when using ExpressThaw.

™

This will help contain meat juices and improve thawing performance.

About CustomCool™. GEAppliances.com

The CustomCool

™

feature is a system of dampers, a fan, a temperature thermistor and a heater. Depending on the function selected, a combination of these will be used to quickly chill items, thaw items or hold the pan at a specific temperature.

The pan is tightly sealed to prevent the pan’s temperature from causing temperature fluctuations in the rest of the refrigerator.

The controls for this pan are located at the top of the refrigerator with the temperature controls.

How to Use

How it Works

ExpressThaw

™

To remove:

Pull the drawer out to the stop position.

Lift the front of the drawer up and out

of the wire holder.

Lift the back of the drawer up and out.

To replace:

Place the back of the drawer in the wire

holder, making sure the wire holder fits into the grooves on the back of the pan.

Lower the front of the drawer into the

wire holder.

Pull the bottom of the wire holder

forward until the wire pops into the groove located on the bottom of the drawer.

How to Remove and Replace the Drawer

ExpressChill

™

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Pop wire into groove

About CustomCool™.

CustomCool™Chart

NOTE: Results may vary depending on packaging, starting temperature and other food traits.

0.5 Lb. (4 hours)

■ Hamburger Patties (0.5 lb)

■ Individually Wrapped

Filet Mignon (0.5 lb)

1.0 Lb. (6 hours)

■ Chicken Breasts (1.0 lb)

■ Ground Beef (1.0 lb)

■ Steak (1.0 lb)

2.0 Lbs. (10 hours)

■ Chicken Breasts (2.0 lbs)

■ Ground Beef (2.0 lbs)

■ Steak (2.0 lbs)

3.0 Lbs. (12 hours)

■ Chicken Breasts (3.0 lbs)

■ Ground Beef (3.0 lbs)

■ Steak (3.0 lbs)

15 Minutes

■ 1 Beverage Can (12 oz)

■ 2 Small Juice Boxes (6–8 oz each)

30 Minutes

■ 2 to 6 Beverage Cans (12 oz each)

■ 2 Plastic 20 oz Bottles of Beverage

■ 4 to 6 Small Juice Boxes

(6–8 oz each)

■ 3 Foil Juice Packets

■ Wine (750 ml bottle)

45 Minutes

■ 2 Liter of Beverage

■ 1/2 Gallon of Juice

■ Gelatin–1 package

Citrus Setting (43

°F)

■ Oranges, Lemons, Limes,

Pineapple, Cantaloupe

■ Beans, Cucumbers, Tomatoes,

Peppers, Eggplant, Squash

Produce Setting (35°F)

■ Strawberries, Raspberries, Kiwifruit,

Pears, Cherries, Blackberries, Grapes, Plums, Nectarines, Apples

■ Asparagus, Broccoli, Corn,

Mushrooms, Spinach, Cauliflower, Kale, Green Onion, Beets, Onions

Meat Setting (31°F)

■ Raw Meat, Fish and Poultry

Consumer Support Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

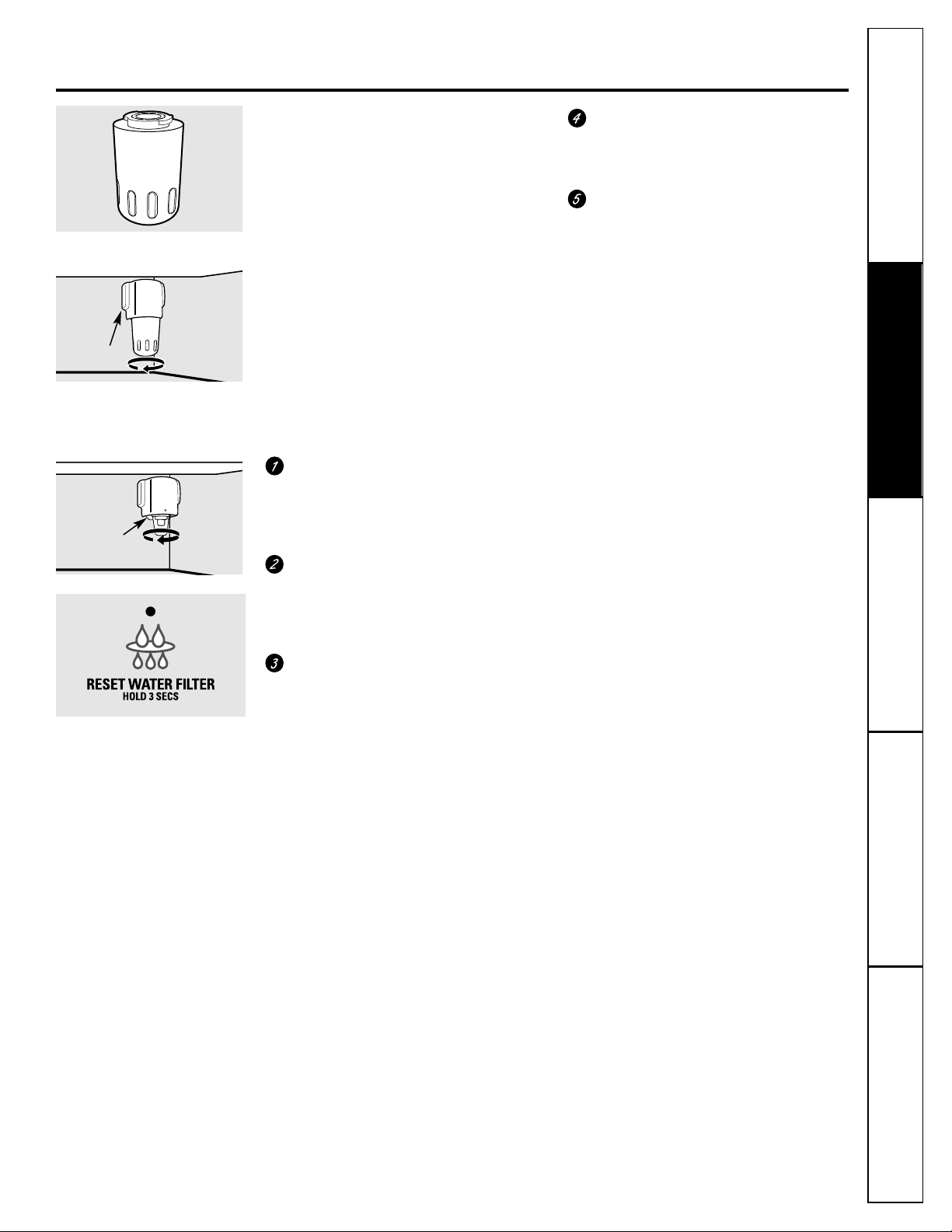

About the water filter. (on some models) GEAppliances.com

Water Filter Cartridge

The water filter cartridge is located in the back upper right corner of the refrigerator compartment.

When to Replace the Filter

There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.

The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.

Installing the Filter Cartridge

If you are replacing the cartridge, first remove the old one by slowly turning it to the left. Do not pull down on the cartridge. A small amount of water may drip down.

Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.

Lining up the arrow on the cartridge and the cartridge holder, place the top of the new cartridge up inside the holder. Do not push it up into the holder.

Slowly turn it to the right until the filter cartridge stops. DO NOT OVERTIGHTEN. As you turn the cartridge, it will automatically raise itself into position. Cartridge will rotate about 1/4 turn.

Run water from the dispenser for

3 minutes (about 1

⁄2 gallons) to clear

the system and prevent sputtering.

Press and hold the RESET WATER FILTER

pad on the dispenser for 3 seconds.

NOTE: A newly-installed water filter cartridge may cause water to spurt from the dispenser.

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.

Replacement Filters:

To order additional filter cartridges in the United States, visit our Website, GEAppliances.com, or call GE Parts and Accessories, 800.626.2002.

GWF Suggested Retail $34.95 USD

Customers in Canada should consult the yellow pages for the nearest Camco Service Center.

Place the top of the cartridge up inside the cartridge holder and slowly turn it to the right.

Filter Bypass Plug

Cartridge Holder

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

About the shelves and bins.

Refrigerator Door Bins and Freezer Door Tilt-Out Bins

Large Bins

The larger refrigerator door bins and freezer tilt-out door bins are adjustable.

To remove: Lift the front of the bin straight up, then lift up and out.

To replace or relocate: Engage the back side of the bin in the molded supports on the door. Then push down on the front of the bin. Bin will lock in place.

Small Bins

To remove: Lift the front of the bin straight

up then out.

To replace: Position the bin above the rectangular molded supports on the door. Then slide the bin down onto the support to lock it in place.

The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the snugger near the rear and move it back and forth to fit your needs.

CAUTION: Be careful when placing items in the top bin. Make sure that items do not block or fall into the ice chute.

Not all features are on all models.

Refrigerator bin

Freezer tilt-out bin

Snugger

QuickSpace™Shelf

This shelf splits in half and slides under itself for storage of tall items on the shelf below.

This shelf can be removed and replaced or relocated just like Slide-Out Spillproof Shelves.

On some models, this shelf cannot be used in the lowest position.

Slide-Out Spillproof Shelf

The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.

To remove:

Slide the shelf out until it reaches the stop, then press down on the tab and slide the shelf straight out.

To replace or relocate:

Line the shelf up with the supports and slide it into place. The shelf can be repositioned when the door is at 90° or more. To reposition the shelf, slide the shelf past the stops and angle downward. Slide shelf down to the desired position, line up with the supports and slide into place.

Make sure you push the shelves all the way back in before you close the door.

Press tab and pull shelf forward to remove

Do not block

Top freezer bin

GEAppliances.com

Not all features are on all models.

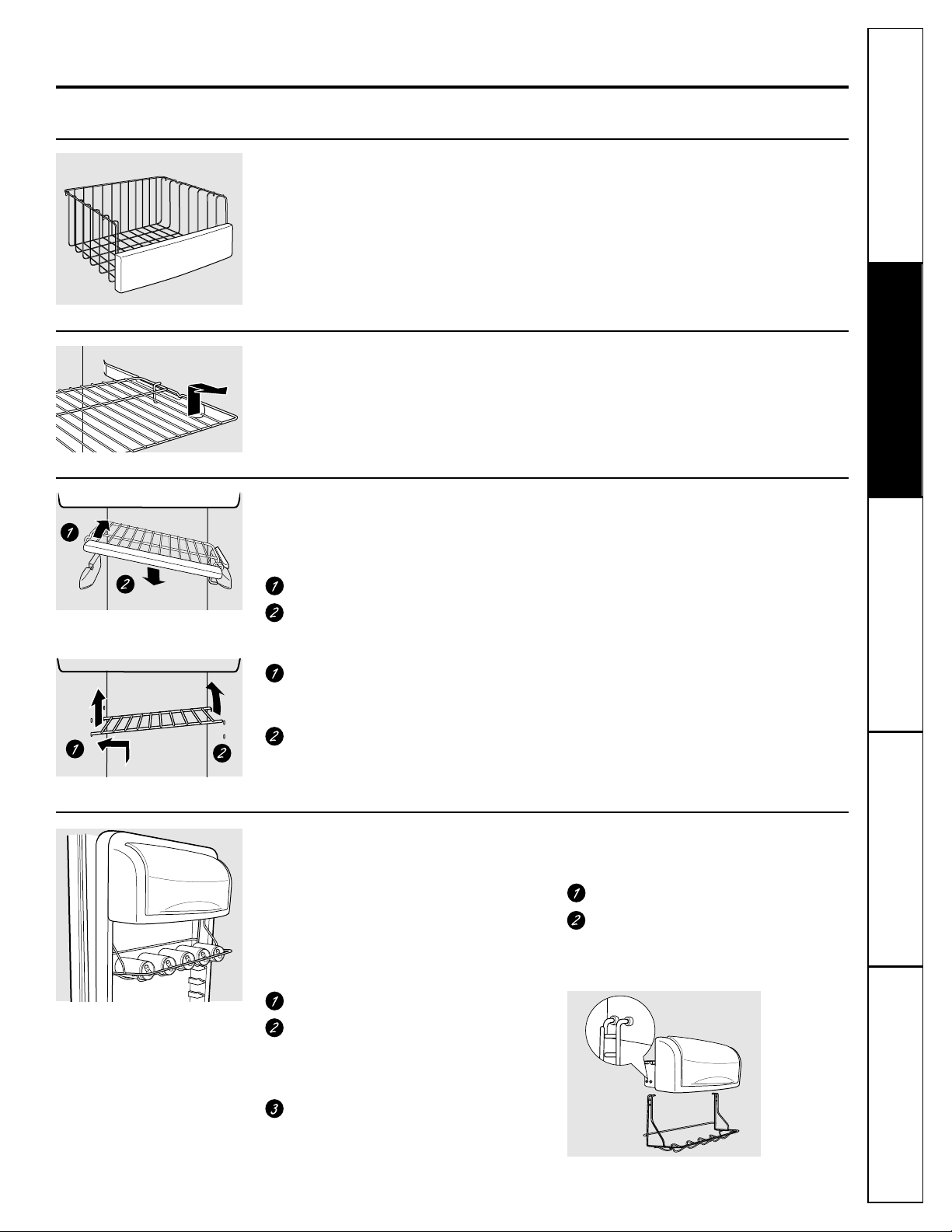

Slide-Out Freezer Shelves

To remove, slide out to the stop position,

lift the front past the stop position and slide out.

Make sure you push the shelves all the way back in before you close the door.

Freezer Baskets

To remove, push the basket all the way to the

back of the freezer. Lift up until the back pins are disengaged. Lift the entire basket up and pull out.

Make sure you push the baskets all the way back in before you close the door.

Fixed Freezer Shelves

There are two types of fixed freezer shelves.

To remove this type of shelf:

Lift the shelf up at the left side.

Bring the shelf out.

To remove this type of shelf:

Lift up the left side of the shelf and slide it left into the center of the shelf supports.

Rotate the right side of the shelf up and out of the shelf supports.

NOTE FOR DISPENSER MODELS: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Door Wine/Beverage Rack (on some models)

This rack holds up to 5 cans, one bottle of wine or one 2-liter bottle of soda.

The rack hangs from the sides of the dairy bin.

To remove:

Empty the wine/beverage rack.

Holding the bottom of the dairy bin, lift the front straight up, then lift up and out.

To detach the rack from the dairy bin, pull the rack’s side wires out of the holes on each side of the dairy bin.

To replace:

Reattach the rack to the sides

of the bin.

Engage the back side of the bin in

the molded supports on the door.

Then push down on the front of the

bin. The bin will lock into place.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

About the refrigerator doors.

Refrigerator Doors

The refrigerator doors may feel different than the ones you are used to. The special door opening/closing feature makes sure the doors close all the way and are securely sealed.

When opening and closing the door you will notice a stop position. If the door is opened past this stop point, the door will remain open to allow you to load and unload food more easily. When the door is only partially open, it will automatically close.

The resistance you feel at the stop position will be reduced as the door is loaded with food.

When the door is only partially open, it will automatically close.

Beyond this stop the door will stay open.

Door Alignment

If doors are uneven, adjust the refrigerator door.

Using a 7/16″ socket wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)

After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

To remove the base grille, open the doors, remove the screw at each end of the base grille and then pull the grille straight out.

7/16″ Socket Wrench

Raise

About the crispers and pans. GEAppliances.com

About crisper removal.

Not all features are on all models.

Crisper Removal

Crispers can easily be removed by pulling the drawer straight out and lifting the drawer up and over the stop location.

If the door prevents you from taking out the drawers, first try to remove the door bins. If this does not offer enough clearance, the refrigerator will need to be rolled forward until the door opens enough to slide the drawers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out.

Not all features are on all models.

Fruit and Vegetable Crispers

Excess water that may accumulate in the bottom of the drawers should be wiped dry.

On some models, the bottom drawer has full extension slides that allow full access to the drawer.

Adjustable Humidity Crispers

Slide the control all the way to the HI setting to provide high humidity recommended for most vegetables.

Slide the control all the way to the LO setting to provide lower humidity levels recommended for most fruits.

Convertible Meat Pan

The convertible meat pan has its own cold air duct to allow a stream of cold air from the freezer compartment to flow to the pan.

The variable temperature control regulates the air flow from the Climate Keeper.

Set the control to the coldest setting to store fresh meats.

Set the control to cold to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. The cold air duct is turned off. Variable settings between these extremes can be selected.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

HI LO

About the automatic icemaker.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Automatic Icemaker

The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O (off) position.

When the refrigerator has been connected to the water supply, set the power switch to the l (on) position.

The icemaker will fill with water when it cools to 15°F (–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.

You will hear a buzzing sound each time the icemaker fills with water.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

Special note about dispenser models:

■ Dispenser models have a tilt-out ice bin.

The bin can be tilted out as shown in the illustrations, and it will hold itself up while you take ice out or turn the icemaker power switch on and off. Be sure to put the bin back in place before closing the door.

■ To restore your ice level from an empty

bucket stage, the following steps are recommended:

12 hours after the first batch of ice has fallen into the bin, dispense 3 to 4 cubes.

After an additional 6 hours, dispense 3 to 4 cubes again.

These steps will restore your ice level in the shortest amount of time.

NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.

A newly installed refrigerator may take 12 to 24 hours to begin making ice.

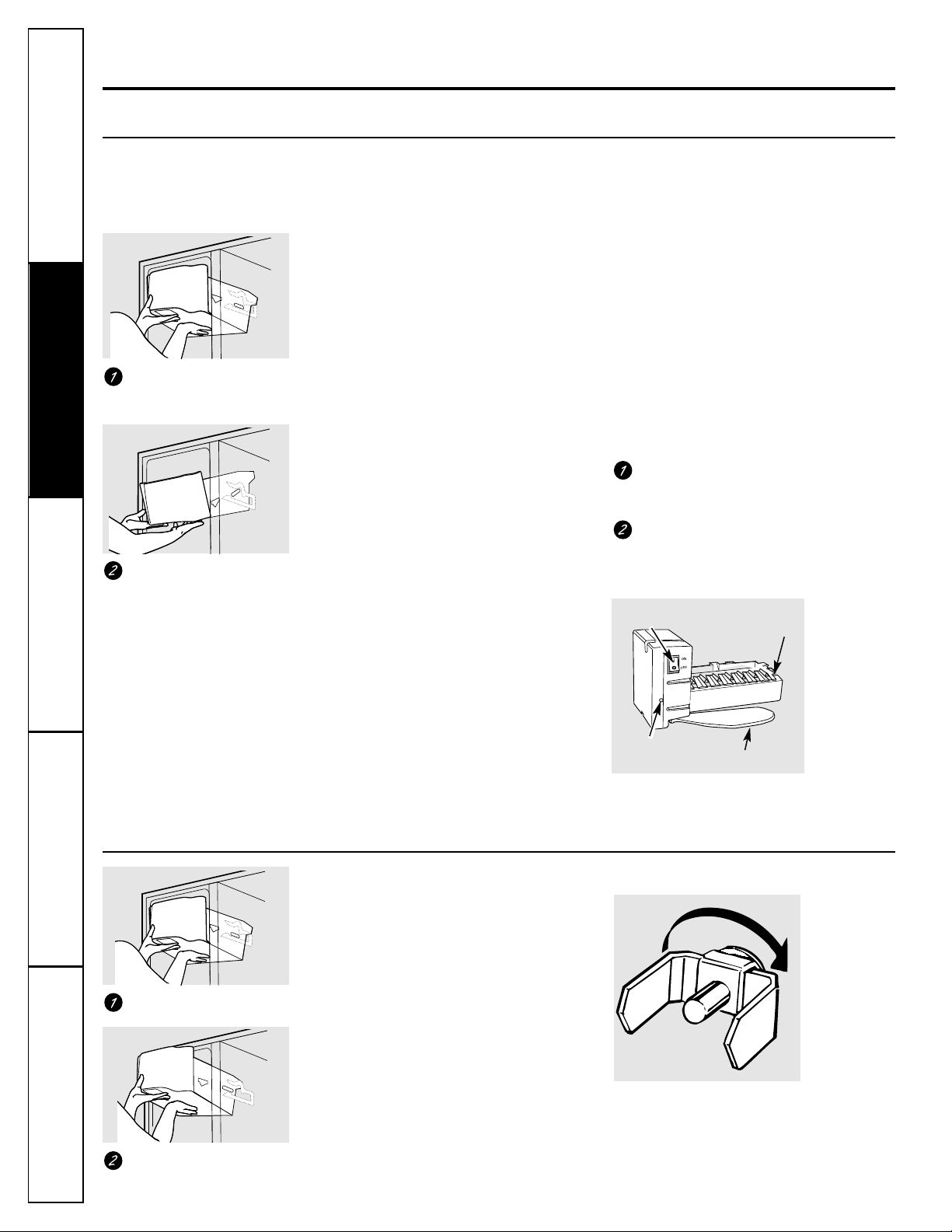

Lift the bin, then pull it forward until the bin stops.

Removing Ice Bin (dispenser models)

CAUTION: The ice bin is heavy when full.

Set the power switch to the O (off) position before removing the bin.

When replacing the bin, be sure to press it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the bin back again.

Icemaker

Feeler Arm

Power Switch

Green Power Light

Lower the bin to access ice or reach the power switch.

NOTE: In order to take full advantage of the tilt-out ice bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin.

On dispenser models, to access ice or reach the power switch:

Lift the bin, then pull it forward until the bin stops.

Lift and pull forward again to remove the bin.

Rotate

Drive Mechanism

Dispenser Models only

Important Facts About Your Dispenser

■ Do not add ice from trays or bags to

the storage drawer. It may not crush or dispense well.

■ Avoid overfilling glass with ice and use of

narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.

■ Beverages and foods should not be

quick-chilled in the ice storage drawer. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.

■ To keep dispensed ice from missing

the glass, put the glass close to, but not touching, the dispenser opening.

■ Some crushed ice may be dispensed

even though you selected CUBED ICE. This happens occasionally when a few cubes accidentally get directed to the crusher.

■ After crushed ice is dispensed, some

water may drip from the chute.

■ Sometimes a small mound of snow will

form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.

About the ice and water dispenser. (on some models) GEAppliances.com

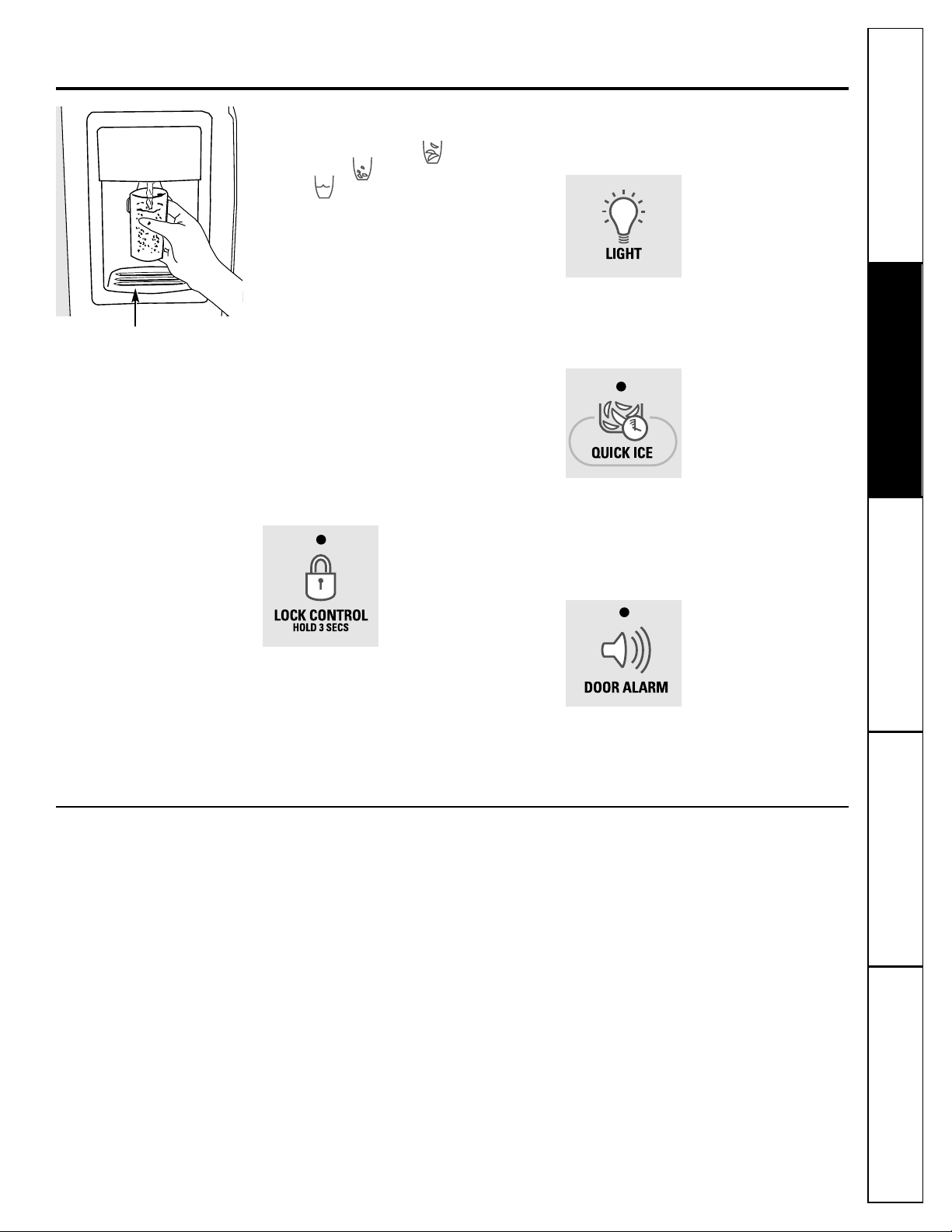

To Use the Dispenser

Select CUBED ICE , CRUSHED ICE or WATER .

Press the glass gently against the top of the dispenser cradle.

The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly.

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.

CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.

Locking the Dispenser

Press the LOCK CONTROL

pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.

Dispenser Light

This pad turns the night light in the dispenser

on and off. The light also comes on when the dispenser cradle is pressed. If this light burns out, it should be replaced with a 6 watt 12V maximum bulb.

Quick Ice

When you need ice in a hurry, press this pad to speed up ice production. This will increase ice production for the following 48 hours or until you press the pad again.

Door Alarm

To set the alarm, press this pad until the indicator light comes on. This alarm will sound if either door is open for more than 3 minutes. The light goes out and the beeping stops when you close the door.

Spill Shelf

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Cleaning the Outside

The dispenser drip area, beneath the grille,

should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.

The dispenser cradle. Before cleaning, lock the dispenser by pressing and holding the LOCK CONTROL pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. Rinse thoroughly and wipe dry.

The door handles and trim. Clean with a cloth dampened with soapy water. Dry with a soft cloth.

The stainless steel panels and door handles

(on some models) can be cleaned with a commercially available stainless steel cleaner. A spray-on stainless steel cleaner works best.

Do not use appliance wax or polish on the stainless steel.

Keep the outside clean. Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Cleaning the Inside

To help prevent odors, leave an open box of

baking soda in the fresh food and freezer compartments.

Unplug the refrigerator before cleaning. If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution— about a tablespoon (15 ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

Use of any cleaning solution other than that which is recommended, especially those that contain petroleum distillates, can crack or damage the interior of the refrigerator.

Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter.

Do not wash any plastic refrigerator parts in the dishwasher.

The chill/thaw tray is dishwasher safe.

Dispenser drip area.

Care and cleaning of the refrigerator.

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open.

Set the icemaker power switch to the O (off) position and shut off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding.

GEAppliances.com

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line.

Preparing for Vacation

Preparing to Move

Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright position during moving.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

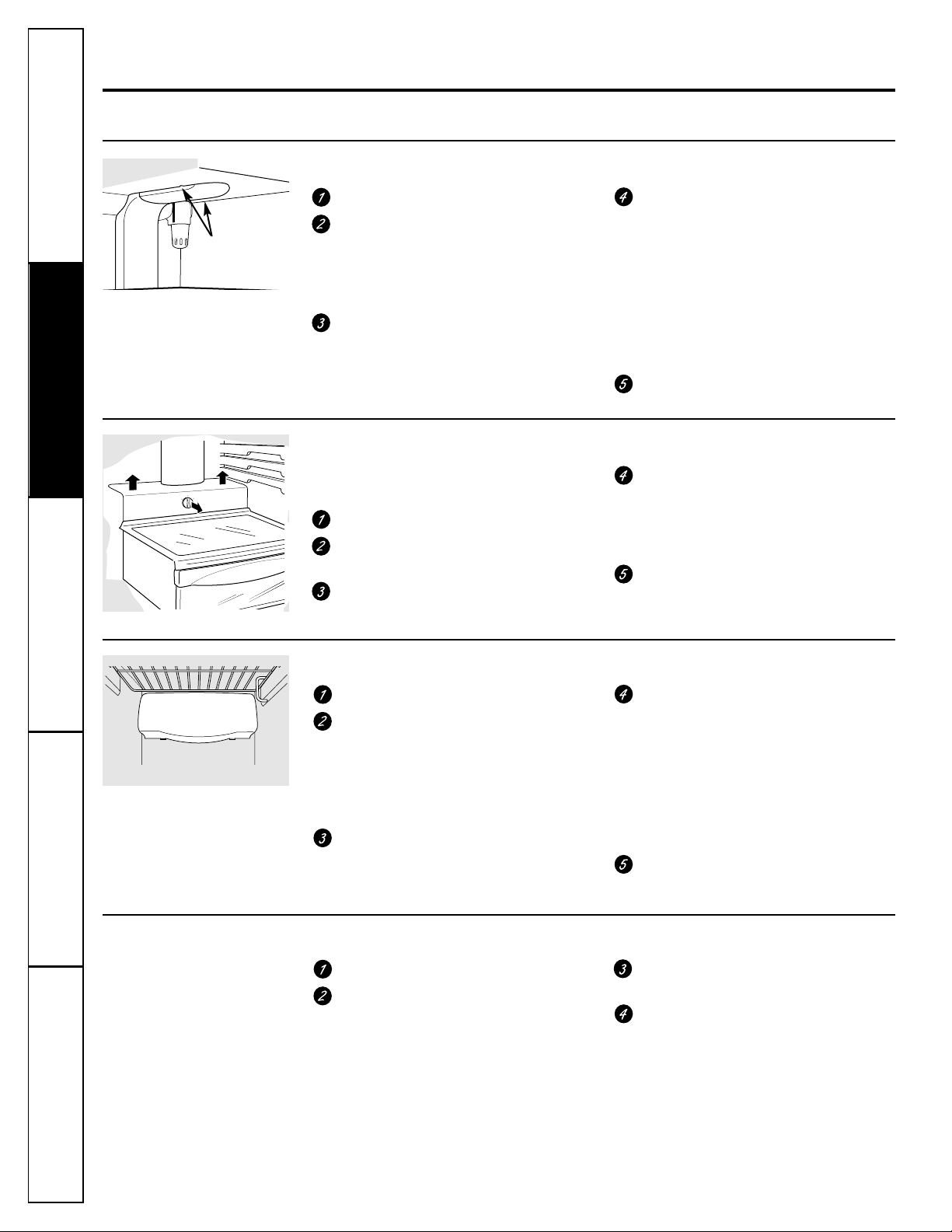

Replacing the light bulbs.

Setting the controls to OFF does not remove power to the light circuit.

Refrigerator Compartment—Upper Light

Unplug the refrigerator.

The bulbs are located at the top of the compartment, inside the light shield. On some models, a screw at the front of the light shield will have to be removed.

To remove the light shield, press in on the tabs on the sides of the shield and slide forward and out.

After replacing the bulb with an appliance bulb of the same or lower wattage, replace the light shield and screws (on some models). When replacing the light shield, make sure that the tabs at the back of the shield fit into the slots at the back of the light shield housing.

Plug the refrigerator back in.

Refrigerator Compartment—Lower Light

This light is located above the top drawer.

Unplug the refrigerator.

Remove the convertible meat drawer control knob by pulling straight out.

Lift the light shield up and pull it out.

After replacing the bulb with an appliance bulb of the same or lower wattage, replace the shield and the knob.

Plug the refrigerator back in.

Freezer Compartment

Unplug the refrigerator.

Remove the shelf just above the light shield. (The shelf will be easier to remove if it is emptied first.) On some models, a screw at the top of the light shield will need to be removed.

To remove the light shield, press in on the sides, and lift up and out.

Replace the bulb with an appliance bulb of the same or lower wattage, and reinstall the light shield. When reinstalling the light shield, make sure the top tabs snap securely into place. Replace the screw (on some models).

Reinstall the shelf and plug the refrigerator back in.

Dispenser

Unplug the refrigerator.

The bulb is located on the dispenser under the control panel. Remove the light bulb by turning it counterclockwise.

Replace the bulb with a bulb of the same size and wattage.

Plug the refrigerator back in.

Tabs

Trim kits and decorator panels.

Read these instructions completely and carefully.

Before You Begin

Some models are equipped with trim kits that allow you to install door panels. You can order pre-cut black, white, bisque or stainless steel decorator panels from GE Parts and Accessories,

800.626.2002, or you can add wood panels to match your kitchen cabinets.

Panels less than 1/4″ (6 mm) thick

When installing wood panels less than 1/4″ (6 mm) thick, you need to create a filler panel, such as 1/8″ cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cut decorator panels, pre-cut filler panels are included in the kit. The combined thickness of the decorator or wood panel and the filler panel should be 1/4″ (6 mm).

For CustomStyle™models

3/4″ (19 mm) or Raised Panel

A raised panel design screwed or glued to a 1/4″ (6 mm) thick backing, or a 3/4″ (19 mm) routed board can be used. The raised portion of the panel must be fabricated to permit clearances of at least 2″ (5.1 cm) from the handle side for fingertip clearance.

Panels thicker than 1/4″ (6 mm), up to 3/4″ (19 mm) max, will require that the outer 5/16″ (8 mm) of panel perimeter be no thicker than 1/4″ (6 mm).

Weight limitations for custom panels: Fresh Food 38 lbs. (17 kg) max. Freezer Door 28 lbs. (13 kg) max.

2″ (5.1 cm) Clearance Handle Side

Appearance Panel

Refrigerator Door

1/4″ (6 mm) Thick Backing

3/4″ (19 mm)

Panels 1/4″ thick or less

Panels thicker than 1/4″ (6 mm)

1/4″ max

1/4″ (6 mm) max

3/4″ (19 mm)

5/16″ (8 mm)

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

Trim kits and decorator panels.

Freezer Panel Without Dispenser

Freezer Panel With Dispenser

Fresh Food Panel

Cut out

5/16″ (8 mm)

1415⁄32″

(36.8 cm)

679⁄32″ (170.9 cm)

1/8″ (3 mm)

FRONT

5/16″ (8 mm)

177⁄8″ (45.4 cm)

1415⁄32″

(36.8 cm)

335⁄8″ (85.4 cm)

1/8″ (3 mm)

Cut out

FRONT

5/16″ (8 mm)

679⁄32″

(170.9 cm)

1/8″

(3 mm)

Cut out

1915⁄32″

(49.5 cm)

FRONT

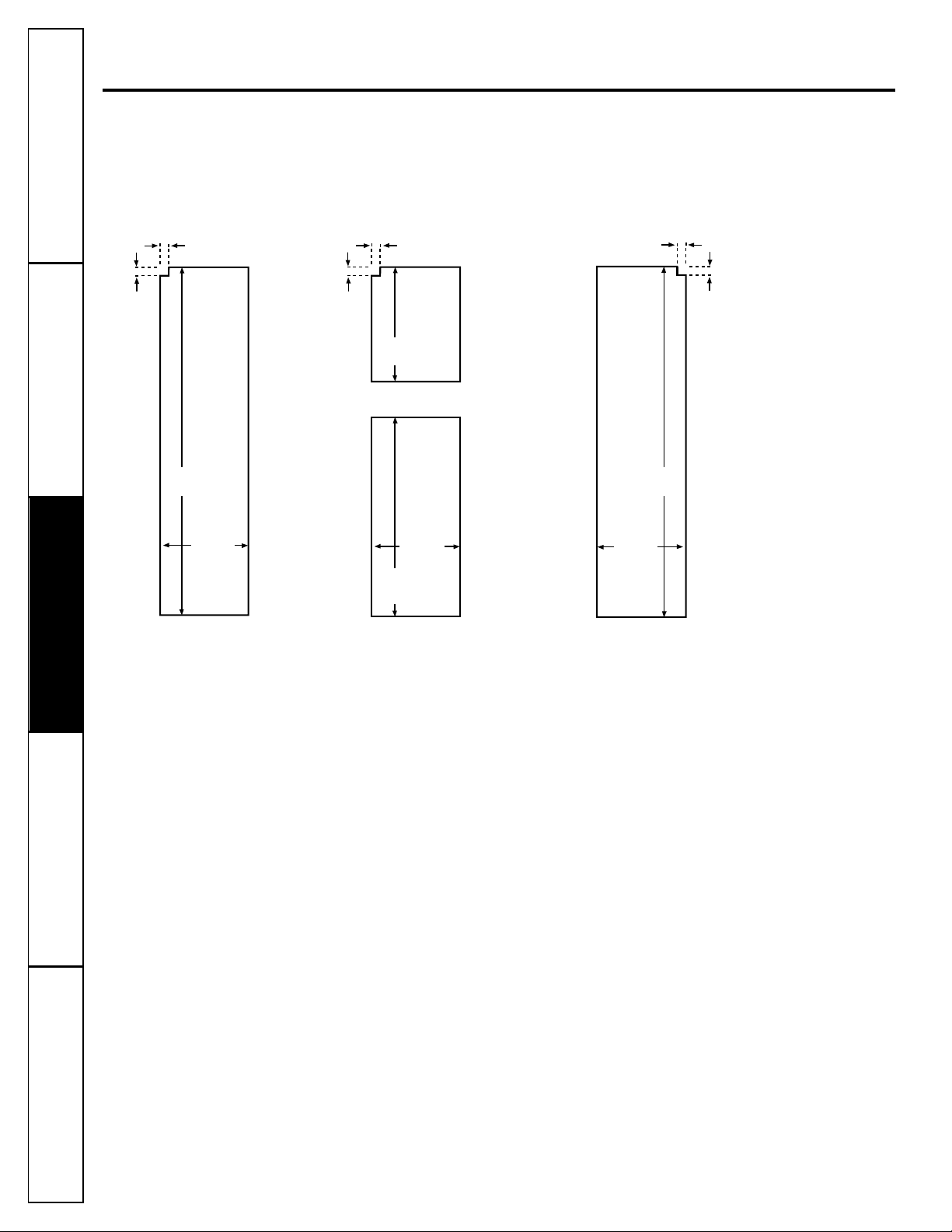

Dimensions for Custom Wood Panels

The areas at the top of the panels need to be cut out of the panels.

Inserting the door panels.

Attach the Top Trim on the Freezer and Fresh Food Doors.

The Top Trim can be found inside the refrigerator compartment.

With a T-20 Torxdriver, attach the Top Trim, using two screws on each Top Trim piece, to the top of

each door. Hand tighten only. Make sure that the top of each panel fits snugly behind the lip of the Top Trim.

Insert the Freezer Panel and Fresh Food Panel.

Carefully push the freezer panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel. Repeat for fresh food panel.

If your model has a dispenser, this step only applies to the fresh food panel and top freezer panel.

Insert the Bottom Freezer Panel (on dispenser models).

Carefully push the panel in until it slides into the slot behind the door handle. Push the filler panel

(required with some door panels) in behind the decorator panel.

Cut-Out

Top Trim Screws

Top Freezer Panel

Bottom Freezer Panel

Side Trim

Fresh Food Panel

Read these instructions completely and carefully.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Top Trim Screws

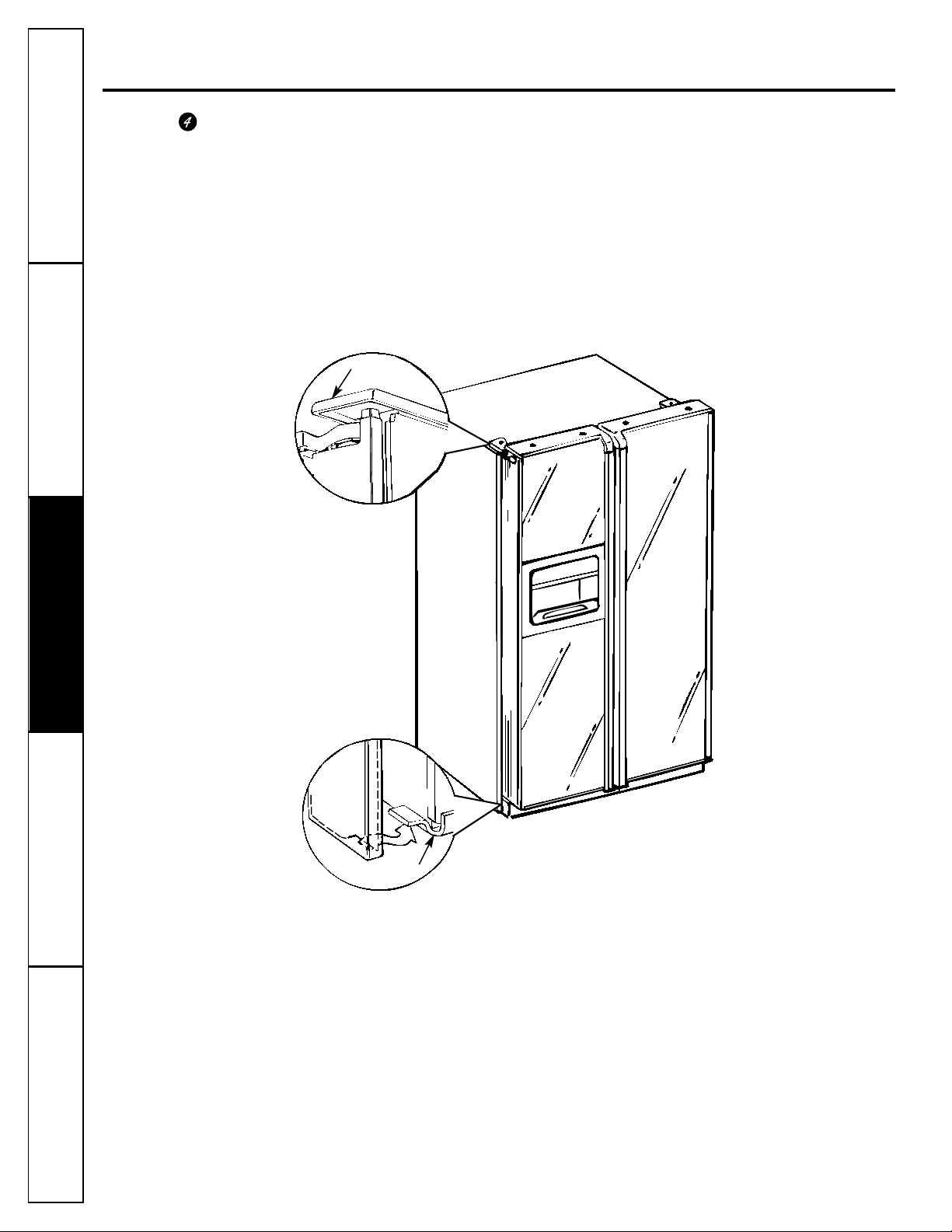

Install the Side Trim.

These pieces are tucked inside the refrigerator door handle.

Do not remove the protective film on the outside of the Side Trim until the Side Trim is installed.

Fit the bottom of the Side Trim under the Bottom Trim as illustrated.

Hold the Side Trim against the front face of the decorator panels and fit the Side Trim under the Top Trim. Make sure the magnetically attached Side Trim is fitted correctly and that you are satisfied with the appearance of all the parts.

Side Trim

Bottom Trim

Top Trim

Inserting the door panels.

Consumer Support

Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT — Save these

instructions for local inspector’s use.

•

IMPORTANT — Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Refrigerator Installation

30 minutes Water Line Installation

30 minutes

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

If the refrigerator has already been installed, remove the base grille (see Step 2 in Moving

the Refrigerator), then skip to Step 5 in Installing the Refrigerator.

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com

In Canada, call 1.800.361.3400 or Visit our Website at: geappliances.ca

Installation

Refrigerator

Instructions

Models 23, 25, 26, 27 & 29

If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit (containing tubing, shutoff valve, fittings and instructions) is available at extra cost from your dealer, by visiting our Website at GEAppliances.com (in Canada at geappliances.ca) or from Parts and Accessories, 800.626.2002 (in Canada

1.888.261.3055).

PREPARATION

WATER SUPPLY TO THE ICEMAKER

TOOLS YOU WILL NEED

Phillips Head Screwdriver

3/8″ and 5/16″ Socket 1/2″ and 7/16″ Wrench

Plastic Putty Knife

Installation Instructions

LOADING THE RERIGERATOR ONTO A HAND TRUCK

Leave all tape and door pads on doors until the refrigerator is in its final location.

To move the refrigerator, use a padded hand truck. Center the refrigerator on the hand truck and secure the strap around the refrigerator. DO NOT OVERTIGHTEN

THE STRAP.

REMOVE THE BASE GRILLE

Remove the grille by removing the two Phillips head screws.

If the refrigerator must go through any entrance that is less than 38″ wide, the doors must be removed. Proceed to Step 3.

DO NOT remove the handles.

If all entrances are more than 38″ wide, skip to Installing the Refrigerator.

DISCONNECT THE WATER COUPLING (on some models)

If the refrigerator has a water dispenser,

there is a water line from the cabinet into the bottom hinge on the freezer door that must be disconnected.

To disconnect, push in on the white collar of the coupling and pull out the tubing.

White collar

Bottom freezer hinge

MOVING THE REFRIGERATOR

Installation Instructions

DISCONNECT THE POWER COUPLING (on some models)

If the refrigerator has a water dispenser,

there is a power line (harness) from the cabinet into the bottom hinge on the freezer door that must be disconnected.

To disconnect, pull apart at the coupling.

Bottom freezer hinge

DISCONNECT THE ELECTRICAL CONNECTORS (on some models)

If the refrigerator has a refreshment center, there are electrical connectors

(harnesses) from the cabinet into the bottom hinge on the refrigerator door that must be disconnected.

To disconnect, pull apart each connector.

Bottom refrigerator hinge

CLOSE THE FREEZER AND REFRIGERATOR DOORS

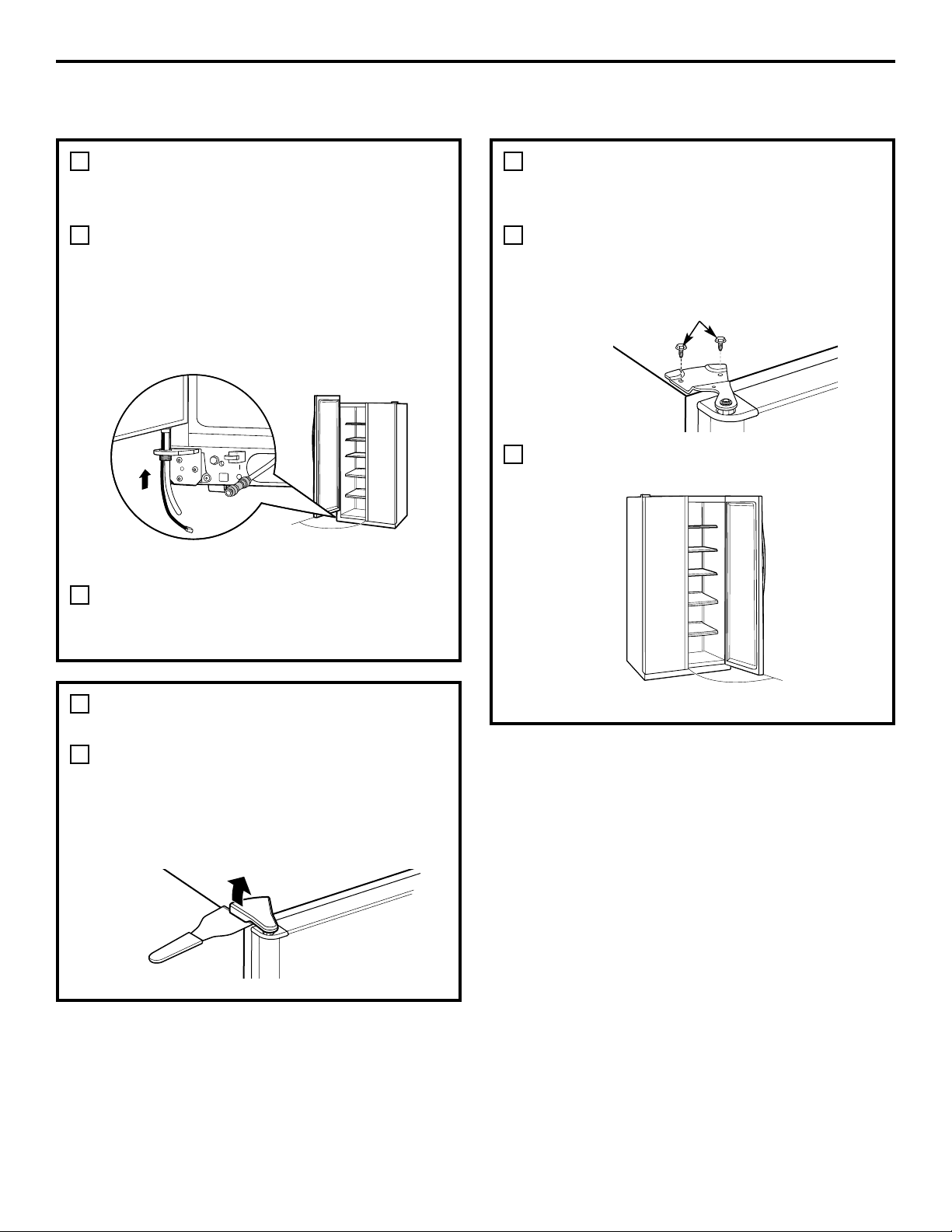

REMOVE THE FREEZER DOOR

Remove the freezer door top hinge cover by either squeezing it and pulling it up or by prying it off with a plastic putty knife.

Remove the two 5/16″ hex head screws, then lift the hinge straight up to free the hinge pin.

Open the freezer door to 90.°

5/16″ hex head

90°

Installation Instructions

MOVING THE REFRIGERATOR (CONT.)

REMOVE THE FREEZER DOOR (cont.)

As one person slowly lifts the freezer door up and off the bottom hinge, the second person should carefully guide the water line and power line (harness) through the bottom hinge.

Set the door on a non-scratching surface with the inside up.

90°

REMOVE THE REFRIGERATOR DOOR

Remove the refrigerator door top hinge cover by either squeezing it and pulling it up or by prying it off with a plastic putty knife.

REMOVE THE REFRIGERATOR DOOR (cont.)

Remove the two 5/16″ hex head screws, then lift the hinge straight up to free the hinge pin.

Open the refrigerator door to 90.°

5/16″ hex head

90°

Installation Instructions

REMOVE THE REFRIGERATOR DOOR (cont.)

Lift the refrigerator door up and off the bottom hinge.

If the refrigerator has a refreshment center, one person should slowly lift the

door up and off the bottom hinge and the second person should carefully guide the electrical lines (harnesses) through the bottom hinge.

Set the door on a non-scratching surface with the inside up.

90°

REPLACING THE DOORS

To replace the doors, simply reverse steps 3 through 8.

However, please note the following:

• When lowering the doors onto the bottom hinges, make sure the second person carefully guides the tube and harnesses through the holes in the hinges.

• When connecting the water line, make sure you insert the tubing all the way to the mark.

• Do not pinch the tubing and harnesses when placing the doors on the bottom hinges.

• When connecting the power line and the electrical lines (refreshment center models only), be sure that the connectors are seated together fully.

Mark

Refreshment Center Models Only

Installation Instructions

INSTALLING THE REFRIGERATOR

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.

• Do not install the refrigerator where the temperature will go above 100°F (37°C) because it will not perform properly.

• Install it on a floor strong enough to support it fully loaded.

CLEARANCES

Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections:

23′ 25,′ 26,′ 27′ and 29′

Sides 1/8″ (4 mm) 1/8″ (4 mm) Top 1″ (25 mm) 1″ (25 mm) Back 1/2″ (13 mm) 1″ (25 mm)

DIMENSIONS AND SPECIFICATIONS (for CustomStyle

™

models)

701⁄4″ (178.4 cm)

36″

(91.4 cm)

24″ (61 cm)

24″ (61 cm) Cabinet

Water Electrical

3/4″ (19 mm) Airspace (1/2″ [13 mm] Gap + 1/4″ [6 mm] Wall Plates)

25″ (63.5 cm) Countertop

Installation Instructions

CONNECTING THE REFRIGERATOR TO THE HOUSE WATER LINE (icemaker and dispenser models)

A cold water supply is required for automatic icemaker and dispenser operation. If there is not a cold water supply, you will need to provide one. See Installing the Water Line section.

NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using GE SmartConnect

™

Refrigerator Tubing Kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

If you are using copper tubing, place a compression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply.

If you are using the GE SmartConnect

™

tubing, the nuts are already assembled to

the tubing. If you are using copper tubing, insert

the end of the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.

If you are using GE SmartConnect

™

tubing, insert the molded end of the

tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks.

Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.

1/4″ Tubing

Tubing Clamp

1/4″ Compression Nut

Ferrule (sleeve)

SmartConnect™Tubing

Refrigerator Connection

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

PLUG IN THE REFRIGERATOR

Before plugging in the refrigerator, make sure the icemaker power switch is set to the O (off) position.

See the grounding information attached to the power cord.

Installation Instructions

INSTALLING THE REFRIGERATOR (CONT.)

PUT THE REFRIGERATOR IN PLACE

Move the refrigerator to its final location.

LEVEL THE REFRIGERATOR (cont.)

To adjust the rollers on 23′ models:

Turn the front roller adjusting screws clockwise to raise the refrigerator,

counterclockwise to lower it. Use a

3/8″ hex socket or wrench, or an adjustable wrench.

These models also have rear adjustable rollers so you can align the refrigerator with your kitchen cabinets. Use a longhandled 5/16″ socket wrench to turn the screws for the rear rollers—clockwise to

raise the refrigerator, counterclockwise to lower it.

LEVEL THE REFRIGERATOR

The refrigerator can be leveled by adjusting the rollers located near the bottom hinges.

Rollers have three purposes:

• Rollers adjust so the door closes easily when opened about halfway. (Raise the front about 5/8″ [16 mm] from the floor.)

• Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.

• Rollers allow you to move the refrigerator away from the wall for cleaning.

To adjust the rollers on 25,′ 26,′ 27′ and 29′ models:

• Turn the roller adjusting screws

clockwise to raise the

refrigerator,

counterclockwise to lower it. Use a

3/8″ hex socket or wrench, or an adjustable wrench.

Rollers

Roller adjusting screw

Roller adjusting screws

LEVEL THE DOORS

Adjust the refrigerator door to make the doors even at the top.

To align:

Using a 7/16″ wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it.

NOTE:

A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.

After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

Doors should be even at top

Raise

7/16″ wrench

Raise

+ 102 hidden pages
