JGP328WEK/CEK/BEK

Electrical cord

45°

Electrical outlet

Shut-off

valve

Pressure regulator

1/2" pipe

Coupling

Cooktop

2-1/2

(Min.)

28-1/2

19-5/8

3-3/16

Electrical junction box 12" MIN. below countertop

30" MIN. to unprotected cabinet

Cut should not interfere with cabinet structure at front

3-3/4" MIN.

clearance to

side wall

from cut-out

6" MIN.

clearance to

side wall

from cut-out

18" MIN. to cabinet

2-1/4" to rear wall

13" MAX. depth

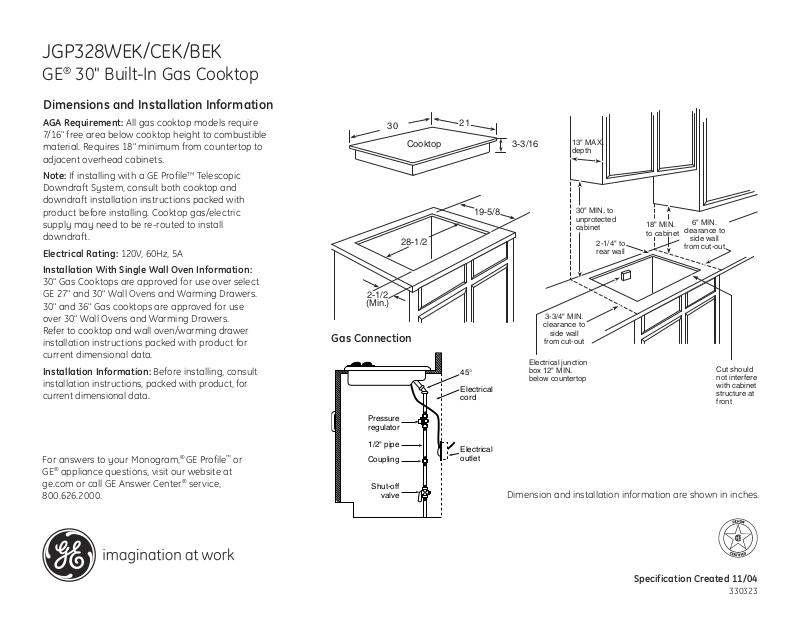

GE® 30" Built-In Gas Cooktop

Dimensions and Installation Information

AGA Requirement: All gas cooktop models require

7/16" free area below cooktop height to combustible material. Requires 18" minimum from countertop to adjacent overhead cabinets.

Note: If installing with a GE ProfileTM Telescopic Downdraft System, consult both cooktop and downdraft installation instructions packed with product before installing. Cooktop gas/electric supply may need to be re-routed to install downdraft.

Electrical Rating: 120V, 60Hz, 5A

Installation With Single Wall Oven Information:

30" Gas Cooktops are approved for use over select GE 27" and 30" Wall Ovens and Warming Drawers. 30" and 36" Gas cooktops are approved for use over 30" Wall Ovens and Warming Drawers. Refer to cooktop and wall oven/warming drawer installation instructions packed with product for current dimensional data.

Installation Information: Before installing, consult installation

instructions, packed with product, for

current dimensional data.

Gas Connection

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

Dimension and installation information are shown in inches.

Specification Created 11/04

330323

JGP328WEK/CEK/BEK

GE® 30" Built-In Gas Cooktop

Features and Benefits

• Deep Recessed Cooktop - Designed with a recessed surface to help contain spills and make cleaning easy

• Sealed Cooktop Burners - Eliminates the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

• High Output Burner - Provides a powerful burner output for efficient heat-up and boiling

• Precise Simmer Burner - Delivers a low settng of 140 degrees, ideal for delicate foods and sauces

• Continuous Grates - Provide a flat, sturdy surface allowing easy movement of pans between burners

• Dishwasher-Safe Grates and Knobs - Feature durable construction for worry-free, effortless cleaning and maintenance

• Electronic Pilotless Ignition - Provides reliable burner ignition operation, eliminating the need for a standing pilot

• Model JGP328WEKWW - White on white

• Model JGP328CEKCC - Bisque on bisque

• Model JGP328BEKBB - Black on black
