INTRODUCTION
Thank you for purchasing a General's Jet Set™.
This manual covers the operation and maintenance of
models J-1400 and J-1600. All information in this manual
is based on the latest product information available at
the time of printing.
General Wire Spring Co. reserves the right to make
changes at any time without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this General's Jet Set. Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with the
operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number.
MACHINE SAFETY
CAUTION
READ OPERATOR’S
MANUAL
THOROUGHLY
PRIOR TO USE.
2. All installations must comply with local codes. Contact your electrician, plumber, utility company or the
selling distributor for specific details. To comply with
the National Electrical code (NFPA 70) and provide
additional protection from risk of electric shock, the
machines are equipped with a UL approved ground
fault circuit interrupter (GFCI) power cord.
RISK OF EXPLOSION:
DO NOT USE WITH
FLAMMABLE LIQUIDS.
CAUTION: To reduce the risk of injury, read operating instructions
carefully before using.
1. Read th e owner' s manua l
thoroughly. Failure to follow
instructions could cause malfunction of the unit and result
in death, serious bodily injury
and/or property damage.
WARNING: Flammable liquids
can create fumes which can ignite causing property damage or
severe injury.
WARNING: Risk of explosion -do not spray flammable liquids.
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
3. Risk of explosion - do not spray flammable liquids
or operate in an area where flammable or explosive
materials are used or stored.
WARNING
WARNING: Keep water spray
away from electric wiring or fatal
electric shock may result.
4. To protect the operator from
electrical shock. The machine
is equipped with a Ground Fault
KEEP WATER SPRAY
AWAY FROM ELEC-
TRICAL WIRING.
Circuit Interuptor (GFCI). The
use of an additional extension
cord by the operator should not
be used as it will not provide protection to the op-
erator of electrical shock. The machine must be
electrically grounded. It is the responsibility of the
owner to connect this machine to a UL grounded
receptacle of proper voltage and amperage ratings.
Do not spray water on or near electrical components.
Do not touch machine with wet hands or while
standing in water. Always disconnect power before
servicing.
5. Grip cleaning wand or hose securely with both hands
before starting the cleaner. Failure to do this could
result in injury from a whipping wand or hose.
WARNING: High pressure stream
CAUTION
of fluid that this equipment can
produce can pierce skin and its
underlying tissues, leading to
seri o u s in j ur y an d po s s ible
amputation.
HIGH PRESSURE
SPRAY CAN PIERCE
SKIN AND TISSUES.
6. High pressure developed by
these machines will cause
personal injury or equipment
damage. Use caution when operating. Do not direct
discharge stream at people, or severe injury or death
will result.
7. Never make adjustments on machine while in operation.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne and
fly at high speeds.
8. Eye safety devices, foot protection and protective clothing
USE PROTECTIVE
CLOTHING WHEN
OPERATING.
must be worn when using this
equipment.
9. Do not operate with the valve in the off position for
extensive periods of time as this may cause damage
to the pump.
10. The best insurance against an accident is precaution
and knowledge of the machine.
4
Hose Size (ID)* Pipe Size Typical Applications
3/8" or 5/16"
(9.925mm to
7.938mm)
4" to 8"
(102mm to 203mm)
Floor drains, septic lines, long
runs
1/4"
(6.350mm)
2" to 4"
(51mm to 102mm)
Kitchen sinks, laundry drains,
clean outs
1/8"
(3.175mm)
1-1/2" to 2"
(38mm to 51mm)
Small lines, bathroom sinks,
tight bends
*Inside Diameter
11.
General Wire Spring Co. will not be liable for any chang-
GENERAL'S JET SET
es made to our standard machines or any components
not purchased from General Wire Spring Co.
12. Be certain all fittings are secured before using pressure washer.
13. Never run pump dry.
14.
Inlet water supply must be cold and clean fresh water.
15. Do not allow children to operate the General's Jet
Set™ at any time.
16. Protect from freezing.
17. When the machine is working, do not cover or place
in a closed space where ventilation is insufficient.
ASSEMBLY
Upon arrival, inspect the shipping crate for damages.
Uncrate and examine all parts. Note any damage to machine or components for claims against freight carrier.
Jets have antifreeze in the pump to protect it from freezing conditions during shipment and storage. If machine
will be stored and operated in a cold climate, follow
Freeze Protection instructions on page 9.
TM
OPERATOR’S MANUAL
(15m) in length. If run without an adequate water supply, the pump will cavitate. Cavitation causes the pump
to vibrate, causing damage to the pump. Note: Lack of
water supply can lead to seal damage, causing a loss of
pressure and will void the warranty to the pump.
Maximum temperature from water source should not
exceed 140°F (60°C). Using water hotter than 140°F
(60°C) can cause damage to pump and void the warranty. If jet is being used to clear ice blockages, see
instructions on page 8.
Remove oil plug on top of pump and replace with dipstick
supplied.
Hose Selection Guide
Select the proper hose diameter for the line to be
cleaned. When using new hose, run water through it to
clean it out before attaching the nozzle.
PRE-OPERATION CHECK
Pump oil (SAE 30W non-detergent oil)
Cold clean fres h water suppl y (6 gpm • 5/8"
(15.875 mm) • 20 psi)
Hose, nozzle
Water filter (intact, non-restrictive)
SET-UP PROCEDURES
These machines are meant to be used at or near the
working area and under operator supervision. If machine
must be located out of sight of the operator, special controls may be required for proper machine operation and
operator safety.
Locate equipment on a solid level area with slopes for
drainage. Avoid areas where water can be sprayed at
machine. Before using the jet, make sure there are no
impurities in the incoming water supply. Turn the water
source on for at least 15 seconds, to remove any possible debris in the water before connecting hose to water
inlet swivel.
The inlet screen located inside the filter should be
cleaned before each use. To clean the inlet screen,
unscrew cap beneath the filter, remove the screen and
rinse thoroughly with water. Then replace screen.
Connect one end of a garden hose (not included) to
the water faucet — water supply not to exceed 100 psi
(6.9 Bar) and the other end to the water inlet of the jet
machine. (See component identification drawings on next
pages.) Use heavy duty 3/4" hose of no more than 50 ft.
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
When selecting hose size, consider that pressure is lost
as the water travels down the length of the hose. As the
length increases, the pressure decreases. In addition,
the smaller the diameter of the hose, the greater the
loss of pressure per foot will be. As an example, at 2
GPM (.13L/sec) a 1/4" (6.350 mm) hose will lose 180
lbs. (12.4 bar) of pressure over 100 ft. (30.5m) of hose,
yet a 3/8" (9.925mm) hose will only lose 25 lbs. (1.7 bar)
of pressure over the same length and at the same flow
rate. At 4 GPM, a 3/8" hose will lose 90 lbs. (6.2 bar) of
pressure over a 100 ft. (30.5m) length. The gauge reflects
pressure from the pump only, not pressure at the end
of the hose. It is important to select the largest possible
hose size in order to have as much pressure as possible
at the end of the hose.
Hoses of the same diameter may be coupled together
using the CC-1 coupling, but it is not recommended for
use in lines smaller than 8" (203mm) in diameter. The
long length of the hose connectors and coupling together
can get caught in bends in the line.
Coupling two different size hoses can be done through
the spray wand trigger or foot pedal.
It is not advisable to have two different hose sizes coupled
in a drain line. There is a tremendous loss of pressure
when combined, aside from the difficulty of getting around
bends.
The 3/8" (9.925 mm) and 1/4" (6.350 mm) hoses may
be attached to the fitting in the core of the hose reel
TM
GENERAL'S JET SET
OPERATOR’S MANUAL
J-1400 COMPONENT IDENTIFICATION AND USE
DRAIN CLEANING
Through Floor Drain
Through Roof Vent
5
Roof
Vent
Roof
Jetter
Hose
Foot Pedal
(Optional)
Foot Pedal
(Optional)
Jetter
Hose
Drain
Backflow
Preventer
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
Pressure Valve
Unloader

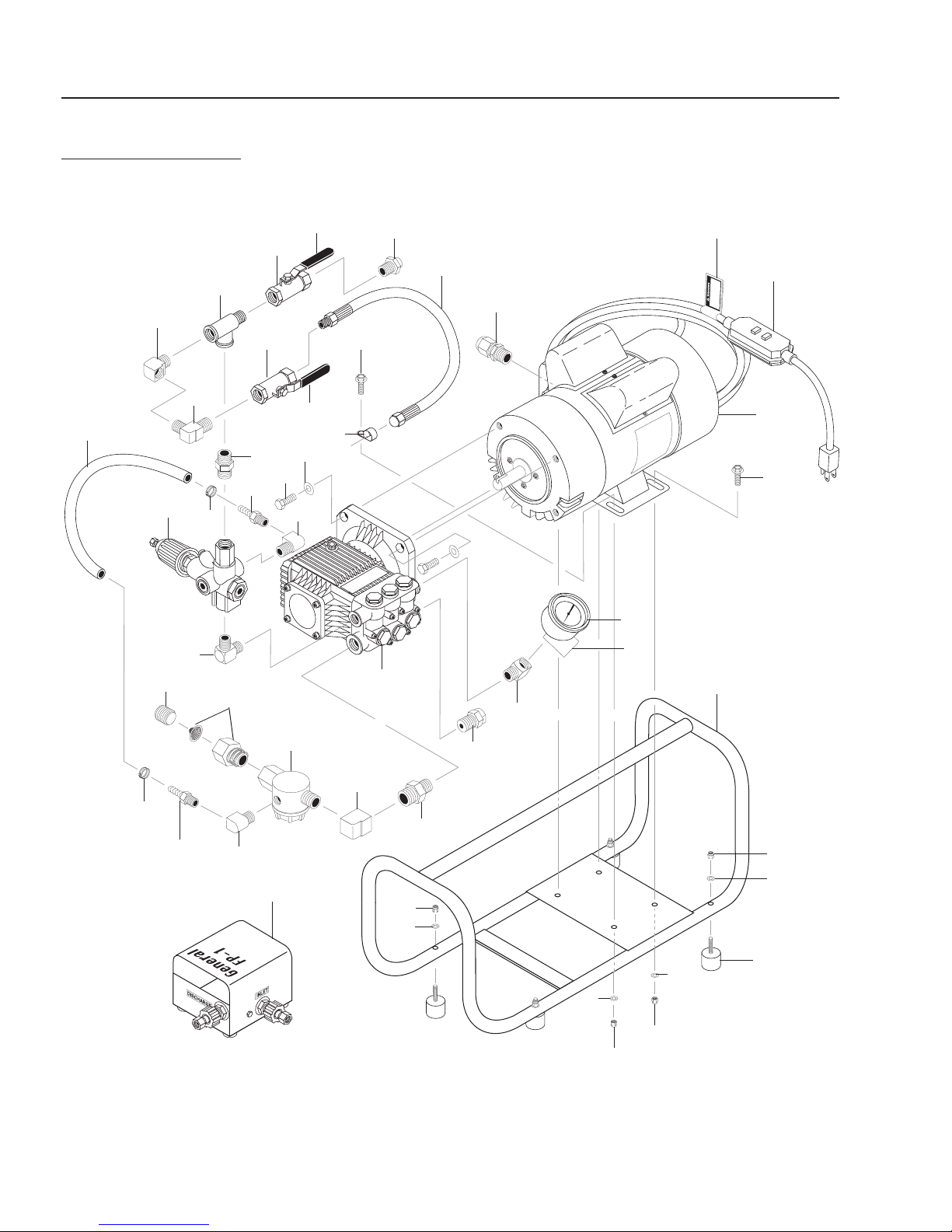

Valve
Inline Strainer
Motor
Pressure Gauge
Pump
GFCI
Pulse Control Valve
TM
6
GENERAL'S JET SET
OPERATOR’S MANUAL
1600 COMPONENT IDENTIFICATION AND USE
DRAIN CLEANING
Through Floor Drain
Through Roof Vent
Jetter
Hose
Water
Supply
Hose
Foot Pedal
Roof
Vent
(optional)
Roof
Unloader
Valve
Inline
Strainer
Jetter
Control
Valve
Jetter
Hose
Detergent
Injector
Foot Pedal
(Optional)
Floor
Drain
Motor
Pulse Control
Valve
Pressure
Gauge
Backflow
Preventer
Water
Supply
Hose
Pump
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
GFCI
Hose
Reel
GENERAL'S JET SET
NOZZLE SELECTION GUIDE
1/8" 1/4" 3/8"
15o No Forward Jet 31 41 51
15o w/Forward Jet 32 42 52
30o No Forward Jet 33 - -
40o No Forward Jet - 44 54
Spring Leader (JNSL) 4 5 6
Rotary Nozzle - 4 -
* Rotary Nozzles can be adapted to 1/8" and 3/8" hose using AD-3 or AD-4 adapters
using the swivel at one end of the hose. The 3/8" hose
may also be attached directly to the accessory outlet
by using a twist connect. The 1/4" and 1/8" (3.175mm)
hoses may be connected directly to the accessory outlet if an adapter fitting (AD-1 or AD-2) is used between
the hose and quick connect. Adapters may be ordered
separately.
Often, the 1/8" hose is used in conjunction with the spray
wand trigger to give the operator finger tip control. Remove the spray wand from the trigger and attach the
1/8" hose using the AD-3 adapter.
A foot pedal FP-1 valve is available that can be used as
a safety shut-off valve for all hose sizes. See foot pedal
section for installation and operating instructions.
TM
OPERATOR’S MANUAL
Spring leader nozzle gets
hose around tight bends
and P-traps
Optional:
Downhead nozzle takes
hose down Tee's and
around difficult corners.
7
Nozzles
A number of types of nozzles are available for drain
cleaning. Each has a different spray pattern. Some
nozzles may have a hole in the front to cut though the
stoppage. All will have holes in the back to drive the hose
down the line and clean the walls of the pipe. A tight spray
pattern (15°) has more driving power for long runs, a wide
spray pattern (40°) does a better job of cutting the grease
off the walls of the pipe. A combination of nozzles may
be required to clear a line. Always turn off the machine
and shut off valve before changing nozzles.
Make sure the nozzle you are using matches the pump
size. A 3000 psi (207 bar) pump requires a different
nozzle orifice than a 1500 psi (104 bar) pump. Mismatch-
ing nozzles with pump size will either cause too little
pressure which may not clear the drain, or too much
pressure which may damage the machine.
Check nozzles before and after each use for clogged
holes which can cause pressure to increase to dangerously high levels and damage the pump. A clogged hole
can be cleared by simply using the NCT Nozzle Cleaning
Tool.
Use the nozzle selection guide to determine what nozzle
you will need for various applications. Example: If a
nozzle is stamped #22, it is a JN-22, 15° rearjets, 2 GPM
(.13L/Sec) @ 1500 PSI (104 Bar) with a forward cutting
Optional:
Rotary nozzle scours
walls of pipe crystal clear
jet. Spring leader nozzles and down head nozzles are
special nozzles to help aid hose travel through the pipe
when there are alot of curves and bends.
Rotary Nozzles
Rotary nozzles are useful as a finishing tool. After the
line has been cleared, you may switch to the rotary
nozzle to more thoroughly clean the walls of the pipe.
Use these nozzles only in a predominantly straight run
since they are longer than regular nozzles and may get
caught in tight bends.
Pre-Operation Checklist
Powerful penetrating
nozzle cuts through
grease and ice.
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
Wide spray flushing
nozzle cleans inside of
pipe thoroughly.
Be sure you understand all safety precautions and
___ have been trained to use the machine.
Wear goggles or a face shield to protect your eyes
___ from spray or from any product of the spray.
Wear gloves, rubber boots and other protective
___ clothing as required.
Be sure you understand all safety precautions for
___ the detergent use.
TM
8
GENERAL'S JET SET
OPERATOR’S MANUAL
Check the labels of any substance you will spray. If
the label recommends any antidote or treatment,
___ be ready to use it.
___ Check that all lines and hoses are clear.
Check that the machine is connected to an adequate
___ water supply and that the water supply is on.
Check that traffic has not made the hose weak,
worn or damaged. Check the hose for pinching or
___ kinking. Replace any damaged hose.
___ Tighten all fluid connections securely.
OPERATING INSTRUCTIONS
Check all hoses for wear and damage. Tighten all
connections securely.
Check oil level of pump.
To begin, turn the water faucet on fully and purge air
from system.
Insert end of the jet hose 2 to 3 feet into the drain
line. Then open Jetter control valve.
Warning: Never point the end of the jet hose at a
person while operating.
Start-Up
1. Make sure that the Jetter control valve is turned on
and water is flowing through the nozzle.
2. Plug in GFCI power cord to proper receptacle and
voltage. CAUTION: Do not use additional extension
cord with machine to avoid electrical shock to the
operator.
3. Hold Jetter hose firmly to prevent it from whipping
around.
4. Turn motor switch on.
Vibra-Pulse
Pulsation makes the hose vibrate, helping the jet go
longer distances and around tight bends easier.
The pulse control valve is located on the front of the
pump. Simply turn the valve on to engage the pulse.
The pulse causes a pressure drop when it's engaged.
The pulse is most effective in a 1/8" hose. You'll note
less vibration with a 1/4" hose and almost none with a
3/8" hose. However the pulse is still effective, causing
the water to burst from the nozzle hundreds of times
per second.
If you are still having difficulty getting a hose around a
tight bend, switch to a smaller diameter hose.
Turn the pulse off before turning machine off.
Shut Down Instructions
After drain cleaning or spray washing is completed, run
clear water through the system. Always leave Jetter con-
trol valve in open position when turning off motor. Turn
off water supply and drain as much water from pump as
possible. Remove water supply hose from inlet. If you
are in a cold climate, see Freeze Protection.
Handy-Reel (Optional) HR-200
Position the reel at the drain site. Connect the jet machine to the inlet on the reel. Select and attach a nozzle
to the hose on the reel. Put the hose 2 to 3 feet into the
drain. Open the ball valve on the reel. Follow the start
up procedures.
Foot Pedal (Optional) FP-1
The foot pedal is used with any jet manufactured by
General (see page 5 or 6). It interrupts the flow of water
between the pump and the nozzle while leaving both
hands free to guide the hose. The pump will continue to
run in by-pass mode. Do not leave pump in by-pass for
more than a few minutes or the pump can be damaged.
(See Regulating Pressure Unloader on Page 9).
The foot pedal may be hooked up either at the machine
or remotely at the drain site. To use the foot pedal at the
machine, remove the hose going to the swivel on the
hose reel and attach it to the inlet side of the foot pedal.
Then, connect the accessory hose (6AHW) between the
outlet of the pedal and the swivel on the hose reel. Some
jet models may need the added length of the accessory
hose on the inlet side of the pedal.
For remote hookup, pull the hose from the hose reel to
the drain site. Attach the hose to the inlet of the pedal.
The pedal is designed for 3/8" hose fittings. If using a
1/4" hose, use the AD-1 as well. Then attach the smaller
hose (1/8" or 1/4") to the outlet side of the pedal. Use
the smaller hose to clear the drain line.
Spray Wand (Optional) SWA-1500
Follow the same procedures listed previously for safety,
set-up, operation and maintenance. To operate the spray
wand, connect the high pressure hose and trigger to the
machine. Turn on the water supply, then squeeze the trigger to purge air from the system. Continue to squeeze
trigger as you start the machine.
Use caution when pressure washing. Wear goggles and
rubber gloves and boots. Do not point spray at anyone
including yourself. Do not put your hand in front of water
spray. It can penetrate the skin and cause a need for
amputation. Direct spray at close range can be powerful
enough to cause damage.
NOTE: Typical industry standard stipulates you hold the
high pressure spray nozzle approximately 6-8" from the
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
GENERAL'S JET SET
TM
OPERATOR’S MANUAL
9
surface to be cleaned. When cleaning with a detergent,
apply from bottom up with an even left to right movement.
Rinse from top down with a similar motion. This will help
reduce potential streaking.
Detergent Injector (Optional) CMA-1
Refer to Component Indentification for placement of
injector. The detergent injector is an option with the J1400 and J-1600.
To use the detergent injector, attach one end of siphon
hose to the injector and put the filter end in the detergent
solution. Be sure the end of the hose is at the bottom of
the container or bucket. Some models have adjustable
valves to control the amount of detergent drawn through
the hose. Turn the nozzle on the end of the wand counterclockwise.
Remember: Do not use corrosive material. See warning previously listed.
Adjusting Pressure Unloader Valve
The machine is equipped with an adjustable pressure
unloader to prevent pressure overload in the event that
the nozzle is plugged or the Jetter control valve or trigger gun is shut off. When the machine is in the by-pass
mode, the pump will continue to run. However running in
by-pass mode for extended periods will cause damage
to the pump; no more than 5 minutes with the J-1400
and J-1600 pump. Excessive temperatures will damage
the pump and void the warranty.
The machine also comes with thermal overload protection. When water temperature in pump increases to
140°F (60°C), the thermal relief valve will release hot
water and allow cool water to enter pump from fresh
water supply.
To adjust pressure unloader turn the knob clockwise to
increase pressure and counterclockwise to decrease
pressure. Caution: Do not exceed operating pressure.
The best way to protect the system is to keep it out of
the cold. Barring that, the next best way is to flush the
system with anti-freeze. To do so, simply attach a short
garden hose (not to exceed four feet) to inlet on the
pump and put other end into the anti-freeze container.
Be sure to remove the nozzle from the hose. Turn the
machine on to draw anti-freeze into the system. When
anti-freeze flows out of the end of the hose, turn the
machine off. With optional spray wand and trigger gun
follow above procedure. Cycle trigger on/off so that the
anti-freeze will flow into unloader and detergent injector
section of machine.
When preparing to operate equipment the next time,
remove the anti-freeze. To do so, reconnect water source,
turn pump on and direct flow of anti-freeze back into container. Be careful not to dilute anti-freeze with incoming
water supply. Anti-freeze, if kept relatively undiluted can
be used again and again.
Hoses can also be protected from freezing by using compressed air to clear them of residual water. Remember
to remove nozzle from jet hose and hold trigger of spray
wand in open position.
MAINTENANCE
Regular inspection is the key to preventing breakdowns
and prolonging the life of the equipment. Follow this
simple procedure religiously.
DAILY
Check that the water supply is adequate.
Check that the nozzle on the spray wand is not clogged
or worn out.
Check that the PUMP OIL LEVEL is within operating
range on dipstick or sight glass.
Check the INLET FILTER.
Check GFCI function.
Ice Blockages
High pressure water can be used to clear an ice blockage.
A 3000 psi (207 bar) gas Jetter can clear a 4" (102mm)
line at an approximate rate of one foot per minute. The
smaller electric jet will take twice as long. Ambient air
temperature will effect these times. Use a 15° nozzle with
a forward jet. DO NOT allow the incoming water supply
to exceed 140°F (60°C) or it could cause damage to the
pump. Remember to follow the cold weather precautions
found in the freeze protection section.
Freeze Protection
To protect your machine from severe damage caused
by water freezing inside the components, it is important
to winterize it whenever it is subjected to freezing temperatures.
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
WEEKLY
Check PRESSURE HOSE for wear and damage. Damaged hose can be repaired at a local service dealer or
by your equipment dealer.
Maintenance Schedule
Use the following maintenance schedule at the stated
intervals or when your routine turns up a problem.
Pump Crankcase Oil Change: Service after the 1st
month or after 50 Hours. Then service every year or 500
hours. Use SAE 30W Non-Detergent Pump Oil to full
mark on dipstick or to center of sight glass.
10
GENERAL'S JET SET
EXPLODED VIEW
J-1400
TM
OPERATOR’S MANUAL
10
17
33
7
8
7
15
34
20
28
16
27
23
6
21
15
22
39
19
18
38
1
40
2
29
3
41
Foot Pedal
Assembly
(Optional)
21
37
24
11
25
32
4
14
5
12
13
30
35
9
35
30
30
31
30
35
26
35
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
GENERAL'S JET SET
EXPLODED VIEW PARTS LIST
J-1400
TM
OPERATOR’S MANUAL
11
ITEM PART NO. DESCRIPTION QTY
1 6-010621 GFCI, 120V 15A W/36'
12-3 Cord 1
2 5-1004M Motor, 1.5 HP 1 PH 1725 RPM,
Magnetek TEFC 1
3 4-05001 Gauge, Pressure Panel Mount,
0-2000 PSI 1
4 5-2248 Pump, AR XTA2G15EBA-F8,
Elect 1725 RPM 1
5 2-1908 Strainer, 1/2" Inline 1
6 5-3210 Unloader, AL605, 7.8 GPM
@1500 PSI 1
7 2-30026 Valve, 3/8" Ball, Brass,
General Wire 2
8 2-0045 Tee, 3/8" Street 1
9 2-30082 Pump Protector, 1/2" 140° 1
10 4-02110000 Hose, 1/2" Push-On 13"
11 2-10942 Swivel, 1/2" MP x 3/4" GHF
w/Strainer 1
2-30062 Valve, Anti-Siphon 1
12 2-1020 Elbow, 1/2" Female, Brass 1
13 2-1007 Nipple, 1/2" Hex 1
14 2-00272 Elbow, 3/8" MNPT x 1/4" FNPT,
Steel 1
15 2-00270 Elbow, 3/8", Male Pipe 2
16 2-0006 Nipple, 3/8" Hex Steel 1
17 2-0031 Elbow, 3/8" Street 1
18 4-02157725 Hose, Pulsation, 24" 1
19 2-2115 Plug, QDISC 3/8" M x 22 mm 1
ITEM PART NO. DESCRIPTION QTY
20 2-9016 Clip, Round, 0.56 I.D. 1
21 2-9002 Clamp, Screw, #6 2
22 2-1023 Elbow, 3/8" Street 1
23 2-008801 Hose Barb, 1/2" Barb x 3/8"
MNPT, Steel 1
24 2-008802 Hose Barb, 1/2" Barb x 1/4"
MNPT, Steel 1
25 2-1022 Elbow, 1/4" Street 1
26 2-01015 Bumper, Rubber 1" w/Bolt,
5/16" x 1-1/4" 4
27 90-1017 Bolt, 3/8" x 1", NC HH 4
28 90-4009 Washer, 3/8", Lock, Split Ring 4
29 90-19713 Screw, 5/16" x 3/4" Whiz Loc 3
30 90-2001 Nut, 5/16" Flange, Whiz Loc 8
31 95-07103120 Frame, Welded Assy, J-1400 1
32 26-FP-1 Foot Pedal 1
33 2-01207 Cap, Orange, On/Off 1
34 2-01208 Cap, Orange, Vibra-Pulse,
On/Off 1
35 90-4001 Washer, 5/16" Flat 8
36 96-6115 Manual, General Jet Set,
J-1400/J1600 1
37 2-01442 Plug, Garden Hose Adapter 1
38 10-08018 Label, Warning, Service Cord 1
39 90-19716 Screw, 5/16" x 1", Whiz Loc 1
40 6-05152 Strain Relief, Small 1
41 11-3104 Tag, Water Temp to Pump 1
Not Shown
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
12
GENERAL'S JET SET
EXPLODED VIEW
J-1600
35
17
TM
OPERATOR’S MANUAL
50
7
8
7
36
19
51
17
54
1
18
32
10
15
21
53
6
15
24
16
21
11
25
23
27
56
28
22
4
5
12
13
40
20
29
55
2
29
45
30
39
38
49
59
58
3
14
9
47
45
30
60
31
45
26
30
33
43
Foot Pedal
Assembly
(Optional)
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
46
41
44
48
57
37
34
42
GENERAL'S JET SET
EXPLODED VIEW PARTS LIST
J-1600
TM
OPERATOR’S MANUAL
13
ITEM PART NO. DESCRIPTION QTY
1 6-010621 GFCI, 120V 15A W/36'
12-3 Cord 1
2 5-1004M Motor, 1.5 HP 1 PH 1725 RPM,
Magnetek TEFC 1
3 4-05001 Gauge, Pressure Panel Mount,
0-2000 PSI 1
4 5-2248 Pump, AR XTA2G15EBA-F8,
Electric 1725 RPM 1
5 2-1908 Strainer, General 1
6 5-3210 Unloader, AL605, 7.8 GPM
@1500 PSI 1
7 2-30026 Valve, 3/8" Ball, Brass,
General Wire 2
8 2-0045 Tee, 3/8" Street 1
9 2-30082 Pump Protector, 1/2" 140° 1
10 4-02110000 Hose, 1/2" Push-On 13"
11 2-10942 Swivel, 1/2" MP x 3/4" GHF
w/Strainer 1
2-30062 Valve, Anti-Siphon 1
12 2-1020 Elbow, 1/2" Female, Brass 1
13 2-1007 Nipple, 1/2" Hex 1
14 2-00272 Elbow, 3/8 MNPT x 1/4 FNPT,
Steel 1
15 2-00270 Elbow, 3/8", Male Pipe 2
16 2-0006 Nipple, 3/8" Hex Steel 1
17 2-0031 Elbow, 3/8" Street 2
18 4-02157725 Hose, Pulsation 2 ft.
19 2-2115 Plug, Q-Disc, 3/8" x 22mm 1
20 2-9016 Clip, Round, 0.56 I.D. 1
21 2-9002 Clamp. Screw, #6 2
22 2-1023 Elbow, 3/8" Street 1
23 2-008801 Hose Barb, 1/2" Barb x 3/8"
MNPT, Steel 1
24 2-008802 Hose Barb, 1/2" Barb x 1/4"
MNPT, Steel 1
25 2-1022 Elbow, 1/4" Street 1
26 2-01015 Bumper, Rubber 1" w/Bolt,
5/16" x 1-1/4" 4
27 90-1017 Bolt, 3/8" x 1-1/4", NC HH 4
ITEM PART NO. DESCRIPTION QTY
28 90-4009 Washer, 3/8", Lock, Split Ring 4
29 90-19713 Screw, 5/16" x 3/4" Whiz Loc 7
30 90-2001 Nut, 5/16", ESNA 12
31 95-07103120 Frame, Welded Assy, J-1400 1
32 4-027510281 Swivel, 3/8" x 3/8" 1
33 4-02751016 Hose Reel, 13", General Wire 1
34 4-0303 Wheel & Tire Assy, 4" Tubeless,
Silver Rim, 5/8" HUB 2
35 4-02037828 Hose, 3/8" x 28", 1 Wire, 3/8"
MPT x 3" MPTS 1
36 2-2113 Coupler, 3/8" Female
Screw-Type 7640 1
37 95-07103160 Assy, Frame, J-1600 1
38 95-07103161 Axle, 21.75", J-1600 1
39 95-07103208 Assy, Tool Box, Orange,
General Wire 1
40 11-201600 Label, J-1600 w/Vibra Pulse 1
41 2-01019 Foot, Rubber (Crutch) 2
42 90-200420 Cap, 5/8" Axle 2
43 26-FP-1 Foot Pedal 1
44 90-50041 Latch, Finger 1
45 90-4001 Washer, 5/16", Flat 12
46 2-01101 Grip, 1", Handle (Waffle) 1
47 90-10001 Screw, 10/32" x 1/2", Slot 4
48 90-200470 Nut, 10/32", ESNA, SS 4
49 11-0112 Label, JSE, Warn Danger 1
50 2-01207 Cap, Orange, On/Off 1
51 2-01208 Cap, Orange, Vibra-Pulse,
On/Off 1
52 8.914-322.0 / 97-6115 Manual, General Jet
Set
J-1400/J-1600 1
53 2-01442 Plug, Garden Hose Adapter 1
54 10-08018 Label, Warning, Service Cord 1
55 6-05152 Strain Relief, Small 1
56 90-19716 Screw, 5/16" x 1", Whiz-Loc 1
57 90-19711 Screw, 1/4" x 1/2" HH, NC,
Whiz Loc 2
58 90-4000 Washer, 1/4" Flat, SAE 2
59 90-2000 Nut, 1/4" Esna, NC 2
60 11-3104 Tag, Water Temp to Pump 1
Not Shown
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
TM
14
GENERAL'S JET SET
OPERATOR’S MANUAL
OPTIONAL HR-200W HANDY-REEL WITH FOOT PEDAL
EXPLODED VIEW & PARTS LIST
9
13
8
7
3
21
11
12
6
2
18
3
6
ITEM PART NO. DESCRIPTION QTY
1 95-07103106 Bracket, Hose Reel Mount 1
2 11-20200 Label, HR-200 1
3 2-2116 Nipple, 1/4" x M22, Twist 2
4 11-1019 Label, Inlet 1
5 2-01022 Foot, Rubber 4
6 2-2113 Coupler, 3/8" Female Screw
Type 7640 2
7 4-02037817 Hose, 3/8" x 17.5", 1 Wire, 3/8"
MNPT(SLD) x 3/8" MNPT(SWL) 1
8 4-02751016 Hose Reel, 13" General Wire 1
9 4-027510281 Swivel, 3/8" x 3/8" 1
10 90-19713 Screw, 5/16" x 3/4" Whiz Loc 7
11 90-4001 Washer, 5/16" 13
10
18
19
11
16
10
15
4
18
11
12
14
1
11
11
12
17
ITEM PART NO. DESCRIPTION QTY
12 90-2001 Nut, 5/16" ESNA 12
13 95-07103105 Hose Reel Guard 1
14 2-1022 Elbow, 1/4" Street 1
15 83-21008 Valve Assy, Complete 1
16 95-07103180 Cover, Welded Assy. Foot Valve 1
17 95-07103181 Plate, Fott Valve Assy 1
18 90-3096 Washer, 1/2" Flat 3
19 90-10124 Bolt, 5/16" x 6-1/2" HH, NC 1
20 2-01101 Grip, 1" Handle, Waffle 1
21 11-1010 Label, Discharge 1
20
12
5
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
TM
GENERAL'S JET SET
OPERATOR’S MANUAL
HOSE AND SPRAY GUN ASSEMBLY (OPTIONAL)
J-1400 & J-1600 SWA-1500
5
15
1
4
2
3
ITEM PART NO. DESCRIPTION QTY
1 4-011148 Lance, 18" Molded Grip
AL-3929.11 1
2 4-01246 Spray Gun, Shut-Off AP 1000 1
3 8.739-030.0 Hose, 3/8" x 25', 1 Wire,
TS, Legacy 50 x SW 1
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
ITEM PART NO. DESCRIPTION QTY
4 2-2113 Coupler, 3/8" Female Screw
Type 7640 1
5 4-2005 Nozzle Holder, Adjustable
AL-TR9-4701.12 1
4-01402515 Nozzle Only, SA 1/4",
MEG 1502.5 1
Not Shown
16
GENERAL'S JET SET
PUMP MODEL NO. AR XTVA2G15EBA-F8
JET SET MODEL J-1400 & J-1600 PART #5-2248
TM
OPERATOR’S MANUAL
37
32
31
81
82
22
48
23
26
24
38
39
17
18
19
20
21
16
14
13
40
2
8
7
10
9
85
1
11
41
12
42
38
39
15
47
29
28
27
80
30
79
36
"E" version Ø24mm
73
74
84
62
75
77
F8
78
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
GENERAL'S JET SET
PUMP MODEL NO. AR XTVA2G15EBA-F8
JET SET MODEL J-1400 & J-1600 PART #5-2248
TM
OPERATOR’S MANUAL
17
ITEM PART NO. DESCRIPTION QTY
1 83-680570 Head Bolt TCEI M6x60 Brass 6
2 83-620301 Tap Plug 1/8" G (Optional) 1
7 83-1260160 Valve Cap 6
8 83-960160 O-Ring Ø17.86 x 2.62 6
9 83-1269050 Complete Valve 6
10 83-880830 O-Ring Ø15.54 x 2.62 6
11 83-1260140 Support Ring Ø15 3
12 83-1260130 Packaging Gasket Ø15 3
13 83-1260151 Piston Guide Ø15 3
14 83-1260420 O-Ring Ø26.70 x 1.78 3
15 83-1260440 Packaging Seal Gasket Ø15 3
16 83-1260460 Piston Oil Seal 15 x 24 x 5 3
17 83-1320320 Shaft Side Plug 1
18 83-1320360 O-Ring Ø47.35 x 1.78 1
19 83-1260790 Circlip Ø152 1
20 83-1320370 Bearing 25 x 52 x 15 6205 1
21 83-1320330 Bushing 1
22 83-1320010 Pump Body 1
23 83-880130 Dip Stick 1
24 83-1260110 Screw M8 3
25 83-1260100 Copper Washer 8 x 13 x 0.5 3
26 83-1260120 Piston Ø15 3
27 83-480480 O-Ring Ø4.48 x 1.78 3
28 83-1260091 Disc Separator 3
29 83-1260070 Piston Guide 3
30 83-1260080 Piston Pin ØE7 x 24 3
31 83-1260760 Screw TCEI M5 x 20 6
32 83-1321030 Rear Cover, Low 1
ITEM PART NO. DESCRIPTION QTY
36 83-1320140 Con Rod, Bronze 3
37 83-1260040 Rear Gasket Cover 1
38 83-740290 O-Ring Ø14 x 178 3
39 83-880530 Oil Drain Tap Bolt 3/8" G 2
40 83-1320020 Pump Head-Without Hole,
18mm Brass 1
41 83-180101 O-Ring Ø17.5 x 2 1
42 83-820360 Head Tap Bolt 1/2"G 1
47 83-1260470 Mounting TE M8 x 10 4
48 83-1263890 Base Plate 2
81 83-1321780 Bolt TCEI M6 x 12 4
82 83-1321420 Side Cover 1
83 83-1260790 Circlip Ø152 1
Crankcase Oil Capacity, 14 oz.
E VERSION:
ITEM PART NO. DESCRIPTION QTY
62 83-480671 Seal Ring 40 x 52 x 7 1
73 83-1321110 Shaft 2 GPM Ø5/8" 1
74 83-1321190 Ring Bearing HK 4516 1
75 83-650610 Bolt, 3/8" 16 UNC x 1" 4
77 83-1320060 Type F8 Flange, Nema C 1
78 83-1200430 Bolt/Flange-Motor TCEI
M6 x 16 4
79 83-780230 Washer Ø16.5 x 28 x 4 1
80 83-780060 Bolt TCEI M6 x 25 1
84 83-1321080 Snap Ring 1
KIT 83-1860
OIL SEALS (E Ver.)
Pos. Qty. Pos. Qty. Pos. Qty. Pos. Qty.
16 3 9 6 11 3 16 3
18 1 10 6 12 3 18 1
37 1 14 3 37 1
62 1 15 3 46 1
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
KIT 83-1864
VALVES
KIT 83-1866
WATER SEALS
KIT 83-1866
OIL SEALS
GENERAL'S JET SET ™ OPERATOR’S MANUAL
18
TROUBLESHOOTING
TROUBLESHOOTING
These troubleshooting procedures cover pump malfunctions, delivery problems and charge system malfunction.
Warning: Before attempting any repairs or maintenance, make sure machine is shut off.
PROBLEM POSSIBLE CAUSE REPAIR
LOW PRESSURE
Worn or oversized nozzle Replace worn nozzle. Check nozzle
size.
Clogged water supply hose, inlet
strainer or kinked hose
Worn or damaged piston cups Replace piston cups.
Worn or damaged inlet or discharge
valve
Improper adjustment of unloader valve Adjust as necessary.
Dirt or foreign particles in valve assembly
Pulse valve on Turn off pulse valve.
Air leak in inlet plumbing or inaccurate
gauge
Clean or replace strainers.
Replace worn valve poppets or valve
springs.
Remove any dirt particles
Locate air leak. Re-seal connection or
replace damaged valve.
ROUGH OPERATION
WITH LOSS OF
PRESSURE
WATER LEAKAGE AT
INTAKE MANIFOLD
OR CRANKCASE
OIL LEAKS
SHORT PISTON
CUP LIFE
Restricted inlet plumbing or air leak in
inlet plumbing
Damaged piston, cup or pump valve Replace any damaged pump parts and
Clogged nozzles Clean or replace nozzles.
Worn manifold seals, pistons or
O-rings. Or condensation inside
crankcase
Worn pistons and/or leaking crank
seals, crankcase cover seal or drain
plugs
Scored cylinders from pumping acids Replace cylinders. DO NOT PUMP
Abrasive particles in fluid being
pumped
Operator(s) running pump without
water supply
Hot water in pump Do not run in bypass for more than
Replace clogged inlet fittings. Check
supply hose and ensure adequate water
supply.
clean out any foreign particles.
Replace seals, sleeves or O-rings.
Change oil at regular intervals.
Replace seals, sleeves or O-Rings.
ACID SOLUTIONS. For acid application, ask your dealer for a Pump Saver
Injector.
Replace water and detergent strainers
if damaged or missing. Install additional
filter if fine abrasives are still evident.
do not allow washer to be run without
proper water supply.
5 minutes. Do not let water supply
exceed 140°F (60°C)
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
GENERAL'S JET SET ™ OPERATOR’S MANUAL
TROUBLESHOOTING
Detergent System Malfunction
PROBLEM POSSIBLE CAUSE REPAIR
WASHER FAILS TO
DRAW DETERGENT
DETERGENT SOLUTION
TOO WEAK
DETERGENT SOLUTION
TOO CONCENTRATED
DETERGENT IN RINSE
CYCLE
DILUTION OF
DETERGENT
CONCENTRATE
DURING
CYCLE
Detergent metering valve close,
clogged or defective
Back pressure in hose (when using
additional lengths of pressure hose)
Back pressure in pressure hose
(when using dual lance wand)
Suction tube not below liquid surface
Clogged detergent strainer Clean or replace strainer.
Air leak in detergent suction tube or
inlet plumbing
Clogged or damaged suction
strainer
Original detergent too concentrated Dilute product as necessary to achieve
Dual lance wand or adjustable
nozzle holder in open position or
detergent metering valve open
Worn or defective internal check
valve
Defective check valve in detergent
tank
Open detergent metering valve, following procedure in operating instructions.
Contact dealer for proper injector size
when adding lengths of hose.
Use proper sizedetergent nozzle in
dual lance wand (refer to parts breakdown).
Completely submerge suction tube
and strainer in detergent solution.
Find air leak and clean or replace
parts as necessary.
Clean or replace strainer.
proper concentration.
Close dual lance wand adjustable
lance holder to achieve high pressure.
Close detergent metering valve.
Repair or replace check valve or injector parts as necessary.
Replace parts as necessary
19
PROBLEM POSSIBLE CAUSE REPAIR
UNLOADER CYCLES
FLUID LEAKING
FROM BODY
UNLOADER WILL NOT
COME TO PRESSURE
EXTREME PRESSURE
SPIKES
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
TROUBLESHOOTING
Unloader Valve Malfunction
Fitting leaking downstream Tighten/replace fitting.
Piston or valve spring broken or worn Replace parts as necessary.
Clogged nozzle Clean or replace.
O-ring worn or cut Replace part as necessary.
Foreign particle in valve Replace or clean.
Nozzle worn or wrong size Replace part as necessary.
Piston or valve worn Replace part as necessary.
Adjusting nut turned completely into
unloader
Clogged nozzle Clean or replace
Back off adjusting nut.
TM
General Wire Spring Co.
LIMITED ONE YEAR WARRANTY
General Wire products are warranted by General Wire Spring Co. to be free of defects in material and workmanship under
normal use for the periods specified below.
General Wire machines carry a one year limited warranty against defect or breakage except as noted below. Should any part
break or fail to work properly in the year following purchase, it will be repaired or replaced at our discretion at no charge.
Some parts, such as hoses and nozzles, are subject to severe wear and are replaced within a year only if a flaw in the
material causes breakage. No adjustment can be made on kinked hoses, since a kink is evidence of abuse. Also, no
adjustment can be made where there is considerable wear at the point of the break.
Warranty on service/wear items, replacement parts and electrical components is limited to 90 days.
All parts replaced under warranty must be original General Wire Spring Co. replacement parts. Under no circumstances will
General Wire reimburse a service center for parts that are not General Wire parts.
Damage due to negligence, rust, exposure to corrosive chemicals, abnormal usage, accidents or alteration from
original design is not covered by this warranty.
Warranty Does Not Cover:
1. Certain items not manufactured by General Wire but used as components such as engines and motors are guaranteed by their respective manufacturer service centers.
2. Items subject to normal wear such as seals, valves, hoses, spray guns, wands, couplings, nozzles, belts, swivels,
filters or any part subject to direct physical contact by the public.
3. Replacement of any fluids such as oil or chemicals, nor does it cover cleaning of any parts.
4. General Wire products are only warranted to the original purchaser, there is no continuation of warranty on used
products.
5. Products damaged in transit. (A claim should be filed with the carrier in the event a product is damaged in shipment.)
6. Damage caused by the use of caustic or corrosive liquids.
7. Operating the pump under conditions that cause or contribute to cavitation.
8. Damage caused by contaminated fuel or oil.
9. Heat damage within the pumping system, whether introduced with the water supply or generated within the system.
10. Damage caused by accident, fire, flood, wind storm, freeze up or other acts of nature.
11. Damage caused by improper installation or power supply.
12. Cost of transportation to authorized service center.
13. Freight costs are the responsibility of purchaser/dealer.
14. Cost incurred for telephone communications.
15. Travel costs or mileage and/or time.
16. Failure to follow recommended maintenance or operating procedures outlined in the operators manual.
17. Loss of running time, income or any other loss due to down time.
18. Use of unauthorized/substandard accessories or attachments.
In order to obtain warranty service the original purchaser is responsible for:
1. Providing proof of purchase (original invoice or bill of sale).
2. Informing your wholesaler of the defect(s) or problem(s) and making the product available for repair. They will direct
you to the nearest authorized Service Center. (Charges for pick-up or delivery, service calls and mileage are
not
covered under warranty.)
This warranty is made in place of all other warranties, express, statutory or implied, including those of merchantability and of fitness for purpose.
This warranty gives you specific legal rights and you may also have other rights that vary from state to state. Some states do
not allow the exclusion of limitation of incidental or consequential damages, so these limitations may not apply to you.
GENERAL'S JET SET
OPERATOR’S MANUAL
21
GENERAL'S JET SETTM J-1400 & J-1600 • 8.914-322.0 / 97-6115 • REVISED 4/08
Loading...
