General ASHA09J, ASHA09JGC, AOHR09JGC, ASHA12J, ASHA12JGC Technical Manual

...
R410A
D2D_AS024E/02
2008.10.28
1. WALL MOUNTED
TYPE :
AS A09JGC AS A12JGC
INDOOR UNIT
- (01 - 02) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
Super quiet
Air flow mode can be set in 4 steps and more detailed air flow setting is possible.
Easy maintenance
Easy maintenance and always clean. Troublesome maintenance has been made easy.
Since the front panel is easy to remove, maintenance is also easy.
Fan speed Noise level
Quiet
21dB
(A)
Corresponds to maximum 20m long piping (12 TYPE)
Apple­catechin Filter
Long-life Ion Deodorization Filter
Air conditioner filter features
Ion Deodorization Filter
Apple-catechin Filter
Dirty Air
Clean Air
- (01 - 03) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
FEATURES
Four kinds of timer setup (ON / OFF / PROGRAM / SLEEP) are possible.
Four kinds of timers. Easy operation.
Select from four different timer programs (On/Off/Program/Sleep).
Built-in timers
The program timer operates the ON and OFF timer once within a 24 hour period.
Program timer
The sleep timer function automatically corrects the temperature thermostat setting according to the time setting to prevent excessive cooling while sleeping.
Sleep timer
2-1. WIRELESS REMOTE CONTROLLER
2.
REMOTE CONTROLLER
Cooling operation/dry operation
60min.
1 °C
2 °C
When the sleep timer is set, the set temperature automatically rises 1 °C every hour. The set temperature can rise up to a maximum of 2 °C.
Timer setting
- (01 - 04) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
Display panel
FUNCTIONS
SPECIFICATION
SIZE (H x W x D mm) 176 x 56 x 18
WEIGHT ( g ) 110
ACCESSORY Holder
TIMER SET ( / ) button
TEST RUN button
This button is used when installing the conditioner, and should not be used un­der normal conditions, as it will cause the air conditioner’s thermostat function to op­erate incorrectly.
If this button is pressed during normal op­eration, the unit will switch to test opera­tion mode, and the Indoor Unit’s OPERA­TION Indicator Lamp and TIMER Indicator Lamp will begin to flash simultaneously.
To stop the test operation mode, press the START/STOP button to stop the air condi­tioner.
CLOCK ADJUST button
Remote Control Unit Display
Transmit Indicator
Clock Display
Operating Mode Display
Timer Mode Display
Fan Speed Display
Temperature SET Display
SLEEP button
MASTER CONTROL button
/ )
SET TEMP. button (
Signal Transmitter
TIMER MODE button
FAN CONTROL button
START/STOP button
SET button (Vertical)
SWING button
RESET button
SLEEP Display
SWING Display
4
5
6
7
8
9
16
18
19
20
21
22
17
15
2
3
10
12
11
13
14
1
2
8
3
1
13
4
15
16
17
19
21
20
22
11
9
10
12
7
6
5
18
14
- (01 - 05) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
3. SPECIFICATIONS
AS A09JGC AS A12JGC
kW 2.50 3.50
BTU/h 8,500 11,900
kW 0.5 - 3.2 0.9 - 4.0
BTU/h 1,700 - 10,900 3,100 - 13,600
kW - -
BTU/h - -
kW - -
BTU/h - -
0.70 1.03
0.25 - 1.27 0.25 - 1.40
- -
- -
3.5 4.9
6.0 6.5
- -
- -
3.57 3.40
- -
kW 1.60 2.30
87 91
- -
l/h (pints/h) 1.3 (2.7) 1.8 (3.8)
High
Med
Low
Quiet
High - -
Med - -
Low - -
Quiet - -
W
High
Med
Low
Quiet
High - -
Med - -
Low - -
Quiet - -
°C
%RH
°C - -
mm
Note : Specifications are based on the following conditions. Cooling : Indoor temperature of 27°CDB/19°CWB. and outdoor temperature of 35°CDB/24°CWB. Pipe length : 5 m, Height difference : 0 m.(Outdoor unit - Indoor unit)
PP+LLDPE
Outer diameter : 21/Inner diameter : 13.6
WALL MOUNTED
INVERTER COOLING ONLY
230V 50Hz
198 - 264V 50Hz
Cross flow fan × 1
630 × 256 × 20
1.1
2 × 16
Cooling
Heating
m3/h
Operation range
kg(lb.)
Connection pipe Size
mm
Dimensions (H × W × D)
Cooling
Heating
Cooling
Remote controller type
Drain pipe Material
mm
Weight Gas
Method
EER
COP
Type × Q'ty
Motor output
Heat exchanger type
Enclosure
kW/kW
Cooling
Heating
%
Rated
Max
Rated
Max
Fan Airflow
rate
Current
Cooling
SENSIBLE CAPACITY
POWER FACTOR
Type Model name
Input power
Cooling
kW
Heating Rated
Min-Max
Cooling
Heating
Moisture removal
Power source
Available voltage range
Capacity
Cooling
Heating
A
Heating
Rated
Min-Max
Rated
Min-Max Rated
Min-Max
Sound pressure level
dB(A)
6.35 ( 1/4 in.)
260 × 790 × 198
259 × 840 × 328
7.5 (17)
10 (22)
Polystyrene
White
Aluminium
30
750
610
440
300
Copper
80 or less
Wireless
9.52 ( 3/8 in.)
Flare
18 to 32
43
38
32
22
Dimensions (H × W × D)
Fin ptich
Rows × Stages
Pipe type
Fin type
Material
mm
Size
Colour
Net
Gross
Net
Gross
Liquid
Cooling Heating
- (01 - 06) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG

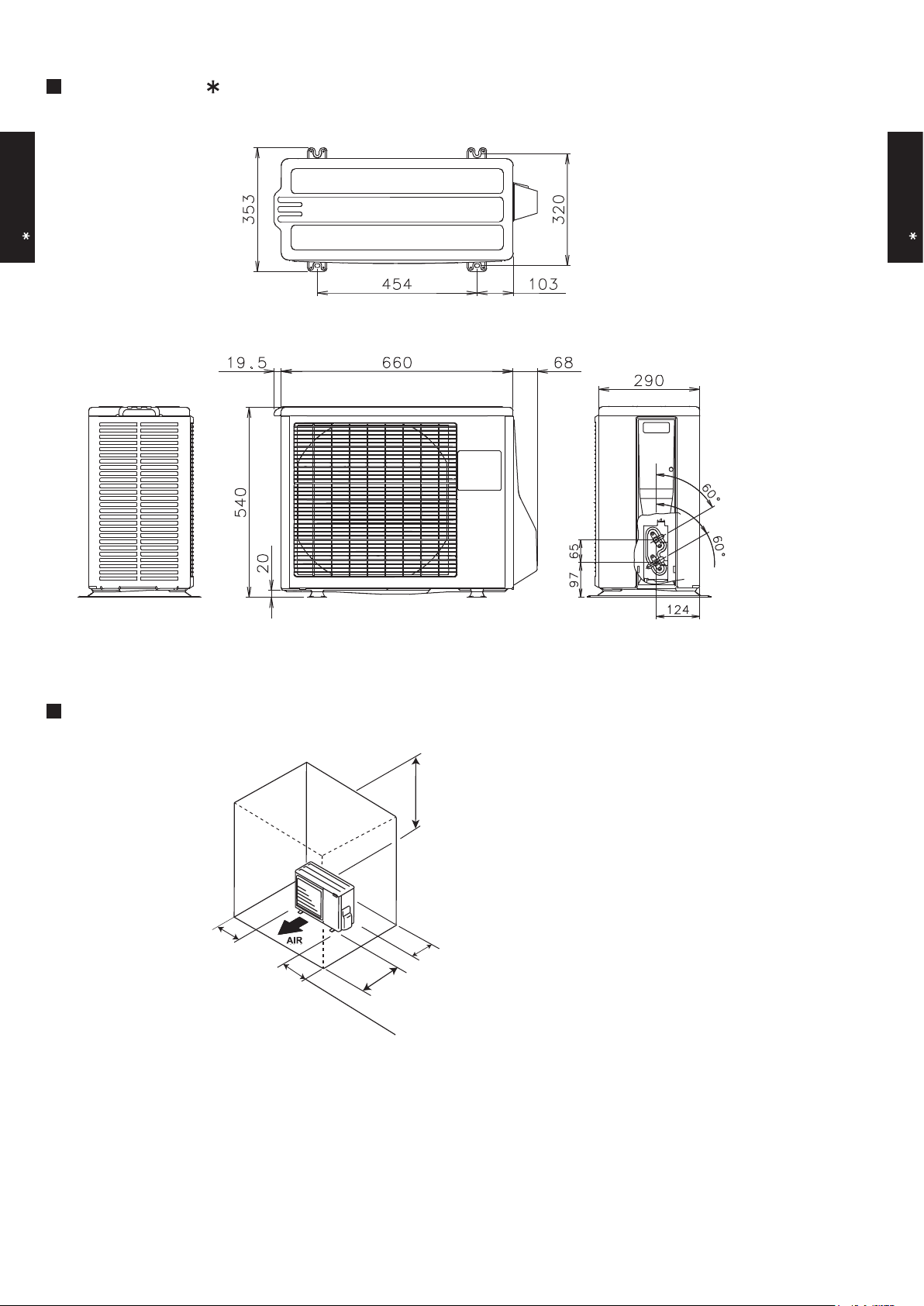

4. DIMENSIONS
MODEL : AS A09JG, AS A12JG
(Unit : mm)
INSTALLATION PLACE
6 cm or more
Wall hook bracket
5 cm or more
9 cm or more
150 cm or more
(Wall cap)
180 cm or more
- (01 - 07) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
TO OUTDOOR UNIT
5. WIRING DIAGRAMS
MODEL : AS A09JG, AS A12JG
- (01 - 08) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
6. CAPACITY TABLE
6-1. COOLING CAPACITY
MODEL : AS A09JG
MODEL : AS A12JG
AFR : Air Flow Rate (m3/min) TC : Total Capacity (kW) SHC : Sensible Heat Capacity (kW) PI : Power Input (kW)
AFR : Air Flow Rate (m3/min) TC : Total Capacity (kW) SHC : Sensible Heat Capacity (kW) PI : Power Input (kW)
°CDB
°CWB
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
2.21 1.51 0.49 2.46 1.52 0.50 2.54 1.65 0.50 2.71 1.65 0.50 2.79 1.79 0.51 2.96 1.78 0.51 3.13 1.90 0.52
2.17 1.48 0.55 2.42 1.49 0.56 2.50 1.62 0.56 2.66 1.63 0.57 2.75 1.76 0.57 2.91 1.75 0.57 3.07 1.86 0.58
2.09 1.43 0.61 2.33 1.44 0.62 2.41 1.57 0.62 2.57 1.57 0.63 2.65 1.70 0.63 2.81 1.69 0.64 2.97 1.80 0.65
1.98 1.35 0.68 2.20 1.36 0.69 2.28 1.48 0.69 2.43 1.48 0.70 2.50 1.60 0.70 2.65 1.59 0.71 2.80 1.70 0.71
1.83 1.25 0.73 2.03 1.26 0.74 2.10 1.37 0.75 2.24 1.37 0.76 2.31 1.48 0.76 2.45 1.47 0.77 2.59 1.57 0.77
1.62 1.11 0.78 1.81 1.12 0.79 1.87 1.21 0.79 1.99 1.22 0.80 2.06 1.32 0.81 2.18 1.31 0.81 2.30 1.40 0.82
16
18
23
25
AFR
12.5
Outdoor temperature
272932
23
19
Indoor temperature
20
12
15
°CDB
21
18
21
46
25
30
35
40
°CDB
°CWB
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
3.28 2.30 0.71 3.65 2.31 0.72 3.77 2.52 0.72 4.02 2.52 0.73 4.15 2.73 0.73 4.40 2.71 0.74 4.64 2.89 0.75
3.12 2.19 0.80 3.47 2.20 0.81 3.59 2.39 0.82 3.83 2.40 0.83 3.95 2.59 0.83 4.18 2.58 0.84 4.42 2.75 0.85
2.95 2.07 0.90 3.28 2.08 0.91 3.40 2.26 0.91 3.62 2.27 0.92 3.73 2.45 0.93 3.96 2.44 0.94 4.18 2.60 0.95
2.77 1.94 0.99 3.08 1.95 1.01 3.19 2.12 1.01 3.40 2.13 1.02 3.50 2.30 1.03 3.71 2.29 1.04 3.92 2.44 1.05
2.34 1.64 0.92 2.60 1.65 0.94 2.69 1.80 0.94 2.87 1.80 0.95 2.96 1.94 0.96 3.14 1.94 0.97 3.31 2.06 0.98
1.97 1.39 0.93 2.20 1.39 0.94 2.27 1.52 0.95 2.42 1.52 0.96 2.50 1.64 0.96 2.65 1.64 0.97 2.80 1.74 0.98
272932
232119
40
°CDB
181815
Outdoor temperature
12
20
25
21
16
AFR
12.5
46
25
30
35
Indoor temperature
23
- (01 - 09) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
7. FAN PERFORMANCE
7-1. AIR VELOCITY DISTRIBUTION
MODEL : AS A09JG, AS A12JG
Note :
Fan speed : High
Voltage : 230V
Unit : m/s
Unit : m/s
Unit : m/s
Unit : m/s
TOP VIEW FLOW CONTROL PANEL : Horiz. LOUVER : Center
TOP VIEW FLOW CONTROL PANEL : Horiz. LOUVER : Right & Left
SIDE VIEW FLOW CONTROL PANEL : Horiz. LOUVER : Center
SIDE VIEW FLOW CONTROL PANEL : Vert. LOUVER : Center
(m)
(m)
(m)
(m)
(m)
(m)
(m)
(m)
Operation mode :FAN
1 765432 8
3
2
1
0
1
2
3
2
1
0
1
2
0
1
2
3
1
765
43
2 8
0
1
2
3
1
765
43
2 8
0
0
0
2.0
1.0
0.5
2.0
1.0
0.5
0.5
0.5
1.0
1.0
2.0
2.0
2.0
1.0
0.5
1
765
43
2 8
0
- (01 - 10) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
COOLING
7-2. AIR FLOW
MODEL : AS A09JG
COOLING
MODEL : AS A12JG
750
m3/h
208 l/s
441 CFM
610
m3/h
169 l/s
359 CFM
440
m3/h
122 l/s
259 CFM
300
m3/h
83 l/s
177 CFM
750
m3/h
208 l/s
441 CFM
610
m3/h
169 l/s
359 CFM
440
m3/h
122 l/s
259 CFM
300
m3/h
83 l/s
177 CFM
Number of
rotations
(r.p.m)
Fan speed
Fan speed
Number of
rotations
(r.p.m)
HIGH
MED
LOW
QUIET
1440
1200
920
680
Airflow
Airflow
HIGH
MED
LOW
QUIET
1440
1200
920
680
High
Quiet
- (01 - 11) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
8-1. NOISE LEVEL CURVE
8. OPERATION NOISE
COOLING
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
Octave band sound pressure level, dB:(0dB=0.0002µbar)
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band center frequency,Hz
63 125 250 500 1,000 2,000 4,000 8,000
COOLING
MODEL : AS A09JG
MODEL : AS A12JG
High
Quiet
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
- (01 - 12) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
8-2.
SOUND LEVEL CHECK POINT
- (01 - 13) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
9. ELECTRIC CHARACTERISTICS
Model Name
AS A09JG AS A12JG
Voltage V
Frequency Hz
Max Operating Current A 6.0 6.5
Circuit breaker A 15 15
Connection Cable
mm
2
1.0 - 1.5 1.0 - 1.5
Limited wiring length
m 16 21
*1) Wiring Spec. Selected Sample (Selected based on Japan Electrotechnical Standard and Codes Committee E0005)
*1)Wiring Spec. Power Supply
230
50
- (01 - 14) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
10. SAFETY DEVICES
AS A09JG AS A12JG
Circuit protection Current fuse (PCB)
Terminal protection Current (thermal) fuse
Fan motor protection Thermal protection program
MAX. 120±15°C
Protection form
3.15A 250V
Model
3A 250V 102°C
- (01 - 15) -
WALL MOUNTED TYPE
AS A09-12JG
WALL MOUNTED TYPE
AS A09-12JG
11. OPTIONAL PARTS
Exterior Summary
Parts name
Apple-catechin
filter
Ion deodorisation
filter
Model No.
UTR-FA16
UTR-FA16-2
Fine dust, invisible mold spores, and harmful microorganisms are absorbed onto the filter by static electricity, and further growth is inhibited and deactivated by the polyphenol ingredient extracted from apples.
The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra fine-particle ceramic.
R410A
D2D_AO023E/02
2008.10.28
2.
SINGLE TYPE :
AO R09JGC
AO R12JGC
OUTDOOR UNIT
- (02 - 01) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
1. SPECIFICATIONS
AO R09JGC AO R12JGC
A 3.5 4.9
1,870 1,830
- -
W
48 49
- -
690 × 508 × 22 642 × 504 × 36.4
1.3 1.4
1 × 20 2 × 24
W 750 750
g 750 750
28 (62) 30 (66)
31 (68) 33 (73)
15 (chargeless : 10) 20 (chargeless : 15)
10 15
Note : Specifications are based on the following conditions. Cooling : Indoor temperature of 27°CDB/19°CWB. and outdoor temperature of 35°CDB/24°CWB. Pipe length : 5 m, Height difference : 0 m. (Outdoor unit - Indoor unit)
Max. height difference
Cooling
Heating
Liquid
Gas
Method
Max. length
Colour
Net
Gross
Net
Type
Charge
Type
Material
Cooling
Heating
Dimensions (H × W × D)
Fin pitch
Flare
Type
Model name
Power source
Available voltage range
Starting current
Cooling
Heating
Type × Q'ty
Motor output
Sound pressure level
18 to 46
-
m
Connection pipe
Size
mm
°C
Operation range
9.52 ( 3/8 in.)
Refrigerant oil
Enclosure
Heat exchanger type
Compressor
Refrigerant Rows x Stages
Pipe type
mm
Weight
kg(lb.)
Dimensions (H × W × D)
Gross
Fan Airflow
rate
m3/h
dB(A)
mm
R410A
Aluminium
Rotary × 1
40
Fin type
Type × Q'ty
Motor output
INVERTER COOLING ONLY
230V 50Hz
198 - 264V 50Hz
Propeller fan × 1
6.35 ( 1/4 in.)
Copper
540 × 660 × 290
611 × 797 × 401
POE (VG74)
Steel
Beige
- (02 - 02) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
2. DIMENSIONS
MODEL : AO R09JG
(Unit : mm)
Top view
600 mm or more
100 mm or more
200 mm or more
100 mm or more
250 mm or more
(Service space)
INSTALLATION PLACE
Front view
Side view
If the space is larger that is stated, the condition will be the same as that are no obstacles.
540
320
540
660
290
353
56
- (02 - 03) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
MODEL : AO R12JG
(Unit : mm)
Top view
600 mm or more
100 mm or more
200 mm or more
100 mm or more
250 mm or more
(Service space)
INSTALLATION PLACE
Front view Side view
If the space is larger that is stated, the condition will be the same as that are no obstacles.
Side view
- (02 - 04) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
MODEL : AO R09JG

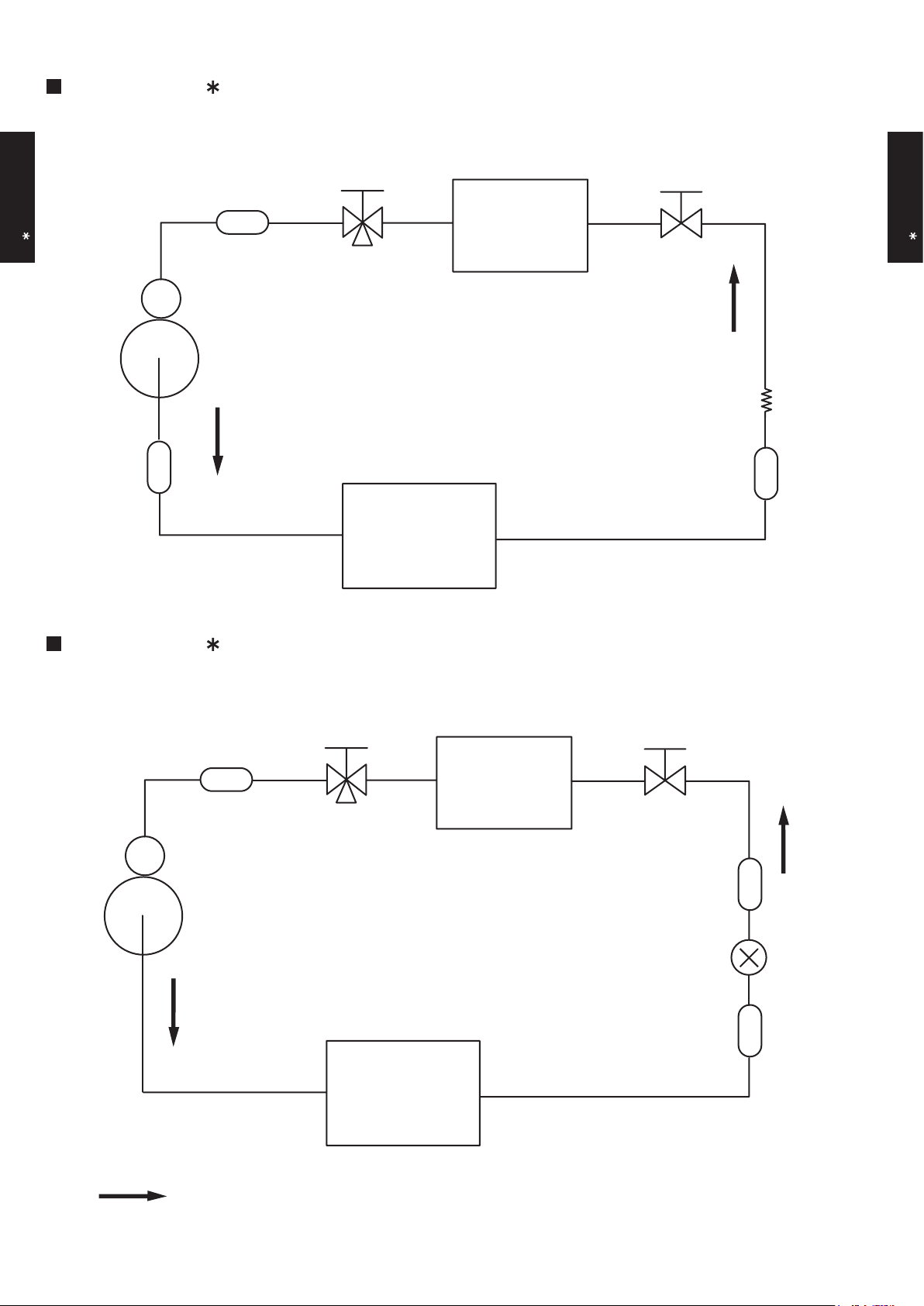

3. REFRIGERANT CIRCUIT
2-Way valve
Muffler
Strainer
3-Way valve
Muffler
Capillary
Heat exchanger (Indoor unit)
Heat exchanger (Outdoor unit)
Compressor
MODEL : AO R12JG
Direction of refrigerant
Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm)
2-Way valve
Strainer
Strainer
3-Way valve
Muffler
Expansion valve
Heat exchanger (Indoor unit)
Heat exchanger (Outdoor unit)
Compressor
- (02 - 05) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
MODEL : AO R09JG, AO R12JG

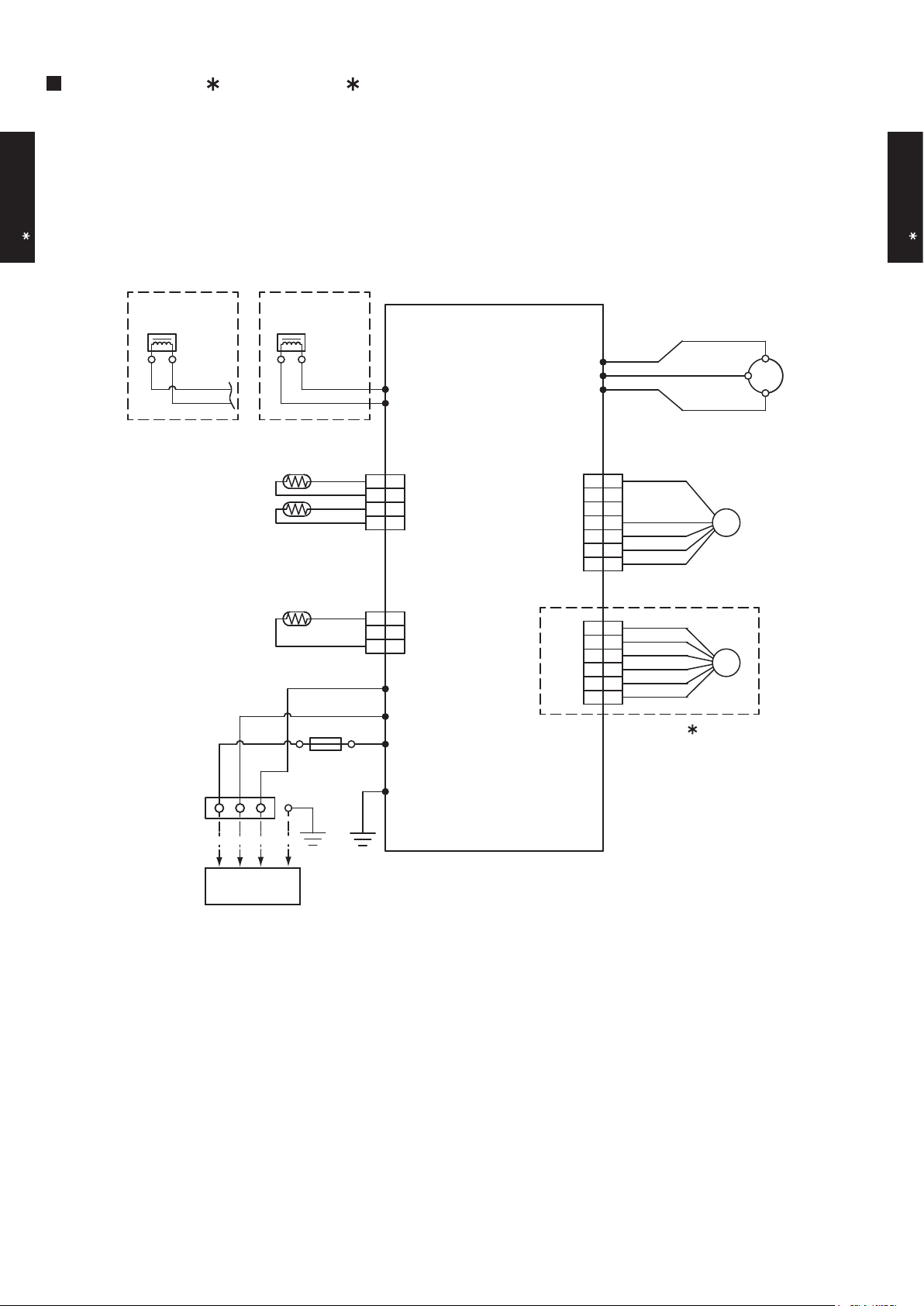

4. WIRING DIAGRAMS
BLACK BLACK BLACK BLACK
BLACK
BLACK
BLACK
BLACK
RED
WHITE
GREEN
WHITE
RED
WHITE
RED
RED BROWN BLUE
ORANGE
YELLOW WHITE
RED
BLACK
WHITE YELLOW BROWN
RED
WHITE
BLACK
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6
1 2 3 4 5 6
1 2 3 4
1 2 3 4
1 2 3
1 2 3
W3
W1
W2
W4
CN62
CN61
W11
W10
W7 W8 W9
CN800
CN40
S(S)V
R(R)U
C(T)W
REACTOR REACTOR
or
THERMISTOR
( PIPE TEMP. )
THERMISTOR
( DISCHARGE PIPE TEMP. )
THERMISTOR
( OUTDOOR TEMP. )
TERMINAL
TO INDOOR UNIT
FUSE
250V 20A
L N 3
EXPANSION VALVE
FAN MOTOR
C M
COMPRESSOR
F M
PMV
CONTROLLER
PCB ASSEMBLY
AO R12JG ONLY
- (02 - 06) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
5. CAPACITY COMPENSATION RATE FOR PIPE LENGTH AND HEIGHT DIFFERENCE
Indoor unit
Height difference H
Connection pipe
H
Outdoor unit
Indoor unit
Connection pipe
H
Outdoor unit
Indoor unit is upper than outdoor unit.1 Indoor unit is under than outdoor unit.2
MODEL : AO R09JG
MODEL : AO R12JG
5 7.5 10 15
10 - - 0.965 0.953
7.5 - 0.977 0.969 0.957
5 0.992 0.981 0.973 0.960
0 1.000 0.989 0.981 0.968
-5 1.000 0.989 0.981 0.968
-7.5 - 0.989 0.981 0.968
-10 - - 0.981 0.968
5 7.5 10 15 20
15 - - - 0.858 0.868
10 - - 0.929 0.872 0.882
7.5 - 0.960 0.933 0.876 0.885
5 0.992 0.964 0.937 0.879 0.889
0 1.000 0.972 0.944 0.887 0.896
-5 1.000 0.972 0.944 0.887 0.896
-7.5 - 0.972 0.944 0.887 0.896
-10 - - 0.944 0.887 0.896
-15 - - - 0.887 0.896
COOLING
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
Height
difference H
(m)
Pipe length (m)
Pipe length (m)
COOLING
Height
difference H
(m)
1
Indoor unit is upper
than outdoor unit.
2
Indoor unit is under
than outdoor unit
- (02 - 07) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
6. ADDITIONAL CHARGE CALCULATION
REFRIGERANT CHARGE
MODEL : AO R09JG
REFRIGERANT CHARGE
MODEL : AO R12JG
Refrigerant amount g
Pipe length m
10 15
Additional charge g 0 (Charge less) +100
Refrigerant amount g
Pipe length m
15 20
Additional charge g 0 (Charge less) +100
Refrigerant type
Refrigerant type
20g/m
R410A
750
R410A
20g/m
750
- (02 - 08) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
7. AIR FLOW
COOLING
COOLING
MODEL : AO R09JG
MODEL : AO R12JG
1870
m3/h
519 l/s
1101 CFM
1830
m3/h
508 l/s
1077 CFM
860
800
Airflow
Airflow
Number of
rotations
(r.p.m)
Number of
rotations
(r.p.m)
- (02 - 09) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
8-1. NOISE LEVEL CURVE
8. OPERATION NOISE
COOLING
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
Octave band sound pressure level, dB:(0dB=0.0002µbar)
Octave band center frequency,Hz
0
10
20
30
40
50
60
70
80
63 125 250 500 1,000 2,000 4,000 8,000
MODEL : AO R09JG
COOLING
MODEL : AO R12JG
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
NC-20
NC-40
NC-50
NC-60
NC-30
NC-15
NC-25
NC-35
NC-45
NC-55
NC-65
- (02 - 10) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
8-2. SOUND LEVEL CHECK POINT
- (02 - 11) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
9. ELECTRIC CHARACTERISTICS
Model Name
AO R09JG AO R12JG
Voltage V
Frequency Hz
Starting Current A
3.5 4.9
Power Supply
230
50
- (02 - 12) -
OUTDOOR UNIT
AO R09-12JG
OUTDOOR UNIT
AO R09-12JG
10. SAFETY DEVICES
AO R09JG AO R12JG
Current fuse (NEAR THE TERMINAL)
Current fuse
(MAIN PRINTED CIRCUIT BOARD)
Fan motor protection Thermal protection program
Compressor protection
Thermal protection program (DISCHARGE TEMP.)
Protection form
Circuit protection
OFF : 100
+15
-10
°C
ON : 95
+15
-10
°C
OFF : 110°C
ON : After 7 minutes
Model
20A 250V
3.15A 250V
Loading...
