OPERATING MANUAL
AIR CONDITIONER
DUCT TYPE
Indoor Unit
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE INSTRUÇÕES
English
ARG60AL(3)
ARG60RL(3)
Outdoor Unit
AOG60AB(3)
AOG60RB(3)
Deutsch
Français
Español
Italiano
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
FUJITSU GENERAL LIMITED
P/N9361814011-02
EλληvIkά
Português
CONTENTS
SAFETY PRECAUTIONS .......................................... 1
NAME OF PARTS ...................................................... 2
PREPARATION .......................................................... 3
OPERATION .............................................................. 3
TIMER OPERATION .................................................. 5
ENERGY SAVE OPERATION .................................... 6
CARE AND MAINTENANCE ..................................... 7
ERRORS AND SELF DIAGNOSIS............................. 7
OPERATING TIPS...................................................... 8
SYSTEM OPERATION .............................................. 9
TROUBLESHOOTING ............................................. 10
SPECIFICATIONS .................................................... 11
SAFETY PRECAUTIONS
● Before using the appliance, read these “PRECAUTIONS” thoroughly and operate in the correct way.
● The instructions in this section all relate to safety; be sure to maintain save operating conditions.
● “DANGER”, “WARNING” and “CAUTION” have the following meanings in these instructions:
DANGER!
WARNING!
CAUTION!
DANGER!
This mark indicates procedures which, if improperly performed, are most likely to
result in the death of or serious injury to the user or service personnel.
This mark indicates procedures which, if improperly performed, might lead to the
death or serious injury of the user.
This mark indicates procedures which, if improperly performed, might possibly result
in personal harm to the user, or damage to property.
● Do not attempt to install this air conditioner by yourself.
● This unit contains no user-serviceable parts. Always consult authorized service per-
sonnel for repairs.
● When moving, consult authorized service personnel for disconnection and installation of the unit.
● Do not become over-exposed to cold air by staying in the direct path of the airflow of
the air conditioner for extended periods of time.
● Do not insert fingers or objects into the outlet port or intake grilles.
● Do not start and stop air conditioner operation by turning off the electrical breaker
and so on.
● In the event of a malfunction (burning smell, etc.), immediately stop operation, turn
off the electrical breaker, and consult authorized service personnel.
CAUTION!
● Provide occasional ventilation during use.
● Do not direct air flow at fireplaces or heating apparatus.
● Do not climb on, or place objects on, the air conditioner.
● Do not expose the air conditioner directly to water.
● Do not operate the air conditioner with wet hands.
● Turn off power source when not using the unit for extended periods.
● Always turn off the electrical breaker whenever cleaning the air conditioner or chang-
ing the air filter.
● Connection valves become hot during Heating; handle with care.
● Check the condition of the installation stand for damage.
● Do not place animals or plants in the direct path of the air flow.
● When restarting after a long period of disuse in the winter, do:
Turn the power switch on at least 12 hours before starting the unit.
● Do not drink the water drained from the air conditioner.
● Do not use in applications involving the storage of foods, plants or animals, precision
equipment, or art works.
● Do not apply any heavy pressure to radiator fins.
● Operate only with air filters installed.
● Do not block or cover the intake grille and outlet port.
● Ensure that any electronic equipment is at least one metre away from either the in-
door or outdoor units.
● Avoid installing the air conditioner near a fireplace or other heating apparatus.
● Whe
● Do not use inflammable gases near the air conditioner.
n installing the indoor and outdoor unit, take precautions to prevent access to infan
ts.
En-1
NAME OF PARTS
Instructions relating to heating(*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Fig. 1
Fig. 4
1
C
2
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
CLOCK TEMP.
OFF
ON
TIMER
ON
OFF
SET
SET
TIME
TEMP.
ENERGY
ZONE
SAVE
CONTROL
3
Fig. 2
°
FED
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
*
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
67890AB
Electrical Breaker
Fig. 3
This breaker is installed during
the electrical installation.
H
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
L
• For explanatory purposes, the figure showing the remote
controller display shows all possible displays. The actual
display shows only that area that is being adjusted or used.
G
CLOCK TEMP.
TIMER
Fig. 5 Display
OFF
ON
ON
OFF
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
KJI
HEAT
FAN
COOL
DEFROST
*
ONM
TEST
Fig. 1 Indoor Unit
1 Outlet Port
2 Intake Port
3 Drain Hose
Fig. 2 Outdoor Unit
4 Intake Port
5 Outlet Port
Fig. 4 Remote Controller
6 START/STOP Button
7 Operation Lamp
8 ZONE CONTROL Button
9 ZONE CONTROL Lamp
: ENERGY SAVE Button
A ENERGY SAVE Lamp
B CLOCK ADJUST Button
C TIMER MODE Button
D SET TIME Button (▲ / ▼)
E SET TEMP. Button (▲ / ▼)
F FAN CONTROL Button
G MASTER CONTROL Button
H Remote Controller Display
(Fig. 5)
I
Clock Display (CLOCK/TIMER)
J Set Temperature Display
(TEMP.)
K Operation Mode Display
L Timer Mode Display
M Fan Speed Display
N DEFROST Display
O TEST Display
En-2
PREPARATION
Set the Current Time
Press the CLOCK ADJUST button for more than three
1
seconds.
The current time display will flash.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
CLOCK TEMP.
OFF
ON
TIMER
ON
OFF
SET
SET
TIME
TEMP.
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
Press the SET TIME button and set the time.
2
▲: Use to advance the time forward.
▼: Use to turn the time back.
(Press once to move the time 1 minute; hold down and the time will move
10 minutes at a time.)
The current time display will flash.
Press the CLOCK ADJUST button again.
3
The current time display will stop flashing.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
ENERGY
CLOCK TEMP.
TIMER
ENERGY
SAVE
SET
TIME
SAVE
ZONE
CONTROL
OFF
ON
ON
OFF
SET
TEMP.
ZONE
CONTROL
CLOCK
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
Example: Set the time to 9:31.
START
STOP
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
OPERATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
To Select Mode Operation
CLOCK TEMP.
NON STOP
Press the START/STOP button.
1
The unit will start and the operation lamp will light up.
Press the MASTER CONTROL button to select the de-
2
sired mode.
Each time the button is pressed, the mode will change in the following
order:
s
*HEAT FAN COOL
s
s
OFF ON
TIMER
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
SET
TIME
ENERGY
SAVE
Example: When set to COOL
OFF
ON
ON
OFF
SET
TEMP.
ZONE
CONTROL
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
2
1
En-3
To Set the Thermostat
Press the SET TEMP. button.
▲ : Press to raise the thermostat setting.
▼ : Press to lower the thermostat setting.
● Thermostat setting range:
*Heating ........................................... 16 to 30 °C
Cooling ........................................... 18 to 30 °C
The thermostat cannot be used to set room temperature during the FAN mode
(the temperature will not appear on the remote controller’s display).
The thermostat setting should be considered a standard value, and may differ
somewhat from the actual room temperature.
To Set the Fan Speed
Press the FAN CONTROL button.
Each time the button is pressed, the fan speed changes in the following order:
AUTO HIGH MED LOW
● When set to AUTO:
*Heating
Cooling
Fan : The fan speed will automatically be set on MED.
: The fan speed will vary with room conditions.
ssss
CLOCK TEMP.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
TIMER
SET
TIME
ENERGY
SAVE
OFF
ON
ON
OFF
°
SET
TEMP.
ZONE
CONTROL
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
Example: When set to 26 °C
CLOCK TEMP.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
TIMER
SET
TIME
ENERGY
SAVE
OFF
ON
ON
OFF
°
SET
TEMP.
ZONE
CONTROL
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
Example: When set to HIGH
To Stop Operation
Press the START/STOP button.
The display contents disappear and only the current time is displayed.
About Mode Operation
*Heating
● Always set the temperature higher than the current room temperature. If it is set lower than the current room temperature,
heating will not start.
● For about 3 to 5 minutes after starting heating, the fan will operate very slowly, then switch to the selected fan setting. This
period allows the indoor unit’s heat- exchanger to perform before emitting warm air.
● During defrosting (see page 8), the heating mode will be temporarily interrupted. DEFROST will be shown on the remote
controller display.
Cooling
● Always set the temperature lower than the current room temperature. If it is set higher than the current room temperature,
the unit will not enter the cooling mode and only the fan will operate.
Fan
● The room temperature cannot be adjusted in the FAN mode. (The room temperature is not displayed on the remote controller.)
En-4
TIMER OPERATION
Press the START/STOP button; after the unit starts operation perform the following procedure:
OFF Timer / ON Timer
Press the TIMER MODE button and display either OFF
1
Timer or ON Timer.
The timer will start operating. (If you set the ON timer, the air conditioner
will stop operating.)
Each time the button is pressed the timer function changes in the following order:
s
RESET OFF ON
REPEAT PROGRAM(OFF → ON, OFF ← ON)
t
s
s
t
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
CLOCK TEMP.
OFF
ON
TIMER
ON
OFF
SET
SET
TIME
TEMP.
1
ENERGY
SAVE
ZONE
2
CONTROL
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
Press the SET TIME button and set the timer time.
2
▲ : Use to advance the time forward.
▼ : Use to turn the time back.
(Press once to move the time 1 minute; hold down and the time will move
10 minutes at a time.)
PROGRAM Timer/REPEAT Timer
Setting the timer time.
1
Follow the instructions given in the section “OFF Timer / ON Timer” and
set the times for the ON timer and OFF timer modes.
Press the TIMER MODE button until the “PROGRAM”
2
or “REPEAT” mode display is shown.
CLOCK TEMP.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
OFF
ON
ON
OFF
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
HEAT
FAN
COOL
DEFROST
TEST
Example: Setting the OFF TIMER
to 23:35
CLOCK TEMP.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
TIMER
SET
TIME
2
ENERGY
SAVE
OFF
ON
ON
OFF
°
SET
TEMP.
ZONE
CONTROL
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
Example:
If the OFF timer is set at 23:35 and the
ON timer at 6:00, and the unit is in the
PROGRAM timer mode. (Select the REPEAT timer mode, “REPEAT” is shown
on the display.)
About Timer Operation
PROGRAM Timer REPEAT Timer
● Combines the OFF timer and the ON timer for one
cycle.(OFF → ON, or OFF ← ON)
● Starts operation from the OFF timer or the ON timer,
whichever is closer to the current time.
● Combines the operation of the OFF timer and the ON
timer (the cycle described in the PROGRAM timer above)
so they repeat the same cycle every day.
● Starts operation from the OFF timer or the ON timer,
whichever is closer to the current time.
En-5
To confirm or Change Settings
Before Starting Operation
To Change the Timer Setting
During Operation
To Cancel the Timer Mode
During Timer Operation
● To confirm settings
Press the TIMER MODE button once.
(The timer setting information will be
displayed for 15 seconds after the
TIMER MODE button is pressed.)
● To change settings
Confirm the settings as noted above,
then press the SET TIME button and
TIMER MODE button as necessary to
change the desired timer setting.
(The timer settings will be displayed
● OFF Timer / ON Timer
Press the SET TIME button and set
the timer time.
● PROGRAM Timer / REPEAT Timer
1. Follow the instructions given in the
section “OFF Timer/ON Timer” to dis-
play the timer setting you wish to
change.
2. Press the TIMER MODE button to dis-
play either “OFF → ON” or “OFF ←
ON”.
Press the TIMER MODE button and set
the display to “NON STOP” (the unit will
switch to non-stop operation).
To Stop Operation During
Use of Timer Mode
Press the START/STOP button.
for 15 seconds after the button is
pressed.)
● After confirming or changing the set-
To Change the Timer Mode
During Operation
tings, press the START/STOP button
to start operation.
Press the TIMER MODE button and set
the unit to the desired mode.
ENERGY SAVE OPERATION
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
To Use the ENERGY SAVE
CLOCK TEMP.
NON STOP
OFF ON
Press the ENERGY SAVE button.
The unit will run in the ENERGY SAVE mode.
TIMER
PROGRAM
REPEAT
TIMER
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
HEAT
FAN
COOL
DEFROST
TEST
OFF
ON
ON
OFF
TIMER
To Stop the ENERGY SAVE
Press the ENERGY SAVE button one more time.
MODE
CLOCK ADJUST
SET
TIME
ENERGY
SAVE
TEMP.
ZONE
CONTROL
SET
FAN
CONTROL
MASTER
CONTROL
START
STOP
The ENERGY SAVE mode will be turned off.
The ENERGY SAVE light goes off, and the unit will return to the former operating conditions.
About the ENERGY SAVE
● The energy conservation mode (ENERGY SAVE) raises the set temperature slightly in the cooling mode and lowers the set
temperature in the heating mode, using a computer program to economically control the operation of the unit.
● If you press the ENERGY SAVE button while the air conditioner is on, it will change to the conservation mode. If you press
the ENERGY SAVE button while the unit is in the timer mode (ON timer, PROGRAM timer, or REPEAT timer), the unit will go
into the conservation mode when the unit starts with the timer.
● If you turn off the air conditioner while in the conservation mode, the mode will be shut off.
● The temperature set on the remote controller will not change if the energy save mode is used.
■ *When Heating
After the ENERGY SAVE button is pressed, the set temperature will be lowered about 1 °C every 30 minutes. When it
has lowered a total of 2 °C, then it will hold that temperature.
1 °C
2 °C
■ When Cooling
After the ENERGY SAVE button is pressed, the set temperature will be raised about 0.5 °C every 30 minutes. When it
has gone up a total of 1 °C, then it will hold that temperature.
▼ Set to the ENERGY SAVE mode.
30 min.
▲ Set to the ENERGY SAVE mode.
30 min.
1 °C
0.5 °C
En-6
CARE AND MAINTENANCE
CAUTION!
● Turn off the electrical breaker.
● A fan operates at high speed inside the unit, and personal injury could result.
Installing the Air Filter
● Before cleaning the unit, be sure to stop the unit and disconnect the power supply.
Be sure the filter is always installed in the inlet air grille of the indoor unit.
Filters can be purchased through your local dealer.
Cleaning the Air Filter
If dirt is allowed to collect in the air filter, the airflow will be reduced, leading to reduced performance, and increased
operation noise. Be sure to clean the filters regularly.
How to Cleaning
Use a vacuum cleaner to remove dust and dirt from the air filter, or wash in a synthetic detergent. After washing, dry in a
shaded place, then reinstall.
● When used for extended periods, the unit may accumulate dirt inside, reducing its performance. We recommend that the
unit be inspected regularly, in addition to your own cleaning and care. For more information, consult authorized service
personnel.
● When cleaning the unit’s body, do not use water hotter than 40 °C, harsh abrasive cleansers, or volatile agents like
benzene or thinner.
● Do not expose the unit body to liquid insecticides or hairsprays.
● If the unit will not be operated for a period of one month or more, be sure to allow the inner parts of the unit to dry
thoroughly, in advance, by operating the unit in fan mode for half a day.

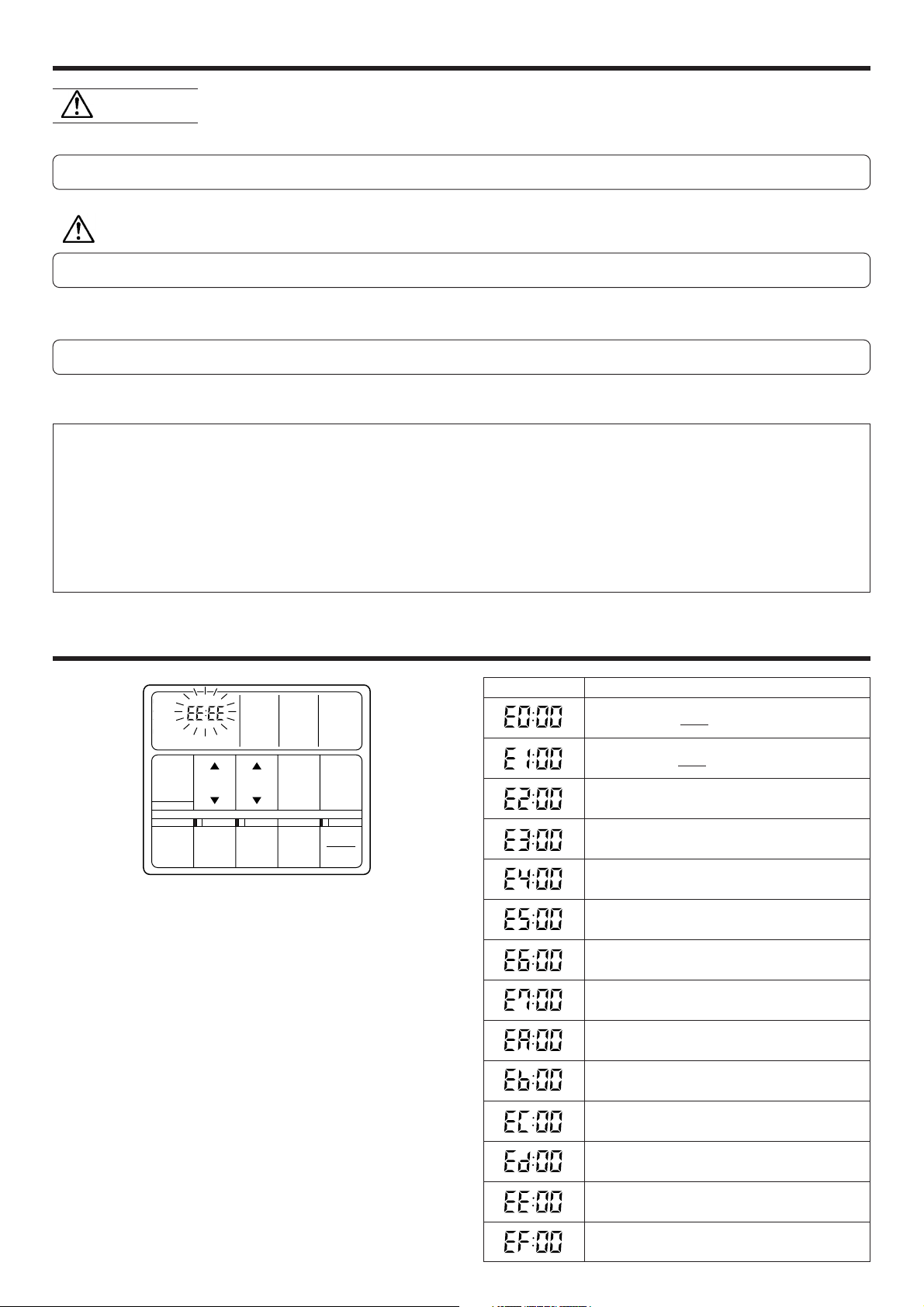

ERRORS AND SELF DIAGNOSIS
CLOCK TEMP.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
TIMER
SET
TIME
ENERGY
SAVE
OFF
ON
ON
OFF
If there is a problem with the air conditioner, it will stop running and “EE: EE” will be displayed instead of the clock.
1. If the operation lamp is on then press the START/
STOP buttons to turn it off.
2. Press the ENERGY SAVE and the ZONE CONTROL
buttons at the same time for more than three seconds
to start the self diagnosis check.
An error code will be displayed in the clock display area.
3. Press the ENERGY SAVE and the ZONE CONTROL buttons again for more than three seconds to end the self
diagnosis check.
°
SET
TEMP.
ZONE
CONTROL
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
TEST
MASTER
CONTROL
START
STOP
Error Code
Error
Communication error
t
(indoor unit remote controller)
s
Communication error
t
(indoor unit outdoor unit)
s
Room temperature sensor open.
Room temperature sensor shortcircuited.
Indoor heat exchanger temperature
sensor open.
Indoor heat exchanger temperature
sensor shortcircuited.
Outdoor heat exchanger temperature
sensor open.
Outdoor heat exchanger temperature
sensor shortcircuited.
Outdoor temperature sensor open.
Outdoor temperature sensor shortcircuited.
Discharge pipe temperature sensor open.
Discharge pipe temperature sensor
shortcircuited.
En-7
High pressure abnormal.
Discharge pipe temperature abnormal.
OPERATING TIPS
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
Operation and Performance
*Heating Performance *Microcomputer-controlled Automatic Defrosting
● This air conditioner uses a heat pump which absorbs heat
from outside air and brings it indoors. As a result, its heating performance is reduced as the temperature of outside air drops. If you find that insufficient room heat is
produced, we recommend that you use the air conditioner
together with other heating appliances.
● Heat-pump type air conditioners use warm-air
recirculation to warm your entire room. As a result, some
time will be required after starting operation until your
entire room becomes warm.
Outdoor Unit Fan Speed Control
● Depending on the outdoor temperature, the outdoor unit
automatically stops the fans or adjusts their speed.
Temperature and Humidity Range
Outdoor temperature
COOLING MODEL
● When the outside temperature is low and the humidity
high, frost will collect on the outside unit, reducing heater
efficiency. When this happens, the computer will automatically start the defrost cycle. During the defrost cycle, the indoor fan will shutdown and DEFROST will be
displayed on the remote controller. It will take anywhere
from 4 to 15 minutes before the air conditioner starts up
again.
*When Indoor and Outdoor Temperatures are High
● When both indoor and outdoor temperatures are high
during use of the heating mode, the outdoor unit’s fan
may stop at times.
Cooling Mode
About 0 to 52 °C
*Heating Mode
—
HEAT & COOL MODEL
(Reverse Cycle)
Indoor temperature
Indoor humidity
● If the air conditioner is operated under higher temperature conditions than those listed, the built-in protection circuit may
operate to prevent internal circuit damage. Also, during Cooling mode, if the unit is used under conditions of lower temperatures than those listed above, the heat-exchanger may freeze, leading to water leakage and other damage.
● Do not use this unit for any purposes other than the Cooling, (*)Heating, and air-circulation of rooms in ordinary dwellings.
About 0 to 52 °C
About 18 to 32 °C
About 80 % or less
If the unit is used for long periods under high-humidity
conditions, condensation
may form on the surface of
the indoor unit, and drip onto
the floor or other objects underneath.
About –8 to 21 °C
About 30 °C or less
—
En-8
SYSTEM OPERATION
There are different ways the unit can be controlled. (Consult the remote controller operating instructions for details on setting
the operating functions.)

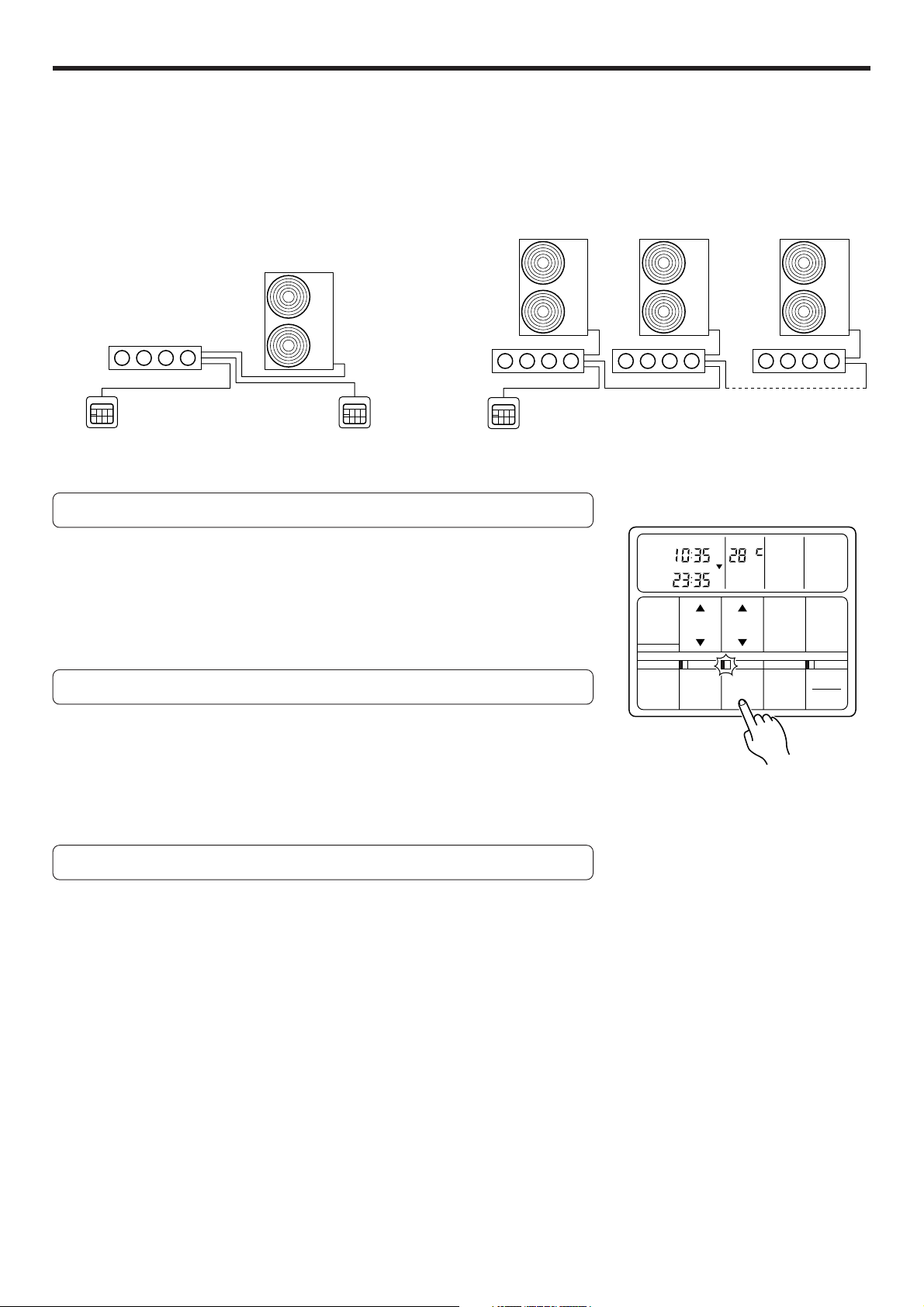

<Spare Remote Controller>
Two remote controllers can be connected to one air conditioner unit. The air conditioner operation contents are the
remote controller setting contents set later.
<Control Several Units with just one Remote Controller>
One remote controller can control up to 16 air conditioners.
All the air conditioners can be operated with the same setting.
(Both remote controllers show the same display.)
Unit No.1
To Use the ZONE CONTROL
When the ZONE CONTROL button is pressed while multiple air conditioners are
being centralized controlled, only the preset air conditioners stop.
Press the ZONE CONTROL button.
Preset units will stop.
Unit No.2 Unit No.16
CLOCK TEMP.
NON STOP
OFF ON
TIMER
PROGRAM
REPEAT
TIMER
MODE
CLOCK ADJUST
TIMER
SET
TIME
OFF
ON
ON
OFF
SET
TEMP.
°
FAN AUTO
FAN HIGH
FAN MED
FAN LOW
FAN
CONTROL
HEAT
FAN
COOL
DEFROST
MASTER
CONTROL
TEST
To Stop the ZONE CONTROL
Press the ZONE CONTROL button one more time.
Those units that were stopped will start again.
Auto Restart
When the air conditioner power was temporarily turned off by a power failure,
etc., it will restart automatically after the power recovers. (Operated by settings
before the power failure.)
ENERGY
SAVE
ZONE
CONTROL
START
STOP
En-9
TROUBLESHOOTING
Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle).
WARNING!
Before requesting service, perform the following checks:
In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker, and consult authorized service personnel.
Always be sure to turn off the electrical breaker to ensure that power is completely off.
NORMAL
FUNCTION
Symptom
Doesn’t operate immediately:
Make noise:
Smells:
Mist or steam are
emitted:
Problem
● If the unit is stopped and then immediately started again, the compressor will not operate for about 3 minutes, in order to prevent
fuse blowouts.
● Whenever the power switch is turned off then on again, the protection circuit will operate for about 3 minutes, preventing unit
operation during that period.
● During operation and immediately after stopping the unit, you
may hear the sound of water flowing in the air conditioner’s pip-
ing. Also, noise may be particularly noticeable for about 2 to 3
minutes after starting operation (This is the sound of coolant flowing).
● During operation, you may hear a slight squeaking sound. This is
caused by minute expansion and contraction of the front cover
resulting from change in temperature.
● Some smell may be emitted from the indoor unit. This smell is
the result of room odors. (furniture, tobacco, etc.) which have
been taken into the air conditioner.
● During the Cooling operation, a thin mist may be seen emitted
from the indoor unit. This is a result of sudden cooling of room
air by the air emitted from the air conditioner, resulting in condensation and misting.
*● During Heating operation, the outdoor unit’s fan may stop, and
steam may be seen rising from the unit. This is due to operation
of the defrosting mode.
See Page
—
—
—
—
CHECK ONCE
MORE
Symptom
Doesn’t operate at all:
Poor Cooling (or *Heating)
performance:
Items to check
● Has there been a power failure?
● Has a fuse blown out, or a circuit breaker been tripped?
● Is the main power switch set to the OFF position?
● Is the timer operating?
● Is the air filter dirty?
● Are the air conditioner’s intake grille or outlet vents blocked?
● Did you adjust the room temperature settings (thermostat) cor-
rectly?
● Is there a window or door open?
● During the cooling operation, is a window allowing bright sun-
light to enter? (Close the curtains.)
● During the cooling operation, is there a heat source operating
inside the room, or are there too many people in the room?
See Page
5
—
En-10
SPECIFICATIONS
MODEL
INDOOR UNIT ARG60AL(3) ARG60RL(3)
OUTDOOR UNIT AOG60AB(3) AOG60RB(3)
TYPE COOLING MODEL HEAT&COOL MODEL
POWER 3N~ 380-415 V 50 Hz
COOLING
CAPACITY [kW] 16.4-17.0 16.4-17.0
POWER INPUT [kW] 5.80-5.90 5.80-5.90
CURRENT [A] 9.8-9.8 9.8-9.8
ENERGY EFFICIENCY RATIO
HEATING
CAPACITY [kW] — 17.0-17.6
POWER INPUT [kW] — 4.90-5.05
CURRENT [A] — 8.7-8.7
ENERGY EFFICIENCY RATIO
REFRIGERANT (R22) [g] 4,800
MAX. PRESSURE(REFRIGERANT) [kPa] 3,040
DIMENSIONS & WEIGHT
INDOOR UNIT
HEIGHT [mm] 400
WIDTH [mm] 1,250
DEPTH [mm] 800
WEIGHT [kg] 75
OUTDOOR UNIT
HEIGHT [mm] 1,355
WIDTH [mm] 940
DEPTH [mm] 370
WEIGHT [kg] 121 129
[kW/kW]
[kW/kW]
2.83-2.88 2.83-2.88
— 3.47-3.49
● Acoustic Noise Information : The maximum sound pressure level is less than 70 dB (A) for both indoor unit and outdoor
unit.
According to IEC 704-1 and ISO 3744.
En-11
Loading...
