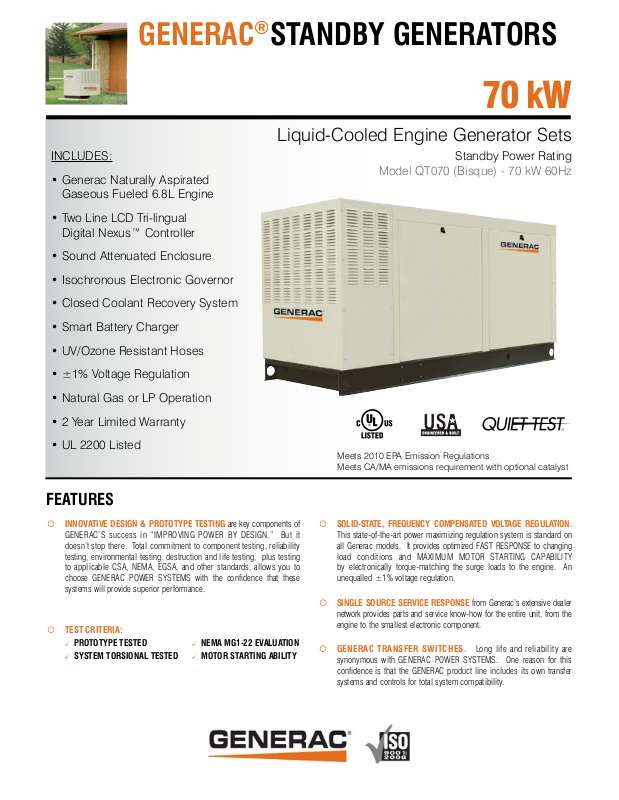

Page 1
GENERAC®STANDBY GENERATORS
70 kW
Liquid-Cooled Engine Generator Sets
INCLUDES:
• Generac Naturally Aspirated
Gaseous Fueled 6.8L Engine
• Two Line LCD Tri-lingual
Digital Nexus™ Controller
• Sound Attenuated Enclosure
• Isochronous Electronic Governor
• Closed Coolant Recovery System
• Smart Battery Charger
• UV/Ozone Resistant Hoses
• ±1% Voltage Regulation
• Natural Gas or LP Operation
• 2 Year Limited Warranty
• UL 2200 Listed
Standby Power Rating
Model QT070 (Bisque) - 70 kW 60Hz
Meets 2010 EPA Emission Regulations
Meets CA/MA emissions requirement with optional catalyst
FEATURES
¡ INNOVATIVE DESIGN & PROTOTYPE TESTING are key components of
GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it
doesn’t stop there. Total commitment to component testing, reliability
testing, environmental testing, destruction and life testing, plus testing
to applicable CSA, NEMA, EGSA, and other standards, allows you to
choose GENERAC POWER SYSTEMS with the confidence that these
systems will provide superior performance.
¡ TEST CRITERIA:
PROTOTYPE TESTED NEMA MG1-22 EVALUATION
SYSTEM TORSIONAL TESTED MOTOR STARTING ABILITY
¡ SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION.
This state-of-the-art power maximizing regulation system is standard on
all Generac models. It provides optimized FAST RESPONSE to changing
load conditions and MAXIMUM MOTOR STARTING CAPABILITY
by electronically torque-matching the surge loads to the engine. An
unequalled ±1% voltage regulation.
¡ SINGLE SOURCE SERVICE RESPONSE from Generac’s extensive dealer
network provides parts and service know-how for the entire unit, from the
engine to the smallest electronic component.
¡ GENERAC TRANSFER SWITCHES. Long life and reliability are
synonymous with GENERAC POWER SYSTEMS. One reason for this
confidence is that the GENERAC product line includes its own transfer
systems and controls for total system compatibility.
Page 2
Application & Engineering Data
QT070
GENERATOR SPECIFICATIONS
TYPE Synchronous
ROTOR INSULATION Class H
STATOR INSULATION Class H
TELEPHONE INTERFERENCE FACTOR (TIF) <50
ALTERNATOR OUTPUT LEADS 3-PHASE/1-PHASE 6/4 wire
BEARINGS Sealed Ball
COUPLING Flexible Disc
LOAD CAPACITY (STANDBY RATING) 70 kW
EXCITATION SYSTEM Brushless
VOLTAGE REGULATION
TYPE Full Digital
SENSING Three Phase
REGULATION ± 1%
GENERATOR FEATURES
Revolving field heavy duty generator
Directly connected to the engine
Operating temperature rise 120 °C above a 40 °C ambient
Insulation is Class H rated at 130 °C rise
All models are fully prototyped tested
ENCLOSURE FEATURES
Aluminum all weather
protective enclosure
options available
Enclosed critical grade
muffler
Small, compact,
attractive
SAE Sound attenuated enclosure ensures quiet
Ensures protection against mother nature.
Electrostatically applied textured epoxy paint for
added durability.
Quiet, critical grade muffler is mounted inside
the unit to prevent injuries.
Makes for an easy, eye appealing installation.
operation.
ENGINE SPECIFICATIONS
MAKE Generac
MODEL V-type
CYLINDERS 10
DISPLACEMENT 6.8 Liter
BORE 3.55
STROKE 4.17
COMPRESSION RATIO 9:1
INTAKE AIR SYSTEM Naturally Aspirated
LIFTER TYPE Hydraulic
GOVERNOR SPECIFICATIONS
TYPE Electronic
FREQUENCY REGULATION Isochronous
STEADY STATE REGULATION ± 0.25%
ENGINE LUBRICATION SYSTEM
OIL PUMP Gear
OIL FILTER Full flow spin-on cartridge
CRANKCASE CAPACITY 5 Quarts
ENGINE COOLING SYSTEM
TYPE Closed
WATER PUMP Belt driven
FAN SPEED 2300
FAN DIAMETER 22 inches
FAN MODE Pusher
FUEL SYSTEM
FUEL TYPE Natural gas, propane vapor
CARBURETOR Down Draft
SECONDARY FUEL REGULATOR Standard
FUEL SHUT OFF SOLENOID Standard
OPERATING FUEL PRESSURE 11” - 14” H
O
2
ELECTRICAL SYSTEM
BATTERY CHARGE ALTERNATOR 12V 30 Amp
SMART BATTERY CHARGER 12V, 2 Amp
RECOMMENDED BATTERY Group 24F, 12V, 525CCA
SYSTEM VOLTAGE 12 Volts
Rating definitions - Standby: Applicable for supplying emergency power for the duration of the utility power outage. No overload capability is available for this rating. (All ratings in accordance with BS5514,
ISO3046 and DIN6271). (All ratings in accordance with BS5514, ISO3046, ISO8528, SAE J1349 and DIN6271).
Page 3
Generac® Standby Generator - 70 kW
®
OPERATING DATA
KW RATING (LP/NG) 70
ENGINE SIZE 6.8 Liter V-10
GENERATOR OUTPUT VOLTAGE/KW - 60Hz LP Rated AMP NG Rated AMP CB Size
120/240V, 1-phase, 1.0 pf
120/208V, 3-phase, 0.8 pf
120/240V, 3-phase, 0.8 pf
277/480V, 3-phase, 0.8 pf
GENERATOR LOCKED ROTOR KVA
AVAILABLE @ VOLTAGE DIP OF 35%
Single phase or 208-240 3-phase
480V 3-phase
67
70
70
70
279
243
210
105
64
67
67
67
145
160
267
232
201
101
300
300
250
125
ENGINE FUEL CONSUMPTION
(Natural Gas) (Propane)
Exercise cycle
25% of rated load
50% of rated load
75% of rated load
100% of rated load
ENGINE COOLING
(inlet air including alternator and combustion air) ft
Air flow
System coolant capacity
Heat rejection to coolant
US gal.
BTU/hr.
Max. operating air temp. on radiator
Max. ambient temperature
°C (°F)
COMBUSTION AIR REQUIREMENTS
Flow at rated power 60 Hz
cfm 205
SOUND EMISSIONS IN DBA
Exercising at 7 meters
Normal operation at 7 meters
EXHAUST
Exhaust flow at rated output 60 Hz
Exhaust temp. at muffler outlet
cfm
°C (°F)
ENGINE PARAMETERS
3
/min.
°C (°F)
Natural Gas
3
(ft
/hr.)
110
260
500
696
1020
Propane
(gal/hr.) cu ft/hr
1.20 44.2
2.85 104.9
5.46 200.9
7.62 280.4
11.17 411
5200
4.5
287,000
60 (150)
50 (140)
67
72
557
477 (890)
Rated synchronous RPM
60 Hz 1800
POWER ADJUSTMENT FOR AMBIENT CONDITIONS
Temperature Deration
3% for every 10 °C above - °C
1.65% for every 10 °F above - °F
25
77
Altitude Deration
1% for every 100 m above - m
3% for every 1000 ft. above - ft.
RATING: All three phases units are rated at 0.8 power factor. All single phase units are rated at 1.0 power factor. STANDBY RATING: Standby ratings apply to installations served by a
reliable utility source. The standby rating is applicable to varying loads for the duration of a power outage. There is no overload capability for this rating. Ratings are in accordance with
ISO-3046-1. Design and specifications are subject to change without notice.
kW rating is based on LPG Fuel and may derate with natural gas.
183
600
Page 4

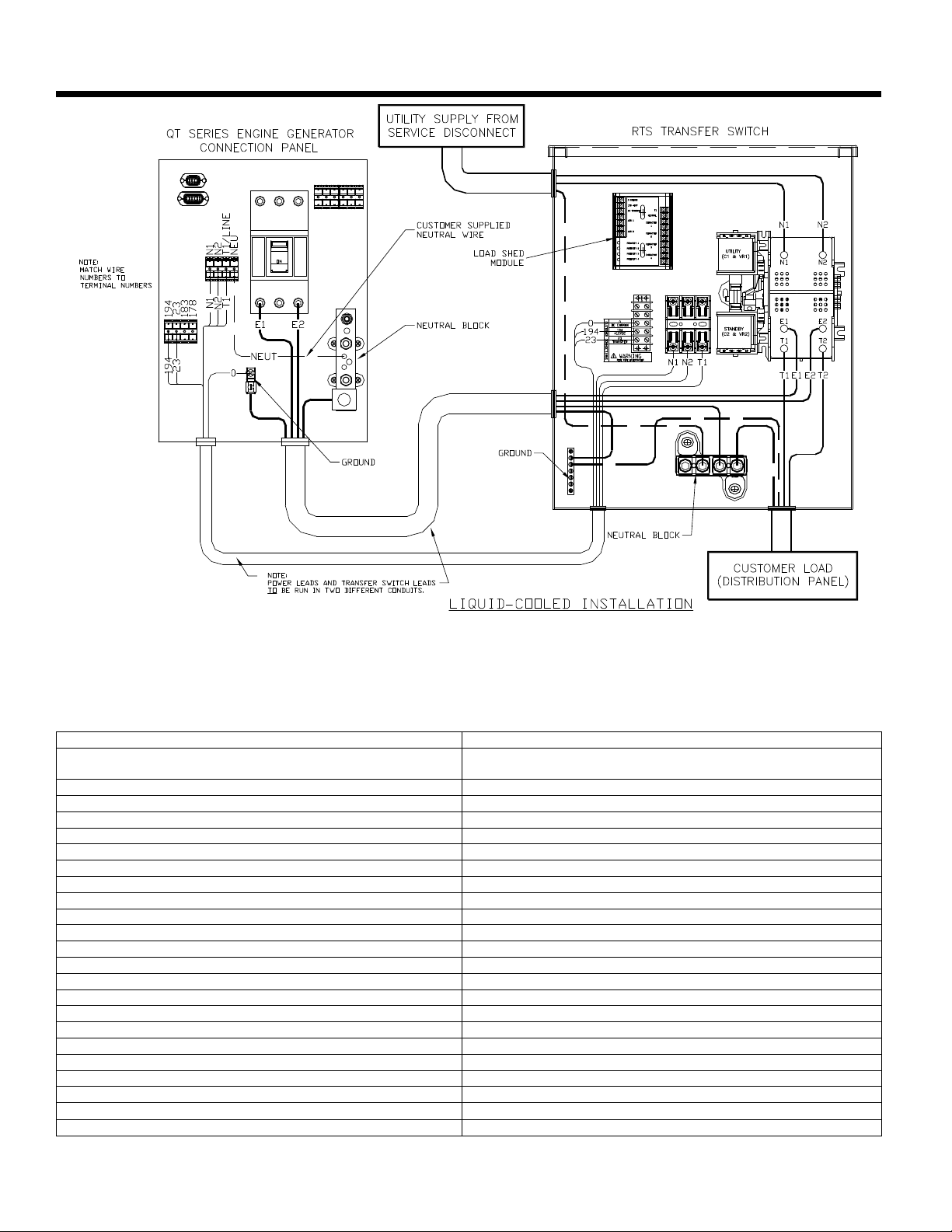

INTERCONNECTIONS
QT070
kW VOLTS CB AMPS LUG SIZE
70 240 1 Ø 300 (1) 600 mcm to #4 or (2) 250 mcm to 1/0
70 240 3 Ø 250 (1) 600 mcm to #4 or (2) 250 mcm to 1/0
70 208 3 Ø 250 (1) 600 mcm to #4 or (2) 250 mcm to 1/0
70 480 3 Ø 125 #6 to 300 mcm
NEXUS™ CONTROL FEATURES
2-Line Plain Text LCD Display Simple user interface for ease of operation
Mode Switch
-Auto Automatic Start on Utility failure. 7 day exerciser
-Off Stops unit. Power is removed. Control and charger still operate.
-Manual/Test (start) Start with starter control, unit stays on. If utility fails, transfer to load takes place.
Programmable start delay between 10-30 seconds Standard
Engine Start Sequence Cyclic cranking: 16 sec. on, 7 rest (90 sec. maximum duration)
Engine Warm-up 5 seconds
Engine Cool-Down 1 minute
Starter Lock-out Starter cannot re-engage until 5 sec. after engine has stopped.
Smart Battery Charger Standard
Automatic Voltage Regulation with Over and Under Voltage Protection Standard
Automatic Low Oil Pressure Shutdown Standard
Overspeed Shutdown Standard, 72Hz
High Temperature Shutdown Standard
Overcrank Protection Standard
Safety Fused Standard
Failure to Transfer Protection Standard
Low Battery Protection Standard
50 Event Run Log Standard
Future Set Capable Exerciser Standard
Incorrect Wiring Protection Standard
Internal Fault Protection Standard
Common External Fault Capability Standard
Governor Failure Protection Standard
CIRCUIT BREAKER WIRE AND CONDUIT SIZE
*Single and three phase connections may vary , refer to the owner’s manual for specific connection information.
Page 5
INSTALLATION LAYOUT QT070
Page 6
®
AVAILABLE ACCESSORIES
Model # Product Description
If the temperature regularly falls below 32° F, install a cold weather kit to maintain
5632 Cold Weather Kit
optimal battery temperature. Kit consists of battery warmer with thermostat built into
the wrap.
QT070
5620 Extreme Cold Weather Kit
5651 Base Plug Kit Add base plugs to the base of the generator to keep out debris.
5703 Paint Kit Bisque Kit
5660 Scheduled Maintenance Kit
5928 Nexus Wireless Remote
5951
5937
Advanced Nexus Wireless
Remote
DLM Load Control Module
(50 Amps)
Recommended where the temperature regularly falls below 32° F for extended periods
of time. For liquid cooled units only.
The Liquid-Cooled Scheduled Maintenance Kits offer all the hardware necessary to
perform a complete maintenance on Generac liquid cooled generators.
Completely wireless and battery powered, Generac's Nexus wireless remote monitor
provides you with instant status information without ever leaving the house.
Remotely control generator functions with the advanced model's LCD display. In
addition to remote testing of the generator, set the excercise cycle and maintenance
interval reminders.
DLM Modules are used in conjunction with the Nexus Smart Switch to increase
its load management capabilities. It gives the Nexus Smart Switch additional load
management flexibility not found in any other transfer switch.
Generac Power Systems, Inc. • S45 W29290 HWY. 59, Waukesha, WI 53189 • generac.com
©2012 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0188670SBY-G / Printed in U.S.A. 06/28/12
