Generac 1676-2, 1676-0 Owner’s Manual

/

Pressure Washer Owner's Manual

Questions? Help is just a moment away!

Call: Generac Pressure Washer Helpline - 1-800-270-1408 M-F 8-5 CT

Web: www.generac-portables.com or www.briggsandstratton.com

Model No. 1676-0,2 (2700 PSIPressureWasher) Manual No. 190193GS Revision6 (12/03/2002)

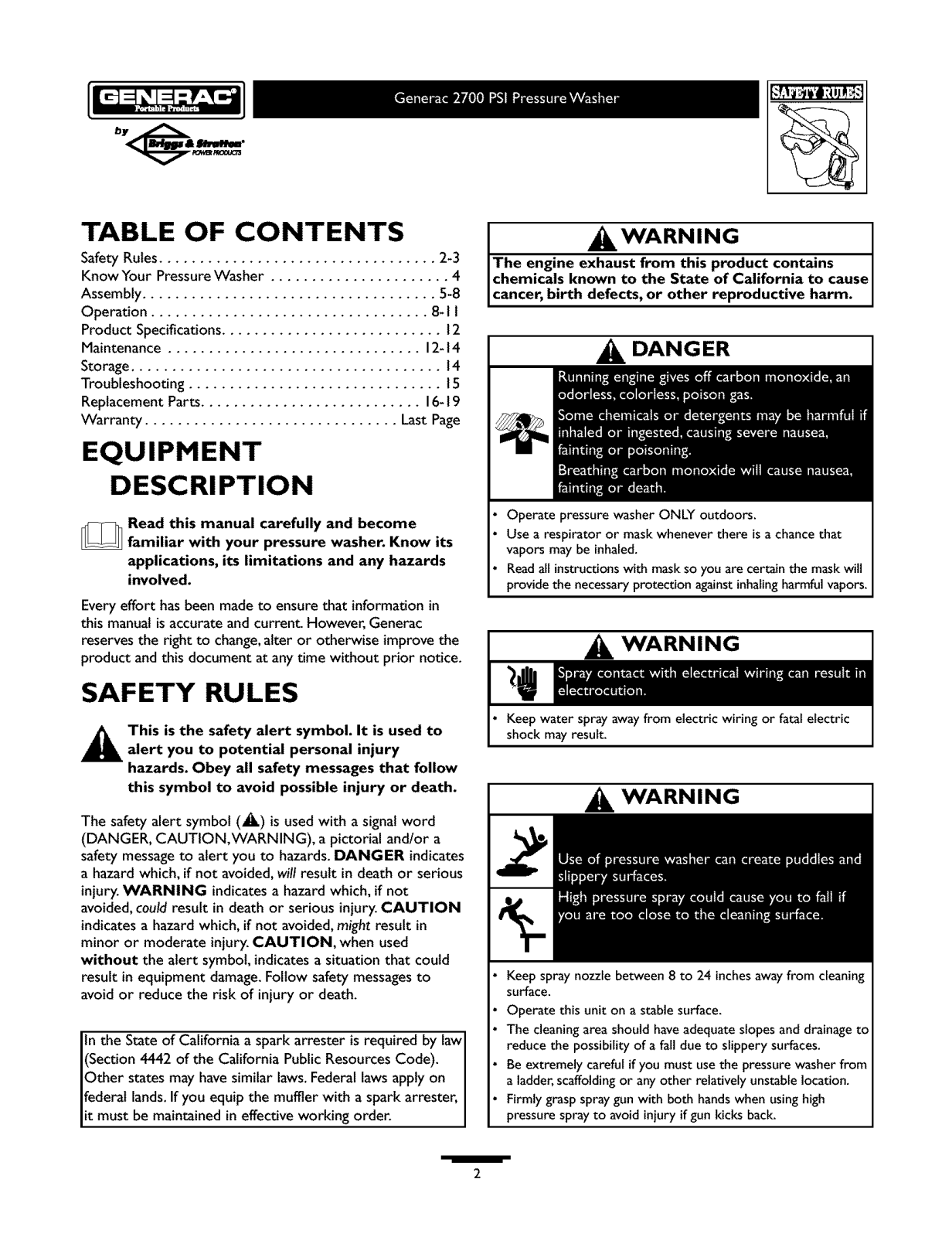

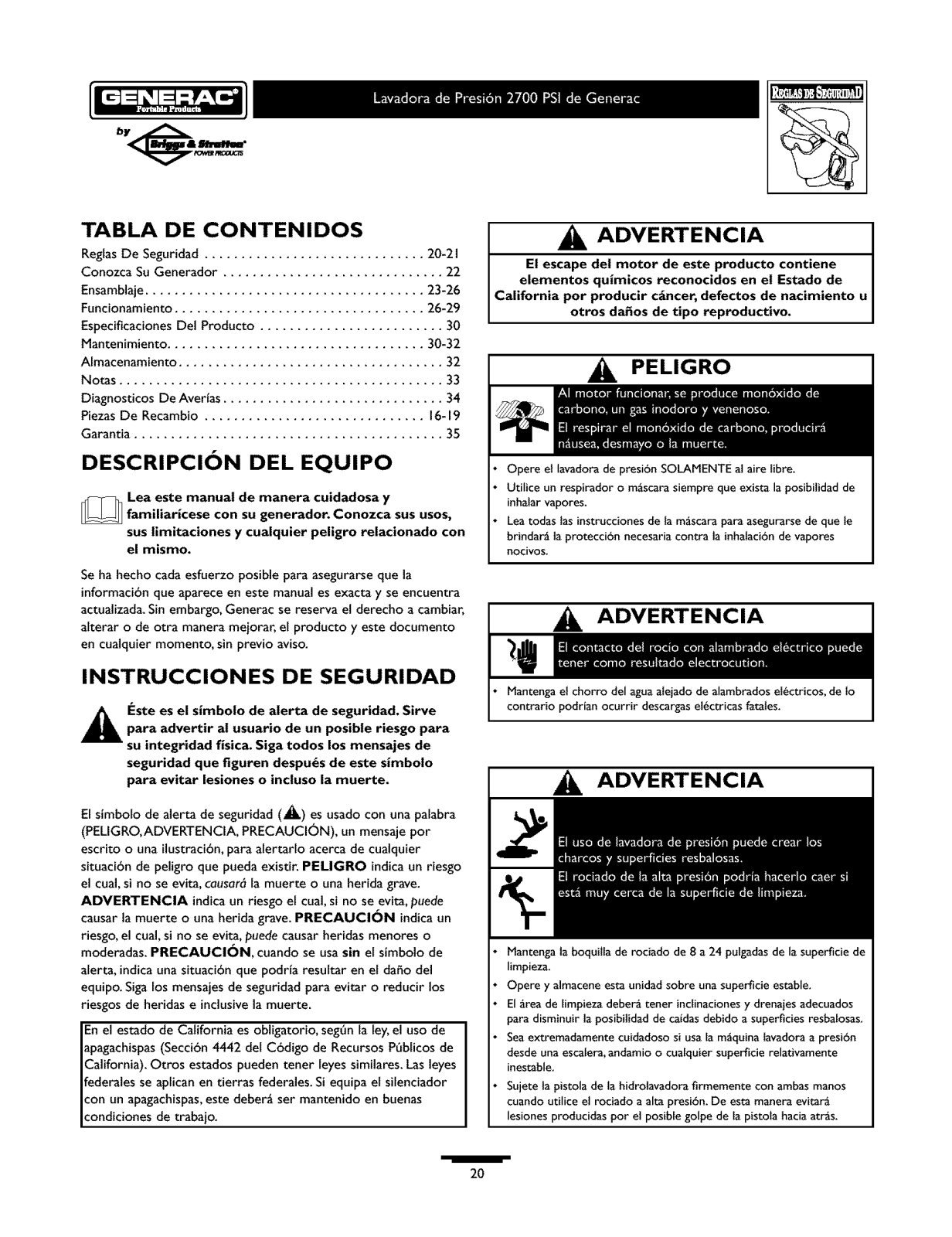

TABLE OF CONTENTS

SafetyRules.................................. 2-3

Know Your PressureWasher ...................... 4

Assembly.................................... 5-8

Operation .................................. 8-I1

Product Specifications........................... 12

Maintenance ............................... 12-14

Storage...................................... 14

Troubleshooting ............................... 15

Replacement Parts........................... 16-19

Warranty ............................... Last Page

EQUIPMENT

DESCRIPTION

_Read this manual carefully and become

familiar with your pressure washer. Know its
applications, its limitations and any hazards

involved.

Everyeffort hasbeen madeto ensure that informationin

this manualis accurateand current However, Generac

reservesthe right to change,alter or otherwise improve the

product andthis document at anytime without prior notice.

WARNING I

The engine exhaust from this product contains I
chemicals known to the State of California to cause

cancer, b rth defects, or other reproduct ve harm.

DANGER

Operate pressure washer ONLY outdoors.
Use a respirator or mask whenever there is a chance that

vapors may be inhaled.
Reada[[instructionswith mask so you are certain the maskwill

provide the necessaryprotection againstinhalingharmful vapors.

WARNING

SAFETY RULES

A his is the safety alert symbol. It is used to

alert you to potential personal injury
hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.

The safetyalert symbol (_.) is usedwith a signal word
(DANGER, CAUTION,WARNING), a pictorial and/or a

safety messageto alert you to hazards.DANGER indicates
a hazardwhich, ifnot avoided,will result in death or serious

injury. WARNING indicatesa hazard which, if not
avoided,couldresult in death or serious injury.CAUTION
indicates a hazardwhich, ifnot avoided,might result in
minor or moderate injury.CAUTION, when used
without the alert symbol, indicates a situation that could

result in equipment damage.Follow safety messagesto

avoid or reduce the risk of injury or death.

In the Stateof California a spark arrester is required by lawI
(Section 4442 of the California Public ResourcesCode). I

Other states mayhavesimilar laws.Federallawsapply on
federal lands.If you equip the muffler with a spark arrester,

it must be maintained ineffective working order.

Keepwater sprayawayfromelectricwiringor fatalelectric

shockmayresult.

WARNING

Keep spray nozzle between 8 to 24 inches away from cleaning

surface.
Operate this unit on a stable surface.
The cleaning area should have adequate slopes and drainage to

reduce the possibilit), of a fall due to slipper), surfaces.
Be extremely careful if you must use the pressure washer from

a ladder, scaffolding or an), other relative[), unstable location.
Firmly grasp spray gun with both hands when using high

pressure spray to avoid iniury if gun kicks back.

/

2

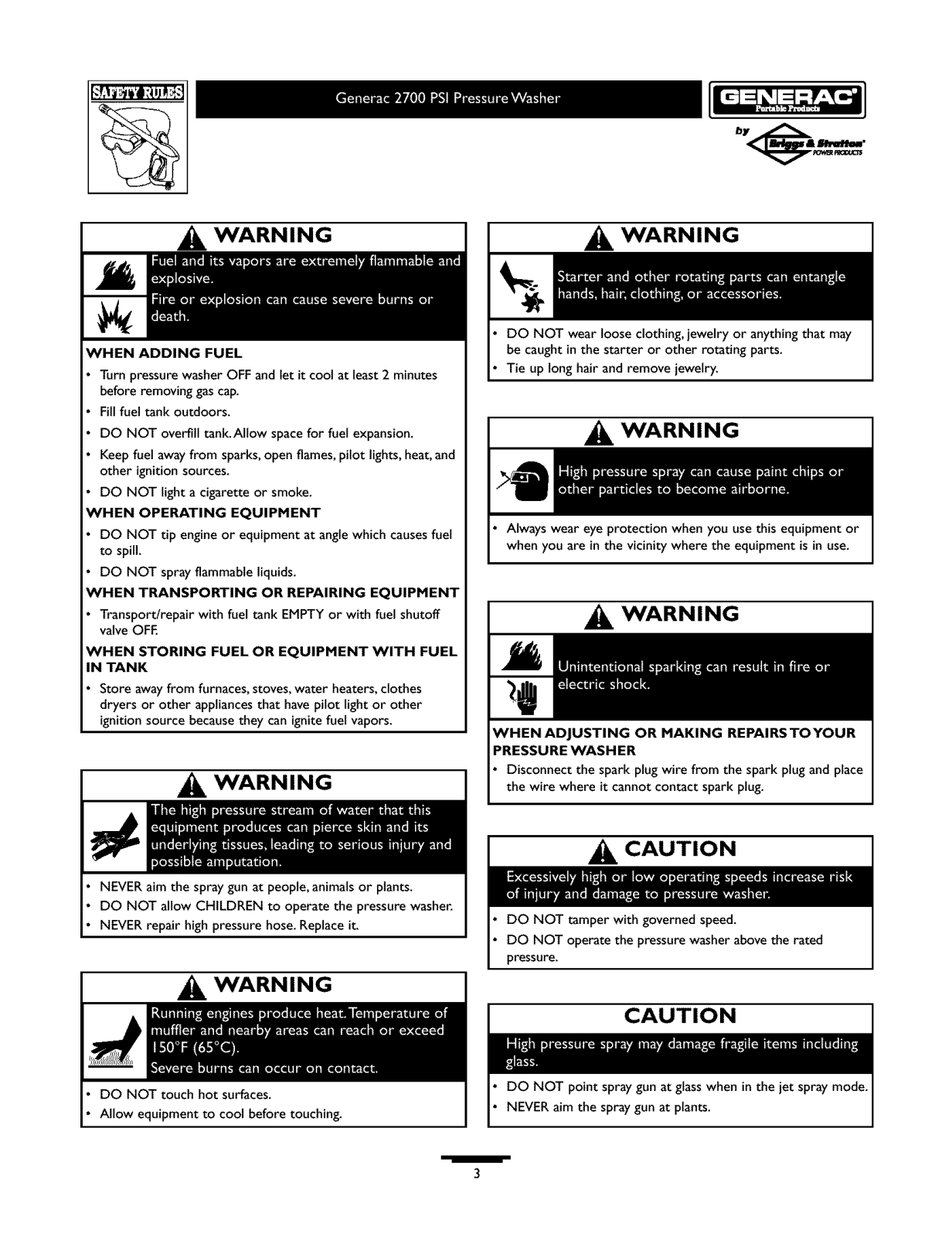

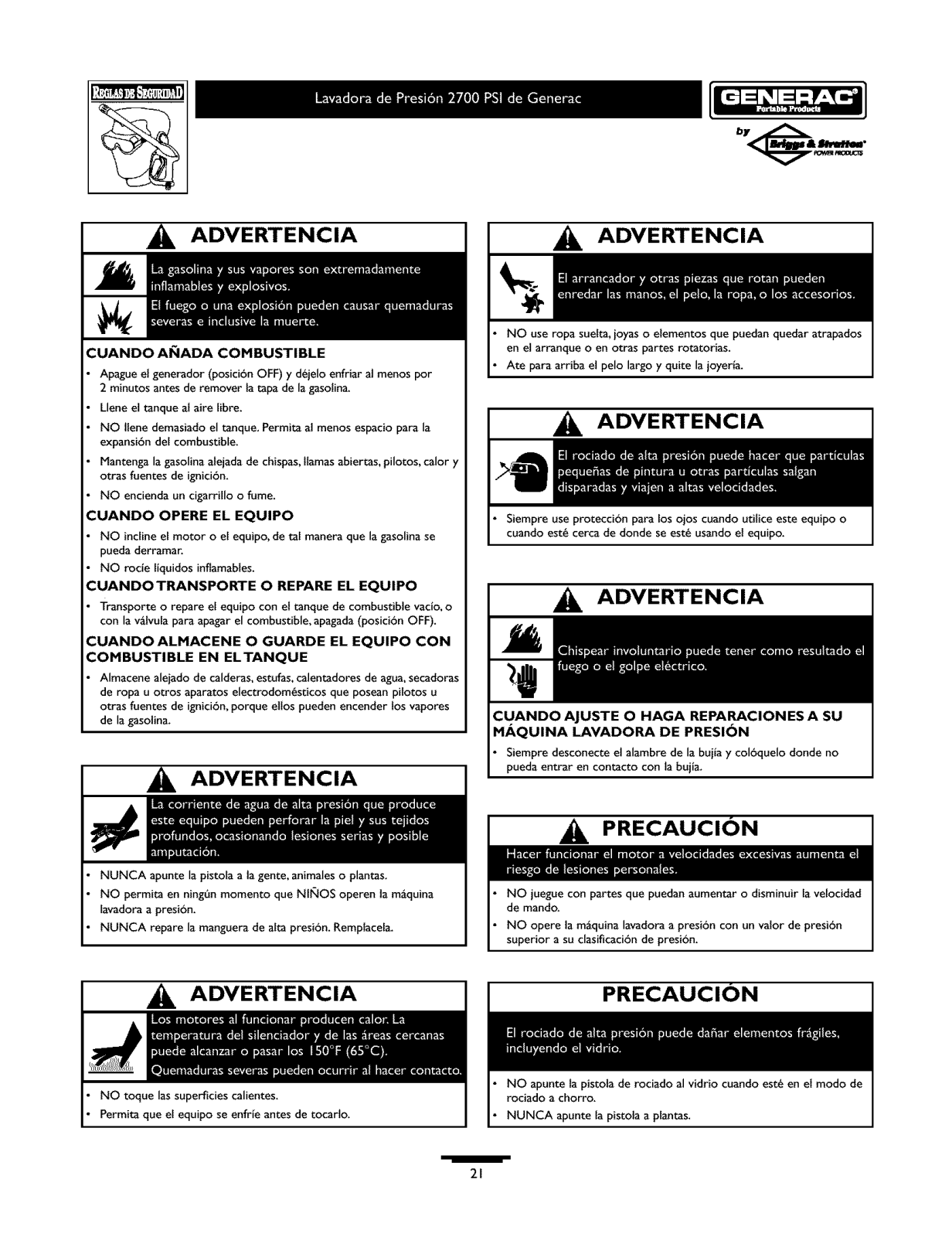

WARNING

WHEN ADDING FUEL

Turn pressure washer OFFand let it cool at least 2 minutes

before removing gascap.
Fill fuel tank outdoors.

DO NOT overfill tank.Allow space for fuel expansion.
Keepfuel away from sparks,open flames, pilot lights, heat, and

other ignitionsources.

DO NOT light a cigarette or smoke.

NHEN OPERATING EQUIPMENT

DO NOT tip engine or equipment at anglewhich causesfuel

to spill.

DO NOT spray flammableliquids.

tHEN TRANSPORTING OR REPAIRING EQUIPMENT

Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFE

NHEN STORING FUEL OR EQUIPMENT WITH FUEL

IN TANK

Store awayfrom furnaces,stoves,water heaters, clothes
dryers or other appliancesthat havepilot light or other

ignitionsource becausethey can ignitefuel vapors.

WARNING

DO NOT wear loose clothing, iewelry or anything that may
be caught in the starter or other rotating parts.

Tie up long hair and remove jewelry.

WARNING

Always wear eyeprotection when you usethis equipment or
when you are in the vicinity where the equipment is in use.

WARNING

WARNING

NEVERaim the spray gun at people, animals or plants.
DO NOT allow CHILDREN to operate the pressure washer.
NEVERrepair high pressure hose.Replace it.

WARNING

DO NOT touch hot surfaces.

Allow equipment to cool before touching.

Disconnect the spark plug wire from the spark plugand place
the wire where it cannot contact spark plug.

CAUTION

DO NOT tamper with governedspeed.
DO NOT operate the pressure washerabove the rated

pressure.

CAUTION

DO NOT point spraygun at glasswhen in the jet spray mode.
NEVER aim the spray gun at plants.

/

3

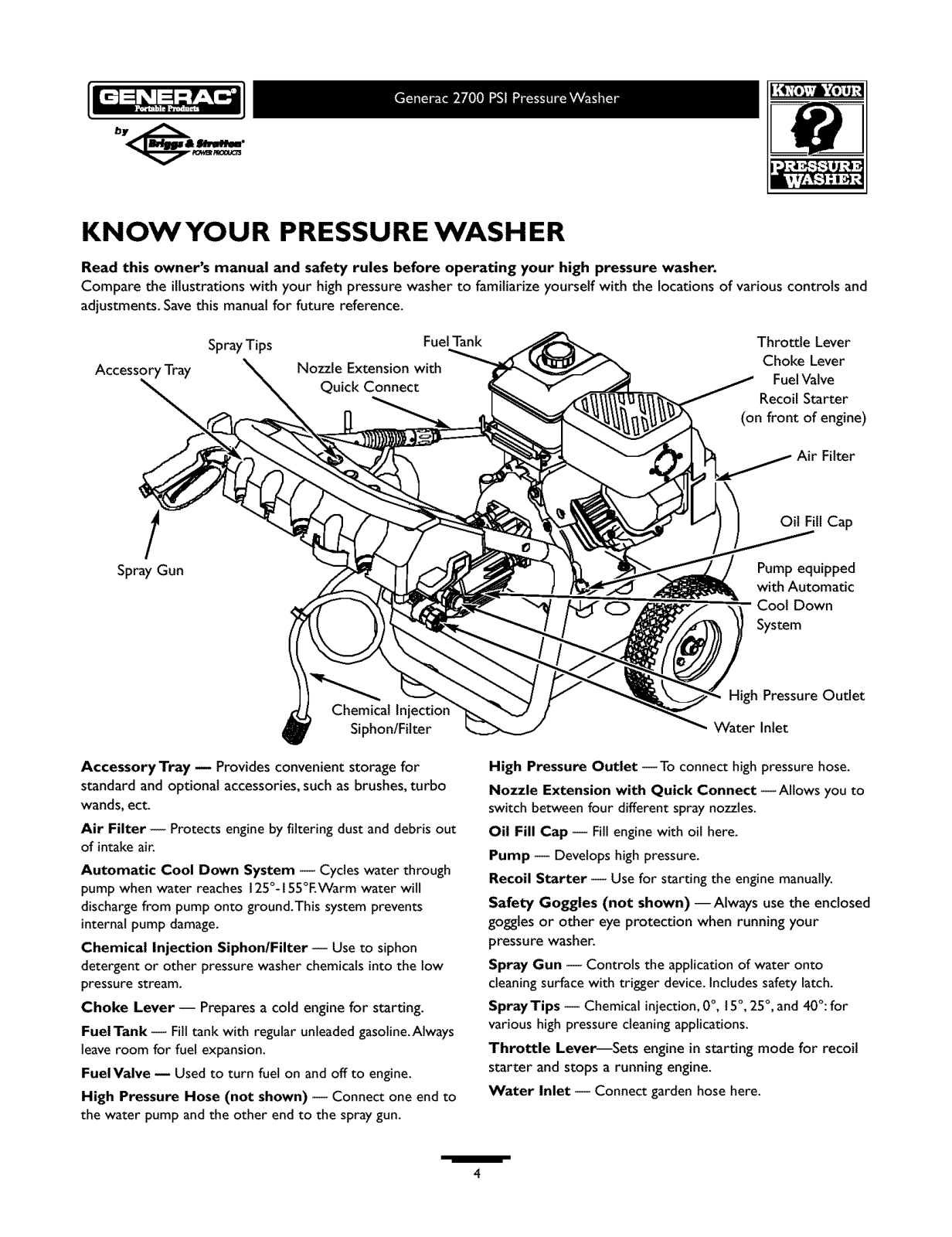

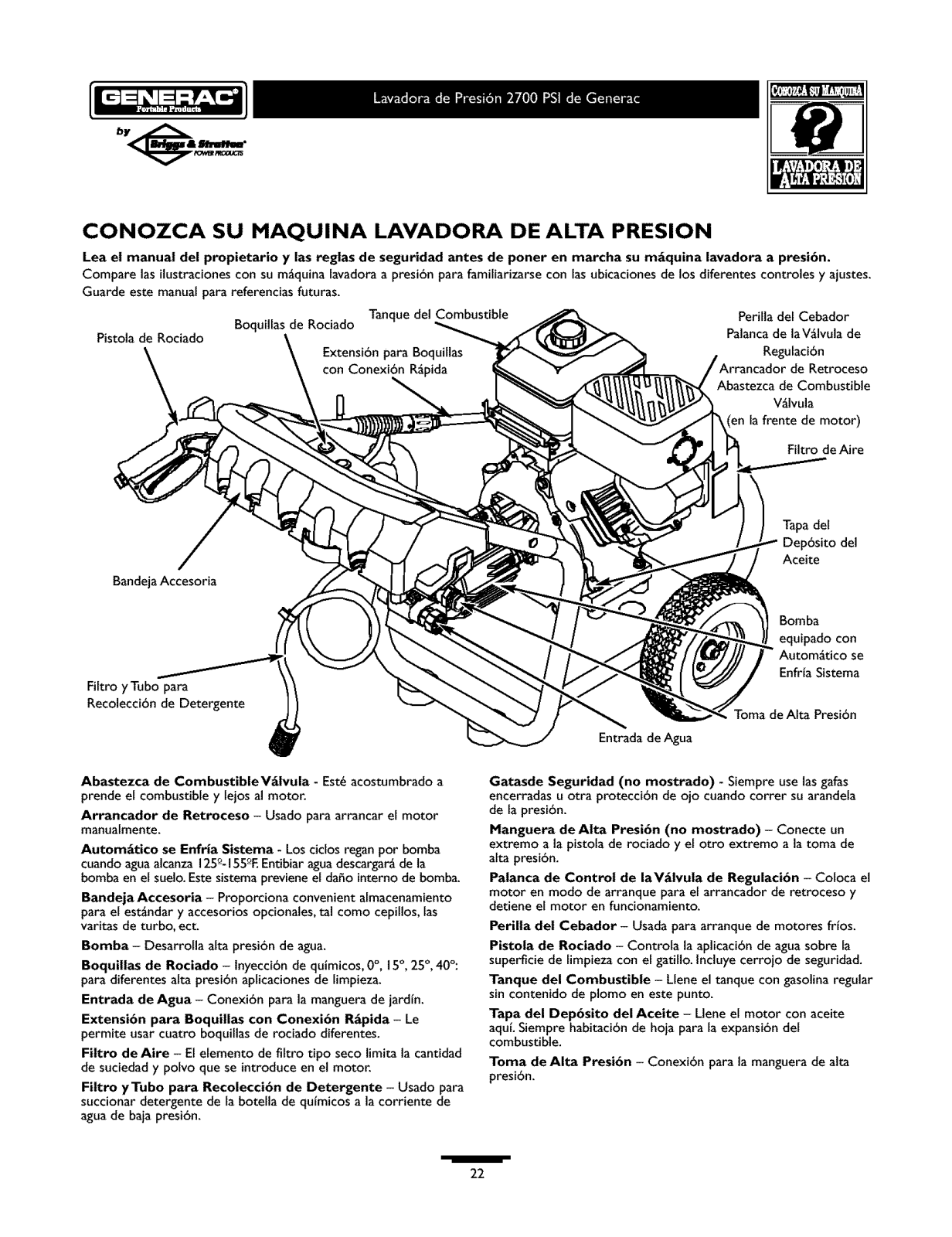

KNOWYOUR PRESSURE WASHER

Read this owner's manual and safety rules before operating your high pressure washer.

Compare the illustrations with your high pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.

Fuel Tank

Accessory Tray

SprayTips

Nozzle Extension with

Quick Connect

Spray Gun

Chemical Injectiol

Siphon/Fitter

Accessory Tray -- Provides convenient storage for
standard and optional accessories, such as brushes, turbo

wands, ect.
Air Filter -- Protects engine by fi]tering dust and debris out

of intake air.
Automatic Cool Down System -- Cycles water through

pump when water reaches 125°- 155°F.Warm water will
discharge from pump onto ground.This system prevents

internal pump damage.
Chemical Injection Siphon/Filter -- Use to siphon

detergent or other pressure washer chemicals into the low
pressure stream.

Choke Lever -- Prepares a cold engine for starting.

FuelTank -- Fill tank with regular unleaded gasoline.Always

leave room for fuel expansion.

FuelValve -- Used to turn fuel on and off to engine.
High Pressure Hose (not shown) -- Connect one end to

the water pump and the other end to the spray gun.

Throttle Lever

Choke Lever

FuelValve

Recoil Starter

(on front of engine)

Air Filter

Pumpequipped

with Automatic
Cool Down

System

High Pressure Outlet

- Water Inlet

High Pressure Outlet --To connect high pressure hose.
Nozzle Extension with Quick Connect --Allows you to

switch between four different spray nozzles.
Oil Fill Cap -- Fill engine with oil here.

Pump -- Develops high pressure.
Recoil Starter -- Use for starting the engine manually.

Safety Goggles (not shown) --Always use the enclosed

goggles or other eye protection when running your

pressure washer.
Spray Gun -- Controls the application of wEer onto

cleaning surface with trigger device. Includes safety latch.
Spray Tips -- Chemical injection, 0 °, {5°, 25 °, and 40°: for

various high pressure cleaning applications.
Throttle Lever_Sets engine {n starting mode for recoil

starter and stops a running engine.

Water Inlet -- Connect garden hose here.

/

4

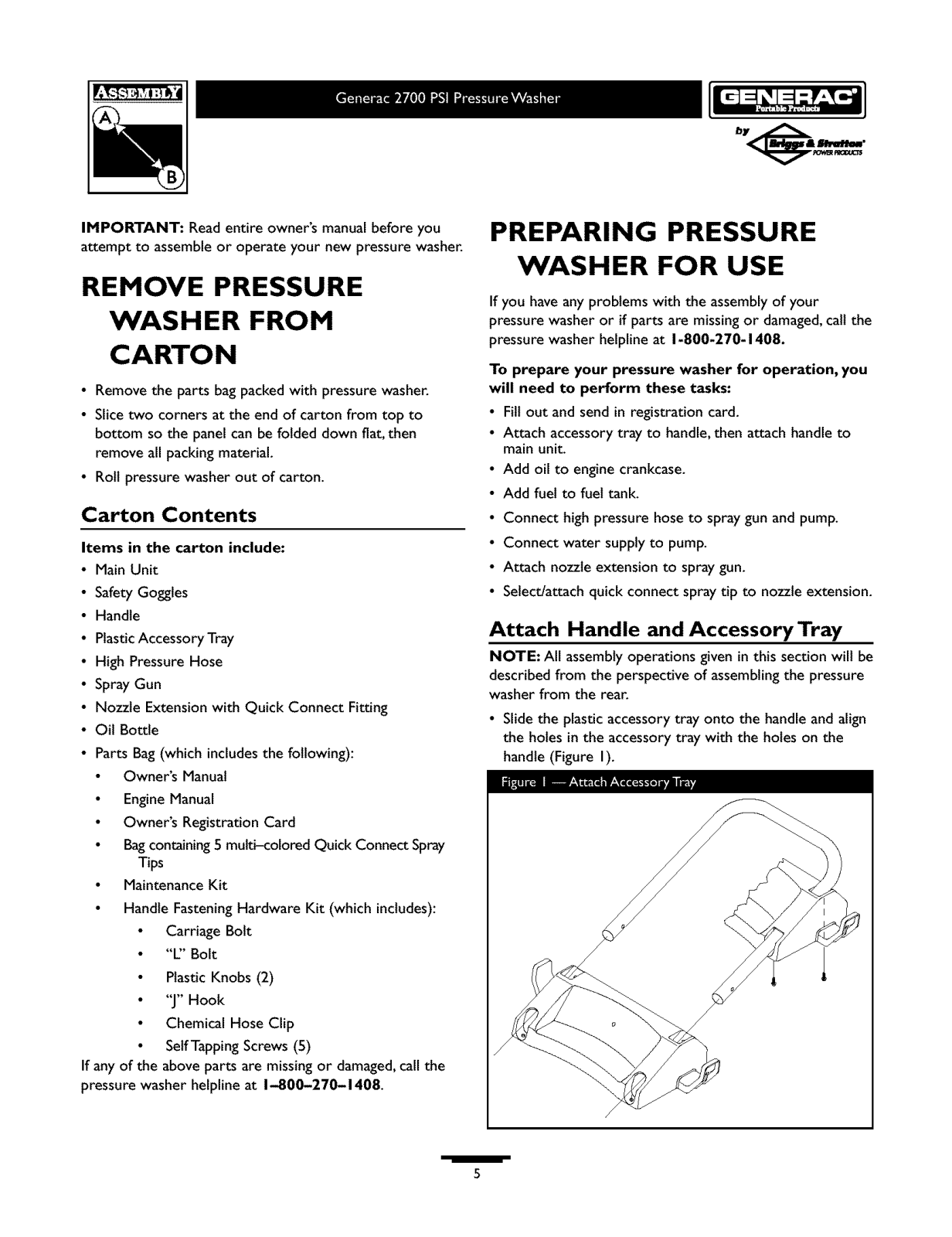

IMPORTANT: Readentire owner's manual before you

attempt to assembleor operate your new pressure washer.

REMOVE PRESSURE

WASHER FROM

CARTON

• Removethe parts bagpackedwith pressure washer.

• Slicetwo corners at the end of carton from top to
bottom so the panel can be folded down fiat,then

remove all packing material.

• Roll pressure washer out of carton.

Carton Contents

Items in the carton include:

• Main Unit
SafetyGoggles

Handle
PlasticAccessory Tray

High Pressure Hose

SprayGun

Nozzle Extension with Quick Connect Fitting

Oit Bottle

Parts Bag(which includesthe following):

Owner's Manual

EngineManual

Owner's Registration Card

Bagcontaining5 mult_olored Quick Connect Spray

Tips

MaintenanceKit
Handle Fastening Hardware Kit (which includes):

Carriage Bolt
"L" Bolt

PlasticKnobs (2)

"J" Hook
Chemical Hose Clip

SelfTapping Screws(5)

If any of the above parts are missingor damaged,call the

pressure washer helpline at 1-800-270-1408.

PREPARING PRESSURE

WASHER FOR USE

If you haveanyproblems with the assemblyof your
pressure washer or if parts are missing or damaged,calt the
pressure washer helpline at 1-800-270-1408.

To prepare your pressure washer for operation, you
will need to perform these tasks:

• Fitlout and sendin registration card.

• Attach accessorytray to handle,then attach handle to
main unit.

Add oil to enginecrankcase.
Add fuel to fuel tank.

Connect high pressure hoseto spraygun and pump.
Connect water supply to pump.

Attach nozzle extension to spray gun.
Select/attach quick connect spray tip to nozzle extension.

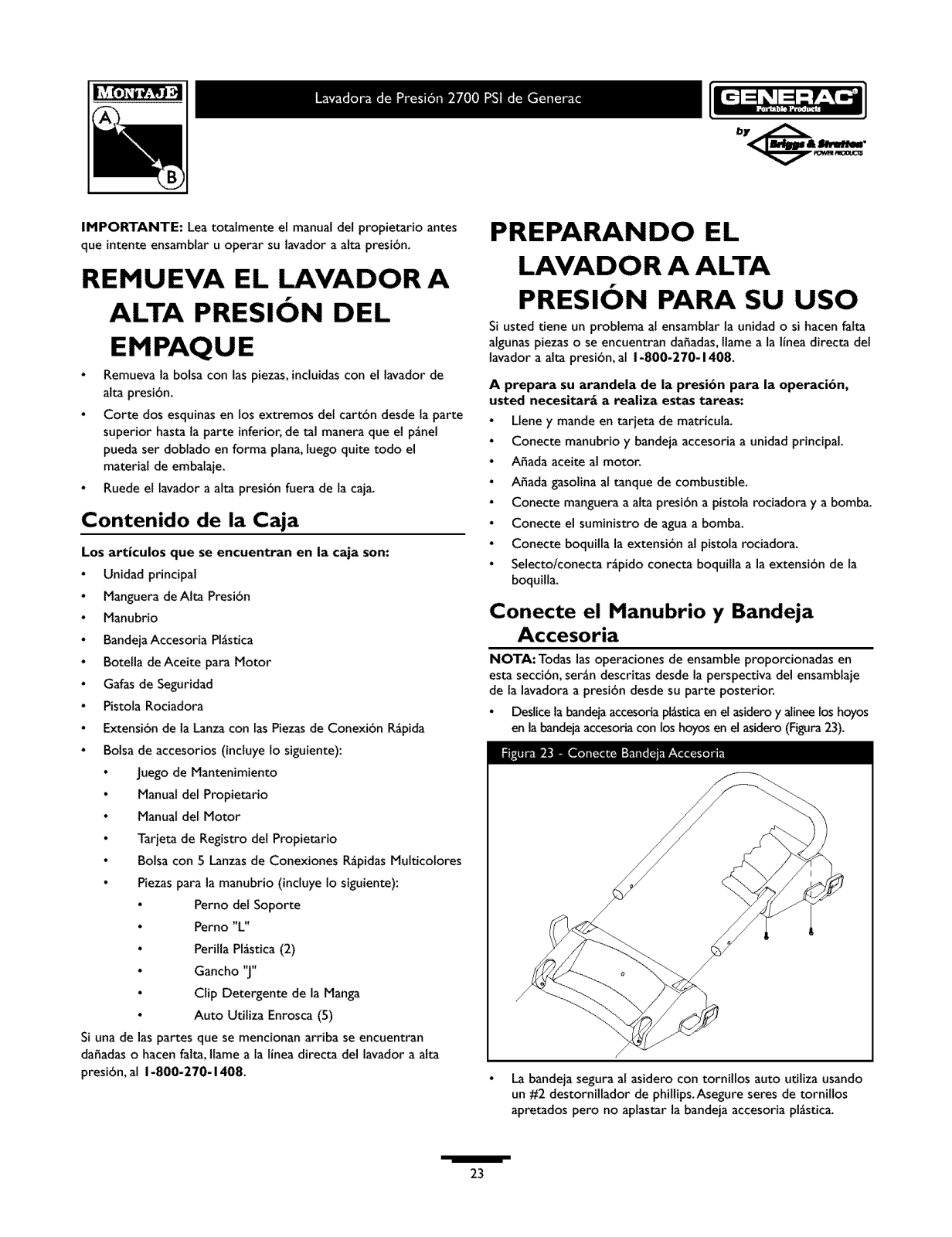

Attach Handle and Accessory Tray

NOTE: All assemblyoperations given in this section will be
described from the perspective of assemblingthe pressure

washer from the rear.

• Slidethe plastic accessory tray onto the handle and align
the holes in the accessory tray with the holes on the
handle (Figure I).

/

/

5

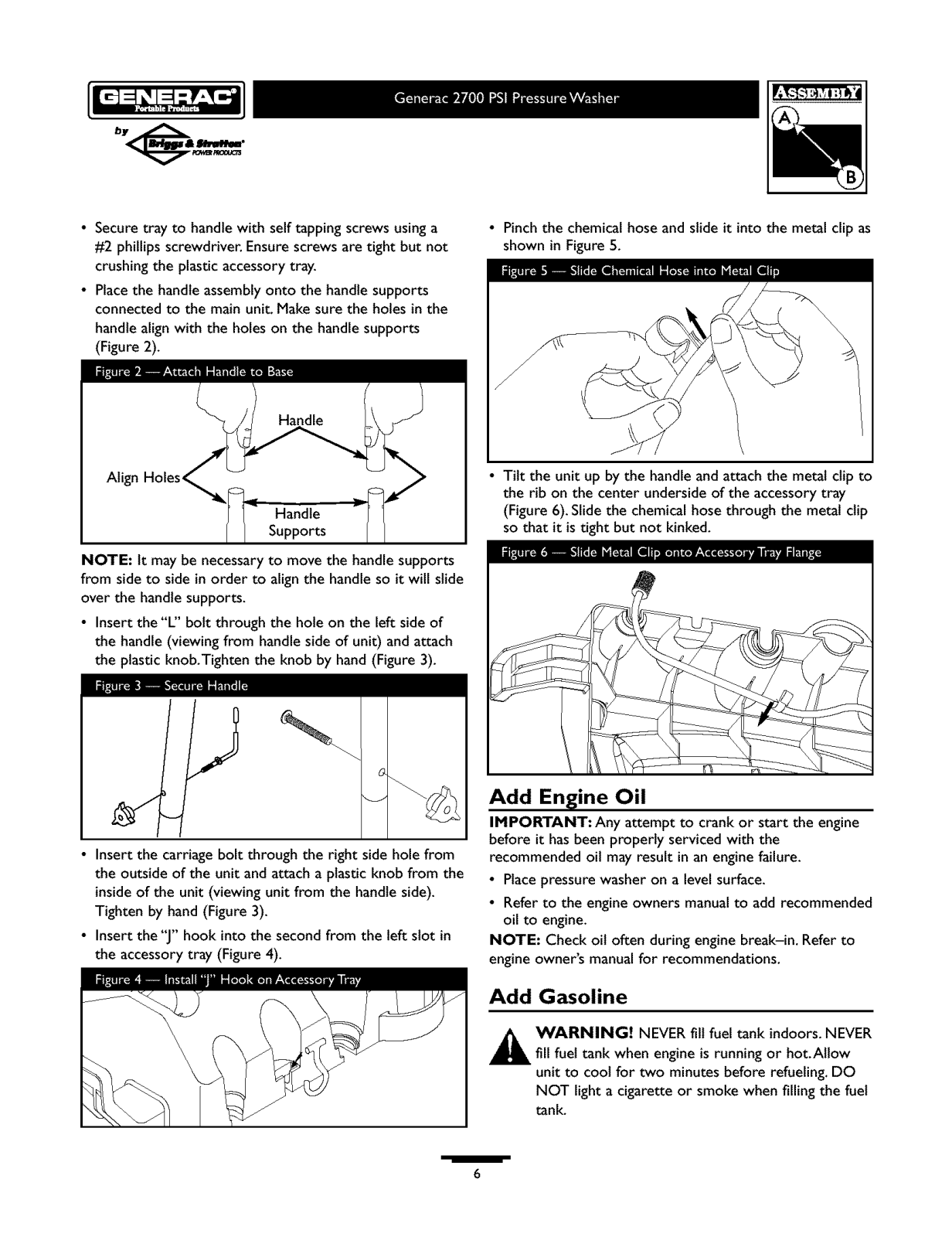

• Securetraytohandlewith self tapping screws usinga

#2 phiillps screwdriver. Ensurescrews are tight but not
crushing the plastic accessory tray.

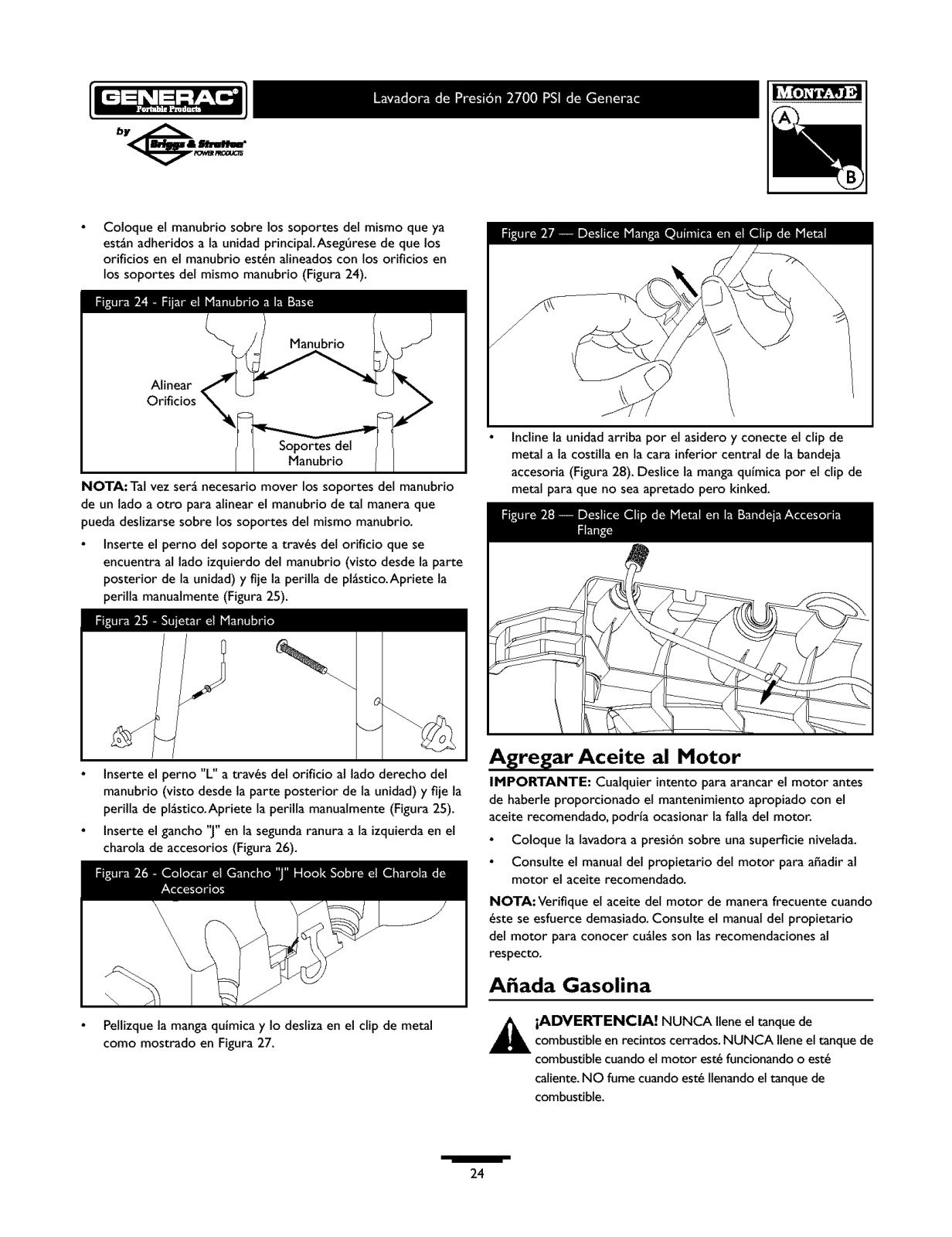

• Placethe handleassembly onto the handle supports
connected to the main unit. Make sure the holes in the

handle alignwith the holes on the handle supports
(Figure 2).

NOTE: It may be necessaryto move the handle supports

from sideto side in order to align the handle so it will slide
over the handle supports.

• Insert the"L" bolt through the hole on the left side of
the handle (viewing from handleside of unit) and attach
the plastic knob.Tighten the knob by hand(Figure 3).

• Pinchthe chemical hose andslide it into the metal cllp as
shown in Figure5.

• Tilt the unit up by the handleand attach the metal clip to
the rib on the center underside of the accessory tray
(Figure 6). Slide the chemical hose through the metal clip
so that it is tight but not kinked.

• Insert the carriage bolt through the right side hole from
the outside of the unit and attach a plastic knob from the

inside of the unit (viewing unit from the handle side).
Tighten by hand (Figure 3).

• Insert the"J" hook into the second from the left slot in
the accessory tray (Figure 4).

Add Engine Oil

IMPORTANT: Any attempt to crankor start the engine

before it hasbeen properly serviced with the
recommended oil mayresult in an engine failure.

• Placepressure washer on a levelsurface.

• Refer to the engineowners manualto add recommended
oil to engine.

NOTE: Check oil often during enginebreak-in. Refer to
engine owner's manualfor recommendations.

Add Gasoline

_ ARNING! NEVERfill fuel tank indoors.NEVER

fillfuel tank when engine is running or hot.Allow

unit to coot for two minutes before refueling. DO
NOT lighta cigarette or smoke when filling the fuel

tank.

/

6

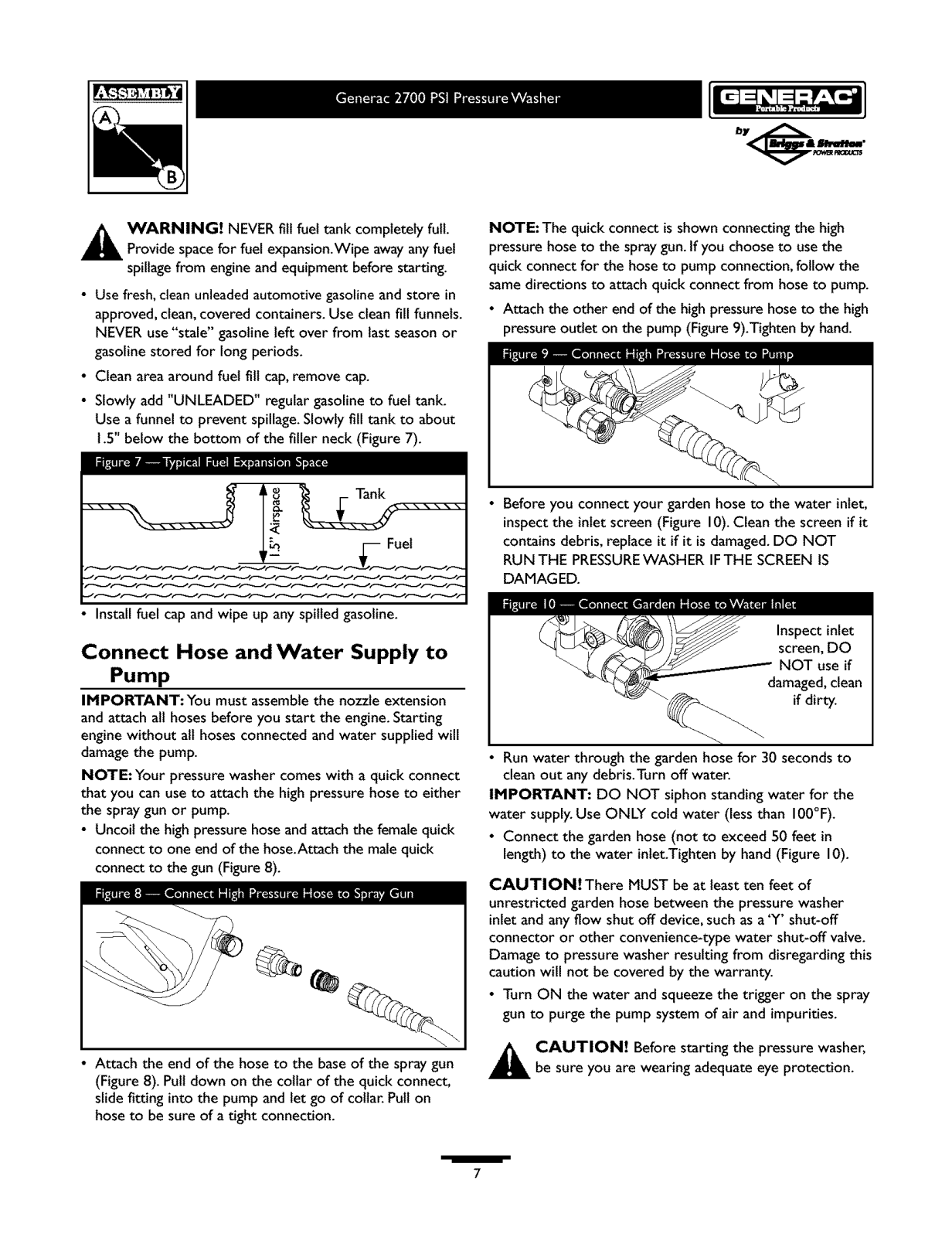

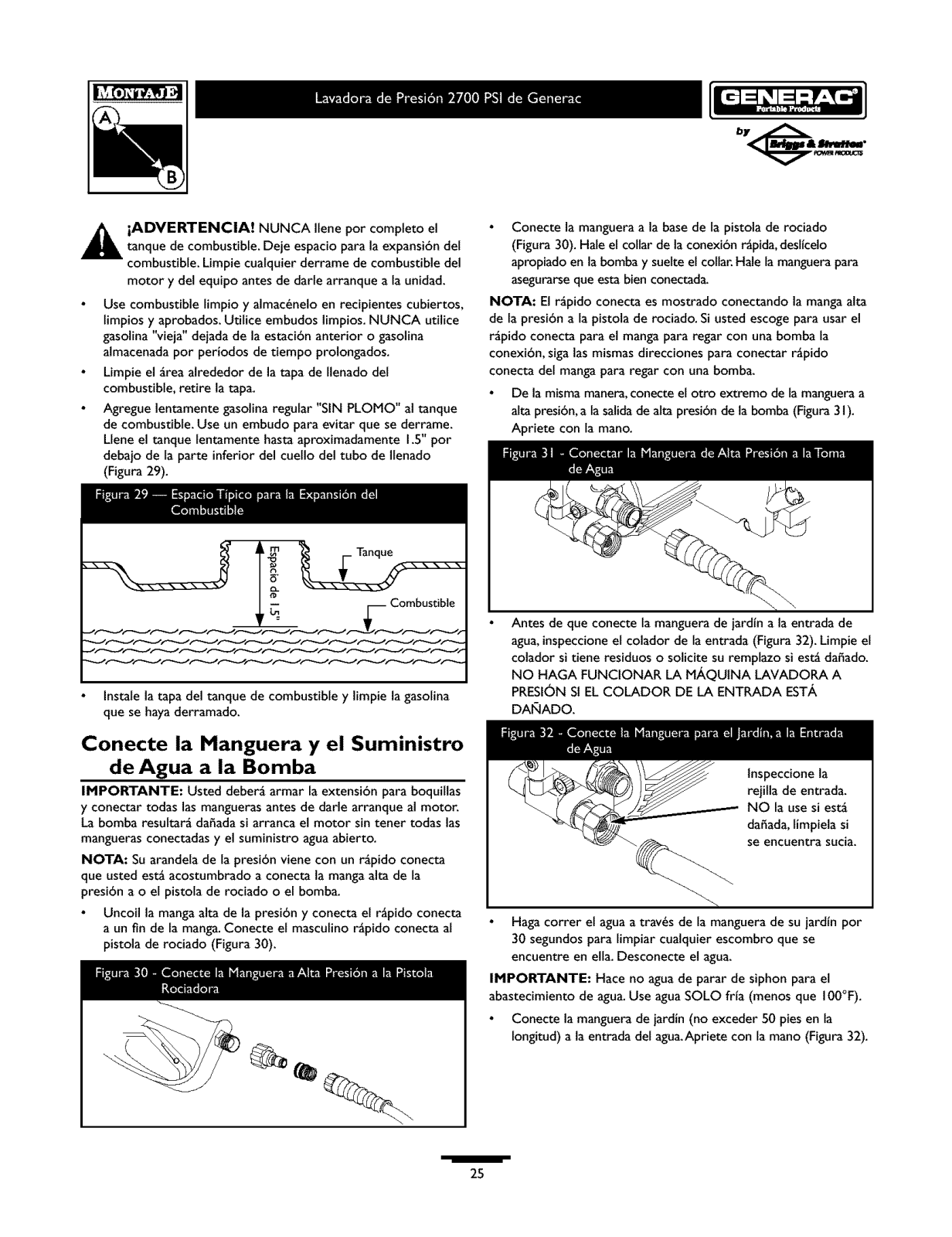

_ll ARNING! NEVERfill fueltank completely full.

Provide spacefor fuel expansion.Wipe awayany fuel
spillagefrom engine and equipment before starting.

• Usefresh,cleanunleadedautomotive gasolineand store in
approved, clean,covered containers. Use clean fill funnels.

NEVERuse"stale" gasoline left over from lastseasonor

gasolinestored for long periods.

• Clean area around fuel fill cap,remove cap.

• Slowly add"UNLEADED" regular gasoline to fuel tank.
Use a funnel to prevent spillage.Slowly fill tank to about

1.5"below the bottom of the filler neck (Figure7).

Fuel

Install _el cap and wipe up any spilled gasoline.

Connect Hose and Water Supply to

Pump

IMPORTANT: You must assemblethe nozzle extension

and attach all hosesbefore you start the engine.Starting
enginewithout all hoses connectedand water supplied will

damagethe pump.

NOTE: Your pressure washer comes with a quick connect
that you can useto attach the high pressure hose to either
the spraygun or pump.

• Uncoil the high pressure hose and attachthe femalequick

connect to one end of the hose.Attach the malequick
connect to the gun (Figure 8).

NOTE: The quick connect isshown connecting the high
pressure hoseto the spraygun.If you choose to usethe
quick connect for the hose to pump connection, follow the
samedirections to attach quick connect from hoseto pump.

• Attach the other end of the highpressure hoseto the high
pressureoutlet on the pump (Figure9).Tighten by hand.

• Before you connectyour garden hose to the water inlet,
inspectthe inlet screen (Figure 10).Clean the screen if it

contains debris, replace it if it isdamaged.DO NOT
RUN THE PRESSUREWASHER IFTHE SCREENIS

DAMAGED.

• Run water through the garden hosefor 30 secondsto
cleanout any debris.Turn off water.

IMPORTANT: DO NOT siphon standing water for the
water supply.Use ONLY cold water (lessthan 100°F).

• Connect the garden hose(not to exceed50 feet in
length) to the water inlet.Tighten by hand (Figure 10).

CAUTION! There MUST be at least ten feet of
unrestricted garden hose between the pressure washer

inletand any flow shut off device,such as a'Y' shut-off
connector or other convenience-type water shut-off valve.
Damageto pressure washer resulting from disregarding this
caution will not be covered by the warranty.

• Turn ON the water and squeeze the trigger on the spray

gun to purge the pump system of air and impurities.

• Attach the end of the hoseto the baseof the spray gun
(Figure 8). Pull down on the collar of the quick connect,
slide fitting intothe pump and let go of collar.Pullon
hose to be sure of a tight connection.

/

_ AUTION! Before starting the pressure washer,

be sure you are wearing adequateeye protection.

7

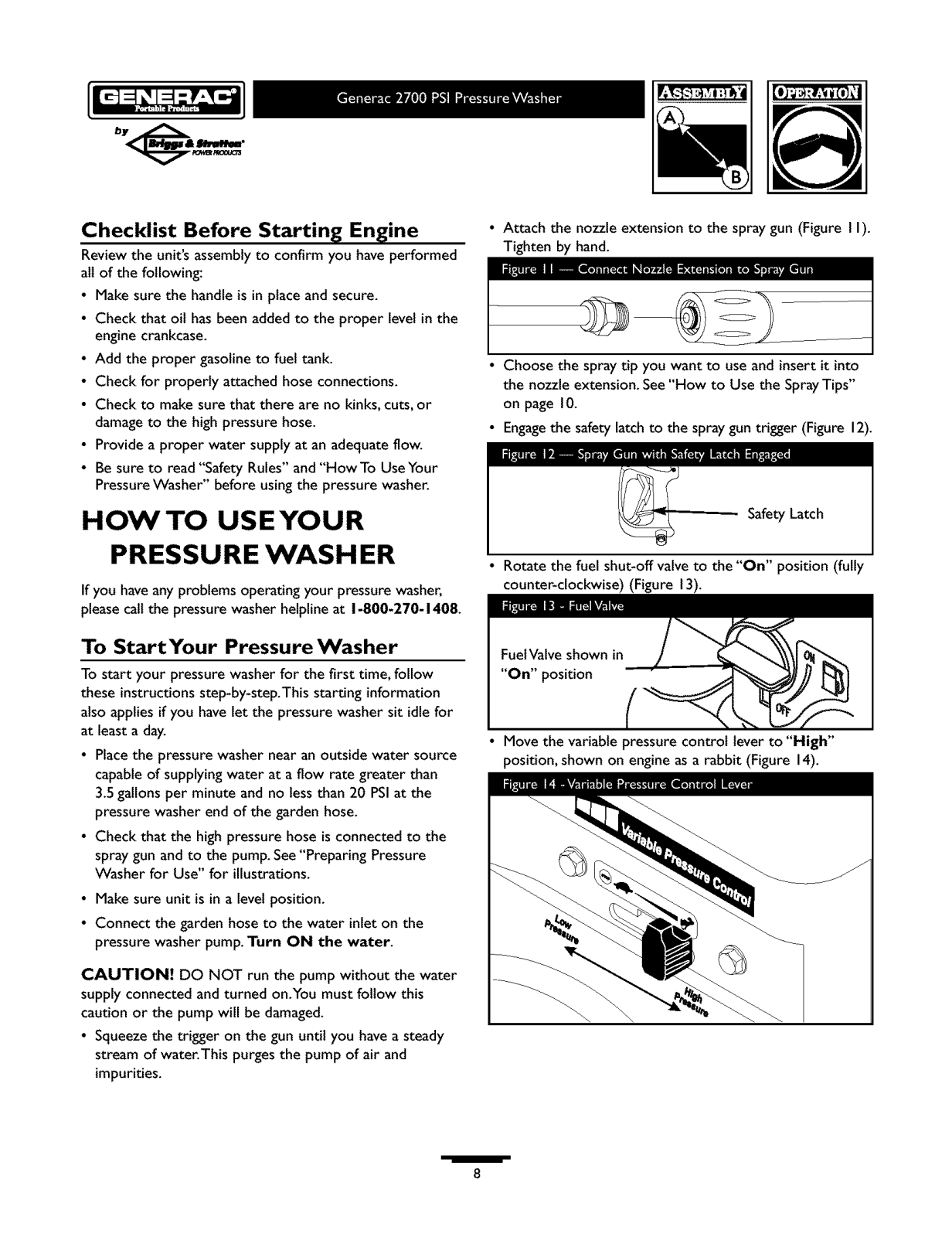

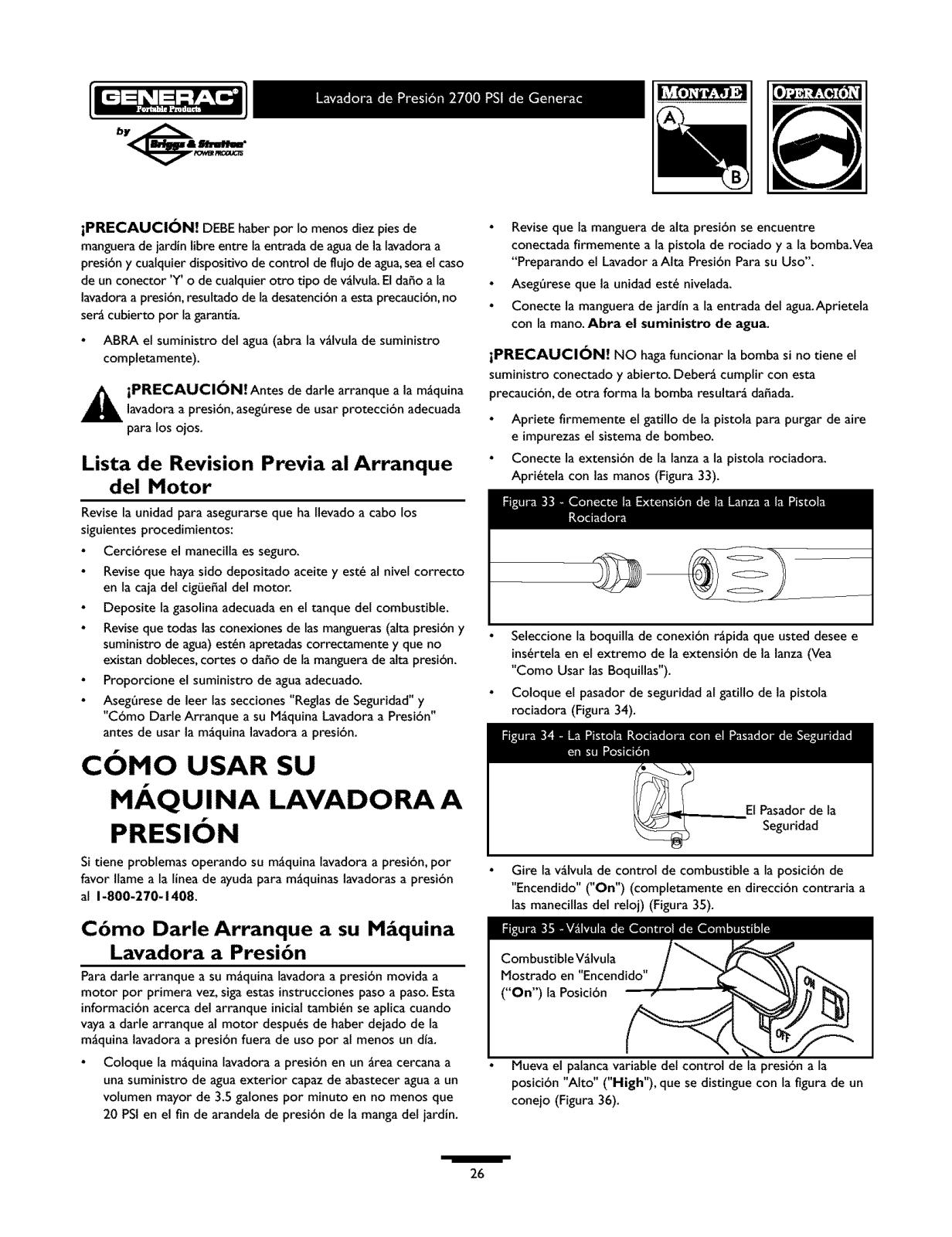

Checklist Before Starting Engine

Reviewthe unit's assemblyto confirm you have performed

all of the following:

• Makesure the handle is in place and secure.

• Check that oil has been added to the proper level inthe
engine crankcase.

• Add the proper gasoline to fuel tank.

• Check for properly attached hoseconnections.

• Check to make sure that there are no kinks, cuts, or
damageto the high pressure hose.

• Provide a proper water supply at an adequate flow.

• Besure to read "Safety Rules" and "HowTo UseYour

PressureWasher" before using the pressure washer.

• Attach the nozzle extension to the spraygun (Figure I I).
Tighten by hand.

Choose the spray tip you want to use and insert it into
the nozzle extension.See"How to Use the SprayTips"
on page 10.

• Engagethe safetylatch to the spraygun trigger (Figure 12).

HOW TO USEYOUR

PRESSURE WASH ER

If you haveanyproblems operating your pressurewasher,

pleasecall the pressurewasher helpline at 1-800-270-1408.

To StartYour Pressure Washer

To start your pressure washer for the first time, follow
these instructions step-by-step.Thls starting information
also applies if you have let the pressure washer sit idle for
at leasta day.

• Placethe pressure washer near an outside water source
capableof supplyingwater at a flow rate greater than

3.5gallons per minute and no lessthan 20 PSIat the
pressure washer end of the garden hose.

• Check that the high pressure hose is connected to the
spray gun and to the pump. See"Preparing Pressure

Washer for Use" for illustrations.

• Makesure unit isin a level position.

• Connect the garden hose to the water inleton the
pressure washer pump.Turn ON the water.

SafetyLatch

• Rotate the fuel shut-off valve to the "On" position (fully
counter-clockwise) (Figure 13).

• Move the variable pressure control lever to "High"
position, shown on engineas a rabbit (Figure 14).

CAUTION! DO NOT run the pump without the water
supply connected andturned on.You must follow this
caution or the pump will be damaged.

• Squeezethe trigger on the gun until you havea steady
stream of water.This purges the pump of air and

impurities.

/

\

fl

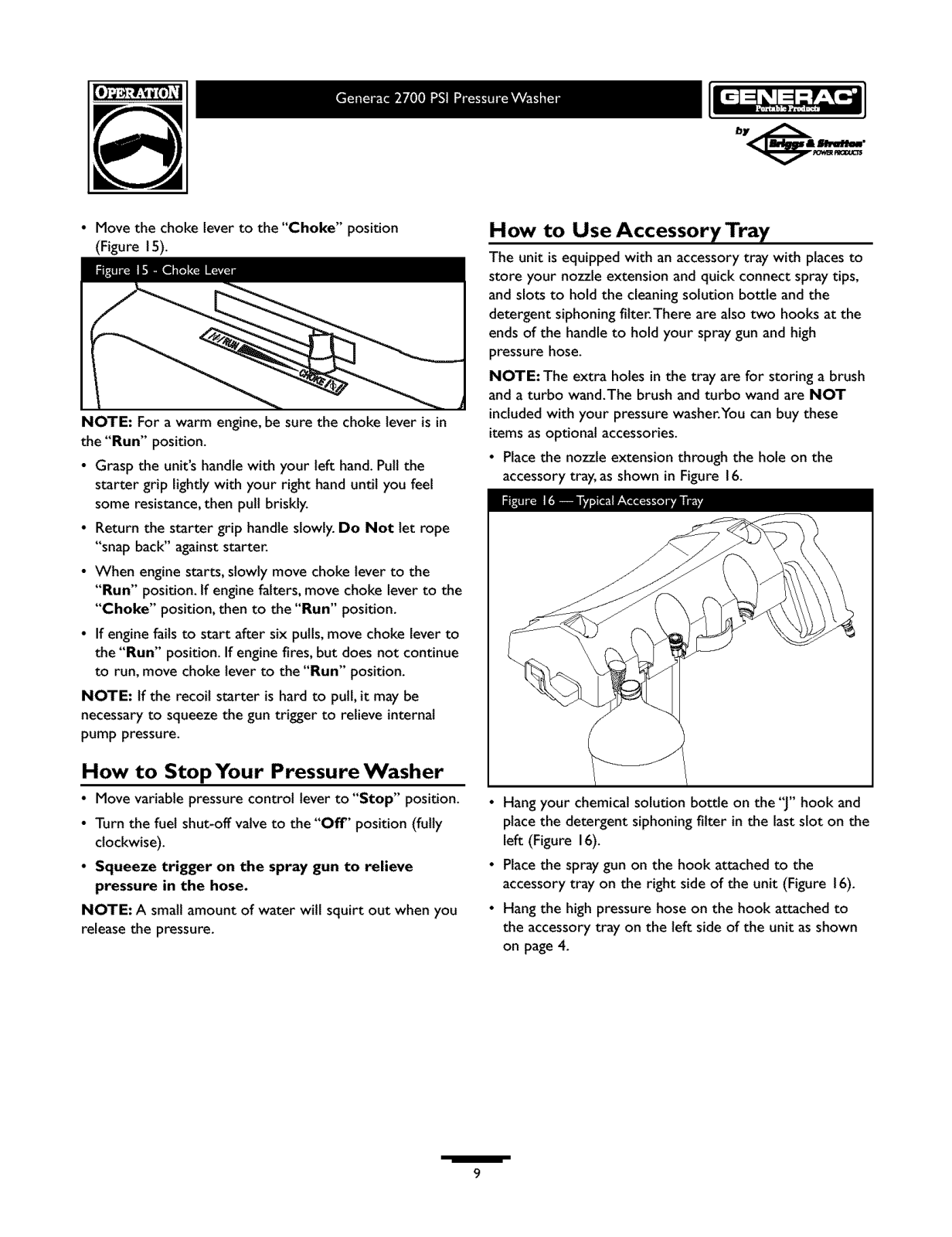

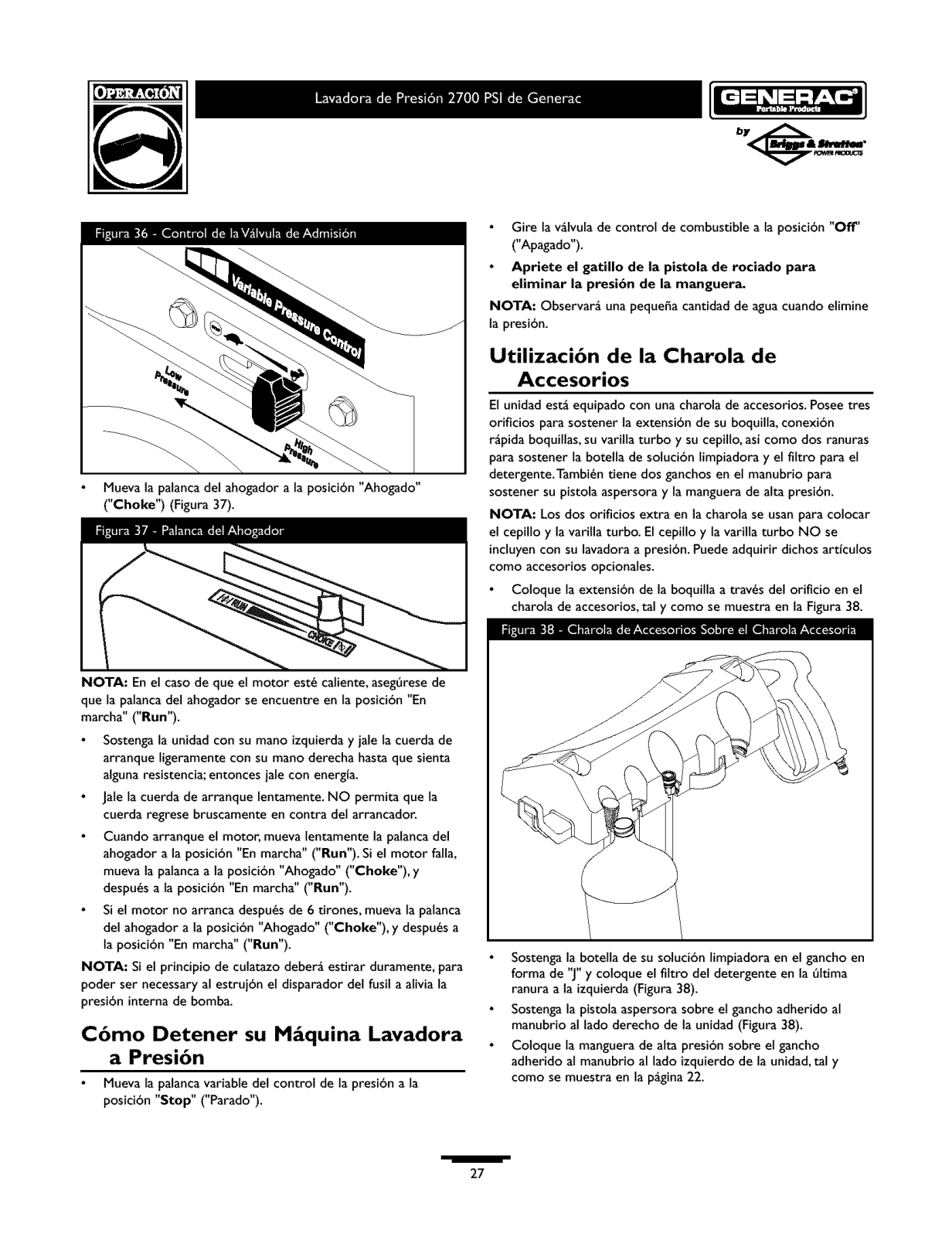

• Movethechokeleverto the "Choke" position

(Figure 15).

NOTE: For a warm engine,be sure the choke lever isin

the "Run" position.

• Grasp the unit'shandle with your left hand. Pull the
starter grip lightlywith your right hand until you feel

some resistance,then pull briskly.

• Return the starter grip handle slowly. Do Not let rope
"snap back" against starter.

• When engine starts, slowly move choke leverto the
"Run" position. If engine falters, move choke leverto the

"Choke" position, then to the "Run" position.

• Ifengine fails to start after six pulls,move choke leverto
the "Run" position. Ifengine fires, but does not continue
to run, move choke leverto the "Run" position.

NOTE: If the recoil starter ishard to pull, it may be
necessary to squeezethe guntrigger to relieve internal
pump pressure.

How to Use Accessory Tray

The unit isequipped with anaccessory tray with placesto
store your nozzle extension and quick connect spraytips,
and slots to hold the cleaning solution bottle and the
detergent siphoning fitter.There are also two hooks at the
ends of the handle to hold your spray gun and high
pressure hose.

NOTE: The extra holes in the tray are for storing a brush
and a turbo wand.The brush and turbo wand are NOT

includedwith your pressure washer.Youcanbuy these

items as optionat accessories.

• Placethe nozzleextension through the hole on the
accessorytray,as shown in Figure 16.

How to Stop Your Pressure Washer

• Movevariable pressure control lever to "Stop" position.

• Turn the fuel shut_offvalve to the "Off" position (fully
clockwise).

• Squeeze trigger on the spray gun to relieve

pressure in the hose.

NOTE: A smallamount of water will squirt out when you
releasethe pressure.

i

• Hangyour chemical solution bottle on the"J" hook and
placethe detergent siphoning filter in the last slot on the

left (Figure 16).

• Placethe spraygun on the hook attached to the
accessorytray on the right side of the unit (Figure 16).

• Hangthe high pressure hose on the hook attached to
the accessory tray on the left side of the unit as shown
on page4.

9

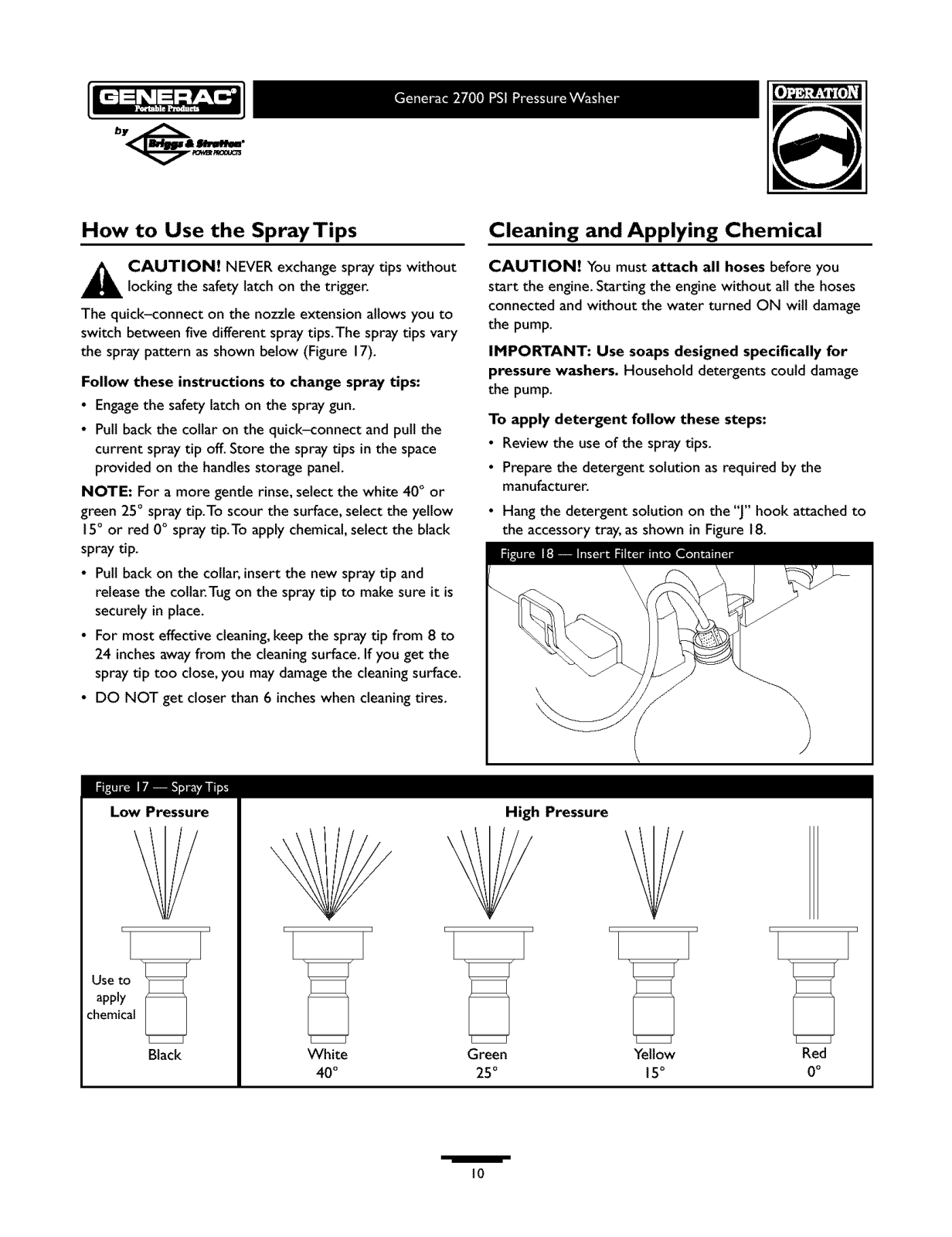

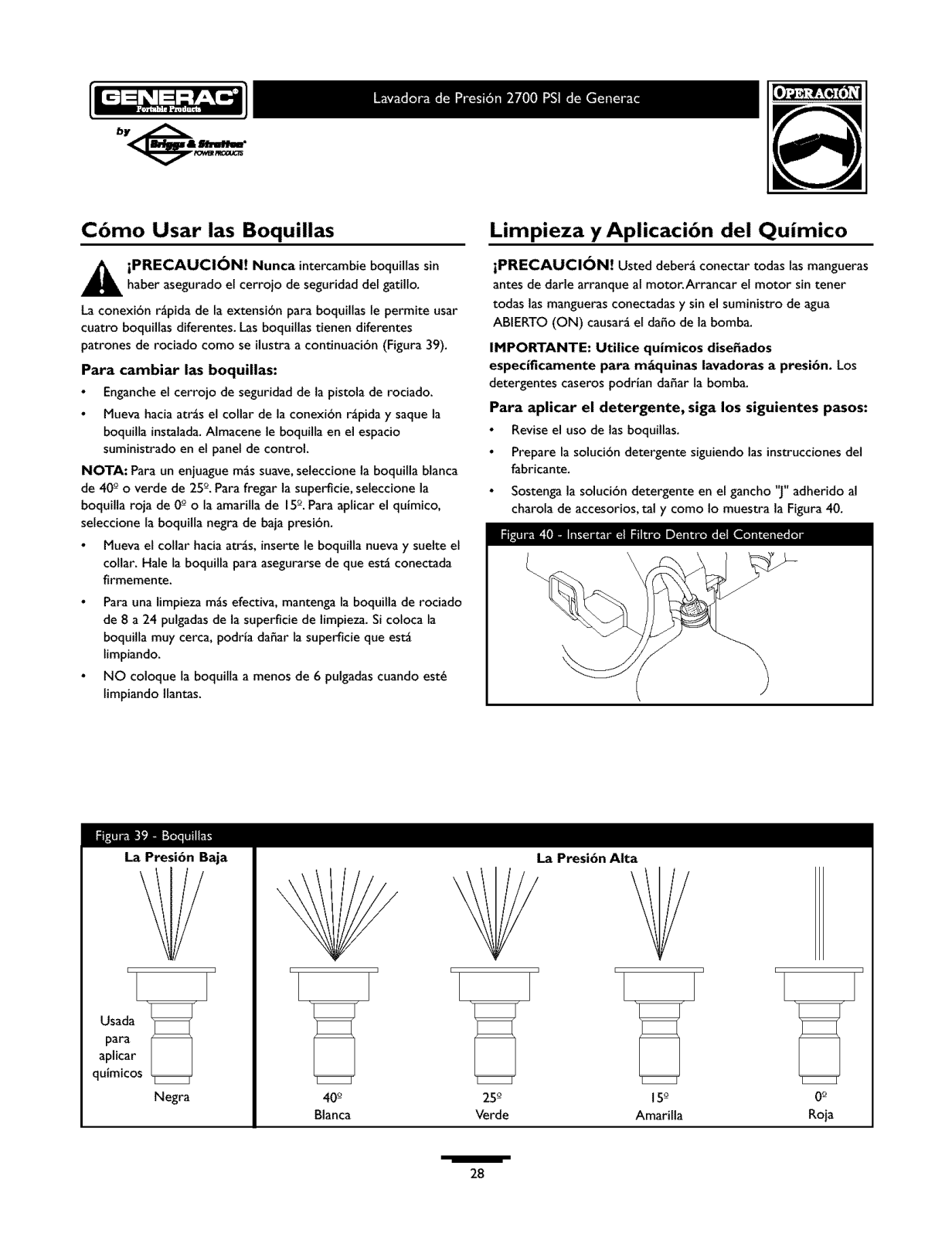

How to Use the SprayTips

_hL CAUTION! NEVERexchange spray tips without

lockingthe safety latch on the trigger.

The quick-connect on the nozzle extension allows you to
switch between five different spraytips.The spray tips vary
the spray pattern as shown below (Figure 17).

Follow these instructions to change spray tips:

• Engagethe safetylatch on the spray gun.

•Putl back the collar on the quick-connect and putl the
current spray tip off. Store the spray tips in the space

provided on the handlesstorage panel.

NOTE: For a more gentle rinse,select the white 40° or

green 25° spraytip.To scour the surface,select the yellow

15° or red 0° spraytip.To apply chemical,select the black

spray tip.

• Putlback on the collar,insert the new spray tip and

releasethe collar.Tugon the spraytip to make sure it is

securely inplace.

• For most effective cleaning,keepthe spray tip from 8 to
24 inchesawayfrom the cleaningsurface.If you get the
spray tip too close,you maydamagethe cleaningsurface.

• DO NOT get closer than 6 incheswhen cleaningtires.

Cleaning and Applying Chemical

CAUTION! You must attach all hoses before you

start the engine.Starting the engine without alt the hoses
connected and without the water turned ON witldamage

the pump.

IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage

the pump.

To apply detergent follow these steps:

• Reviewthe use of the spraytips.

• Preparethe detergent solution as required by the
manufacturer.

• Hangthe detergent solution on the "J"hook attached to

the accessory tray,as shown in Figure 18.

Low Pressure

Black

High Pressure

Y

White Green Yellow Red

40° 25° 15° 0°

/

10

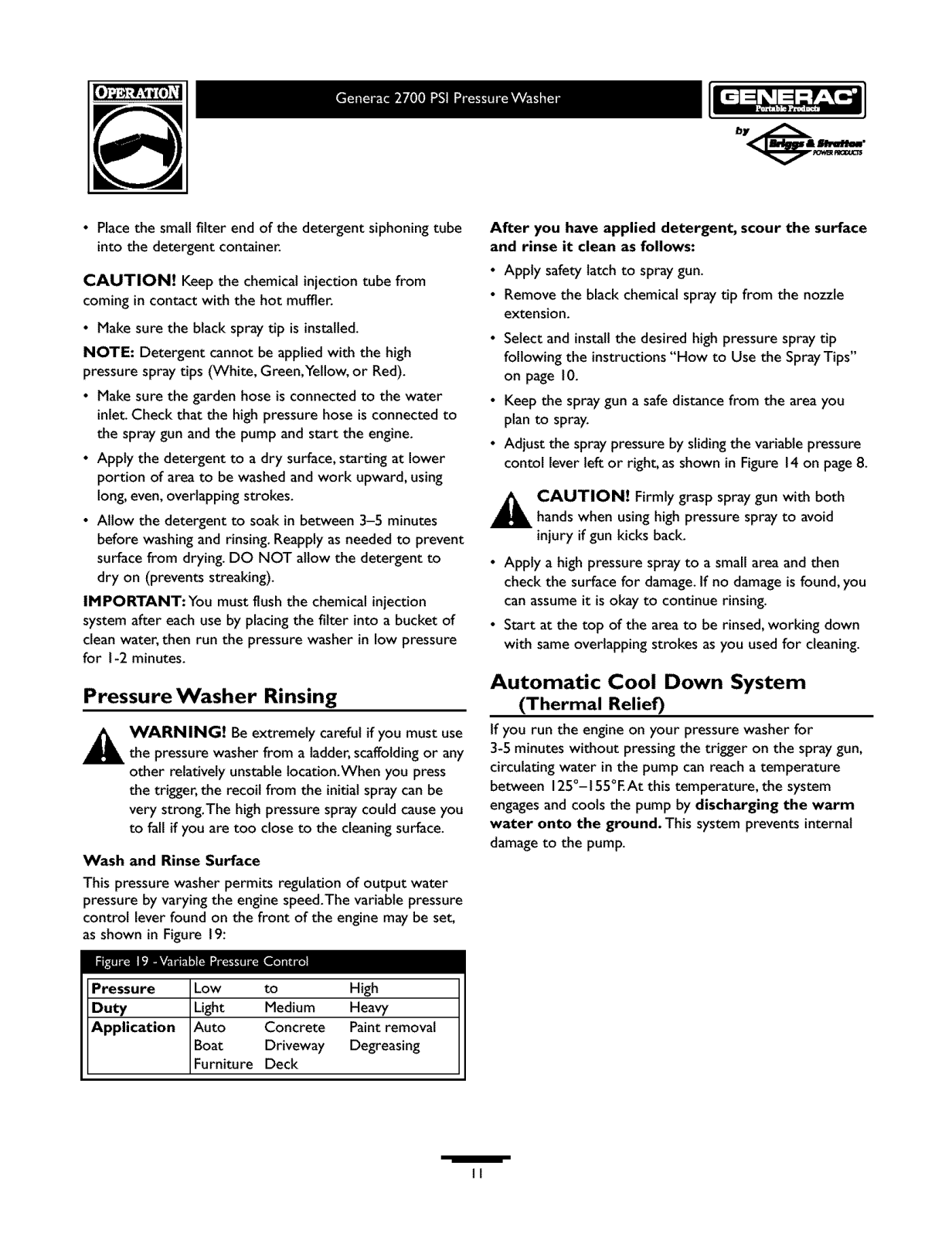

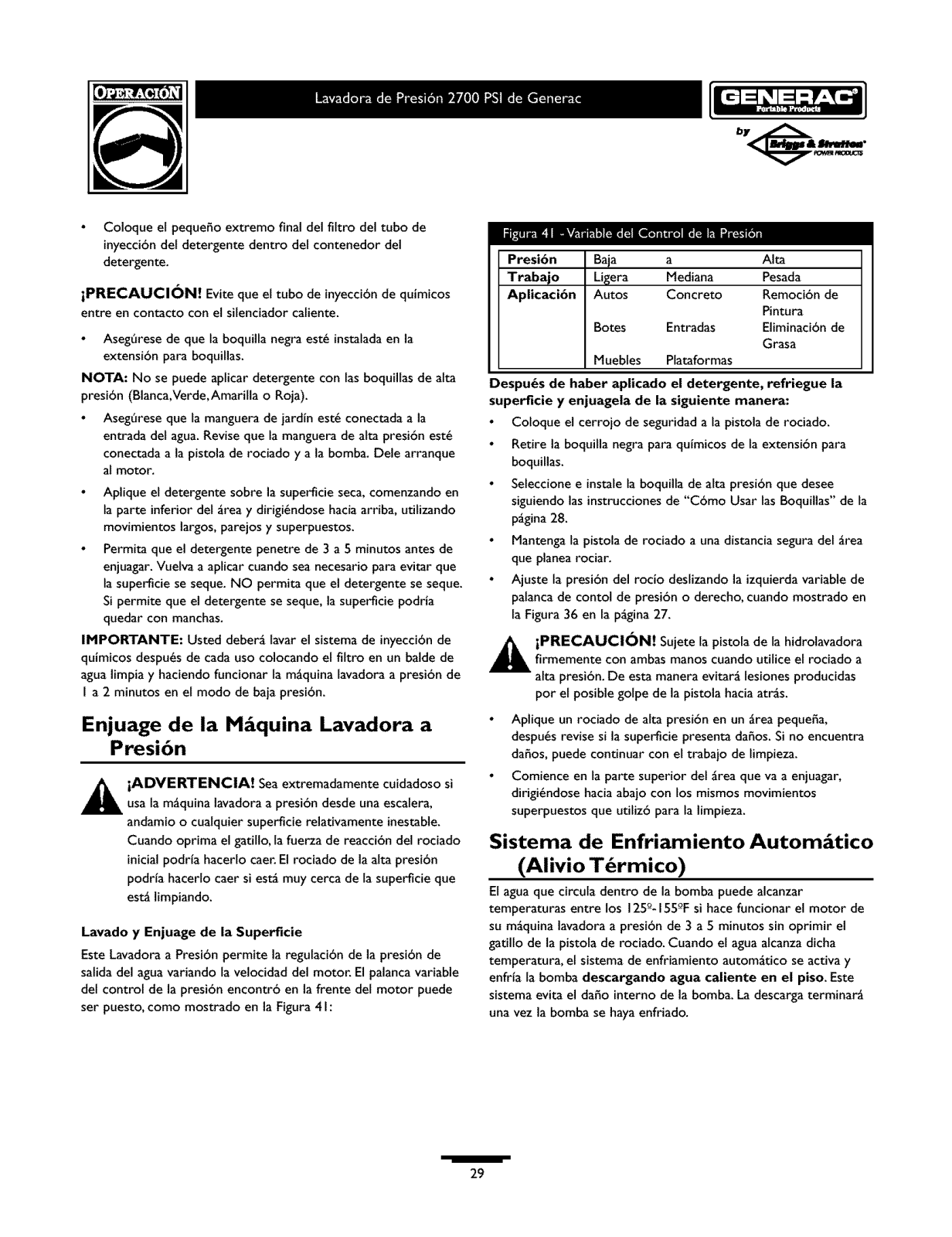

• Place the small filter end of the detergent siphoning tube

into the detergent container.

CAUTION! Keep the chemical injection tube from

coming in contact with the hot muffler.

• Makesure the blackspray tip is installed.
NOTE: Detergent cannot be applied with the high

pressure spray tips (White, Green,Yellow, or Red).

• Makesure the garden hose is connected to the water
inlet. Check that the high pressure hose is connected to

the spraygun and the pump and start the engine.

• Apply the detergent to adry surface, starting at lower
portion of area to be washed and work upward, using

long,even,overlapping strokes.

• Allow the detergent to soak in between 3-5 minutes
before washing and rinsing.Reapplyas needed to prevent

surface from drying. DO NOT allow the detergent to
dry on (prevents streaking).

IMPORTANT: You must flush the chemical injection

system after each use by placingthe filter into a bucket of
clean water, then run the pressure washer in low pressure

for I-2 minutes.

After you have applied detergent, scour the surface
and rinse it clean as follows:

• Apply safety latch to spray gun.

• Remove the black chemical spray tip from the nozzle
extension.

• Select and installthe desired high pressure spray tip
following the instructions "How to Use the SprayTips"
on page 10.

• Keepthe spray gun a safedistance from the area you

plan to spray.

• Adjust the spraypressure by slidingthe variablepressure
contol lever left or right, as shown in Figure 14on page8.

_ AUTION! Firmly grasp spray gun with both

handswhen usinghigh pressure spray to avoid
injury if gun kicks back.

• Apply a high pressure spray to a small area and then
check the surface for damage.If no damage is found, you
can assume it is okay to continue rinsing.

• Start at the top of the areato be rinsed, working down
with same overlapping strokes as you usedfor cleaning.

Pressure Washer Rinsing

_ ARNING! Beextremely careful if you must use

the pressure washer from a ladder,scaffoldingor any
other relatively unstable location.When you press
the trigger,the recoil from the initial spray can be
very strong.The high pressure spray could causeyou
to fall if you are too closeto the cleaningsurface.

Wash and Rinse Surface

This pressure washer permits regulation of output water

pressure byvarying the engine speed.The variable pressure

control lever found on the front of the engine maybe set,
as shown in Figure 19:

Pressure Low to High
Duty Light Medium Heavy

Application Auto Concrete Paint removal

Boat Driveway Degreasing
Furniture Deck

Automatic Cool Down System

(Thermal Relief)

If you run the engine on your pressure washer for
3-5 minutes without pressingthe trigger on the spray gun,

circulating water in the pump can reach a temperature

between 125°-155°EAt this temperature, the system
engagesand cools the pump by discharging the warm
water onto the ground. This system prevents internal
damageto the pump.

/

II
