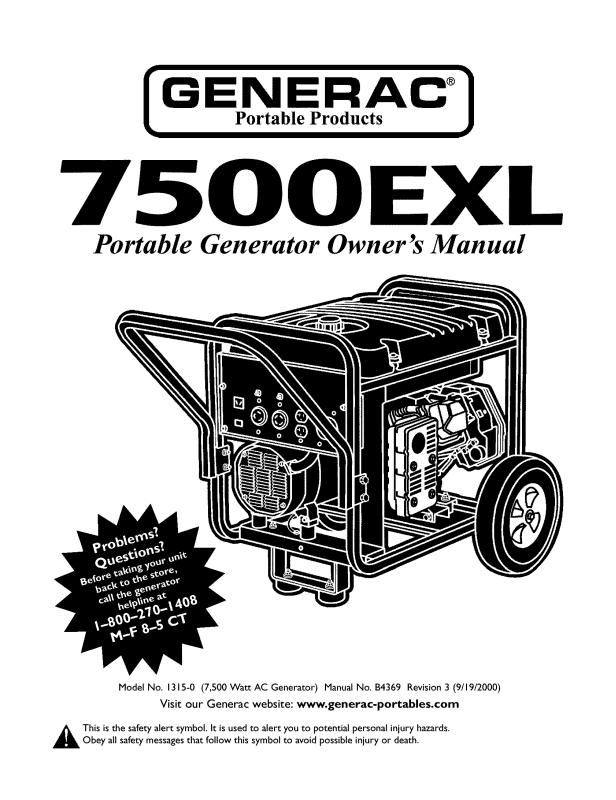

Generac 1315-0 Owner’s Manual

GEN RAC °]

7500

Portable Generator Owner's Manual

Portable Products

Model No. 1315-0 (7,500 Watt AC Generator) ManualNo. B4369 Revision 3 (9/19/2000)

Visit our Generac website: www.generac-portables.com

This is the safetyalert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messagesthat follow this symbol to avoid possible injuryor death.

GeneracPortableProducts7,500EXLGenerator

EQUIPMENT

DESCRIPTION

This generator isan engine-driven, revolving field, alternating current (AC) generator. It was designed to supply electrical power for operating compatible electrical lighting, appliances,tools and motor loads.This manual contains information for a generator that operates

120and/or 240 Volt, single phase,60 Hz devicesthat require up to 7,500 watts (7.5 kW) of power that draw up to 62.5 Amps at 120Volts or 31.2 Amps at 240 Volts.

_ CAUTION! Do Not exceed the generator's

wattage/amperagecapacity.Add up the rated watts of all devices you are connecting to generator

receptaclesat one time. This total should not be greater than 7,500 watts. See "Don't Overload The Generator" on page 12.

The 7,500EXL generator hasthe following features:

• 120/240Volt, 30 Amp locking receptacle, a 120Volt, 30 Amp locking receptacle, a 120Volt, 20 Amp receptacle, and a 120/240 Volt, 50 Amp receptacle.

• Low Oil Shutdown: Automatically shuts down the engine if oil drops below safe operating pressure.

• Sevengallon overhead fuel tank with fuel gauge.

• The generator's revolving field isdriven at about 3600 rpm by a Generac Power Systems 15 HP electric start engine.

_ ANGER! Do Not tamper with enginegoverned

speed. High operating speeds are dangerous and increase risk of personal injury or damageto equipment. The generator supplies correct rated frequency and voltage only when running at proper governed speed. Incorrect frequency and/or voltage candamagesome connected electrical loads. Operating at excessivelylow speedsimposes a heavy load. When adequate enginepower is not available, engine life may be shortened.

SAFETY RULES

This generator set was designed and manufactured for specific applications. Do Not attempt to modify the unit or useit for any application it was not designed for. If you haveanyquestions about your generator's application, ask your dealer/distributor or consult the factory.

The manufacturer could not possibly anticipate every circumstance that might involve a hazard. For that reason warnings in the manual and warnings on tags or decals affixed to the unit are not all-inclusive. If you intend to handle, operate or service the unit by a procedure or method not specifically recommended by the manufacturer, first make sure that such a procedure or method will not render this equipment unsafeor pose a threat to you and

others.

Read this manual carefully and become familiar with your generator set. Know its applications, its limitations and any hazards involved.

_ DANGER! You must isolate the generator from

the electric utility by opening the electrical system's

main circuit breaker or main switch if this unit is used for backup power. Failure to isolate the

generator from the power utility may result in injury or death to electric utility workers and damage to the generator due to a backfeed of electrical energy. Whenever unit is providing

backup power, the electric utility must be notified.

_ DANGER! Generator exhaust gases contain

DEADLY carbon monoxide gas. Carbon monoxide, if breathed in sufficient

concentrations, can cause unconsciousness or death. Operate this equipment outdoors where

adequateventilation is available.

The EmissionControl Systemfor this generator is warranted for standardsset by the Environmental Protection Agency. For warranty information refer to the engine owner's manual.

Generac Portable Products 7,500 EXL Generator

• The generator produces a very powerful voltage that can causeserious injury or death by electrocution. Never touch bare wires or receptacles. Never permit a child or anyunqualified person to operate the generator.

• Never handle any kind of electrical cord or device while standing in water, while barefoot or while hands or feet

are wet Death or serious injury from electrocution may result.

• Use a ground fault circuit interrupter (GFCI) in anydamp or highly conductive area (such as metal decking or steel

work).

• Never use worn, bare, frayed or otherwise damaged electrical cords with the generator. Death, serious injury and property damage from electrical shock may result.

• Gasoline is highly FLAMMABLE and its vapors

are EXPLOSIVE. Never allow smoking, open flames, sparks or heat in the vicinity while

handling gasoline. Avoid spilling gasoline on a hot engine.Comply with all laws regulating storage and

handling of gasoline.

• Do Not overfill the fuel tank. Always allow room for fuel expansion. If tank is overfllled, fuel can overflow

onto a hot engine and cause a FIRE or an EXPLOSION.

• Never store a generator with fuel in the tank where gasolinevapors might reach an open flame, spark or pilot light (as on a furnace, water heater, clothes dryer). FIRE or an EXPLOSION may result.

• The unit requires anadequateflow of cooling air for its continued proper operation. Never operate the unit insideanyroom or enclosure where the free flow of cooling air into and out of the unit might be obstructed. Allow at least2 feet of clearanceon all sides of generator, evenwhile operating unit outdoors, or you could damage the unit See"Cold Weather Operation" on page 10.

• Never start or stop the unit with electrical loads connected to receptacles with the connected devices turned ON. Start the engine and let it stabilize before connecting anyelectrical loads.Disconnect all electrical loads before shutting down the generator.

• Do Not insertanyobject through cooling slots of the engine.You could damagethe unit or injureyourself.

• Never operate the generator:

in rain; in any enclosedcompartment;when connected electricaldevicesoverheat; if electrical output islost;if

engine or generator sparks;ifflame or smoke is observed while unit isrunning; if unit vibrates excessively.

GROUNDING THE

G EN ERATO R

The National ElectricCode requires the frame and external electrically conductiveparts of the generator be

properly connected to approved earth ground. Local electrical codes mayalso require proper grounding of the

unit For this purpose, a ground lug (Figure I) is provided on the cradle.

Generally, connecting a No. 12AWG (American Wire Gauge) stranded copper wire to the ground lug screw and to an earth-driven copper or brassgrounding rod (electrode) provides adequate protection against electrical shock. However, local codes mayvary widely. Consult with a local electrician for grounding requirements in your area.

Be sure to keep the ground wire attached while you

connect the electrode.

Properly grounding the generator helps prevent electrical shock ifground fault conditions exists in the generator or in connected electrical devices. Proper grounding also helps dissipate static electricity, which often builds up in ungrounded devices.

mm_

GeneracPortableProducts7,500EXLGenerator

INSTALL WHEEL KIT AND

BATTERY TRAY

To install these items, you need the following tools:

• Socket wrench with liT' or 13mm socket.

• Box or open end 3/8" wrench.

Install Wheel Kit

• Placethe generator on a hard fiat surface (Figure 2).

• Placetemporary blocks beneath the cradle.

• Slidethe axle through the holes in the brackets provided on the generator cradle and then add one spacer on

eachprotruding end of the axle.

Handle

• Slidea wheel on eachend of the axle and secure with washer and retaining pin. If wheel does not spin freely,

omit one or both washers.

NOTE: Make sure the air inflationvalvefaces outward on

each wheel.

• Attach the vibration mounts to the support legwith capscrews,washers, and lock nuts.

• Attach the support legwith two capscrews and two lock nuts to the cradle. Removethe temporary blocks.

• Attach the handle with four capscrewsand four lock nuts on the control panel end of the unit.

Capscrew,

M8 x 45mm

Lock Nut, M8 F_

Support Leg_

Flat WasherF

Hex Head

\Capscrew,

M8 x 30mm

_Hex Head

Capscrew,

M8 x 20mm

_Lock Nut, M8

Wheel

Axle Spacer

Wheel

_0<_ i_er

Retaining Pin

Generac Portable Products 7,500 EXL Generator

Installing Tray and Battery

To obtain electric start, you must purchase and installa

12Volt DC battery (SeriesU1-109). The battery should be serviced as necessaryand fully charged prior to installation. Install the battery asfollows:

• Find the battery tray and fasteners shipped loose in the

carton. You should haveone battery hold down bracket, a black battery cable, a red battery cable, two 7" Jbolts,

two lock washers, two fiat washers and two hex nuts.

• Remove the four battery tray screws from cradle.

• Position the battery tray and installwith screws removed

above (Figure 3).

• Connect one end of the red battery cable to the outboard terminal of the engine start switch.

• Connect other end of the red battery cable from the engine start switch to positive (+) terminal on the battery (Figure 5).

RED wire

from battery

• Set battery onto tray.

• Retain battery to tray with hold down bracket, two Jbolts, two lock washers, two fiat washers and two hex

nuts (Figure 4). Tighten with 3/8" wrench.

BLACK wire from battery

• Connect the black battery cable to the negative (-) terminal on the battery (Figure 5).

• Connect the other end of the black cableto the engine, not the frame (Figure5).

_ AUTION! Besure the black cableisconnected

to the engine andnot the frame. Failureto connect cable to the engine block will result in damageto the

wiring which isnot covered under warranty.

• Double check all connections to ensure they are inthe correct locations and secure.

GeneracPortableProducts7,500EXLGenerator

KNOW YOUR GENERATOR

Read this owner's manual and safety rules before operating your generator.

Compare the illustrations with your generator, to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

Circuit Breakers (AC)

Fuel Tank

EngineStart Switch

Recoil Starter

12Volt DC, l0 Amp

Receptacle

IdleControl Switch

120 Volt AC,

30 Amp Receptacle

Choke Lever

Run/Stop Switch

Air Cleaner

120/240 Volt AC,

30 Amp Receptacle

120Volt AC, 20Amp

Receptacle

120/240Volt AC,

S0Amp Receptacle

12 Volt DC, 10 Amp Receptacle -- Rechargea

discharged 12Vott automotive type battery through this receptacle.

1201240 Volt AC, 50 Amp Receptacle -- May be used

to supply electrical power for the operation of

t20/240 Volt AC, 50 Amp, single phase,60 Hz electrical

loads.

120/240 Volt AC, 30 Amp Locking Receptacle --

May be usedto supply electrical power for the operation of 120and/or 240 Volt AC, 30 Amp, single phase,60 Hz,

AC electrical lighting,appliance,tool and motor loads.

120 Volt AC, 20 Amp Receptacle -- May be used to

supply electrical power for the operation of 120Volt AC, 20 Amp, singlephase,60 Hz electrical lighting, appliance,

tool and motor loads.

120 Volt AC, 30 Amp Locking Receptacle -- May be

usedto supply electrical power for the operation of

t20 Volt AC, 30 Amp, single phase,60 Hz electrical

lighting, appliance,tool and motor loads. Air Cleaner -- Uses a dry type filter element and foam

pre-cleaner to limitthe amount of dirt and dust sucked into the engine.

Grounding Wing Nut SparkArrester Muffler

Choke Lever -- Used when starting a cold engine. Circuit Breakers (AC) -- Eachreceptacle is provided

with a circuit breaker to protect the generator against electrical overload. Breakersare "push to reset" type.

Engine Start Switch - Pressedto start the engine. Fuel Tank -- Capacity of seven (7) U.S.gallons. Grounding Wing Nut -- Used for proper grounding of

unit. Idle Control Switch -- With this switch set to ON,

printed circuit board in control panelautomatically reduces engine speed when no load is connected and increases

engine to proper speedwhen loadis applied. However, be sure switch isOFF when starting engine.

Recoil Starter -- Used asbackup method of starting engine.

Run/Stop Switch -- Setthis switch to "RUN" before using recoil starter. Set switch to "STOP" to switch OFF

engine. Spark Arrester Muffler -- Exhaustmuffler lowers

engine noiseand isequipped with a spark arrester screen.

GeneracPortableProducts7,500EXLGenerator

BEFORE STARTING THE

ENGINE

Add Oil

_ ARNING! Any attempt to crank or start the

engine before it has been properly filled with the

recommended oil may result in an engine failure.

To fill your engine with oil:

• Place generator on a level surface.

• Clean area around oil fill and remove oil fill cap.

• Select the oil's viscosity grade and fill engine with oil following the instructions given in the engine owner's

manual. Do Not overfil!!

• Install oil fill cap.

NOTE: The generator's revolving field rides on a pre- lubricated and sealed ball bearing that requires no additional lubrication for the life of the bearing.

Add Gasoline

_ ANGER! Explosion Hazard! Never fill fuel tank

indoors.Never fillfuel tank whenengine isrunning

or hot Do Not light a cigarette or smoke when filling the fuel tank.

_ WARNING! Do Not overfill the fuel tank.

Always allow room for fuel expansion.

• Use regular UNLEADED gasoline with the Generator engine. Do Not use premium gasoline. Do Not mix oil with gasoline.

• Clean area around fuel fill cap, remove cap.

• Add unleaded regular gasoline, slowly to fuel tank. Be careful not to overfill. Allow about I/2" of tank space for fuel expansion (Figure 6).

1/2" Air Space Tank

• Install fuel cap and wipe up any spilled gasoline.

IMPORTANT: It is important to prevent gum deposits

from forming in essential fuel system parts such as the carburetor, fuel filter, fuel hose or tank during storage.

Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which

leads to separation and formation of acids during storage. Acidic gascan damage the fuel system of an engine while in

storage. To avoid engine problems, the fuel system should be

emptied before storage of 30 days or longer. See "Storage" on page 13. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

Generac Portable Produc_s 7,500 EXL Generator

OPERATING THE

G EN ERATO R

_ AUTION! Never s_rt or stop the engTnewTthelectrTc_l leads connected to die unit and wTth the

connected devices _urned ON.

Starting the Engine

Disconnect all electrTc_l loads from the generator. Use the

following s_r_ Tnstruc_ion steps by numerTcal order:

I. Mal(e sure the Idle Control switch is Tn_Off" positTon.

2. Turn the fuel valve to the "On" position (Figure 7).

3. Set the Run/Stop switch _o "Run" posTtTon(FTgure8).

4. Place the chol(e lever in the "Full" choke position

(Figure 9).

5A. For electric s_rUng, press star_ switch on genera_or

cradle until engine s_r_s. To prolong :he life of the starter components, press the s_r_er buL_confor no more :han I5 seconds, then pause for 30 seconds.

5B. For manual staring, grasp the recoil handle and pull

slowly until slight resistance is felt. Then pull rapidly one _ime only to s_rt engine.

• If engine s_rts, proceed Co step 7.

• If engine fails to s_rt, proceed to step 6.

6. Move the choke lever to ==Half" choke position, and

pull recoil handle _vice,

• If engine fails to s_rt, repeat s_eps4 :hru 6.

7. Move choke leverto "Run" position.Ifen_ne falters,

move choke lever_o "Half' choke positionuntilthe engineruns smoothly,and then to "Run" position.

NOTE: If engine s_ill fails to s_rt at_er 3 pulls, check for proper oil level in crankcase. This unit is ec_uippedwith a

Low Oil Shutdown System. See engine manual.

Connecting Electrical Loads

• Let engine s_bilize and warm up for a few minu_es after stari;ing,

• Plug in and turn on the desired 120 and/or 240 Volt AC, single phase, 60 Hertz electrical loads.

• Do Not connec_ 240 Volt loads to 120 Volt receptacles.

• Do Not connec_ 3-phase loads _o :he generator.

• Do Not connec_ 50Hz leads to the generator.

• DO NOT OVERLOAD THE GENERATOR. Add up :he ra_ed wa_s (or amps) of all loads m be connected at

one _ime. This torsi should not be grea_er :han the rated watl:age/amperage c_paci_ of the generator. See "Don't Overload the Generator" on p_ge I I.

Stopping the Engine

• Unplug all electrical loads from generater panel recep_cles. Never star_ or stop engine with electrical devices plugged in and turned on.

• Put :he Idle Control switch in the "Off" position.

• Let engine run at no-load for 30 seconds _o stabilize the in_ernal _empera_ures of engine and genera_or.

• Move Run/Stop switch to "Stop".

• Close the fuel shu_-ofl'valve.

+ 16 hidden pages
