Genee World GV-150 User Manual

G

e

n

e

e

W

o

r

l

d

TM

®

150

User manual

PRECAUTIONS

Please follow these precautions:

To prevent fire or shock hazard, do not expose the unit to rain or

moisture.

To prevent electrical shock, do not open the unit. Refer to qualified

personnel for service only.

Do not use the unit continuously for more than 24 hours with camera

auto focus on. It may cause damage to the camera lens.

Be careful not to spill water or other liquids onto the unit, or allow

combustible or metallic objects to get inside the base.

Unplug the visualiser from the wall outlet when it is not being

used for a long period of time.

Clean the unit with a soft cloth lightly moistened with a mild

detergent solution.

Clean the lens carefully with an air spray or soft dry cloth to avoid

scratching it.

Rotate the camera lens cap before power the unit on.

1

2

Contents

Product Introduction ..................................................2

Parts Identification .....................................................3

Making Adjustments...................................................3

Control Panel ..............................................................7

Remote Control Instruction .......................................8

INSTALLING VISUALISER SOFTWARE ....................9

USB PORT .................................................................10

USB Image Capture ..................................................10

Specification .............................................................12

Product Introduction

Thank you for purchasing the visualiser. This visualiser comes with a new

design which is more simple, flexible, portable and with a high resolution. The

visualiser can be used to present 3D objects, texts, graphs, transparencies

2

Contents

Product Introduction ..................................................2

Parts Identification .....................................................3

Making Adjustments...................................................3

Control Panel ..............................................................7

Remote Control Instruction .......................................8

INSTALLING VISUALISER SOFTWARE ....................9

USB PORT .................................................................10

USB Image Capture ..................................................10

Specification .............................................................12

Product Introduction

Thank you for purchasing the visualiser. This visualiser comes with a new

design which is more simple, flexible, portable and with a high resolution. The

visualiser can be used to present 3D objects, texts, graphs, transparencies

and negative films. It can be connected to projector, PC and other multi-media

equipments. The visualiser is not just a equipment in corporate environment

but also a indispensable tool to academic, medical and scientific community.

Parts Identification

Making Adjustments

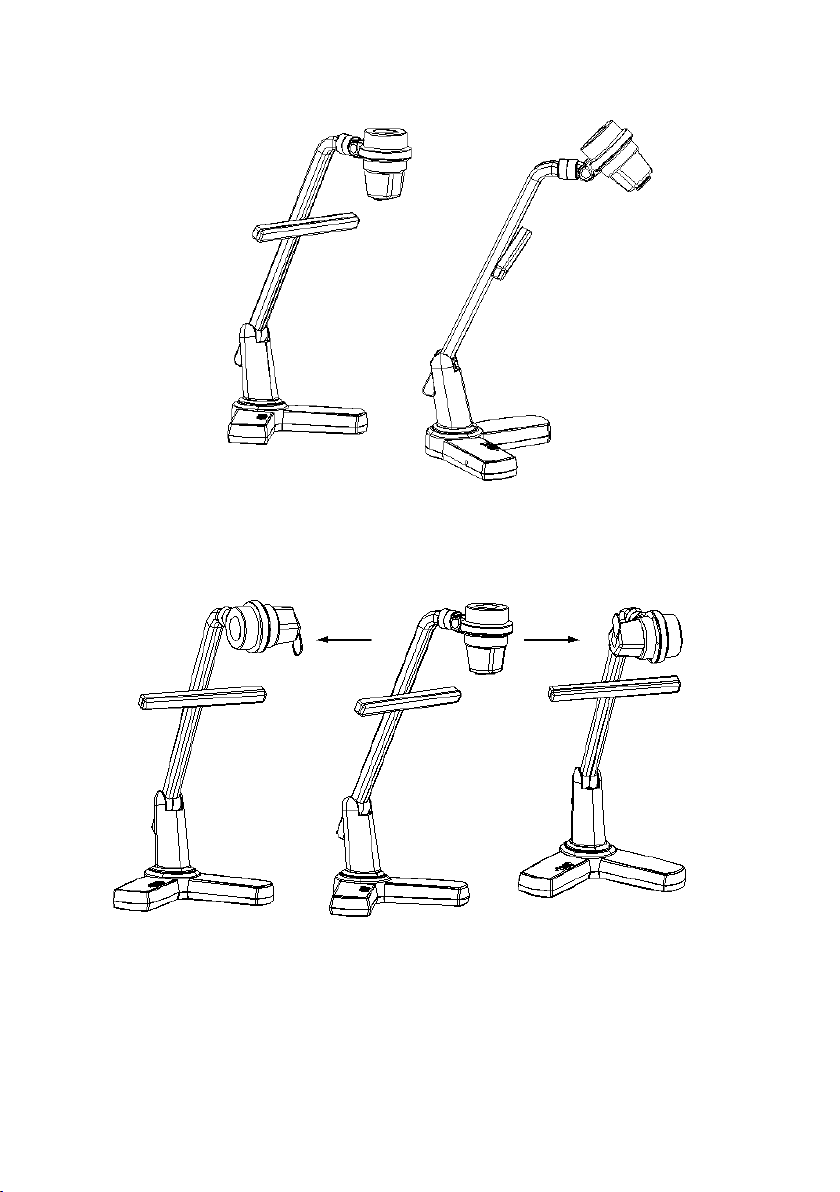

On the visualiser, there are six places can be adjusted.

1. Adjust Mechanical Arm

This adjustment can increase and decrease image. Hold the visualiser

3

base with one hand, carry the mechanical arm with another hand and

adjust it up and down. The mechanical arm can be moved from almost any

angle.

2. Adjust LED light

The LED light can be rotated 90 degrees. (as blow illustration)

3. Adjust Camera Box

Hole the camera box and rotate it up and down. The camera box can be

rotated 45 degrees.

(as below illustration)

4

base with one hand, carry the mechanical arm with another hand and

adjust it up and down. The mechanical arm can be moved from almost any

angle.

2. Adjust LED light

The LED light can be rotated 90 degrees. (as blow illustration)

3. Adjust Camera Box

Hole the camera box and rotate it up and down. The camera box can be

rotated 45 degrees.

(as below illustration)

4

Hold the camera box and rotate it left and right. The camera box can be

rotated 90 degrees.

(as below illustration)

4. Adjust Camera Head

Hold the camera connector with one hand, rotate the camera box connector

with another hand. The camera head can be rotated 90 degrees.

(as below

illustration)

5

5. Adjust Base Bracket

Hole the vislualizer base with one hand, rotate the base bracket with another

hand. The base bracket can be rotated 45 degrees.

(as below illustration)

Notice: Do not rotate the parts emphatically when the rotation

reached maximum.

6

5. Adjust Base Bracket

Hole the vislualizer base with one hand, rotate the base bracket with another

hand. The base bracket can be rotated 45 degrees.

(as below illustration)

Notice: Do not rotate the parts emphatically when the rotation

reached maximum.

6

Control Panel

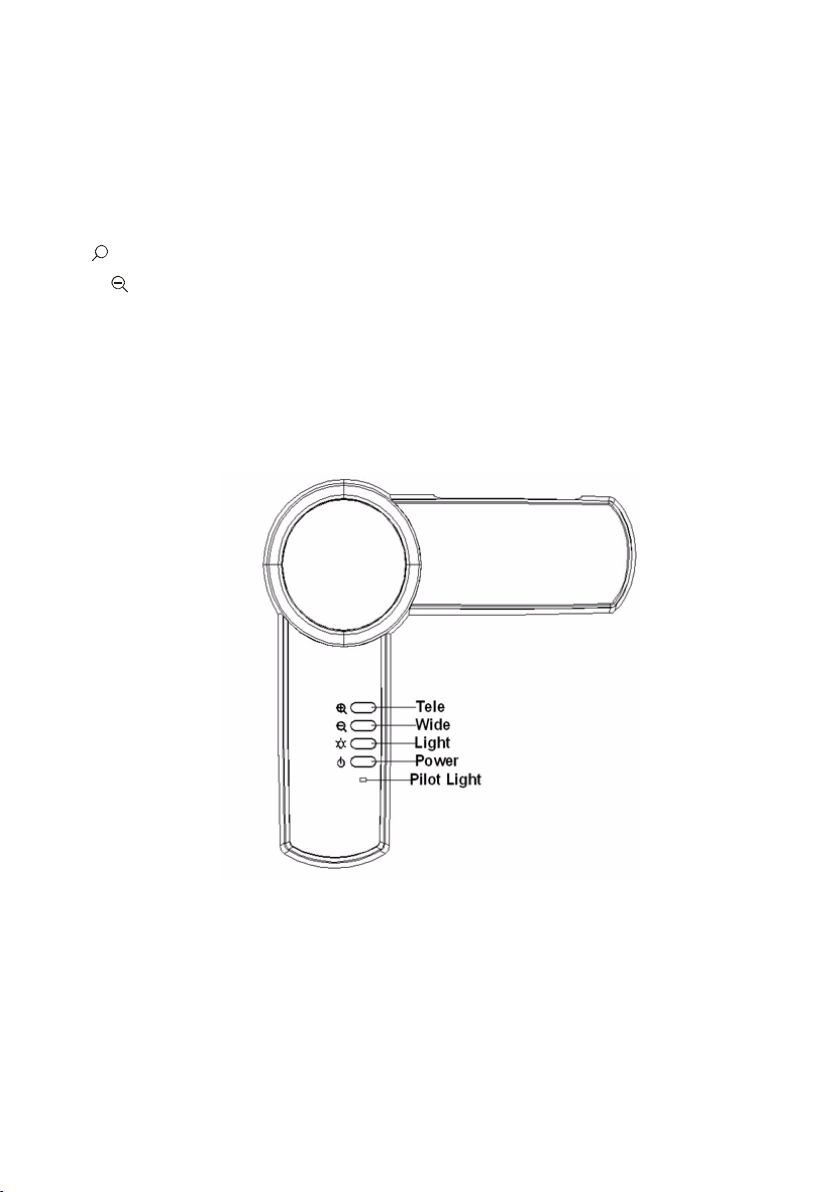

There are four touch buttons located on the top of visualiser base:

·+T : Enlarge image

·

W

: Reduce image

·LED Light：Turn the LED light on/off

·Power: Turn the visualiser on/off

·Pilot Light: On normal operations a blue color will be lit, in standby mode the

color of the light will be red.

7

Remote Control Instruction

POWER (Control the visualiser On/Off)

SAVE (Save captured images)

RECALL (Multiple Screen Display)

LAMP (Control the arm lights)

ROTATE (Rotate the image)

FREEZE (Freeze the image)

NEG (Display film negatives)

MIRROR (V-Reverse the image)

XGA (Switch between XGA (1024 x 768) and SXGA (1280 x 1024) mode)

TEXT (Switch between image/text mode)

B&W (Switch between Color mode and Black & White mode)

TITLE (Freeze the top 1/8 of the screen)

8

Remote Control Instruction

POWER (Control the visualiser On/Off)

SAVE (Save captured images)

RECALL (Multiple Screen Display)

LAMP (Control the arm lights)

ROTATE (Rotate the image)

FREEZE (Freeze the image)

NEG (Display film negatives)

MIRROR (V-Reverse the image)

XGA (Switch between XGA (1024 x 768) and SXGA (1280 x 1024) mode)

TEXT (Switch between image/text mode)

B&W (Switch between Color mode and Black & White mode)

TITLE (Freeze the top 1/8 of the screen)

8

SPLIT (Image Split function)

PROJECTOR POWER (No function)

PROJECTOR INPUT (No function)

EXIT (Exit selected function)

TELE/ IDE (Increase and decrease magnification)

W

FAR/NEAR (Focus near or far)

AUTO (To auto adjust brightness, auto white balance and auto focus)

CAM/PC1/PC2 (No function)

S-VIDEO/VIDEO (No function)

VOLUME+/- (No function)

RED+/- (Increase or decrease the red hue)

BLUE+/- (Increase or decrease the blue hue)

BRIGHT+/- (Increase or decrease the brightness)

SCROLL

/ (No function)

INSTALLING VISUALISER SOFTWARE

This function is to snap and display images with the USB interface, which

includes displaying static and dynamic pictures, snapping dynamic images

and playback the dynamic images with the Windows Media Player or its

own player.

Insert the CD-ROM that comes with the visualiser into the CD-ROM

drive.

A. Click the Install Capture Program button to install the program that

captures images in the AVI or

JPG format.

B. After the installation is finished, then click the Exit button to exit the

Software Setup window.

C. Shut down your computer when prompted in order for the changes to

take effect.

9

10

D. Use the USB2.0 cable provided to connect your computer to the

visualiser before your computer is restarted.

USB PORT

The USB port can be used to store still images from the visualiser in a
computer. Connect the visualiser to your computer with the supplied
USB cable. The visualiser software is available on the supplied
CD-ROM.

*Pleasepayattentiontothefollowing:

1. Computer hardware requirement: CPU: 2.4GHz, RAM: 256M or
above, Graphic card 64M, USB 2.0 port, Hard disk 40G or more,
Monitor display resolution higher than XGA (1024*768).

2. Operating system: Windows XP SP2 (Service Pack 2).

3. Must use a high-speed USB 2.0 cable provided

4. When connecting the visualiser to a desktop computer with the
high-speed USB 2.0 cable provided, we recommend using the USB
port located on the rear of the mainframe. The USB port on the
front of the computer might have interference.

USB Image Capture

You can capture and control images on the visualiser from a computer
connected with a USB connector.

10

D. Use the USB2.0 cable provided to connect your computer to the

visualiser before your computer is restarted.

USB PORT

The USB port can be used to store still images from the visualiser in a
computer. Connect the visualiser to your computer with the supplied
USB cable. The visualiser software is available on the supplied
CD-ROM.

*Pleasepayattentiontothefollowing:

1. Computer hardware requirement: CPU: 2.4GHz, RAM: 256M or
above, Graphic card 64M, USB 2.0 port, Hard disk 40G or more,
Monitor display resolution higher than XGA (1024*768).

2. Operating system: Windows XP SP2 (Service Pack 2).

3. Must use a high-speed USB 2.0 cable provided

4. When connecting the visualiser to a desktop computer with the
high-speed USB 2.0 cable provided, we recommend using the USB
port located on the rear of the mainframe. The USB port on the
front of the computer might have interference.

USB Image Capture

You can capture and control images on the visualiser from a computer
connected with a USB connector.

Click [Start] -> [Program] -> [VideoCap] -> “VideoCapx.xx” (x.xx is

software’s version)

to open the software.

A. Static Images Snap

Click “Capture”—>“Capture Frame”, input the file name in dialog box,

or you can click

icon on the toolbar, then input file name in dialog

window. The image file is JPG format.

B. Snap Video Stream

Click “Capture”—> “Start Capture”, input the file name in dialog box, or

click

icon on the toolbar, then input the file name in dialog box. If

you want to set the time limit for the capture, select “Capture” ->“Set

Time Limit“ to set the time limit. Click “Start Capture” to start capture,

and click “Stop Capture” or

icon on the toolbar to stop capture. (If

you have set the time limit, it will stop automatically when the time is

up.) The video file is AVI format.

C. Set the Frame Rate

Click [Capture] -> [Set Frame Rate], and click open “Choose Frame
Rate” to set the frame rate.

D. Set Time Limit

Click [Capture] -> [Set Time Limit] to set the time limit while capturing
video.

E. Note:

Do not connect / disconnect the USB cable when the application is running,

which will cause the program to be interrupted.

11

12

Specification

Pickup Device CMOS color sensor with 2.0 Mega Pixels

Output Resolution XGA(1024x768), SXGA(1280x 1024)

Zoom 4x optical, 10x digital

Focus Auto/manual

White Balance Auto/manual

Camera Head Rotation

Horizontally 180°

Lens Rotation

Vertically 180°

Negative/positive
conversion

Yes

Black/white and color
selection

Yes

Image Split Yes

Image Title Yes

Image Freeze Yes

Image Rotate

0°90°180°270°

Image Save & Recall 16 frames save, 4 x 4 multiple screen

display

RGB Output DB15FLC x 1

USB port

USB 2.0

Power Source 12V/4A external AC adapter

Lighting 3W LED lamps

12

Specification

Pickup Device CMOS color sensor with 2.0 Mega Pixels

Output Resolution XGA(1024x768), SXGA(1280x 1024)

Zoom 4x optical, 10x digital

Focus Auto/manual

White Balance Auto/manual

Camera Head Rotation

Horizontally 180°

Lens Rotation

Vertically 180°

Negative/positive
conversion

Yes

Black/white and color
selection

Yes

Image Split Yes

Image Title Yes

Image Freeze Yes

Image Rotate

0°90°180°270°

Image Save & Recall 16 frames save, 4 x 4 multiple screen

display

RGB Output DB15FLC x 1

USB port

USB 2.0

Power Source 12V/4A external AC adapter

Lighting 3W LED lamps

13

Operating

0ºC~40ºC

Power

A

C 100~240V，50/60Hz

Dimensions (mm)

Setup： 341x262x492mm

Weight 1.6kg

* Design and specifications are subject to change without notice.

G

e

n

e

e

W

o

r

l

d

TM

Email: [e-mail] • Website: www.geneeworld.com

For technical assistance please call or email

Tel: [phone] • Fax: [phone]

Post: PO Box 3256, Wolverhampton, WV3 0LA
