ROR Module
Integration Guide
217-222 MHz Licensed OEM
Transceiver
MDS 05-4132A01, Rev. A
JANUARY 2004
(PRELIMINARY)
TABLE OF CONTENTS
1.0 INTRODUCTION.........................................................................7
1.1 Modem Speed versus Channel Bandwidth ......................................7
1.2 Frequency Coverage ........................................................................7
2.0 INSTALLATION DESIGN............................................................. 8
2.1 Antennas and Feedlines ..................................................................9
Antennas ............................................................................................9
Feedlines..........................................................................................10
2.2 Primary Power (6-12 Vdc) ..............................................................10
DC Supply Connection.....................................................................10
Sleep Mode (Energy Conservation) .................................................10
Shutdown Mode (Power Supply Disabled) .......................................11
2.3 Detailed Pin Descriptions ...............................................................11
2.4 Transceiver Configuration and Diagnostic Commands ..................12
2.5 In-Service Operation—Radio & Data Configuration .......................14
2.6 Using the Evaluation Board (P/N 03-4051A01) ..............................15

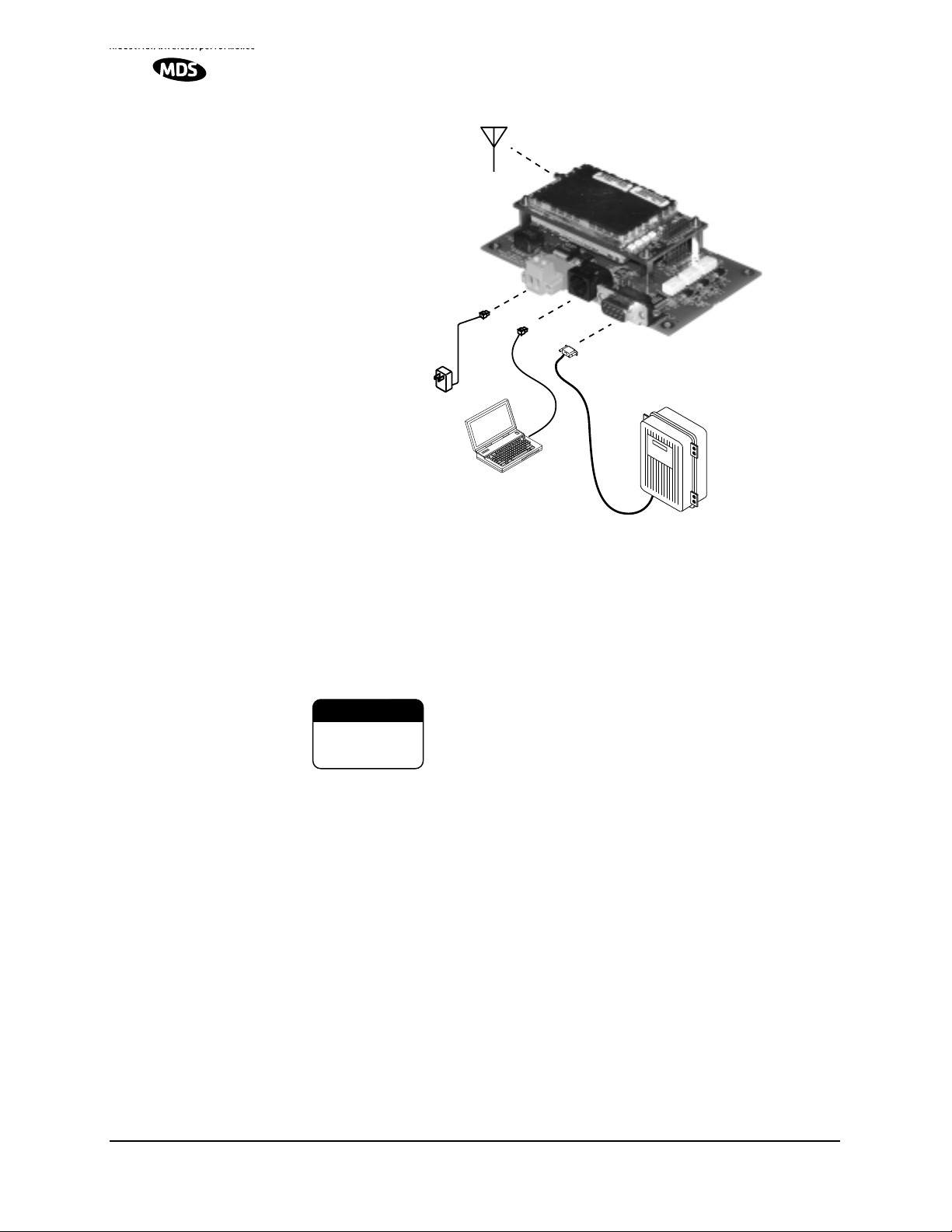

Connecting the Evaluation Board & Transceiver...............................16
2.7 Cable Connections for Benchtop Testing .......................................17
Antenna Connection (J300 on the ROR module).............................18
Diagnostic Connection (J4) ..............................................................18
Data Connector (J5).........................................................................19
DC Power Connector (J3).................................................................20
Jumper Block J1 (DC Power Configuration) .....................................21
2.8 Benchtop Power-Up & Configuration .............................................21
3.0 TECHNICAL REFERENCE.......................................................22
3.1 Transceiver Specifications ..............................................................22
3.2 dBm-Watts-Volts Conversion Chart ................................................24
4.0 GLOSSARY OF TERMS............................................................25
Copyright Notice
This Installation and Operation Guide and all software described herein
are
copyright: 2004 Microwave Data Systems Inc . All rights reserved.
Microwave Data Systems Inc. reserves its right to correct any errors and
omissions in this publication.
MDS 05-4132A01, Rev. A ROR Transceiver Module iii
RF Exposure
Antenna Installation Warnings
1. All antenna installation and servicing is to be performed by
qualified technical personnel only . When servicing the antenna, or
working at distances closer than those listed below,
transmitter has been disabled.
ensure the
Separation distances
required for FCC RF
Exposure compliance
2. Depending upon the application and the gain of the antenna, the
total composite power could exceed 90 watts EIRP. F or fixed/mobile
configuration, the distances in the table below must be followed.
Antenna Gain vs. Minimum Safety Distance
(Based on a 100% Duty Cycle, 0 dB Feedline Loss)
Fixed/Mobile Antenna Gain
0–5 dBi 5–10 dBi 10–16.5 dBi
Minimum RF
Safety Distance
0.58 meter 1.04 meters 2.19 meters
Portable OCU Applications
For portable applications only , a directly-connected antenna is allowed.
This antenna must have a 0 dBi gain, and must operate with a separation distance of at least 5 cm from all persons.
The Operator Control Unit (OCU) application uses a source-based,
time-averaging duty factor not exceeding 4.26%, and the maximum
time-averaged power output is 85 milliwatts or less. Reference FCC
rules 2.1093 for portable applications.
Enclosure Marking Requirements—FCC ID Label
When the ROR 220 module is to be used in portable/fixed/mobile applications, the outside of the OEM enclosure must be clearly marked with
a durable label stating “
Contains E5MDS-ROR220 ”.
ISO 9001 Registration
Microwave Data Systems adheres to this internationally accepted
quality system standard.
iv ROR Transceiver Module MDS 05-4132A01, Rev. A
MDS Quality Policy Statement
We, the employees of Microwave Data Systems Inc., are committed to
understanding and exceeding our customer’s needs and expectations.
• We appreciate our customer’s patronage. They are our business.
• We promise to serve them and anticipate their needs.
• We are committed to providing solutions that are cost effective,
innovative and reliable, with consistently high levels of quality.
• We are committed to the continuous improvement of all of our
systems and processes, to improve product quality and increase
customer satisfaction.
ESD Notice
To prevent malfunction or damage to this product, which may be caused
by Electrostatic Discharge (ESD), the radio should be properly
grounded at the time of installation. In addition, the installer or maintainer should follow proper ESD precautions, such as touching a bare
metal object to dissipate body charge, prior to touching components or
connecting/disconnecting cables.
Manual Revision and Accuracy
While every reasonable effort has been made to ensure the accuracy of
this manual, product improvements may result in minor differences
between the manual and the product shipped to you. If you have additional questions or need an exact specification for a product, please contact our Customer Service Team using the information at the back of this
guide. In addition, manual updates can often be found on the MDS Web
site at www.microwavedata.com.
FCC Modular Approval Notice
This device is offered as a Modular Transmitter in per FCC Part 90. It is
approved for use under the following conditions: (1) When this device
is placed inside an enclosure, the enclosure must be clearly marked with
a durable label stating “
(2) Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Contains E5MDS-ROR220 ”.
FCC Part 15 Notice
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
MDS 05-4132A01, Rev. A ROR Transceiver Module v
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
and correct the interference by one or more of the following measures:
• Reorient or locate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Industry Canada RSS-119 (Pending)
This Class B digital apparatus complies with Canadian RSS-119. Cet
appareil numérique de la classe B est conforme à la norme RSS-119 du
Canada.
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
vi ROR Transceiver Module MDS 05-4132A01, Rev. A
1.0 INTRODUCTION
This guide presents installation and operating instructions for the ROR
transceiver module. The unit is a compact, modular board intended for
integration inside customer-designed equipment.
The module (Figure 1) is a wireless data transceiver designed to operate
in an industrial environment. It employs two microprocessors—one for
Digital Signal Processing (DSP) control of the unit’s data port, and
another for control of modulation functions at the diagnostic port. The
module employs Gaussian-mean shift keying (GMSK) modulation.
These features provide highly reliable communications, even under
adverse conditions.
Invisible place holder
Preliminary
Figure 1. ROR Transceiver Module
(Module shown with shield cover removed)
1.1 Modem Speed versus Channel Bandwidth
The module is factory configured for an over-the-air data baud rate
(
BAUD
) of 9600 bps, Gaussian filtering (
(
BW
) of 12.5 kHz. This configuration may be verified by use of the
MODEM
user-controllable parameter.
command. These settings are independent of any other
BT=.3
), and a channel bandwidth
1.2 Frequency Coverage
The ROR module is designed for operation in the 217-222 MHz
frequency band. Any combination of transmitter and receiver operating
frequencies can be programmed, including a simplex (TX = RX) pair.
MDS 05-4132A01, Rev. A ROR Transceiver Module (Preliminary) 7
2.0 INSTALLATION DESIGN
The module is designed to be an integral part of another electronic
device or system. It must be provided with adequate and stable primary
power, a complementary data interface and a suitable antenna system.
An antenna is the only external device that is needed for operation.
The module has just two connectors—one for data/power, and another
for the antenna connection. Figure 2 shows the location of these
connectors.
The data/power connector (J500) is a 16-pin dual-row header connector
that mates with a Samtec TW Series, Part No. ASP 103812-01. This
matching connector is provided on the OEM Test/Evaluation board,
described later in this manual. Data signals and DC power are applied to
the module through this board or another device to which the radio is
attached.
The Antenna/RF Output connector (J300) is located at the lower right
side of the module, and is a female MCX-type coaxial connector. A
suitable RF load or antenna may be connected to this connector.
Preliminary
Invisible place holder
ANTENNA
CONNECTOR
(J300)
DATA & POWER CONNECTOR (J500)
Figure 2. Connections to the Transceiver Module
(Module shown with shield cover removed)
In its deliverable form, the module has all of its electronic circuitry
enclosed in RF shields to minimize interaction with nearby electronic
products. Careful selection and/or routing of the unit’s antenna feedline
line may be required to minimize RFI to other electronic devices
mounted near the module. The module can be set to produce either 0.5
watt, or 2 watts of RF output using a connected terminal (requires use of
PWR
command).
8 ROR Transceiver Module (Preliminary) MDS 05-4132A01, Rev. A
For optimal communication range and reliability, this unit must be
provided with a good antenna system. A secondary benefit to an
effective antenna system is the ability to run the system at the lowest
possible power level, minimize primary power consumption, and reduce
the chance for interference.
The data interface for the module supports TTL-type signaling. Use
only the required pins for the application.
pin functions in Table 5 on Page 17.
Refer to the complete list of
2.1 Antennas and Feedlines
Antennas
The module can be used with a variety of antennas, ranging from a
directly-connected flexible type, to a highly directional array. The exact
style depends on the physical size and layout of the radio system.
Suitable antennas are available from several manufacturers, including
Microwave Data Systems.
Preliminary
At master stations, omni-directional antennas (Figure 4) are typically
used to provide equal coverage to all remote sites in the network.
Invisible place holder
Figure 3. Typical Omni-directional Antenna for Master Stations
(Shown mounted to mast)
At remote sites, a directional Yagi (Figure 5) or corner reflector antenna
is generally recommended to minimize interference to and from other
users.
MDS 05-4132A01, Rev. A ROR Transceiver Module (Preliminary) 9
Loading...
