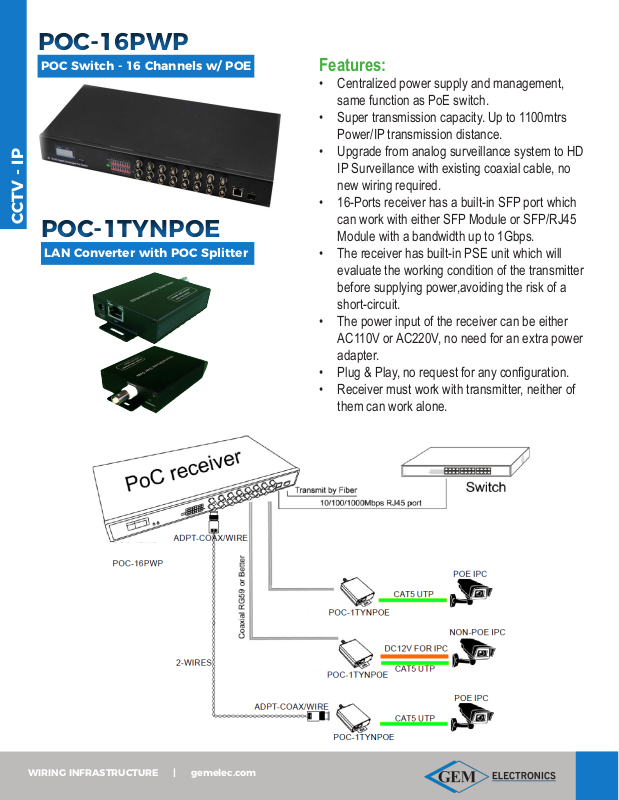

GEM POC-1TYNPOE Specsheet
POC-16PWPPOC-16PWP
POC Switch - 16 Channels w/ POE
POC-1TYNPOEPOC-1TYNPOE
CCTV - IP
LAN Converter with POC Splitter
Features:
• Centralized power supply and management,
same function as PoE switch.
• Super transmission capacity. Up to 1100mtrs
Power/IP transmission distance.
• Upgrade from analog surveillance system to HD
IP Surveillance with existing coaxial cable, no
new wiring required.
• 16-Ports receiver has a built-in SFP port which
can work with either SFP Module or SFP/RJ45
Module with a bandwidth up to 1Gbps.
• The receiver has built-in PSE unit which will
evaluate the working condition of the transmitter
before supplying power,avoiding the risk of a
short-circuit.
• The power input of the receiver can be either
AC110V or AC220V, no need for an extra power
adapter.
• Plug & Play, no request for any conguration.
• Receiver must work with transmitter, neither of
them can work alone.
WIRING INFRASTRUCTURE | gemelec.com
Overview:
This product is a coaxial based encoding/decoding product which can help you to build your fast Ethernet network over
coaxial or UTP easily. It can run IP over coax and any 2 wires and power POE and non POE cameras. This series have a
single port transmitter and 16 ports receiver.
PoC solution has the following advantages:
• Long transmitting distance - Power/IP transmission distance can be up to 1100mtrs.
• A wide variety of transmission media. New HD IP surveillance system can be built over an existing coaxial, UTP or
telephone line. All you have to do is have the old analog device replaced by the new IP one.
• Power & IP data simultaneously over coaxial, UTP or telephone line. Save on your wiring cost and the centralized
power supply will also save your maintenance cost.
With these advantages, it’s widely used in the project of upgrading from analog to HD IP surveillance or new long
distance IP surveillance project with centralized power supply which in turn saves time and labor cost.
CCTV - IP
www.gemelec.com | WIRING INFRASTRUCTURE
