Product Technical Information
July 14, 2020
Data shown is for the current revision model #. Ensure your nameplate model # matches.
Model Number:
5KS182XAE5420D
Catalog Number:
V854
Instruction Manual:
GEK-95351
Connection Diagram:
GEM2034E-FIG1
Outline Drawing:
4002B5818PNP5323
Accessory Connection Diagrams
Bearing Thermocouple:
None
Heater:
None
RTD:
None
Thermistor:
None
Thermostat:
None
Winding Thermocouple:
None
Bearing RTD:
None
Table of Contents
Specification
01
Performance Characteristics
02

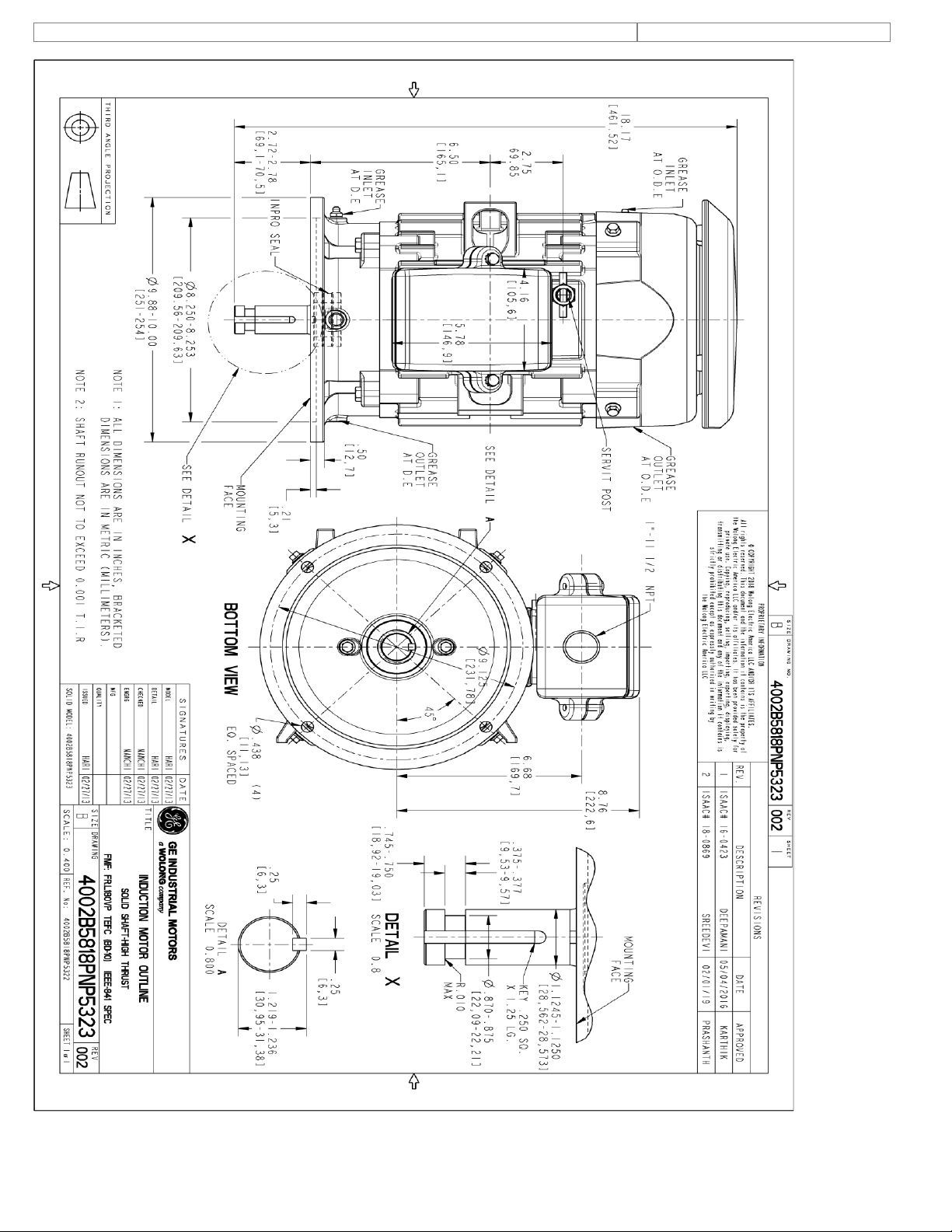

Outline Drawing
03
Connection Drawing(s)
04
Spare parts
05
Model Number:5KS182XAE5420D
July 14, 2020
Page | 1
Marks:
MODEL NUMBER:
5KS182XAE5420D
Estimated Weight:
76 Lbs
Outline Drawing:
4002B5818PNP5323
Time Rating:
CONT
Connection Diagram:
GEM2034E-FIG1
Enclosure:
TEFC
Instruction Book:
GEK-95351
Encl Construction:
841
Design Code:
18BD0104A
Ambient Max(°C):
40
Type:
KS
Alt Ambient Max(°C):
--
Frame:
L182VP10
Insulation Class:
H
Phases:
3
NEMA Design:
B
Poles:
2
Nominal Efficiency:
86.5 %
Output Power:
3HP 2.2KW
Guaranteed Efficiency:
84.0 %
RPM:
3530
3/4 Load Efficiency:
87.1 %
Voltage:
460
KVA Code:
K
Hertz:
60
Max KVAR:
1.1
Amps - FL:
4.0
Power Factor:
82.0
Service Factor:
1.15
Bearing - DE:
7307
Alt Service Factor:
--
Bearing - ODE:
6206-2ZC3
Enclosure is Totally Enclosed Fan-Cooled
Stamped Nameplate Notes:
VERTICAL-841
PREMIUM EFFICIENT MOTOR
DE BRG 35BT03XP3 ODE BRG 30BC02JP3
SEVERE DUTY
EXCEPTION TO IEEE-STD-841-2009:THRUST BRG ON DE
STAMP NP249A5564P075 AS BELOW:
MODEL:5KS182XAE5420D
SN: XXX CSA CERTIFIED CSA09.2216219
FOR CL 1 DIV2 GRP ABCD T3 IN -25C <= AMB <= 40C
1.0 SF ON SINE-WAVE PWR OR ALTERNATE RATING
TEMP CODE T3 AT 1.00SF ON SINE-WAVE PWR
OR T3 VT PWM CONTROL 1.0 SF 40C AMB VT 0-60 HZ
Model Number:5KS182XAE5420D
July 14, 2020
Page | 2
Additional Information:
2P - VP EXTN
C/BOX 55 CU IN-1.00 NPT
PAINTED FRAME ID & SHAFT,
FAN COVER INSIDE & ODE E/S OUTSIDE
ROUTINE AND 5 POINT VIBRATION TESTS INCL IN C/BOX
INPRO SEAL BOTH ENDS
BURNDY SERVIT POST ON FRAME
SHAFT RUNOUT LIMIT .001" TIR
RCF 5000 CPM, STATIC DEFLECTION .0014 INCHES &
CENTER OF GRAVITY 6.5 INCHES
SOLID SHAFT HIGH THRUST
COPPER WASHER UNDER HEADS OF BEARING CAP BOLTS
APPLY TITE-SEAL (A50CD427A) ON BEARING CAP SCREWS, RABBETS,
AND PLUG THREADS
OIL RESISTANT SLEEVING ON LEADS
BEARING LIFE 26280 HOURS AT 960 LB THRUST
Model Number:5KS182XAE5420D
July 14, 2020
Page | 3
Performance Characteristics
1st Winding 1st Connection
Design: 18BD0104A
Marks:
LOAD %
125.0
115.0
100.0
75.0
50.0
25.0
0.0
% EFF
87.03
87.29
87.68
87.06
84.8
76.61
0.00
% PF
84.04
83.25
85.06
76.32
65.97
45.64
12.9
AMPS
4.8
4.44
3.76
3.17
2.51
2.01
1.51
TORQ(FL)#FT
4.46
TORQ(LR)%FL
188.79
TORQ(BD)%FL
316.45
AMPS(LR)
24.67
PF AT START
0.4
This motor is capable of two cold or one hot start with a maximum connected load inertia of 38 Lb-Ft Sq (1.6 Kg-meter Sq)at
100% voltage, where the load torque varies with the square of the speed. Acceleration time with maximum inertia and the
above load type is 60 seconds. Safe stall time at 100% voltage is 117 seconds cold, 97 seconds hot. Rotor inertia is 0.12
Lb-Ft Sq (0.01 Kg-meter Sq).
Open Circuit A-C:
0.324
Short Circuit D-C:
0.01
Short Circuit A-C:
0.018 X/R Ratio:
3.957
Stator Slots:
36 Rotor Slots:
28
Model Number: 5KS182XAE5420D
July 14, 2020
Marks:
Model Number: 5KS182XAE5420D
July 14, 2020
Page | 5
Marks:
Connection Diagram
GEM2034E-FIG1
Model Number: 5KS182XAE5420D
July 14, 2020
Page | 6
End shield Assembly
Part Description
DE Side Part#
ODE Side Part#
End Shield
4004D5261PD1
4004D5281SR1
Bearing
235A2501AN01
235A2502AF01
Slinger/Inproseal
4002B5918CD1
4002B5914AG2
Fan & Fan Cover Assembly
Part Description
Part#
Fan
346L620AP-G01
Fan Cover
4003C5518BN-G01
Conduit & Accessories Box Assembly
Part Description
Part#
Conduit Box
4002B5721PA-G01
Mechanical Accessories
Part Description
Part#
Brake
Tachometer
