Easy set-up Induction Loop
LoopHEARTM101
English
1
CONTENTS
CONTENTS.............................................................. 2
INTRODUCTION ...................................................... 3
Unpacking the LoopHEAR
DESCRIPTION ......................................................... 5
INSTALLATION ....................................................... 7
Setting
Up ................................................................. 7
Locating the LoopHEAR
USING THE LoopHEAR
Turn the LoopHEAR
Turn the LoopHEAR
TM
TM
Using the Hand held HAC Receiver.......................... 12
Using the External Microphone................................. 13
Using the Audio input ............................................... 13
TROUBLESHOOTING ............................................. 14
SAFETY INFORMATION ......................................... 15
GUARANTEE........................................................... 16
RECYCLING DIRECTIVES...................................... 17
TM
..................................... 3
TM
........................................ 10
TM
....................................... 11
On......................................... 12
Off......................................... 12
2
INTRODUCTION
Congratulations on purchasing your GeemarcTM LoopHEARTM.
This is a portable induction loop system that can be used in a
variety of locations, both public and private.
This tough but light unit is easily transported and an integral
battery enables it to be freestanding. This battery is both
replaceable and rechargeable and long usage can be
expected (up to 24 hours). The loop is contained within the
unit hence there are no trailing wires. The LoopHEARTM will
cover an area of approximately 1m2 /3.3ft2. There is an integral
microphone that picks up speech and conversations. An
external microphone may be added if required (supplied).
This induction loop system is designed to assist hearing aid
users by transmitting direct to their telecoil equipped hearing
aid (which must be switched to the ‘T’ position).
Note: users of digital hearing aids must make sure their
aids have been programmed for use with the ‘T’ setting.
The outer carton has been specially designed as a handy
carrying case. It is recommended to retain this carrying case
to enable safe transportation when transporting the
LoopHEARTM.
Its is important that you read the instructions below in order to
use your GeemarcTM LoopHEARTM to its full potential. Keep
this user guide in a safe place for future reference.
3
INTRODUCTION
Unpacking the LoopHEAR
TM
When unpacking the LoopHEARTM, you should find the
following in the box:
• 1 LoopHEARTM
• 1 power adaptor/charging Unit. There are several
country specific power adaptor/charging units. The one
supplied is dependant on country of purchase.
Europe version – VDE type power adaptor with right
angled plug
International version – Universal type power adaptor
with detachable plugs suitable for UK, Europe and USA
Adaptor + Europe plug UK plug USA plug
• 2 base plate mounting screws and washer
• 1 HAND HELD HAC RECEIVER
• 1 external desktop microphone
• 1 user guide
4
DESCRIPTION
General Description
Front View
Rear View
Power ON , field strength and battery status LEDs
Magnetic field strength LED Indicator
See below
Fig A
5
Rear View (Fig A)
DC Power
DESCRIPTION
EXT mic jack
Headset/ Receiver jack
Headset Volume
ON/OFF switch
Base View
Audio IN jack
Removable Base Plate
6
INSTALLATION
Setting Up
Battery Charging
Remove the base plate from the unit as shown below:
See Fig. B for further
detail
Insert a screwdriver into the opening of the catch mechanism.
This is found on the bottom right of the base plate. Push the
catch gently with the screwdriver - this will release the base
plate. Lift the LoopHEARTM unit off the base plate.
7
INSTALLATION
Opening of the catch mechanism
Fig B
Remove the battery door. Insert the supplied rechargeable
battery, plug the connector into the socket and replace the
battery door.
8
INSTALLATION
Replace the base plate by placing the hook found on the bottom
left of the LoopHEARTM into the catch on the base plate. Press
the LoopHEARTM down gently until you hear a click.:
Hook
Catch
Plug the power cable into the power socket found on the rear of
the unit. Plug the adaptor into the mains supply and switch the
supply on.
Strain Relief
9
INSTALLATION
Please use the strain relief mechanism as displayed. This
provides extra protection for the cable at the connection point. It
will extend the life of the power cable and reinforce the
connection to the equipment.
The LoopHEARTM will need to charge for 4 hours before its first
use. The power indicator will blink red whilst the battery is
charging. When the power indicator is blinking green, the
battery is fully charged.
Locating the LoopHEARTM
In order to receive the optimal sound from the LoopHEARTM, the
ideal location is facing the user. There are two options when
locating the LoopHEARTM.
Fully Portable
The LoopHEARTM can be used as a fully portable unit with or
without the base plate attached. It can be used in a variety of
locations with no setup required and can be used immediately.
Semi Fixed
If you want to ensure the LoopHEARTM stays in one place then
it can be used as a semi fixed unit as follows:
1) Choose the location to fix the LoopHEARTM. Please bear in mind the
range of coverage available (see below). Ensure you make full use of it
2) Remove the base plate – as described in Battery Charging above
3) Screw the base plate to the table or desktop with the screws provided
4) Replace the base plate – as described in Battery Charging above
LH100
120°
10
0.8m
USING THE LoopHEARTM

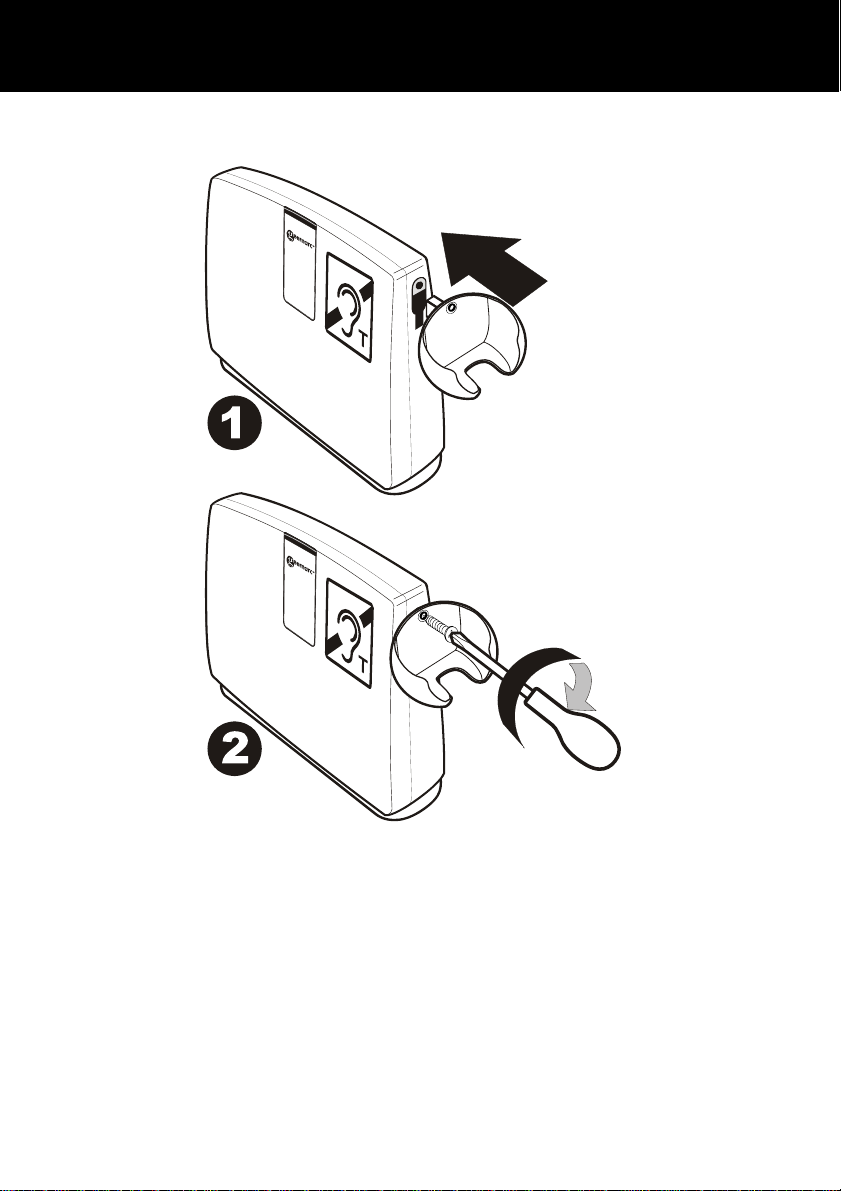

FIXING THE HAND HELD Listener HOLDER
The hand held listener holder can be attached to the
LoopHEARTM on the left hand side or the right hand side,
depending on where it would be convenient for use. In order to
fix the attache the reveiver holder:
1. Insert the lug at the side of the holder gently into the slot in
the cabinet.
2. Insert the screw provided with the holder into the hole of the
holder and into the hole in the side of the cabinet, and
tighten the screw fully using a screw driver.
The handheld receiver can now be placed in the holder.
11
USING THE LoopHEARTM
Turn the LoopHEAR
TM
On
Turn the power switch found at the rear of the unit to the I
position. The power indicator lights up (solid green if the power
adaptor is not plugged in, blinking green if it is plugged in).
When the battery is weak, the indicator will light up red (solid
red if the power adaptor is not plugged in, blinking red if it is
plugged in).
Plug in the power adaptor to recharge the battery.
Turn the LoopHEARTM Off
After use, turn off by setting the power switch at the back of the
unit to the 0 position.
Using the Hand held HAC Receiver
A Hand held HAC receiver is supplied for
hearing impaired users who do not use a
hearing aid, do not have a ‘T’ coil hearing aid
or wish extra privacty afforded by the Hand
Held Listener.
Simply, plug the Hand held Listener into the
jack (3.5mm), found at the rear of the
LoopHEARTM unit.
The user must press and hold the receiver
button to get the audio signal.
The volume can be adjusted by using the
volume knob also found at the rear of the unit
(turn knob clockwise to increase volume).
12
USING THE LoopHEARTM
Using the External Microphone
Plug the supplied desktop microphone into the MIC JACK at the
back of unit. The external microphone will now override the
built-in microphone. The magnetic field LED indicator will light
up bleu when you speak to the built-in microphone or external
microphone.
NOTE: When the External or Internal microphones are in use,
the Blue LED light flashes with an intensity depending on the
strength of the transmitted magnetic signal through the loop.
Using the Audio Input
The LoopHEARTM can transmit sound through the loop from an
external audio source like a TV set , MP3-4 , Computer.
Connect your audio equipment to the 3.5mm socket
(blue) on rear panel of your LoopHEARTM. You will
then hear the magnetic signal when you are within 1
meter of the LoopHEARTM with your hearing aid in
the “T” position.
13
TROUBLESHOOTING
The RED LED is flashing
• Charge the battery
The LoopHEARTM keeps on switching off
• Make sure that the batteries are fully charged
You cannot hear clearly due to interference or you cannot
hear at all
• .Make sure the LoopHEARTM is switched on and facing you
• .Move the LoopHEARTM closer to you
BATTERY USAGE:
To ensure that your LoopHEARTM is always ready for use
please follow the recommendations below:
• Always switch off when not in use
• Always recharge the batteries after continuous use for more
than 6 hours or when the red LED is ON
• Recharge the batteries every four months if the unit has
been switched OFF for long periods of time
As a rough guide the battery will allow the following usage
depending on the volume levels and ambient noise:
• STANDBY WHEN TURNED OFF 4 MONTHS
• STANDBY WHEN TURNED ON BUT NOT IN USE 2 DAYS
• IN CONTINUOUS USE 8 HOURS
FROM FULLY CHARGED BATTERY
14
SAFETY INFORMATION
General
Do not open the unit. Contact the helpline for all repairs.
Cleaning
Clean the LoopHEARTM with a soft cloth. Never use polish or
cleaning agents - they could damage the finish or the
electronics inside.
Environmental
Do not expose to direct sunlight.
Always ensure there is a free flow of air over the surfaces of the
LoopHEARTM
Do not place any part of your product in water and do not use it
in damp or humid conditions e.g. bathrooms.
Do not expose your product to fire or other hazardous
conditions.
15
GUARANTEE
GUARANTEE
From the moment your GeemarcTM product is purchased,
GeemarcTM guarantee it for the period of one year. During this
time, all repairs or replacements (at our discretion) are free of
charge. Should you experience a problem then contact our help
line or visit our website at www.geemarc.com. The guarantee
does not cover accidents, negligence or breakages to any parts.
The product must not be tampered with or taken apart by
anyone who is not an authorised GeemarcTM representative.
The GeemarcTM guarantee in no way limits your legal rights.
IMPORTANT: YOUR RECEIPT IS PART OF YOUR
GUARANTEE AND MUST BE RETAINED AND PRODUCED IN
THE EVENT OF A WARRANTY CLAIM.
DECLARATION: GeemarcTM Telecom SA hereby declares that
this product is in compliance with the essential requirements
and other relevant provisions of the Radio and
Telecommunications Terminal Equipment Directive 1999/5/EEC
and in particular article 3 section 1a, 1b and section 2.
The declaration of conformity may be consulted at
www.geemarc.com
Electrical connection: The apparatus is designed to operate
from a 230V 50Hz supply only. (Classified as ‘hazardous
voltage’ according to EN60950 standard).
Please note: The guarantee applies to
the United Kingdom only
16
RECYCLING DIRECTIVES
The WEEE (Waste Electrical and Electronic Equipment) has
been put in place for the products at the end of their useful life
are recycled in the best way.
When this product is finished with, please do not put it in your
domestic waste bin.
Please use one of the following disposal options:
- Remove the batteries and deposit them in an appropriate
WEEE skip. Deposit the product in an appropriate WEEE skip.
- Or, hand the old product to the retailer. If you purchase a new
one, they should accept it.
Thus if you respect these instructions you ensure human health
and environmental protection.
For product support and help visit our website at
www.geemarc.com
Telephone 01707 384438
Or fax 01707 832529
17
UGLoopHEAR101_En_V0.3
18
Loading...
