Geeetech Acrylic Prusa I3 Pro, Acrylic Prusa I3 Pro B, Acrylic Prusa I3 Pro C Assemble Instruction

Assemble Instruction of Geeetech Acrylic Prusa I3
Pro & pro B & pro C
1
Shenzhen GETECH CO.,LTD
Safety Instructions
Building the printer will require a certain amount of physical dexterity, common sense
and a thorough understanding of what you are doing. We have provided this detailed
instruction to help you assemble it easily.
However ultimately we cannot be responsible for your health and safety whilst
building or operating the printer, with that in mind be sure you are confident with
what you are doing prior to commencing with building or buying. Read the entire
manual to enable you to make an informed decision.
Building and operating involves electricity, so all necessary precautions should be
taken and adhered to, the printer runs on 12V supplied by a certified power supply, so
you shouldn’t ever have to get involved with anything over 12V but bear in mind
there can still be high currents involved and even at 12V they shouldn’t be taken
lightly.
High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end
can run about 230°C, the heated bed runs 110°C and the molten plastic extruded will
initially be at around 200°C, so special care and attention should be made when
handling these parts of the printer during operation.
We wouldn’t recommend leaving your printer running unattended, or at least until you
are confident to do so. We cannot be held responsible for any loss, damage, threat,
hurt or other negligent result from either building or using the printer.
2
Shenzhen GETECH CO.,LTD
Preparation
1. Unpack the kit and check if all parts are in the box and check the condition of each
part, there might be some damage during shipping. To help you with this, there is
BOM in the box and each bag was labeled with part number.
2. Contact our customer service immediately by email or through the website if you
find any missing or damaged parts. And on the bottom of the BOM, there is a
signature of reviewer, please take a picture of it and attach the picture in your mail.
3. Read through each chapter of these instructions to gain an over-all idea of what is
involved and how long it might take, before starting on the work described.
4. Before you start, you can put all the part in order to save your time especially those
screws and nuts. Do not mix them up.
5. Ensure you have the necessary skills to carry out the work, or enlist the help of
someone who does.
6. Work on a big firm table or bench in a clean dry well-lit area.
7. This kit contains tiny parts; please keep them away from kids under 3.
8. Ask for help if you run into any problems - our contact details are on the website
and we will always do our best to resolve any problems encountered.
1 Unfold the box and check the package
3
Shenzhen GETECH CO.,LTD
Unfold the package and take all the parts out to check the condition of the items. As
you can see, all the parts are packed very carefully.
All the acrylic plate has been etched with part ID and the plate is covered with
a sheet of Kraft paper, you need to tear them off.
4
Shenzhen GETECH CO.,LTD
Tips:
1. Before assembly, you are advised to put all the parts, especially the screws and nuts
5
Shenzhen GETECH CO.,LTD
in order, which will save you a lot of time looking for the required parts.
2. The part ID is corresponding to the number labeled on the bag of every part. Some
parts may not have label, you can refer to the pictures on the package list.
2 Assemble Y axis
2.1 Assemble the rods of a Y axis
Step1. Assemble the 2 threaded rods.
Pic
Part ID
Required number
Required parts
NO.5
2
M10 threaded rod
NO.A14
2
Y plate connecting
plate
NO.18
6
M10 spring washer
NO.9
8
M10 washer
6
Shenzhen GETECH CO.,LTD
NO.12
8
M10 nut
Thread the nuts and washers into the two M10 threaded rods separately. The order
should be:
1) Thread the acrylic fender (Y plate connecting plate) in the middle.
2) Thread the M10 washer > M8 spring washer >M10 nut > M10 nut > M10 washer
on the left
3) Thread theM10 washer < M8 spring washer < M10 nut < M10 nut< M8 spring
washer < M10 washer on the right
7
Shenzhen GETECH CO.,LTD
Step2. Assemble the 2 smooth rods
Pic
Part ID
Required number
Required parts
NO.3
2
M8 smooth rod
NO.39
4
LM8UU Linear
bearings
Slide 2 bearings on each smooth rod. Before you slide the bearings please make sure
they are clean.
8
Shenzhen GETECH CO.,LTD
1.2. Attach the front and rear Acrylic support plates of the rods.
9
Shenzhen GETECH CO.,LTD
Step1.Slide the locking ring on the smooth rods, thread the rods into the acrylic plate;
adjust the length so that the smooth rods fit snugly between the front and rear piece.
Step2. Screw up the rods and plate with M10 nut and M10 washer.
Pic
Part ID
Required number
Required parts
NO. A9,
A 10
2
Acrylic
plate( front)
NO. A 11, A122
Acrylic
plate( rear)
NO.9
4
M10 washer
NO.12
4
M10 nut
NO.19
2
Screw locking
ring
10
Shenzhen GETECH CO.,LTD
* Tips: Try to keep the rods parallel and the four acrylic pieces parallel. The Y-axis
must be a rectangle, that is the rods on both side should be parallel, so is the front and
back plate. Otherwise it will cause obstruction for the belt later. You can use a Digital
Caliper to measure.
*Note: As we re-designed the rear plate, there are two more holes on A12, in this
case, you need to use the screw locking ring to fix the rod.

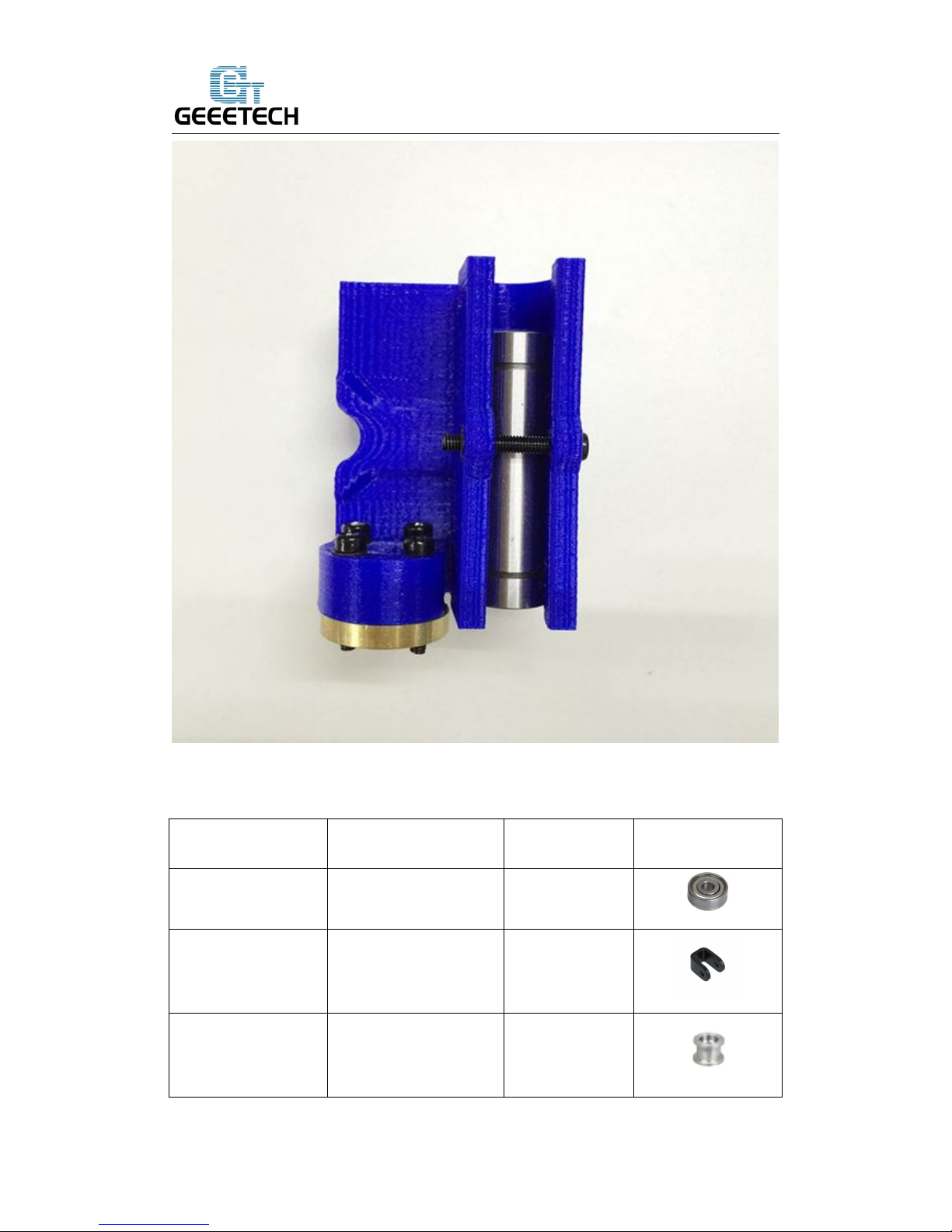

2.2 Assemble the Y idler
Pic
Part ID
Required number
Required parts
NO.38
2
Ball bearing
NO.66
1
bearing holder
11
Shenzhen GETECH CO.,LTD
No.37
1
Driven wheel
NO.27
1
M3 x 20 screw
NO.15
1
M3 wing nut
NO.34
1
M4 x25 screw
NO.14
1
M4 lock nut
Step1. Thread the M3 x 20mm screw through the bearing holder.
12
Shenzhen GETECH CO.,LTD
Step2. Insert the two MR84zz ball bearings into both ends of the driving wheel.
13
Shenzhen GETECH CO.,LTD
14
Shenzhen GETECH CO.,LTD
Step3. Put the M4 x25 screw and M4 washer through the driving wheel. Lock the
other end with a M4 lock nut. You may need a wrench to tighten locking nut.
15
Shenzhen GETECH CO.,LTD
16
Shenzhen GETECH CO.,LTD
*Do not screw it too tight, you should leave enough room for the wheel to turn freely.
Step4. Mount the assembled bearing holder onto the front support plates from inside
to outside. And screw it with a wing nut.
17
Shenzhen GETECH CO.,LTD
2.3 Mount the Y motor
Pic
Part ID
Required number
Required parts
NO. A13
1
Y motor fix plate
NO.75
1
Stepper motor
18
Shenzhen GETECH CO.,LTD
NO.431Pulley NO.25
3
M3 x 12 screw
NO.26
2
M3 x 16 screw
NO.16
2
M3 square nut
Step1. Mount the pulley on the motor shaft, one of the screws should be screwed on
the cross section of the shaft. Screw it as tight as possible.
Step2. Insert the motor block into the slot; you may need to use a little strength to do this, but be careful not to break or crack any of the Acrylic pieces. Then screw the motor on the block plate with 3 M3 x 12 screws and fix the block plate with 2 M3 x
19
Shenzhen GETECH CO.,LTD
16 screws and M3 square nut.
2.4 Build the printing platform
Pic
Part ID
Required number
Required parts
NO.A15
1
Y platform support
NO.A16
4
Y bearing block
NO.67
1
Belt mount
20
Shenzhen GETECH CO.,LTD
NO.54
4
Nylon tie
NO.24
2
M3 x 10 screw
NO.27
8
M3 x 20 screw
NO.11
8
M3 nut
Step1. Mount the belt mount on the bottom side of the platform with 2 M3 x 10
screws.
Step2. Mount the 4 bearing blocks on the platform with M3 x 20 screws on the same
side with the belt-mount. Screw with M3 nuts.
21
Shenzhen GETECH CO.,LTD
Step3. Get the build platform plate zip-tied to the 4 linear bearings of Y- Axis.
*The belt-mount and the fenders are under the platform.
22
Shenzhen GETECH CO.,LTD
2.5 Mount the Y –axis belt.
Pic
Part ID
Required number
Required parts
NO.41
1
Timing belt
NO.24
2
M3 x 10 screw
NO.7
2
M3 washer
Step1. Drill a hole on one end of the belt（the hole can be as the diameter of the M3
screw, leave enough margin
）
Step2. Fix the belt on one side of the belt -mount with a M3 x 10 screw and washer.
Step3. Thread the belt around the pulley on the motor and the Y idler.
Step4. Drill a hole on the other end of the belt and fix it on the belt -mount with a M3
23
Shenzhen GETECH CO.,LTD
x 10 screw and M3 washer.
*Tips:
1. before you drill your second hole, make sure to pull belt tightly to make sure to find
proper placement of hole for a tight belt, if it is too loose, it will hinder the move of t
he print platform.
2.6 mount the End stop of Y-axis
Pic
Part ID
Required number
Required parts
24
Shenzhen GETECH CO.,LTD
NO.441End stop
NO.22
2
M2.5 X 16 screw
NO.10
2
M2.5 Hex nut
Mount the end stop on the rear support plate of Y axis with M2.5 X 16 screw and
M2.5 Hex nut.
3 Assemble Y - Z axis
Pic
Part ID
Required number
Required parts
25
Shenzhen GETECH CO.,LTD
NO.A1
1
X-Z frame
NO.27
4
M3 x 20 screw
NO.114M3 nut
Step1. Held upright the main frame is after the acrylic fender washers on the threaded
rods. Here you can use the A2 panel as a reference to measure the distance A1 and
A12 (the rear plate).
Step2. Screw up the main frame to the acrylic fender with M3 x 20 screws.
26
Shenzhen GETECH CO.,LTD
Step3. Screw up the M10 screw on the threaded rod of Y-axis. You can see the
finished picture.
4 Mount the fan
Pic
Part ID
Required
Required parts
27
Shenzhen GETECH CO.,LTD
number
NO.701Fan NO.28
4
M3 x 30 screw
NO.13
4
M3 locknut
Fix the fan on the right side of the frame with 4 M3 x 30 screw and lock nut. Mind the
direction of the wires. (Please pay attention to the direction of the fan)
28
Shenzhen GETECH CO.,LTD
5 Assemble the right and left side panel
Pic
Part ID
Required
number
Required parts
NO.A2
1
Acrylic left frame
NO.A3
1
Acrylic right frame
