GEDORE 1000 Tool box User Manual

Page 1

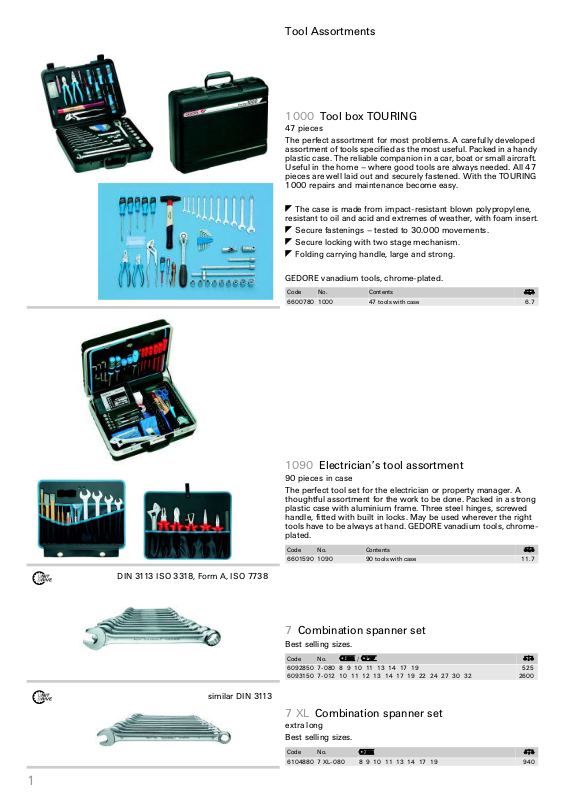

Tool Assortments

1000 Tool box TOURING

47 pieces The perfect assortment for most problems. A carefully developed

assortment of tools specified as the most useful. Packed in a handy plastic case. The reliable companion in a car, boat or small aircraft. Useful in the home – where good tools are always needed. All 47 pieces are well laid out and securely fastened. With the TOURING 1000 repairs and maintenance become easy.

T The case is made from impact-resistant blown polypropylene, resistant to oil and acid and extremes of weather, with foam insert.

T Secure fastenings – tested to 30.000 movements. T Secure locking with two stage mechanism. T Folding carrying handle, large and strong.

GEDORE vanadium tools, chrome-plated.

Code No. Contents 0

6600780 1000 47 tools with case 6.7

1090 Electrician’s tool assortment

90 pieces in case The perfect tool set for the electrician or property manager. A

thoughtful assortment for the work to be done. Packed in a strong plastic case with aluminium frame. Three steel hinges, screwed handle, fitted with built in locks. May be used wherever the right tools have to be always at hand. GEDORE vanadium tools, chromeplated.

Code No. Contents 0

6601590 1090 90 tools with case 11.7

D I N 3113 I S O 3318, Form A , I S O 773 8

7 Combination spanner set

Best selling sizes.

Code No. ! / " /

6092850 7-080 8 9 10 11 13 14 17 19 525 6093150 7-012 10 11 12 13 14 17 19 22 24 27 30 32 2600

simi l a r DI N 3113

7 XL Combination spanner set

extra long Best selling sizes.

Code No. ! /

6104880 7 XL-080 8 9 10 11 13 14 17 19 940

Page 2

7 R Open ended spanner with ring ratchet

For difficult screw connections. The open end is for loosening tightly-fitting bolts, the ring ratchet is for ratchet loosening and fast tightening. No more repositioning necessary - this is the modern way to tighten bolts. Fine toothed (72 teeth) and a very low constructional height make the 7 R range an indispensable aid in places where the normal ratchet is too large or clumsy. Astonishingly high torque transfer - the DIN requirements are exceeded. To use the spanner as bit ratchet the adapter 618 with 1/4" square drive can be separately ordered.

Code No. ! L mm a1a

6081300 7 R 8 8 140.0 6.6 4.0 16.7 16.8 30 6081490 7 R 9 9 150.0 6.9 4.8 18.3 18.4 40 6081570 7 R 10 10 160.0 7.3 4.6 19.7 20.3 43 6081650 7 R 11 11 165.5 7.7 5.0 21.3 22.3 55 6081730 7 R 12 12 172.0 8.2 5.3 22.2 24.6 63 6081810 7 R 13 13 177.0 8.7 5.7 24.6 26.3 73 6082030 7 R 14 14 191.0 9.1 6.2 26.8 28.6 92 6082110 7 R 15 15 200.0 9.4 6.6 28.7 31.1 108 6082380 7 R 16 16 208.5 10.0 6.6 29.5 32.6 119 6082460 7 R 17 17 225.0 10.3 6.8 31.3 34.6 147 6082540 7 R 18 18 236.5 10.7 7.6 32.8 36.9 171 6082620 7 R 19 19 248.0 11.2 8.1 33.9 39.3 193

b2/

60 CP Single open ended spanner

adjustable Swedish pattern, roller with left hand thread. Jaw set at 15 . GEDORE vanadium steel 31CrV3, mat. No. 1.2208, chrome-

plated, polished heads.

Code No. L mm ! " /

6380990 60 CP 6 155 20 25/32 150 6381020 60 CP 8 205 25 1 250 6381100 60 CP 10 255 30 1.3/16 450 6381290 60 CP 12 305 36 1.7/16 700

D I N 3117 Form A

6 Double open ended spanner set

Boxed in illustrated cartons. H = set in stable plastic holder.

Code No. ! /

6077380 6-8 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 750

6077890 6-120

6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 25x28 30x32

2150

KD 26 R Double ended socket wrench set

with tommy bars

Code No. Contents /

6218540 KD 26 R-8

6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 26 RS-1 -2 -3

1720

D I N 3110, ISO 3318 , I S O 10 85, ISO 10102

DIN 896 Form B, ISO 2236, ISO 1085

Page 3

c 1 3

similar DIN 3125, ISO 2725

33 T Socket wrench

with T-handle Blue T-handle, non-slip grained surface, with hole for hanging.

Head depth 25 mm. GEDORE vanadium steel 31CrV3, mat. No.

1.2208, chrome-plated.

Code No. ! L

1531301 33 T 5 5.0 227.5 195 8.0 160 6353320 33 T 5,5 5.5 227.5 195 8.0 95 6357580 33 T 6 6.0 227.5 195 9.0 100 6357660 33 T 7 7.0 227.5 195 11.0 120 6357740 33 T 8 8.0 227.5 195 12.0 130 6357820 33 T 9 9.0 227.5 195 13.0 150 6357900 33 T 10 10.0 227.5 195 14.0 160 6353400 33 T 11 11.0 269.0 230 16.0 180 6353590 33 T 12 12.0 269.0 230 17.0 185 6358040 33 T 13 13.0 269.0 230 18.0 200

d /

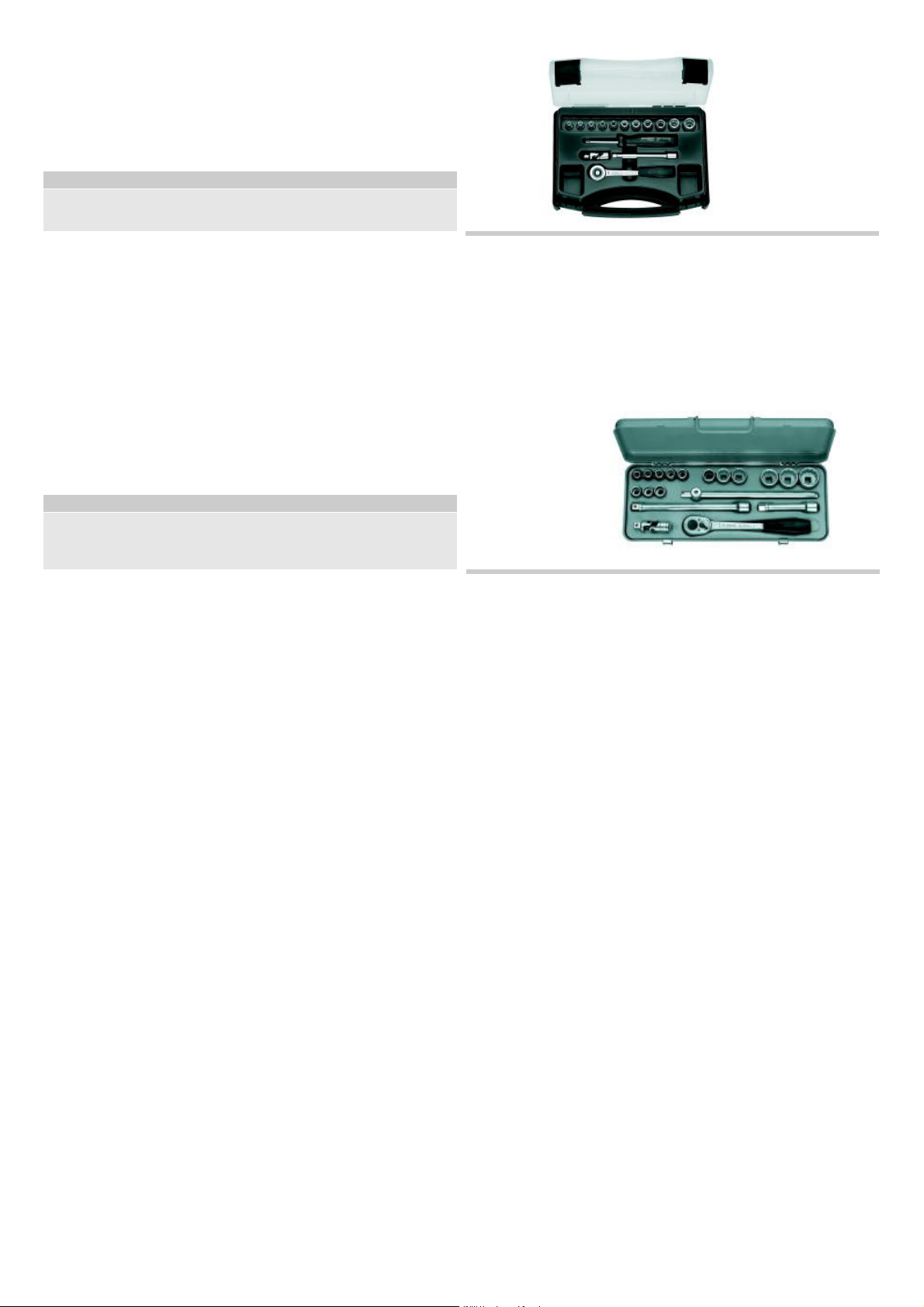

Socket Set 3/8"

With forged, tempered hexagon, bi-hexagon or UD profile sockets, hand-operated, and accessories made from GEDORE vanadium steel 31CrV3, mat. No. 1.2208. Supplied in GEDORIT blue sheet steel case.

# Set with fine toothed, dial change ratchet

D I N 3122, I S O 3315 - D I N 312 3 , I S O 3316

1993 U-20

30 G Socket set

17 pieces Dimensions: 318 x 118 x 37 mm

Code No. Ratchet Sockets Accessories 0

6235980 30 GMU-3 #

1 30 6 7 8 9 10 11 13 14 15 16 17 19 mm

+ 3087 ' 3090-5 -10 ) 3095

1.9

1993 U-20 Ratchet

1/2" s q u are d r ive For hand-operated sockets and accessories with square drive as

per DIN 3120 - C 12.5, ISO 1174 ball locking device. GEDORE vanadium steel 31CrV3, mat. No. 1.2208, chrome-plated.

A 6 Reversible ratchet with lever change, push button release, locks in

middle position, oval head, dual-material handle, non-slip, hanging hole.

Code No. Description L mm H mm /

1436686 1993 U-20 Reversible ratchet 1/2" 270 37.5 530

Page 4

Socket Set 1/2"

With forged, tempered hexagon, bi-hexagon or UD profile sockets, hand-operated, and accessories made from GEDORE vanadium steel 31CrV3, mat. No. 1.2208. Supplied in GEDORIT blue sheet steel case.

$T Set with reversible with lever change ratchet

19 E Socket set

21 pieces Dimensions: 433 x 180 x 148 mm

Code No. Ratchet Sockets Accessories 0

6630850 19 EMU-10 $T

1 19 8 9 10 11 12 13 14 15 16 17 19 22 24 27 30 32 mm

+ 1987 ' 1990-5 -10 ) 1995

5.1

IN 19 P Screwdriver bit socket

9 pieces For hexagon head screws (INBUS

case. Dimensions: 281 x 79 x 35 mm.

• = reg. trademark of Bauer & Schaurte

Code No. Contents / 6156250 IN 19 PM . IN 19 5 6 7 8 9 10 12 14 17 mm 820

•

), in GEDORIT blue sheet steel

d 1 3

d 5

ITX 19 TX Screwdriver bit socket

17 pieces For protruding and recessed TORX

sheet steel case. Dimensions: 318 x 118 x 37 mm.

• = reg. trademark of Camcar-Textron Inc. USA

Code No. Contents 0

6129520 ITX 19 TX-017

7 ITX 19 T20 T25 T27 T30 T40 T45 T50 T55 T60 9 TX 19 E10 E11 E12 E14 E16 E18 E20 E24

•

screws, in GEDORIT blue

d 7 9

2.0

Page 5

NORMWERKZEUG

1 Double ended ring spanner sets

VK = packed in environmentally-friendly carboard box.

Code No. ! /

7002310 1-8 VK 6x7 - 20x22 mm 1400 7009910 1-120 VK 6x7 - 30x32 mm 3500

14 R Double ended ring spanner with ratchet

Chrome-plated, for right and left hand operation by easy turning over the spanner. Especially suitable for barely-accessible places.

Code No. /

7026250 14 R 6x7 55 7026330 14 R 8x9 80 7026410 14 R 10x11 145 7026680 14 R 12x13 135 7026760 14 R 14x15 210 7026840 14 R 16x18 195 7026920 14 R 17x19 190 7027060 14 R 21x22 215

5 Double open ended spanner sets

VK = packed in environmentally-friendly carboard box.

Code No. ! /

7012620 5-8 VK 6x7 - 20x22 mm 700 7017340 5-120 VK 6x7 - 30x32 mm 2100

9 Combination spanner sets

VK = packed in environmentally-friendly carboard box.

Code No. ! /

7011650 9-080 VK 8 - 19 mm 600 7017420 9-012 VK 10 - 32 mm 2500

Page 6

22 EZ PROFI Socket set 1/4"

15 pieces With ratchet, hexagon sockets, chrome-vanadium steel 31CrV3,

chrome-plated. In impact-resistant plastic case, dimensions: 206 x 62 x 31 mm.

Code No. Ratchet Sockets Accessories /

7204450 22 EZ !

1 4 4.5 5 5.5 6 7 8 9 10 11 13 mm

' )

250

Socket Set 1/2"

With hot forged sockets and accessories. Chrome-vanadium steel 31CrV3, chrome-plated. In solid metal cases, silver-grey powdercoated.

No. 15 with hexagon sockets 1 U-2 = Dial change ratchet

15 F Socket set

19 pieces Dimensions: 430 x 180 x 50 mm

Code No. Ratchet Sockets Accessories 0

7075970 15 FU-2 1 U-2

10 11 12 13 14 15 16 17 19 22 24 27 30 32 mm

+ 1587 ' 1590-5 ' 1590-10 ) 1595

4.5

d 1 3

Page 7

b c d

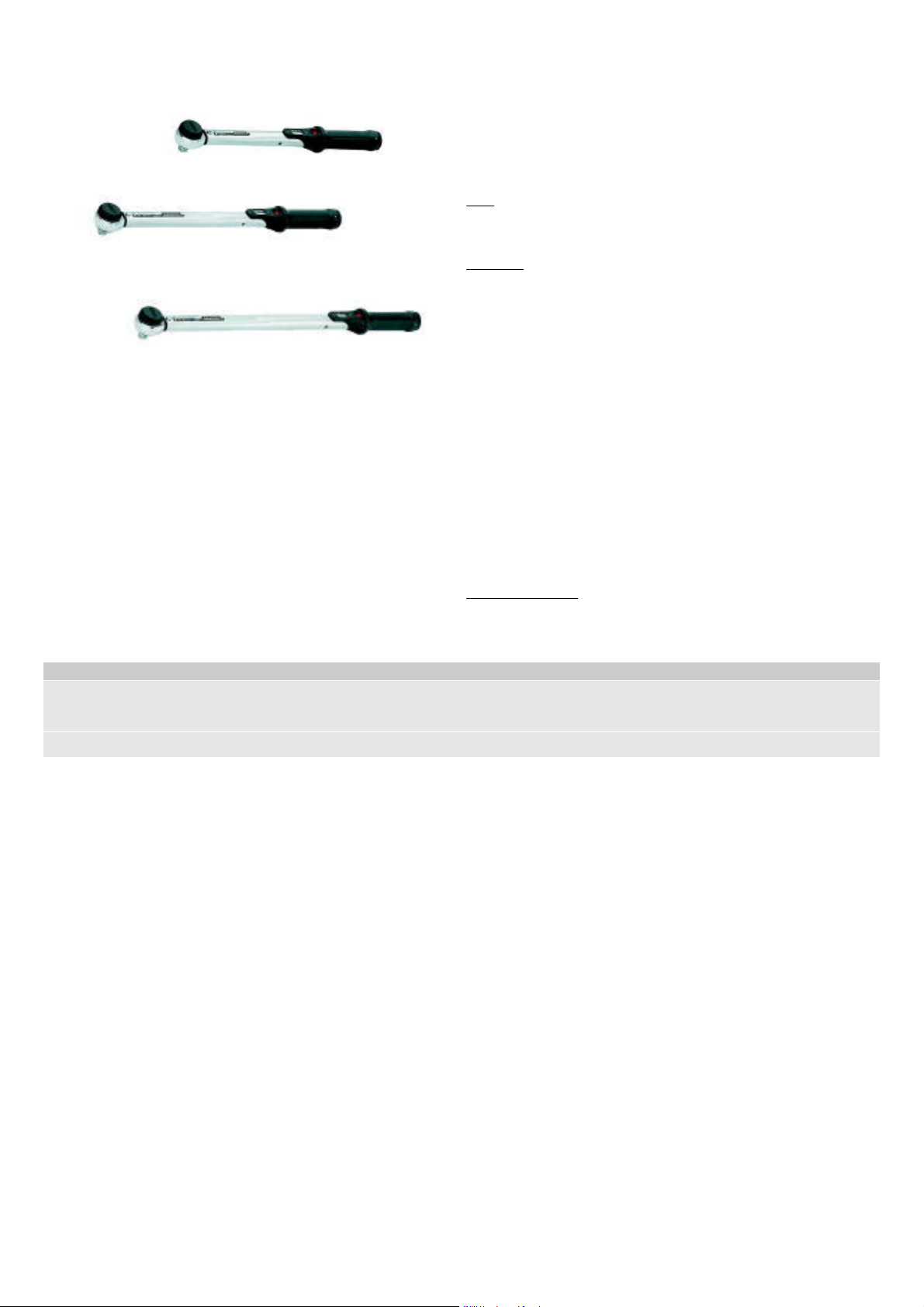

4549/4550 TORCOFIX K

1-300 N·m / 0.75-220 lbf·ft Use:

T Controlled screw tightening in the most widely used range of

1 - 300 N·m

T For use in all areas of industrial manufacturing Features:

T Adjustable torque wrench with a square drive and an integrated

ratchet-head function

T For controlled bi-directional tightening T 1/4", 3/8", 1/2" interchangeable mushroom head-square drive

with ball-locking mechanism as per DIN 3120 - A 6.3, A 10 or A 12.5, ISO 1174

T In accordance with DIN EN ISO 6789, traceable to national

norms

T Lever-breaking mechanism with a castor guarantee tactile-

impulse and audible actuation signals

T Actuation accuracy: +/- 3% tolerance of the scale set torque T Robust, silk-matt chrome-plated steel tube construction, with

chrome-plated ratchet head and glass-fibre-reinforced plastic parts

T Double scale N·m and lbf·ft below a window with a magnifying-

glass effect

T Additional micrometer scale with N·m graduation of

0.025; 0.1; 0.25; 0.5 or 1 N·m

T Ergonomically shaped convenient black plastic handgrip T With an indentation in the middle of the handgrip as a

calibration aid

Scope of delivery:

T Test certificate as per DIN EN ISO 6789 T Operating instructions T The individual wrench is delivered in a transparent plastic box

with a practical suspension mounting.

Code No. Drive N·m lbf·ft y r 4 9 / 1545124 4549-01 b 1-5 0,75-3,7 220 35 18 0,025 N·m 300

1545132 4549-02 b 2-25 1,5-18 285 35 18 0,1 N·m 450 1545140 4549-05 c 5-50 4-37 335 35 18 0,25 N·m 540 7601530 4550-10 d 10-100 8-75 395 44 22 0,5 N·m 900 7601610 4550-20 d 20-200 15-150 485 44 22 1 N·m 1100 7601880 4550-30 d 60-300 45-220 575 44 22 1 N·m 1400

Page 8

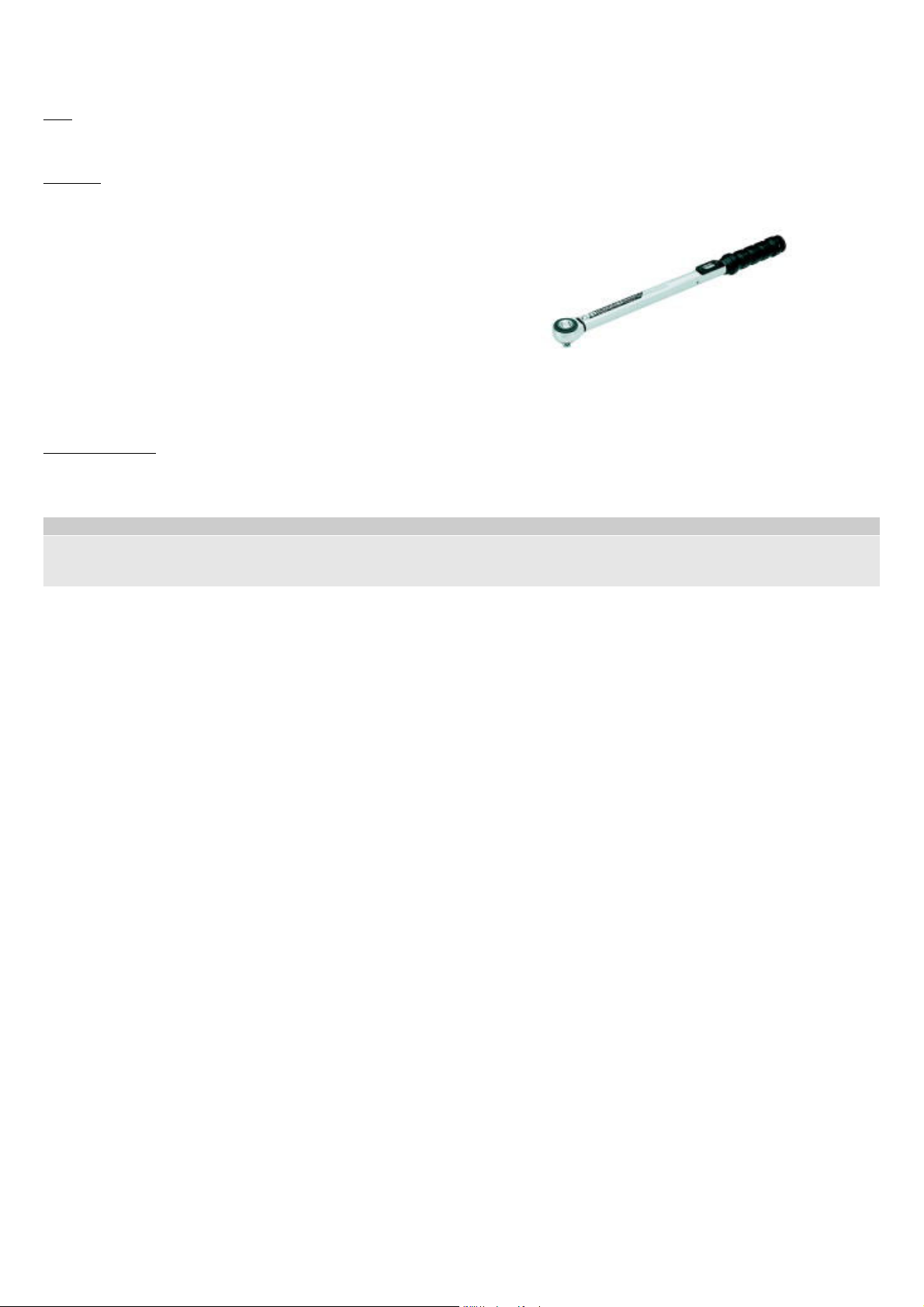

3550 TORCOFLEX K

8-300 N·m / 6-220 lbf·ft Use:

T Controlled screw tightening in the most widely used range

8 - 300 N·m

T For use in all areas of industrial manufacturing Features:

T Adjustable torque wrench with square drive and integrated

ratchet-head function

T For controlled bi-directional tightening T 3/8" or 1/2" push-through square drive with ball-locking

mechanism as per DIN 3120 - A 10 or A 12.5, ISO 1174

T In accordance with DIN EN ISO 6789, traceable to national

norms

T Lever-breaking mechanism with a castor guarantee tactile-

impulse and audible actuation signals

T Actuation accuracy: +/- 3% tolerance of the scale set torque T Robust, powder-coated steel tube construction with zinc-plated

ratchet head

T Double scale N·m and lbf·ft underneath a window with a

magnifying-glass effect

T N·m graduation of 2.5; 5 or 10 N·m T Black plastic handgrip with slip-resistant grained surface T 4 models in the range 8 - 300 N·m

Scope of delivery:

T Test certificate as per DIN EN ISO 6789 T Operating instructions T Delivered in transparent plastic box with a practical suspension

mounting

Code No. Drive N·m lbf·ft y r 4 9 / 1477978 3550-07 c 8-70 6-52 350 44 22 2,5 N·m 600

1379534 3550-10 d 10-100 8-75 395 44 22 5 N·m 1000 1379526 3550-20 d 20-200 15-150 485 44 22 10 N·m 1250 1379518 3550-30 d 60-300 45-220 575 44 22 10 N·m 1450

c d

Page 9

Y b

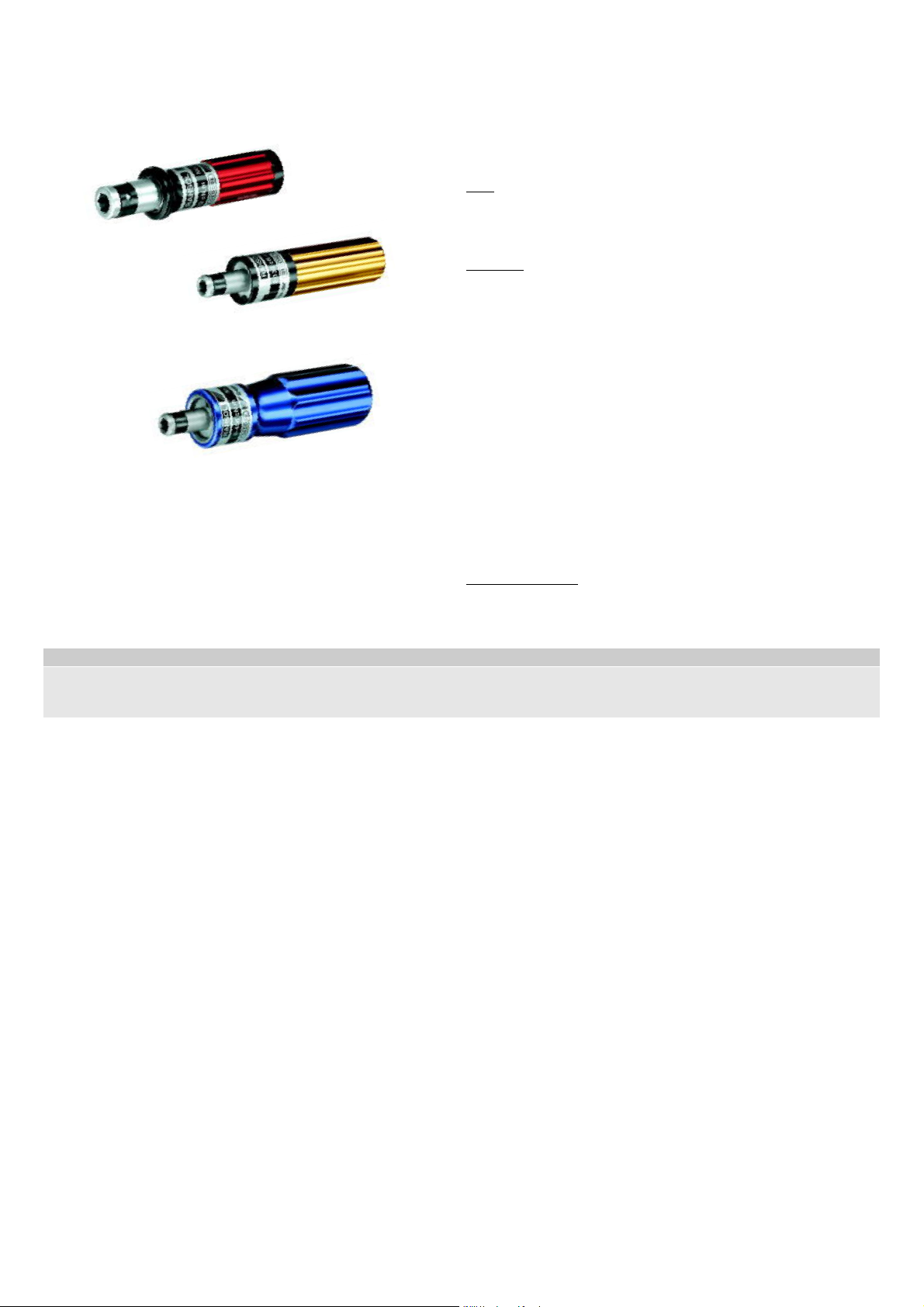

755 TORQUE SCREWDRIVER

Type FS Use:

T Controlled screw tightening in the range 0.02 - 13.6 N·m T Serial manufacture with constant tightening value T Electronic industry, precision mechanics and industrial

manufacturing

Features:

T Pre-set torque screwdriver without a scale T With 1/4" female hexagon spindle for use with 1/4" hexagon

bits as per DIN 3126 - C 6.3

T With adapter also suitable for 1/4" square drive sockets as per

DIN 3124

T Actuation accuracy: +/- 6% tolerance of the set torque T In accordance with DIN EN ISO 6789, traceable to national

norms

T Precision radial ball clutch and cam design for controlled bi-

directional tightening

T Precision mechanism slips very noticeably through when the set

torque is reached

T Automatic resetting to the starting position T Lightweight construction by virtue of anodised aluminium

handgrips

T ESD (electrostatic discharge) = electrostatically protected T The pre-setting can be made at the RAHSOL DREMOTEC

factory or by the user on suitable torque testers

T If ordering, please specify the N·m value - if a fixed factory

setting is desired (price on request)

Scope of delivery:

T 1/4" square/hexagon drive adaptor (no. 757-20) T Operating instructions T Test certificate as per DIN EN ISO 6789 T Delivered in sturdy cardboard packaging

Code No. Drive cN·m N·m y Handgrip colour / 1471481 755-01 Y+ b 2-22 76 red 50

1471473 755-02 Y+ b 0,5-22 104 golden 72 1471465 755-03 Y+ b 2-135 111 blue 210 1471457 755-04 Y+ b 6-406 127 green 280

Page 10

j S

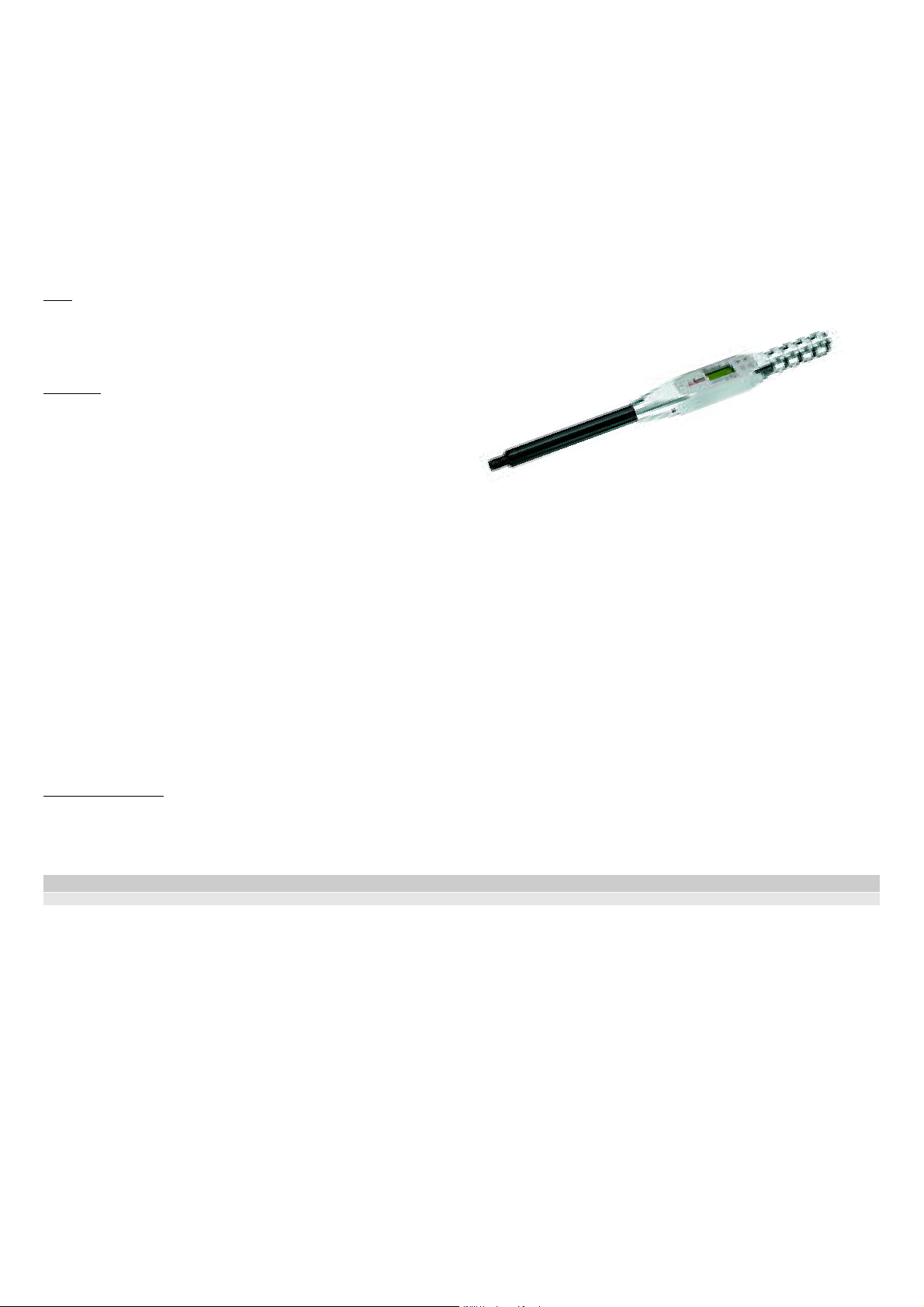

8441-030 E-TORC 30-300 N·m / 22-220 lbf·ft

Electronic Torque Wrench Use:

T For very high standards of torque control and documentation T In quality control and in the test laboratory T Alternate-Tool for screwing workstations / remanchining

workstations

T For use in all areas of industrial manufacturing Features:

T Adjustable, microprocessor-controlled, electronic torque

wrench with CE symbol

T Working range 30 - 300 N·m T With 16 mm spigot end T Visual, acoustic and sensorial signal when the set torque is

achieved

T With a bi-directional RS 232 serial interface for PC / printer or

PLC control (programmable-logic control)

T In accordance with DIN EN ISO 6789, traceable to national

norms

T Robust aluminium housing with carbon tube T Housing can be rotated by 120 T Broad measurement range in N·m, can be switched to lbf·ft/lbf·in T High measurement accuracy: +/- 1% tolerance for all read-off

values, +/- 1 digit

T Baud rate variable to 300 - 9600 baud T Simple to operate T Battery or rechargeable-battery operation – with corresponding

status display

T Automatic calibration at the push of a button and immediately

following standby mode

T Complete documentation of the measured data (date, time,

measurement values ...)

T Storage function for up to 2000 measurement values T Power-transmission length-dependence is compensated T Various specifications - optionally on request (e.g. earphone)

Scope of delivery:

T Operating instructions T Test certificate as per DIN EN ISO 6789 T Delivered in a robust sheet-metal case with practical accessory

module inlays

T Detailed technical information is available on request

Code No. Drive N·m lbf·ft y 0 1545248 8441-030 ¡ 30-300 22-220 555 1.1

Page 11

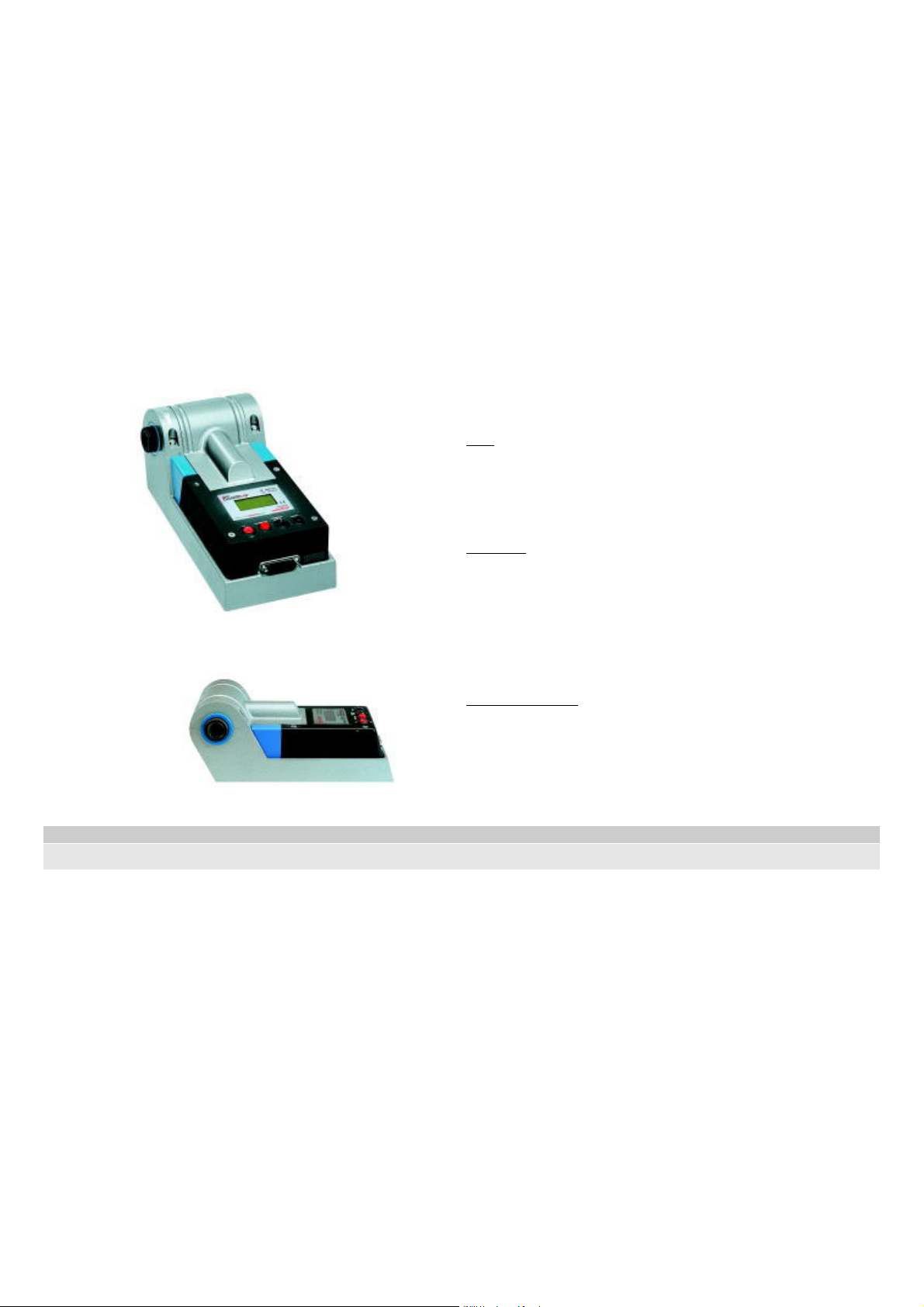

Electronic Torque Testers

8612 DREMOTEST-TRONIC

DREMOTEST-TRONIC – the electronic torque tester series for fulfilling DIN ISO 9001:9002. This is a consistent product comprising well-proven mechanics and leading-edge electronics. Test, read, print out. Indispensable for every DIN-norm-compliant verification of clockwise torque wrenches in the range 2-1000 N·m. For demonstrating safety and precision. All models are distinguished by their extremely wide measuring ranges, high operating convenience, high precision and their robust casing. DREMOTEST-TRONIC torque tester are optimally suited for internal use in car and industrial-vehicle garages/workshops, in all sectors of industry and by calibration services.

U S T

8612 DR/PC DREMOTEST-TRONIC DR/PC

2-1000 N·m / 1.48-738 lbf·ft Electronic Torque Tester

Use: T For testing, verifying and setting clockwise torque wrenches as

per DIN EN ISO 6789

T Suitable for creating your own test certificates and for test-

resource management (optimally in combination with our testresource-management software PMV 2000, no. 8612-900 CD and testing device no. 8612-830)

Inclusion: T Electronic torque tester with integrated torque transducer and

CE symbol

T Integrated V 24/RS232 serial interface for PC/printer T Traceable to national norms with quality test certificate T All models have a 3/4" input square drive T With 3/8" and 1/2" square drive adaptor T High measuring accuracy: +/- 1% tolerance for all value

readings, +/- 1 digit

T Broad measuring range in N·m, can be switched to lbf·ft. Scope of delivery:

T Connecting cable for printer or PC (no. 8612-090) T Power supply unit with plug and Euro-adaptor T Adaptor: 3/8" - 1/2" square drive adaptor T Operating instructions (9-language) with detailed remarks on

handling

T Test certificate (traceable to national norms) T The standard and mail-consignment packaging is an extremely

sturdy plastic box

Code No. Drive N·m lbf·ft Adaptor Q 0 7718640 8612-005 U 10-500 7,4-369 3/8", 1/2" 9.0

7718720 8612-010 U 20-1000 14,8-738 3/8", 1/2" 9.0

Page 12

Group 08 - HABERO

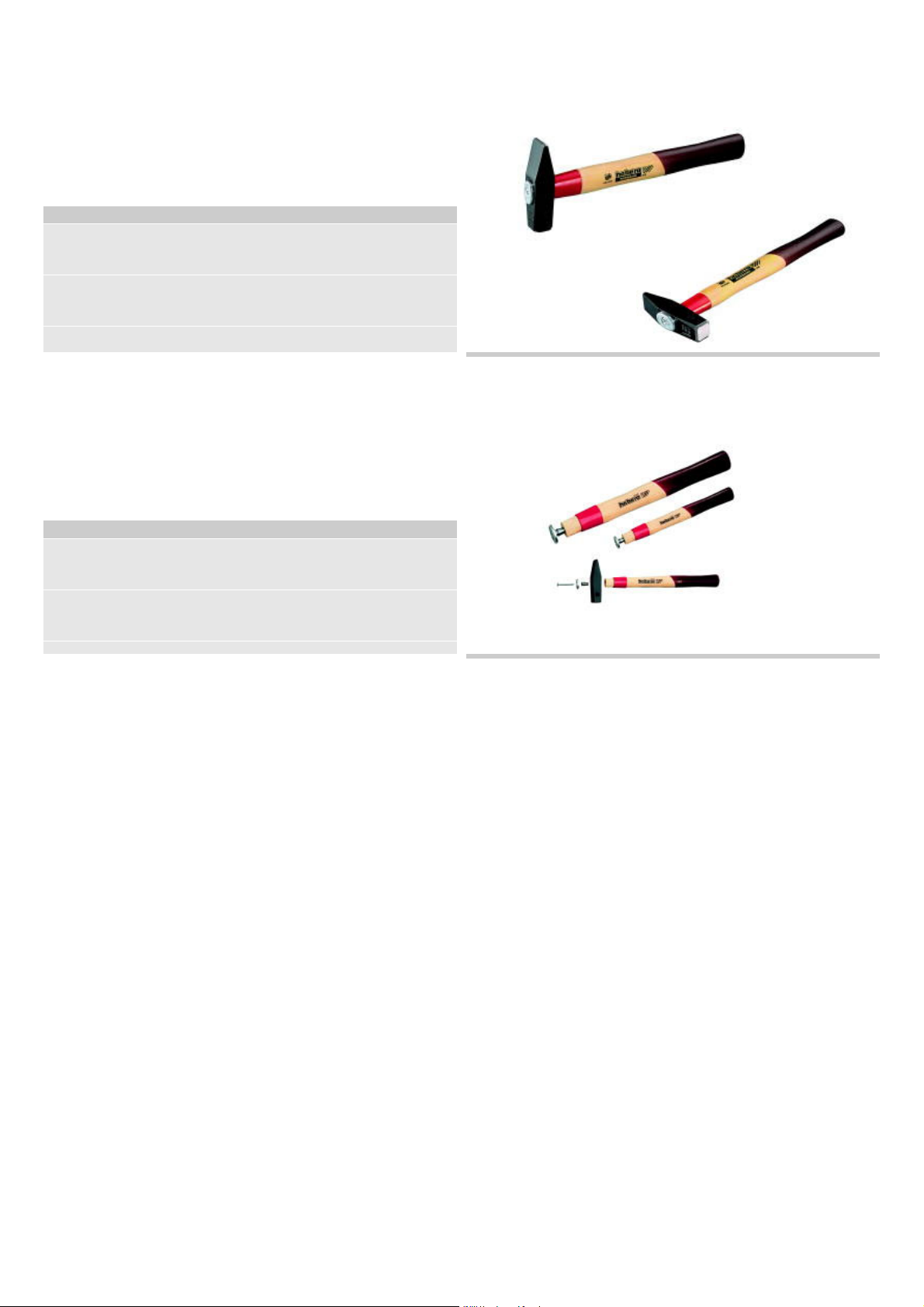

600 E-H Engineers’ hammer ROTBAND-PLUS

Forged hammer head DIN 1041 made from high-quality special steel, black epoxy powder-coated. With contoured ash or hickory handle DIN 5111 additionally shaped with a long and hardened steel sleeve. The tapered collar, fixing plate and wood screw bond the hammer head and the handle into one unit. DBGM.G 9414 1878 (German utility paten), European-Patent-No. 0703045.

Code No. L mm / Z /[ PU

8581610 600 E-100 260 100 170 6 8581880 600 E-200 280 200 275 6 8581960 600 E-300 300 300 425 6 8582180 600 E-400 310 400 510 6 8582260 600 E-500 320 500 615 6 8582340 600 E-600 330 600 765 6 8582420 600 E-800 350 800 1000 6 8582500 600 E-1000 360 1000 1215 6 8582690 600 E-1500 380 1500 1750 6 8582770 600 E-2000 400 2000 2375 6

E 600 Spare handle ROTBAND-PLUS

Ash or hickory, with hardened steel sleeve, tapered collar, fixing plate and wood screw. With this standard wooden handle, according to DIN 5111, it is possible to convert even ordinary hammer heads, as long as they are to DIN standards, to a ROTBAND-PLUS-hammer.

Method: Hammer the handle into the hammer head until it reaches the casing. Drive the tapered collar into the centre of the handle. Fasten the safety plate with a wood screw.

Code No. L mm / PU

8589190 E 600 E-200 280 55 10 8589270 E 600 E-300 300 110 10 8589350 E 600 E-400 310 120 10 8589430 E 600 E-500 320 125 10 8589510 E 600 E 600 330 130 10 8589780 E 600 E-800 350 170 10 8589860 E 600 E-1000 360 235 10 8589940 E 600 E-1500 380 255 10 8593700 E 600 E-2000 400 345 10

D I N 1041

D I N 5111

Page 13

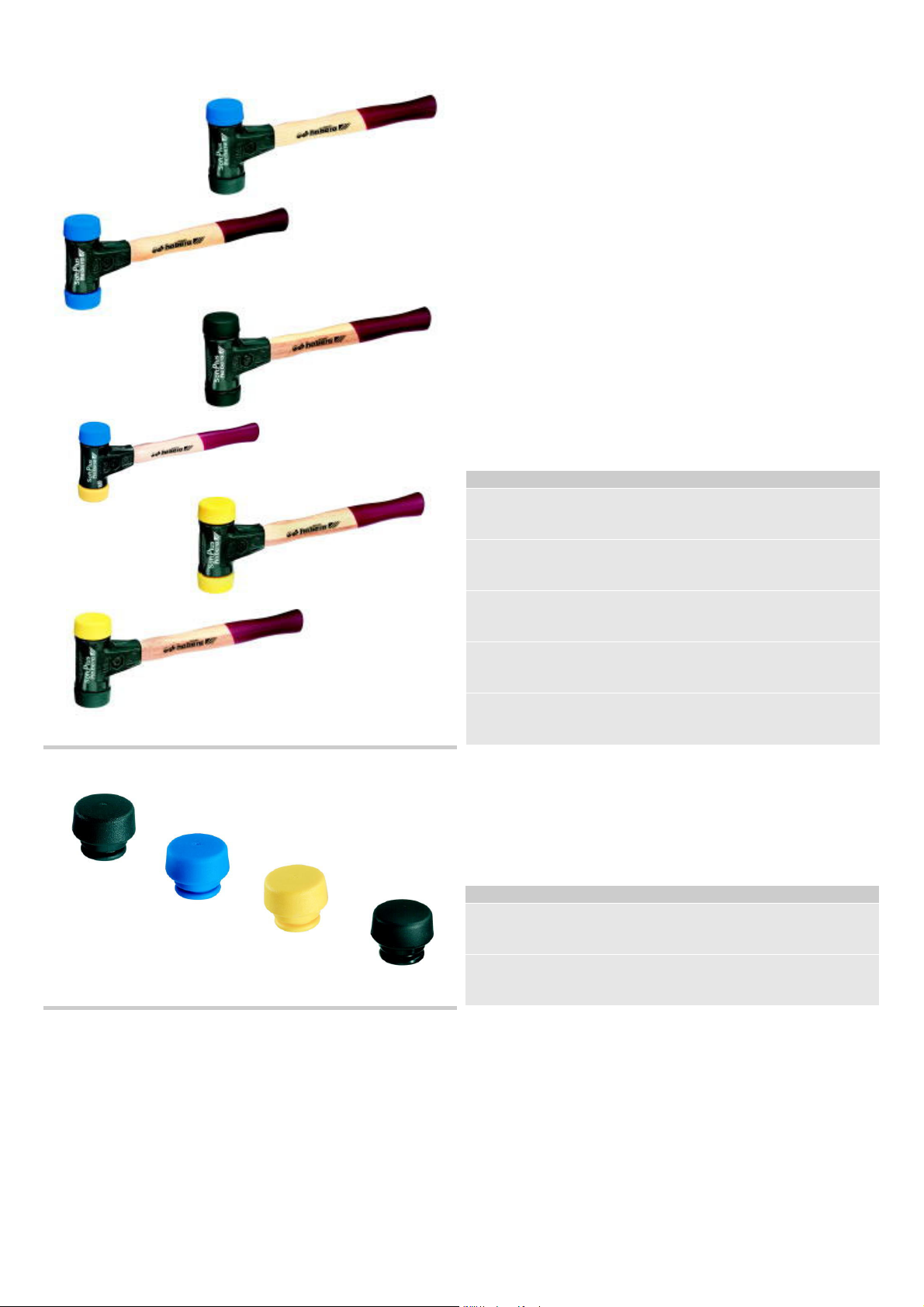

250 SOFT-PLUS

Safety hammer with maleable cast iron shells

Interchangeable heads and hickory handle. Slots in the head and grooves in the shells provide an absolute safe connection. The screw is guided through the handle and connected with a selflocking nut. This provides highest safety.

Blue (R) = soft 20 Shore D Material: Elastomer For sensitive work pieces, light metal production, furniture industry, assembly works, etc.

Black (S) = medium sofst 45 Shore D Material: Caoutchouc For sturdy applications, pavement craft, etc.

Yellow (G) = medium hard 63 Shore D Material: Polyurethane For universal applications, tooling and machine industry, automotive workshops, sheet metal work, etc.

Anthracite (A) = hard 70 Shore D Material: Polyurethane For high striking power, road building, etc

250 Safety hammer SOFT-PLUS

Code No. V L mm , / PU

1445820 250 AA-30 87 290 30 330 6 1445839 250 AA-40 110 325 40 650 6 1446010 250 AB-30 87 290 30 330 6 1446029 250 AB-40 110 325 40 650 6 1445936 250 AG-30 87 290 30 330 6 1445960 250 AG-40 110 325 40 650 6 1446088 250 AS-30 87 290 30 330 6 1446118 250 AS-40 110 325 40 650 6 1445790 250 BB-30 87 290 30 330 6 1445804 250 BB-40 110 325 40 650 6 1445898 250 BG-30 87 290 30 330 6 1445901 250 BG-40 110 325 40 650 6 1446045 250 BS-30 87 290 30 330 6 1446053 250 BS-40 110 325 40 650 6 1445766 250 GG-30 87 290 30 330 6 1445774 250 GG-40 110 325 40 650 6 1445987 250 GS-30 87 290 30 330 6 1445995 250 GS-40 110 325 40 650 6 1445855 250 SS-30 87 290 30 330 6 1445863 250 SS-40 110 325 40 650 6

E 250 Spare head SOFT-PLUS

For safety hammer 250. Cadmium free, splinter-proof, shatterproof, wear-resistant, colour fast.

Code No. , / PU

1445200 E 250 A-30 30 20 1 1445219 E 250 A-40 40 45 1 1445111 E 250 B-30 30 20 1 1445154 E 250 B-40 40 45 1 1445170 E 250 G-30 30 20 1 1445189 E 250 G-40 40 45 1 1445235 E 250 S-30 30 20 1 1445243 E 250 S-40 40 45 1

Page 14

Group 09 - BALDUR

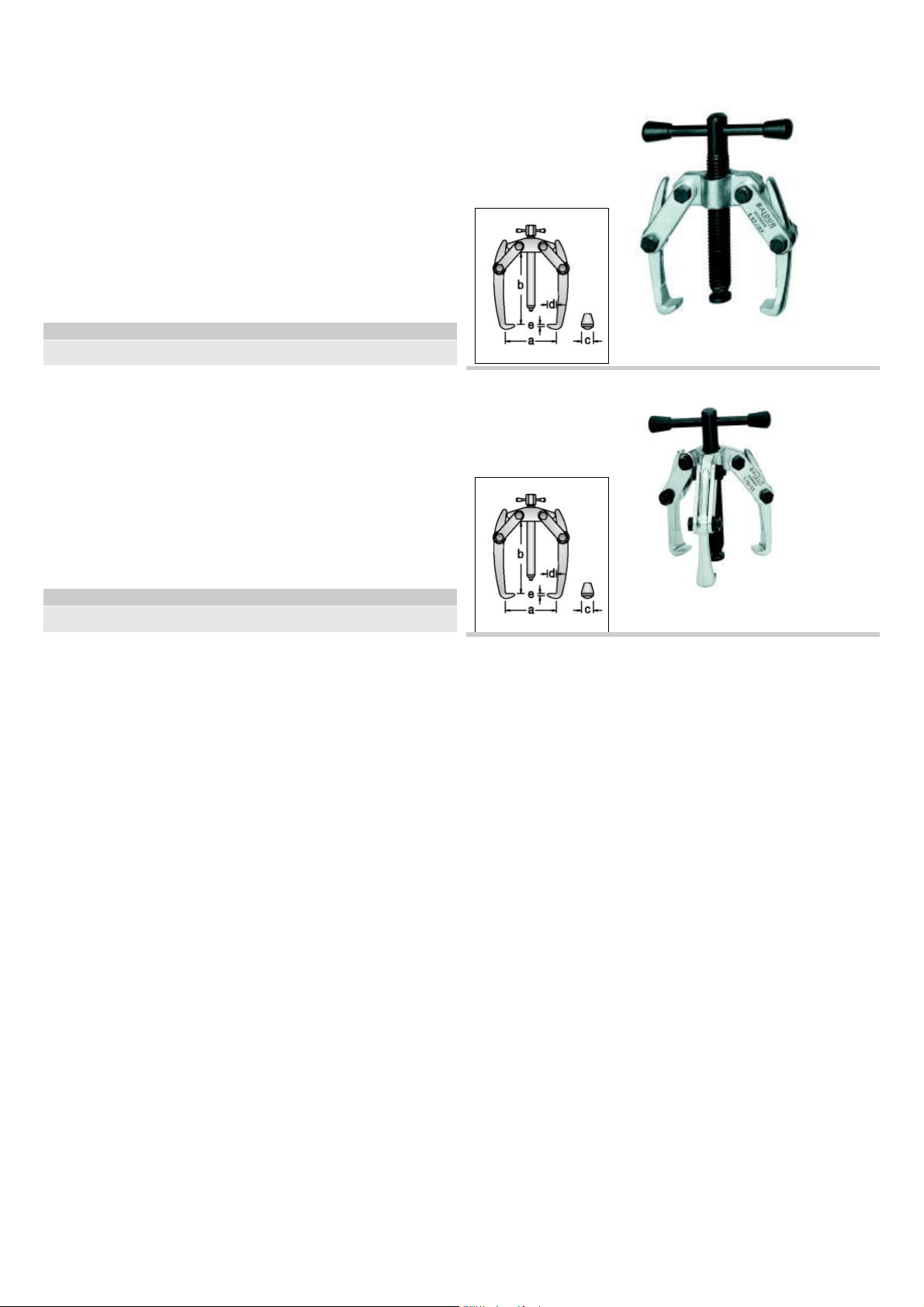

1.12 Battery-terminal puller

2-arm pattern The perfect tool for removing small parts such as battery terminals,

pulleys, wheels, ball bearings, etc. The hook tips grip automatically.

Code No. a

8003840 1.12/02 60 40 M 10x1,5 x 60 10 5 2 0.5 120 8003760 1.12/01 60 60 M 10x1,5 x 80 10 5 2 0.5 160

b A c d e max. t /

max

1.13 Battery-terminal puller

3-arm pattern The perfect tool for removing small parts such as battery terminals,

pulleys, wheels, ball bearings, etc. The hook tips grip automatically.

Code No. a

8004650 1.13/02 60 40 M 10x1,5 x 60 10 5 2 0.75 150 8004570 1.13/01 60 60 M 10x1,5 x 80 10 5 2 0.75 200

b A c d e max. t /

max
