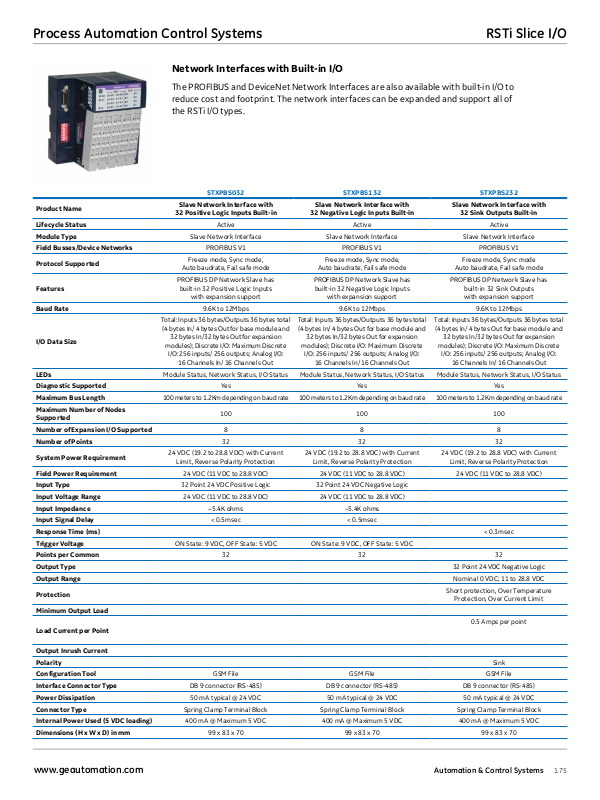

Process Automation Control Systems
RSTi Slice I/O
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXPBS032 STXPBS132 STXPBS232
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks PROFIBUS V1 PROFIBUS V1 PROFIBUS V1
Protocol Supported
Features
Baud Rate 9.6K to 12Mbps 9.6K to 12Mbps 9.6K to 12Mbps
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 8 8 8
Number of Points 32 32 32
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 32 Point 24 VDC Positive Logic 32 Point 24 VDC Negative Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec
Response Time (ms) < 0.3msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC
Points per Common 32 32 32
Output Type 32 Point 24 VDC Negative Logic
Output Range Nominal 0 VDC; 11 to 28.8 VDC
Protection
Minimum Output Load
Load Current per Point
Slave Network Interface with
32 Positive Logic Inputs Built-in
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
PROFIBUS DP Network Slave has
built-in 32 Positive Logic Inputs
with expansion support
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module and
32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
100 100 100
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Slave Network Interface with
32 Negative Logic Inputs Built-in
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
PROFIBUS DP Network Slave has
built-in 32 Negative Logic Inputs
with expansion support
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module and
32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Slave Network Interface with
32 Sink Outputs Built-in
Freeze mode, Sync mode
Auto baudrate, Fail safe mode
PROFIBUS DP Network Slave has
built-in 32 Sink Outputs
with expansion support
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module and
32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
0.5 Amps per point
Output Inrush Current
Polarity Sink
Configuration Tool GSM File GSM File GSM File
Interface Connector Type DB 9 connector (RS-485) DB 9 connector (RS-485) DB 9 connector (RS-485)
Power Dissipation 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used (5 VDC loading) 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70 99 x 83 x 70
www.geautomation.com
Automation & Control Systems
1.75
RSTi Slice I/O
Process Automation Control Systems
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXPBS332 STXPBS016 STXPBS116
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks PROFIBUS V1 PROFIBUS V1 PROFIBUS V1
Protocol Supported
Features
Baud Rate 9.6K to 12Mbps 9.6K to 12Mbps 9.6K to 12Mbps
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 8 8 8
Number of Points 32 16 16
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type
Input Voltage Range
Input Impedance
Input Signal Delay
Response Time (ms) < 0.3msec 10msec 10msec
Trigger Voltage
Points per Common 32 4 1
Output Type 32 Point 24 VDC Positive Logic 16 Point Relay 16 Isolated Relay
Output Range Nominal 24 VDC; 11 to 28.8 VDC 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC
Protection
Minimum Output Load 100 micro Amps, 100 millivolts VDC per point 100 micro Amps, 100 millivolts VDC per point
Load Current per Point 0.5 Amps per point
Output Inrush Current
Polarity Source
Configuration Tool GSM File GSM File GSM File
Interface Connector Type DB 9 connector (RS-485) DB 9 connector (RS-485) DB 9 connector (RS-485)
Power Dissipation 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used (5 VDC loading) 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70 99 x 83 x 70
Slave Network Interface with
32 Source Outputs Built-in
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
PROFIBUS DP Network Slave has
built-in 32 Source Outputs
with expansion support
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
100 100 100
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Slave Network Interface with
16 Relay Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
PROFIBUS DP Network Slave has
built-in 16 Relay Outputs
with expansion support
Total: Inputs 32bytes/Outputs 32bytes;
Discrete I/O: 256 inputs/ 256 outputs;
Analog I/O: 16 Channels In/
16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at
48 VDC, 0.5 Amps at 110 VDC,
2 Amps at 250 VAC
Slave Network Interface with
16 Isolated Relay Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
PROFIBUS DP Network Slave has
built-in 16 Isolated Relay Outputs
with expansion support
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at
48 VDC, 0.5 Amps at 110 VDC,
2 Amps at 250 VAC
Automation & Control Systems
1.76
www.geautomation.com
Process Automation Control Systems
RSTi Slice I/O
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXPBS432 STXPBS532 STXPBS824
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks PROFIBUS V1 PROFIBUS V1 PROFIBUS V1
Protocol Supported
Features
Baud Rate 9.6K to 12Mbps 9.6K to 12Mbps 9.6K to 12Mbps
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 8 8 8
Number of Points 16 In/16 Out 16 In/16 Out 16 In/16 Out
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic 16 Point 24 VDC Positive Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec < 0.5msec
Response Time (ms) < 0.3msec < 0.3msec 10msec
Trigger Voltage ON State: 9 VDC OFF State: 5 VDC ON State: 9 VDC OFF State: 5 VDC ON State: 9 VDC OFF State: 5 VDC
Points per Common 32 32 16 for Inputs and 4 for Outputs
Output Type 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic 16 Point Relay
Output Range Nominal 24 VDC; 11 to 28.8 VDC Nominal 24 VDC; 11 to 28.8 VDC 5 to 28.8 VDC, 48 VDC, 110 VDC, 250 VAC
Protection
Minimum Output Load 100 micro Amps, 100 millivolts VDC per point
Load Current per Point 0.5 Amps per point 0.5 Amps per point
Output Inrush Current
Polarity Source Sink
Configuration Tool GSM File GSM File GSM File
Interface Connector Type DB 9 connector (RS-485) DB 9 connector (RS-485) DB 9 connector (RS-485)
Power Dissipation 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used (5 VDC loading) 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70 99 x 83 x 70
Slave Network Interface with 16
Positive Logic Inputs and 16 Source
Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
100 100 100
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Slave Network Interface with 16
Negative Logic Inputs and 16 Sink
Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Slave Network Interface with 16
Positive Logic Inputs and 16 Relay
Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48
VDC, 0.5 Amps at 110 VDC, 2 Amps at 250
VAC
www.geautomation.com
Automation & Control Systems
1.77
RSTi Slice I/O
Process Automation Control Systems
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXPBS924 STXPBS825 STXPBS925
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks PROFIBUS V1 PROFIBUS V1 PROFIBUS V1
Protocol Supported
Features
Baud Rate 9.6K to 12Mbps 9.6K to 12Mbps 9.6K to 12Mbps
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate 100 meters to 1.2Km depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 8 8 8
Number of Points 16 In/16 Out 16 In/16 Out 16 In/16 Out
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 16 Point 24 VDC Negative Logic 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec < 0.5msec
Response Time (ms) 10msec 10msec 10msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC
Points per Common 16 for Inputs and 1 for Outputs 16 for Inputs and 1 for Outputs 16 for Inputs and 1 for Outputs
Output Type 16 Point Relay 16 Point Isolated Relay 16 Point Isolated Relay
Output Range 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC 5 to 28.8 VDC, 48 VDC, 110 VDC , 250 VAC 5 to 28.8 VDC, 48 VDC, 110 VDC, 250 VAC
Protection
Minimum Output Load
Load Current per Point
Output Inrush Current
Polarity
Configuration Tool GSM File GSM File GSM File
Interface Connector Type DB 9 connector (RS-485) DB 9 connector (RS-485) DB 9 connector (RS-485)
Power Dissipation 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC 50 mA typical @ 24 VDC
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used (5 VDC loading) 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC 400 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70 99 x 83 x 70
Slave Network Interface with 16
Negative Logic Inputs and 16 Relay
Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
100 100 100
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
100 micro Amps, 100 millivolts VDC per
point
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48
VDC, 0.5 Amps at 110 VDC, 2 Amps at 250
VAC
Slave Network Interface with 16
Positive Logic Inputs and 16 Isolated
Relay Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
100 micro Amps, 100 millivolts VDC per point 100 micro Amps, 100 millivolts VDC per point
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48
VDC, 0.5 Amps at 110 VDC, 2 Amps at 250
VAC
Slave Network Interface with 16
Negative Logic Inputs and 16 Isolated
Relay Outputs
Freeze mode, Sync mode,
Auto baudrate, Fail safe mode
Total: Inputs 36 bytes/Outputs 36 bytes total
(4 bytes In/ 4 bytes Out for base module
and 32 bytes In/32 bytes Out for expansion
modules); Discrete I/O: Maximum Discrete
I/O: 256 inputs/ 256 outputs; Analog I/O:
16 Channels In/ 16 Channels Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48
VDC, 0.5 Amps at 110 VDC, 2 Amps at 250
VAC
Automation & Control Systems
1.78
www.geautomation.com
Process Automation Control Systems
RSTi Slice I/O
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNS032 STXDNS132 STXDNC032
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 10 10 None Supported
Number of Points 32 In 32 In 32
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 32 Point 24 VDC Positive Logic 32 Point 24 VDC Negative Logic 32 Point 24 VDC Positive Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec < 0.5msec
Response Time (ms)
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5VD
Points per Common 16 for Inputs and 1 for Outputs 16 for Inputs and 1 for Outputs 16
Output Type
Output Range
Protection
Minimum Output Load
Load Current per Point
Output Inrush Current
Polarity
Configuration Tool EDS File EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector 5 pin connector
Power Dissipation 110 mA typical 110 mA typical 80 mA typical
Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block Connector Type
Internal Power Used (5 VDC loading) 600 mA @ Maximum 5 VDC 600 mA @ Maximum 5 VDC Not Applicable
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70 80 x 35 x 55
Slave Network Interface with
32 Positive Logic Inputs Built-in
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
64 64 64
24 VDC (19.2 to 28.8 VDC) with Current Limit,
Reverse Polarity Protection
Slave Network Interface with
32 Negative Logic Inputs Built-in
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current Limit,
Reverse Polarity Protection
Slave Network Interface with
32 Positive Logic Inputs Built-in
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command”
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 4 bytes/Outputs 4 bytes
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
www.geautomation.com
Automation & Control Systems
1.79
RSTi Slice I/O
Process Automation Control Systems
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNC132 STXDNS232 STXDNS332
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported None Supported 10 10
Number of Points 32 32 32
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 32 Point 24 VDC Negative Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms
Input Signal Delay < 0.5msec
Response Time (ms) < 0.3msec < 0.3msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC
Points per Common 16 32 32
Output Type 32 Point 24 VDC Negative Logic 32 Point 24 VDC Positive Logic
Output Range Nominal 0 VDC; 11 to 28.8 VDC Nominal 24 VDC; 11 to 28.8 VDC
Protection
Minimum Output Load
Load Current per Point 0.5 Amps per point 0.5 Amps per point
Output Inrush Current
Polarity Sink Source
Configuration Tool EDS File EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector 5 pin connector
Power Dissipation 80 mA typical 110 mA t ypical 110 mA typical
Connector Type Connector Type Spring Clamp Terminal Block Spring Clamp Terminal Block
Internal Power Used (5 VDC loading) Not Applicable 600 mA @ Maximum 5 VDC 600 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 80 x 35 x 55 99 x 83 x 70 99 x 83 x 70
Slave Network Interface with
32 Negative Logic Inputs Built-in
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 4 bytes/Outputs 4 bytes Total: Inputs 36 bytes/Outputs 34 bytes total
64 64 64
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Slave Network Interface with
32 Sink Outputs Built-in
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Slave Network Interface with
32 Source Outputs Built-in
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Automation & Control Systems
1.80
www.geautomation.com
Process Automation Control Systems
RSTi Slice I/O
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNC232 STXDNC332 STXDNS016
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
Slave Network Interface with
32 Sink Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 4 bytes/Outputs 4 bytes Total: Inputs 4 bytes/Outputs 4 bytes Total: Inputs 36 bytes/Outputs 34 bytes
Slave Network Interface with
32 Source Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Slave Network Interface with
16 Relay Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command”
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
total (4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Ye s Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported None Supported None Supported 10
Number of Points 32 32 16
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type
Input Voltage Range
Input Impedance
Input Signal Delay
Response Time (ms) < 0.3msec < 0.3msec 10msec
Trigger Voltage
Points per Common 16 16
Output Type 32 Point 24 VDC Negative Logic 32 Point 24 VDC Positive Logic 16 Point Relay
Output Range Nominal 24 VDC; 11 to 28.8 VDC Nominal 24 VDC; 11 to 28.8 VDC 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC
Protection
Minimum Output Load 100 micro Amps, 100 millivolts VDC per point
Load Current per Point
Output Inrush Current
Polarity Sink Source
Configuration Tool EDS File EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector 5 pin connector
Power Dissipation 80 mA typical 80 mA typical 110 mA typical
Connector Type
Internal Power Used (5 VDC loading) Not Applicable Not Applicable 600 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 80 x 35 x 55 80 x 35 x 55 99 x 83 x 70
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Connector Type Hirose, HIF3A-40D-2.54R
(ribbon cable), HIF2C-40D-2.54C (crimp con–
nector), HIF2C-2226SCFA (crimp pin) or equal
64 64 64
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
0.5 Amps per point 0.5 Amps per point 2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48
Connector Type Hirose, HIF3A-40D-2.54R
(ribbon cable), HIF2C-40D-2.54C (crimp con–
nector), HIF2C-2226SCFA (crimp pin) or equal
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
VDC, 0.5 Amps at 110 VDC,
2 Amps at 250 VAC
Spring Clamp Terminal Block
www.geautomation.com
Automation & Control Systems
1.81
RSTi Slice I/O
Process Automation Control Systems
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNS116 STXDNS432 STXDNS532
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 10 10 10
Number of Points 16 16 In/ 16 Out 16 In/ 16 Out
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec
Response Time (ms) 10msec < 0.3msec < 0.3msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC
Points per Common 32 32
Output Type 16 Point Isolated Relay 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic
Output Range 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC Nominal 24 VDC; 11 to 28.8 VDC Nominal 24 VDC; 11 to 28.8 VDC
Protection
Minimum Output Load 100 micro Amps, 100 millivolts VDC per point
Load Current per Point
Output Inrush Current
Polarity Source Sink
Configuration Tool EDS File EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector 5 pin connector
Power Dissipation 110 mA typical 110 mA typical 110 mA typical
Connector Type
Slave Network Interface with 16
Isolated Relay Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
64 64 64
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48
VDC, 0.5 Amps at 110 VDC,
2 Amps at 250 VAC
Spring Clamp Terminal Block Spring Clamp Terminal Block Spring Clamp Terminal Block
Slave Network Interface with 16 Positive
Logic Inputs and 16 Source Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
0.5 Amps per point 0.5 Amps per point
Slave Network Interface with 16
Negative Logic Inputs and 16 Sink
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command”
125K bits/s, 250Kbps, 500Kbps
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Outputs
(Auto baud rate selection)
for expansion modules)
Internal Power Used (5 VDC loading) 600 mA @ Maximum 5 VDC 600 mA @ Maximum 5 VDC 600 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70 99 x 83 x 70
Automation & Control Systems
1.82
www.geautomation.com
Process Automation Control Systems
RSTi Slice I/O
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNC432 STXDNC532 STXDNC632
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
Slave Network Interface with 16 Positive
Logic Inputs and 16 Source Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 4 bytes/Outputs 4 bytes Total: Inputs 4 bytes/Outputs 4 bytes Total: Inputs 4 bytes/Outputs 4 bytes
Slave Network Interface with 16
Negative Logic Inputs and 16 Sink
Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Slave Network Interface with 16 Positive
Logic Inputs and 16 Sink Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported None Supported None Supported None Supported
Number of Points 16 In/ 16 Out 16 In/ 16 Out 16 In/ 16 Out
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic 16 Point 24 VDC Positive Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec < 0.5msec
Response Time (ms) < 0.3msec < 0.3msec < 0.3msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC
Points per Common 16 16 16
Output Type 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic 16 Point 24 VDC Positive Logic
Output Range Nominal 24 VDC; 11 to 28.8 VDC Nominal 24 VDC; 11 to 28.8 VDC Nominal 24 VDC; 11 to 28.8 VDC
Protection
Minimum Output Load
Load Current per Point
Output Inrush Current
Polarity Source Sink Sink
Configuration Tool EDS File EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector 5 pin connector
Power Dissipation 80 mA typical 80 mA typical 80 mA typical
Connector Type
Internal Power Used (5 VDC loading) Not Applicable Not Applicable Not Applicable
Dimensions (H x W x D) in mm 80 x 35 x 55 80 x 35 x 55 80 x 35 x 55
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Connector Type Hirose, HIF3A-40D-2.54R
(ribbon cable), HIF2C-40D-2.54C (crimp
connector), HIF2C-2226SCFA (crimp pin)
64 64 64
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
0.5 Amps per point 0.5 Amps per point 0.5 Amps per point
Connector Type Hirose, HIF3A-40D-2.54R
(ribbon cable), HIF2C-40D-2.54C (crimp
or equal
connector), HIF2C-2226SCFA (crimp pin)
or equal
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
Connector Type Hirose, HIF3A-40D-2.54R
(ribbon cable), HIF2C-40D-2.54C (crimp
connector), HIF2C-2226SCFA (crimp pin)
or equal
www.geautomation.com
Automation & Control Systems
1.83
RSTi Slice I/O
Process Automation Control Systems
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNC732 STXDNS824 STXDNS924
Product Name
Lifecycle Status Active Active Active
Module Type Slave Network Interface Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported None Supported 10 10
Number of Points 16 In/ 16 Out 16 In/ 16 Out 16 In/ 16 Out
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 16 Point 24 VDC Negative Logic 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec < 0.5msec
Response Time (ms) < 0.3msec 10msec 10msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC
Points per Common 16 16 for Inputs and 4 for Outputs 16 for Inputs and 1 for Outputs
Output Type 16 Point 24 VDC Negative Logic 16 Point Relay 16 Point Relay
Output Range Nominal 24 VDC; 11 to 28.8 VDC 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC 5 to 28.8 VDC, 48 VDC , 110 VDC, 250 VAC
Protection
Minimum Output Load 100 micro Amps, 100 millivolts VDC per point 100 micro Amps, 100 millivolts VDC per point
Load Current per Point
Output Inrush Current
Polarity Source
Configuration Tool EDS File EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector 5 pin connector
Power Dissipation 80 mA typical 110 mA t ypical 110 mA typical
Connector Type
Internal Power Used (5 VDC loading) Not Applicable 600 mA @ Maximum 5 VDC 600 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 80 x 35 x 55 99 x 83 x 70 99 x 83 x 70
Slave Network Interface with 16
Negative Logic Inputs and 16 Source
Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 4 bytes/Outputs 4 bytes Total: Inputs 36 bytes/Outputs 34 bytes total
64 64 64
24 VDC (11 VDC to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
Short protection, Over Temperature
Protection, Over Current Limit
0.5 Amps per point 2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48 VDC,
Connector Type Hirose, HIF3A-40D-2.54R
(ribbon cable), HIF2C-40D-2.54C (crimp
connector), HIF2C-2226SCFA (crimp pin)
or equal
Slave Network Interface with 16 Positive
Logic Inputs and 16 Relay Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current Limit,
Reverse Polarity Protection
0.5 Amps at 110 VDC, 2 Amps at 250 VAC
Spring Clamp Terminal Block Spring Clamp Terminal Block
Slave Network Interface with 16
Negative Logic Inputs and 16 Relay
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current Limit,
Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48 VDC,
0.5 Amps at 110 VDC, 2 Amps at 250 VAC
Outputs
Automation & Control Systems
1.84
www.geautomation.com
Process Automation Control Systems
Network Interfaces with Built-in I/O
The PROFIBUS and DeviceNet Network Interfaces are also available with built-in I/O to
reduce cost and footprint. The network interfaces can be expanded and support all of
the RSTi I/O types.
STXDNS825 STXDNS925
Product Name
Lifecycle Status Active Active
Module Type Slave Network Interface Slave Network Interface
Field Busses/Device Networks DeviceNet DeviceNet
Protocol Supported
Features
Baud Rate
I/O Data Size
LEDs Module Status, Network Status, I/O Status Module Status, Network Status, I/O Status
Diagnostic Supported Yes Yes
Maximum Bus Length Up to 500 meters depending on baud rate Up to 500 meters depending on baud rate
Maximum Number of Nodes
Supported
Number of Expansion I/O Supported 10 10
Number of Points 16 In/ 16 Out 16 In/ 16 Out
System Power Requirement
Field Power Requirement 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Type 16 Point 24 VDC Positive Logic 16 Point 24 VDC Negative Logic
Input Voltage Range 24 VDC (11 VDC to 28.8 VDC) 24 VDC (11 VDC to 28.8 VDC)
Input Impedance ~5.4K ohms ~5.4K ohms
Input Signal Delay < 0.5msec < 0.5msec
Response Time (ms) 10msec 10msec
Trigger Voltage ON State: 9 VDC, OFF State: 5 VDC ON State: 9 VDC, OFF State: 5 VDC
Points per Common 16 for Inputs and 1 for Outputs 16 for Inputs and 1 for Outputs
Output Type 16 Point Isolated Relay 16 Point Isolated Relay
Output Range 5 to 28.8 VDC , 48 VDC, 110 VDC, 250 VAC 5 to 28.8 VDC , 48 VDC, 110 VDC, 250 VAC
Protection
Minimum Output Load 100 micro Amps, 100 millivolts VDC per point 100 micro Amps, 100 millivolts VDC per point
Load Current per Point
Slave Network Interface with 16 Positive
Logic Inputs and 16 Isolated Relay
Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
64 64
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48 VDC,
0.5 Amps at 110 VDC, 2 Amps at 250 VAC
Slave Network Interface with 16 Negative
Logic Inputs and 16 Isolated Relay
Outputs
I/O Slave Message (Group 2 only slave),
Poll command. Bit_strobe command,
Cyclic command, COS command
125K bits/s, 250Kbps, 500Kbps
(Auto baud rate selection)
Total: Inputs 36 bytes/Outputs 34 bytes total
(4 bytes In/ 4 bytes Out for base
module and 32 bytes In/30 bytes Out
for expansion modules)
24 VDC (19.2 to 28.8 VDC) with Current
Limit, Reverse Polarity Protection
2 Amps at 5 to 28.8 VDC, 0.8 Amps at 48 VDC,
0.5 Amps at 110 VDC, 2 Amps at 250 VAC
RSTi Slice I/O
Output Inrush Current
Polarity
Configuration Tool EDS File EDS File
Interface Connector Type 5 pin connector 5 pin connector
Power Dissipation 110 mA typical 110 mA typical
Spring Clamp Terminal Block Spring Clamp Terminal Block
Connector Type
Internal Power Used (5 VDC loading) 600 mA @ Maximum 5 VDC 600 mA @ Maximum 5 VDC
Dimensions (H x W x D) in mm 99 x 83 x 70 99 x 83 x 70
www.geautomation.com
Automation & Control Systems
1.85
Loading...
