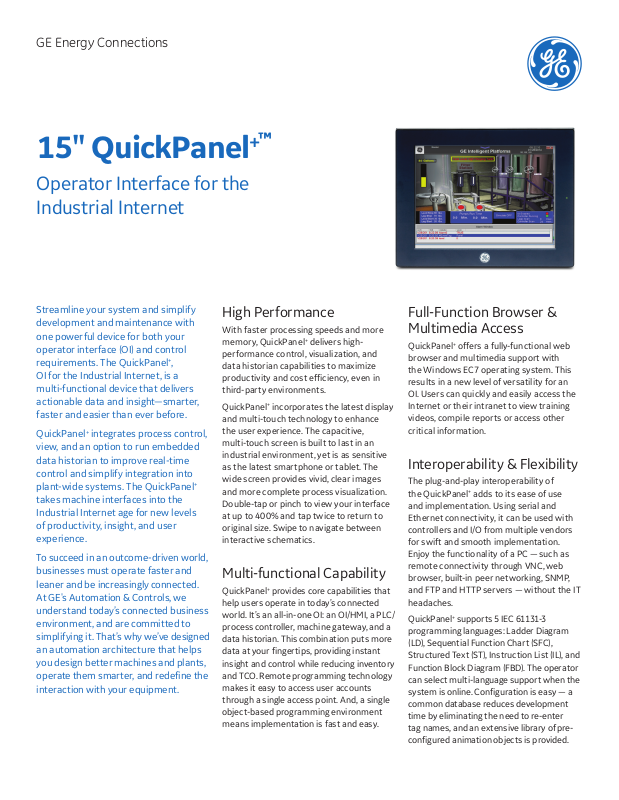

GE Digital IC755CSS15CDA, IC755CBS15CDA, IC755CSS15CDACA Data sheet
GE Energy Connections
+
15" QuickPanel
Operator Interface for the
Industrial Internet
™
Streamline your system and simplify
development and maintenance with
one powerful device for both your
operator interface (OI) and control
requirements. The QuickPanel
+
,
OI for the Industrial Internet, is a
multi-functional device that delivers
actionable data and insight—smarter,
faster and easier than ever before.
QuickPanel
+
integrates process control,
view, and an option to run embedded
data historian to improve real-time
control and simplify integration into
plant-wide systems. The QuickPanel
+
takes machine interfaces into the
Industrial Internet age for new levels
of productivity, insight, and user
experience.
To succeed in an outcome-driven world,
businesses must operate faster and
leaner and be increasingly connected.
At GE's Automation & Controls, we
understand today’s connected business
environment, and are committed to
simplifying it. That’s why we’ve designed
an automation architecture that helps
you design better machines and plants,
operate them smarter, and redefine the
interaction with your equipment.
High Performance
With faster processing speeds and more
memory, QuickPanel
performance control, visualization, and
data historian capabilities to maximize
productivity and cost efficiency, even in
third-party environments.
QuickPanel
and multi-touch technology to enhance
the user experience. The capacitive,
multi-touch screen is built to last in an
industrial environment, yet is as sensitive
as the latest smartphone or tablet. The
wide screen provides vivid, clear images
and more complete process visualization.
Double-tap or pinch to view your interface
at up to 400% and tap twice to return to
original size. Swipe to navigate between
interactive schematics.
+
incorporates the latest display
+
delivers high-
Multi-functional Capability
QuickPanel+ provides core capabilities that
help users operate in today’s connected
world. It’s an all-in-one OI: an OI/HMI, a PLC/
process controller, machine gateway, and a
data historian. This combination puts more
data at your fingertips, providing instant
insight and control while reducing inventory
and TCO. Remote programming technology
makes it easy to access user accounts
through a single access point. And, a single
object-based programming environment
means implementation is fast and easy.
Full-Function Browser &
Multimedia Access
QuickPanel+ offers a fully-functional web
browser and multimedia support with
the Windows EC7 operating system. This
results in a new level of versatility for an
OI. Users can quickly and easily access the
Internet or their intranet to view training
videos, compile reports or access other
critical information.
Interoperability & Flexibility
The plug-and-play interoperability of
the QuickPanel
and implementation. Using serial and
Ethernet connectivity, it can be used with
controllers and I/O from multiple vendors
for swift and smooth implementation.
Enjoy the functionality of a PC — such as
remote connectivity through VNC, web
browser, built-in peer networking, SNMP,
and FTP and HTTP servers — without the IT
headaches.
QuickPanel
programming languages: Ladder Diagram
(LD), Sequential Function Chart (SFC),
Structured Text (ST), Instruction List (IL), and
Function Block Diagram (FBD). The operator
can select multi-language support when the
system is online. Configuration is easy — a
common database reduces development
time by eliminating the need to re-enter
tag names, and an extensive library of preconfigured animation objects is provided.
+
adds to its ease of use
+
supports 5 IEC 61131-3
Specifications
Processor Node
• Freescale i.MX535 1GHz based on ARM Cortex A8
• 2D/3D Graphics Processing Unit
• 32KB Level 1 Instruction/Data Caches
• 256KB Level 2 Unified Instruction and Data Cache
• NEON SIMD Media Accelerator
• Vector Floating Point Coprocessor
Memory
• 1GB DDR3 SDRAM
• 512MB SLC NAND Flash
• 512KB Batter y Backed SRAM
Display
• 15" TFT LCD
• 1024 x 768 SVGA Resolution
• Projected Capacitive Display
• Multi-touch (two-point)
Ethernet Port
• 2x 10/100BaseT (RJ-45)
Serial I/O
• 1x RS-232 (5-Pin Connector), 1x RS-4 85 COM Ports
(5-Pin Connector)
USB
• 2x USB 2.0 (Type-A)
• 1x USB 2.0 (Mini Type-B)
Storage
• 1x SD/SDHC Card Slot
Audio
• x1 Line Out (s tereo) (3.5mm Jack)
Status Indicators
• Tri-color LED (Amber/Green/Red)
• On-board Buzzer
Operating System
• Microsof t
Power Requirements
• +12/24VDC ±20% (3-Pin Connector)
• Max power Consumption: 30W
Physical Specification
• External Dimensions: 399(W) x 323(H) x 70(D) mm
• Weight: 4.5Kg
Mounting Option
• Panel Cutout Dimensions: 379(W) x 305(H) mm
• Panel Mount Brackets Included
• Mounting Gasket
• VESA 100
Environmental
• Cooling Methodology: Natural Convection
• Operating Temp: 0°C to +55°C
• Storage Temp: -10°C to +60 °C
• Humidit y: 85% RH (non-condensing) @ 30°C
Compliance
• UL Listed US/CAN Hazardous locations:
• ATEX Zone 2/22 on I C755CSS15CDACA
• DNV on IC755CSS15CDACA
• UL TY PE 4X
• CE (EN 60950-1, EN 61000- 6-4, 61000-6 -2)
• FCC Part15 Class A
• IP65F (JEM 1030)
• RoHS
®
Windows® Embedded Compac t 7
Class 1 Division 2, Class 2 Division 2, Class 3 Division 1
Ordering Information
Operator Interfaces
IC755CSS15CDA QuickPanel
Capacitive Screen, GE Monogram Bezel, 24 VDC Powered
IC755CBS15CDA QuickPanel
Capacitive Screen, Blank Bezel, 24 VDC Powered
IC755CSS15CDACA QuickPanel
Capacitive Screen, GE Monogram Bezel, 24 VDC Powered, Conformal Coated
Accessories
IC755ACC15GAS QuickPanel
IC755ACC15MNT QuickPanel
Serial Port Connectors
IC755ACC15PRO QuickPanel
IC755ACC BATTNL Replacement Battery (No Leads), for use with 10", 12", and 15"
+
View & Control, 15" Color TFT with Multi-touch Projected
+
View & Control, 15" Color TFT with Multi-touch Projected
+
View & Control, 15" Color TFT with Multi-touch Projected
+
15" Replacement Gasket
+
15" Accessory Kit - Replacement Mounting Clips, Power &
+
15" Replacement Screen Protectors, Package of 3
GE Energy Connections
Automation & Controls
2500 Austin Dr
Charlottesville, VA 22911
1-80 0 - 433-2682 or 1-434-978-5100
www.geautomation.com
© 2016 General Electric. The GE brand and logo are trademarks of General Electric. All other trademarks are the property of their respective
owners. Specifications are subject to change without notice.
08.16 GFA2026C
