GE Digital IC755CSS06RDA, IC755CBS06RDA Data sheet

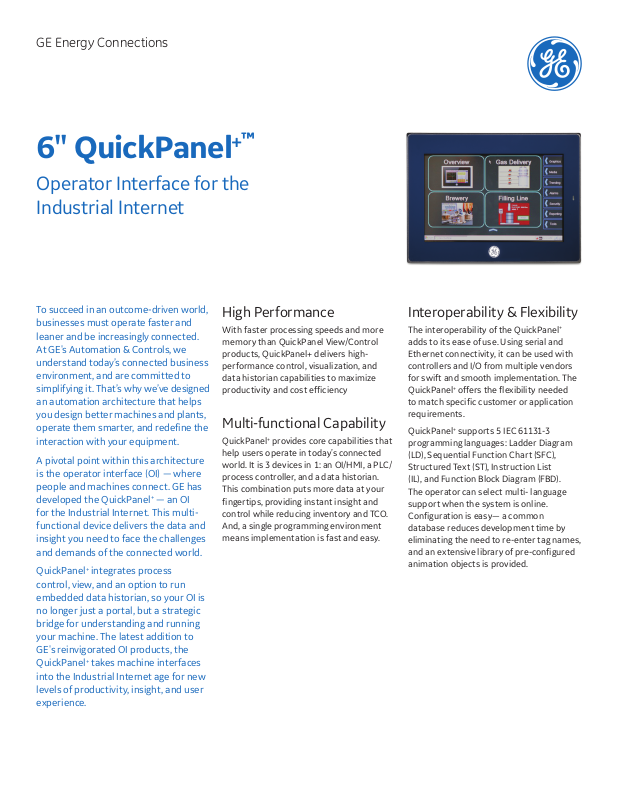

GE Energy Connections

™

+

6" QuickPanel

Operator Interface for the
Industrial Internet

To succeed in an outcome-driven world,
businesses must operate faster and
leaner and be increasingly connected.
At GE's Automation & Controls, we
understand today’s connected business
environment, and are committed to
simplifying it. That’s why we’ve designed
an automation architecture that helps
you design better machines and plants,
operate them smarter, and redefine the
interaction with your equipment.

A pivotal point within this architecture
is the operator interface (OI) — where
people and machines connect. GE has
developed the QuickPanel
for the Industrial Internet. This multi­functional device delivers the data and
insight you need to face the challenges
and demands of the connected world.

QuickPanel
control, view, and an option to run
embedded data historian, so your OI is
no longer just a portal, but a strategic
bridge for understanding and running
your machine. The latest addition to
GE's reinvigorated OI products, the
QuickPanel
into the Industrial Internet age for new
levels of productivity, insight, and user
experience.

+

integrates process

+

takes machine interfaces

+

— an OI

High Performance

With faster processing speeds and more
memory than QuickPanel View/Control
products, QuickPanel+ delivers high­performance control, visualization, and
data historian capabilities to maximize
productivity and cost efficiency

Multi-functional Capability

QuickPanel+ provides core capabilities that
help users operate in today’s connected
world. It is 3 devices in 1: an OI/HMI, a PLC/
process controller, and a data historian.
This combination puts more data at your
fingertips, providing instant insight and
control while reducing inventory and TCO.
And, a single programming environment
means implementation is fast and easy.

Interoperability & Flexibility

The interoperability of the QuickPanel+
adds to its ease of use. Using serial and
Ethernet connectivity, it can be used with
controllers and I/O from multiple vendors
for swift and smooth implementation. The
QuickPanel
to match specific customer or application
requirements.

QuickPanel
programming languages: Ladder Diagram
(LD), Sequential Function Chart (SFC),
Structured Text (ST), Instruction List
(IL), and Function Block Diagram (FBD).
The operator can select multi- language
support when the system is online.
Configuration is easy— a common
database reduces development time by
eliminating the need to re-enter tag names,
and an extensive library of pre-configured
animation objects is provided.

+

offers the flexibility needed

+

supports 5 IEC 61131-3

Specifications

Processor Node

• Freescale i.MX535 1GHz based on ARM Cortex A8

• 2D/3D Graphics Processing Unit

• 32KB Level 1 Instruction/Data Caches

• 256KB Level 2 Unified Instruction and Data Cache

• NEON SIMD Media Accelerator

• Vector Floating Point Coprocessor

Memory

• 512MB DDR2 SDRAM

• 256MB SLC NAND Flash

• 512KB Batter y Backed SRAM

Display

• 6" TFT LCD

• 320 x 240 Resolution

• Resistive Touch Display

Ethernet Port

• 1x 10/100BaseT (RJ-45)

Serial I/O

• 1x RS-232 COM Por t (5-Pin Connector)

USB

• 2x USB 2.0 (Type-A)

• 1x USB 2.0 (Mini Type-B)

Storage

• 1x SD/SDHC Card Slot

Audio

• x1 Mic In (mono) (3. 5mm Jack)

• x1 Line Out (s tereo) (3.5mm Jack)

Status Indicators

• Tri-color LED (Amber/Green/Red)

• On-board Buzzer

Operating System

• Microsof t

Power Requirements

• +24VDC ±20% (3-Pin Connector)

• Max power Consumption: 15W

Physical Specification

• External Dimensions: 192(W) x 137(H) x 36(D) mm

• Weight: 800g

Mounting Option

• Panel Cutout Dimensions: 183.5(W) x 128.5(H) mm

• Panel Mount Brackets Included

• Mounting Gasket

• VESA 75

Environmental

• Cooling Methodology: Natural Convection

• Operating Temp: 0°C to +55°C

• Storage Temp: -10°C to +60 °C

• Humidit y: 85% RH (non-condensing) @ 30°C

Compliance

• UL Listed US/CAN Hazardous locations: Class 1

• DNV Marine Certification

• UL TYPE 4X

• CE (EN 60950 -1, EN 61000-6-4, 61000 -6-2)

• FCC Part15 Class A

• IP65F (JEM 1030)

• RoHS

®

Windows® Embedded Compact 7

Division 2; Class 2 Division 2; Class 3 Division 1

Power input

RJ-45 (10/100BASE-T)

2x Type A USB

1x RS232 Terminal block

Ordering Information

Operator Interfaces

IC755CSS06RDA QuickPanel

Bezel, 24 VDC Powered

IC755CBS06RDA QuickPanel

24 VDC Powered

Accessories

IC755ACC07GAS QuickPanel

IC755ACC07MNT QuickPanel

Power & Serial Port Connectors

IC755ACCBAT T QuickPanel

SD/SDHC
memory

Mini Type B USB

Line Out

Mic In

+

View & Control, 6" Color TFT with Resistive Touch Screen, GE Monogram

+

View & Control, 6" Color TFT with Resistive Touch Screen, Blank Bezel,

+

7"/6" Replacement Gasket

+

7"/6" Accessory Kit - Replacement Mounting Clips,

+

Replacement Battery Pack

GE Energy Connections
Automation & Controls
2500 Austin Dr
Charlottesville, VA 22911
1-8 00-433 -2682 or 1-434-978-510 0
www.geautomation.com

© 2016 General Electric. The GE brand and logo are trademarks of General Electric. All other trademarks are the property of their respective
owners. Specifications are subject to change without notice.

08.16 GFA2056B
