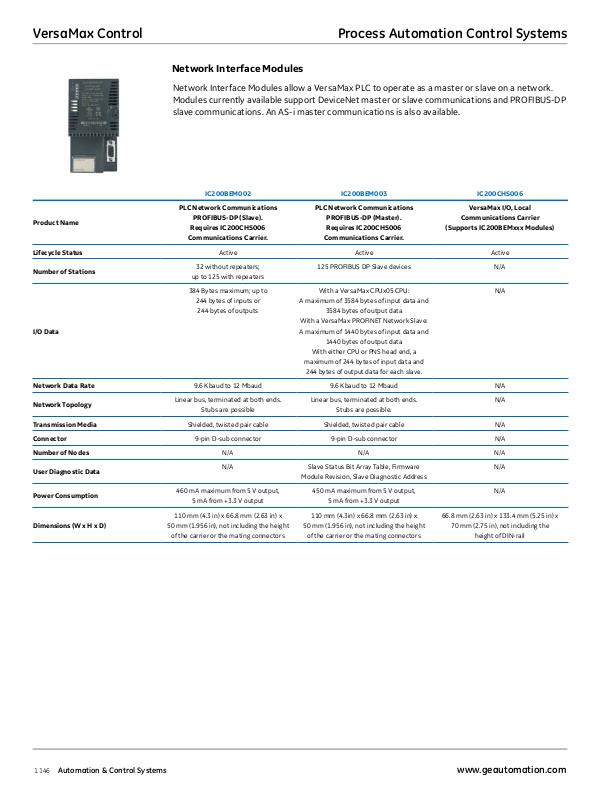

GE Digital IC200BEM002, IC200BEM003, IC200CHS006 Data sheet

VersaMax Control

Process Automation Control Systems

Network Interface Modules

Network Interface Modules allow a VersaMax PLC to operate as a master or slave on a network.
Modules currently available support DeviceNet master or slave communications and PROFIBUS-DP
slave communications. An AS-i master communications is also available.

IC200BEM002 IC200BEM003 IC200CHS006

PLC Network Communications

Product Name

Lifecycle Status Active Active Active

Number of Stations

I/O Data

Network Data Rate 9.6 Kbaud to 12 Mbaud 9.6 Kbaud to 12 Mbaud N/A

Network Topology

Transmission Media Shielded, twisted pair cable Shielded, twisted pair cable N/A

Connector 9-pin D-sub connector 9-pin D-sub connector N/A

Number of Nodes N/A N/A N/A

User Diagnostic Data

Power Consumption

Dimensions (W x H x D)

PROFIBUS-DP (Slave).

Requires IC200CHS006

Communications Carrier.

32 without repeaters;

up to 125 with repeaters

384 Bytes maximum; up to

244 bytes of inputs or

244 bytes of outputs

Linear bus, terminated at both ends.

Stubs are possible

N/A Slave Status Bit Array Table, Firmware

460 mA maximum from 5 V output,

5 mA from +3.3 V output

110 mm (4.3 in) x 66.8 mm (2.63 in) x

50 mm (1.956 in), not including the height

of the carrier or the mating connectors

PLC Network Communications

PROFIBUS-DP (Master).
Requires IC200CHS006

Communications Carrier.

125 PROFIBUS DP Slave devices N/A

With a VersaMax CPUx05 CPU:

A maximum of 3584 bytes of input data and

3584 bytes of output data

With a VersaMax PROFINET Network Slave:

A maximum of 1440 bytes of input data and

1440 bytes of output data

With either CPU or PNS head end, a

maximum of 244 bytes of input data and

244 bytes of output data for each slave.

Linear bus, terminated at both ends.

Stubs are possible.

Module Revision, Slave Diagnostic Address

450 mA maximum from 5 V output,

5 mA from +3.3 V output

110 mm (4.3in) x 66.8 mm (2.63 in) x

50 mm (1.956 in), not including the height

of the carrier or the mating connectors

Communications Carrier

(Supports IC200BEMxxx Modules)

66.8 mm (2.63 in) x 133.4 mm (5.25 in) x
70 mm (2.75 in), not including the

VersaMax I/O, Local

N/A

N/A

N/A

N/A

height of DIN-rail

Automation & Control Systems

1.146

www.geautomation.com
