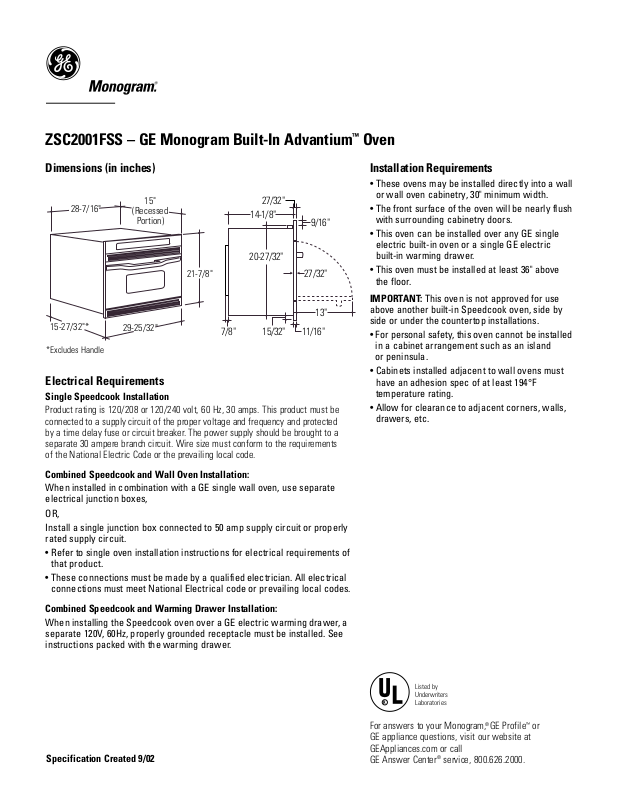

Page 1
Specification Created 9/02
ZSC2001FSS – GE Monogram Built-In Advantium™Oven
Dimensions (in inches)
29-25/32"
15"
(Recessed
Portion)
21-7/8"
15-27/32"*
28-7/16"
27/32"
14-1/8"
15/32"
27/32"
20-27/32"
11/16"
7/8"
13"
9/16"
Electrical Requirements
Single Speedcook Installation
Product rating is 120/208 or 120/240 volt, 60 Hz, 30 amps. This product must be
connected to a supply circuit of the proper voltage and frequency and protected
by a time delay fuse or circuit breaker. The power supply should be brought to a
separate 30 ampere branch circuit. Wire size must conform to the requirements
of the National Electric Code or the prevailing local code.
Combined Speedcook and Wall Oven Installation:
When installed in combination with a GE single wall oven, use separate
electrical junction boxes,
OR,
Install a single junction box connected to 50 amp supply circuit or properly
rated supply circuit.
• Refer to single oven installation instructions for electrical requirements of
that product.
• These connections must be made by a qualified electrician. All electrical
connections must meet National Electrical code or prevailing local codes.
Combined Speedcook and Warming Drawer Installation:
When installing the Speedcook oven over a GE electric warming drawer, a
separate 120V, 60Hz, properly grounded receptacle must be installed. See
instructions packed with the warming drawer.
Installation Requirements
• These ovens may be installed directly into a wall
or wall oven cabinetry, 30" minimum width.
• The front surface of the oven will be nearly flush
with surrounding cabinetry doors.
• This oven can be installed over any GE single
electric built-in oven or a single GE electric
built-in warming drawer.
• This oven must be installed at least 36" above
the floor.
IMPORTANT: This oven is not approved for use
above another built-in Speedcook oven, side by
side or under the countertop installations.
• For personal safety, this oven cannot be installed
in a cabinet arrangement such as an island
or peninsula.
• Cabinets installed adjacent to wall ovens must
have an adhesion spec of at least 194°F
temperature rating.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
*Excludes Handle
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Page 2
36-3/4" Min.
Required
30"
19"
Min
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
28-1/2"
21"
36-3/4" Min.
30"
24"
Min.
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
2" Min.
Install 2 x 4
or 2 x 2
Runners or
Solid Bottom,
Must Support
100 lbs.
28-1/2"
21"
9-1/4"
*45-1/4"
30"
24"
Min.
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
2" Min.
Per Oven
Requirement
28-1/2"
21"
Single Speedcook Installation
Order a 30" wide single oven cabinet or cut the
opening in a wall to dimensions shown.
The rough opening must be:
• Depth – 19" Min.
• Width – 28-1/2" Min.
• Height – 21" Min.
• 36-3/4" from the floor to the cutout is required.
• These ovens require 3/4" overlap on each side, top
and bottom of the cutout.
• Oven overlaps will conceal cut edges on all sides
of the opening.
Specification Created 9/02
Note: Additional clearance between the cutouts may be required.
Check to be sure the oven supports above the warming drawer
location do not obstruct the required interior 23-1/2" depth and
9-1/4" height. See installation instructions for details.
Speedcook Oven Installation above a GE Built-In Wall Oven
Speedcook Oven Installation above a GE Warming Drawer
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
ZSC2001FSS – GE Monogram Built-In Advantium™Oven
Page 3
Specification Created 9/02
ZSC2001FSS – GE Monogram Built-In Advantium™Oven

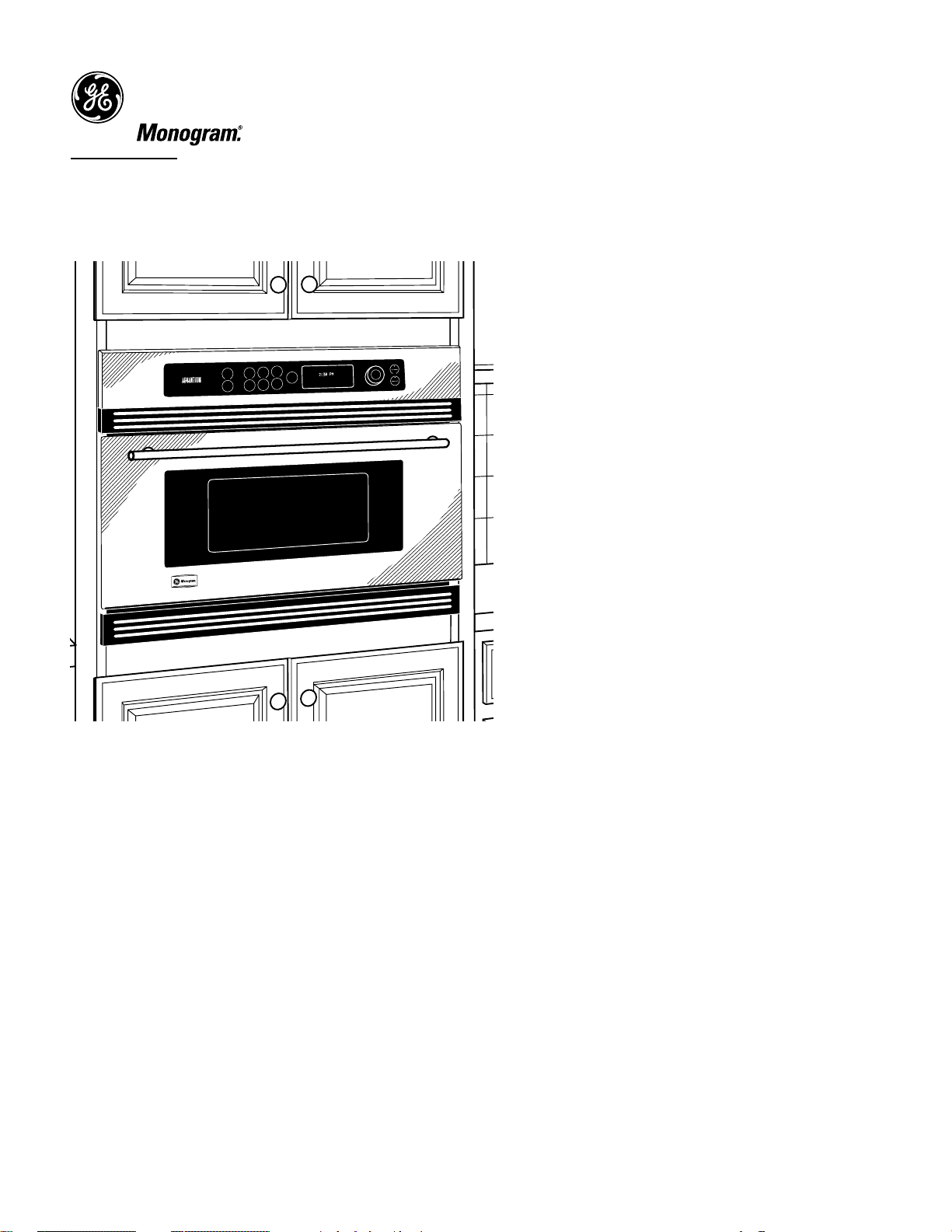

Features and Benefits
• Revolutionary Speedcook Technology Cooks
Oven-Quality with Light in One-Fourth the Time
• Over 100 Pre-Programmed Menu Items with
Repeat Last and Help Modes
• Bakes, Browns, Broils, Grills and Roasts –
All with No Preheating
• Converts to Fully Functional 950 Watt
Microwave Oven
• Family-Size Oven with Stainless Steel Interior
• Electronic Scrolling Display with Variable
Scroll Speed
• Monogram Appearance
• Microwave Oven Features Auto Defrost/
Time Defrost
• Cooking Complete Reminder with Beeper
Sound Level Control
• Interior Oven Light
• Child Lock-Out
• Frameless Glass Oven Door with Window
• Cookbook and Pan Set Included
• Model ZSC2000FWW – White on white
• Model ZSC2000FBB – Black on black
• Model ZSC2001FSS – Stainless steel
S
PE
ED
COO
K
R
E
P
E
A
T
L
A
S
T
R
E
C
I
P
E
M
A
N
U
A
L
C
OO
K
P
O
W
ER
LE
V
EL
O
P
TION
S
TIM
E
R
H
ELP
M
ICR
O
W
A
VE
B
AC
K
M
IC
RO
EX
PR
E
S
S
S
TA
R
T
P
A
U
S
E
CL
EA
R
OFF
T
U
R
N
T
O
S
E
P
R
E
S
S
T
O
E
N
T
E
R
