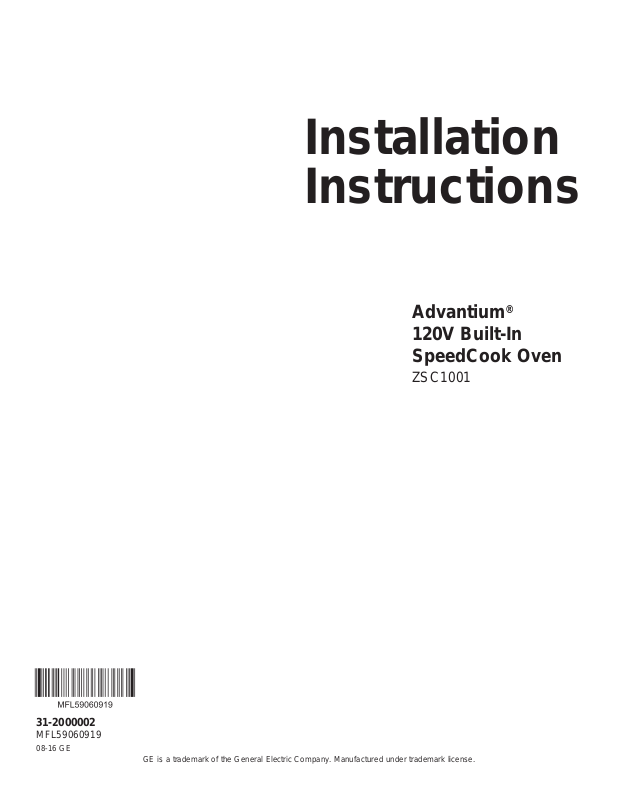

GE ZSC1001J3SS, ZSC1001J4SS Installation Guide
Installation
Instructions
Advantium®
120V Built-In
SpeedCook Oven
ZSC1001
31-2000002
MFL59060919
08-16 GE
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Safety Information
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT
for local inspector’s use.
IMPORTANT
and ordinances.
• Note to Installer — Be sure to leave these
instructions with the Consumer.
• Note to Consumer — Keep these instructions
with your Owner’s Manual for future reference.
• Skill Level — Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time — 1 Hour.
• Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
NOTE: This oven is only approved to be installed
under the specific models as labeled on this unit.
IMPORTANT
intended purpose. Never use the oven for
warming or heating a room. Prolonged use
of the oven without proper ventilation can be
hazardous.
CAUTION
breaker before beginning installation to avoid
severe or fatal shock injury.
CAUTION
be capable of supporting the cabinet load, in
addition to the added weight of the oven and
drawer, plus additional oven loads.
CAUTION
you must use the plastic bottom trim due to
burn risk to children. The plastic trim acts as
insulation and will help prevent burns to children
from hot surfaces.
CAUTION
remove the plastic door trim due to burn risk
to children. The plastic trim acts as insulation
and will help prevent burns to children from hot
surfaces.
—
Save these instructions
—
Observe all governing codes
—
Use this oven only for its
For personal safety, remove
house fuse or oven circuit
For personal safety, the
mounting surface must
If installing the Advantium
120V Oven below 36Ǝ,
If installing the Advantium
120V Oven below 36Ǝ, do not
CONTENTS
Design Information
Models Available ...............................................2
Product Dimensions and Clearances ................3
Tools Required ..................................................3
Parts Supplied ...................................................3
Installation Preparation
Electrical Requirements .................................... 4
Preparing the Opening (Standard) .................5-6
Remove Packaging (Standard) .........................6
Preparing the Opening (Flush Mount) ............7-8
Remove Packaging (Flush Mount) ....................8
Installation Instructions
Step 1, Slide the Oven into the Cutout ............. 9
Step 2, Install Bottom Trim ................................9
Step 3, Install Side Trim ....................................9
Step 4, Install Mounting Screws ........................9
Step 5, Finalize Installation ...............................9
MODELS AVAILABLE
Monogram Models:
ZSC1001 SS–Stainless Steel
2
Design Information
PRODUCT DIMENSIONS AND CLEARANCES
29-3/4” With Optional Side Trim
22-9/16”
1-1/8”
21-1/2”
13”
1-1/16”
13/16”
26-3/4”
18-5/8”
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
• #2 Phillips screwdriver
Hand-held drill
•
High speed drill bit, 3/32Ǝ diameter
•
3/8Ǝ slot-head screwdriver
•
PARTS SUPPLIED
• 6 screws (3 required, 3 extra)
• 5 color-matched screws (4 required, 1 extra)
• 2 side trim pieces
Bottom trim
•
FLUSH MOUNT INSTALLATION
This installation method allows for the unit face to
be inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN
CARPENTRY IS REQUIRED. Non-standard
cabinetry may be required.
Flush installation of the oven will lead to the
exposure of the cabinet face frame edges.
Side cleats may be visible and should be a
finished surface.
ADVANCE PLANNING
•7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ
wide oven cabinet with standard installation.
• Cutout height dimensions are different for
installations with an accessory storage drawer.
Make sure to use the correct cutout when
preparing the opening.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
The oven must be securely installed in a cabinet
that is firmly attached to the house structure.
Weight on the oven door could cause the oven
to tip and result in injury. Never allow anyone to
climb, sit, stand or hang on the oven door.
If installing the drawer accessory, the drawer
must be assembled to the oven prior to
installation into the cabinet. See the Accessory
Storage Drawer Assembly Instructions.
3
Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium 120 Installation:
This product requires a 120-volt, 60 Hz, 15-amp
circuit and draws 1.8 kilowatts. This product must
be connected to a supply circuit of the proper
voltage and frequency.
• Wire size must conform to the requirements of
the National Electrical Code or the prevailing local
code for this kilowatt rating.
• The power supply cord and plug should be
brought to a separate 15 or 20 ampere branch
circuit single grounded receptacle. The outlet box
should be located within reach of the 48” power
cord.
ELECTRICAL LOCATION
6”
9”
Locate outlet box in the shaded area
Install a recessed electrical outlet in the back
wall of the opening within 6Ǝ of either side and
at least 9Ǝ above the cutout floor.
GROUNDING
INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for electric current. This appliance is equipped
with a cord having a grounding wire with a
grounding plug. The plug must be plugged into
an outlet that is properly installed and grounded.
WARNING
in a risk of electric shock.
Important: (Please read carefully).
The power cord of this appliance is equipped with
a three-prong (grounding) plug that mates with a
standard three-prong grounding wall receptacle
to minimize the possibility of electric shock.
Consult a qualified electrician or serviceman if
the grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the consumer to have it replaced with
a properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Improper use of the
grounding plug can result
DO NOT USE AN EXTENSION CORD. If the
power supply cord is too short, have a qualified
electrician or serviceman install an outlet near the
appliance.
4
IMPORTANT:
Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation.
Standard Installation Preparation
PREPARE THE OPENING
The Advantium 120 can be installed in
combination with other GE Appliances/
Monogram appliances. Always follow each
product’s Installation Instructions to complete the
installation.
Single Advantium 120 Installation:
Order a 27” or 30” wide single oven cabinet
or cut the opening in a wall to the dimensions
shown.
27” or 30”
17-1/2”
36-3/4”
Min.
Allow 1-1/4” case trim overlap at the top and
•
7/8” overlap on the bottom and each side of the
opening.
•
Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a
warming drawer, allow at least 2” between
the two openings. This separation will provide
clearance for bottom overlap of the Advantium
120 and the other appliance overlaps.
•
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
23-1/2”
25-1/4”
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four
sides. Must
be able to
support
weight of
oven and
contents.
PREPARE THE OPENING (CONT.)
Installation over a GE Appliances/
Monogram Warming Drawer:
27” or 30”
17-1/2”
36-3/4”
Min.
may be required. Check to be sure the oven
supports above the Warming Drawer location does not
obstruct the required interior depth and height. See
Warming Drawer installation instructions for details.
23-1/2”
25-1/4”
clearances between the cutouts
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
2Ǝ Min.
(3Ǝ Recommended)
Per Warming
Drawer
Requirement
NOTE: Additional
PREPARE THE OPENING (CONT.)
Installation over a GE Appliances/
Monogram Oven:
27” or 30”
17-1/2”
23-1/2”
25-1/4”
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
2Ǝ Min.
(3Ǝ Recommended)
Per Oven
Requirement
45-1/4”
Min.
NOTE: If you are replacing a
Advantium 120 and a single oven, use the dimensions shown.
The middle rail separating the two openings may need to be
larger than the 2” minimum shown.
5
double oven with the combined installation of an
GE Appliances/Monogram electric
Standard Installation Preparation
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation.
PREPARE THE OPENING (CONT.)
Installation over a GE Appliances/Monogram
Oven and Warming Drawer:
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not
obstruct the required interior depth and height. See
Warming Drawer installation instructions for details.
27” or 30”
23-1/2”
25-1/4”
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
CAUTION
supporting the cabinet load, in addition to the added
weight of the oven and drawer, plus additional oven
loads.
For personal safety, the mounting
surface must be capable of
PREPARE THE OPENING (cont.)
Installation beside another GE
Appliances/Monogram Built-in Speedcook
Oven:
• If you are mounting one Under-the-Counter GE
Appliances/Monogram oven beside the other,
use the dimensions shown. The middle rail
separating
the two openings may need to be larger than
the 4-1/2Ǝ minimum shown.
45-1/4”
17-1/2Ǝ
17-1/2”
25-1/4Ǝ
2Ǝ Min.
(3Ǝ Recommended)
Per Oven
Requirement
2Ǝ Min.
(3Ǝ Recommended)
Per Warming
Drawer
Requirement
23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
REMOVE THE PACKAGING
• Lift the oven out of the carton.
• Remove all packing material and tape.
4-1/2Ǝ Min.
(5-1/2Ǝ Recommended)
• Open the door and remove parts box.
• Locate parts package containing mounting screws.
6
Flush Mount Installation Preparation (Monogram Only)
IMPORTANT:
combined installation.
Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
PREPARE THE INTERIOR
Cut and install side cleats:
• Cut side wood cleats to height of cabinet
opening and approx. 2-1/2” in depth. Install,
on each side, 1-3/8” from the front face of the
cabinet.
Cut and install bottom cleat:
• Cut bottom wood cleat to a height of 1-1/8”, a
depth of the cabinet minus 1-3/8” and a width
of 25-1/4” to fit between side cleats. Install
onto the cabinet floor between the side cleats,
push it all the way back against cabinet wall
and make sure its front face aligns with the front
faces of the side cleats (1-3/8” gap from the
front cabinet face).
A A
C
B
A Side cleats depth 2-1/2” min.
B Bottom cleat height 1-1/8”
D
E
PREPARE THE OPENING
The Advantium 120 can be installed in
combination with other GE Appliances/
Monogram appliances. Always follow each
product’s Installation Instructions to complete the
installation.
Single Advantium 120 Installation:
Cut the opening in a cabinet to the dimensions
shown.
*See table
below for
desired reveals
on sides.
**18-7/8”
36-3/4”
Min.
23-1/2” min.
F *
Oven or
warming
drawer
Construct
solid bottom
- Min. 3/8”
plywood
supported on
all four sides.
Must be able to
support weight
of oven and
contents.
2” Min.
Per
appliance
specs.
C Bottom cleat depth Cabinet depth minus
1-3/8”
D Bottom cleat width 25-1/4”
E All three cleats Recess and install 1-3/8”
IURPGHVLUHGÀXVKVXUIDFH
D
TOP
C
VIEW
A A
Front Face of Cabinet
EE
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Approved Flush Installation
Single Advantium 27” 27-1/4”
Over Warming Drawer 27” 27Over Oven
Over Oven and Warming Drawer
Over Built-in Speedcook Oven
Double Advantium (side by side)
Under Cooktop or Countertop See page 8
Dimension F
1/8” Reveal 1/4” Reveal
27” 27-1/4”
27” 27-1/4”
27” 27-1/4”
See page 8
** Top and bottom reveals are set to 1/8”.
7
1
/4”
Flush Mount Installation Preparation (Monogram Only)
IMPORTANT: Always maintain 36-3/4” minimum height from the floor to the cutout in any single or
combined installation.
PREPARE THE OPENING
The Advantium 120 can be installed beside another
Advantium 120 in a side-by-side combination.
Double Advantium 120 Installation:
Cut the opening in a cabinet to the dimensions
shown.
• Center divider acts as cleat for side of each
respective unit. Only one additional side cleat
needed per oven cutout.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
*See table for desired reveals on sides and
between unit.
Dimension 1/8” Reveal 1/4” Reveal
G 53-7/8” 54-1/4”
H 1-5/8” 1-3/4”
I 26-1/8” 26-1/4”
36-3/4”
23-1/2” min.
G*
H*
I*
I*
18-7/8”
1-3/8”
Construct solid bottom - Min. 3/8”
plywood support ed o n all four
sides. Must be able to support
weight of oven and contents.
REMOVE THE PACKAGING
• Lift the oven out of the carton.
• Remove all packing material and tape.
• Open the door and remove parts box.
• Locate parts package containing mounting
screws.
8
Loading...
