Monogram.

Use and Care Guide

for ZMC1090 Series

Built-In

Microwave/Convection Oven

!_lO't _ogTG_q_ TM

Microwave/Convection Oven,

Introduction

Your new Monogram microwave/convection oven makes an eloquent statement of style, convenience

and kitchen planning flexibility. Whether you chose it for its purity of design, practical cooking features or assiduous attention to detail--or for all of

these reasons--you'll find that your Monogram microwave/convection oven's superior blend of form and function will delight you for years to come.

Con n

Adapter Plugs ............................. 33

Aluminum Foil ....................... 5, 20

Appliance Registration ................. 3

Care and Cleaning ................ 32, 33

Clock ......................................... 8, 9

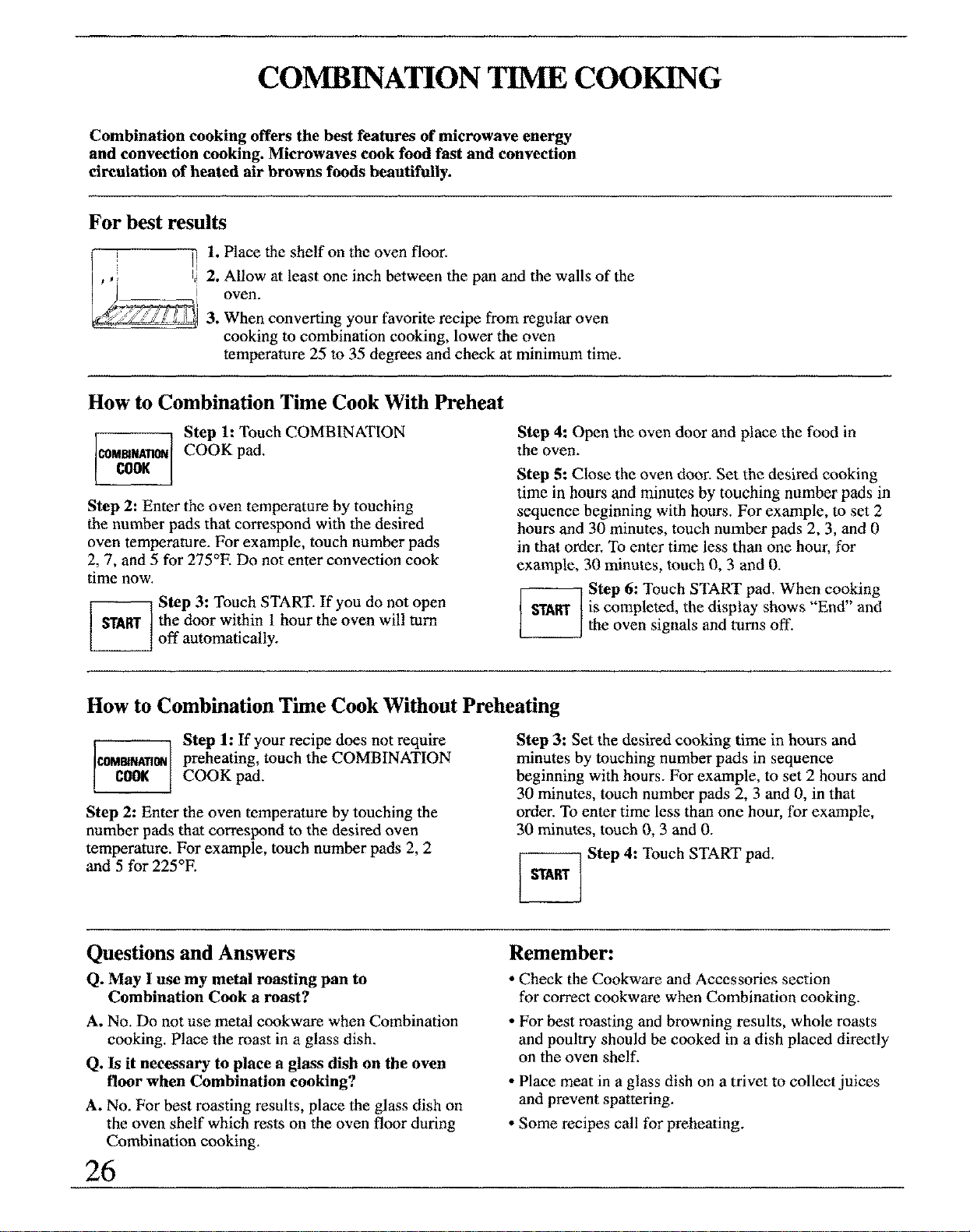

Combination Cooking ........... 27-29

Combination Roast ........ 28, 29

Cooking by Temperature......27

Cooking by Time ................. 26

Consumer Services ..................... 38

Control Panel ............................ 8, 9

Convection Cooking ............. 24, 25

Cooking by Temperature......25

Cooking by Time ................. 24

Cooking Reference Guide .......... 30

Cookware and Accessories ......... 12

Extension Cords .......................... 33

Features ....................................... 10

Grounding Instructions ............... 33

Light Bulb Replacement ............. 33

Microwave Cooking ......... 7, 10-23

Add 30 Seconds ................... 15

Auto Defrost .................. 18, 19

Cooking by Temperature......17

Cooking by Time ........... 14, 15

Cooking Complete Reminder

The Monogram microwave/convection oven was designed to provide the flexibility to blend in with

your kitchen cabinetry.

The information on the following pages will help you operate and maintain your microwave/convection

oven properly. For a listing of dealers---or if you have other

questions--please call the GE Answer Center ® (800.626.2000).

Hold Time ............................ 13

Kitchen Timer ...................... 13

Microwaving Tips .................. 7

Power Levels

................... 7, 8, 13-15, 17, 18

Sensor Beverage .................. 20

Sensor Cook ................... 22, 23

Sensor Cooking

Control Guide ...................... 23

Sensor Popcorn .................... 20

Sensor Reheat ...................... 21

Sound Level Feature ............ 15

Model and Serial Number

Location ............................... 10

Oven Shelf......5, 10, 12, 16, 20-22

................................. 24-28, 32

Precautions to Avoid Possible Exposure to Excessive

Microwave Energy ........................ 3

Problem Solver ........................... 34

Safety Instructions .................... 4_1

Temperature Probe

....... 5, 8-10, 18, 25, 27-29, 32

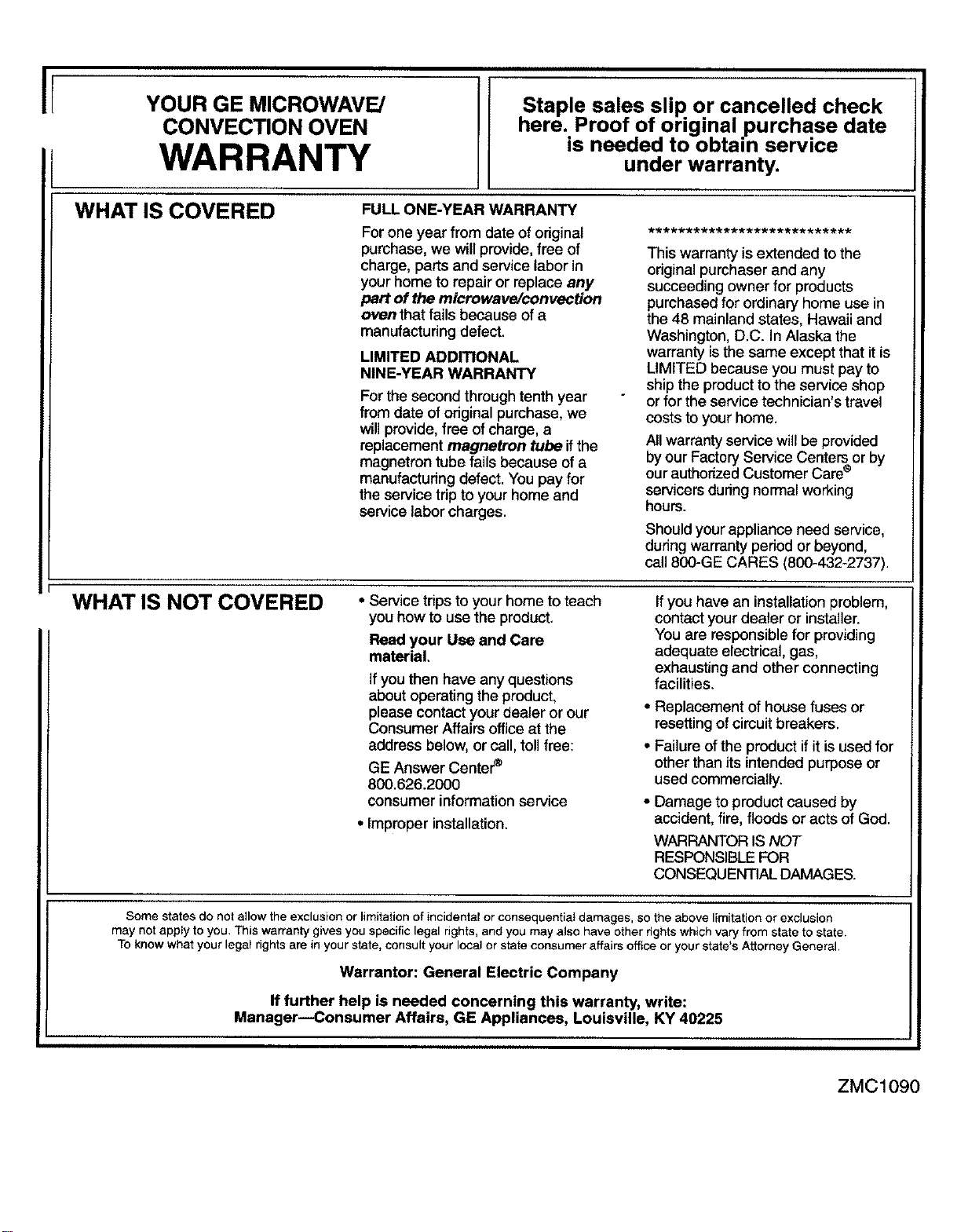

Warranty ..................................... 39

What Your Oven Can Do ............ 11

Questions? Call GEAnswer Center

800.626.2000

Defrosting by Time .............. 16

Delay Start/Reminder .......... 15

Delayed Cooking ................. 13

Express Cook Feature .......... 15

Microwave power output ]

of this oven is 800 watts.

(IEC-705TestProcedure)

HELP US HELP YOU...

Before using your oven, read this guide carefully.

It is intended to help you operate and maintain your new

microwave oven properly. Keep it handy for answers to your questions.

If you don't understand something or need more help, call:

GE Answer Center ®

800.626.2000 24 hours a day, 7 days a week

If you received a damaged oven...

Immediately contact the dealer (or builder) that sold you

the oven.

Be sure your microwave oven is registered.

Write down the model and serial numbers.

See the Features of Your Oven section for model and serial number location. These numbers are also on the

Consumer Product Ownership Registration Card that came with your microwave oven. Before sending in this

card, please write these numbers here:

Model Number

Serial Number

Use these numbers in any correspondence or service calls concerning your microwave oven.

Save time and money. Before you request service...

Check the Problem Solver in this guide. It lists causes of minor operating problems that you can correct yourself.

It is important that we know the location of your microwave oven should a need occur for adjustments. Your supplier is responsible for registering you as the owner. Please check with your supplier to be sure he has done

so; also send in your Consumer Product Ownership Registration Card. If you move, or if you are not the original

purchaser, please write to us, stating model and serial numbers.

This appliance must be registered. Please be certain that it is. Write to: GE Appliances, Range Product Service, Appliance Park, Louisville, KY 40225

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) Do Not Attempt to operate this oven with the

door open since open-door operation can result in harmful exposure to microwave energy. It is

important not to defeat or tamper with the safety interlocks.

(b) Do Not Place any object between the oven front

face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

particularly important that the oven door close properly and that there is no damage to the:

(1) door (bent) (2) hinges and latches (broken or loosened

(3) door seals and sealing surfaces.

(d) The Oven Should Not be adjusted or repaired by

anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appfiance.

When using electrical appliances, basic safety precautions should be followed, including the

following:

A WARNING-To reduce the risk of

bums, electric shock, fire, injury to persons

or exposure to excessive microwave energy:

• Read and follow the specific Precautions to Avoid Possible Exposure to Excessive Microwave

Energy section on the previous page.

• This appliance must be grounded. Connect only to properly grounded outlet. See the Grounding

Instructions section in the back of this guide.

• Use thisappliance onlyfor itsintendeduseas describedin thisguide.Do notuse corrosive

chemicalsorvaporsinthis appliance This microwave/convectionoven is specifically

designedtoheat orcookfood,and is not intendedforlaboratoryorindustrialuse

• For best operation, plug this appliance into its own electrical outlet, to prevent flickering

of lights, blowing of fuse or tripping of circuit breaker.

• Do not mount this appliance over a sink. Install or locate this appliance only in

accordance with the provided Installation Instructions.

• Do not cover or block any openings on the appliance.

• Do not store this appliance outdoors. Do not

use this product near water for example, in a wet basement, near a swimming pool or near a sink.

• This microwave/convection oven is not approved or tested for marine use.

• Do not store anything directly on top of the microwave/convection oven surface when the

oven is in operation.

• Do not immerse power cord or plug in water.

• Keep power cord away from heated surfaces.

• Do not let power cord hang over edge of table

or counter.

° Do not operate this appliance if it has a

damaged power cord or plug, if it is not working properly, or if it has been damaged

or dropped.

• See door surface cleaning instructions in the Care

and Cleaning section(s) of this guide.

• This appliance should be serviced only by qualified service personnel. Contact nearest

authorized service facility for examination, repair or adjustment.

• As with any appliance, close supervision is

necessary when used by children.

• To reduce the risk of fire in the oven cavity:

--Do not overcook food. Carefully attend

appliance if paper, plastic or other combustible materials are placed inside the oven to facilitate cooking.

--Remove wire twist-ties and metal handles from paper or plastic bags before placing

them in the oven.

--Do not use your microwave/convection oven

to dry newspapers.

--Do not use recycled paper products. Recycled paper towels, napkins and waxed paper can

contain metal flecks which may cause arcing or ignite. Paper products containing nylon or

nylon f'daments should be avoided, as they

may also ignite.

--Do not pop popcorn in your microwave/ convection oven unless in a special microwave

popcorn accessory or unless you use popcorn labeled for use in microwave ovens.

---Do not overcook potatoes. They could dehydrate and catch fire, causing damage to

your oven.

---Do not operate the oven in microwave or

combination modes while empty to avoid

damage to the oven and the danger of fire.

If by accident the oven should run empty a

minute or two, no harm is done. However, try to avoid operating the oven empty at all times_it

saves energy and prolongs the life of the oven.

--Do not use the oven for storage purposes. Do

not leave paper products, cooking utensils or food in the oven when not in use.

--If materials inside oven should ignite, keep oven door closed, turn oven off, and disconnect

power cord, or shut off power at the fuse or circuit breaker panel.

• When using the convection or combination

cooking functions, both the outside and inside of the oven will become hot. Always use hot pads to remove containers of food and accessories such as

the metal accessory rack and temperature probe.

• Oversized food or oversized metal cookware

should not be used in a microwave/convection oven because they increase the risk of electric

shock and could cause a fire.

• Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving risk of electric shock.

• Do not use paper products when the

microwave/convection oven is operated in

the convection or combination mode.

• Don't defrost frozen beverages in narrow

necked bottles (especially carbonated beverages). Even if the container is opened, pressure can build

up. This can cause the container to burst, possibly

resulting in injury.

° Use foil only as directed in this guide. TV

dinners may be microwaved in foil trays less than

3/4" high; remove the top foil cover and return the

tray to the box. When using foil in the microwave

oven, keep the foil at least 1 inch away from

sides of the oven.

• Do not cover the shelf or any other part of the oven with metal foil. This will cause

overheating of the microwave/convection oven,

_. Cookware may become hot because

of heat transferred from the heated food. Pot holders may be needed to handle the cookware.

Sometimes, the oven floor and walls can become too hot to touch. Be careful touching the

floor and walls during and after cooking.

Foods cooked in liquids (such as pasta) may tend to boil over more rapidly than foods containing less moisture. Should this occur, refer to the Care

and Cleaning section(s) for instructions on how to clean the inside of the oven.

Thermometer--Do not use regular cooking or oven thermometers when cooking by

microwave or combination. The metal and

mercury in these thermometers could cause "arcing" and possible damage to the oven. Do

not use a thermometer in food you are microwaving unless the thermometer is designed

or recommended for use in the microwave oven.

• Remove the temperature probe from the oven when not using it to cook with. If you leave the probe inside the oven without inserting it in food

or liquid, and turn on microwave energy, it can

create electrical arcing in the oven, damage oven walls and damage the temperature probe.

• Plastic cookware---Plastic cookware designed for microwave cooking is very useful, but should

be used carefully. Even microwave-safe plastic may not be as tolerant of overeooking conditions

as are glass or ceramic materials and may soften

or char if subjected to short periods of overcooking. In longer exposures to overcooking,

the food and cookware could ignite. For these reasons: 1) Use microwave-safe plastics only and

use them in strict compliance with the cookware manufacturer's recommendations. 2) Do not

subject empty cookware to microwaving. 3) Do not permit children to use plastic cookware

without complete supervision.

• When cooking pork, follow the directions exactly and always cook the meat to an internal

temperature of at least 170°E This assures that, in

the remote possibility that trichina may be present

in the meat, it will be killed and meat will be safe

to eat.

• Do not boil eggs in a microwave oven. Pressure

will build up inside egg yolk and will cause it to

burst, possibly resulting in injury.

(continued next page)

IMPORTANT SAFETY INSTRUCTIONS

(continued)

• Foods with unbroken outer "skin"

such as potatoes, sausages, tomatoes, apples, chicken livers and other

giblets, and egg yolks (see previous caution) should be pierced to allow

steam to escape during cooking.

. Not all plastic wrap is suitable for use in

microwave ovens. Check the package for

proper use.

• Spontaneous boiling--Under certain special

circumstances, liquids may start to boil during or

shortly after removal from the microwave oven.

To prevent burns from splashing liquid, we recommend the following: before removing the container from the oven, allow it to stand in the oven for 30 to 40 seconds after the oven has shut

off. Do nut boil liquids in narrow-necked

containers such as soft drink bottles, wine flasks and especially narrow-necked coffee

cups. Even if the container is opened, excessive

steam can build up and cause it to burst or overflow.

• Some products such as whole eggs and scaled containers--for example, closed glass jars-- will explode and should not be heated in this

microwave oven. Such use of the microwave/ convection oven could result in injury.

• Hot foods and steam can cause burns. Be careful when opening

any containers of hot food, including

popcorn bags, cooking pouches and boxes. To prevent possible injury,

direct steam away from hands and face.

• Avoid heating baby food in glass jars, even

with the lid off. Make sure all infant food is thoroughly cooked. Stir food to distribute the heat

evenly. Be careful to prevent scalding when warming formula or breast milk. The container may feel cooler than the milk really is. Always

test the milk before feeding the baby.

• "Boilable" cooking pouches and tightly dosed plastic bags should be slit, pierced or

vented as directed by package. If they are not,

plastic could burst during or immediately after

cooking, possibly resulting in injury. Also, plastic storage containers should be at least partially

uncovered because they form a tight seal. When cooking with containers tightly covered with

plastic wrap, remove coveting carefully and direct steam away from hands and face.

• Use of the shelf accessory.

--Use pot holders when handling the sheff and

cookware. They will be hot.

--Never use the shelf for microwave-only cooking. Remove the shelf from the oven when

microwave-only cooking.

--Always place the shelf on the floor of the oven for convection and combination cooking.

SAVETHESE

INSTRUCTIONS

IF YOU NEED SERVICE...

To obtain service, see the Consumer Services page in the back of this guide.

We're proud of our service and want you to be pleased. If for some reason you are not happy with the

service you receive, here are three steps to follow for further help.

FIRST, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

NEXT, if you are still not pleased, write all the details_including your phone number--to:

Manager, Consumer Relations

GE Appliances Appliance Park

Louisville, KY 40225 FINALLY, if your problem is still not resolved, write: Major Appliance Consumer Action Panel

20 North Wacker Drive

Chicago, IL 60606

MICROWAVING TIPS

• Make sure all cookware used in your microwave oven is suitable for microwaving. Most glass

casseroles, cooking dishes, measuring cups, custard cups, pottery or china dinnerware which does not

have metallic trim or glaze with a metallic sheen can be used. Some cookware is labeled "suitable for

microwaving."

• If you are not sure if a dish is

microwave-safe, use this test:

Place in the oven both the dish you

are testing and a glass measuring

cup filled with one cup of water--set the measuring cup either in or

next to the dish. Microwave 1 minute at high. If the dish heats, it should not be used for microwaving. If

the dish remains cool and only the water in the cup heats, then the dish is microwave-safe.

VARIABLE POWER LEVELS (1-10)

• Paper towels, waxed paper and plastic wrap

can be used to cover dishes in order to retain moisture and prevent spattering. Be sure to vent

plastic wrap so steam can escape.

• Some mierowaved foods require stirring, rotating or rearranging.

• Steam builds up pressure in foods which are

tightly covered by a skin or membrane. Pierce

potatoes, egg yolks and chicken livers to prevent bursting.

If you use a meat thermometer while cooking, make sure it is safe for use in microwave ovens.

How to Change Power Level

1. Press MICRO COOK or TIME DEFROST.

2. Select cooking or defrosting time.

3. Press POWER LEVEL. 1 2 3 4 s

4. Select desired power 6 7 8 s __

level 1-10.

5. Press START.

Variable power levels add flexibility to your microwave

cooking. The power levels on your microwave oven can be compared to the surface units on a range. High

(Power Level 10) or full power is the fastest way to

cook and gives you 100% power. Each power level

gives you microwave energy a certain percent of the time. Power Level 7 is microwave energy 70% of the time. Power Level 3 is energy 30% of the time.

A high setting (10) will cook faster but may need

additional attention such as frequent stirring, rotating

or turning over. Most of your cooking will be done

on High (Power Level 10). A lower setting will cook

more evenly and with less attention given to stirring

or rotating the food. Some foods may have better

flavor, texture or appearance if one of the lower

settings is used. You may wish to use a lower power

level when cooking foods that have a tendency to boil over, such as scalloped potatoes.

Rest periods (when the microwave energy cycles off) give time for the food to "equalize" or transfer heat

to the inside of the food. An example of this is shown

with Power Level 3--the defrost cycle. If microwave

energy did not cycle off, the outside of the food would cook before the inside was defrosted.

Here are some examples of uses for various power

levels:

POWER LEVEL BEST USES

High 10 Fish, bacon, vegetables,

boiling liquids.

Med-High 7 Gentle cooking of meat and

poultry; baking casseroles

and reheating.

Medium 5 Slow cooking and tenderizing

such as stews and less tender

cuts of meat.

Low 3 Defrosting without cooking;

simmering; delicate sauces.

Warm 1 Keeping food warm without

overcooking; softening butter.

YOUR TOUCH CONTROL PANEL

The touch control panel allows you to set the oven controls with the touch of a finger. It's designed to be easy to use and understand. With

your new oven, you have several cooking options. In addition to microwave or convection cooking, you have combination cooking, which uses both

methods. Also sensor microwave cooking (Sensor Cook) and sensor microwave defrosting (Sensor Defrost), and sensor combination

temperature cooking (Combination Roast). Or you may make your own programs to suit your own cooking needs.

1. SENSOR POPCORN. Touch this pad to cook

prepackaged microwave popcorn weighing 3.0 to

3.5 ounces. No need to touch START, the oven will start immediately.

2. SENSOR REHEAT. Touch this pad for quick reheating of prepared foods. No need to touch

START, the oven will start immediately.

3. AUTO DEFROST. Touch this pad and food weight, then START. The oven automatically

sets power levels and defrosting time.

4. MICRO COOK. Microwave for a selected amount of time using automatic Power Level 10

(High).

5. COMBINATION COOK. Touch this pad before

entering desired oven temperature, then cook time or food temperature. Combination cooking uses alternating microwave and convection for

maximum speed and browning.

6. CONVECTION COOK. Touch this pad before

entering desired oven temperature, then cook time or food temperature,

7. EXPRESS COOK. Touch number pa&s 1 through 5 for 1 to 5 minutes of cooking. No need to touch

START, the oven will start immediately.

8. POWER LEVEL. Touch this pad before entering another power level number if you want to change

from automatic Power Level 10 (High) for cooking or Power Level 3 (Low) for defrosting.

9. DELAY START/REMINDER. Allows you to

program your oven to begin cooking at a preset time of day--up to a 12-hour delay. The Reminder

feature can be used like an alarm clock.

10. START. After all selections are made, touch this

pad to start the oven.

11. DISPLAY. Displays time of day, time or

temperature during cooking functions, doneness code words, preheat code words, power level being used, cooking mode and instructions.

12. SENSOR BEVERAGE. Touch this pad to heat or reheat a beverage. No need to touch START,

the oven will start immediately.

13. SENSOR COOK. Touch this pad, number pad

for desired code number, and START. The oven automatically microwaves at preprogrammed power levels and determines the proper amount

of cooking time until the food is done and oven shuts off.

14. TIME DEFROST. Gentle thawing at automatic

Power Level 3 (Low).

15. TEMP COOK/HOLD. Use the temperature probe to cook by using a preset temperature.

When internal food temperature reaches 90°E, oven shows temperature until preset temperature

is reached and holds temperature for up to 1 hour.

16. COMBINATION ROAST. Insert probe. Touch this pad (once for Medium, twice for Well), then

START. The oven roasts meat with the automatic

preset program.

17. NUMBER PADS. Touch these pads to program

the microwave.

18. CLOCK DISPLAY ON/OFE Touch the 0

number pad to turn the clock display on or off. The Clock Display On/Off feature cannot be used

while a cooking feature is in use.

19. ADD 30 SECONDS. Press this pad for 30 seconds of cook time, to add 30 seconds to the

cook time as it's counting down, or for an "instant

on" for 30 seconds.

20. MINUTE. Use this with number pads to enter whole minutes. For example, for 6 minutes touch

6 and MINUTE.

21. CLEAR/OFF. When touched, it stops the oven and erases all settings except time of day.

22. SOUND LEVEL. Press the SOUND LEVEL pad. Press number pad 0, 1, 2, or 3 then press START

pad to change the sound level of the oven beeper.

23. KITCHEN TIMER. This feature uses no

microwave energy while it functions as both a kitchen timer or as a holding period between defrost and time or temperature cooking.

24. CLOCK. Touch this pad to enter time of day or

check time of day while microwaving. To set clock, first touch CLOCK pad and then enter time of day. For example, if time is 1:30, touch number

pads 1, 3, and 0 and "1:30" will appear in display. Then touch START or CLOCK. If you wish to reset or change time, simply repeat above process.

Kt_T

When You Plug in the Oven

The panel displays "88888" on the upper portion and all of the oven functions on the lower portion. After

15 seconds, all lights disappear and "RESET"

• appears in the upper portion. Touch the CLEAR/OFF pad, set the clock and oven is ready for use.

This will happen any time there is a power outage.

Temperature Probe

"PROBE" Appears in the Display

• Probe has been forgotten when Combination Roast

or Temp Cook/Hold function is being used.

• Probe is not securely seated in oven wall receptacle.

Clock Display On/Off Feature

The Clock Display On/Off Feature allows you to turn the clock display on or off without changing the time on the clock. Touch the 0 number pad to

turn the clock display on or off. The Clock Display On/Off feature cannot be used while a cooking feature is in use.

FEATURES OF YOUR OVEN

Do not use for microwave-only cooking,

1. Door Handle. Pull to open door. Door must be securely closed for oven to operate.

2. Window with Metal Shield. Screen allows

cooking to be viewed while keeping microwaves confined in oven.

3. Receptacle for Temperature Probe.

Probe must be securely inserted into receptacle

beibre oven will start any temperature or

Combination Roast cooking.

4. Temperature Probe. Use with Combination Roast,

Convection/Combination Cook and Temp Cook/Hold.

5. Shelf. The metal shelf must be in place on the

oven floor when using convection or combination cooking. Remove the shelf when using microwave-

only cooking.

6. Touch Control Panel and Digital Display.

For detailed information on each feature, see Your Touch Control Panel section.

7. Oven Floor. NOTE: Rating plate, oven light and oven vent(s) are

located on the inside wails of the microwave oven.

Cooking Complete Reminder

(For all defrost and cook cycles except Temp Cook Hold)

To remind you that you have food in the oven, the oven will display "End" and beep once a minute until you either open the oven door or touch the

CLEAR/OFF pad.

WHAT YOUR OVEN CAN DO

Cooking with your new oven offers a wide variety

of food preparation options. Microwave cooking uses very short, high frequency radio waves. The

movement of the microwaves through the food

generates heat and cooks most foods faster than regular methods, while retaining their natural

texture and moisture. Microwave cooking heats food directly, not the cookware or the interior of"

the oven. Reheating is easy and defrosting is particularly convenient because less time is

spent in food preparation. Convection cooking constantly circulates heated air

around the food, creating even browning and sealed- in flavor by the constant motion of hot air over the

food surfaces. Your new oven also offers the option of combination

cooking, using microwave energy along with convection cooking. You cook with speed and accuracy, while browning and crisping to perfection.

You can use microwave cooking, convection cooking or combination cooking to cook by time. Simply

preset the length of cooking time desired and your oven turns off automatically. Or you can cook by

temperature, by these methods, using the temperature probe to determine the doneness by the internal

temperature of the food. This method takes the guesswork out of cooking, shutting the oven off

automatically when the food reaches the desired temperature.

The Microwave Sensor Cooking Features (Sensor Cook, Sensor Reheat and Sensor Popcorn) do your

microwave cooking for you. They are easy and convenient--just follow the step-by-step instructions in this manual. A sensor detects steam from the food

and automatically adjusts cooking time and power level for best results.

Combination Roast uses alternating microwave and convection to roast meats to perfection.

Auto Defrost automatically sets the defrosting time and power levels for you. Enter the food weight in

pounds and tenths of a pound and touch the START pad. The oven calculates the defrosting time and

changes power levels during defrosting to give even defrosting results.

The Delay Srart/Reminder feature lets you program

the oven to start cooking at a desired time, even if you're not at home. The Reminder feature can be used

like an alarm clock.

The following guide shows at a glance the difference between microwave, convection and combination

cooking.

Comparison Guide

Microwave Convection Combination

, ai _i);;*;_" x i

COOKING

METHOD

HEAT Microwave energy. Circulating heated air. Microwave energy and circulating

SOURCE heated air.

HEAT Heat produced within food Heat conducted from Food heats from instant energy from CONDUCTION by instant energy penetration, outside of food to inside, penetration and heat conducted from

BENEFITS Fast, high efficiency cooking. Aids in browning and seals Shortened cooking time from

Read this guide to learn the many different things your Microwave/Convection/Combination Oven can do. You will find a wide variety of cooMng methods and programs designed to suit your lifestyle.

Microwave energy is distributed evenly throughout

the oven for thorough, fast cooking of food.

Oven and surroundings do in flavor. Cooks some foods microwave energy, plus browning

not get hot. Easy clean-up, faster than regular ovens, and crisping from convection heat.

Hot air circulates around food to produce browned

exteriors and seal in juices.

Microwave energy and convection heat combine to cook foods in up to

one-third less time than ovens, while browning and sealing in juices,

outside of food.

COOKWARE AND ACCESSORIES

Cookware

Heat-Resistant Glass, Glass-Ceramic (Pyrex ®, Fire King ®, Coming

Ware ®, etc.)

Ceramic

(Cookware with

no metal trim)

Metal

Non Heat-Resistant Glass

Microwave-Safe Plastics

Plastic Films and Wraps

Paper Products

Straw, Wicker and Wood

*Use only microwave cookware that is safe to 400°F.

Microwave Convection Combination

YES YES YES

NO YES NO

NO NO NO

YES NO YES*

YES NO NO

Cookware Tips

Convection Cooking

METAL PANS are recommended for all types of baked products, but especially where browning or crusting

is important. Dark or dull finish metal pans are best for breads and

pies because they absorb heat and produce crisper crust.

Shiny aluminum pans are better for cakes, cookies or muffins because these pans reflect heat and help

produce a light tender crest. GLASS OR GLASS-CERAMIC casserole or baking

dishes are best suited for egg and cheese recipes due to the cleanability of glass.

METAL SHELF

The shelf is _!_/_j__,_ required for v

good air circulation and even browning when using Convection and Combination

cook. Allow at least one inch between the pan and the walls of the oven for

air circulation.

Combination Cooking

GLASS OR GLASS-CERAMIC baking containers are recommended. Be sure not to use items with metal

trim as it may cause arcing (sparking) with oven wall or metal accessory shelf, damaging the cookware, the

shelf or the oven.

HEAT-RESISTANT PLASTIC microwave cookware (safe to 400°F.) may be used, but it is

not recommended for foods requiring crusting or all-around browning, because the plastic is a poor

conductor of heat.

Microwave Convection Combination

NO YES, YES,

on the floor on the floor of the oven. of the oven.

HOW TO USE THE KITCHEN TIMER

The Kitchen Timer

The Kitchen Timer has 3 timing functions:

• It operates as a minute timer.

• It can be set to delay cooking.

• It can be used as a hold setting after defrosting.

The Kitchen Timer operates without

microwave energy,

How to Time a 3-Minute Phone Call

Step 1: Touch KITCHEN TIMER pad. Step 2: Touch number pad 3 and MINUTE pad

(for 3 minutes and no seconds). Step 3: Touch START. Display shows time counting

down. The timer signals when time is up.

Using a Holding Time

The Kitchen Timer can also be used to program a "holding time" between microwave cooking functions.

The time can range from 1 second to 99 minutes and 99 seconds. A holding or standing time may be found

in some of your own recipes or in a cookbook.

Programming Delayed Cooking

To delay cooking up to 99 minutes and 99 seconds,

touch either MICRO COOK, TEMP COOK/HOLD

or COMBINATION ROAST and enter cook time,

temperature or code. Touch KITCHEN TIMER and

enter number of minutes to delay cooking. When

delaying Temp Cook/Hold or Combination Roast

cooking, be sure probe is in food. Touch START. Timer will count down to zero and cooking will begin.

NOTE: Cooling fan comes on during delay time.

How to Defrost, Hold and Micro Cook

Let's say you want to defrost a frozen casserole for 15 minutes, hold for 10 minutes and then Micro Cook for 25 minutes. Here's how to do it:

Step 1: Take casserole from freezer and place in oven.

Step 2: Touch TIME DEFROST pad.

DEFROST

TIME

Step 3: Touch pads 1, 5 and MINUTE for 15 minutes defrosting time. (Defrosting is automatically set

on power level 3 but can be changed by touching the POWER LEVEL pad and the desired power level 1-10.)

KITCHEN

TIMER

Step 5: Touch 1, 0 and MINUTE to hold for

10 minutes.

MICRO

COOK

Step 7: Touch 2, 5 and MINUTE for 25 minutes of cooking time.

START

Step 4: Set standing or hold time by touching KITCHEN TIMER pad.

Step 6: Touch MICRO COOK pad.

Step 8: Touch START. As each function

is automatically performed, oven display shows instructions entered and the

function. When time is up, the oven

signals and flashes "End."

COOKING BY TIME

Micro Cook I

Micro Cook allows you to microwave for a preset amount of time.

Power Level 10 (High) is recommended for most cooking, but you may change this for more flexibility.

See the Cooking Guide. To become better acquainted with time cooking, make

a cup of coffee by following the steps below. Step 1: Fill a cup [ t I[I I /

2/3 full of water, [ 11Nil add 1 teaspoon of ] I]1 I ] _,_-'-_

instant coffee and [ /_]l [1[1 stir to dissolve. ]m[[ 1111 _]

Use a cup that has I_ AJ I I,/'/_ ]]]_

nomet decoration

and is microwave- _//"_/ .,__ safe (refer to [/ / J "7 _-

Microwaving Tips section). Place cup in oven and close door.

Step 2: Touch MICRO COOK.

COOK

MICRO J

Step 3: Select your time. Touch pad 1 and MINUTE pad for 1 minute.

Because automatic Power Level 10 is recommended for this cup of coffee, there is no need to change the

power level. (If Power Level 10 is not appropriate, see "How to Change Power Level" below.)

Step 4: Touch START.

Step 5: When time is up, the oven signals and flashes

"End". The oven, light and fan shut off.

Step 6: Open the door. If you interrupt Micro Cook to check the food, simply

close the door and press START to resume cooking. If there is not time remaining on the timer you must reset the timer to resume cooking.

How to Change Power Level When Setting Micro Cook I

1. Press MICRO COOK. []_[_[]

2. Select cooking time, [][_[_[][]

3, Press POWER LEVEL.

4. Select desired power level 1-10.

5. Press START.

Using the Micro Cook II Feature

The Micro Cook II feature lets you set 2 time cooking functions within one program. This is ideal if you

want to change power levels during your cooking

operations. Here's how to do it. Step 1: Place the food in the oven in a microwave-

safe container and close the door.

Step 2: Touch MICRO COOK.

COOK

MICRO ]

Step 3: Select your first cook time. For example, touch 2, 1 and 5 for 2 minutes and 15 seconds.

Step 4: Now is the time to change the power level if you don't want full power for MICRO COOK. (Press POWER LEVEL. Select desired power level 1-10.)

Step 5: Touch MICRO COOK again. Step 6: Set your second cook time.

Step 7: Change the power level for MICRO COOK. (Press POWER LEVEL. Select desired

power level 1-10.)

Step 8: Press START.

The microwave oven will start and the time set for "COOK TIME I" will count down. Also, "POWER

10" or the power level selected for "COOK TIME I"

will be displayed.

At the end of "COOK TIME I", the second power level is displayed and the time for "COOK TIME I1"

is shown counting down.

When time is up, the oven signals and flashes "End". The oven, light and fan shut off'. Open the door.

If you interrupt Micro Cook to check the food, simply

close the door and press START to resume cooking. If there is no time remaining on the timer you must

reset the timer to resume cooking.

The Express Cook Feature

The Express Cook feature is a short-cut method to set time for 1-5 minutes at Power Level 10.

How to Use Delay Start

The Delay Start feature allows you to program your oven to begin cooking at a preset time of

day--up to a 12-hour delay.

START

I DEI_Y Step 1: Touch DELAY START pad.

REMINDER

How to Use Reminder

To Express Cook your food or beverage: Touch a number pad (from 1 to 5) for I to 5 minutes

of cooking at Power Level 10. For example, touch the 2 pad for 2 minutes of cooking time. No need to touch

START, the oven will start immediately. The oven will signal and turn off automatically

when finished.

Step 2: Enter the time you want the oven to start. (Be sure your microwave oven clock shows the

correct time of day.) Step 3: Enter your desired cooking program.

Step 4: Touch START pad. The display will show the time you entered. The time

of day may be displayed by touching the CLOCK pad. The oven will automatically

start at the desired time.

The Reminder feature can be used like an alarm clock, without starting the oven.

Example: It is 7 a.m. and you must remember to leave for a dentist appointment at 10 a.m.

DELAY START

RF/dlNDI_R

Step 2: Enter the time you want the oven to remind

you. (Be sure your microwave oven clock shows the correct time of day. The reminder time can be set up to 12 hours later.)

Step 1: Touch DELAY START pad.

The Sound Level Feature

The Sound Level Feature lets you change the

sound level of the oven beeper. To set the beeper

sound level:

Step 1: Touch the SOUND LEVEL pad.

Step 2: Touch 0 for No Sound, 1 for Soft, 2 for

Normal or 3 for Loud. When you touch each number pad the oven will beep at the volume that you have

selected. Step 3: When you have selected your desired sound

level, touch the START pad.

Step 3: Touch START

pad. The reminder is now F=_ F= _T_

set at the time you

programmed,andwill I e I | I

signal you at that time with a beeping sound until

you open the door or touch the CLEAR/OFF pad.

The display will show "REM" until the oven door is opened or CLEAR/OFF is touched. The REMinder

time may be displayed by touching the DELAY

START pad. The time-of-day may be displayed by

touching the CLOCK pad.

Add 30 Seconds

The Add 30 Seconds feature provides a convenient way to extend cooking time by

30 seconds while the oven timer is

counting down. It will add 30 seconds to the time shown each time the pad is

touched.

This pad may also be used as an express cook for 30 seconds of cooking. No need to touch START, the

oven will start immediately.

DEFROSTING BY TIME

Time Defrost (Power Level 3)

Time Defrost is designed for speedy thawing of

frozen food and is one of the great advantages of a microwave oven.

Use the Time Defrost setting to quickly thaw foods such as bread, rolls, vegetables, fruits and frozen

dinners. The Auto Defrost setting is preferred for meat and poultry because the oven sets the defrosting

time and power levels for you.

• Power Level 3 is automatically set when you press TIME DEFROST pad, but you may change this for

more flexibility.

• See the Defrosting Guide for defrosting help.

How to Change Power Level

1. Press TIME DEFROST.

2.Selectaefros ngtimo[][][][][]

3. Press POWER LEVEL. [_[_[_ [_[_

4. Select desired power level 1-10.

5. Press START.

To become better acquainted with ttle defrost function, defrost a 10 oz. package of frozen

strawberries by following the steps below. Step 1" Place a package of frozen strawberries in

the oven and close door. Be sure package contains

no metal.

TIME ] Step 2: Touch TIME DEFROST.

DEFROSTJ

Step 3: Select one half of the total defrosting time

recommended, For example, touch pads 4, 0 and 0 for 4 minutes.

completed, the oven signals and flashes Step 4: Touch START. When the cycle is

"End," then automatically shuts off.

Step 5: Turn the package over, close the door and repeat Steps 2 and 3 to set remaining half of

defrosting time. Touch START. Step 6: When the oven signals and flashes "End,"

open the door, remove the package and separate strawberries to finish defrosting.

Defrosting Tips

:_: _ ._ plastic can be defrosted in

__ • Foods frozen in paper or

..... the package. Tightly closed

packages should be slit, pierced or vented, AFTER

food has partially defrosted, as directed by package.

Plastic storage containers should be at least partially

uncovered.

• Family-size, prepackaged frozen dinners can be defrosted and microwaved. If the food is in a foil container, transfer it to a microwave-safe dish.

Questions and Answers

Q. When I press START, I hear a dull thumping

noise. What is it?

A. This sound is normal. It is letting you know the

magnetron is in operation.

_._:--* For even defrosting, some

_ foods need to be broken up

[_'_,_'7"- or separated part of the way

through the defrosting time.

• Foods that spoil easily, such as milk, eggs, fish, stuffings, poultry and pork should not be allowed to

sit out for more than one hour after defrosting. Room

temperature promotes the growth of harmful bacteria.

• Check the Defrosting Guide for other defrosting tips.

Q. Can I defrost small items in a hurry? A. Yes, but they will need more frequent attention

than usual. Raise the power level after entering the time by touching the desired power level pad.

Power Level 7 cuts the total defrosting time in

about 1/2; Power Level 10 cuts the total defrosting time to approximately 1/3. During either, rotate or stir food frequently.

COOKING BY TEMPERATURE

Internal temperature is the best test of doneness for many foods.

Use Temp Cook/Hold to cook a variety of foods to the desired finished food temperature. The Micro

Cook setting is recommended for batters, doughs,

frozen foods and foods which are difficult to cook

precisely with the probe.

Temp Cook/Hold takes the guesswork out of cooking because the oven automatically switches to "Hold" setting after reaching the preset food temperature

and maintains that temperature until you touch the CLEAR/OFF pad.

NOTE: Oven automatically switches to "Hold" when preset food temperature is reached.

The Temperature Probe

The temperature probe is a food thermometer that gauges the internal temperature of your food, Use

the probe when you want to Convection Cook or Combination Cook to a preferred internal

temperature, (Its appearance may vary from picture shown.) The probe must be used when using Temp Cook/Hold or Combination Roast. To use the probe

properly, follow directions in the Combination Roasting section.

Cable // %_ /

How to Temp Cook a Rolled Beef Rib Roast to Medium

Handle Sensor

Step 1: Insert temperature probe and attach probe securely in oven wall. Close the door.

Step 2" Touch TEMP COOK/HOLD pad, Step 3: Touch 1, 6 and 0 for 160°F.

Step 4" Touch POWER LEVEL pad. Touch 5 for medium power.

Cooking Tips

• Use a lower power level; foods will heat more

evenly though requiring more time.

• Be sure frozen food has been completely defrosted before inserting probe. Probe may break off if used

in frozen foods.

Questions and Answers

Q. Why did "PROBE" flash on the display? A. "PROBE" will flash if you don't seat the

cable end of the probe securely into the receptacle in the oven wall or if you touch the TEMP

COOK/HOLD pad and forget to use the probe.

Step 5: Touch the START pad. If internal temperature

of the roast is less than 90°F., display will show

"COOL"; if temperature is 90°F. or above, display shows temperature counting up.

Step 6: When 160°E is reached, the oven will sound and display "Hold." The oven will then hold the

temperature for up to one hour,

Step 7: Touch the CLEAR/OFF pad to stop the cycle. Step 8: Remove probe and food from the oven.

• Cover foods loosely for moisture control and quick,

even heating.

• Insert the probe horizontally into the center meaty

area not touching bone or fat. Make sure the handle does not touch the food or top or sides of the oven.

Q. Can I leave my probe in the oven if it's not

inserted in food?

A. No, if it touches the oven wall, it may damage

the oven,

Auto Defrost

AUTO DEFROST

With the Auto Defrost feature, the oven automatically sets the defrosting times and power

levels for you.

How to Set Auto Defrost

Before you begin, check the Auto Defrost Guide

located in this section. It shows minimum and

maximum food weights for a variety of foods.

You will need to know your food weight before setting Auto Defrost.

Step 1: Remove food from package, place in oven on microwave-safe dish and close door.

AUTO ] Step 2: Touch AUTO DEFROST pad.

DEFROST

Step 3: Enter weight. For example, touch number

pads 1 and 2 for weight of 1.2 pounds (1 pound,

3 ounces). See Conversion Guide below. After

approximately 5 seconds "START" flashes.

Use the Auto Defrost Guide. Enter the food weight in

pounds and tenths of a pound (see Conversion Guide

below). Then touch START pad.

The oven calculates defrosting time and changes power levels during defrosting to give even defrosting results.

defrost time counting down. Step 4: Touch START pad. Display shows

Twice during defrosting, ] J the oven beeps 4 times

and "TURn" flashes, , T ' 'IP|--, Follow the directions in t L_

the Auto Defrost Guide I for what to do at the first

and second signal. Then close the door and touch START pad.

When defrosting time is completed, "End" flashes

and oven beeps 4 times. "End" remains on display and oven beeps every minute until door is opened or

CLEAR/OFF pad is touched,

Stand Time

After Auto Defrosting, meat needs to stand in order to let the inside defrost. You may take the food out of the

oven if you wish. Stand time recommendations are given in the Auto Defrost Guide.

Conversion Guide

If the weight of food is stated in

pounds and ounces, the ounces

must be converted to tenths (.1)

of a pound.

Ounces Pounds

1-2 .1

3 .2

4-5 .3 6-7 .4

8 .5

9-10 .6

11 .7

12-13 .8 14-15 .9

AUTO DEFROST GUIDE

RECOMMENDED

FOODS

Chops

Frankfurters, Sausage

Ground Meat

Beef Patties Roast

Ribs

Steak 0A - 6.0 Ibs. 5 minutes Stew 0.1 - 6.0 lbs. 5 minutes

Whole Chicken

Turkey Breast

(breast side up)

Chicken Pieces

Cornish Hens (whole)

Cornish Hens (split)

MIN.-MAX.

WEIGHT FIRST SIGNAL SECOND SIGNAL STAND TIME

0. I - 6.0 tbs.

0.1 - 6.0 lbs.

0A - 6.0 lbs.

0.1 - 6.0 lbs.

0A - 6.0 lbs.

0.1 - 6.0 lbs.

Turn over.

Separate.

TUHI over.

Tum over.

Turn over and shield.

Turn over.

THITIOVeE

Tumoverand separa_.

Turn over and shield.

Turn over.

Remove wrapper and turnover.

Turn ove_

Separate and shield where necessary,

Remove defrosted pieces.

Remove defrosted areas and break apart.

Separate patties. Shield if. necessary.

Remove defrosted

pieces. Shield if necessary.

Separate and remove

defrosted pieces.

Turn over and shield.

Shield where necessary.

Separate and remove defrosted pieces.

5 minutes

2 minutes

5 minutes

5 minutes 30 minutes

5 minutes

10 minutes;

mn cold water in cavity.

20 minutes; run cold water

in cavity. 5 minutes

10 minutes;

run cold water in cavity.

5 minutes

Fish Fillets

Shrimp, Scallops Separate and remove

Whole Fish

Edges or thin areas of meat will defrost more ra ,idly than other areas. After first or second signal, shield warm areas with small pieces of foil.

0.1 - 6.0 lbs.

Turn over,

Separate.

Turn over and

shield tail and

head.

Separate and remove defrosted pieces.

defrosted pieces.

5 minutes

5 minutes; Hold under cold

running water.

SENSOR POPCORN

NOTE: Do NOT use the metal shelf with the Sensor Popcorn program.

The Sensor Popcorn feature is designed to be used only with prepackaged microwave popcorn weighing

3.0 to 3.5 ounces, Step 1: Remove the outer wrapper from the

microwave popcorn. Step 2: Open oven door and place package of

popcorn in the center of the oven floor as directed

by the package instructions, Close oven door.

SFNS0R pad. No need to touch START, the oven

POI_0RN will start immediately.

After the popcorn sensor

detects steam, the oven

signals and displays remaining cooking

time needed.

Step 4: When cooking is completed, the oven

signals and flashes

"End". Open the door

and remove the popcorn.

Step 3: Touch SENSOR POPCORN

nlLO

L_I _OWER

COOK

TIME

,-,d

How to Adjust the Sensor Popcorn Program to Provide a Shorter or Longer Cook Time

If your favorite popcorn is not completely popped, there is a simple adjustment you can make.

Touch the SENSOR POPCORN pad. (The

oven will start immediately.) Then touch

number pad 9. A plus sign will appear on the

display beside the word "POP". The plus sign indicates 20 seconds more cooking time is being

provided.

PnP÷ I

If your favorite popcorn is overcooked, there is a simple adjustment you can make.

Touch the SENSOR POPCORN pad. (The

oven wilt start immediately.) Then touch

number pad 1. A minus sign will appear on the display beside the word "POP", The minus sign

indicates 20 seconds less cooking time is being provided.

L.I! --

Questions and Answers

Q. I opened the door to check on the popcorn and

"Error" appeared on the display. Why?

A. The Sensor Popcorn program first detects steam

and then switches to Micro Cook. If you open the

door while "POP" is displayed, "Error" will appear. Close the door, touch CLEAR/OFF and begin

again. You may open the door when "End" appears

on display.

SENSOR BEVERAGE

The Sensor Beverage program makes it simple to heat a cup of hot chocolate or other beverage. Use a cup

that has no metal decoration and is microwave-safe (refer to the Microwaving Tips section).

Touch SENSOR BEVERAGE pad. No need to touch START, the oven will start immediately.

Can I use regular popcorn with the Sensor Popcorn feature in my microwave oven?

No. This automatic function is designed to be used only with prepackaged microwave popcorn.

When I touched the POPCORN pad, the oven signalled and "HOT" appeared in the display,

and the feature would not operate. Why?

ff the temperature inside the oven is greater than 200 °, the sensor will not operate properly as the oven

does not allow the sensor cooking feature to be used,

The oven will signal and turn off automatically when finished.

CAUTION: Beverages heated with the Sensor

Beverage feature may be quite hot. Remove the container with care.

SENSOR REHEAT

Sensor Reheat is designed for reheating single serving sizes of previously prepared foods. With many

leftovers, there is no need to look up reheating times in a cookbook or to rely on guesswork.

By actually sensing the steam that escapes as food

heats, this feature automatically adjusts the oven's heating time to various types and amounts of pre-

cooked food.

Foods Recommended

A wide variety of previously prepared foods

including leftovers can be

reheated using this feature.

Reheat is recommended for

single-servings of food or plates of leftovers.

Because all cooking containers must be covered during automatic reheating, this feature is best with

foods you want to steam or retain moisture.

NOTE: Do NOT use the metal shelf with Sensor Reheat.

Foods Not Recommended

Bread products, foods that must

be reheated uncovered,

foods that require constant

attention, foods calling for a dry look or crisp

surface after reheating should not be reheated using this feature. It is best to use Micro Cook.

Easy to Use

Simply touch the SENSOR REHEAT pad. No need to touch START, the oven will start

immediately.

Example:

SENSOR

_H_T

"RHEAT"a_'TOOD" aredispl_ed.

SENSOR REHEAT pad. No need to Place covered food in oven. Touch

touch START, the oven will start immediately.

Questions & Answers

Q. If my food is not completely reheated after

using Sensor Reheat, what should I do?

A. Use Micro Cook to reheat for additional time

until desired temperature is reached.

Keep Door Closed

Do not open the oven door while the word "I_.HEAT" is displayed--steam escaping from the oven can

affect reheating performance. If the door is opened, close the door and touch START immediately.

Beep sounds when steam is sensed and "RHEAT"

is replaced by time

counting down. Rotate or stir food if necessary.

Close door and touch START to finish heating. When done, oven displays

"End" and beeps every minute until door is opened

or CLEAR/OFF is touched.

Q. What if I don't fully cover the dish in

Sensor Reheat?

A. Oven senses steam too quickly, which shortens

the reheating time and leaves food too cool. Cover tightly and reset Sensor Reheat.

FOOD

E.Z.I

SENSOR COOK

The Sensor Cook feature makes cooking your favorite

foods easy. By actually sensing the steam that escapes as food cooks, this feature automatically adjusts the

oven's cooking time to various types and amounts of food.

Foods Recommended

A wide variety of foods including

meats, fish and vegetables can be cooked using this

feature.

Because most cooking containers must be covered

during Sensor Cook, this feature is best with foods that you want to steam or retain moisture.

Sensor Cook.

I NOTE: Do not use the metal shelf with

Foods Not Recommended

Foods that must be cooked uncovered,

foods that require constant attention,

foods that require addition of ingredients

during cooking and foods calling for a dry

look or crisp surface after cooking should not be cooked using this feature. It is best to Micro Cook them.

Foods that microwave best using the temperature probe should be Temp Cooked or Combination Roasted.

Easy to Use

Simply touch 3 control pads--SENSOR COOK, desired CODE, and START. The word "AUTO"

appears on the display and the sensor is activated to sense steam from food.

Keep Door Closed

Do not open the oven door while the word "AUTO"

is displayed--steam escaping from the oven can affect cooking performance. If the door is opened,

close the door and touch START immediately.

Sensor Cook Codes

Sensor Cook codes 1 through 7 are designed to give you easy, automatic

results with a number of popular foods. See the Sensor Cooking Control

Guide section for specific foods and instructions.

Example:

Step 1: Place covered food in oven. Touch SENSOR COOK pad. "ENTER FOOD CODE" flashes on display.

Step 2: Touch number pad of desired food code. The

code and food type you selected will appear on the display. "FOOD" and "CODE" flash. After 4 seconds,

"START" flashes on the display, Touch START.

Word "AUTO" shows on display, indicating

steam sensor is activated. DO NOT OPEN DOOR.

OPENING DOOR MAY AFFECT COOKING

PERFORMANCE. Beep sounds when steam

is sensed and "AUTO" is replaced by cook time.

Rotate or stir food, if necessary. When done,

oven beeps every minute

until door is opened or CLEAR/OFF is touched.

I |LI ( Ll

FOOD

!_ I !T l")CODe

[ C g'@ IN

?,,..! ILl

I ---I El POWEa

COOK

TIME

SENSOR REHEAT AND SENSOR COOK

Containers and Covers

CONTAINERS AND COVERS

Appropriate containers and coverings help assure good cooking results.

• Always use microwave-safe containers and cover

them with lids or vented plastic wrap. Wonder if it's microwave-safe? Put it to the test described in

the Microwaving Tips section.

• Never use tight-sealing plastic covers--they can prevent steam from escaping and cause food

to overcook.

• Match the amount of food to the size of the container. Fill containers at least half full for

best results.

• Be sure the outside of the cooking container and

the inside of the microwave oven are dry before placing food in the oven. Beads of moisture turning

into steam can mislead the sensor.

• Stir or rotate some foods after a beeping signal, if required. See the Sensor Cooking Control

Guide section.

SENSOR COOKING CONTROL GUIDE

• Do not open oven door during cycle. When oven

signals and countdown time is displayed, door may be opened for stirring, turning or rotating food. To

resume cooking, close door and touch START.

• Match the amount of food to the size of container. Fill containers at least 1/2 full.

Sensor

Food Cook Code Servings Serving Size Comments Canned Vegetables 1 1 to 4 4 oz. Use microwave-safe casserole or bowl.

• Be sure outside of container and inside of oven

are dry.

• After completion of Sensor Cook cycle, if food needs additional cooking, return food to oven and

use Micro Cook to finish cooking.

Cover with lid or plastic wrap.

Frozen Vegetables 2 1 to 4 4 oz. Use microwave-safe casserole or bowl.

Follow package instructions for adding water. Cover with lid or plastic wrap.

Fresh Vegetables 3 1 to 4 4 oz. Use microwave-safe casserole or bowl.

Add 2 tablespoons water for each serving.

Cover with lid or plastic wrap.

Potatoes 4 1 to 4 8 oz. Pierce skin with fork.

Cluster potatoes in center of oven floor.

Fish 5 1 to 4 4 oz. Use oblong, square or round dish.

Cover with plastic wrap.

Chicken Pieces 6 I to 4 1 to 2 Use oblong, square or round dish.

pieces Cover with wax paper.

Ground Meat 7 -- 1/2 to 3 lbs. Use round casserole dish. (Beef, Pork, Turkey) Crumble meat into dish.

Cover with wax paper or plastic wrap.

CONVECTION TIME COOKING

During convection cooking, a heating element is used to raise the temperature of the air inside the

oven. A fan gently circulates this heated air

throughout the oven, over and around the food,

producing golden brown exteriors and rich, moist interiors. Because the heated air is kept constantly

moving, not permitting a layer of cooler air to

develop around the food, some foods cook faster than in regular oven cooking.

For best results

[ [ "_ 1. Place the shelf on the oven floor.

_i the oven.

2. Allow at least one inch between the pan and the walls of

3. When converting your favorite recipe from regular oven cooking to convection, lower the oven temperature 25 to

35 degrees and check at minimum time.

How to Convection Preheat and Time Cook

Step 1: Touch Convection COOK pad.

COOK

Step 2: Enter the oven temperature by touching the number pads that correspond with the desired

oven temperature. For example, touch number pads 2, 7, and 5 for 275°E Do not enter convection cook

time now.

For information on suggested cookware, see the Cookware and Accessories section.

Step 4: Open the oven door and place the food in the oven.

Step 5: Close the oven door. Set the desired cooking time in hours and minutes by touching number pads in

sequence beginning with hours. For example, to set 2 hours and 30 minutes, touch number pads 2, 3, and 0

in that order. To enter time less than one hour, for example, 30 minutes, touch 0, 3 and 0.

is completed, the display shows "End" and Step 6: Touch START pad. When cooking

the oven signals and tulns off.

the door within 1 hour the oven will turn

Step 3: Touch START. If you do not open

off automatically.

How to Convection Time Cook Without Preheating

Step 1: If your recipe does not require

preheating, touch the Convection

COOK pad.

e00g

Step 2: Enter the oven temperature by touching the number pads that correspond to the desired oven

temperature. For example, touch number pads 2, 2 and 5 for 225°E

Step 3: Set the desired cooking time in hours and minutes by touching number pads in sequence

beginning with hours. For example, to set 2 hours and 30 minutes, touch number pads 2, 3 and 0, in that

order. To enter time less than one hour, for example, 30 minutes, touch 0, 3 and 0.

Step 4:Touch START pad.

CONVECTION TEMPERATURE COOKING

You can also convection cook with the temperature probe, to assure

that foods are cooked precisely to the degree of doneness desired, while the constantly circulating hot air assures even cooking and

delicious browning. The temperature probe monitors the internal temperature of the food and turns the oven off automatically when

the desired temperature is reached.

For best results

1. Place the shelf on the oven floor.

2. Allow at least one inch between the pan and the walls of

the oven.

3, When converting your favorite recipe from regular oven

cooking to convection, lower the oven temperature 25 to 35 degrees and check at minimum time.

How to Convection Temperature Cook

Step 1: Insert probe in food as directed in the

Cookbook or in this guide. Plug other end of probe

securely into wall receptacle.

Step 2: Touch Convection COOK pad.

goog

Questions and Answers

Q. After I preheated my oven, I tried to set

cooking time, but nothing happened. What is the problem?

A. Until you open the oven door or touch the

CLEAR/OFF pad, the oven remains in the preheat mode and no further instructions can be entered.

After 1 hour oven automatically turns off.

Q. Can I check during the cooking cycle to be sure

that I have set the correct oven temperature?

A. Yes. If you touch the Convection COOK pad at

any time during cooking, the selected oven temperature is displayed on the display.

Step 3: Enter oven temperature by touching the number pads that correspond with the desired oven

temperature. For example, touch 2, 2, 5 for 225°F. Step 4: Touch the appropriate number pads in

sequence to enter the desired food temperature. Any food temperature from 90°E to 199°F. may be

programmed. For example, touch 1, 8 and 0, in that

order, for 180°E The temperature selected is shown on the display.

Step 5: Touch START pad. When food reaches preselected temperature, display

shows "End," oven signals and turns off.

Q. Can I store the probe in the oven when it is

not in use?

A. Leaving the probe in the oven is not recommended.

If you forget and leave it in during cooking, without having inserted it in food, damage to

the probe or to the oven may result.

COMBINATION TIME COOKING

Combination cooking offers the best features of microwave energy and convection cooking. Microwaves cook food fast and convection

circulation of heated air browns foods beautifully.

For best results

,i il 1. Place the shelf on the oven floor.

2. Allow at least one inch between the pan and the walls of the

oven.

3. When converting your favorite recipe from regular oven

cooking to combination cooking, lower the oven temperature 25 to 35 degrees and check at minimum time.

How to Combination Time Cook With Preheat

Step 1: Touch COMBINATION

COMBINATIO$1COOK pad.

COOK

Step 2: Enter the oven temperature by touching the number pads that correspond with the desired

oven temperature. For example, touch number pads 2, 7, and 5 for 275°E Do not enter convection cook time now.

the door within 1 hour the oven will turn

Step 3: Touch START. If you do not open

off automatically.

Step 4: Open the oven door and place the food in

the oven. Step 5: Close the oven door. Set the desired cooking

time in hours and minutes by touching number pads in sequence beginning with hours. For example, to set 2

hours and 30 minutes, touch number pads 2, 3, and 0 in that order. To enter time less than one hour, for

example, 30 minutes, touch 0, 3 and 0.

How to Combination Time Cook Without Preheating

Step 3: Set the desired cooking time in hours and

ICOMB_NATION]Step 1: If your recipe does not require [ COOK j COOKpad.

Step 2: Enter the oven temperature by touching the number pads that correspond to the desired oven

temperature. For example, touch number pads 2, 2 and 5 for 225°E

preheating, touch the COMBINATION

minutes by touching number pads in sequence beginning with hours. For example, to set 2 hours and

30 minutes, touch number pads 2, 3 and 0, in that order. To enter time less than one hour, for example, 30 minutes, touch 0, 3 and 0.

is completed, the display shows "End" and Step 6: Touch START pad. When cooking

the oven signals and rams off.

Step 4: Touch START pad.

Questions and Answers

Q. May I use my metal roasting pan to

Combination Cook a roast?

A. No. Do not use metal cookware when Combination

cooking. Place the roast in a glass dish.

Q. Is it necessary to place a glass dish on the oven

floor when Combination cooking?

A. No. For best roasting results, place the glass dish on

the oven shelf which rests on the oven floor during

Combination cooking.

Remember:

• Check the Cookware and Accessories section

for correct cookware when Combination cooking.

• For best masting and browning results, whole roasts and poultry should be cooked in a dish placed directly

on the oven shelf.

• Place meat in a glass dish on a trivet to collect juices and prevent spattering.

• Some recipes call tbr preheating.

COMBINATION TEMPERATURE COOKING

With this function of your new oven, you can enjoy the benefits of combination cooking with the precision of the temperature probe. The probe makes it simple to cook to the exact degree of doneness desired,

by monitoring the internal temperature of the food. This function is exactly like combination time cooking except you set internal food

temperature desired instead of cooking time.

For best results

1. Place the shelf on the oven floor.

2. Allow at least one inch between the pan and the walls of the oven.

3. When converting your favorite recipe from regular oven cooking to combination temperature cooking, lower the oven temperature

25 to 35 degrees and check at minimum time.

How to Combination Temperature Cook

Step 1: Insert probe in

food as directed in the Cookbook or in this guide.

Plug other end of probe securely into wall

receptacle.

Step 2: Touch COMBINATION

COMBINATIONCOOK pad.

COOK

Step 3: Enter oven temperature by touching the

number pads that correspond with the desired oven temperature. For example, touch 2, 2, 5 for 225°E

Step 4: Touch the appropriate number pads in sequence to enter the desired food temperature.

Any food temperature from 90°E to 199°F. may be programmed. For example, touch 1, 8 and 0, in that

order, for 180°F. The temperature selected is shown on the display.

reaches preselected temperature, display Step 5: Touch START pad. When food

shows "End," oven signals and turns off.

COMBINATION ROAST

Combination Roast is a combination function which is similar to combination temperature cooking, using both microwave and convection cooking in conjunction with the temperature

probe. However, the Combination Roast feature eliminates most of the steps necessary to program

combination temperature cooking.

How to Combination Roast

Step 1: Insert temperature probe into meat and plug

the probe firmly into oven wall receptacle.

COMBINA'nONStep 2: Touch the COMBINATION

ROAST roast to MEDium doneness. Touch the

p,o_ pad twice for cooking to "WELL".

ROAST pad once for cooking your

Combination Roast Guide (UseProbe)

Food Medium Well

The metal shelf must be in place

[ iIj on the oven floor when using

convection or combination

_'_ cooking. The food is placed in

_,i_L _ Jl__ glass dish on a trivet for cooking

during Combination Roast.

Step 3: Touch START. When food reaches the programmed temperature for proper

degree of doneness, the oven will sound and display "Hold". The oven will then hold the temperature for up to one hour.

Beef / ,/ Lamb / J

Pork -- /

Chicken -- / Turkey -- /

tThe U. S. Department of Agriculture says "Rare beef is popular, but you should know that cooking it to only lZ[0°F,means some tk_odpoisoning

organisms may survive?' (Source: Safe Food Book. your Kitchen Guide. USDA Rev. June 1985.)

Questions and Answers

Q. When I cook poultry, the thin, small areas like

legs and wings often overcook before the rest of

the bird is thoroughly cooked. How can I prevent this?

A. Thin, uneven portions of poultry may be shielded

with aluminum foil during cooking. Do not allow

foil to touch shelf or oven sides, arcing may occur.

Q. Usually my temperature probe gives very

accurate results, but this time it didn't. What happened?

A. If the temperature probe is positioned touching fat

or bone, an inaccurate reading may result. Be sure to place the probe in solid muscle, usually the

thickest, meatiest part of the roast or poultry, or in the center of a meat loaf or casserole.

Q. Meats often take longer than indicated in the

guides to reach the desired internal temperature. Why?

A. If the meat is recently defrosted and still very cold

or icy inside, it will require a longer cooking time than meat which has been merely refrigerated.

Times shown in the guides are usually for meats that are refrigerator temperature.

Q. Do most meats require standing time after

cooking with Combination Roast?

A. You may want to let meats stand briefly, to allow

easier carving and serving. Most meat roasts continue to cook for a few minutes after removing

from the oven.

COOKING REFERENCE GUIDE

This is a Quick Reference to guide you in selecting the best method of cooking. Specific recipes can be

adapted to any method of cooking.

Foods

Microwave

Appetizers

Dips and Spreads Pastry Snacks

Beverages Sauces and Toppings Soups and Stews

Meats

Defrosting Roasting

Poultry

Defrosting Roasting

Fish and Seafood

Defrosting

Cooking

Casseroles

Eggs and Cheese

Scrambled, Omelets

Quiche, Souffle

Vegetables, Fresh Breads

Quick Yeast

Muffins, Coffee Cake

Desserts

Cakes, Layer and Bundt Angel Food and Chiffon

Custard and Pudding

Bar Cookies Pies and Pastry Candy, Fruit

Blanching Vegetables Frozen Convenience Foods

* -- Best Method

A- Altemate N -- Not Recommended

Combination

N N A

8¢

N A

A N

N A

Convection

N A

N N N

N A

A A

N A

N N

CARE AND CLEANING

Keep your oven clean and sweet-

smelling. Opening the oven door

a few minutes after cooking helps

air out the inside. An occasional thorough wiping with a solution

of baking soda and water keeps

the inside fresh.

How to Clean the Inside

Walls and floor. Some spatters can be removed with a paper towel, others may require a damp cloth.

Remove greasy spatters with a sudsy cloth, then rinse with a damp cloth. Do not use abrasive cleaners on

oven walls. NEVER USE A COMMERCIAL OVEN CLEANER ON ANY PART OF YOUR

MICROWAVE OVEN. Door (inside). Window: Wipe up spatters daily

and wash when soiled with a damp cloth. Rinse thoroughly and dry.

Metal and plastic parts on door: Wipe frequently with a damp cloth to remove all soil. DO NOT USE

ABRASIVES, SUCH AS CLEANING POWDERS

OR STEEL AND PLASTIC PADS. THEY WILL

DAMAGE THE SURFACE, Special note when using Brown 'N Sear Dish: If

grease is present, high heat generated on bottom of a Brown 'N Sear dish may cause the grease to burn

onto the oven tray. This may be removed with a cleanser such as Bon Ami ®brand cleanser.

Don't use sharp-edged utensils on your oven. The inside and

outside oven walls can be

scratched. The control panel can be damaged.

BE CERTAIN POWER IS OFF BEFORE CLEANING ANY

PART OF THIS OVEN.

After using Bon Ami®brand cleanser, rinse and dry thoroughly, following instructions on can. Do not use

Bon Ami brand cleanser on the painted surfaces such

as the walls. It may scratch the paint.

Automatic Temperature Probe. Probe is sturdy, but care should be taken in handling. Do not twist or bend; avoid dropping temperature probe.

Clean as soon after using as possible. To clean, wipe with sudsy cloth, then rub lightly with plastic

scouring ball if necessary. Rinse and dry or wash in dishwasher.

Shelf. Clean the shelf with mild soap and water or in the dishwasher. Do not clean in a self-cleaning oven.

How to Clean the Outside

Case. Clean the outside of your oven with soap and

damp cloth, rinse with a damp cloth and then dry.

Wipe the window clean with a damp cloth. Chrome

trim is best wiped with a damp cloth and then with a dry towel.

Control Panel. Wipe with a damp cloth. Dry

thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasives or sharp objects on the

panel--they can damage it.

Door Surface. When cleaning surfaces of door and oven that come together on closing the door, use only

mild, non-abrasive soaps or detergents applied with a sponge or soft cloth.

Power Cord. If the cord becomes soiled, unplug and wash with a damp cloth. For stubborn spots, sudsy

water may be used, hut be certain to rinse with a damp cloth and dry thoroughly before plugging cord

into outlet.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of

electric shock by providing an escape wire for the electric current. This appliance is equipped with a

power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is

properly installed and grounded. (Fig. 1)

_!_xI'K_[N IINI _J--Improper use of the grounding

plug can result in a risk of electric shock.

PREFERRED

METHOD

Ensure proper ground

Fig. 1

exists before use

LIGHT BULB REPLACEMENT

Consult a qualified electrician or service technician if the grounding instructions are not completely

understood, or if doubt exists as to whether the appliance is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is your personal responsibility and

obligation to have it replaced with a properly grounded three-prong wall receptacle.

Do not under any circumstance cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance.

Oven Light

To replace your oven light, first

disconnect

power at main

fuse or circuit

breaker panel or pull plug.

Step 1: Open

the oven door. Step 2: Remove the front grille by taking out the 2

screws that hold it in place.

Step 3: Rotate the light bulb

housing out and toward

you to access the light bulb.

Replace the burned-out bulb

with a 40-watt incandescent bulb (WB02X4253) available from your

GE supplier. Reverse Step 2 and Step 3 to replace the grille,

while making sure the grille is flush against the control panel.

QUESTIONS?

USE THIS PROBLEM SOLVER

PROBLEM POSSIBLE CAUSE

OVEN WILL NOT • A fuse in your home may be blown or the circuit breaker tripped. Replace fuse or COME ON reset circuit breaker.

• Set the circuit breaker to the off position. Wait 30 seconds. Reset the circuit breaker

to the on position.

CONTROL PANEL LIGHTED, YET OVEN

WILL NOT START

• Door not securely closed.

• START pad must be touched after entering cooking selection.

• Another selection entered already in oven and CLEAR/OFF pad not touched to cancel it.

• Make sure you have entered cooking time or temperature after touching

MICRO COOK or TEMP COOK/HOLD pads.

• CLEAR/OFF pad was touched accidentally. Reset cooking program and touch START pad.

• Temperature probe not inserted properly or not being u_d during Combination

Roast or Temp Cook Hold.

• Make sure you have entered a desired finished food temperature or oven temperature

after setting temperature cooking programs.

• Make sure you have entered a code number after touching SENSOR COOK.

"PROBE" APPEARS • Temperature probe is missing or not plugged in securely when using cooking ON DISPLAY functions that measure food temperature.

• Temperature probe is inserted for a program that does not use the probe.

"Error" APPEARS • During Sensor Cook, Sensor Reheat, Sensor Beverage or Sensor Popcorn program, ON DISPLAY the door was opened before steam could be detected, or steam was not detected in

maximum time.

"HOT" APPEARS • This is normal when the temperature inside the oven is greater than 200 degrees

ON DISPLAY and the door is opened.

• One of the sensor cooking pads was touched when the temperature inside the oven was greater than 200 degrees. These features will not operate when the oven is hot.

All these things are normal with your microwave oven:

• Dimming oven light and change in blower sound may occur while operating at power levels other

than high.

• Dull, thumping sound while oven is operating.

• Some TV-Radio interference might be noticed while using your microwave oven. It's similar to the

interference caused by other small appliances and does not indicate a problem with your oven.

If you need more help...call, toll free: GE Answer Center* / 800.626.2000 / consumer information service

• Steam or vapor escaping from around the door.

• Light reflection around door.

• During cooking you will hear "cracking" and "popping" noises which are nothing more than

normal expansion of the oven.

• At the end of microwave cycles you will hear a slight thump. This is normal.

With the purchase of your new Monogram appliance, receive the assurance that if you ever need information or assistance from GE, we'll be there. All you have to do is call-toll-free!

GEAnswerCenter

800.626.2000

Whatever your question about any Monogram major appliance, GE Answer Center _ information seln,ice is available to help. Your call-and your question-

will be answered promptly and courteously. And you can call any time. GE

Answer Center ®service is open 24 hours a day, 7 days a week.

In-HomeRepairService

800GE-CARES(800432-2737)

AGE consumer service professional will provide expert repair service, scheduled at a time that's convenient for you. Many GE Consumer Se:vice company-operated locations offer you service today' or tomorrow, or at your convenience (7:00 a_m.to 7:00 p.m. weekdays, 9:00 a.m. to 2:00 p.m. Saturdays). Our factory-trained technicians know your appliance inside and out--so most repairs can be handled in just one visit.

ForCustomersWith SpecialNeeds...

800.626.2000

Upon request, GE will provide Braille controls for a variety of Monogram appliances, and a

brochure to assist in planning a bazwier-free kitchen for persons with limited mobility. To obtain these items, free of charge, call

800.626.2000.

Consumers with impaired hearing or speech who have access to a TDD or a conventional teletypewriter may call 800-TDD-GEAC (800-833_t322) to request

information or service.

ServiceContracts

800-626-2224

You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you'll receive a substantial discount. With a mnitiple-year contract,

you're assured of fnture service at today's prices.

PartsandAccessories

800-626-2002

In"dtvidualsqualified to service their own appliances can have needed parts or accessories sent directly to

their home. The GE pa_s _stem provides access to over 47,000 parts...and all GE Genuine Renewal Parts are

fully warranted. VISA, MasterCard and Discover cards are accepted.

User maintenance insla'uctlons contained in this booklet cover procedures intended to be performed by any user.

Other servicing generally should be referred to qualified service personnel, Caution must be exercised, since improper servicing may cause unsafe operation.

I I YOUR GE MICROWAVE/

CONVECTION OVEN here. Proof of original purchase date

WARRANTY under warranty.

WHAT IS COVERED FULLONE-YEARWARRANTY

For one year from date of odginal purchase, we will provide, free of

charge, parts and service labor in your home to repair or replace any

part of the microwave/convection

oven that fails because of a

manufacturing defect.

LIMITED ADDITIONAL NINE-YEAR WARRANTY

For the second through tenth year

from date of odginal purchase, we will provide, free of charge, a

replacement magnetron tube if the magnetron tube fails because of a

manufacturing defect. You pay for

the service trip to your home and service labor charges.

Staple sales slip. or cancelled check

is needed to obtain service

This warranty is extended to the original purchaser and any succeeding owner for products

purchased for ordinary home use in

the 48 mainland states, Hawaii and

Washington, D.C. In Alaska the warranty is the same except that it is

LIMITED because you must pay to

ship the product to the service shop or for the service technician's travel

costs to your home. All warranty service will be provided

by our Factory Service Centers or by our authorized Customer Care ®

servicers during normal working hours.

Should your appliance need service, during warranty period or beyond,

call 800-GE CARES (800-432-2737).

WHAT IS NOT COVERED • Service trips to your home to teach

you how to use the product.

Read your Use and Care material,

If you then have any questions

about operating the product,

please contact your dealer or our

Consumer Affairs office at the address below, or call, toll free:

GE Answer Center _

800.626.2000 consumer information service

• Improper installation.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion

may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General,

Warrantor: General Electric Company

If further help is needed concerning this warranty, write:

Manager--Consumer Affairs, GE Appliances, Louisville, KY 40225

If you have an installation problem, contact your dealer or installer. You are responsible for providing

adequate electrical, gas, exhausting and other connecting

facilities.

• Replacement of house fusesor resetting of circuitbreakers.

• Failure of the product if it is used for

other than its intended purpose or

used commercially.

• Damage to product caused by

accident, fire, floods or acts of God. WARRANTOR ISNOT

RESPONSIBLE FOR

CONSEQUENTIAL DAMAGES.

ZMC1090

General Electric Company Louis_He, KY40225

Pub No 49_630

Pa_ No, 164D2966Pt g0 _95 CG

GE ZMC1090WV01, ZMC1090WV002, ZMC1090BV01, ZMC1090BV002 Owner’s Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
