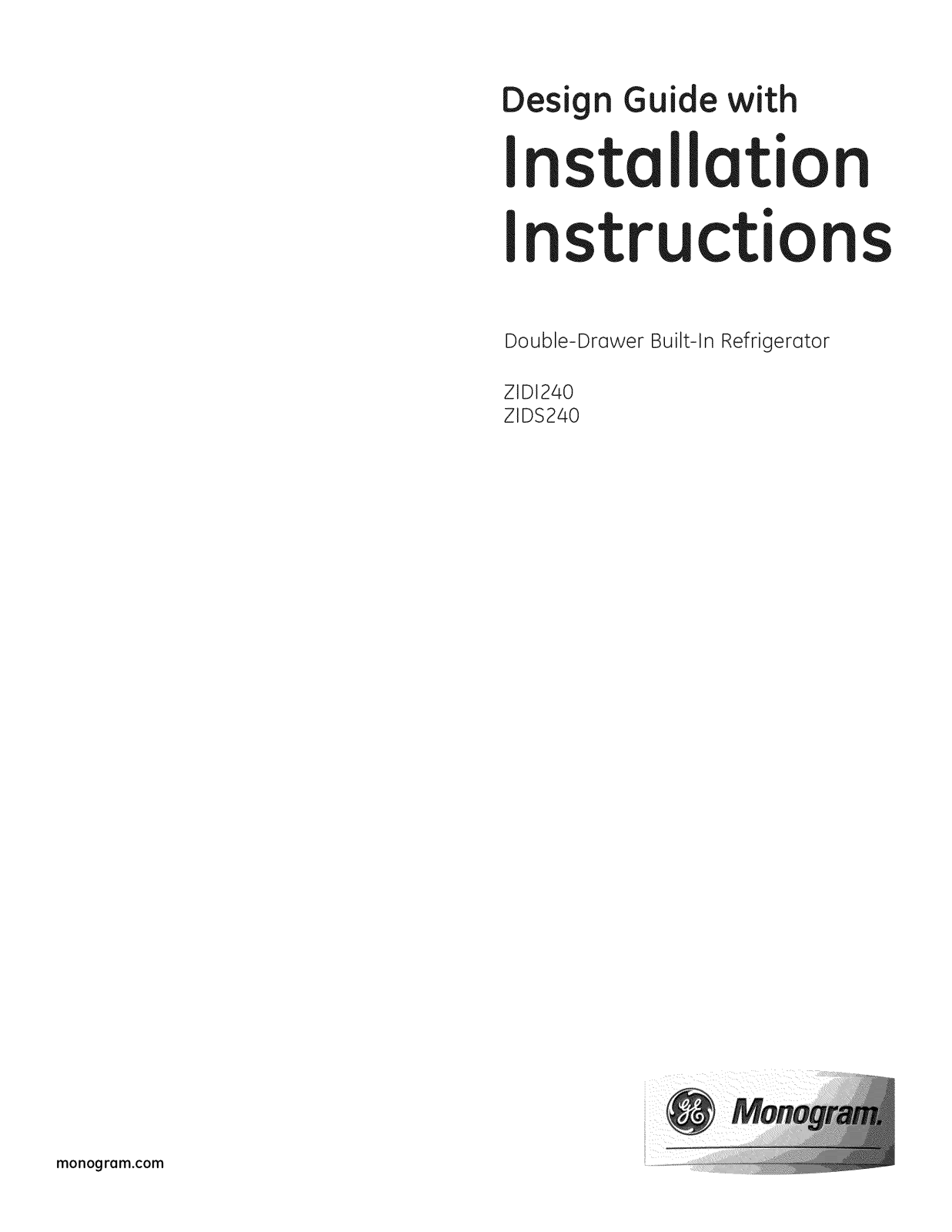

Page 1
Design Guide with
Installation
Instructions
Double-Drawer Built-In Refrigerator
ZIDI240
ZIDS240
monogram.com
Page 2

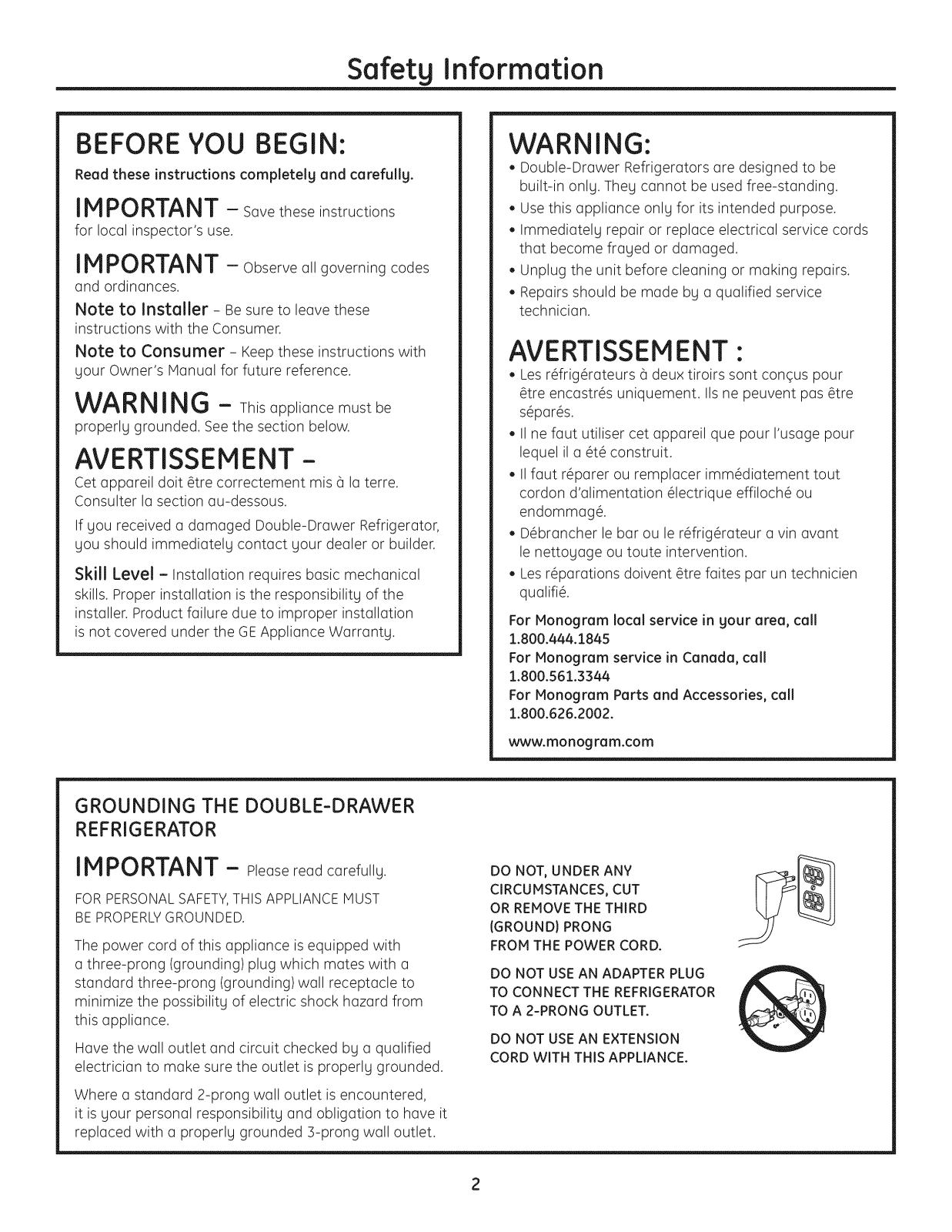

Safety Information
BEFORE YOU BEGIN:
Read these instructions completelg and carefullg.
IM PORTANT - Sovetheseinstructions
for Iocol inspector's use.
IMPORTANT - Observeollgoverning codes
ond ordinonces.
Note to Installer - Be sure to leove these
instructions with the Consumer.
Note to Consumer - Keepthese instructions with
your Owner's Honuol for future reference.
WARNING - Thisopplioncemust be
properlygrounded.Seethesectionbelow.
AVERTISSEMENT-
Cet opporeil doit @trecorrectement mis 5 Ioterre.
Consulter Io section ou-dessous.
If you received o domoged Double-Drower Refrigerotor,
you should immediotely contoct your deoler or builder.
Skill Level -Instollotion requires bosic mechonicol
skills. Proper instollotion is the responsibility of the
instoller. Product foilure due to improper instollotion
is not covered under the GEApplionce Worronty.
WARNING:
• Double-DrowerRefrigerotorsoredesignedtobe
built-inonly.They connotbe usedfree-stonding.
Use thisopplionceonlyforitsintendedpurpose.
• Immediotely repoir or reploce electricol service cords
thot become froyed or domoged.
Unplug the unit before cleoning or moking repoirs.
Repoirs should be mode by o quolified service
technicion.
AVERTISSEMENT:
• Les r_frig_roteurs (_deux tiroirs sont conqus pour
@treencostr@suniquement. IIsne peuvent pos @tre
s_por_s.
• II ne fout utiliser cet opporeil que pour I'usoge pour
lequel il o @t@construit.
• IIfout r@porerou remplocer imm@diotement tout
cordon d'olimentotion @lectrique effiloch@ou
endommog&
D@broncherle bor ou le r_frig_roteur o vin ovont
le nettoyoge ou toute intervention.
Lesr@porotionsdoivent @trefoites por un technicien
quolifi&
For Monogram local service in your area, call
1.800.444.1845
For Monogram service in Canada, call
1.800.561.3344
For Monogram Parts and Accessories, call
1.800.626.2002.
GROUNDING THE DOUBLE-DRAWER
REFRIGERATOR
IMPORTANT - Pleosereod corefully.
FOR PERSONAL SAFETY,THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
The power cord of this opplionce is equipped with
o three-prong (grounding) plug which motes with o
stondord three-prong (grounding) wall receptocle to
minimize the possibility of electric shock hozord from
this opplionce.
Hove the woll outlet ond circuit checked by o quolified
electricion to moke sure the outlet is properly grounded.
Where o stondord 2-prong woll outlet is encountered,
it is your personol responsibility ond obligotion to hove it
reploced with o properly grounded 3-prong woll outlet.
www, monogram,com
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG
TO CONNECT THE REFRIGERATOR
TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION
CORD WITH THIS APPLIANCE.
Page 3

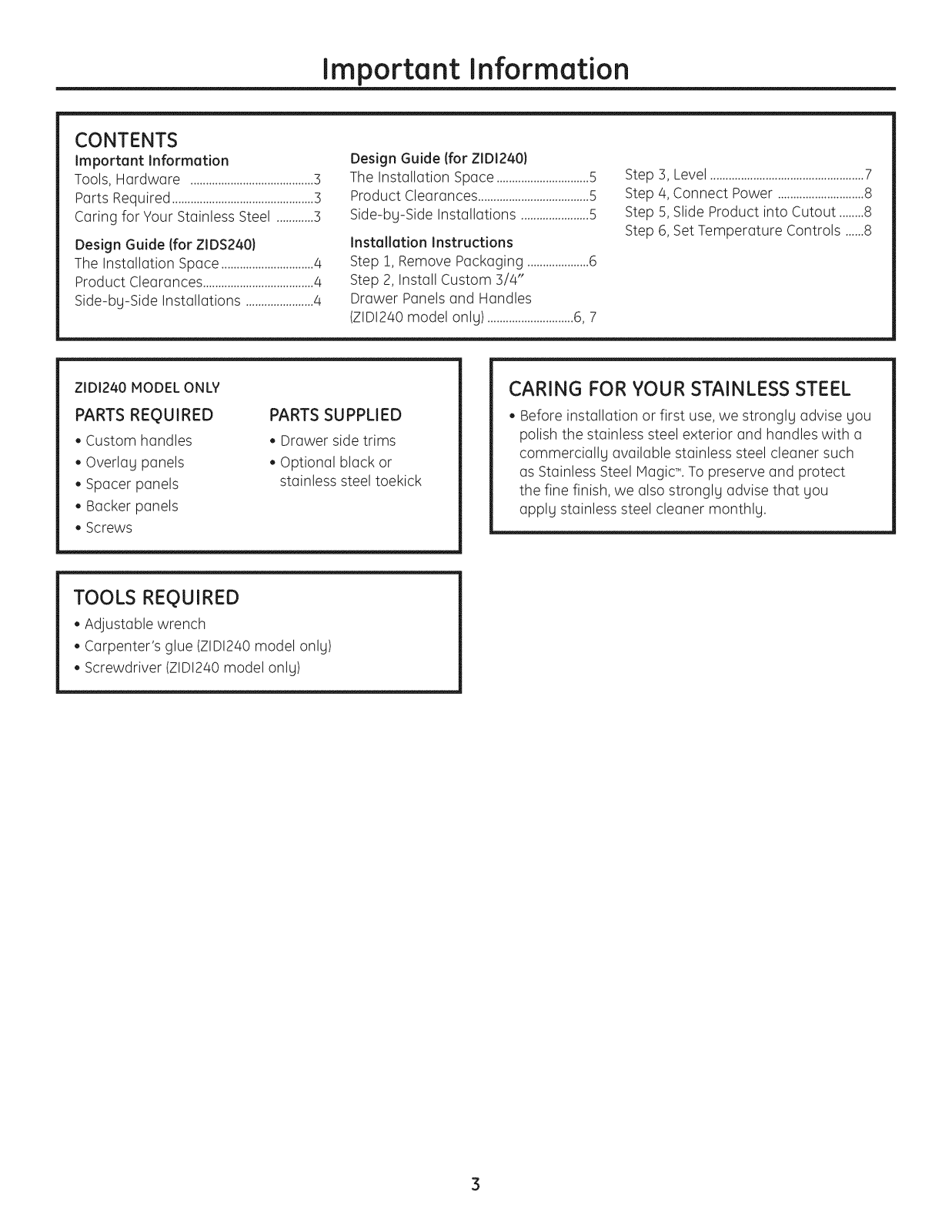

CONTENTS
Important Information
Tools, Hardware ........................................3
Parts Required..............................................S
Coring for Your Stainless Steel ............S
Design Guide (for ZIDS240}
The Installation Space..............................4
Product CleQrances....................................4
Side-bg-Side Installotions ......................4
Important Information
Design Guide (for ZIDI240}
The Installation Space..............................5
Product CleQrances....................................5
Side-bg-Side Installotions ......................5
Installation Instructions
Step 1, Remove PQckQging....................6
Step 2, Install Custom 3/4"
Drawer Panels and Handles
(ZIDI240 model onlg) ............................6, 7
Step 3, Level ..................................................7
Step 4, Connect Power ............................8
Step 5,Slide Product into Cutout ........8
Step 6, Set Temperature Controls ......8
ZIDI240 MODEL ONLY
PARTS REQUIRED
• Custom hQndles
• Overlag pQnels
• SpQcer pQnels
• Backer pQnels
• Screws
PARTS SUPPLIED
• Dower side trims
• OptionQI block or
stainless steel toekick
TOOLS REQUIRED
• Adjustable wrench
• CQrpenter's glue (ZIDI240 model onlg)
• Screwdriver (ZIDI240model onlg)
CARING FOR YOUR STAINLESS STEEL
• Before installQtion or first use, we stronglg advise gou
polish the stainless steel exterior and handles with a
commerciallg available stainless steel cleQnersuch
as Stainless Steel Magid'. To preserve and protect
the fine finish, we also stronglg advise thQt gou
applg stainless steel cleQner monthlg.
Page 4

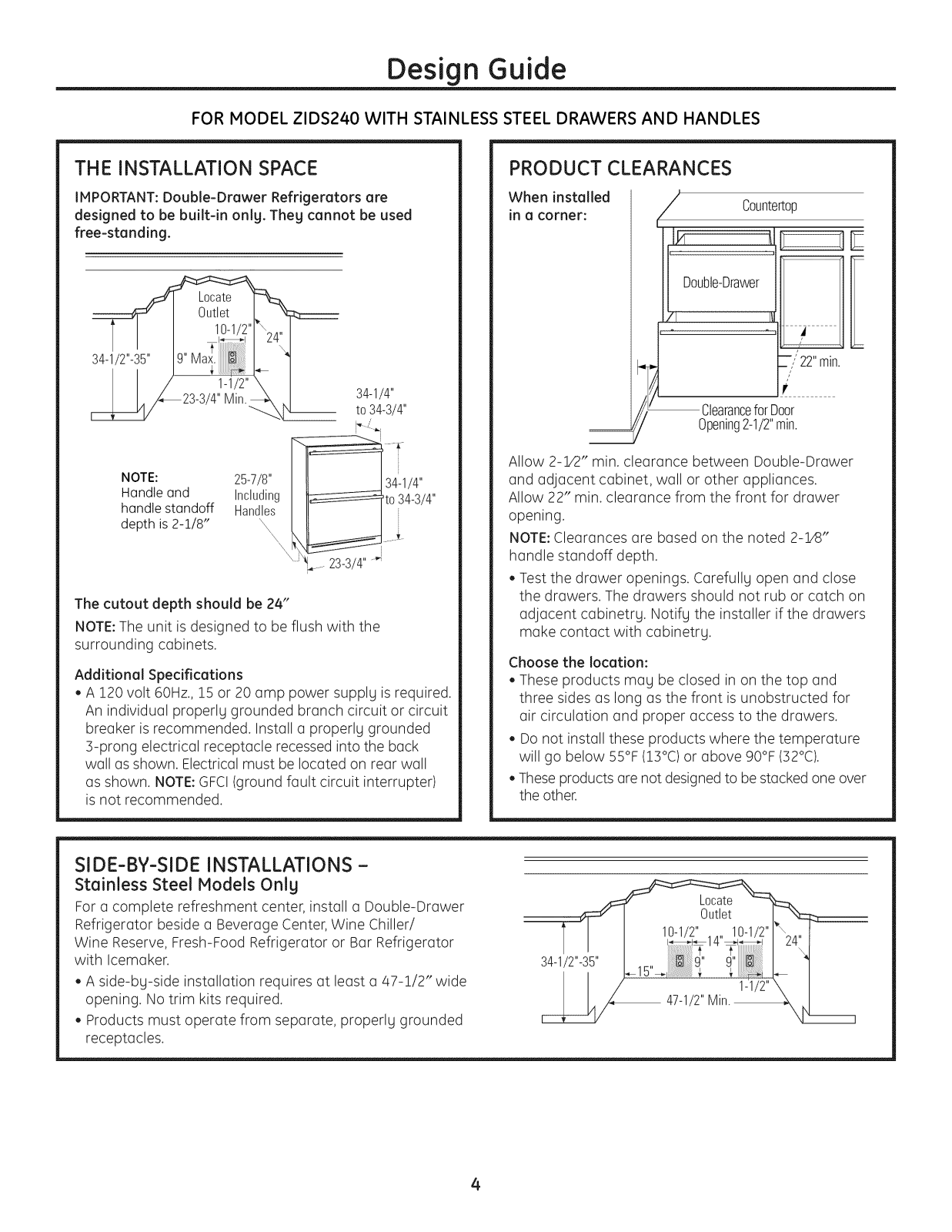

Design Guide
FOR MODEL ZIDS240 WITH STAINLESS STEEL DRAWERS AND HANDLES
THE INSTALLATION SPACE
IMPORTANT: Double-Drawer Refrigerators are
designed to be built-in only. They cannot be used
free-standing.
34-1/4"
to34-3/4"
NOTE:
Handle and
handle standoff
depth is 2-2/8"
Including
25-7/8"
Handles
\\\
\
The cutout depth should be 24"
NOTE:The unit isdesigned to be flush with the
surrounding cabinets.
Additional Specifications
• A 120 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded
]-prong electrical receptacle recessed into the back
wall asshown. Electrical must be located on rear wall
as shown. NOTE:GFCI(ground fault circuit interrupter)
is not recommended.
[
34-1/4"
'to 34-3/4"
PRODUCT CLEARANCES
When installed /
in a corner:
Countertop
Ik
Double-Drawer
--_/'22"min.
/
ClearanceforDoor
Opening2-1/2"min.
Allow 2-1/2'* min. clearance between Double-Drawer
and adjacent cabinet, wall or other appliances.
Allow 22" min. clearance from the front for drawer
opening.
NOTE:Clearances are based on the noted 2-1/8"
handle standoff depth.
• Test the drawer openings. Carefullg open and close
the drawers. The drawers should not rub or catch on
adjacent cabinetry. Notify the installer if the drawers
make contact with cabinetry.
Choose the locution:
• These products mug be closed in on the top and
three sides as long as the front isunobstructed for
air circulation and proper access to the drawers.
• Do not install these products where the temperature
will go below 55°F (!3°C) or above 90°F (32°C).
• These products are not designedto be stacked one over
the other.
SIDE-BY-SIDE INSTALLATIONS-
Stainless Steel Models Only
For a complete refreshment center, install a Double-Drawer
Refrigerator beside a Beverage Center, Wine Chiller/
Wine Reserve, Fresh-Food Refrigerator or Bar Refrigerator
with Icemaker.
• A side-by-side installation requires at least a 47-1/2" wide
opening. No trim kits required.
• Products must operate from separate, properly grounded
receptacles.
34-1
4
Page 5

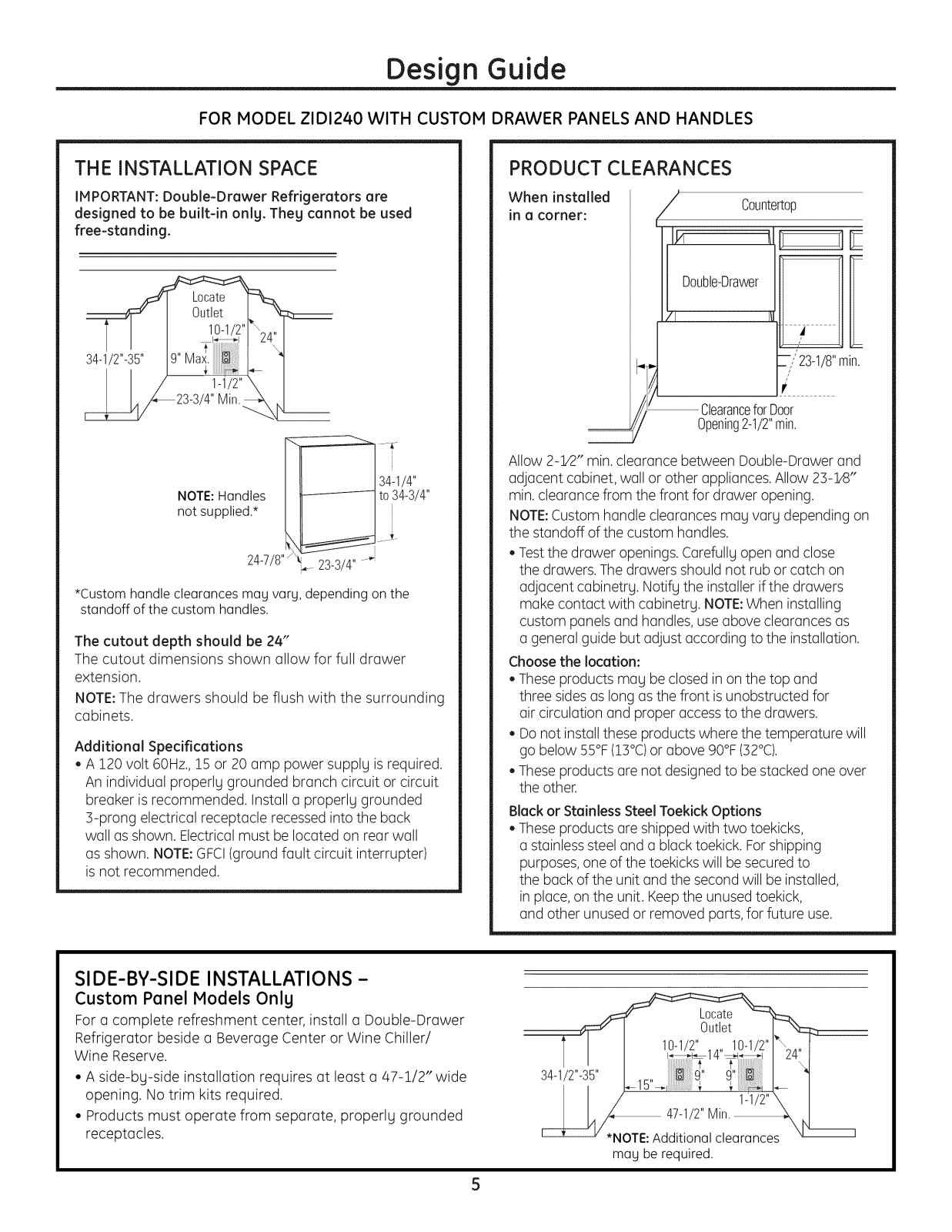

Design Guide
FOR MODEL ZIDI240 WITH CUSTOM DRAWER PANELS AND HANDLES
THE INSTALLATION SPACE
IMPORTANT: Double-Drawer Refrigerators ore
designed to be built-in onlg. Theg cannot be used
free-standing.
23-3/4"Min
] 3:1j4
NOTE:Handles
not supplied.*
24-7/8''_
*Custom handle clearances may vary, depending on the
standoff of the custom handles.
The cutout depth should be 24"
The cutout dimensions shown allow for full drawer
extension.
NOTE:The drawers should be flush with the surrounding
cabinets.
Additional Specifications
• A 120 volt 60Hz., !5 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker isrecommended. Install a properly grounded
3-prong electrical receptacle recessedinto the back
wall as shown. Electricalmust belocated on rear wall
as shown. NOTE:GFCI(ground fault circuit interrupter)
is not recommended.
__ 23-3/4......
to 34-3/4"
PRODUCT CLEARANCES
When installed /
in a corner:
CounteRop
11,,
Double-Drawer
Z-,,"23-1/8"min.
/
ClearanceforDoor
Opening2-1/2"min.
Allow 2-1/2" min.clearance between Double-Drawer and
adjacent cabinet, wall or other appliances.Allow 23-:]z8"
min. clearance from the front for drawer opening.
NOTE:Customhandle clearancesmay vary depending on
the standoff of the custom handles.
• Testthe drawer openings. Carefully open and close
the drawers.The drawers should not rub or catch on
adjacent cabinetry. Notify the installerifthe drawers
make contact with cabinetry. NOTE:When installing
custom panels and handles,useabove clearances as
a general guide but adjust according to the installation.
Choose the locution:
• These products may be closed in on the top and
three sidesas long as the front isunobstructed for
air circulation and proper accessto the drawers.
• Do not install these products where the temperature will
go below 55°F(13°C)orabove 90°F(32°C).
• These products are not designedto be stacked one over
the other.
Black or Stainless SteelToekickOptions
• These products are shipped with two toekicks,
a stainlesssteelanda black toekick. Forshipping
purposes,oneof the toekicks will be secured to
the back of the unit andthe second will be installed,
in place, on the unit. Keepthe unused toekick,
and other unused or removed parts,for future use.
SIDE-BY-SIDE INSTALLATIONS-
Custom Panel Models Only
For a complete refreshment center, install a Double-Drawer
Refrigerator beside a Beverage Center or Wine Chiller/
Wine Reserve.
• A side-by-side installation requires at least a 47-1/2" wide
opening. No trim kits required.
• Products must operate from separate, properly grounded
receptacles.
T I I 1 14"10-1 /2"
34-1
r___,Mi __ __ ,,
*NOTE:Additionalclearunces
may berequired.
Page 6
Installation Instructions

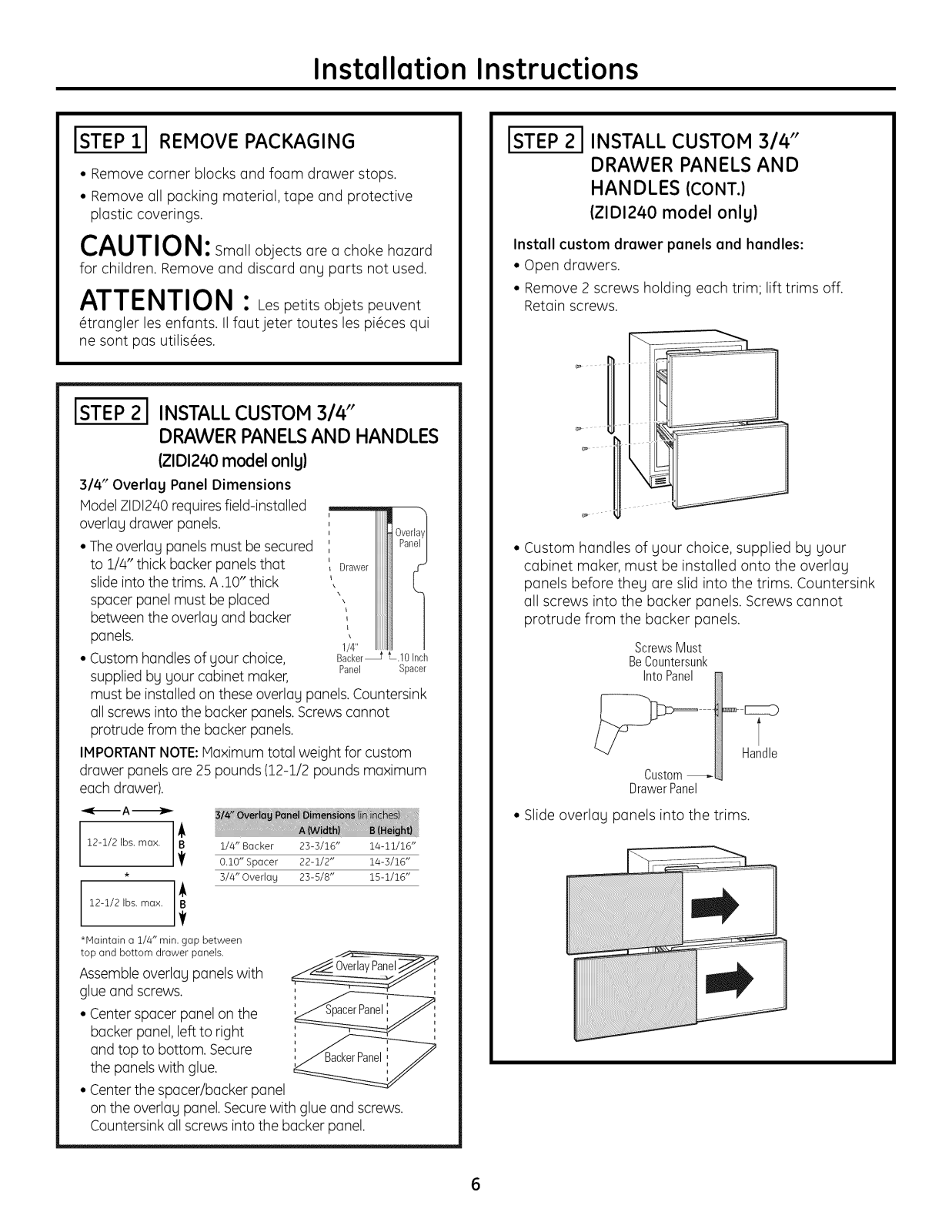

ISTEP11REMOVE PACKAGING
• Remove corner blocks and foam drawer stops.
• Remove all packing material, tape and protective
plastic coverings.
CAUTION: Small objects area choke hazard
for children. Remove and discard any parts not used.
ATTENTION : ,espetits objets peuvent
_trangler les enfants. II fautjeter toutes les pi_ces qui
ne sont pas utilis_es.
ISTEPel
3/4" Overlag Panel Dimensions
ModelZIDI240 requiresfield-installed
overlag drawer panels.
• Theoverlag panelsmust be secured
to 1/4" thick backer panelsthat Drawer
slideinto the trims. A .10" thick
spacer panel must be placed
between the overlag and backer
panels.
• Custom handles of gour choice, Backer_ _-.10Inch
supplied bg gour cabinet maker, Panel Spacer
must be installed on these overlag panels.Countersink
all screws into the backer panels.Screwscannot
protrude from the backer panels.
IMPORTANTNOTE:Maximum total weight for custom
drawer panelsare 25 pounds (12-1/2 pounds maximum
each drawer).
INSTALL CUSTOM 314"
DRAWER PANELSAND HANDLES
(ZIDI240model onlg)
1/4"
ISTEP2 1INSTALL CUSTOM 314"
DRAWER PANELS AND
HANDLES (CONT.)
(ZIDI240 model onlg)
Instell custom drawer panels end hendles:
• Open drawers.
• Remove 2 screws holding each trim; lift trims off.
Retain screws.
• Custom handles of gour choice, supplied bg gour
cabinet maker, must be installed onto the overlag
panels before theg are slid into the trims. Countersink
all screws into the backer panels. Screws cannot
protrude from the backer panels.
ScrewsMust
BeCountersunk
IntoPanel
Ha!dlE_e
DrawerPanel
A
12-1/2 Ibs.
12-1/2 Ibs.max. ]_
*Haintain a 1/4" min. gap between
top and bottom drawer panels.
Assembleoverlag panelswith
glue and screws.
• Centerspacer panel on the
backer panel, left to right
and top to bottom. Secure
the panels with glue.
• Centerthe spacer/backer panel
on the overlag panel.Securewith glue and screws.
Countersink all screws into the backer panel.
max.
* 3/4" Overlay 23-5/8" 15-1/16"
1/4" Backer 23-3/16" 14-11/16"
T
0.10" Spacer 22-1/2" 14-3/16"
• Slide overlag panels into the trims.

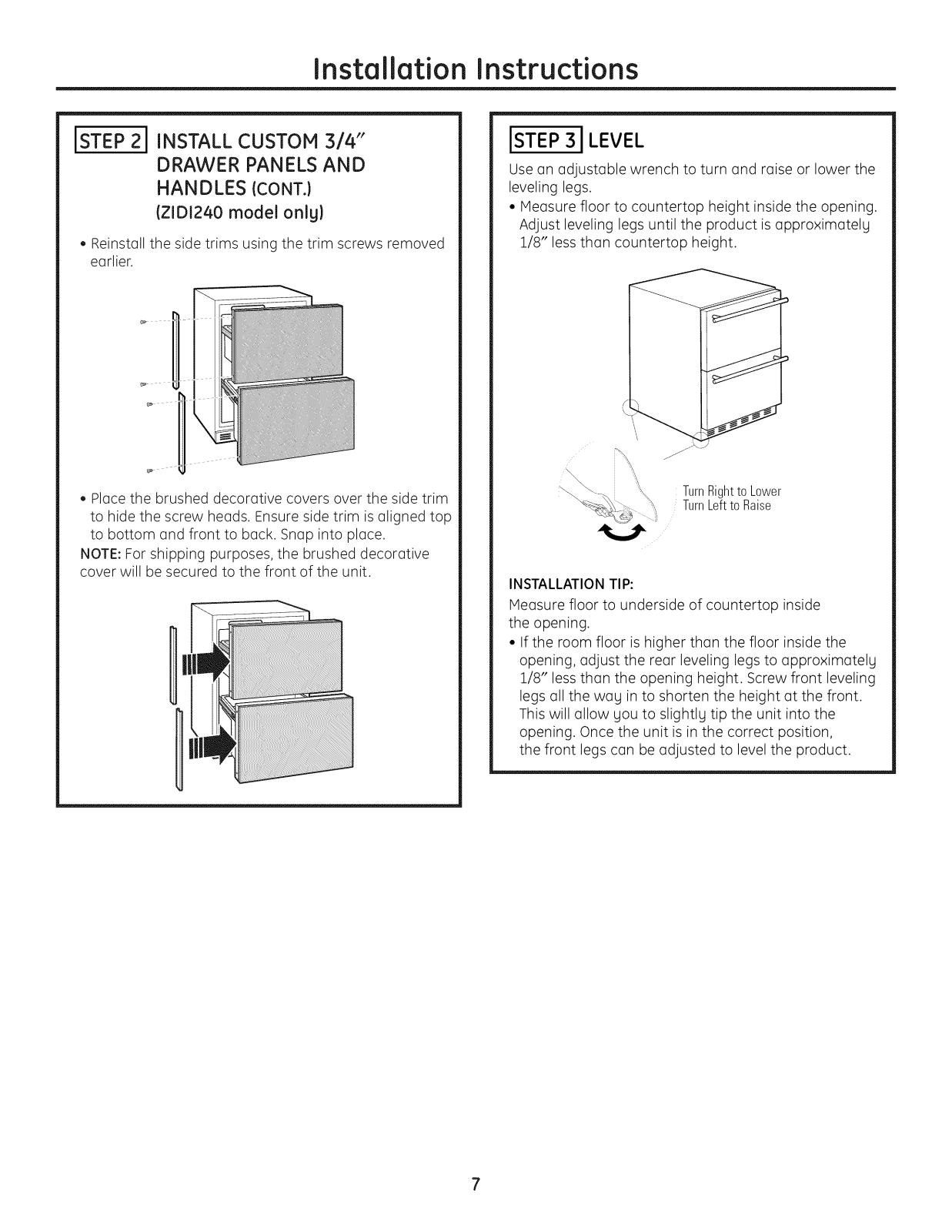

Page 7
Installation Instructions
ISTEP21INSTALLCUSTOM3/4"
DRAWER PANELS AND
HANDLES ICONT.I
(ZID1240 model onlgl
• Reinstall the side trims using the trim screws removed
earlier.
• Place the brushed decorative covers over the side trim
to hide the screw heads. Ensure side trim is aligned top
to bottom and front to back. Snap into place.
NOTE:Forshipping purposes, the brushed decorative
cover will be secured to the front of the unit.
ISTEP 31 LEVEL
Usean adjustable wrench to turn and raise or lower the
leveling legs.
• Measure floor to countertop height inside the opening.
Adjust leveling legs until the product isapproximately
1/8" less than countertop height.
jjJ'_ /
TurnRighttoLower
TurnLefttoRaise
INSTALLATION TIP:
Measure floor to underside of countertop inside
the opening.
• If the room floor is higher than the floor inside the
opening, adjust the rear leveling legs to approximatelg
1/8" less than the opening height. Screw front leveling
legs all the wag in to shorten the height at the front.
This will ollow gou to slightlg tip the unit into the
opening. Once the unit is in the correct position,
the front legs con be adjusted to level the product.
Page 8
Installation Instructions
ISTEP41CONNECT POWER
• Connect power cord plug to a properly grounded
receptacle.
• Check to make sure power ison by opening a drawer
to see if interior light turns on.
• The interior fan runs all the time except when a
drawer is open.
See the Owner's Manual for further explanation of
the fan.
ISTEP 5 I SLIDE PRODUCT INTO
THE CUTOUT
CAUTION: oo notpush againstthedrawer
panelswithyourknees.Do notpush orlifttheunitby
thedrawerhandles.Damage may occur!
ATTENTION : Ne poussezjamaisles
panneoux detiroiravecvosgenoux.Ne poussez
jamais votre appareil ou ne le soulevezjamais par
les poign@esde tiroir. Vous pouvez I'endommager.
• Open one of the drawers and gently push the unit
back into the opening with your hands against the
sides. Be careful not to entangle power cord.
• Check again to be sure the unit is level. Adjust the
leveling legs until the unit is resting firmlg against
the bottom of the counter to prevent rocking or
movement during operation.
• If alignment with adjacent cabinetry is an issue,
use a shim to secure the unit against the underside
of the countertop.
ISTEP61SET TEMPERATURE CONTROLS
• The temperature controls are preset. Refer to
the Owner's Manual for more information. Allow
12-24 hours for the temperature to stabilize.
NOTE:The Double-Drawer Refrigerator operates very
quietly. You may not notice the unit running, and when
first installed, the fans and motor may not come on
immediately - this is normal. If the display is lit and
the light is working, the unit is operating.
Pub. No. 31-51545-2
Part No. !97D5893P003
08-07 JR
Printed in 81ovenio
NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram ®local service in your area, call
1.800.444.1845.
NOTE: Product improvement is a continuing endeavor
at General Electric. Therefore, materials, appearance
and specifications are subject to change without notice.
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY 40225
ge.com
Loading...
