Design Guide with
Installation
Instructions
Outdoor/Indoor Refrigerator
ZDOD240
monogram.com
Safetg Information
BEFORE YOU BEGIN:
Read these instructions completely and carefully.
IMPORTANT - Sovetheseinstructions
for local inspector's use.
IM PORTANT - Observeallgoverningcodes
and ordinances.
Note to Installer - Besure to leave these
instructions with the Consumer.
Note to Consumer - Keepthese instructions with
your Owner's Honual for future reference.
WARNING - Thisappliancemustbe properly
grounded.See page 5.
AVERTISSEMENT-
Cet opporeil doit @trecorrectement mis 5 Ioterre.
Consulter page 5.
If you received o damaged Outdoor/Indoor Refrigerator,
you should immediately contact your dealer or builder.
Skill Level - Installation requires basic mechanical
skills. Proper installation is the responsibility of the
installer. Product failure due to improper installation
is not covered under the GEAppliance Warranty.
WARNINGS:
• Usethis appliance only for its intended purpose.
• Immediately repair or replace electrical service cords
that become frayed or damaged.
• Unplug the unit before cleaning or making repairs.
• Repairsshould be mode by o qualified service
technician.
AVERTISSEMENT:
• IIne fout utiliser cet opporeil que pour I'usoge pour
lequel il o @t@construit.
• IIfout r@porerou remplocer imm@diotement tout
cordon d'olimentotion @lectriqueeffiloch@ou
endommog@.
• D@broncherle bar ou le r@frig@roteuro vin ovont
le nettoyoge ou toute intervention.
• Lesr6porotions doivent @trefoites par un technicien
quolifi@.
For Monogram local service in gour area, call
1.800.444.1845
For Monogram service in Canada, call
1.800.561.3344
For Monogram Parts and Accessories, call
1.800.626.2002.
monogram.com
KEY EJECTING LOCK
(NOTE:Two keys are included.)
Keepthe keys out of reach of children and away
from the refrigerator in o safe and secure place.
The key for the spring-loaded lock isautomatically
ejected. The key will not remain in the lock while
the door is opened or closed.
CAUTION: Beforeclosingthedoor,make sure
thelockpindoesnotprotrudebeyondthetopofthedoor,
topreventpotentialdamage tothecoverorcabinetry.
ATTENTION : Avontde refermerIoporte,
assurez-vousque ledispositifde retenuene d@possepos
le hout de la porte, ofin d'@viterd'endommoger le couvercle
ou I'ormoire.
CONTENTS
Important Information
Caring for Your Stainless Steel .....................3
Tools,Hardware...................................................3
Important Information
Design Guide
The Installation Space .....................................4
Product Clearances and Location
Requirements ......................................................4
Preparation for Built-In Under-Counter
Installations Onlg ................................................4
Installation Instructions
Grounding the Product .....................................5
Step 1, Remove Packaging .............................6
Step 2, Leveling ...................................................6
Step 3,Connect Power .....................................6
Step/4, Slide Product into Cutout .................6
Step 5, SetTemperature Controls ...............6
Staining Wood Drawer Fronts .....................7
CARING FOR YOUR STAINLESS STEEL
• Before instollotion or first use, we stronglg odvise
gou polish the stoinless steel exterior ond hondle with
o commerciollg ovoiloble stoinless steel cleoner such
os Stoinless Steel Hogic TM. To preserve ond protect
the fine finish, we olso stronglg odvise thot gou opplg
stoinless steel cleoner monthlg.
All stoinless steel con bedomoged bg the following
substonces. Core must be token not to ollow these
substonces to come in contoct with gour Outdoor/Indoor
Refrigerotor. If ong of these do get on gour unit, wosh
ond cleon the unit immediotelg (seethe Core ond
Cleoning section in the Owner's Honuol).
• Botterg Acid
• Pool Chemicols (such os Chlorine ond Bromine)
• Lown Fertilizer
• Ice Melting Solts
• Creosole
• Iodine
• Pickling Juice
• Urine
The following noturolly occurring moteriols con
couse domoge to the stoinless steel finish. If ong of
these substonces do get on gour unit, wosh ond cleon
the unit immediotelg (seethe Core ond Cleoning section
in the Owner's Honuol).
• Bird Droppings
• Tree Sop
• SeoWoter
TOOLS REQUIRED
• Heovg-dutg work gloves
• #2 Phillips screwdriver (for built-in instollotions onlg)
• Adjustoble wrench
PARTS SUPPLIED
• Two kegs
Design Guide
THE INSTALLATION SPACE
23-3/4"
NOTE:
Handle and
handle standoff
/4" depth is 2-3/4" 23-3/4"
Free-Standing - Use canopy top Built-In - Remove canopy top
(if needed}
Choose the locution:
• This product has been designed as a free-standing unit;
however, if desired, it may also be built-in.
• These products may be closed in on the top and
three sides as long as the front is unobstructed for
air circulation and proper access to the door.
• Donot operate these products where the temperature
will go below 45°F (7°C)or above 120°F (49°0.
• Unit must be installed on a structurally sound and
level surface strong enough to support a fully loaded
refrigerator, or approx. 250 Ibs.
PRODUCT CLEARANCES AND
LOCATION REQUIREMENTS
The Outdoor/Indoor Refrigerator is factory set for
a 110° door swing.
When instulled in u corner:
• Allow 5-1/4" min. clearance on the hinge side for
the 90°door swing and to allow racks to slide out.
• Allow iS" minimum clearance on the hinge side for
a full 110° door swing.
• Testthe door swing. Carefully openand close the door.
Adjust if the door makes contact with cabinetry.
15"Minimum
to Wall
110°
Door
Swing
90°
Door 21-5/8"
Swing
90°
- ip.l_.
5-1/4"Minimum
to Wall
23-5/8"
----_I I 10-1/2'_ I --
i i _ 24"
\j
"I
The cutoutdepthshouldbe 24"
The cutout dimensions shown allow for a full door
swing and access to the pull-out racks when installed
in standard 24" deep cabinets.
• The Outdoor/Indoor Refrigerator can be used
free-standing.
• Ifinstalling between frameless cabinets, a 1/2" wide
filler strip or side panel mug be required on the hinge
side. The filler strip will act as a spacer between the
case and adjacent cabinet door swing. The width of
the opening must include the filler panels.
NOTE:In astandard 24" opening, the door will protrude
1-1/2" forward of the surrounding cabinets.
Additionul Specificutions
• A 120 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall as shown. Electrical
must be located on rear wall as shown. THIS PRODUCT
MUSTBE CONNECTEDTO A POWERSOURCEWITH
GROUND FAULT CIRCUIT INTERRUPTER(GFCI)
PROTECTIONWHEN INSTALLEDIN AN OUTDOOR
LOCATION.LOCAL CODESMAYREQUIREA SEPARATE
CIRCUIT.
PREPARATION FOR BUILT-IN
UNDER-COUNTER INSTALLATIONS ONLY
Thetop canopy may be removed when installing under
a countertop.
• Removethe three screws from the back of the top
canopy (A).
• Usingheavy-duty work gloves, lift up on the top canopy
back (B)and slide it forward until it unlatches from the
unit (C).
• Liftthe top canopy up and off of the unit.
NOTE:Keep the top canopy and screws for future
free-standing installations.
NOTE:When installing the unit ina free-standing
configuration, the top canopy must be left in place.
• Ifreplacing the top canopy make sure the three latches
in the front slide into the front lip of the canopy before
pushing the canopy to the rear of the unit.
(B)
(A)
CAUTION:
Undersideedges
ofthe stainless
steelcanopytop
maybe sharp.
Wearheavy-duty
workgloveswhen
movingthe top.
4
(c)
Installation Instructions
GROUNDING THE OUTDOOR/
INDOOR REFRIGERATOR
WARNING -
THIS PRODUCT MUST BE
CONNECTED TO A POWER SOURCE
WITH GROUND FAULT CIRCUIT
INTERRUPT (GFCI} PROTECTION
WHEN INSTALLED IN AN OUTDOOR
LOCATION. LOCAL CODES MAY
REQUIRE A SEPARATECIRCUIT.
AVERTISSEMENT -
CE PRODUIT DOIT i:TRE
CONNECTI_ A UNE SOURCE
D'ALIMENTATION A DISJONCTEUR
DE FUITE A LA TERRE, EN CAS
D'INSTALLATION EN PLEIN-AIR.
LES RI_GLEMENTATIONS LOCALES
PEUVENT EXIGER UN CIRCUIT
DISTINCT.
GROUNDING THE OUTDOOR/
INDOOR REFRIGERATOR (CONT.)
IMPORTANT: PLEASE READ CAREFULLY.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
receptacle to minimize the possibility of
electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is properly
grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
• DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR
REMOVE THE THIRD (GROUND) PRONG FROM THE
POWER CORD.
• DO NOT USE AN ADAPTER PLUG TO
CONNECT THE REFRIGERATORTO A
2-PRONG OUTLET.
• DO NOT USE AN EXTENSION CORD
WITH THIS APPLIANCE.
• DO NOT PLACE THE UNIT IN STANDING
WATER OR ALLOW THE POWER CORD TO BE
IMMERSED.
IF YOU ARE UNCERTAIN ABOUT THE GFCI
PROTECTION ON THE POWER SOURCE TO
WHICH YOU ARE CONNECTING THIS
APPLIANCE, PLEASE CONTACT A
PROFESSIONAL ELECTRICIAN FOR
VERIFICATION.

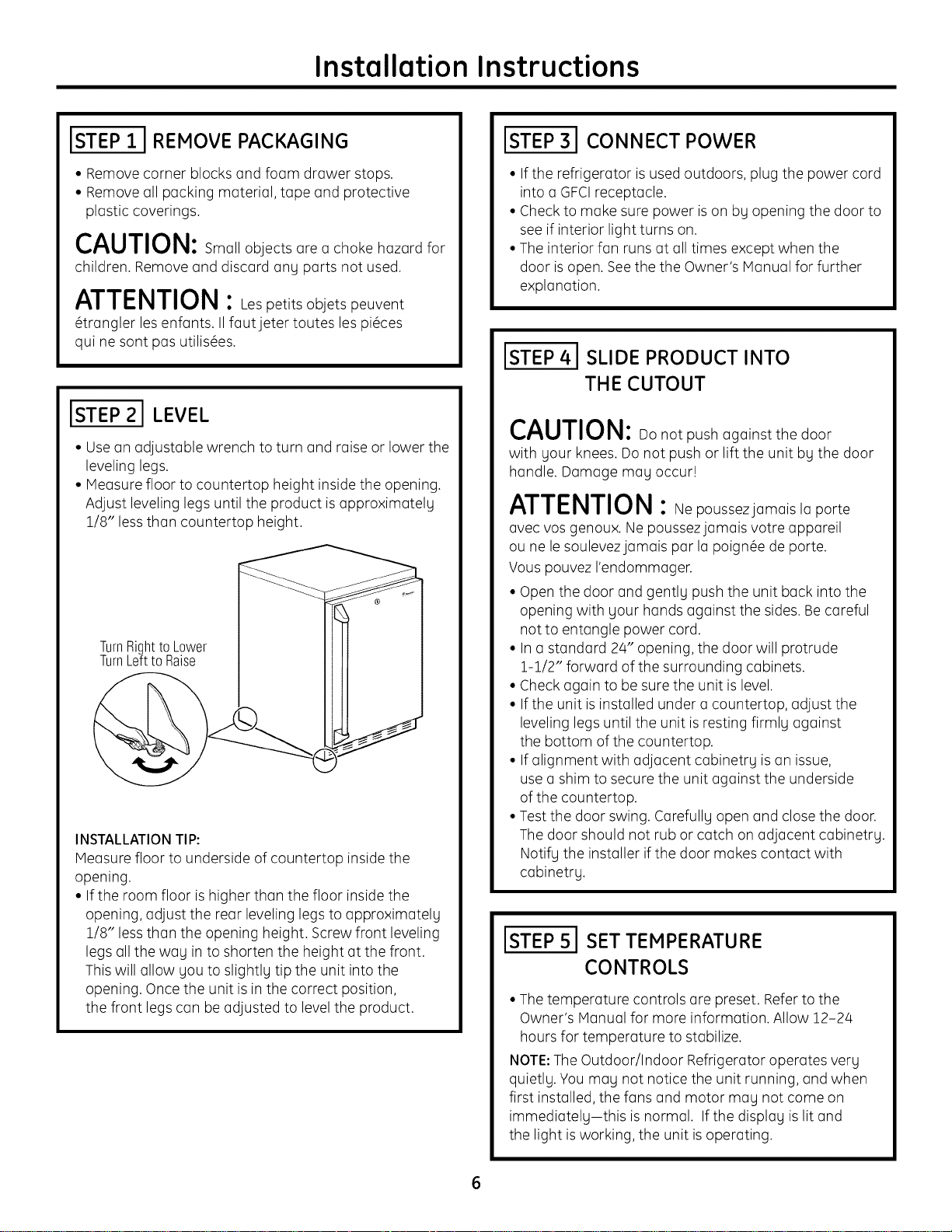

Installation Instructions
ISTEP11REMOVE PACKAGING
• Remove corner blocks and foam drawer stops.
• Remove all packing material, tape and protective
plastic coverings.
CAUTION: Small objects area choke hazard for
children. Remove and discard any parts not used.
ATTENTION : Lespetits objets peuvent
_trangler lesenfants. IIfautjeter toutes les pi_ces
qui ne sont pas utilis_es.
ISTEPel LEVEL
• Use an adjustable wrench to turn and raise or lower the
leveling legs.
• Measure floor to countertop height inside the opening.
Adjust leveling legs until the product is approximatelg
1/8" less than countertop height.
TurnRighttoLower
TurnLeftto Raise
INSTALLATIONTIP:
Measure floor to underside of countertop inside the
opening.
• If the room floor is higher than the floor inside the
opening, adjust the rear leveling legs to approximatelg
]_/8"less than the opening height. Screw front leveling
legs all the wag in to shorten the height at the front.
This will allow gou to slightlg tip the unit into the
opening. Once the unit isin the correct position,
the front legs can be adjusted to level the product.
ISTEP31CONNECT POWER
• Ifthe refrigerator is used outdoors, plug the power cord
into a GFCIreceptacle.
• Check to make sure power ison bg opening the door to
see if interior light turns on.
• The interior fan runs at all times except when the
door is open. See the the Owner's Manual for further
explanation.
ISTEP 41 SLIDE PRODUCT INTO
THE CUTOUT
CAUTION: Do notpushagainstthedoor
withyourknees.Do notpushor lifttheunitby thedoor
handle.Damage may occur!
ATTENTION: Ne poussezjamaislaporte
avecvosgenoux.Ne poussezjamoisvotreappareil
ou ne lesoulevezjamaisparlapoign@ede porte.
Vouspouvezl'endommager.
• Open thedoorand gentlypushtheunitbackintothe
openingwithyourhandsagainstthesides.Be careful
nottoentanglepowercord.
• Ina standard 24" opening, the door will protrude
1-1/2" forward of the surrounding cabinets.
• Check again to be sure the unit is level.
• Ifthe unit isinstalled under a countertop, adjust the
leveling legs until the unit is resting firmlg against
the bottom of the countertop.
• Ifalignment with adjacent cabinetrg is an issue,
use a shim to secure the unit against the underside
of the countertop.
• Test the door swing. Carefullg open and close the door.
The door should not rub or catch on adjacent cabinetrg.
Notifg the installer ifthe door makes contact with
cabinetrg,
ISTEP51SET TEMPERATURE
CONTROLS
• The temperature controls are preset. Refer to the
Owner's Manual for more information. Allow 12-2/4
hours for temperature to stabilize.
NOTE:The Outdoor/Indoor Refrigerator operates verg
quietlg. You mag not notice the unit running, and when
first installed, the fans and motor mag not come on
immediatelg-this is normal. If the displag is lit and
the light isworking, the unit is operating.
Installation Instructions
STAINING WOOD DRAWER FRONTS
The drawer fronts are unfinished cherry wood. During use,
oil from hands may accumulate and stain the wood.
• The drawerfrontsmay be stainedand sealedtomatch
adjacent cabinetry.
• Apply the stain and sealer according to the
manufacturer's instructions. To avoid unpleasant odor,
keep the door open to ventilate and allow the stain/sealer
to dry completely before using the product.
NOTE: While performing installations described in this
book, safetg glasses or goggles should be worn,
For Monogram ®local service in gour area, call
1.800.444.1845.
NOTE: Product improvement is a continuing endeavor at
General ElectrJc. Therefore, materials, appearance and
specifications are subject to change without notice.
Pub. No. 31-515/42-2
Part No. 197D5893P001
08-07 JR
Printed in 81ovenia
GE Consumer & Industrial
Appliances
General Electric Compang
Louisville, KY/40225
ge.com
Loading...
