WWSE5240G
36
25-1/2
42
51
Side View
27
Rear View
GE® 3.2 Cu. Ft. Super Plus Capacity Washer

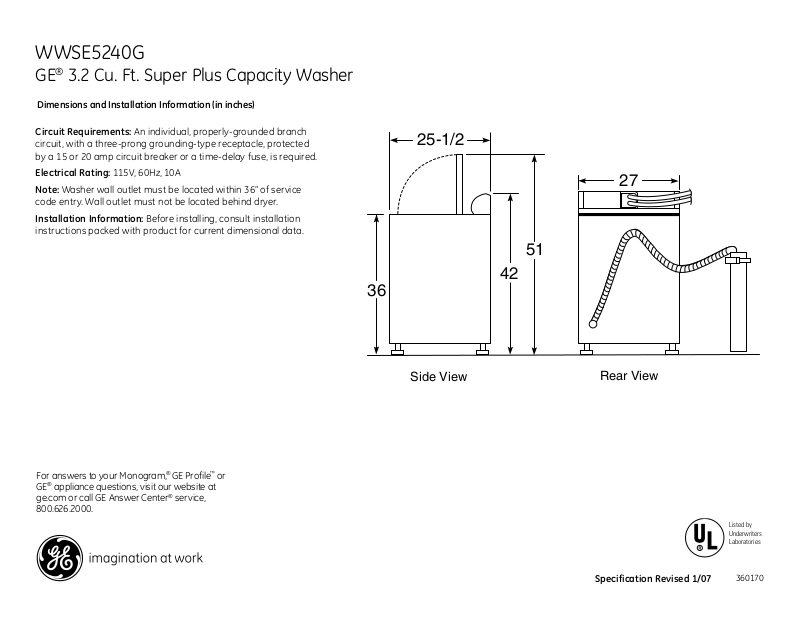

Dimensions and Installation Information (in inches)
Circuit Requirements: An individual, properly-grounded branch
circuit, with a three-prong grounding-type receptacle, protected
by a 15 or 20 amp circuit breaker or a time-delay fuse, is required.
Electrical Rating: 115V, 60Hz, 10A
Note: Washer wall outlet must be located within 36” of service
code entry. Wall outlet must not be located behind dryer.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Revised 1/07
Listed by
Underwriters
Laboratories
360170
WWSE5240G
GE® 3.2 Cu. Ft. Super Plus Capacity Washer
Features and Benefits
• 3.2 cu. ft. Super Plus ExtrAction™ Wash Basket - Offers increased surface
area to "squeeze" more water from clothes during the spin cycle, resulting in
reduced dry times
HydroWave™ Wash System - Has variable speeds to match the wash action to
•
the clothing type. Longer, slower travel through the water improves cleaning
performance and is gentler on your clothes
Five Wash/Spin Speed Combinations - Speeds are matched to fabric type for
•
better clothes care
24 Wash Cycles - Give you a greater degree of control over laundry results
•
Four Wash/Rinse Temperatures - Washer cleans at the exact temperature
•
needed to remove dirt and reduce wear
Four Water Levels - Offers water and energy savings
•
Prewash Cycle - Allows clothing additional time to soak and agitate to help
•
remove stubborn stains
2nd Rinse Option - Helps protect delicate fabrics and sensitive skin
•
Extended Spin - Longer spin means less time drying
•
Rinse and Spin - A fast, convenient way to remove odors and residue from
•
items like swimsuits and towels
Quiet-By-Design™ - Engineered for quiet operation
•
• Model WWSE5240GWW – White on white
Specification Revised 1/07
360170
