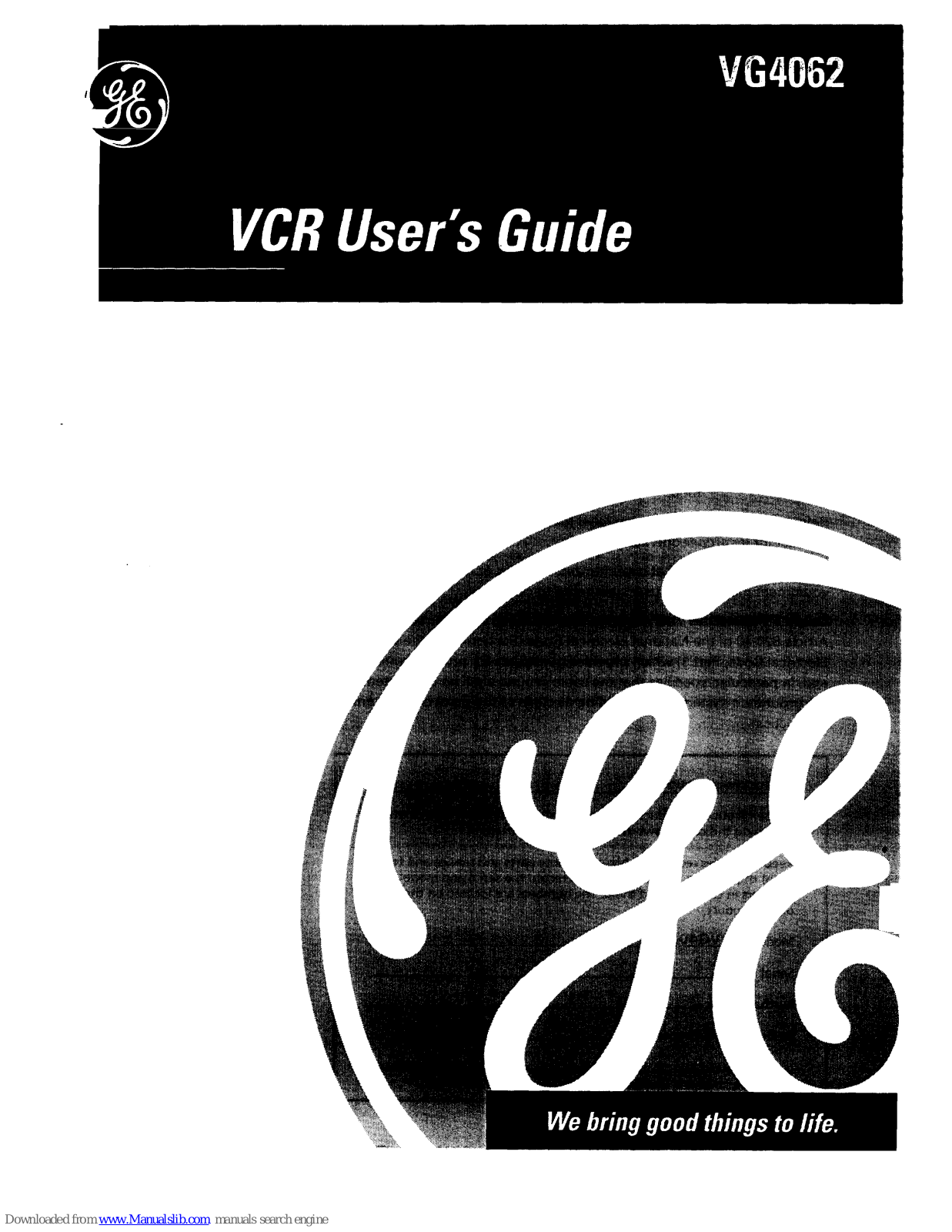

GE VG4062 User Manual

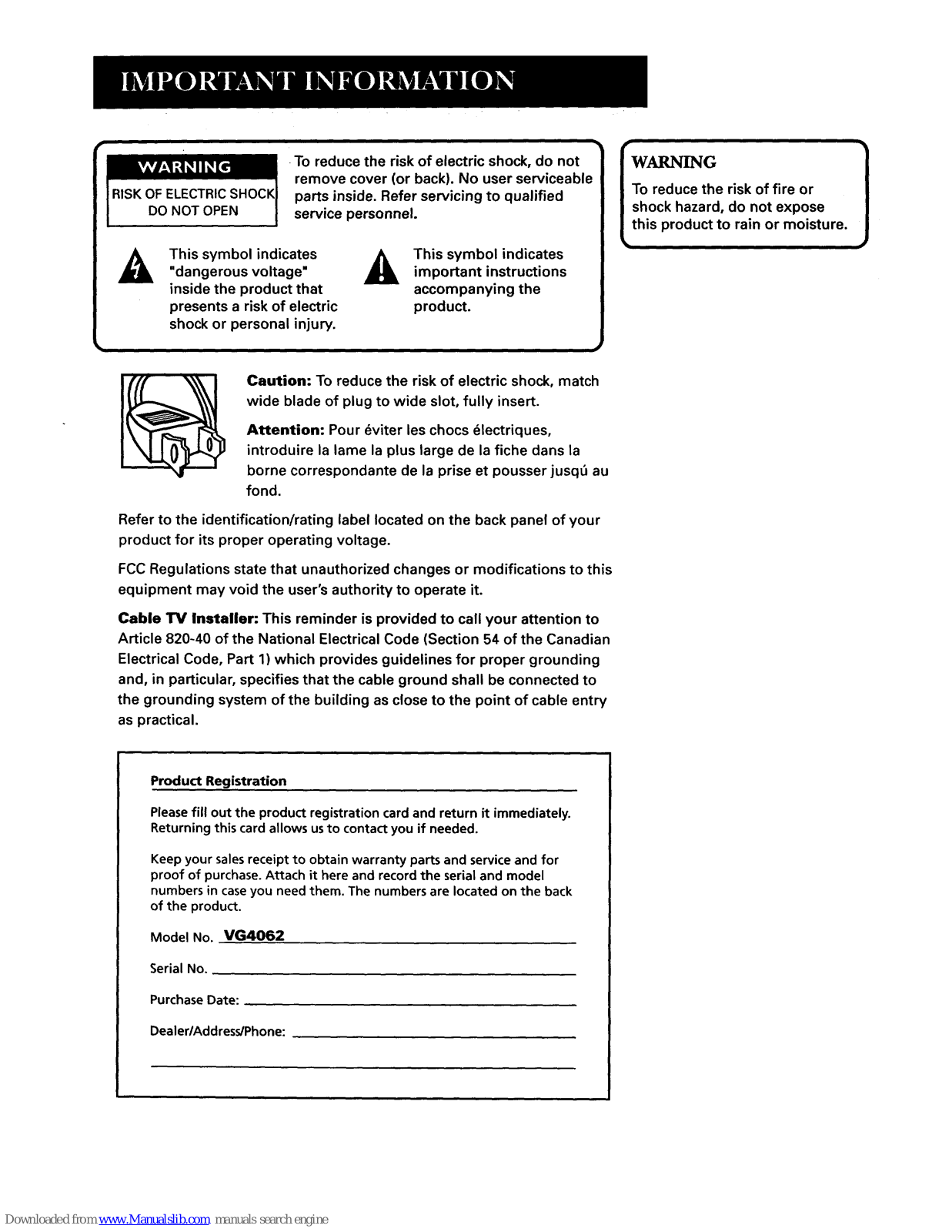

To reduce the risk of electric shock, do not

remove cover (or back). No user serviceable

RISK OF ELECTRICSHq parts inside. Refer servicing to qualified

DO NOT OPEN service personnel.

This symbol indicates _ This symbol indicates

"dangerous voltage" _ important instructions
inside the product that accompanying the

presents a risk of electric product.
shock or personal injury.

Caution: To reduce the risk of electric shock, match

wide blade of plug to wide slot, fully insert.
Attention: Pour _viter les chocs _lectriques,

introduire la lame la plus large de la fiche darts la
borne correspondante de la prise et pousser jusq_ au

fond.

Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.

FCC Regulations state that unauthorized changes or modifications to this

equipment may void the user's authority to operate it.
Cable TV Installer: This reminder is provided to call your attention to

Article 820-40 of the National Electrical Code (Section 54 of the Canadian

Electrical Code, Part 1) which provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to

the grounding system of the building as close to the point of cable entry
as practical.

i

To reduce the risk of fire or

shock hazard, do not expose

this product to rain or moisture.

Product Registration

Please fill out the product registration card and return it immediately.
Returning this card allows us to contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for
proof of purchase. Attach it here and record the serial and model
numbers in case you need them. The numbers are located on the back
of the product.

Model No. VG4062

Serial No.

Purchase Date:

Dealer/Address/Phone:

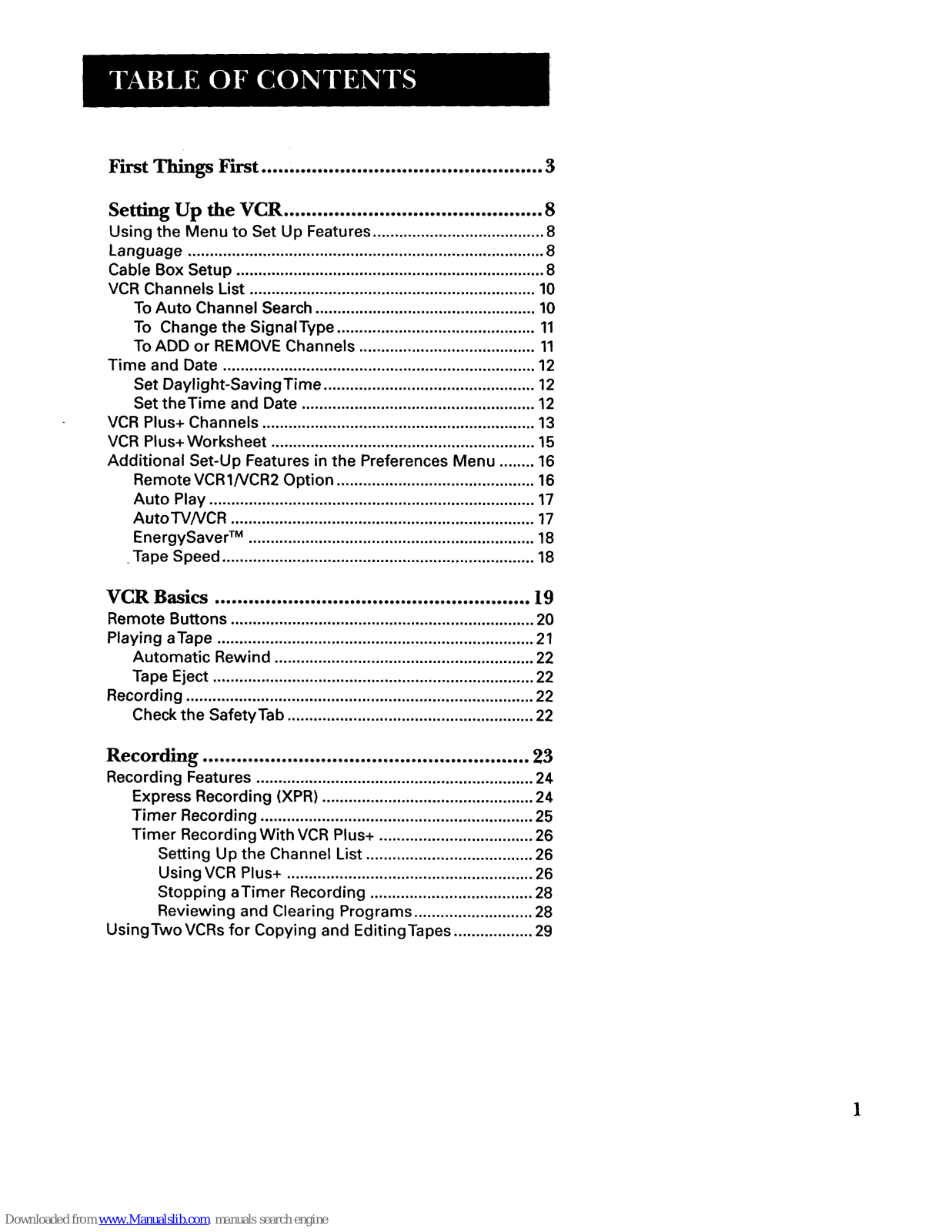

First Things First ..... ,............................................ 3

Setting Up the VCR .............................................. 8

Using the Menu to Set Up Features ....................................... 8

Language ................................................................................. 8

Cable Box Setup ...................................................................... 8

VCR Channels List ................................................................. 10

To Auto Channel Search .................................................. 10

To Change the SignalType ............................................. 11

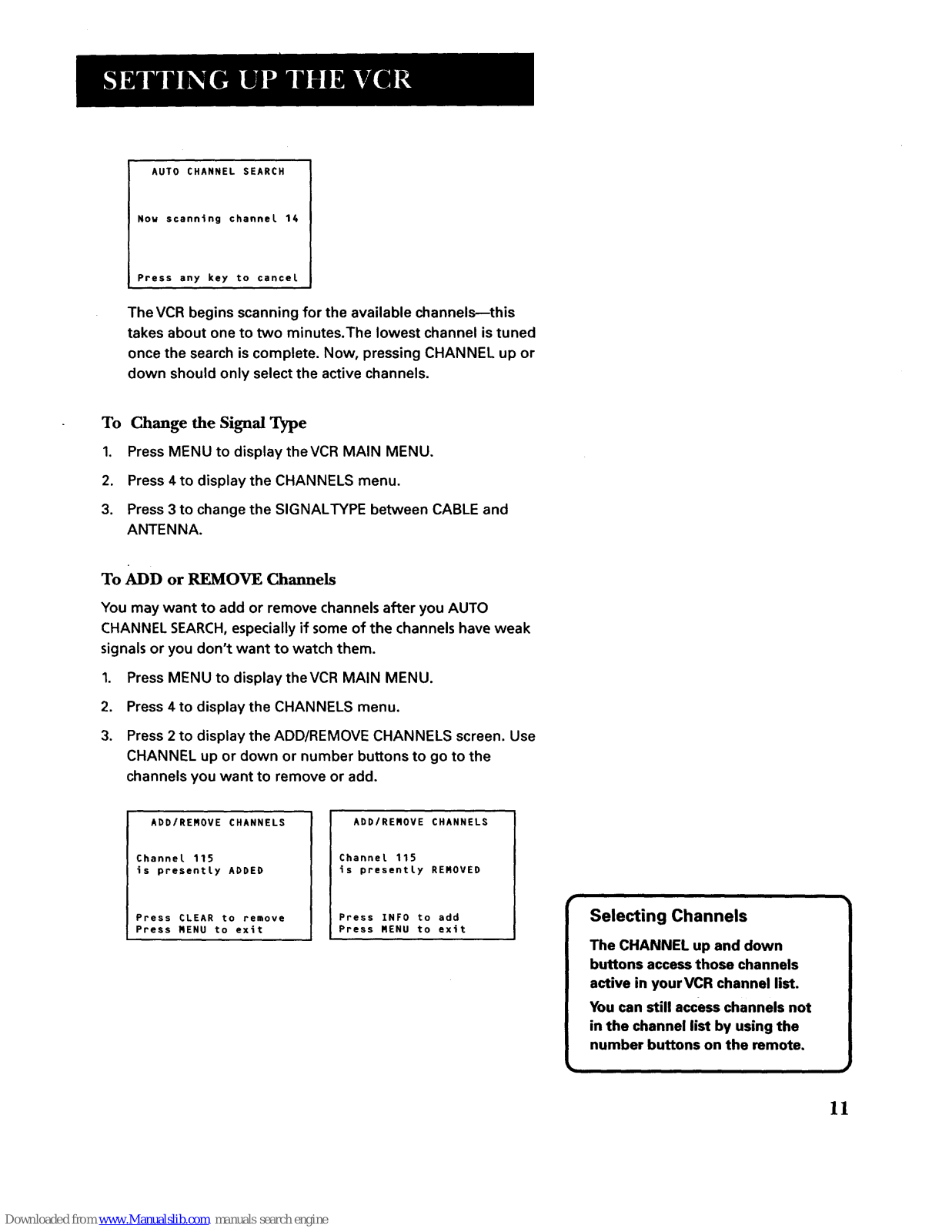

To ADD or REMOVE Channels ........................................ 11

Time and Date ....................................................................... 12

Set Daylight-SavingTime ................................................ 12

Set theTime and Date ..................................................... 12

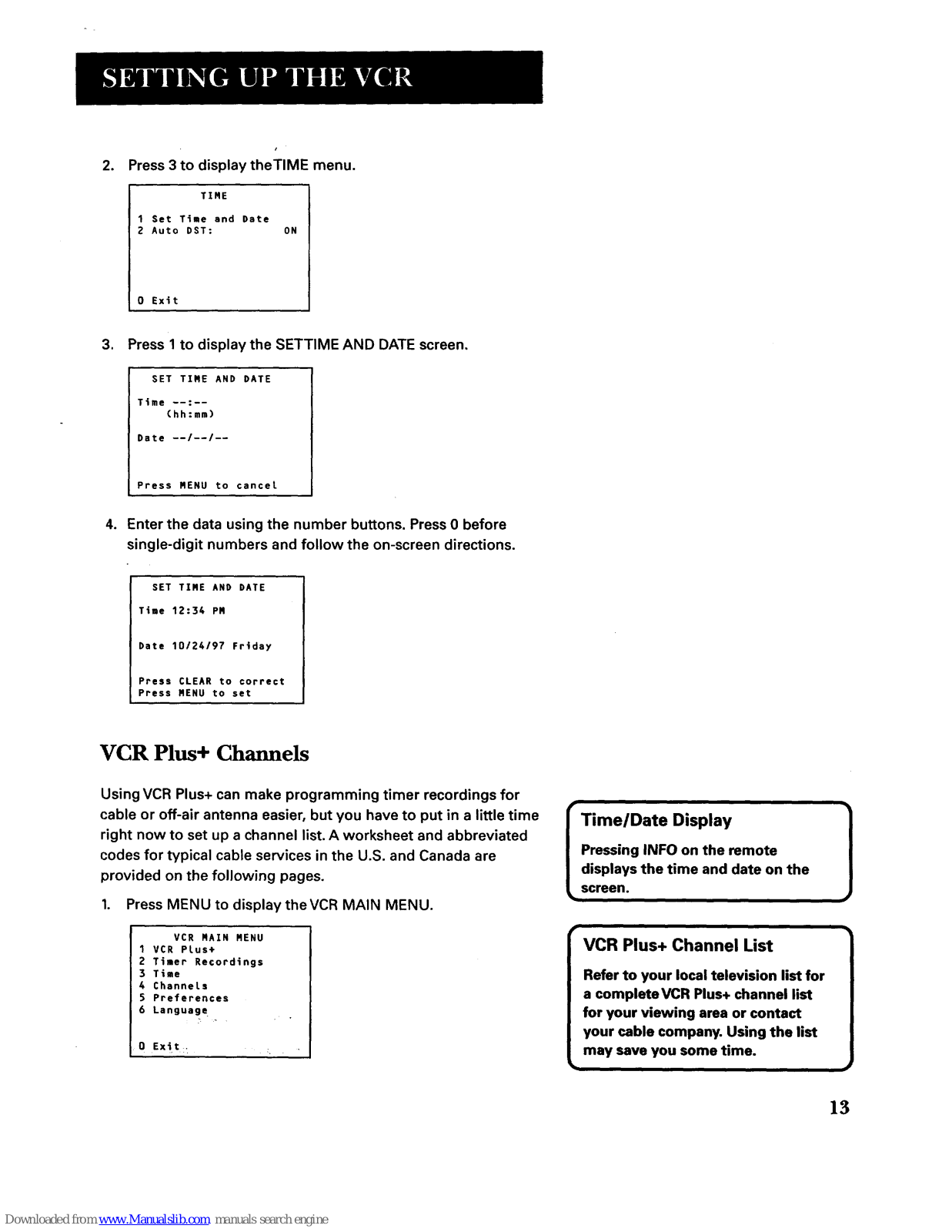

VCR Plus+ Channels .............................................................. 13

VCR Plus+ Worksheet ............................................................ 15

Additional Set-Up Features in the Preferences Menu ........ 16

Remote VCR1/VCR2 Option ............................................. 16

Auto Play .......................................................................... 17

AutoTV/VCR ..................................................................... 17

EnergySaver TM ................................................................. 18

•Tape Speed ....................................................................... 18

VCR Basics ........................................................ 19

Remote Buttons ..................................................................... 20

Playing aTape ........................................................................ 21

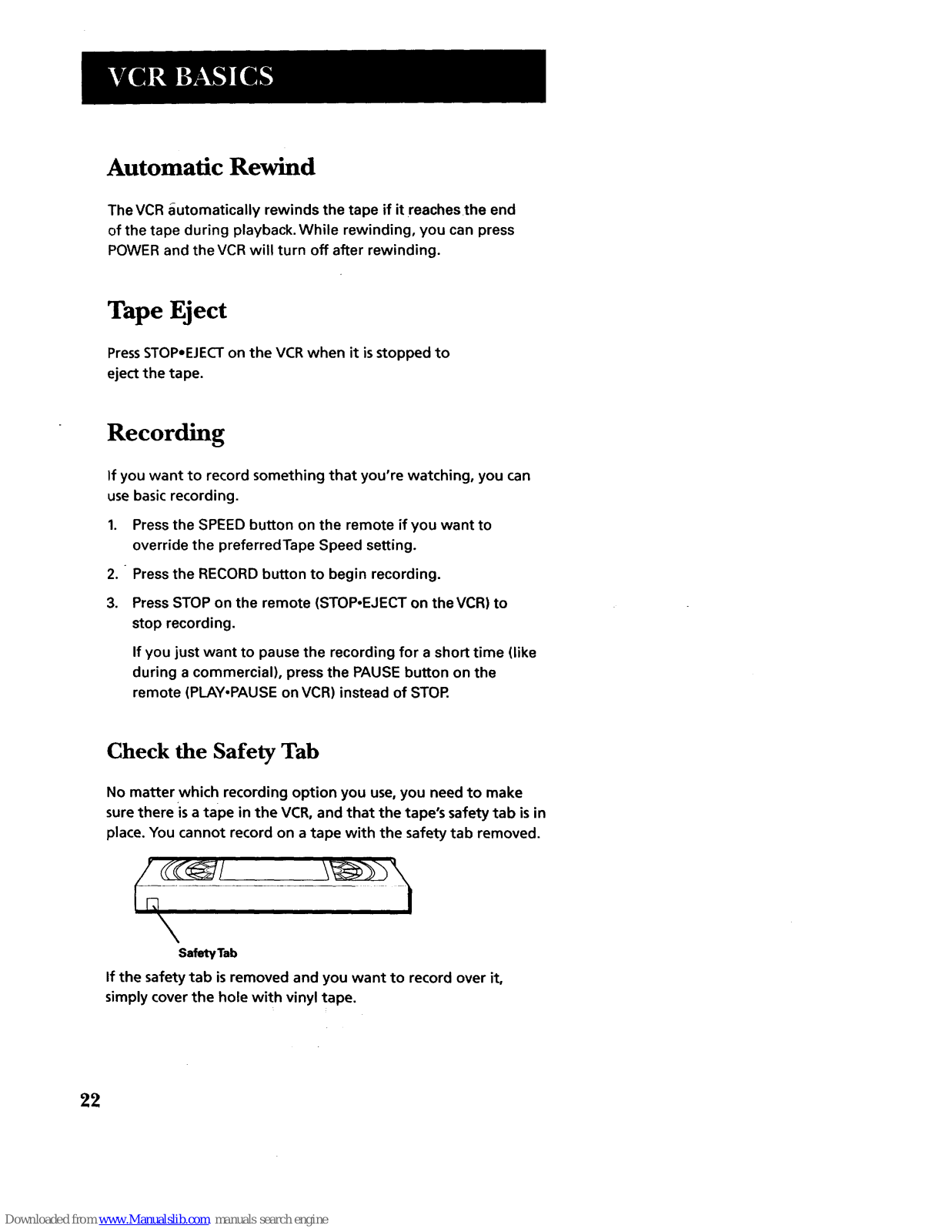

Automatic Rewind ........................................................... 22

Tape Eject ......................................................................... 22

Recording ............................................................................... 22

Check the SafetyTab ........................................................ 22

Recording .......................................................... 23

Recording Features ............................................................... 24

Express Recording (XPR) ................................................ 24

Timer Recording .............................................................. 25

Timer Recording With VCR Plus+ ................................... 26

Setting Up the Channel List ...................................... 26

Using VCR Plus+ ........................................................ 26

Stopping aTimer Recording ..................................... 28

Reviewing and Clearing Programs ........................... 28

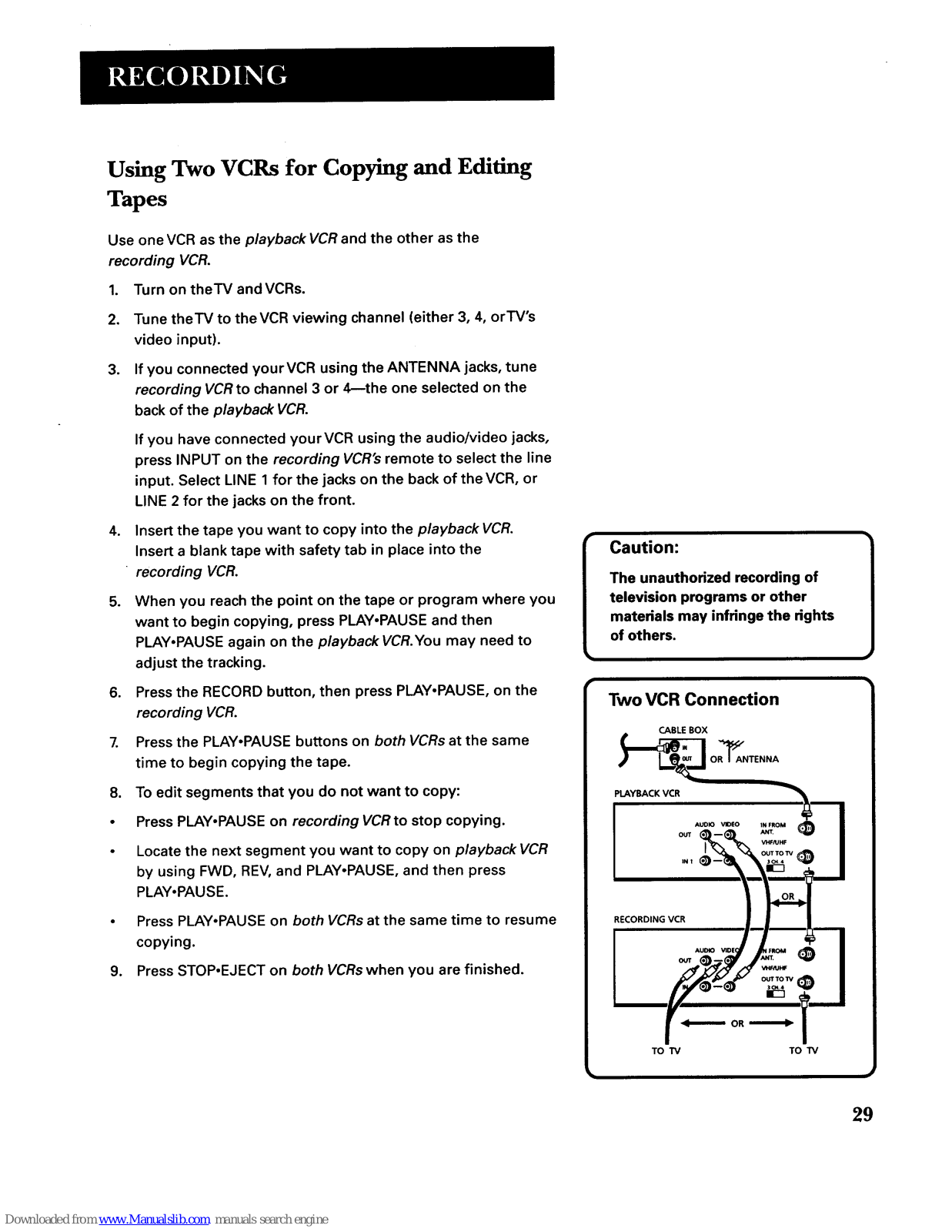

UsingTwoVCRs for Copying and EditingTapes .................. 29

Other Features ...... ............................................. 31

Picture Search Options ......................................................... 32

Forward and Reverse Search .......................................... 32

Slow Motion .................................................................... 32

Commercial Scan (Search Button) ................................. 32

Frame Advance ................................................................ 33

Index Search .................................................................... 33

Zero Search ...................................................................... 34

Pro-Tect Plus TM Locking Feature ........................................... 34

Time Counter ......................................................................... 35

On-Screen Displays ............................................................... 35

Tracking .................................................................................. 36

Connections ....................................................... 37

ConnectingYour VCR ............................................................. 38

Jacks and Cables ............................................................. 38

RF Jacks and Antenna Cables (F-type) ........................... 38

Audio/Video Jacks and Cables (RCA-type) .................... 38

Choosing a VCR Connection ................................................ 39

Advantages of Audio/Video Cable Connections ........... 39

TVWith RF Jack Only ............................................................ 40

TV With Audio/Video Jacks ................................................... 41

TVWith Audio/Video Jacks and Cable Box to

Unscramble Pay Channels Only ...................................... 42

Reference .......................................................... 43

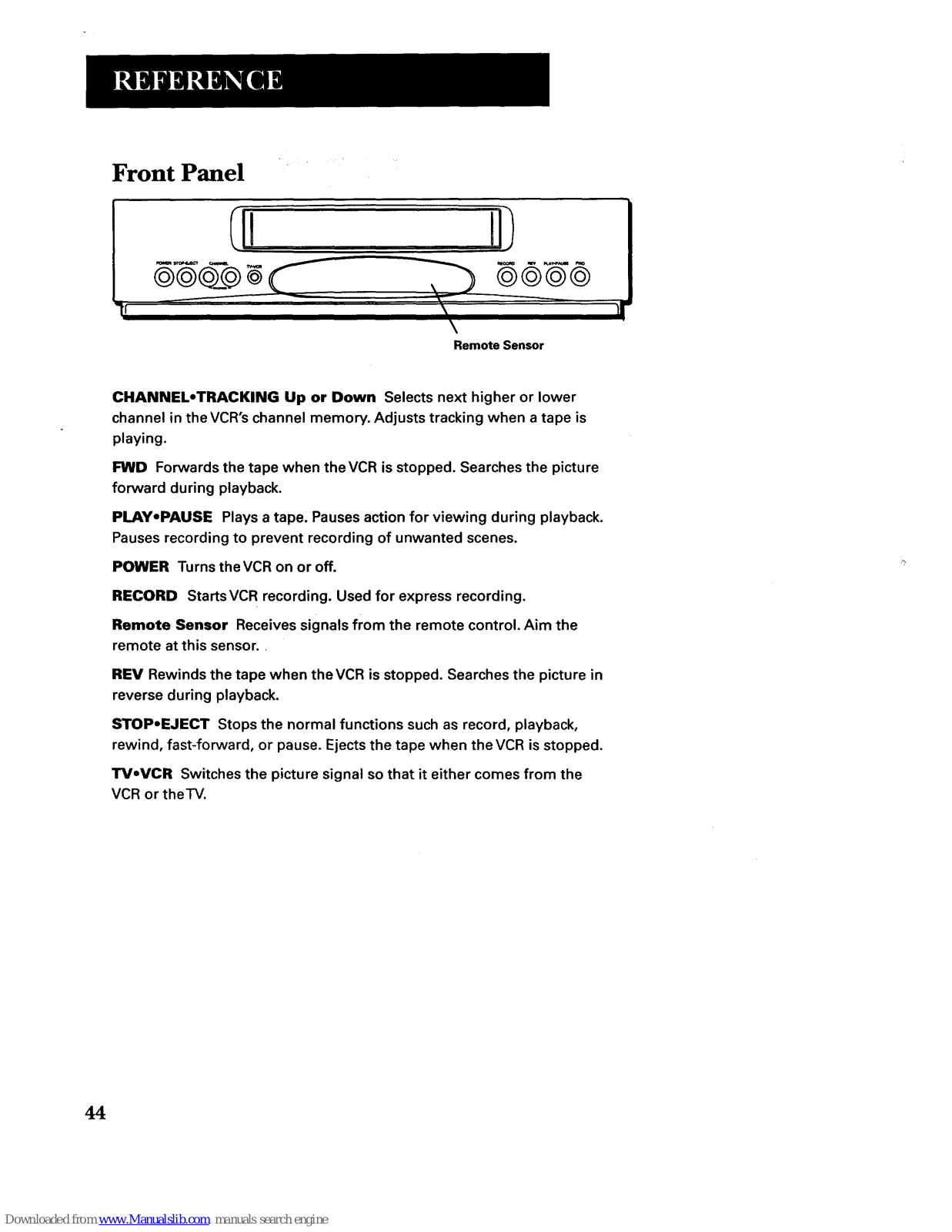

Front Panel ............................................................................. 44

Back Panel .............................................................................. 45

Indicator Panel ....................................................................... 45

TroubleshootingTips ............................................................. 46

Specifications ........................................................................ 49

Cleaning the VCR ................................................................... 49

Limited Warranty ................................................................... 50

Index ....................................................................................... 51

2

Hi, my name is Roger...

and I wrote this User's Guide. It's my job to see that

you have a rewarding user manual experience.You'll

find that I've arranged this manual to clearly explain

all yourVCR's features.

1

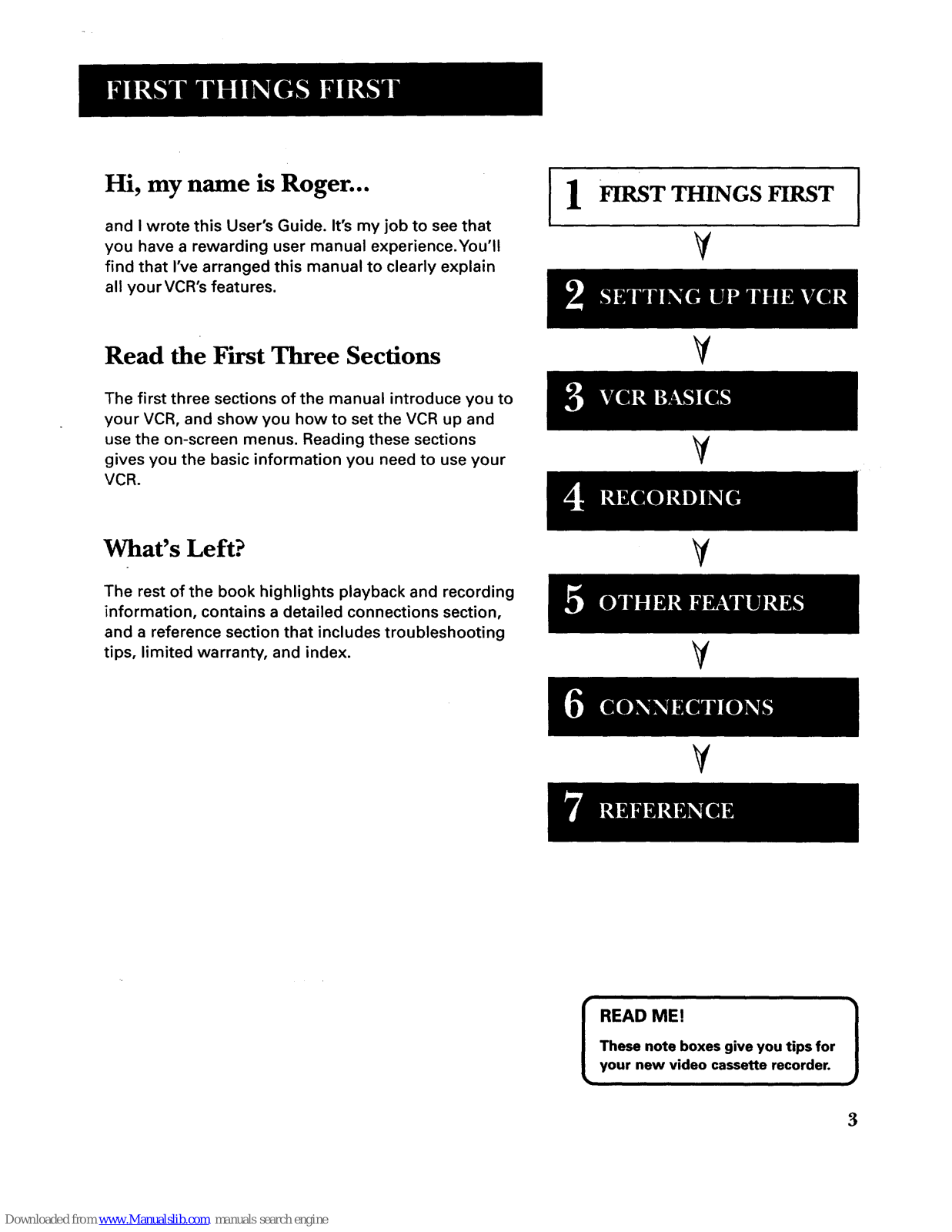

FIRST THINGS FIRST

Read the First Three Sections

V

The first three sections of the manual introduce you to
your VCR, and show you how to set the VCR up and

use the on-screen menus. Reading these sections
gives you the basic information you need to use your
VCR.

V

What's Left?

The rest of the book highlights playback and recording
information, contains a detailed connections section,

and a reference section that includes troubleshooting
tips, limited warranty, and index.

Y

V

¥

READ ME! 1

These note boxes give you tips for
your new video cassette recorder.

3

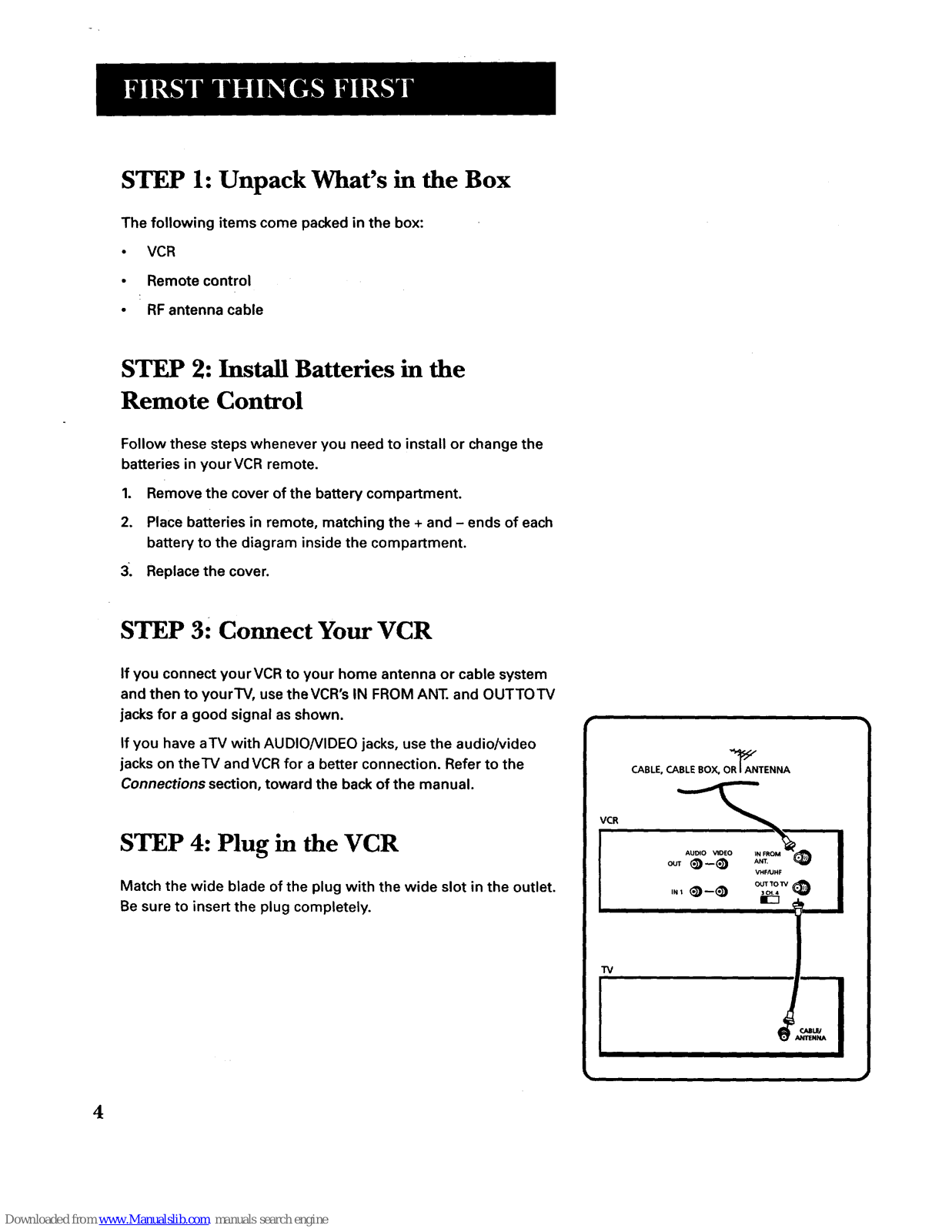

STEP 1: Unpack What's in the Box

The following items come packed in the box:

• VCR

• Remote control

• RF antenna cable

STEP 2: Install Batteries in the
Remote Control

Follow these steps whenever you need to install or change the

batteries in yourVCR remote.

1. Remove the cover of the battery compartment.

2. Place batteries in remote, matching the + and - ends of each

battery to the diagram inside the compartment.

3. Replace the cover.

STEP 3: Connect Your VCR

If you connect yourVCR to your home antenna or cable system
and then to yourTV, use theVCR's IN FROM ANT. and OUTTOTV

jacks for a good signal as shown.

If you have aTV with AUDIO/VIDEO jacks, use the audio/video

jacks on theTV and VCR for a better connection. Refer to the

Connections section, toward the back of the manual.

STEP 4: Plug in the VCR

Match the wide blade of the plug with the wide slot in the outlet.
Be sure to insert the plug completely.

VCR

TV

CABLE, CABLE BOX, OR_AANTENNA

AUDIO VIDEO

_ _-_ •

_,4FAJHF

O_IT TO TV _

r_ _

4

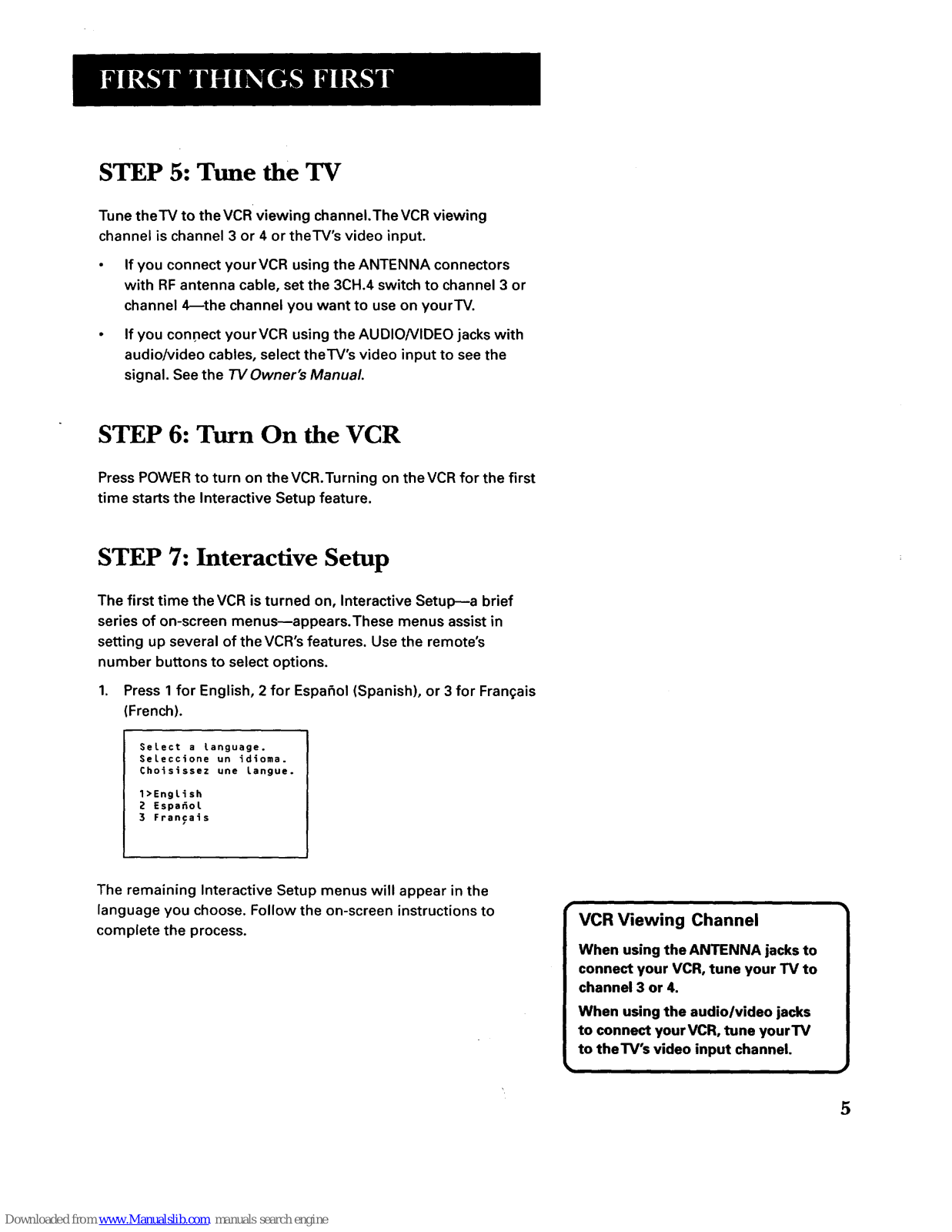

STEP 5: Tune the TV

Tune the'IV to theVCR viewing channel.The VCR viewing
channel is channel 3 or 4 or theTV's video input.

• If you connect yourVCR using the ANTENNA connectors

with RF antenna cable, set the 3CH.4 switch to channel 3 or

channel 4_the channel you want to use on yourTV.

• If you con0ect yourVCR using the AUDIO/VIDEO jacks with
audio/video cables, select theTV's video input to see the
signal. See the TV Owner's Manual.

STEP 6: Turn On the VCR

Press POWER to turn on theVCR.Turning on theVCR for the first

time starts the Interactive Setup feature.

STEP 7: Interactive Setup

The first time the VCR is turned on, Interactive Setup--a brief
series of on-screen menus--appears.These menus assist in
setting up several of the VCR's features. Use the remote's

number buttons to select options.

1. Press 1 for English, 2 for Espafiol (Spanish), or 3 for Frangais

(French).

Select a Language.
SeLeccione un idioma.

Choisissez une langue.

1>English

2 Espafiot
3 Francais

The remaining Interactive Setup menus will appear in the

language you choose. Follow the on-screen instructions to

complete the process.

VCR Viewing Channel

5

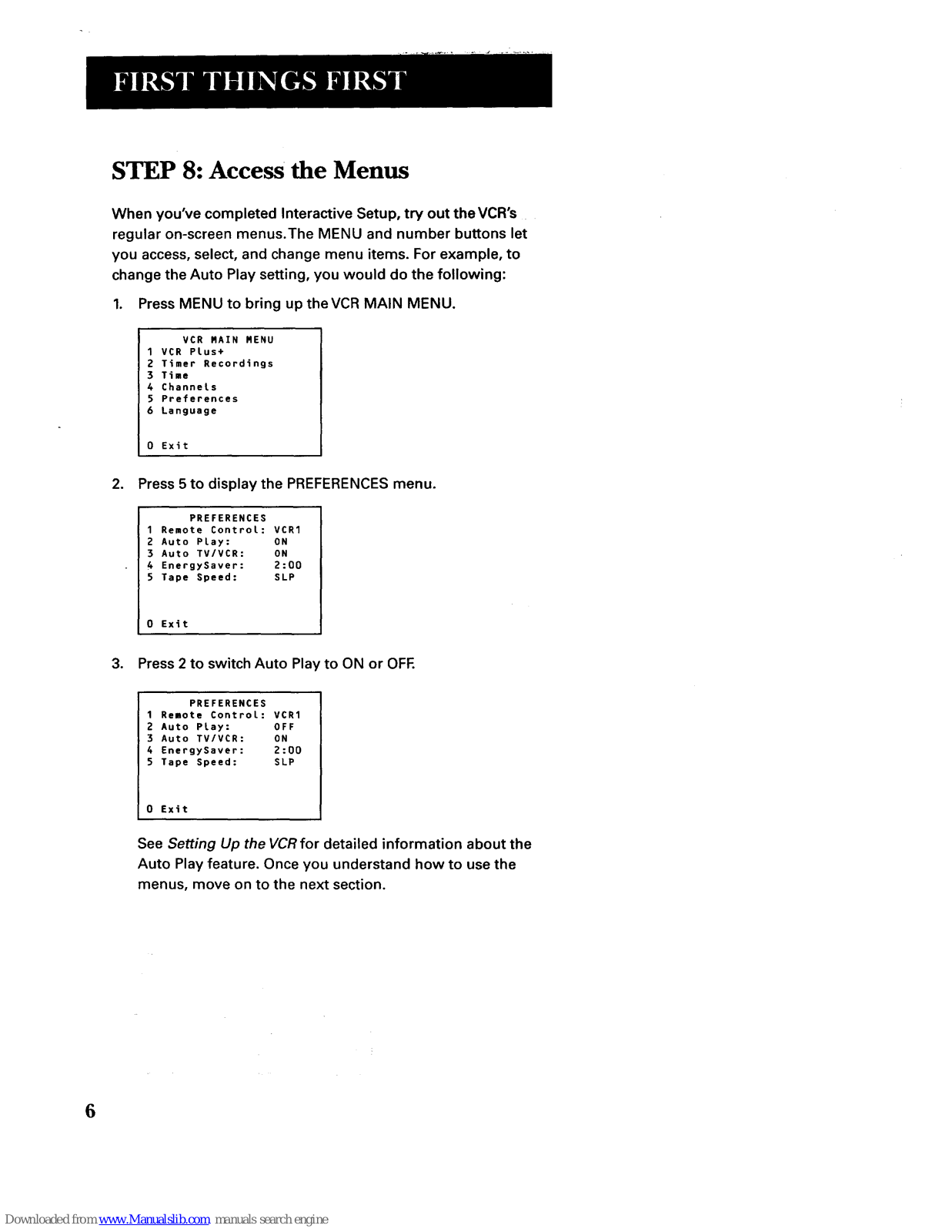

STEP 8: Access the Menus

When you've completed Interactive Setup, try out the VCR's

regular on-screen menus.The MENU and number buttons let

you access, select, and change menu items. For example, to
change the Auto Play setting, you would do the following:

1. Press MENU to bring up the VCR MAIN MENU.

VCR RAIN RENU

1 VCR Plus+

2 Timer Recordings
3 Time

4 Channels
5 Preferences

6 Language

0 Exit

2. Press 5 to display the PREFERENCES menu.

PREFERENCES

1 Remote Control: VCR1
2 Auto Play: ON

3 Auto TV/VCR: ON

4 EnergySaver: 2:00
5 Tape Speed: SLP

0 Exit

3. Press 2 to switch Auto Play to ON or OFE

PREFERENCES

1 Remote ControL: VCR1

2 Auto Play: OFF
3 Auto TV/VCR: ON

4 EnergySaver: 2:00

5 Tape Speed: SLP

0 Exit

See Setting Up the VCRfor detailed information about the
Auto Play feature. Once you understand how to use the
menus, move on to the next section.

6

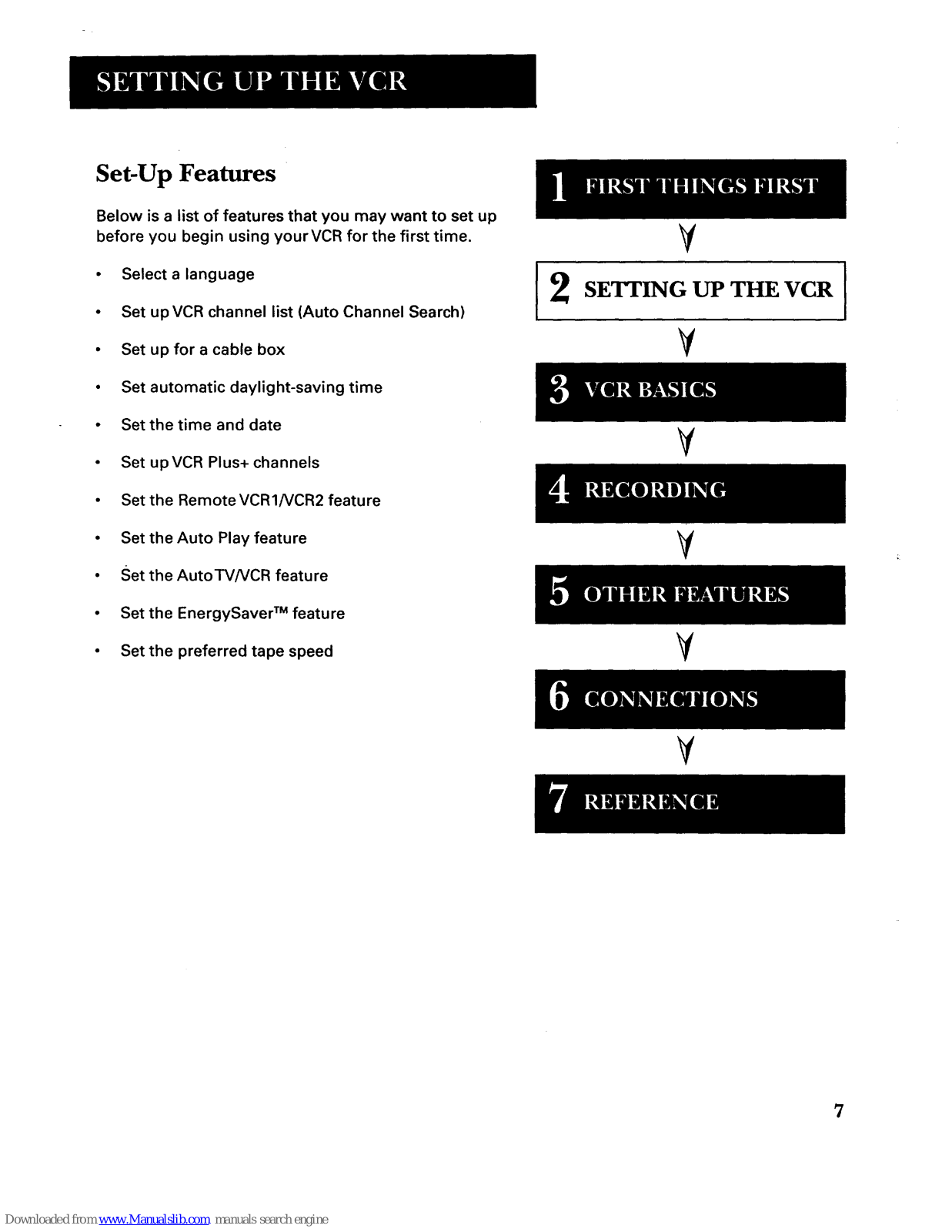

Set-Up Features

Below is a list of features that you may want to set up
before you begin using yourVCR for the first time.

• Select a language

• Set upVCR channel list (Auto Channel Search)

• Set up for a cable box

• Set automatic daylight-saving time

• Set the time and date

• Set upVCR Plus+ channels

• Set the RemoteVCR1/VCR2 feature

• Set theAuto Play feature

• Set the Auto-I'VfCR feature

• Set the EnergySaver TM feature

• Setthe preferred tape speed

2

V

SETTING UP THE VCR

V

V

V

¥

¥

7

Using the Menu to Set Up Features

You can change the setup of the VCR's features using the menu
system. Each feature isexplained in this section.

Language

Select your preferred language, and the on-screen displays will
appear in that language.

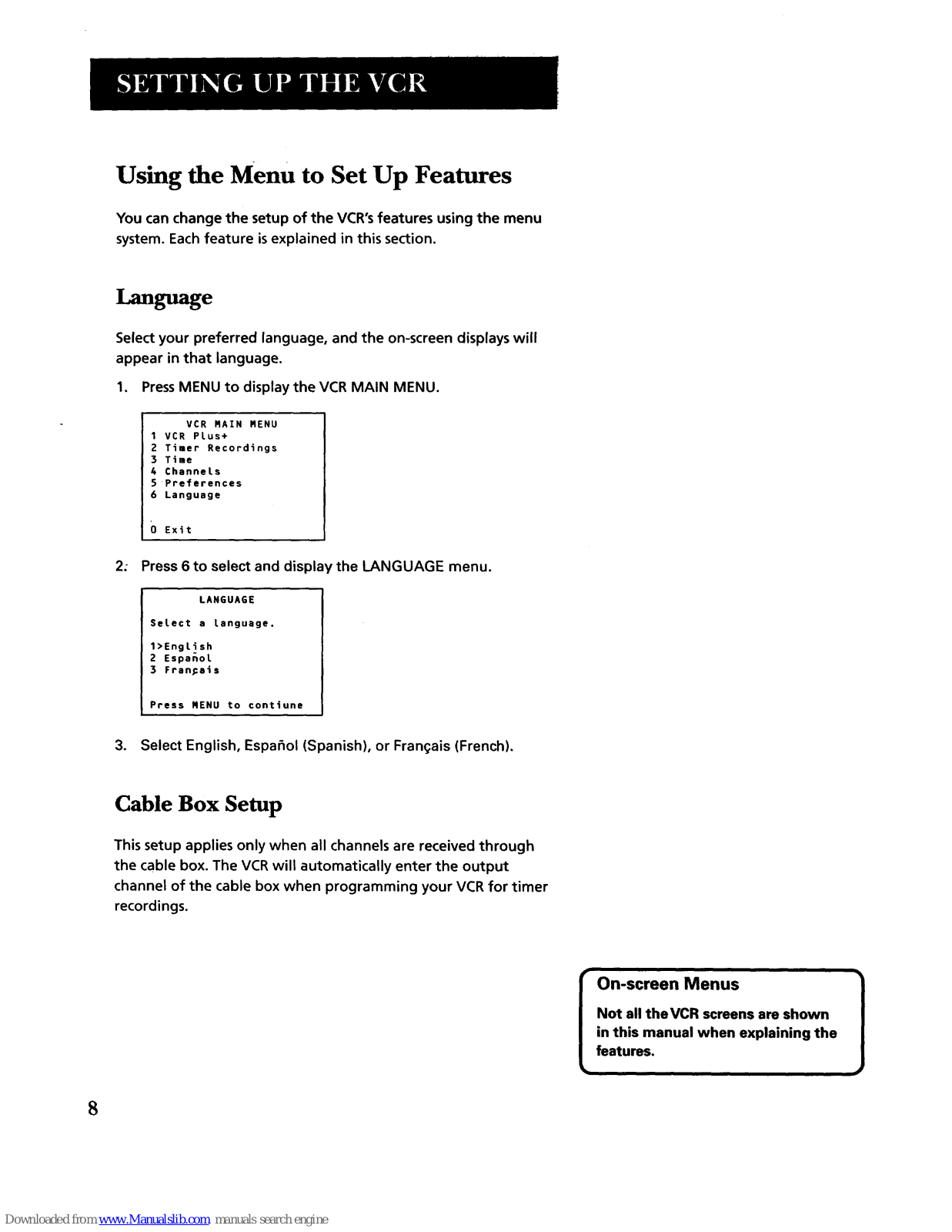

1. PressMENU to display the VCR MAIN MENU.

VCR RAIN MENU

1VCR PLus+
2 Timer Recordings

3 Time
6 ChanneLs
S Preferences
6 Language

0 Exit

2:

Press 6 to select and display the LANGUAGE menu.

LANGUAGE

Select a Language.

1>English
2 EspanoL
3 Francois

Press MENU to contiune

3. Select English, Espafiol (Spanish), or Frangais (French).

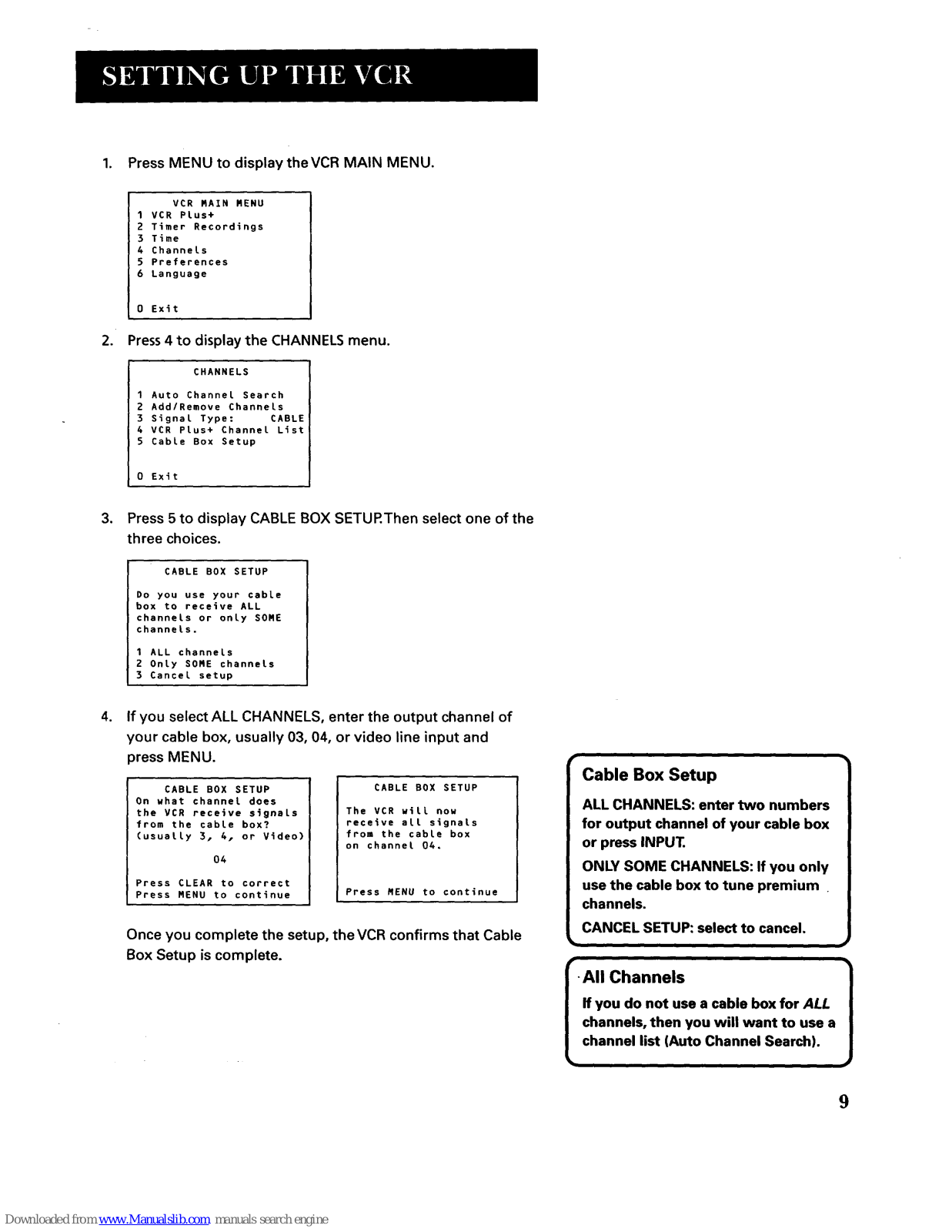

Cable Box Setup

This setup applies only when all channels are received through
the cable box. The VCR will automatically enter the output

channel of the cable box when programming your VCR for timer
recordings.

On-screen Menus 1

Not all theVCR screens are shown
in this manual when explaining the

features.

8

1. Press MENU to display the VCR MAIN MENU.

VCR RAIN MENU
1 VCR Plus+
2 Timer Recordings

3 Time
4 Channels
5 Preferences

6 Language

0 Exit

2. Press4 to display the CHANNELS menu.

CHANNELS

1 Auto Channel Search
2 Add/Remove Channels

3 Signal Type: CABLE
4 VCR PLus+ Channel List

5 Cable Box Setup

0 Exit

,

Press 5 to display CABLE BOX SETURThen select one of the
three choices.

CABLE BOX SETUP

Do you use your cable
box to receive ALL
channeLs or only SOME

channels.

1 ALL channels
Z Only SORE channels
3 Cancel setup

.

If you select ALL CHANNELS, enter the output channel of

your cable box, usually 03, 04, or video line input and

press MENU.

CABLE BOX SETUP
On what channel does
the VCR receive signals
from the cable box?

(usually 3, 4. or Video)

04

Press CLEAR to correct
Press MENU to continue

CABLE BOX SETUP

The VCR will nou
receive all signals
from the cable box

on channel 04.

Press MENU to continue

Once you complete the setup, the VCR confirms that Cable
Box Setup is complete.

Cable Box Setup

ALL CHANNELS: enter two numbers
for output channel of your cable box
or press INPUT.

ONLY SOME CHANNELS: If you only
use the cable box to tune premium

channels.
CANCEL SETUP: select to cancel.

All Channels

If you do not use a cable box for ALL
channels, then you will want to use a
channel list (Auto Channel Search).

9

VCR Channels List

Your VCR may come with a channel list preset at the factory.

Even though yourVCR may come with a list, it's possible

that you may want to add or eliminate some channels
depending on whether they are active.

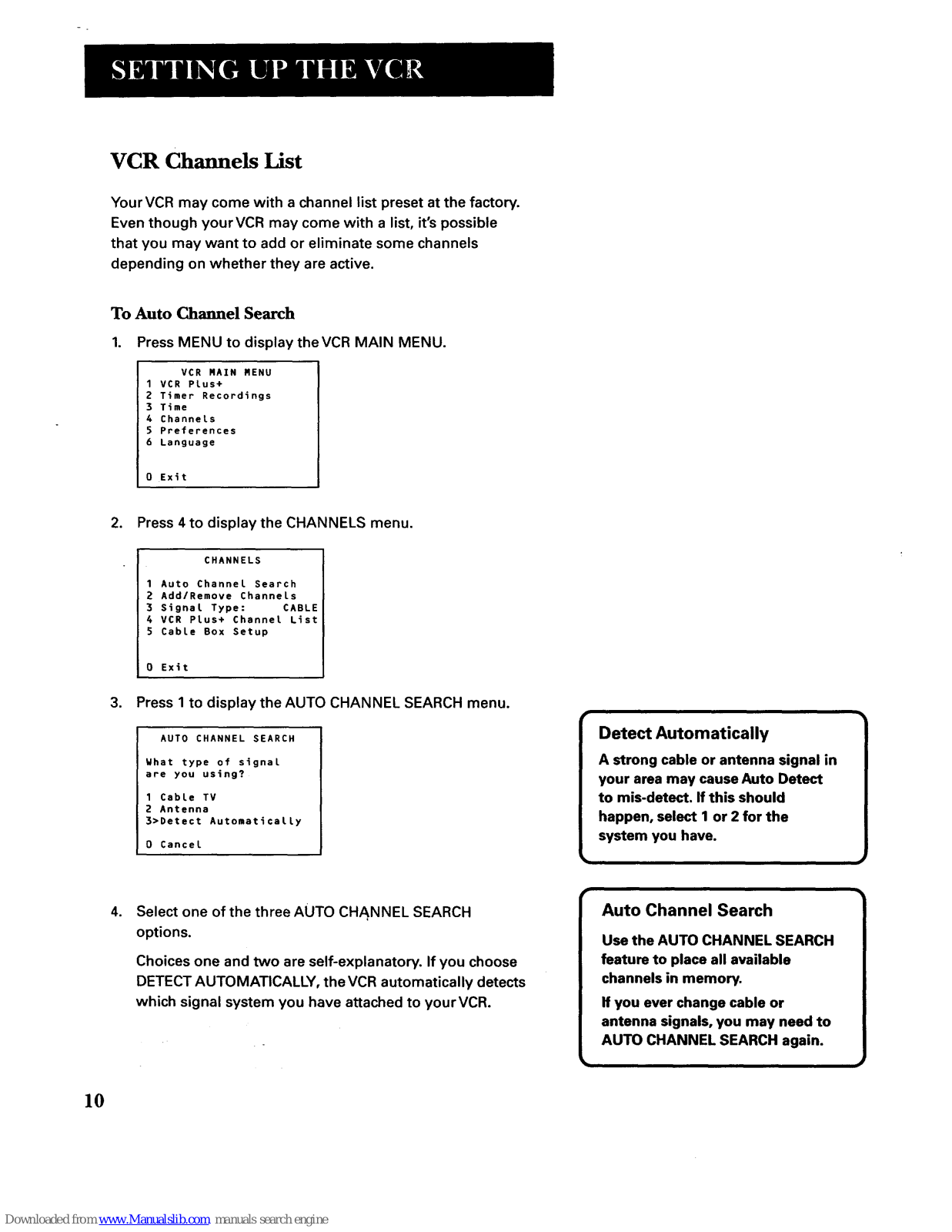

To Auto Channel Search

1. Press MENU to display theVCR MAIN MENU.

VCR RAIN RENU
1VCR PLus+
2 Timer Recordings
3 Time

4 ChanneLs
5 Preferences
6 Language

0 Exit

2. Press 4 to display the CHANNELS menu.

CHANNELS

1 Auto ChanneL Search
2 Add/Remove ChanneLs
] Signal Type: CABLE

4 VCR PLus+ Channel List
5 CabLe Box Setup

0 Exit

3. Press 1 to display the AUTO CHANNEL SEARCH menu.

AUTO CHANNEL SEARCH

What type of signaL

are you using?

1 CabLe TV

2 Antenna
3>Detect Automatically

0 Cancel

,

Select one of the three AUTO CHANNEL SEARCH
options.

Choices one and two are self-explanatory. If you choose
DETECT AUTOMATICALLY, the VCR automatically detects

which signal system you have attached to yourVCR.

Auto Channel Search

lO

AUTO CHANNEL SEARCH

Now scanning channel 14

Press any key to cancel

The VCR begins scanning for the available channels--this
takes about one to two minutes.The lowest channel is tuned

once the search is complete. Now, pressing CHANNEL up or
down should only select the active channels.

To Change the Signal Type

1. Press MENU to display theVCR MAIN MENU.

2. Press 4 to display the CHANNELS menu.

3. Press 3 to change the SIGNALTYPE between CABLE and

ANTENNA.

To ADD or REMOVE Channels

You may want to add or remove channels after you AUTO
CHANNEL SEARCH,especially if some of the channels have weak
signals or you don't want to watch them.

1. Press MENU to display theVCR MAIN MENU.

2. Press 4 to display the CHANNELS menu.

3. Press 2 to display the ADD/REMOVE CHANNELS screen. Use

CHANNEL up or down or number buttons to go to the
channels you want to remove or add.

ADD/REROVE CHANNELS

Channel 115
is presently ADDED

Press CLEAR to remove
Press NENU to exit

ADD/REROVE CHANNELS

Channel 115
is presently RENOVED

Press INFO to add
Press RENU to exit

Selecting Channels

11

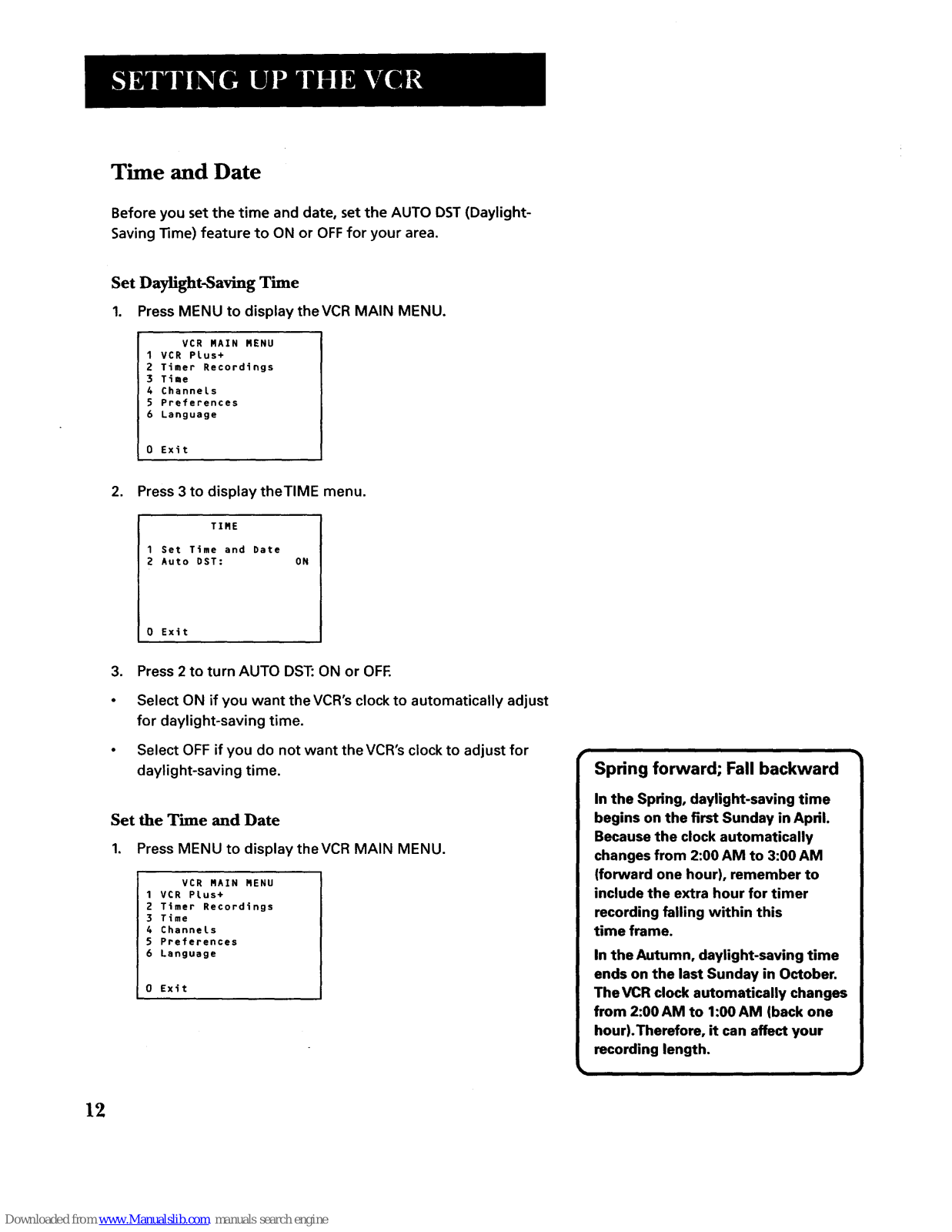

Time and Date

Before you set the time and date, set the AUTO DST (Daylight-

Saving Time) feature to ON or OFF for your area.

Set Daylight-Saving Time

1. Press MENU to display theVCR MAIN MENU.

VCR RAIN HENU

1VCR PLus+
2 Timer Recordings

3 Time

4 Channels

5 Preferences
6 Language

0 Exit

.

Press 3 to display theTIME menu.

TIRE

1 Set Time and Date
2 Auto DST: ON

0 Exit

,

Press 2 to turn AUTO DST: ON or OFE

Select ON if you want theVCR's clock to automatically adjust
for daylight-saving time.

Select OFF if you do not want the VCR's clock to adjust for
daylight-saving time.

Set the Time and Date

1. Press MENU to display the VCR MAIN MENU.

VCR RAIN RENU

1 VCR PLus+
2 Timer Recordings

3 Time

4 Channels

5 Preferences
6 Language

0 Exit

Spring forward; Fall backward

In the Spring, daylight-saving time
begins on the first Sunday in April.
Because the clock automatically
changes from 2:00 AM to 3:00 AM
(forward one hour), remember to
include the extra hour for timer
recording falling within this

time frame.

In the Autumn, daylight-saving time

ends on the last Sunday in October.
The VCR clock automatically changes
from 2:00 AM to 1:00 AM (back one

hour).Therefore, it can affect your

recording length.

12

i

2. Press 3 to display theTIME menu.

TIRE

1 Set Time and Date
2 Auto DST: ON

0 Exit

3. Press 1 to display the SETTIME AND DATE screen,

SET TIRE AND DATE

T_me --:--

(hh:mm)

Date --I--I--

Press MENU to cancel

4. Enter the data using the number buttons. Press 0 before

single-digit numbers and follow the on-screen directions.

SET TIRE AND DATE

Time 12:34 PR

Date 10124/97 Friday

Press CLEAR to correct
Press MENU to set

VCR Plus+ Channels

Using VCR Plus+ can make programming timer recordings for

cable or off-air antenna easier, but you have to put in a little time

right now to set up a channel list. A worksheet and abbreviated

codes for typical cable services in the U.S. and Canada are

provided on the following pages.

1. Press MENU to display theVCR MAIN MENU.

VCR RAIN MENU

1VCR PLus+

2 Timer Recordings
3 Time

4 ChanneLs

5 Preferences

6 Languag e

0 Exit.

TimelDate Display

Pressing INFO on the remote
displays the time and date on the

screen.

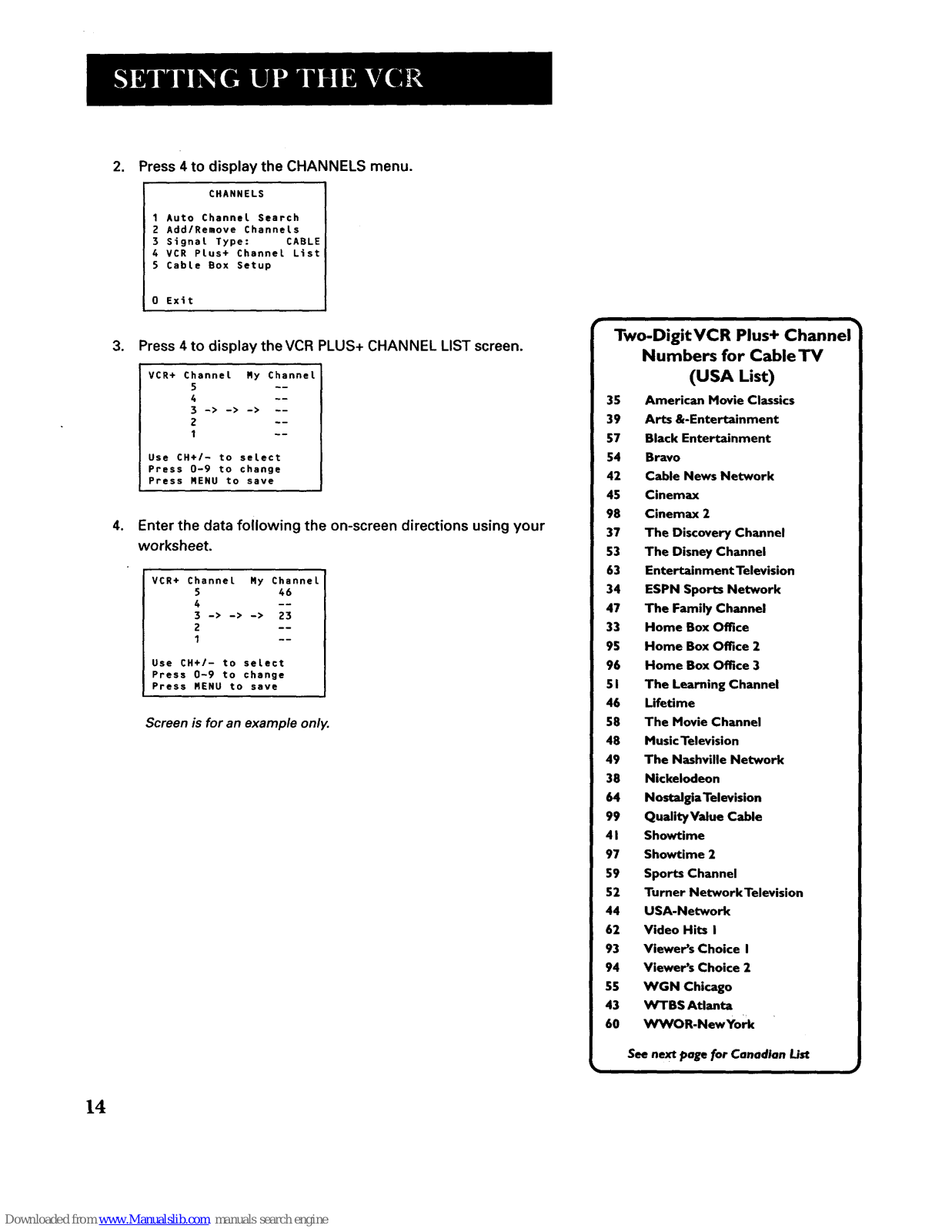

VCR Plus+ Channel List

Refer to your local television list for
a completeVCR Plus+ channel list

for your viewing area or contact

your cable company. Using the list
may save you some time.

13

14

2. Press 4 to display the CHANNELS menu.

CHANNELS

1 Auto Channel Search
2 Add/Remove ChanneLs

3 Signal Type: CABLE
4 VCR PLus+ ChanneL List
5 CabLe Box Setup

0 Exit

3. Press 4to display the VCR PLUS+ CHANNEL LIST screen.

VCR+

Channel Ry Channel

5 --
4 --

3 -> -> -> --

2 ----

Use CH+/- to select
Press 0-9 to change
Press RENU to save

.

Enter the data following the on-screen directions using your
worksheet.

VCR+ ChanneL Hy ChanneL

5 46

4 ----

3 -> -> -> 23

2 --
1 --

Use CH+/- to select

Press 0-9 to change
Press HENU to save

Screen is for an example only.

Two-DigitVCR Plus+ Channel _

Numbers for CableTV

(USA List)

35 American Movie Classics
39 Arts &-Entertainment
57 Black Entertainment

54 Bravo
42 Cable News Network
45 Cinemax
98 Cinemax 2
37 The Discovery Channel
53 The Disney Channel
63 Entertainment Television
34 ESPN Sports Network
47 The Family Channel

33 Home Box Office
95 Home Box Office 2
96 Home Box Office 3
51 The Learning Channel

46 Lifetime
58 The Movie Channel
48 Music Television
49 The Nashville Network
38 Nickelodeon
64 NostalgiaTelevision
99 Quality Value Cable

41 Showtime
97 Showtime 2

59 Sports Channel
52 Turner Network Television

44 USA-Network
62 Video Hits I
93 Viewer's Choice I
94 Viewer's Choice 2

55 WGN Chicago
43 WTBS Atlanta

60 _OR-NewYork

See next page for Canadian List

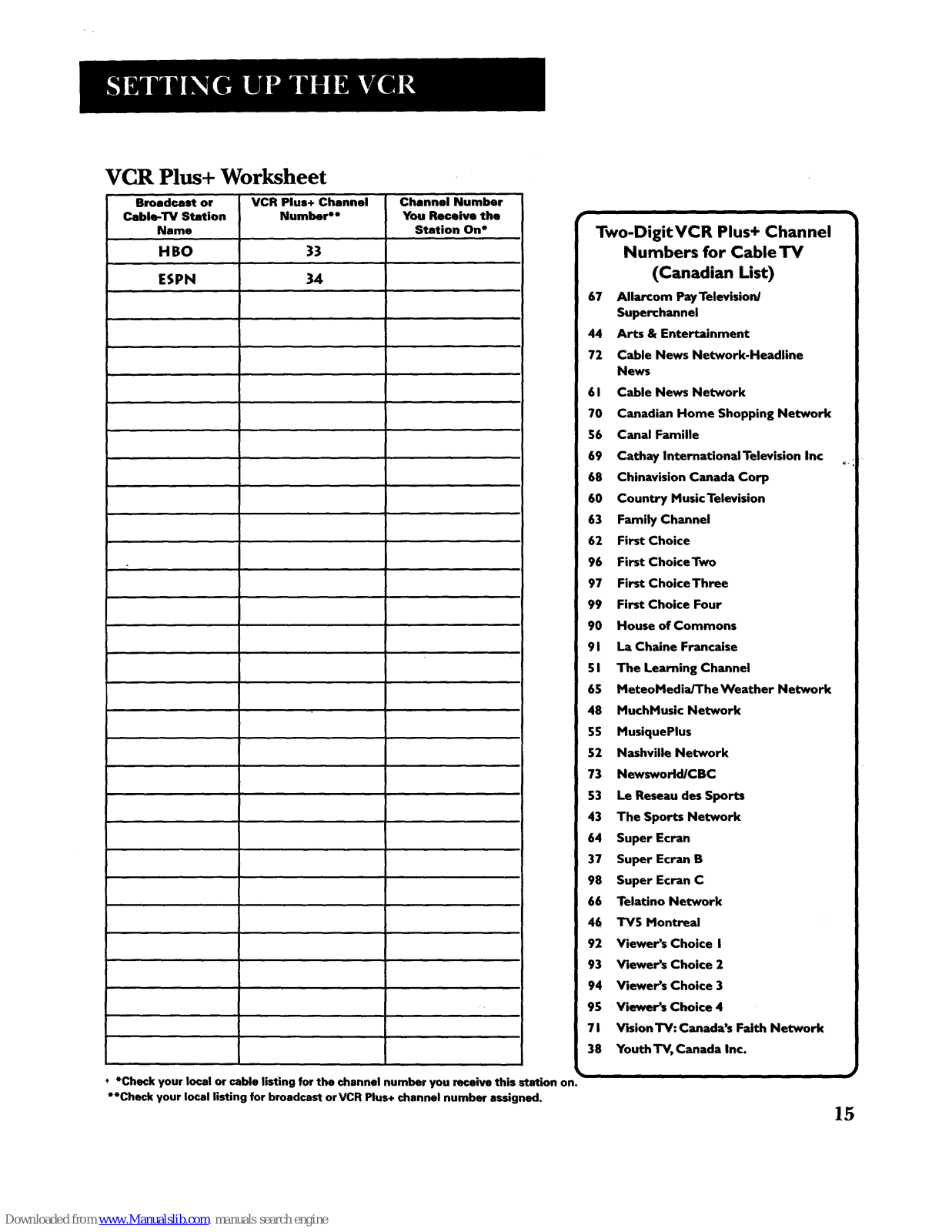

VCR Plus+ Worksheet

Broadcast or VCR Plus+ Channel Channel Number

Cable-TV Station Number +" You Receive the

Name Station On*
HBO 33

ESPN 34

I ,

, *Check your local or cable listing for the channel number you receive this station on.

**Check your local listing for broadcast orVCR Plus+ channel number assigned.

Two-DigitVCR Plus+ Channel

Numbers for CableTV

(Canadian List)

67 Allarcom PayTelevisionl

Superchannel

44 Arts & Entertainment

72 Cable News Network-Headline

News

61 Cable News Network

70 Canadian Home Shopping Network

56 Canal Famille
69 Cathay InternationaITelevision Inc
68 Chinavision Canada Corp

60 Country Music Television

63 Family Channel

62 First Choice

96 First ChoiceTwo

97 First Choice Three
99 First Choice Four
90 House of Commons
91 La Chalne Francalse

51 The Learning Channel
65 MeteoMedialTheWeather Network
48 MuchMusic Network

55 MusiquePlus
52 Nashville Network

73 Newsworld/CBC

53 Le Reseau des Sports
43 The Sports Network
64 Super Ecran

37 Super Ecran B
98 Super Ecran C
66 Telatino Network
46 TV5 Montreal
92 Viewer's Choice I
93 Viewer's Choice 2

94 Viewer's Choice 3
95 Viewer's Choice 4
71 V'rsionTV: Canada's Faith Network
38 YouthTV, Canada Inc,

15

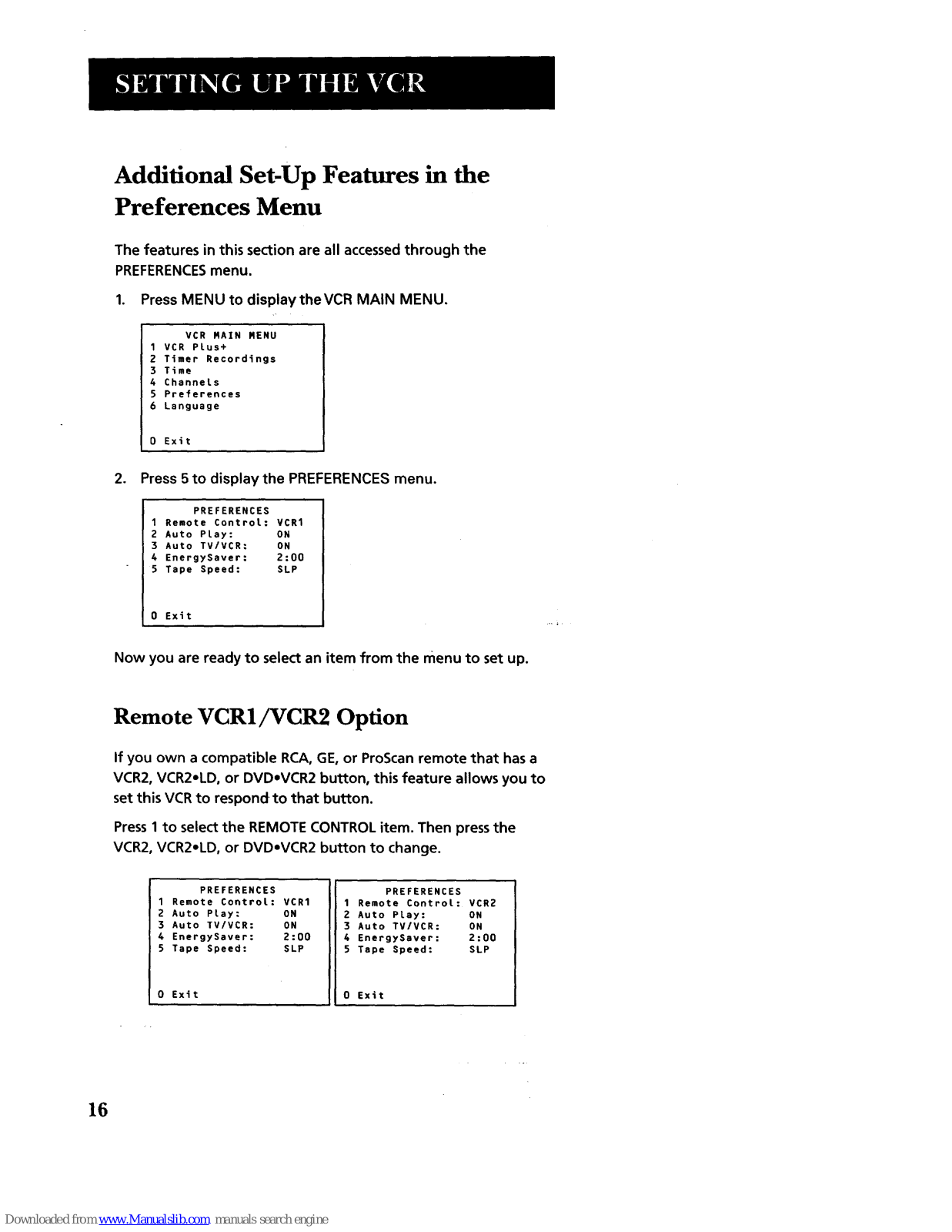

Additional Set-Up Features in the

Preferences Menu

The features in this section are all accessed through the
PREFERENCESmenu.

1. Press MENU to displaytheVCR MAIN MENU.

VCR RAIN RENU

1 VCR PLus+

2 Timer Recordings

3 Time

4 Channels

5 Preferences

6 Language

0 Exit

2. Press 5 to display the PREFERENCES menu.

PREFERENCES

1 Remote Control: VCR1

2 Auto Play: ON
3 Auto TV/VCR: ON

4 EnergySaver: 2:00

5 Tape Speed: SLP

0 Exit

Now you are ready to select an item from the menu to set up.

Remote VCR1/VCR2 Option

If you own a compatible RCA, GE, or ProScan remote that has a
VCR2, VCR2mLD, or DVDeVCR2 button, this feature allows you to
set this VCR to respond to that button.

Press 1 to select the REMOTE CONTROL item. Then press the
VCR2, VCR2mLD, or DVDeVCR2 button to change.

PREFERENCES
1 Remote Control: VCR1
2 Auto PLay: ON
3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Tape Speed: SLP

0 Exit

PREFERENCES

1 Remote Control: VCR2
2 Auto PLay: ON

3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Tape Speed: SLP

0 Exit

16

The VCR will only respond to the compatible remote's VCR2,

VCR2-LD, or DVD*VCR2 button. If you change the remote setting

to VCR2, the remote that came with your VCR will no longer

control it.

To change the remote setting back to VCR1, display the

PREFERENCESmenu, press 1, and then press VCR1 on your
compatible remote.

Auto Play

This feature allows theVCR to automatically start playing when

you insert a tape with the safety tab removed. Press 2 to switch
between ON or OFF.

Select ON if you want a tape with its safety tab removed to
start playing automatically when the tape is inserted.

Select OFF if you do notwant a tape with its safety tab
removed to start playing automatically.

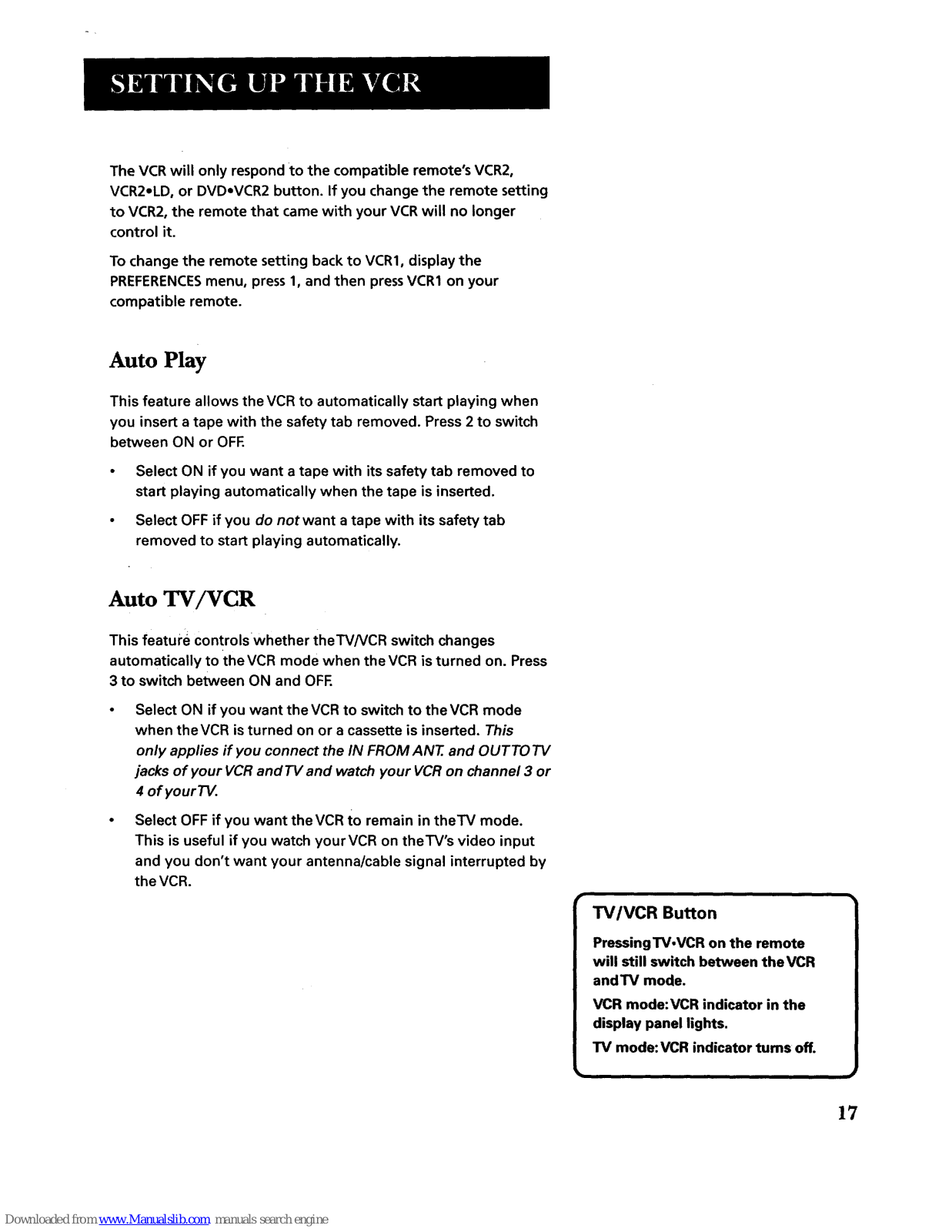

Auto TV/VCR

This feature controlswhether theTVNCR switch changes

automatically to the VCR mode when the VCR is turned on. Press

3 to switch between ON and OFE

• Select ON if you want the VCR to switch to the VCR mode

when theVCR is turned on or a cassette is inserted. This

only applies if you connect the IN FROM ANT. and OUTTO TV

jacks of your VCR andTV and watch your VCR on channel 3 or

4 ofyourTV.

• Select OFF if you want the VCR to remain in theTV mode.

This is useful if you watch yourVCR on theTV's video input
and you don't want your antenna/cable signal interrupted by

the VCR.

TV/VCR Button

PressingTV,VCR on the remote
will still switch between the VCR
andTV mode.

VCR mode:VCR indicator in the
display panel lights.

TV mode: VCR indicator turns off.

17

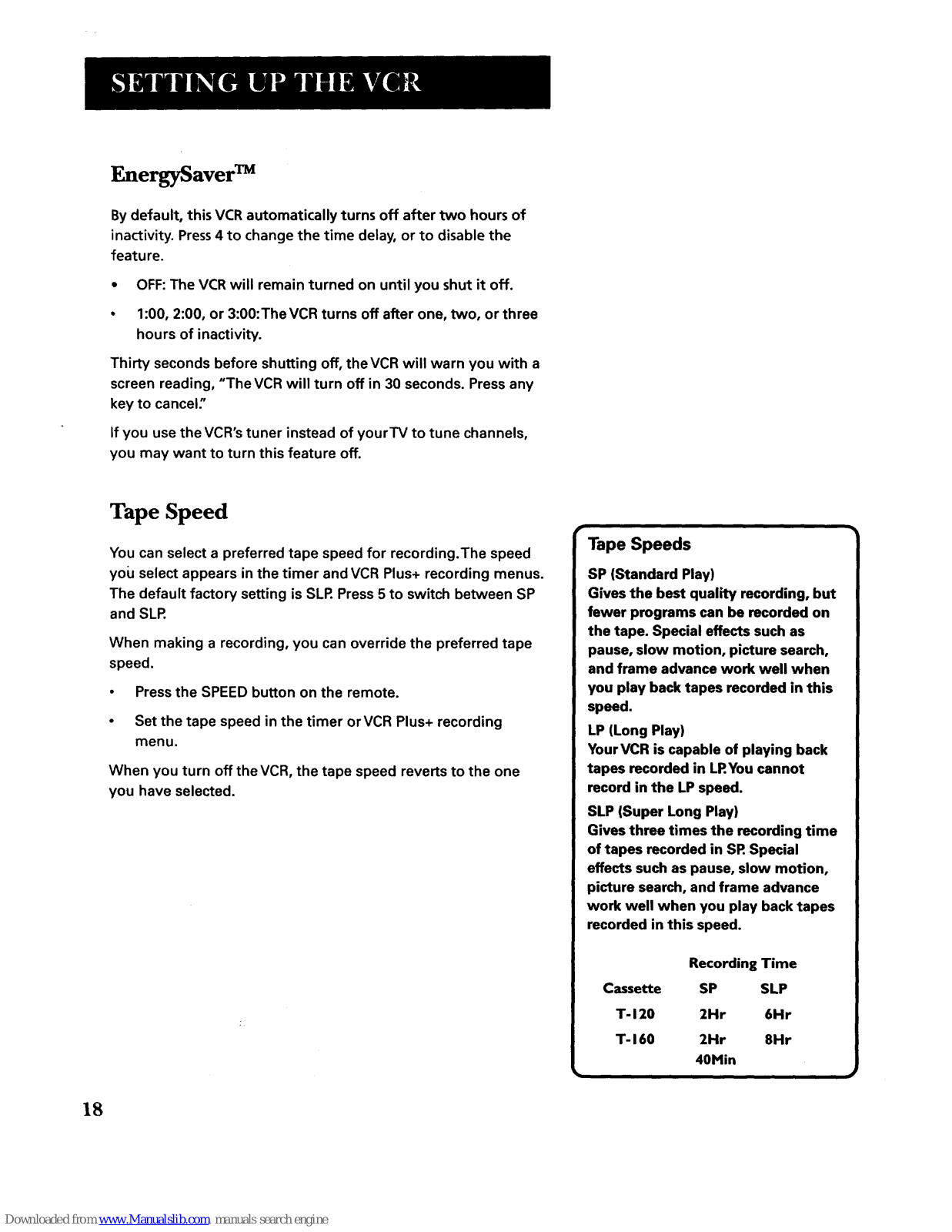

EnergySaverTM

By default, this VCR automatically turns off after two hours of
inactivity. Press4 to change the time delay, or to disable the
feature.

OFF: The VCR will remain turned on until you shut it off.
1:00, 2:00, or 3:00:TheVCR turns off after one, two, or three

hours of inactivity.

Thirty seconds before shutting off, theVCR will warn you with a

screen reading, "The VCR will turn off in 30 seconds. Press any
key to cancel."

If you use the VCR's tuner instead of yourTV to tune channels,

you may want to turn this feature off.

Tape Speed

You can select a preferred tape speed for recording.The speed
you select appears in the timer and VCR Plus+ recording menus.
The default factory setting is SLR Press 5 to switch between SP

and SLR

When making a recording, you can override the preferred tape
speed.

• Press the SPEED button on the remote.

• Set the tape speed in the timer or VCR Plus+ recording

menu.

When you turn off the VCR, the tape speed reverts to the one

you have selected.

Tape Speeds

SP (Standard Play)
Gives the best quality recording, but
fewer programs can be recorded on
the tape. Special effects such as
pause, slow motion, picture search,
and frame advance work well when
you play back tapes recorded in this
speed.

LP (Long Play)
Your VCR is capable of playing back
tapes recorded in LRYou cannot
record in the LP speed.

SLP (Super Long Play)
Gives three times the recording time
of tapes recorded in SR Special
effects such as pause, slow motion,
picture search, and frame advance

work well when you play back tapes

recorded in this speed.

Cassette

T-120

T-160

Recording Time

SP SLP

2Hr 6Hr
2Hr 8Hr

40Min

18

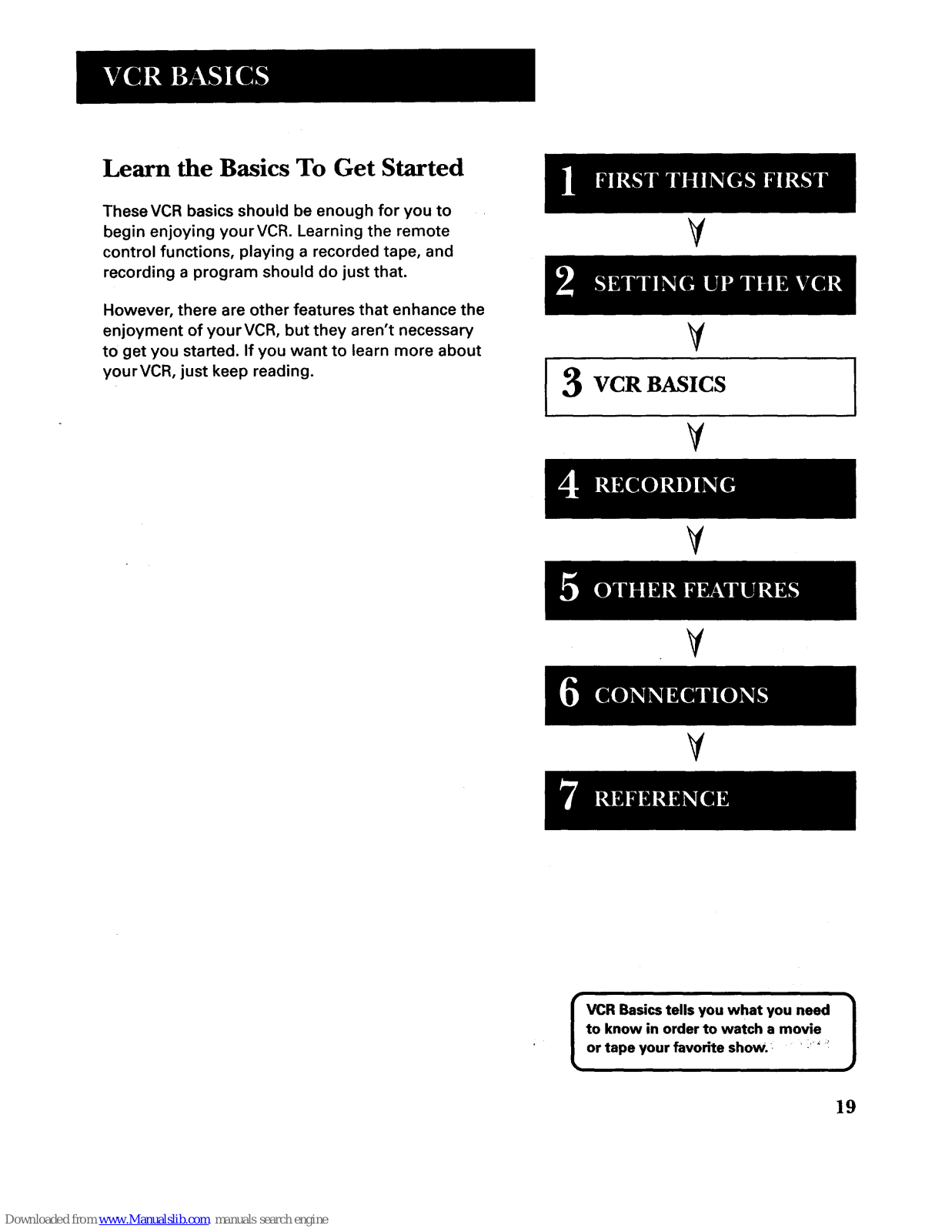

Learn the Basics To Get Started

TheseVCR basics should be enough for you to

begin enjoying yourVCR. Learning the remote

control functions, playing a recorded tape, and

recording a program should do just that.

V

However, there are other features that enhance the
enjoyment of yourVCR, but they aren't necessary
to get you started. If you want to learn more about
yourVCR, just keep reading.

3

V

VCR BASICS

V

V

V

[

VCR Basics tells you what you need
to know in order to watch a movie

or tape your favorite show.' i,_ :_

]

19

- i

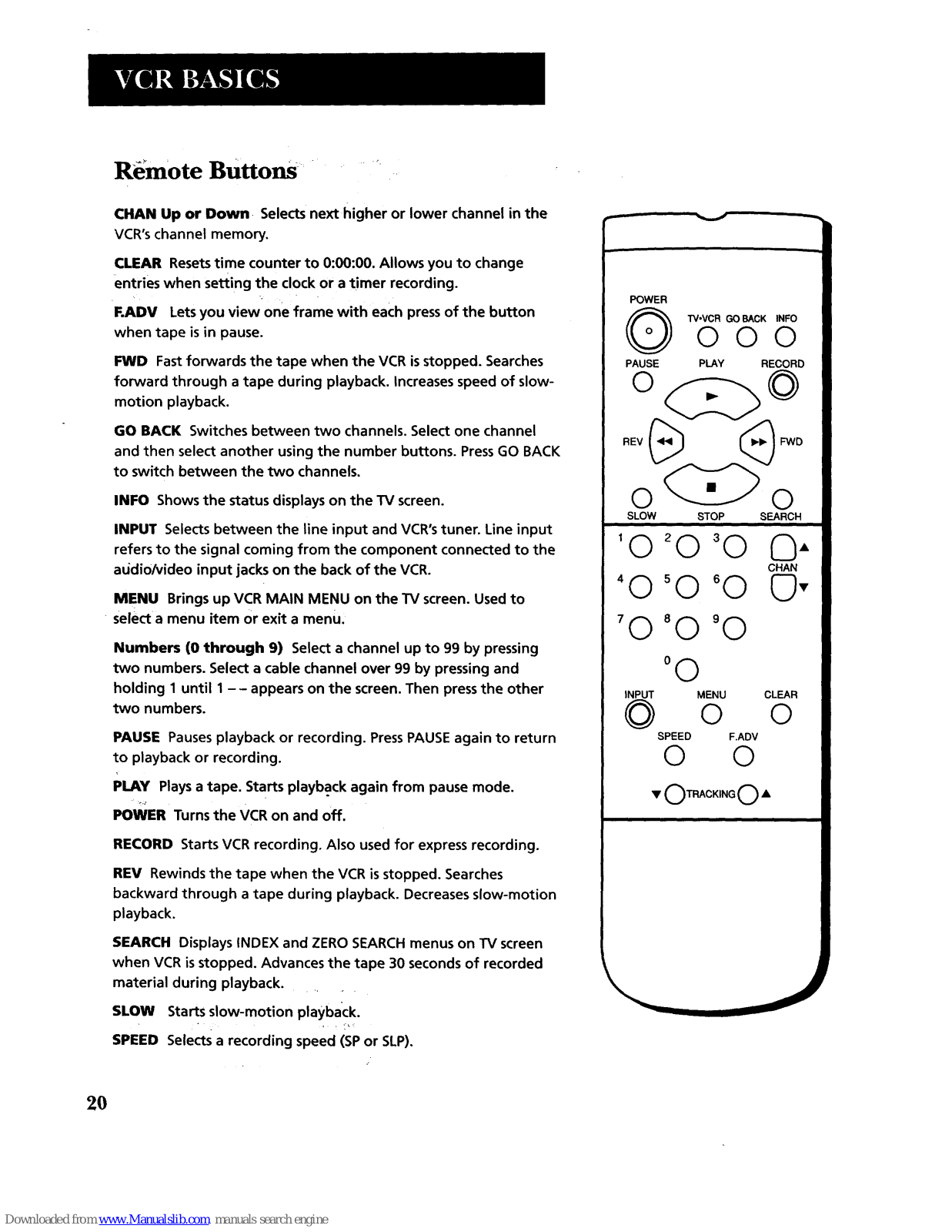

R_mote Buttons" .....

CHAN Up or Down. Selects next higher or lower channel in the
VCR's channel memory.

CLEAR Resetstime counter to 0:00:00. Allows you to change

entries when setting the clock or a timer recording.
F.ADV Letsyou view one frame with each press of the button

when tape is in pause.

FWD Fastforwards the tape when the VCR isstopped. Searches

forward through a tape during playback. Increases speed of slow-

motion playback.

GO BACK Switches between two channels. Select one channel

and then select another using the number buttons. Press GO BACK

to switch between the two channels.
INFO Shows the status displays on the TV screen.

INPUT Selects between the line input and VCR'stuner. Line input
refers to the signal coming from the component connected to the

addio/video input jacks on the back of the VCR.
MENU Brings up VCR MAIN MENU on the TV screen. Usedto

• Select a menu item or exit a menu.

Numbers (0 through 9) Select a channel up to 99 by pressing

two numbers. Select a cable channel over 99 by pressing and

holding 1 until 1 -- appears on the screen. Then press the other

two numbers.

PAUSE Pausesplayback or recording. PressPAUSE again to return

to playback or recording.

PLAY Plays a tape. Starts playback again from pause mode.
POWER Turns the VCRon and off.

RECORD Starts VCR recording. Also used for express recording.

REV Rewinds the tape when the VCR is stopped. Searches

backward through a tape during playback. Decreases slow-motion
playback.

SEARCH Displays INDEX and ZERO SEARCH menus on TV screen
when VCR isstopped. Advances the tape 30 seconds of recorded

material during playback. . .
SLOW Starts slow-motion playback.
SPEED Selects a recording speed (SP or SLP).

r

POWER

Q TV,VCR GO BACK INFO

©©©

PAUSE PLAY RECORD

o @

R D

SLOW STOP SEARCH

,o o ©.

CHAN

'o o °o O-

'0 =0 °0

0o

INPUT MENU CLEAR

© o o

SPEED F.ADV

© ©

2O

STOP Stops the current VCR function such as record, playback,

rewind, or fast forward.

TRACKING Up or Down Lets you manually reduce the streaks
that may appear on the picture during play, slow, or pause.

Reduces picture "jitter,' during play-pause.

TV.VCR Switches the picture signal sothat it either comes from
the VCR or cable/antenna system.

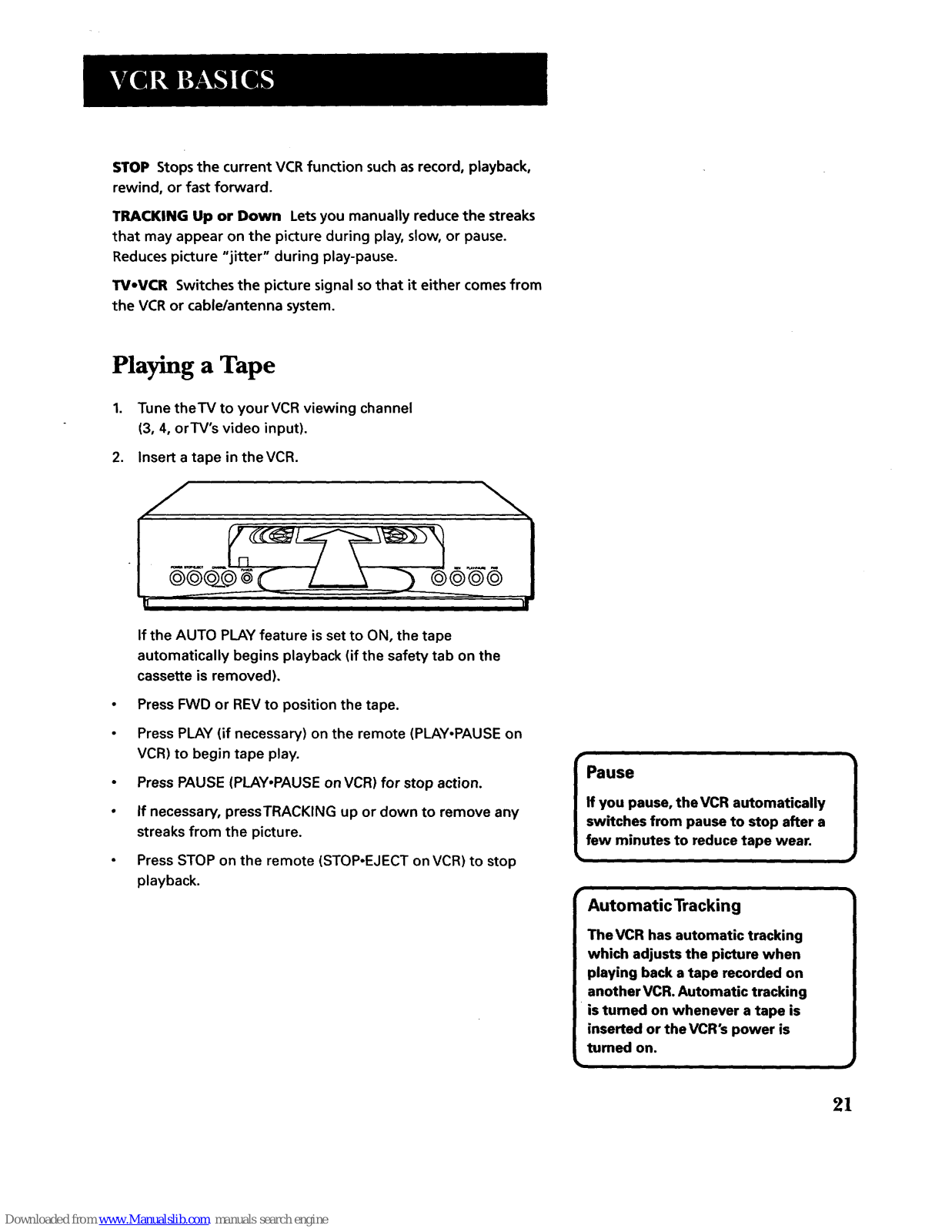

Playing a Tape

Tune theTV to your VCR viewing channel
(3, 4, orTV's video input).

2. Insert a tape in theVCR.

i

If the AUTO PLAY feature is set to ON, the tape

automatically begins playback (if the safety tab on the
cassette is removed),

• Press FWD or REV to position the tape.

• Press PLAY (if necessary) on the remote (PLAY.PAUSE on

VCR) to begin tape play.

• Press PAUSE (PLAY.PAUSE on VCR) for stop action.

• If necessary, pressTRACKING up or down to remove any

streaks from the picture.

• Press STOP on the remote (STOP-EJECT on VCR) to stop

playback.

i

Pause

If you pause, theVCR automatically
switches from pause to stop after a
few minutes to reduce tape wear.

AutomaticTracking

The VCR has automatic tracking
which adjusts the picture when
playing back a tape recorded on
another VCR. Automatic tracking
is turned on whenever a tape is
inserted or the VCR's power is

turned on.

21

Automatic Rewind

The VCR automatically rewinds the tape if it reaches the end
of the tape during playback. While rewinding, you can press

POWER and the VCR will turn off after rewinding.

Tape Eject

Press STOP*EJECTon the VCR when it isstopped to
eject the tape.

Recording

If you want to record something that you're watching, you can
use basic recording.

1. Press the SPEED button on the remote if you want to
override the preferredTape Speed setting.

2. Press the RECORD button to begin recording.

3. Press STOP on the remote (STOP-EJECT on the VCR) to

stop recording.

If you just want to pause the recording for a short time (like

during a commercial), press the PAUSE button on the

remote (PLAY,PAUSE on VCR) instead of STOR

Check the Safety Tab

No matter which recording option you use, you need to make
sure there is a tape in the VCR, and that the tape's safety tab is in
place. You cannot record on a tape with the safety tab removed.

SafetyTab

If the safety tab is removed and you want to record over it,
simply cover the hole with vinyl tape.

22

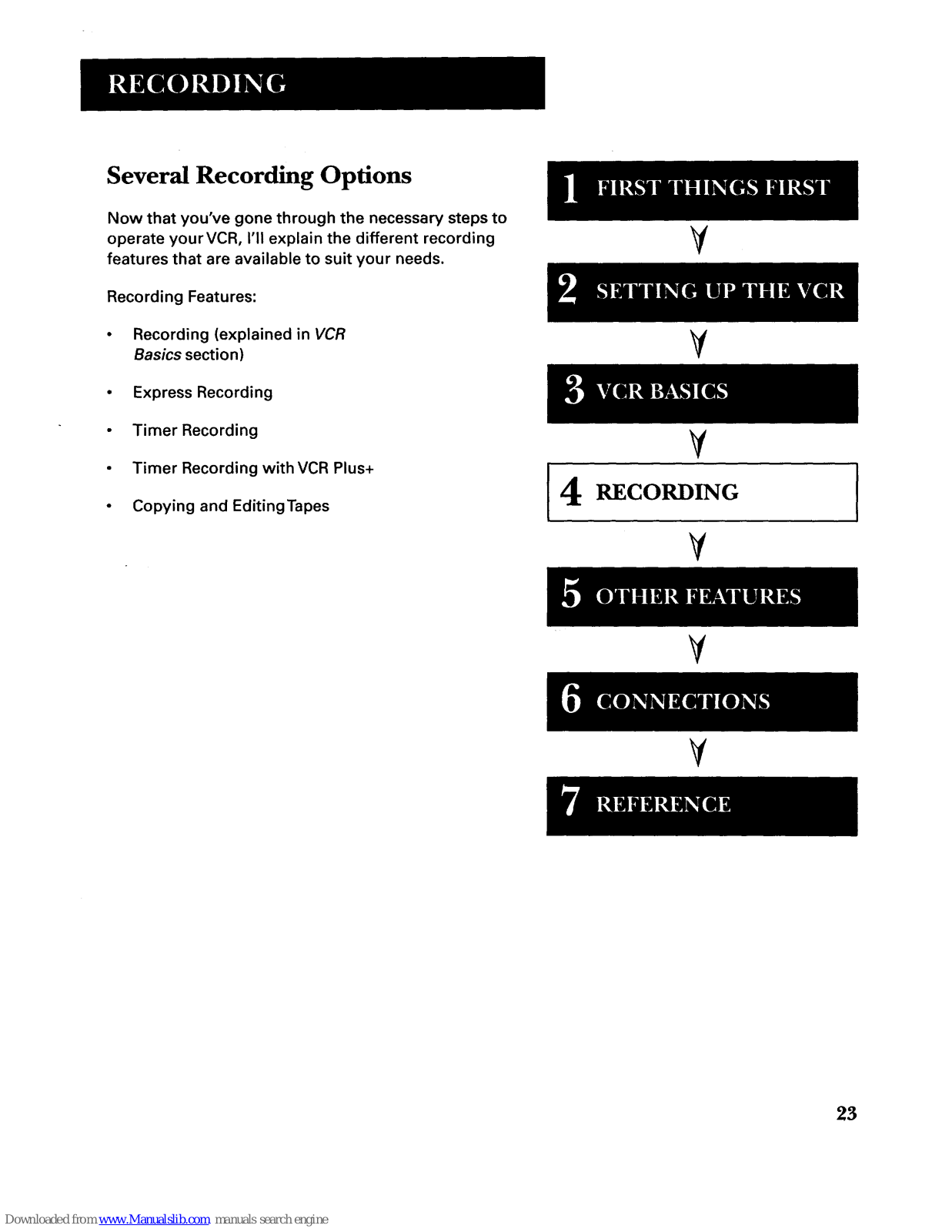

Several Recording Options

Now that you've gone through the necessary steps to

operate yourVCR, I'll explain the different recording
features that are available to suit your needs.

Recording Features:

• Recording (explained in VCR
Basics secti o n)

• Express Recording

• Timer Recording

• Timer Recording withVCR Plus+

• Copying and EditingTapes

|

4

V

V

RECORDING

V

V

o o

V

23

Recording Features

There are four ways to record programs:

Recording lets you press one button to start recording a
program. (See VCR Basics section.)

Express Recording lets you start recording a program you
are watching, and then set the VCR to automatically stop
recording after a designated period of time.

Timer Recording lets you program the VCR to

automatically start and stop recording at a predetermined

time.
Timer Recording with VCR Plus+ lets you program the

VCR just by entering a PlusCode number found in someTV

guides.

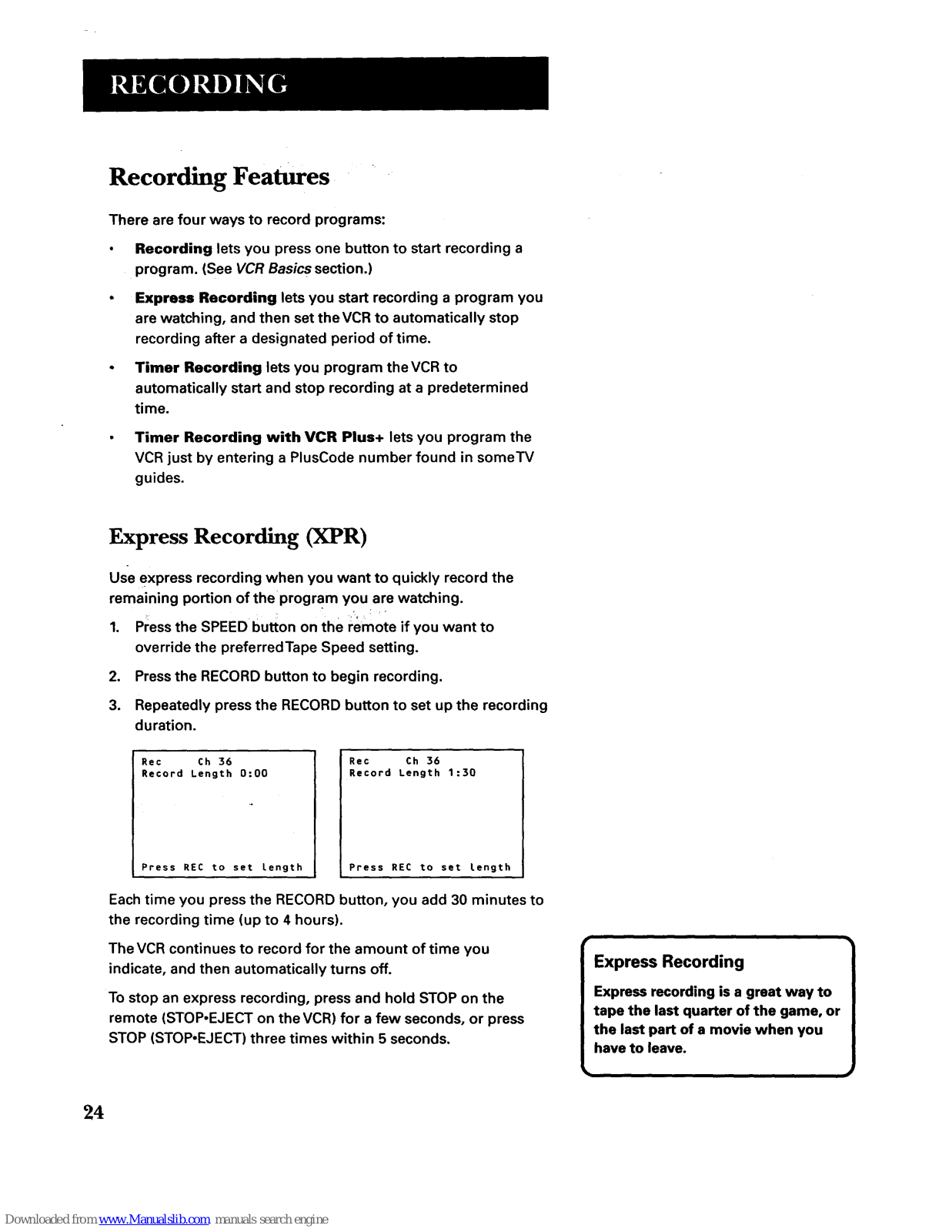

Express Recording (XPR)

Use express recording when you want to quickly record the
remaining portion of the program you are watching.

1. Press the SPEED button on the remote if you want to

override the preferredTape Speed setting.

,

3.

Press the RECORD button to begin recording.
Repeatedly press the RECORD button to set up the recording

duration.

Rec Ch 36
Record Length 0:00

Press REC to set Length

Rec Ch 36
Record Length 1:30

Press REC to set Length

Each time you press the RECORD button, you add 30 minutes to

the recording time (up to 4 hours).
The VCR continues to record for the amount of time you

indicate, and then automatically turns off.

To stop an express recording, press and hold STOP on the

remote (STOP.EJECT on the VCR) for a few seconds, or press
STOP (STOP-EJECT) three times within 5 seconds.

Express Recording

Express recording is a great way to
tape the last quarter of the game, or
the last part of a movie when you

have to leave.

24

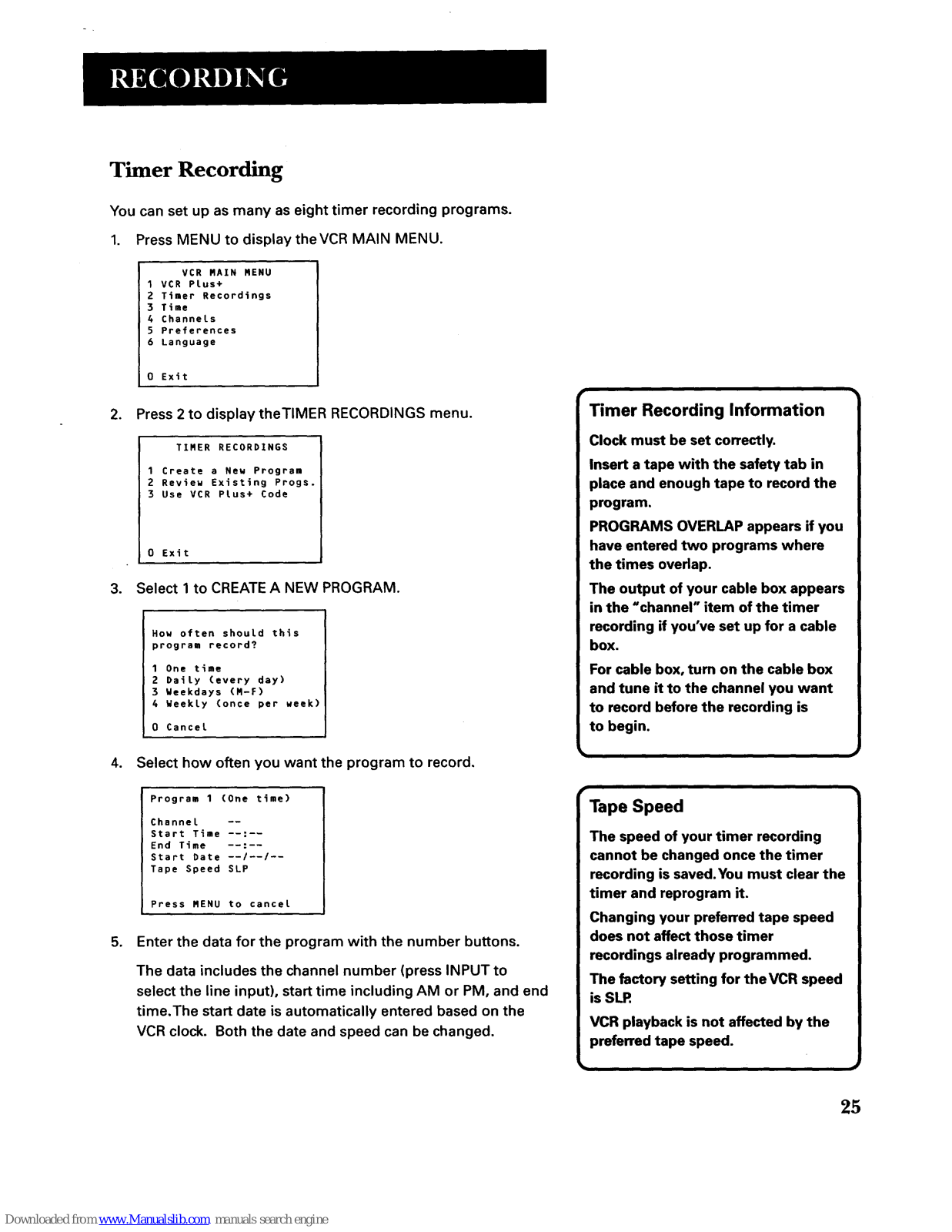

Timer Recording

You can set up as many as eight timer recording programs.

1. Press MENU to display theVCR MAIN MENU.

VCR RAIN RENU

1VCR Plus+
2 Timer Recordings

3 Time
4 Channels
5 Preferences
6 Language

0 Exit

.

Press 2 to display theTIMER RECORDINGS menu.

TIMER RECORDINGS

1 Create a New Program
2 Review Existing Progs.

3 Use VCR PLus+ Code

0 Exit

3. Select 1 to CREATE A NEW PROGRAM.

How often shouLd this
program record?

1 One time

2 Daily (every day)
3 Weekdays (R-F)
4 Weekly (once per week)

0 Cancel

4. Select how often you want the program to record.

Program 1 (One time)

ChanneL --
Start Time --:--
End Time --:--
Start Date --I--/--
Tape Speed SLP

Press RENU to cancel

5. Enter the data for the program with the number buttons.
The data includes the channel number (press INPUT to

select the line input), start time including AM or PM, and end
time.The start date is automatically entered based on the
VCR clock. Both the date and speed can be changed.

Timer Recording Information

Clock must be set correctly.
Insert a tape with the safety tab in

place and enough tape to record the
program.
PROGRAMS OVERLAP appears if you
have entered two programs where
the times overlap.

The output of your cable box appears
in the "channel" item of the timer

recording if you've set up for a cable
box.

For cable box, turn on the cable box
and tune it to the channel you want

to record before the recording is
to begin.

Tape Speed

The speed of your timer recording
cannot be changed once the timer

recording is saved.You must clear the

timer and reprogram it.
Changing your preferred tape speed

does not affect those timer
recordings already programmed.

The factory setting for theVCR speed

is SLR

VCR playback is not affected by the
preferred tape speed.

25

.

Review the information to make sure it is correct, and then
press MENU to save.

Program I (One time)

Channel 03 Cable
Start Time 08:00 PR

End Time 09:30 PR
Start Date 10/24/97 Fri

Tape Speed SLP

I=SP 2=SLP

Press CLEAR to corect
Press MENU to save

Program 1 has been saved

Remember to insert a
recordabte tape and

turn the VCR off before
the program start time.

Press MENU to continue

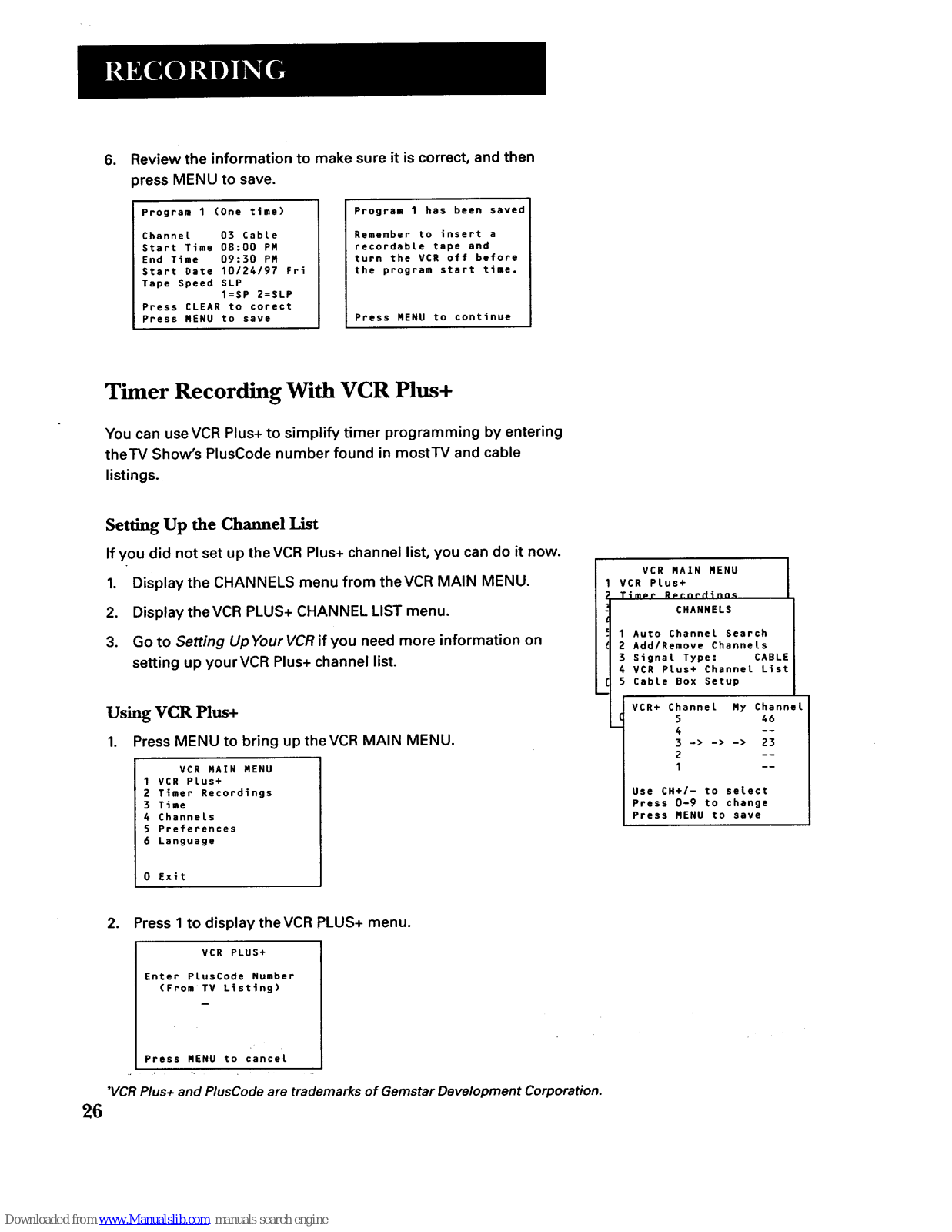

Timer Recording With VCR Plus+

You can use VCR Plus+ to simplify timer programming by entering
theTV Show's PlusCode number found in mostTV and cable

listings.

Setting Up the Channel List

If you did not set up the VCR Plus+ channel list, you can do it now.

1. Display the CHANNELS menu from the VCR MAIN MENU.

2. Display theVCR PLUS+ CHANNEL LIST menu.

3. Go to Setting Up Your VCR if you need more information on
setting up yourVCR Plus+ channel list.

Using VCR Plus+

1. Press MENU to bring up the VCR MAIN MENU.

VCR MAIN MENU

1 VCR PLus+

2 Timer Recordings
3 Time
4 Channels
5 Preferences
6 Language

0 Exit

VCR MAIN MENU

VCR PLus+
TimPr R¢_nr_nn¢

CHANNELS

1 Auto Channel Search
2 Add/Remove Channels

3 Signal Type: CABLE
4 VCR Plus+ Channel List

5 Cable Box Setup

VCR+ Channel My Channel

5 46

4 --

3 -> -> -> 23

Use CH+/- to select

Press 0-9 to change
Press MENU to save

,

Press 1 to display theVCR PLUS+ menu.

VCR PLUS+

Enter PlusCode Number

(From TV Listing)

26

Press MENU to cancel

*VCR Plus+ and PlusCode are trademarks of Gemstar Development Corporation.

.

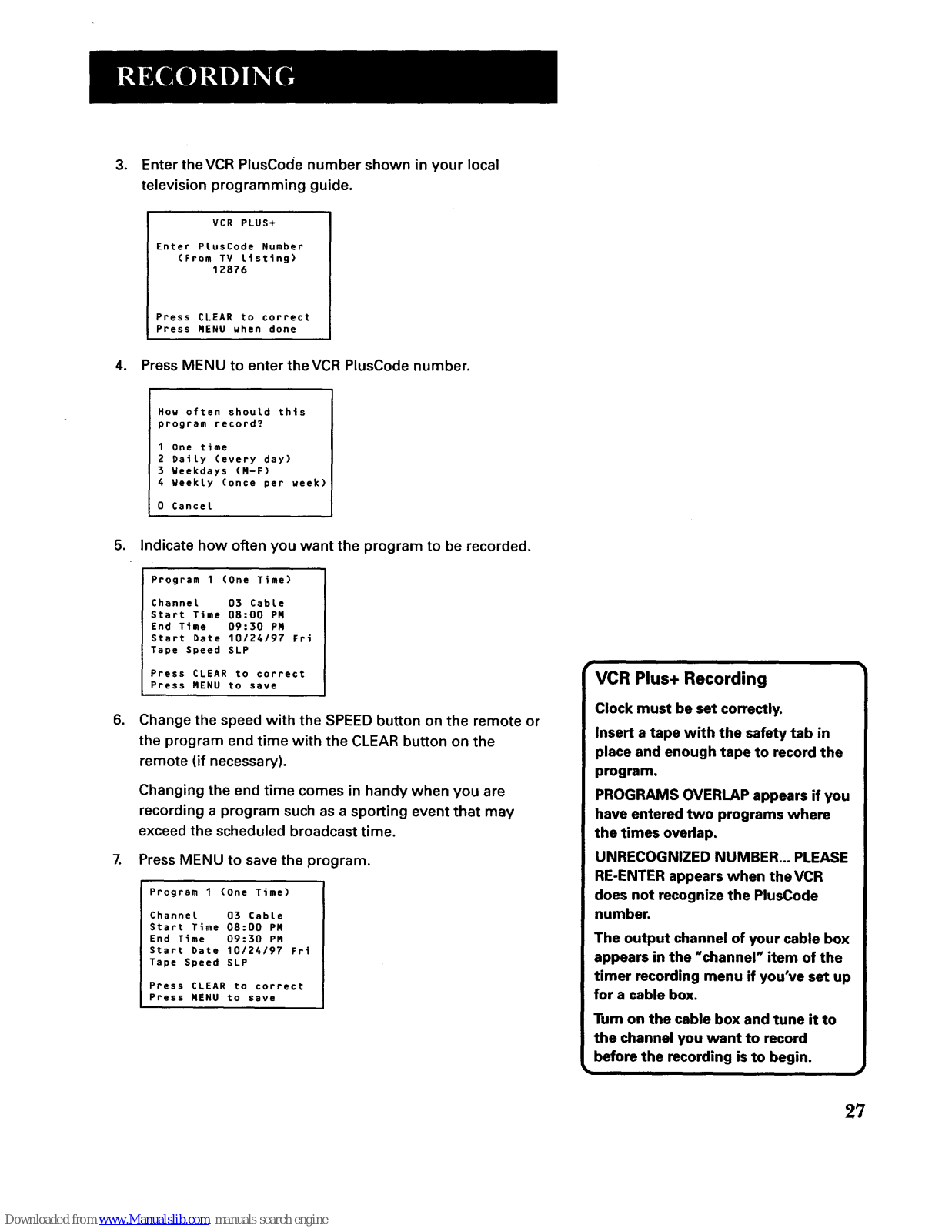

Enter the VCR PlusCode number shown in your local

television programming guide.

VCR PLUS+

Enter PLusCode Number

(From TV Listing)

12876

Press CLEAR to correct
Press RENU when done

4. Press MENU to enter theVCR PlusCode number.

Hou often should this
program record?

1 One time

2 Daily (every day)
3 Weekdays (R-F)
4 Weekly (once per week)

0 Cancel

5. Indicate how often you want the program to be recorded.

.

Program 1 (One Time)

Channel 03 Cable
Start Time 08=00 PR
End Time 09:50 PR
Start Date 10/24/97 Fri
Tape Speed SLP

Press CLEAR to correct
Press RENU to save

Change the speed with the SPEED button on the remote or
the program end time with the CLEAR button on the

remote (if necessary).

Changing the end time comes in handy when you are
recording a program such as a sporting event that may

exceed the scheduled broadcast time.

7. Press MENU to save the program.

Program 1 (One Time)

Channel 03 Cable

Start Time 08:00 PR

End Time 09:30 PR

Start Date 10/24/97 Fni
Tape Speed SLP

Press CLEAR to correct
Press RENU to save

VCR Plus+ Recording

Clock must be set correctly.

Insert a tape with the safety tab in
place and enough tape to record the

program.

PROGRAMS OVERLAP appears if you
have entered two programs where
the times overlap.

UNRECOGNIZED NUMBER... PLEASE
RE-ENTER appears when theVCR
does not recognize the PlusCode

number.
The output channel of your cable box

appears in the "channel" item of the
timer recording menu if you've set up
for a cable box.

Tum on the cable box and tune it to
the channel you want to record

before the recording is to begin.

2?

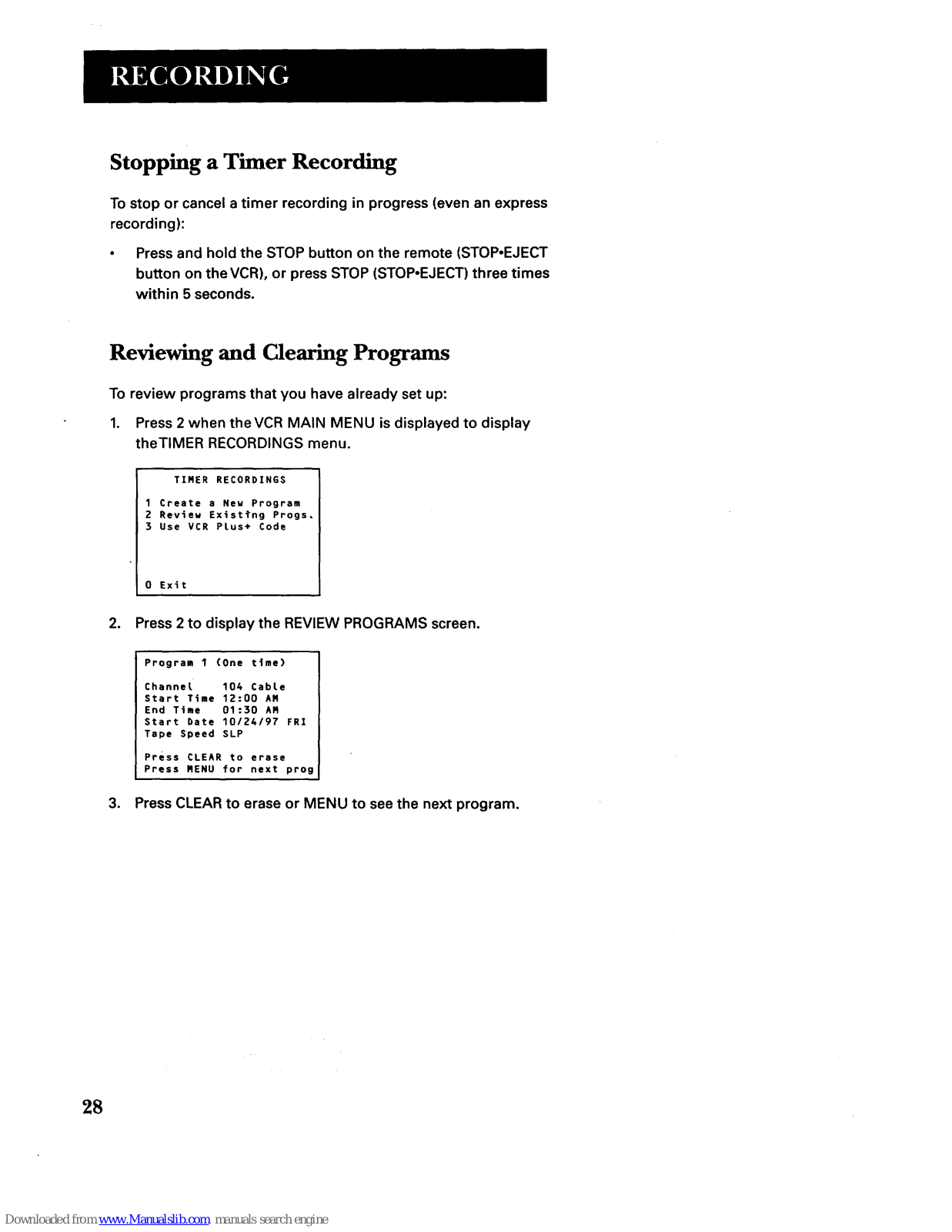

Stopping a Timer Recording

To stop or cancel a timer recording in progress (even an express
recording):

• Press and hold the STOP button on the remote (STOP.EJECT

button on the VCR), or press STOP (STOP.EJECT) three times
within 5 seconds.

Reviewing and Clearing Programs

To review programs that you have already set up:

1. Press 2 when the VCR MAIN MENU is displayed to display

theTIMER RECORDINGS menu.

TIMER RECORDINGS

1 Create a New Program
2 Review Existfng Progs.
3 Use VCR PLus+ Code

0 Exit

2. Press 2 to display the REVIEW PROGRAMS screen.

Program 1 (One time)

Channel 104 Cabte
Start Time 12:00 AM
End Time 01:30 AM
Start Date 10/24/97 FRI
Tape Speed SLP

Press CLEAR to erase
Press MENU for next prog

3. Press CLEAR to erase or MENU to see the next program.

28

Using Two VCRs for Copying and Editing
Tapes

Use one VCR as the playback VCR and the other as the
recording VCR.

°

2.

.

.

Turn on the'IV and VCRs.

Tune theTV to theVCR viewing channel (either 3, 4, orTV's
video input).

If you connected yourVCR using the ANTENNA jacks, tune
recording VCRto channel 3 or 4--the one selected on the
back of the playback VCR.

If you have connected yourVCR using the audio/video jacks,
press INPUT on the recording VCR's remote to select the line
input. Select LINE 1 for the jacks on the back of theVCR, or
LINE 2 for the jacks on the front.

Insert the tape you want to copy into the playback VCR.
Insert a blank tape with safety tab in place into the

recording VCR.

5. When you reach the point on the tape or program where you
want to begin copying, press PLAY.PAUSE and then
PLAY.PAUSE again on the playback VCR.You may need to
adjust the tracking.

6. Press the RECORD button, then press PLAY.PAUSE, on the

recording VCR.

7.

°

Press the PLAY.PAUSE buttons on both VCRs at the same

time to begin copying the tape.
To edit segments that you do not want to copy:

Press PLAY.PAUSE on recording VCRto stop copying.
Locate the next segment you want to copy on playback VCR

by using FWD, REV, and PLAY-PAUSE, and then press
PLAY,PAUSE.

• Press PLAY,PAUSE on both VCRs at the same time to resume
copying.

9. Press STOP.EJECT on both VCRs when you are finished.

Caution:

Two VCR Connection

CABLE BOX

OR_ANTENNA

PLAYBACK VCR

RECORDING VCR

OR_

TO TV TO "IV

29

30

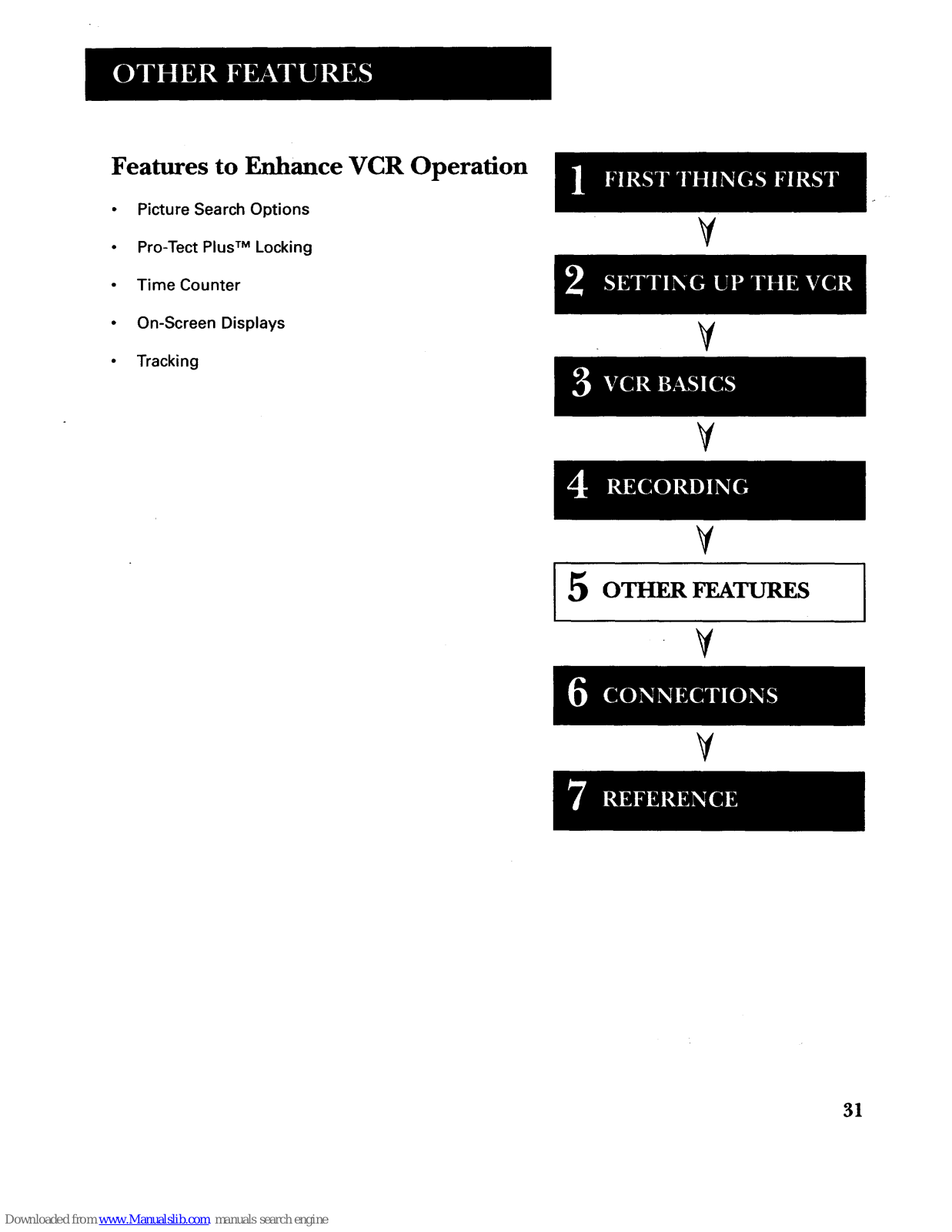

Features to Enhance VCR Operation

• Picture Search Options

• Pro-Tect Plus TM Locking

• Time Counter

• On-Screen Displays

• Tracking

¥

V

V

5

¥

OTHER FEATURES

¥

V

31

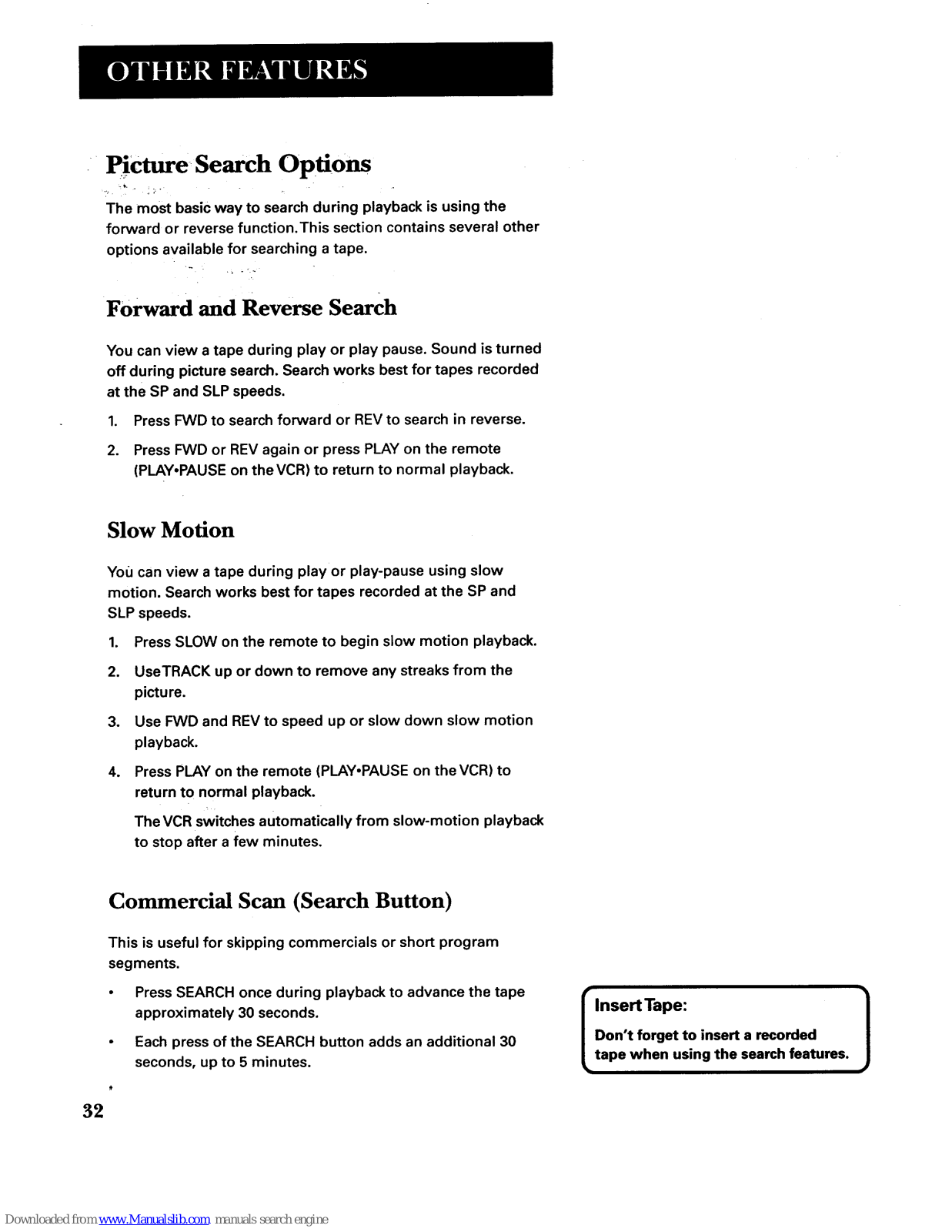

Picture Search Options

_ _'-_ _:_.

The most basic way to search during playback is using the
forward or reverse function.This section contains several other

options available for searching a tape.

Forward and Reverse Search

You can view a tape during play or play pause. Sound is turned
off during picture search. Search works best for tapes recorded
at the SP and SLP speeds.

1. Press FWD to search forward or REV to search in reverse.

2. Press FWD or REV again or press PLAY on the remote

(PLAY-PAUSE on theVCR) to return to normal playback.

Slow Motion

You can view a tape during play or play-pause using slow

motion. Search works best for tapes recorded at the SP and
SLP speeds.

1. Press SLOW on the remote to begin slow motion playback.

2. UseTRACK up or down to remove any streaks from the

pictu re.

3. Use FWD and REV to speed up or slow down slow motion
playback.

. Press PLAY on the remote (PLAY.PAUSE on the VCR) to

return to normal playback.

The VCR switches automatically from slow-motion playback
to stop after a few minutes.

Commercial Scan (Search Button)

32

This is useful for skipping commercials or short program

segments.

• Press SEARCH once during playback to advance the tape

approximately 30 seconds.

• Each press of the SEARCH button adds an additional 30

seconds, up to 5 minutes.

I InsertTape: 1

Don't forget to insert a recorded

tape when using the search features.

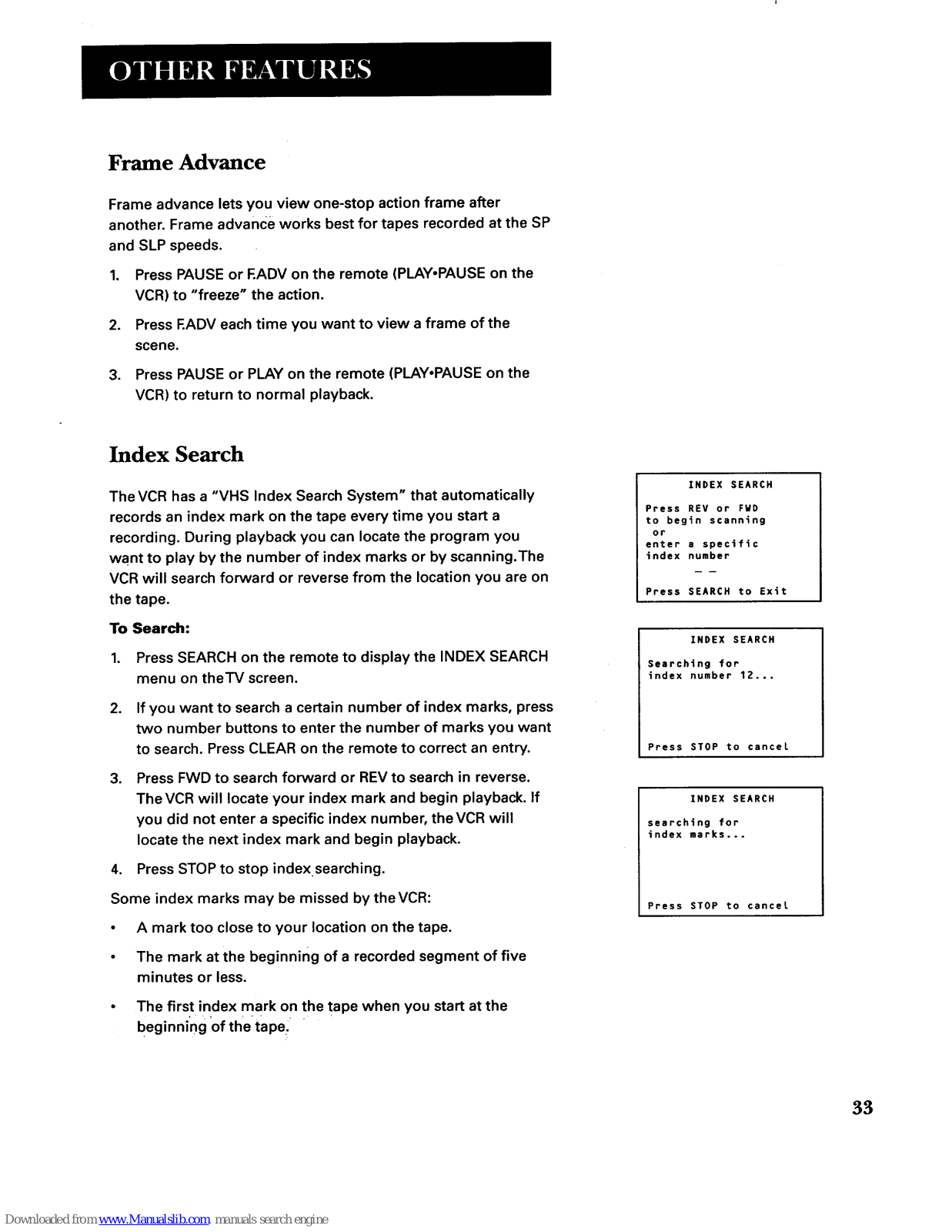

Frame Advance

Frame advance lets you view one-stop action frame after
another. Frame advance works best for tapes recorded at the SP

and SLP speeds.

1. Press PAUSE or EADV on the remote (PLAY-PAUSE on the

VCR) to "freeze" the action.

2. Press EADV each time you want to view a frame of the

scene.

3. Press PAUSE or PLAY on the remote (PLAY.PAUSE on the

VCR) to return to normal playback.

Index Search

The VCR has a "VHS Index Search System" that automatically

records an index mark on the tape every time you start a
recording. During playback you can locate the program you

want to play by the number of index marks or by scanning.The
VCR will search forward or reverse from the location you are on

the tape.
To Search:

1. Press SEARCH on the remote to display the INDEX SEARCH

menu on the'rV screen.

.

.

If you want to search a certain number of index marks, press
two number buttons to enter the number of marks you want
to search. Press CLEAR on the remote to correct an entry.

Press FWD to search forward or REV to search in reverse.
TheVCR will locate your index mark and begin playback. If

you did not enter a specific index number, theVCR will

locate the next index mark and begin playback.

4. Press STOP to stop index.searching.
Some index marks may be missed by theVCR:

• A mark too close to your location on the tape.

• The mark at the beginning of a recorded segment of five

minutes or less.

The first index mark on the tape when you start at the

beginning "of thetapei

INDEX SEARCH

Press REV or FWD
to begin scanning

or

enter a specific
index number

Press SEARCH to Exit

INDEX SEARCH

Searching for
index number 12...

Press STOP to cancel

INDEX SEARCH

searching for

index marks...

Press STOP to cancel

33

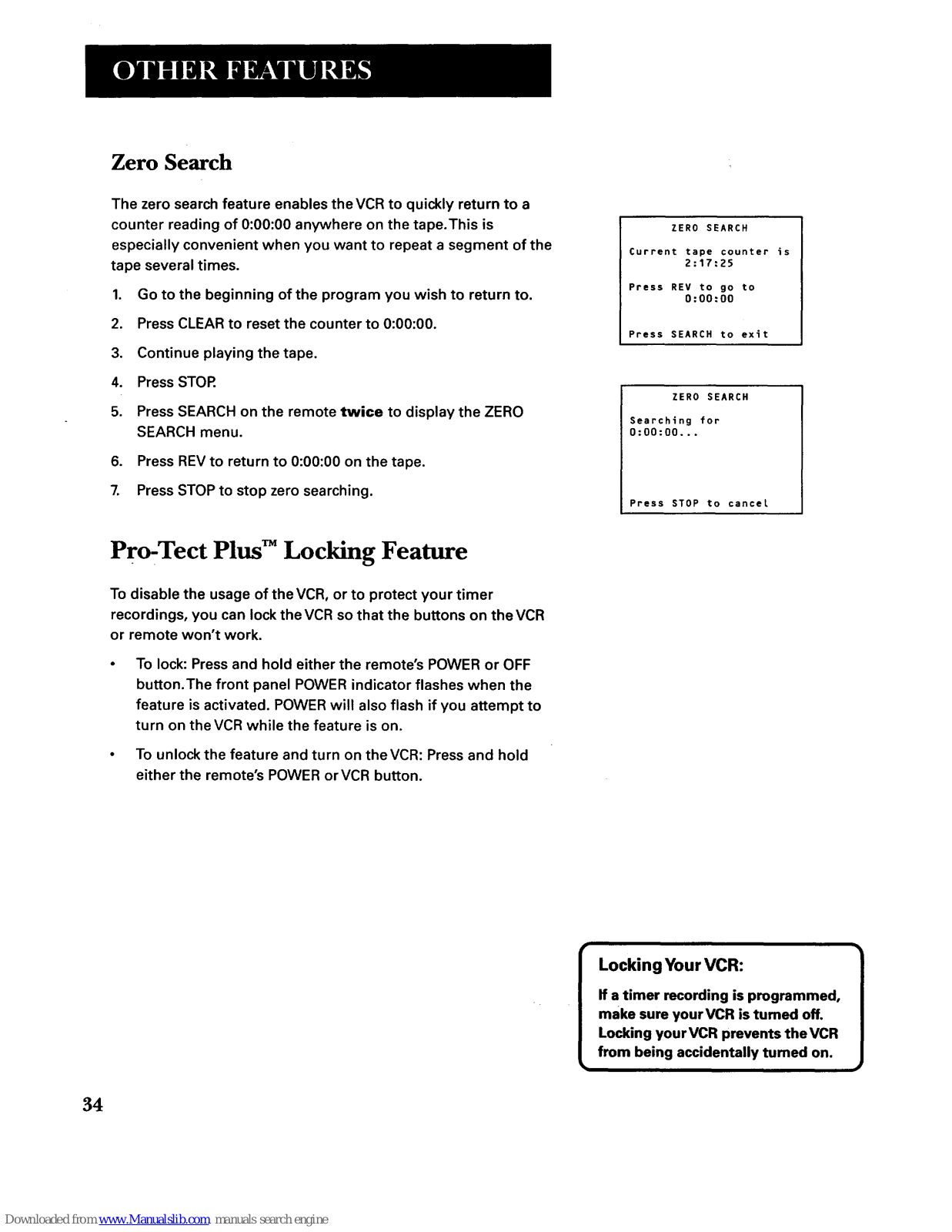

Zero Search

The zero search feature enables the VCR to quickly return to a
counter reading of 0:00:00 anywhere on the tape.This is

especially convenient when you want to repeat a segment of the

tape several times.

1. Go to the beginning of the program you wish to return to.

2. Press CLEAR to reset the counter to 0:00:00.

3. Continue playing the tape.

4. Press STOR

5. Press SEARCH on the remote twice to display the ZERO

SEARCH menu.

6. Press REV to return to 0:00:00 on the tape.

7. Press STOP to stop zero searching.

ZERO SEARCH

Current tape counter is

2:17125

Press REV to go to

0:00:00

Press SEARCH to exit

ZERO SEARCH

Searching for

0:00:00...

Press STOP to cancel

Pro-Tect Plus TM Locking Feature

To disable the usage of theVCR, or to protect your timer

recordings, you can lock the VCR so that the buttons on the VCR
or remote won't work.

To lock: Press and hold either the remote°s POWER or OFF

button.The front panel POWER indicator flashes when the
feature is activated. POWER will also flash if you attempt to
turn on the VCR while the feature is on.

To unlock the feature and turn on theVCR: Press and hold
either the remote's POWER orVCR button.

Locking Your VCR:

34

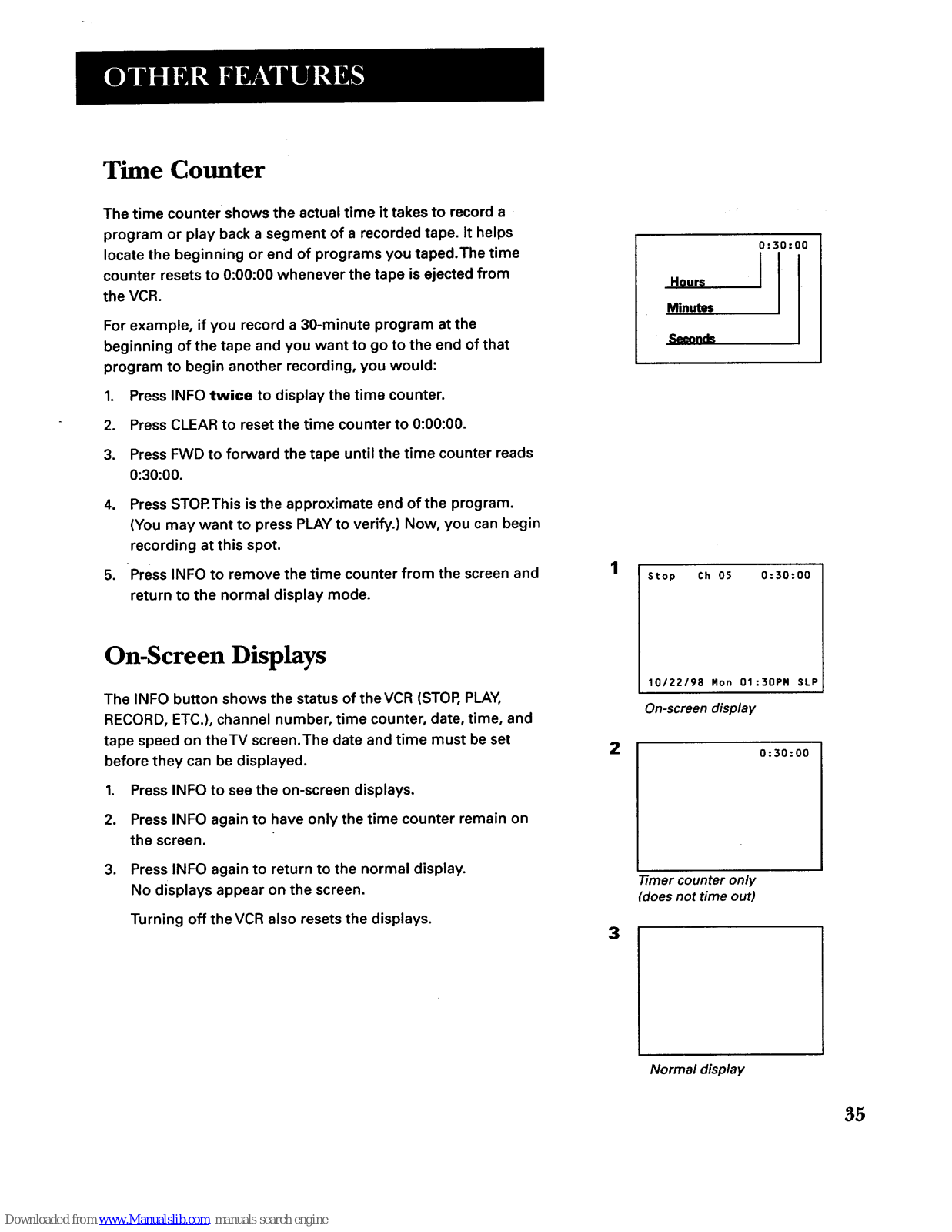

Time Counter

The time counter shows the actual time it takes to record a

program or play back a segment of a recorded tape. It helps
locate the beginning or end of programs you taped.The time
counter resets to 0:00:00 whenever the tape is ejected from
the VCR.

For example, if you record a 30-minute program at the
beginning of the tape and you want to go to the end of that
program to begin another recording, you would:

1. Press INFO twice to display the time counter.

2. Press CLEAR to reset the time counter to 0:00:00.

3. Press FWD to forward the tape until the time counter reads

0:30:00.

4. Press STORThis is the approximate end of the program.
(You may want to press PLAY to verify.) Now, you can begin

recording at this spot.

5. Press INFO to remove the time counter from the screen and

return to the normal display mode.

On-Screen Displays

The INFO button shows the status of the VCR (STOP, PLAY,

RECORD, ETC.), channel number, time counter, date, time, and

tape speed on theTV screen.The date and time must be set

before they can be displayed.

,

2.

.

Press INFO to see the on-screen displays.
Press INFO again to have only the time counter remain on

the screen.

Press INFO again to return to the normal display.
No displays appear on the screen.

Turning off the VCR also resets the displays.

2

3

Hours

Minutes

0:30:00

I

Seconds

Stop Ch 0$ 0:30:00

10/22198 Ron 01:30PR SLP

On-screendNplay

0:30:00

77mer counter only

(does not time out)

Normal display

35

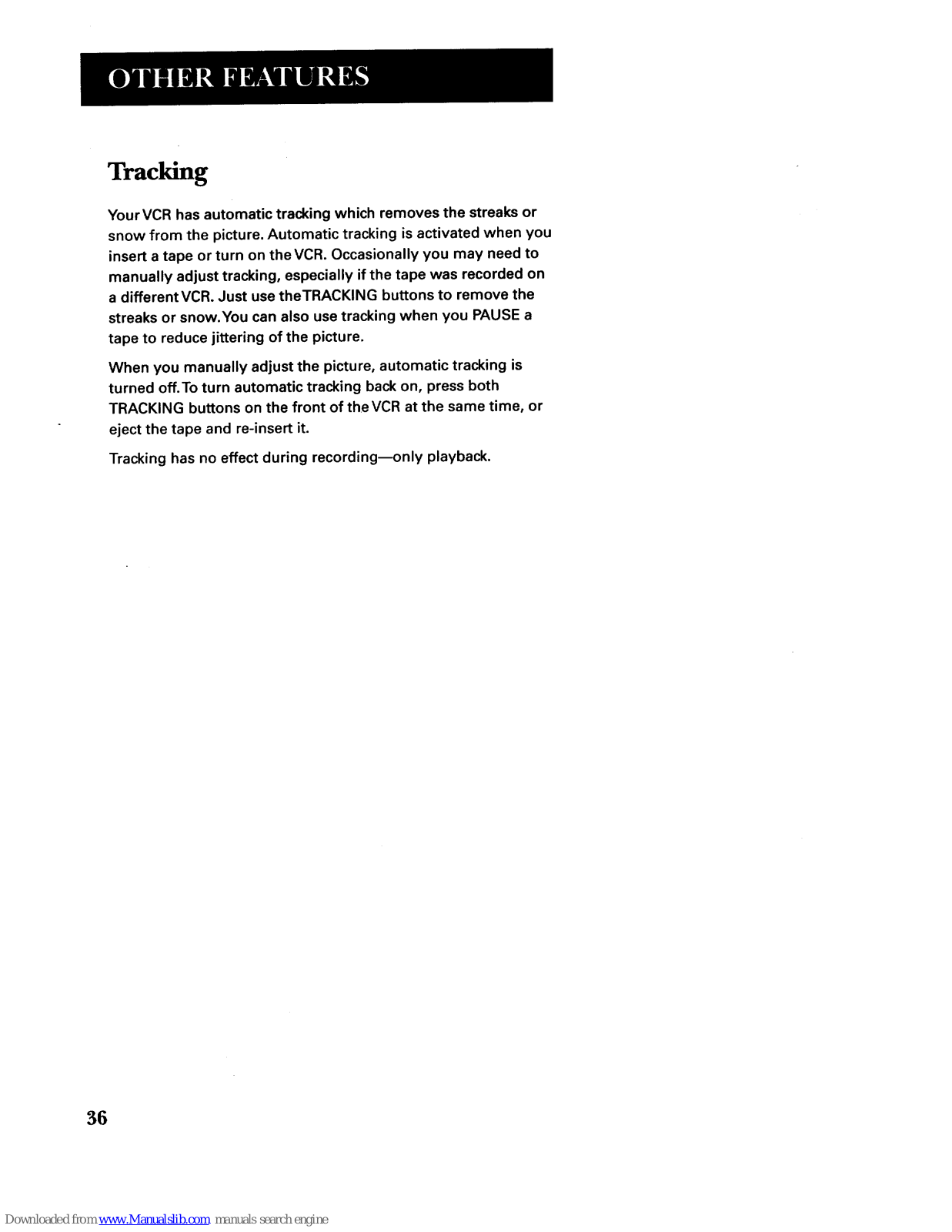

Tracking

YourVCR has automatic tracking which removes the streaks or
snow from the picture. Automatic tracking is activated when you

insert a tape or turn on theVCR. Occasionally you may need to
manually adjust tracking, especially if the tape was recorded on
a different VCR. Just use theTRACKING buttons to remove the
streaks or snow.You can also use tracking when you PAUSE a

tape to reduce jittering of the picture.
When you manually adjust the picture, automatic tracking is

turned off.To turn automatic tracking back on, press both

TRACKING buttons on the front of theVCR at the same time, or
eject the tape and re-insert it.

Tracking has no effect during recording--only playback.

36

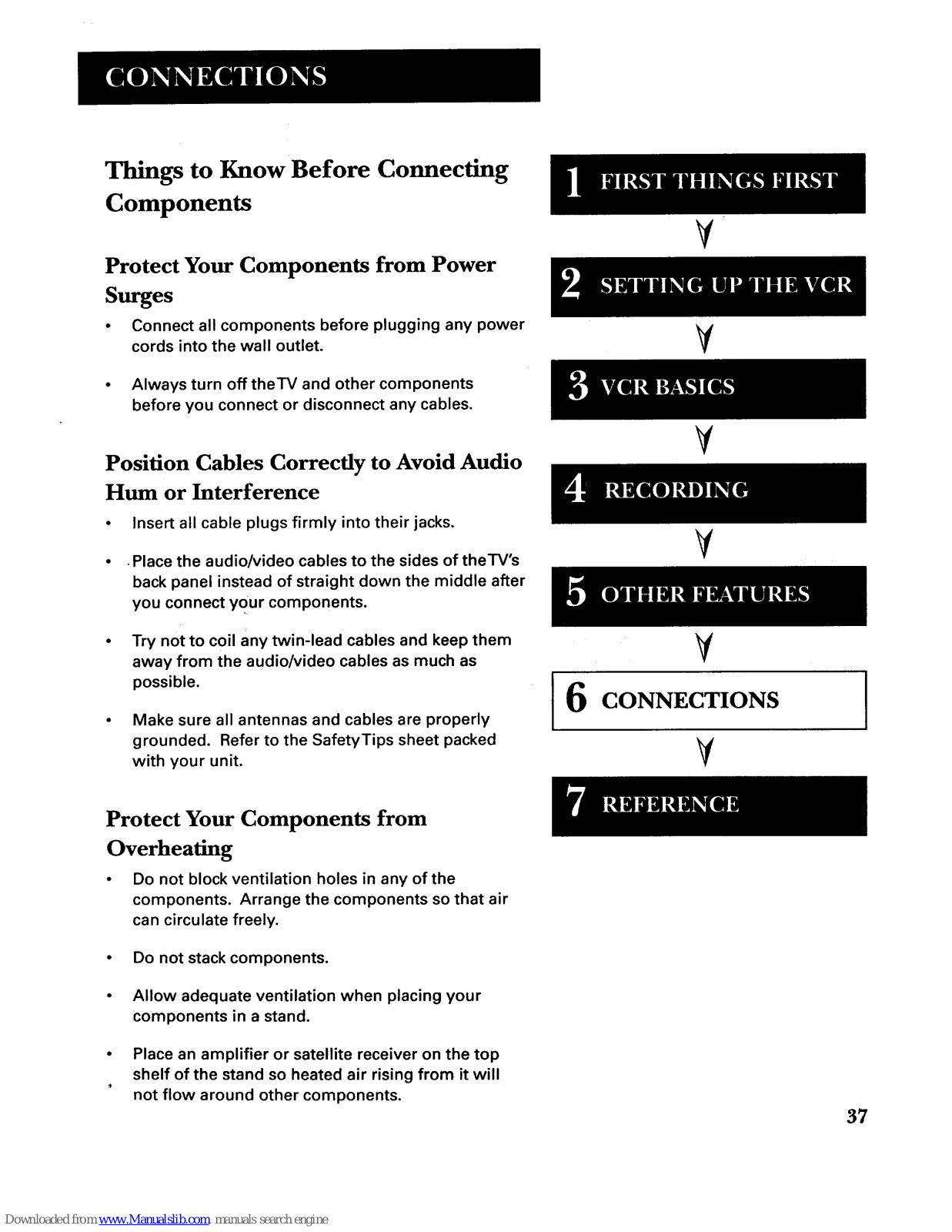

Things to Know Before Connecting

Components

Protect Your Components from Power

Surges

• Connect all components before plugging any power
cords into the wall outlet.

• Always turn off theTV and other components

before you connect or disconnect any cables.

Position Cables Correctly to Avoid Audio
Hum or Interference

• Insert all cable plugs firmly into their jacks.

Place the audio/video cables to the sides of theTV's

back panel instead of straight down the middle after
you connect your components.

• |

Try not to coil any twin-lead cables and keep them

away from the audio/video cables as much as
possible.

Make sure all antennas and cables are properly
grounded. Refer to the SafetyTips sheet packed
with your unit.

6

¥

¥

V

V

V

CONNECTIONS

¥

Protect Your Components from
Overheating

• Do not block ventilation holes in any of the
components. Arrange the components so that air

can circulate freely.

• Do not stack components.

• Allow adequate ventilation when placing your
components in a stand.

• Place an amplifier or satellite receiver on the top
shelf of the stand so heated air rising from it will

not flow around other components.

37

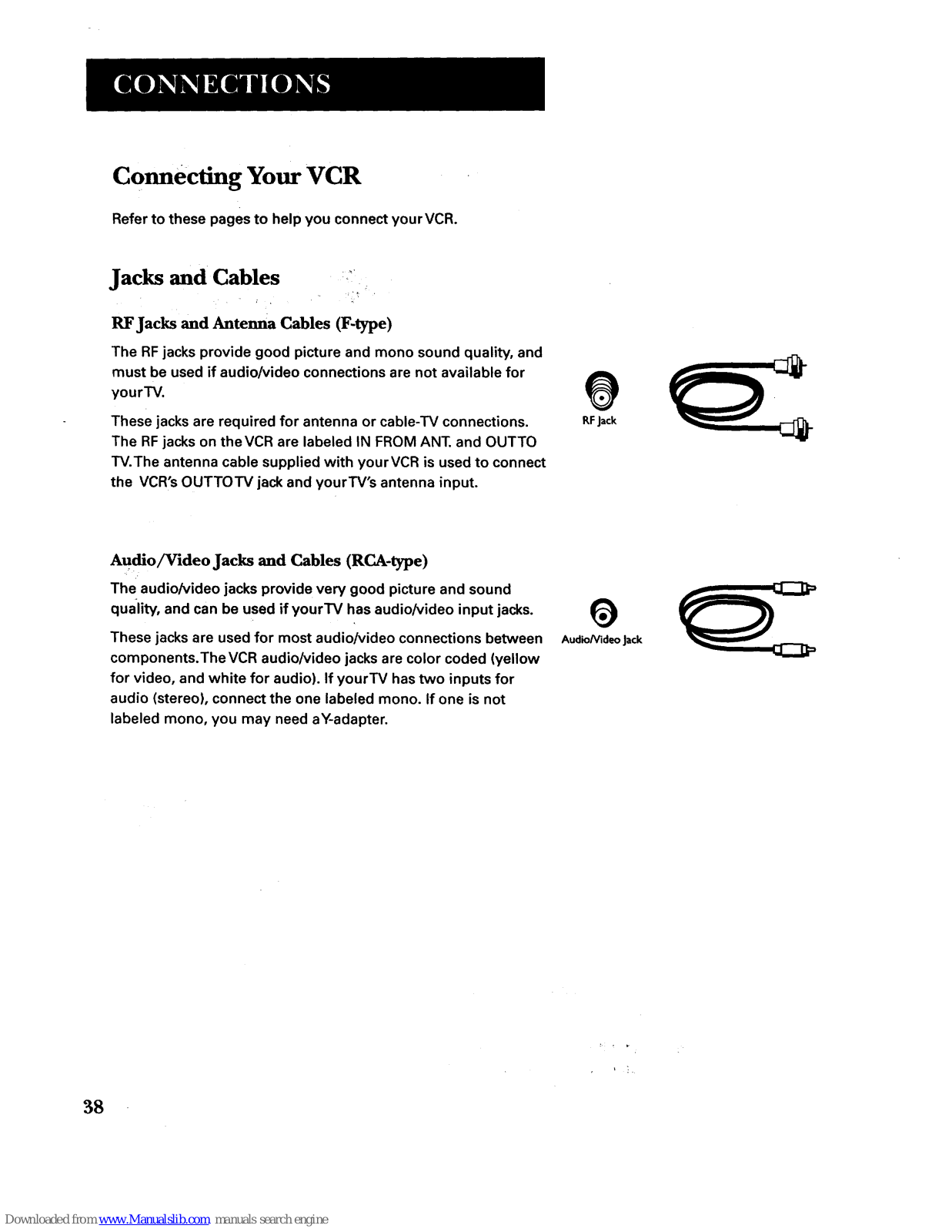

Connecting Your VCR

Refer to these pages to help you connect yourVCR.

Jacks and Cables

RF Jacks and Antenna Cables (F-type)
The RF jacks provide good picture and mono sound quality, and

must be used if audio/video connections are not available for

your'IV.
These jacks are required for antenna or cable-'lV connections.

The RF jacks on theVCR are labeled IN FROM ANT, and OUTTO
TV.The antenna cable supplied with yourVCR is used to connect
the VCR's OUTTOTV jack and yourTV's antenna input.

RFJack

Audio/Video Jacks and Cables (RCA-type)

The audio/video jacks provide very good picture and sound

quality, and can be used if yourTV has audio/video input jacks.

These jacks are used for most audio/video connections between

components.The VCR audio/video jacks are color coded (yellow

for video, and white for audio). If yourTV has two inputs for
audio (stereo), connect the one labeled mono. If one is not

labeled mono, you may need aY-adapter.

Audio/VideoJack

38

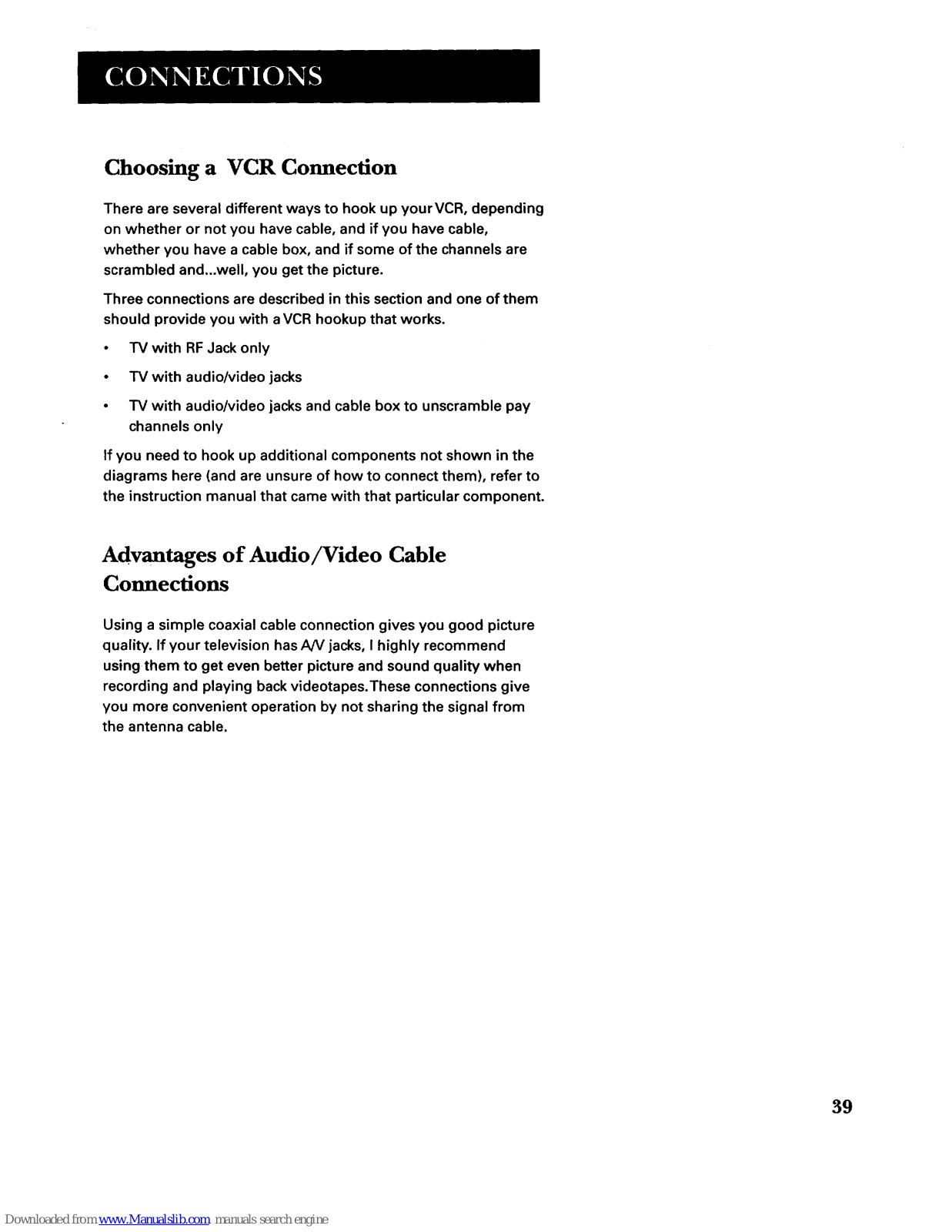

Choosing a VCR Connection

There are several different ways to hook up yourVCR, depending

on whether or not you have cable, and if you have cable,
whether you have a cable box, and if some of the channels are
scrambled and...well, you get the picture.

Three connections are described in this section and one of them

should provide you with aVCR hookup that works.

TV with RF Jack only
TV with audio/video jacks

TV with audio/video jacks and cable box to unscramble pay
channels only

If you need to hook up additional components not shown in the
diagrams here (and are unsure of how to connect them), refer to
the instruction manual that came with that particular component.

Advantages of Audio/Video Cable

Connections

Using a simple coaxial cable connection gives you good picture
quality. If your television has AN jacks, I highly recommend

using them to get even better picture and sound quality when
recording and playing back videotapes.These connections give

you more convenient operation by not sharing the signal from
the antenna cable.

39

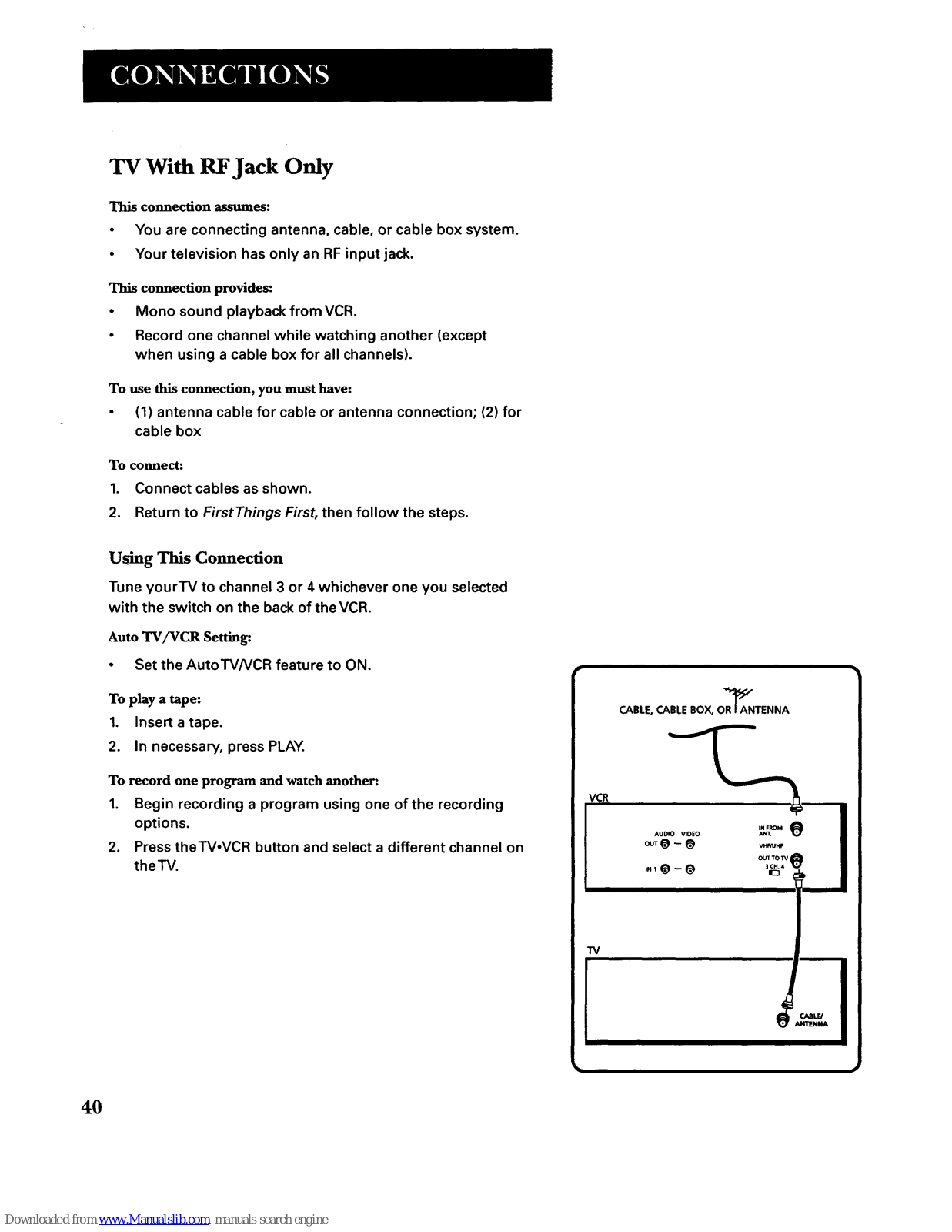

TV With RF Jack Only

This connection assumes:

• You are connecting antenna, cable, or cable box system.

• Your television has only an RF input jack.

This connection provides:

• Mono sound playback from VCR.

• Record one channel while watching another (except

when using a cable box for all channels).

To use this connection, you must have:

• (1) antenna cable for cable or antenna connection; (2) for

cable box

To connect:

1. Connect cables as shown.

2. Return to First Things First, then follow the steps.

Using This Connection

Tune yourTV to channel 3 or 4 whichever one you selected
with the switch on the back of the VCR.

Auto TV/VCR Setting:

• Set the AutoTVNCR feature to ON.

To play a tape:

1. Insert a tape.

2. In necessary, press PLAY.

To record one program and watch another:.

1. Begin recording a program using one of the recording

options.

2. Press the'l'V.VCR button and select a different channel on

theTV.

VCR

TV

CABLE, CABLE BOX, OR_ANTENNA

ANT.INFROM e

AUDIO VIDEO

_@-_

,.,_ - o °_2"e

4O

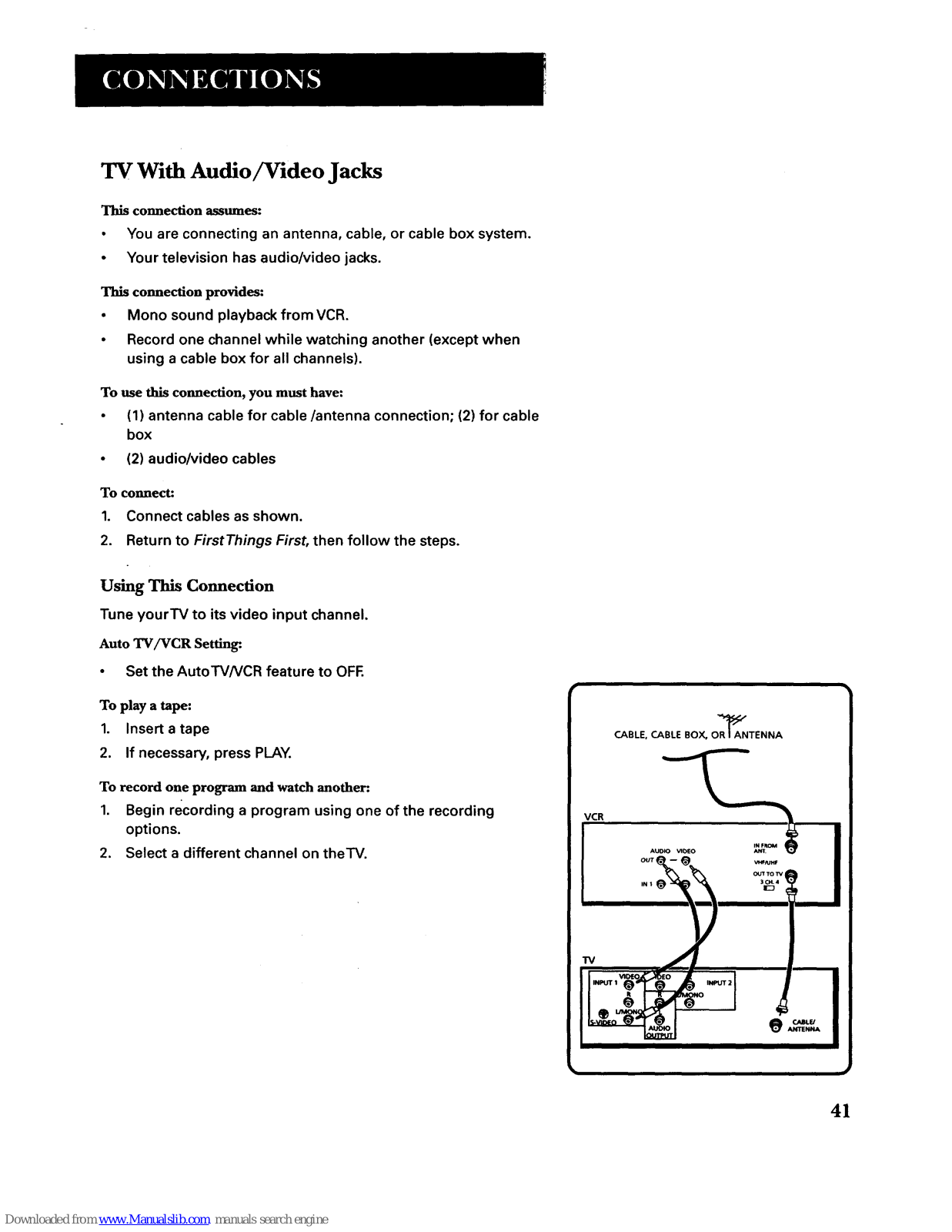

TV With Audio/Video Jacks

This connection assumes:

• You are connecting an antenna, cable, or cable box system.

• Your television has audio/video jacks.

This connection provides:

• Mono sound playback from VCR.

• Record one channel while watching another (except when
using a cable box for all channels).

To use this connection, you must have:

• (1) antenna cable for cable/antenna connection; (2)forcable

box

• (2) audio/video cables

To connect:

1. Connect cables as shown.

2. Return to First Things First, then follow the steps.

Using This Connection

Tune yourTV to its video input channel.

Auto TV/VCR Setting:.

• Set the AutoTVNCR feature to OFF.

To play a tape:

1. Insert a tape

2. If necessary, press PLAY.

To record one program and watch another:

1. Begin recording a program using one of the recording

options.

2. Select a different channel on the'IV.

CABLE, CABLE BOX, OR"_ANTENNA

VCR

AUtO WDEO

....... I

41

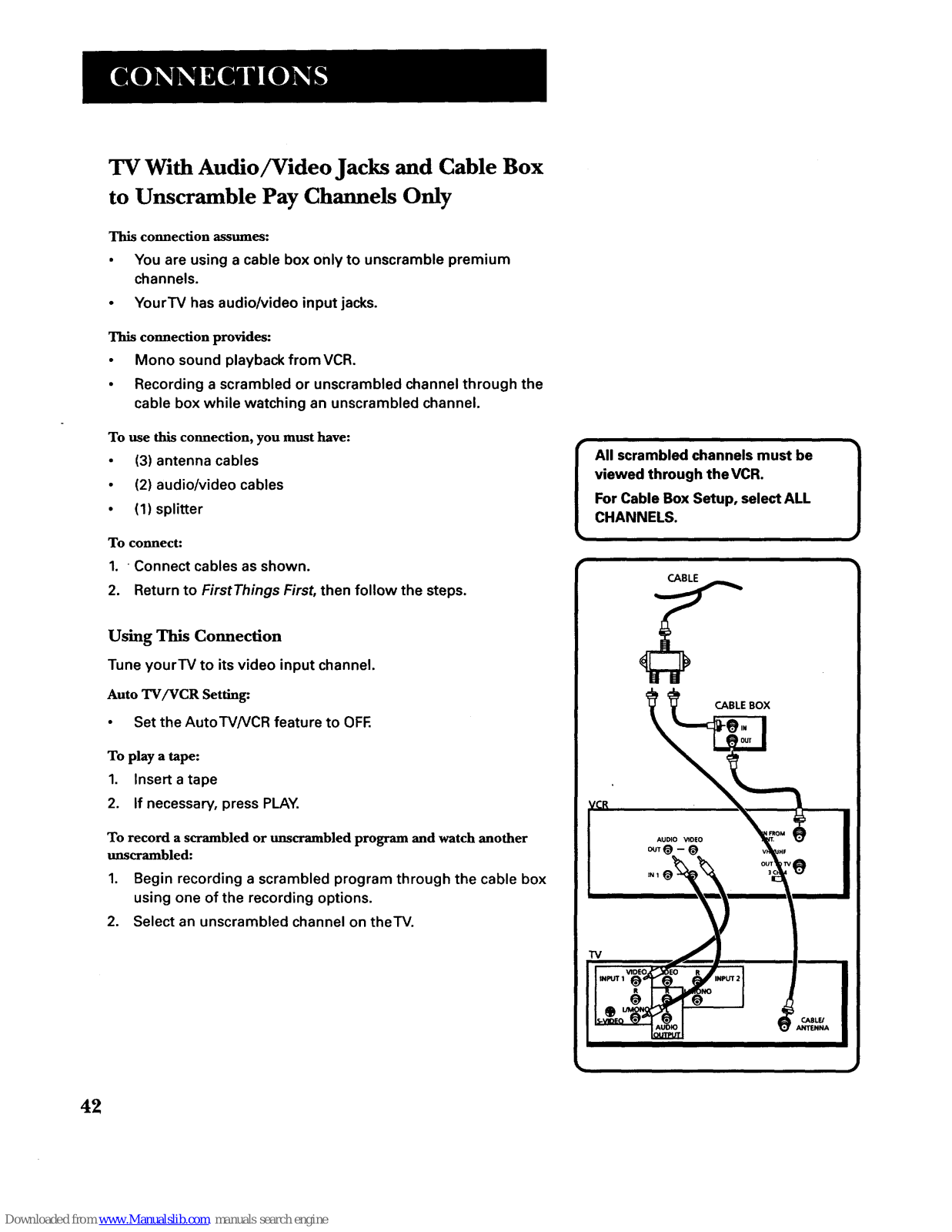

TV With Audio/Video Jacks and Cable Box
to Unscramble Pay Channels Only

This connection assumes:

• You are using a cable box only to unscramble premium
channels.

• YourTV has audio/video input jacks.

This connection provides:

• Mono sound playback from VCR.

• Recording a scrambled or unscrambled channel through the
cable box while watching an unscrambled channel.

To use this connection, you must have:

• (3) antenna cables

• (2) audio/video cables

• (1) splitter

To connect:

1. Connect cables as shown.

2. Return to First Things First, then follow the steps.

Using This Connection

Tune yourTV to its video input channel.

Auto TV/VCR Setting:

• Set the AutoTVNCR feature to OFF.

To play a tape:

1. Insert atape

2. If necessary, press PLAY.

To record a scrambled or unscrambled program and watch another
unscrambled:

1. Begin recording a scrambled program through the cable box
using one of the recording options.

2. Select an unscrambled channel on theTV.

All scrambled channels must be
viewed through the VCR.

For Cable Box Setup, select ALL
CHANNELS.

CABLE BOX

42

This section gives you some additional information
about theVCR, including a description of the unit's
controls and display.

You also will find aTroubleshootingTips section in this
Appendix, which might help to resolve some of those
simple problems.

Finally, this section contains your warranty information.

¥

¥

V

7

¥

REFERENCE

43

Front Panel

Remote Sensor

CHANNEL.TRACKING Up or Down Selects next higher or lower
channel in the VCR's channel memory. Adjusts tracking when a tape is

playing.
FWD Forwards the tape when the VCR is stopped. Searches the picture

forward during playback.

PLAY.PAUSE Plays a tape. Pauses action for viewing during playback.
Pauses recording to prevent recording of unwanted scenes.

POWER Turns theVCR on or off.
RECORD StartsVCR recording. Used for express recording.

Remote Sensor Receives signals from the remote control. Aim the
remote at this sensor.

REV Rewinds the tape when theVCR is stopped. Searches the picture in
reverse during playback.

STOP-EJECT Stops the normal functions such as record, playback,

rewind, fast-forward, or pause. Ejects the tape when the VCR is stopped.

TV.VCR Switches the picture signal so that it either comes from the
VCR or the-IV.

44

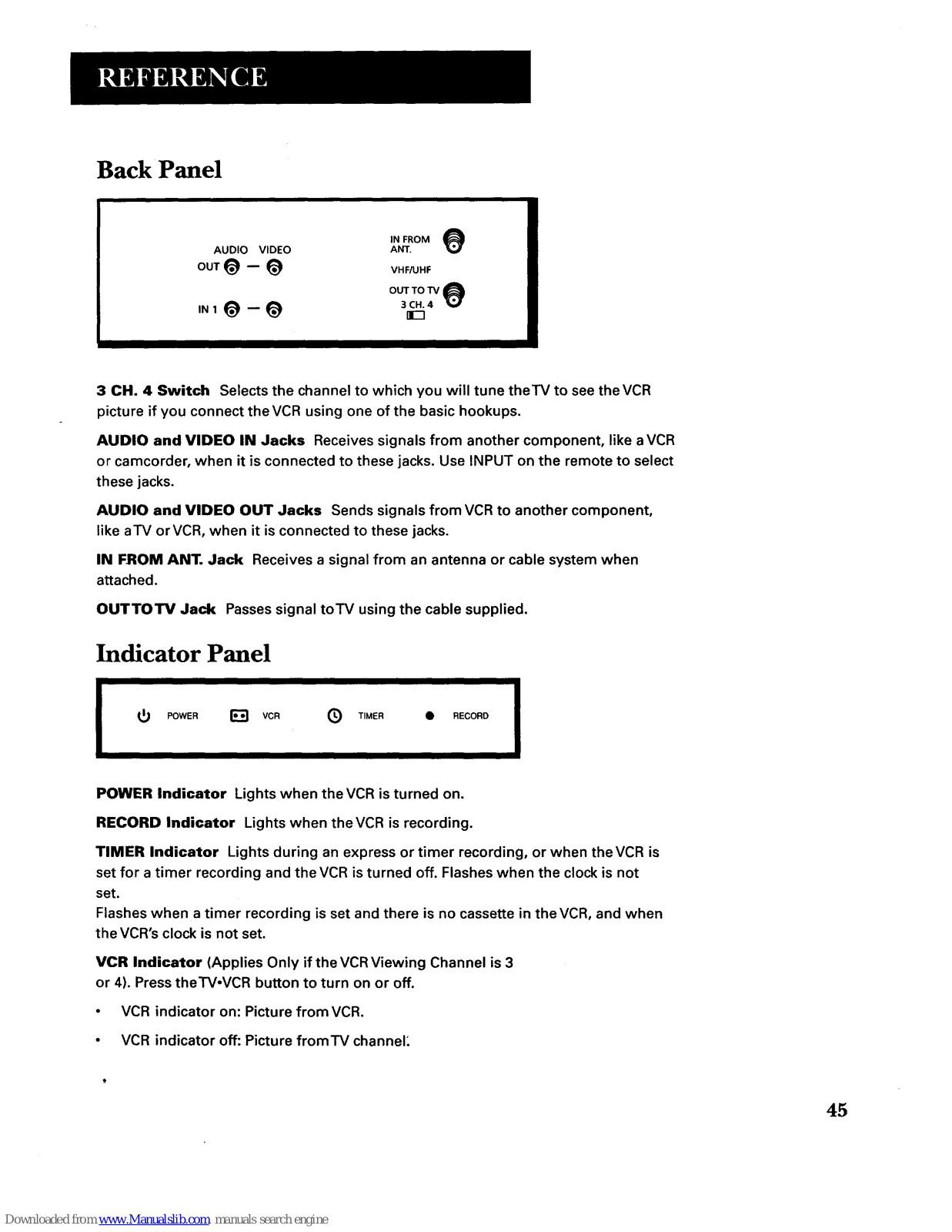

Back Panel

AUDIO VIDEO

IN FROM 0
ANT.

OUT _ -- _ VHF/UHF

3 CH. 4 Switch Selects the channel to which you will tune the'IV to see theVCR
picture if you connect theVCR using one of the basic hookups.

AUDIO and VIDEO IN Jacks Receives signals from another component, like a VCR
or camcorder, when it is connected to these jacks. Use INPUT on the remote to select
these jacks.

AUDIO and VIDEO OUT Jacks Sends signals from VCR to another component,
like alV or VCR, when it is connected to these jacks.

IN FROM ANT. Jack Receives a signal from an antenna or cable system when
attached.

OUTTOTV Jack Passes signal to'IV using the cable supplied.

Indicator Panel

_5 PowER EE_ vCR Q T_.ER • RECORD

I

POWER Indicator Lights when the VCR is turned on.
RECORD Indicator Lights when the VCR is recording.
TIMER Indicator Lights during an express or timer recording, or when theVCR is

set for a timer recording and the VCR is turned off. Flashes when the clock is not
set.

Flashes when a timer recording is set and there is no cassette in theVCR, and when
the VCR's clock is not set.

VCR Indicator (Applies Only if the VCR Viewing Channel is 3
or 4). Press the'I'V-VCR button to turn on or off.

• VCR indicator on: Picture from VCR.

• VCR indicator off: Picture fromTV channel:

45

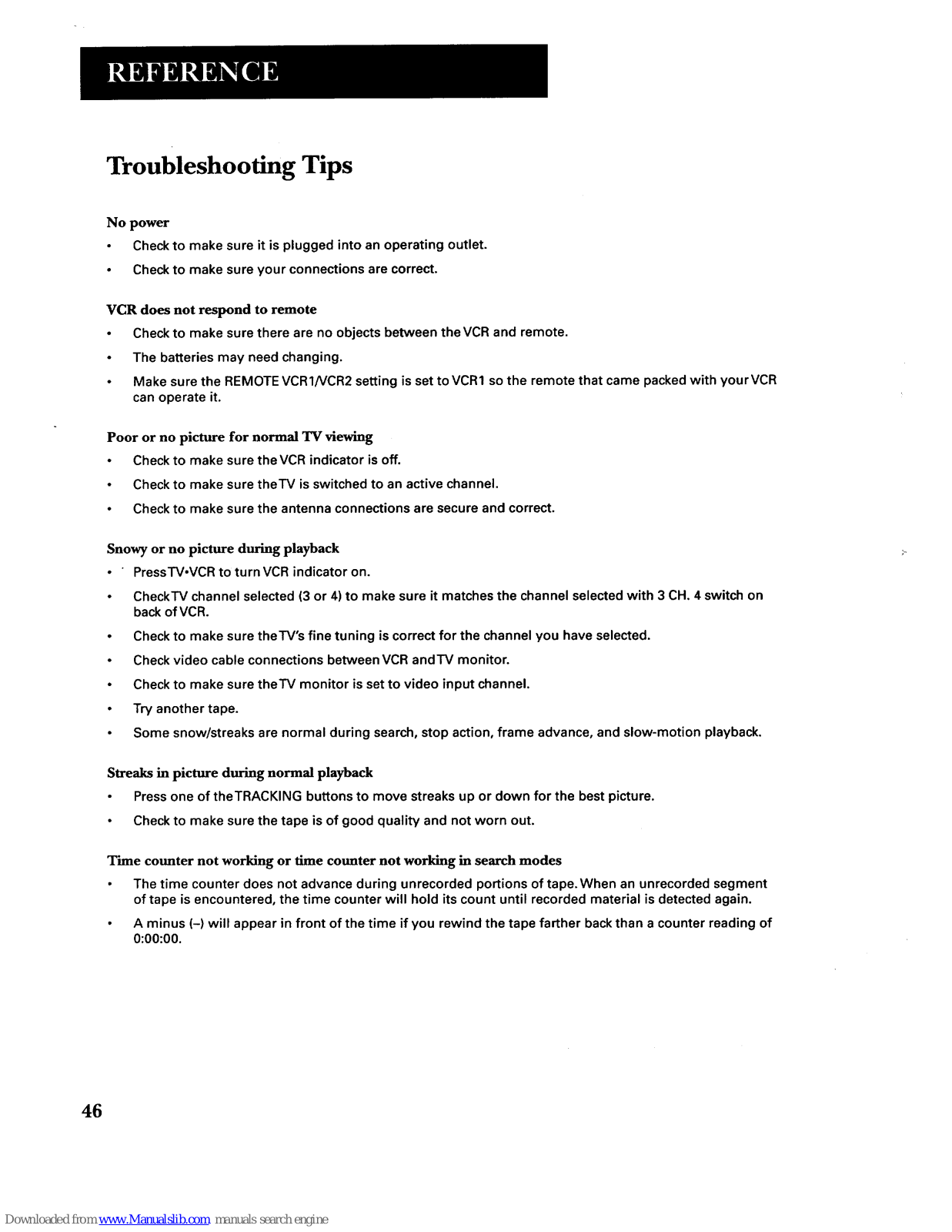

Troubleshooting Tips

No power

• Check to make sure it is plugged into an operating outlet.

• Check to make sure your connections are correct.

VCR does not respond to remote

• Check to make sure there are no objects between the VCR and remote.

• The batteries may need changing.

• Make sure the REMOTE VCR1NCR2 setting is set to VCR1 so the remote that came packed with yourVCR

can operate it.

Poor or no picture for normal TV viewing

• Check to make sure the VCR indicator is off.

• Check to make sure theTV is switched to an active channel.

• Check to make sure the antenna connections are secure and correct.

Snowy or no picture during playback

• PressTV.VCR to turn VCR indicator on.

• CheckTV channel selected (3 or 4) to make sure it matches the channel selected with 3 CH. 4 switch on

back of VCR.

• Check to make sure the'l'V's fine tuning is correct for the channel you have selected.

• Check video cable connections between VCR andrV monitor.

• Check to make sure the'IV monitor is set to video input channel.

• Try another tape.

• Some snow/streaks are normal during search, stop action, frame advance, and slow-motion playback.

Streaks in picture during normal playback

• Press one of theTRACKING buttons to move streaks up or down for the best picture.

• Check to make sure the tape is of good quality and not worn out.

Time counter not working or time counter not working in search modes

• The time counter does not advance during unrecorded portions of tape.When an unrecorded segment

of tape is encountered, the time counter will hold its count until recorded material is detected again.

• A minus (-) will appear in front of the time if you rewind the tape farther back than a counter reading of

0:00:00.

46

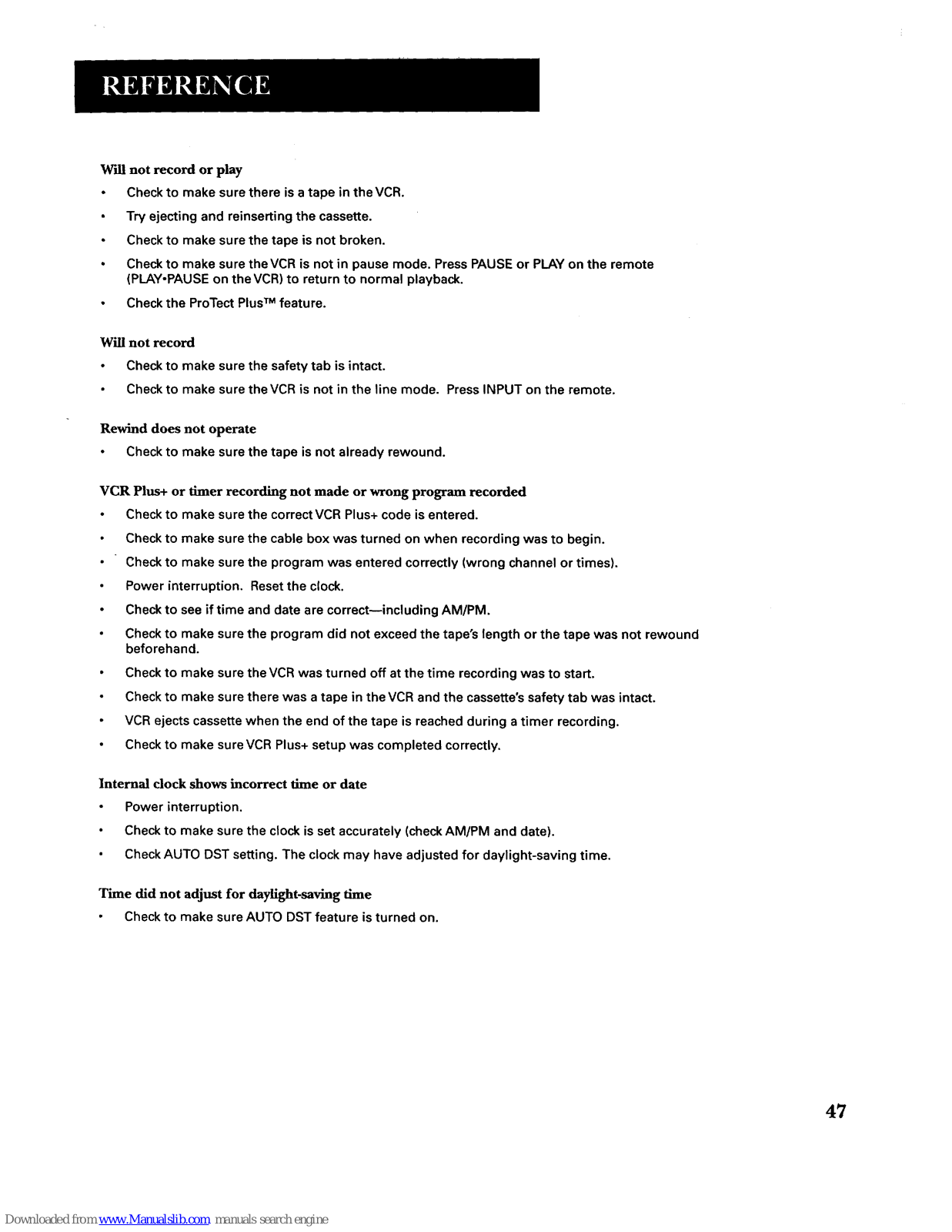

W'dl not record or play

• Check to make sure there is a tape in the VCR.

• Try ejecting and reinserting the cassette.

• Check to make sure the tape is not broken.

• Check to make sure theVCR is not in pause mode. Press PAUSE or PLAY on the remote
(PLAY-PAUSE on the VCR) to return to normal playback.

• Check the ProTect PlusTM feature.

Will not record

• Check to make sure the safety tab is intact.

• Check to make sure the VCR is not in the line mode. Press INPUT on the remote.

Rewind does not operate

• Check to make sure the tape is not already rewound.

VCR Plus+ or timer recording not made or wrong program recorded

• Check to make sure the correct VCR Plus+ code is entered.

• Check to make sure the cable box was turned on when recording was to begin.

• Check to make sure the program was entered correctly (wrong channel or times).

• Power interruption. Reset the clock.

• Check to see if time and date are correct--including AM/PM.

• Check to make sure the program did not exceed the tape's length or the tape was not rewound

beforehand.

• Check to make sure the VCR was turned off at the time recording was to start.

• Check to make sure there was a tape in the VCR and the cassette's safety tab was intact.

• VCR ejects cassette when the end of the tape is reached during a timer recording.

• Check to make sure VCR Plus+ setup was completed correctly.

Internal clock shows incorrect time or date

• Power interruption.

• Check to make sure the clock is set accurately (check AM/PM and date).

• Check AUTO DST setting. The clock may have adjusted for daylight-saving time.

"rime did not adjust for daylight-saving time

• Check to make sure AUTO DST feature is turned on.

47

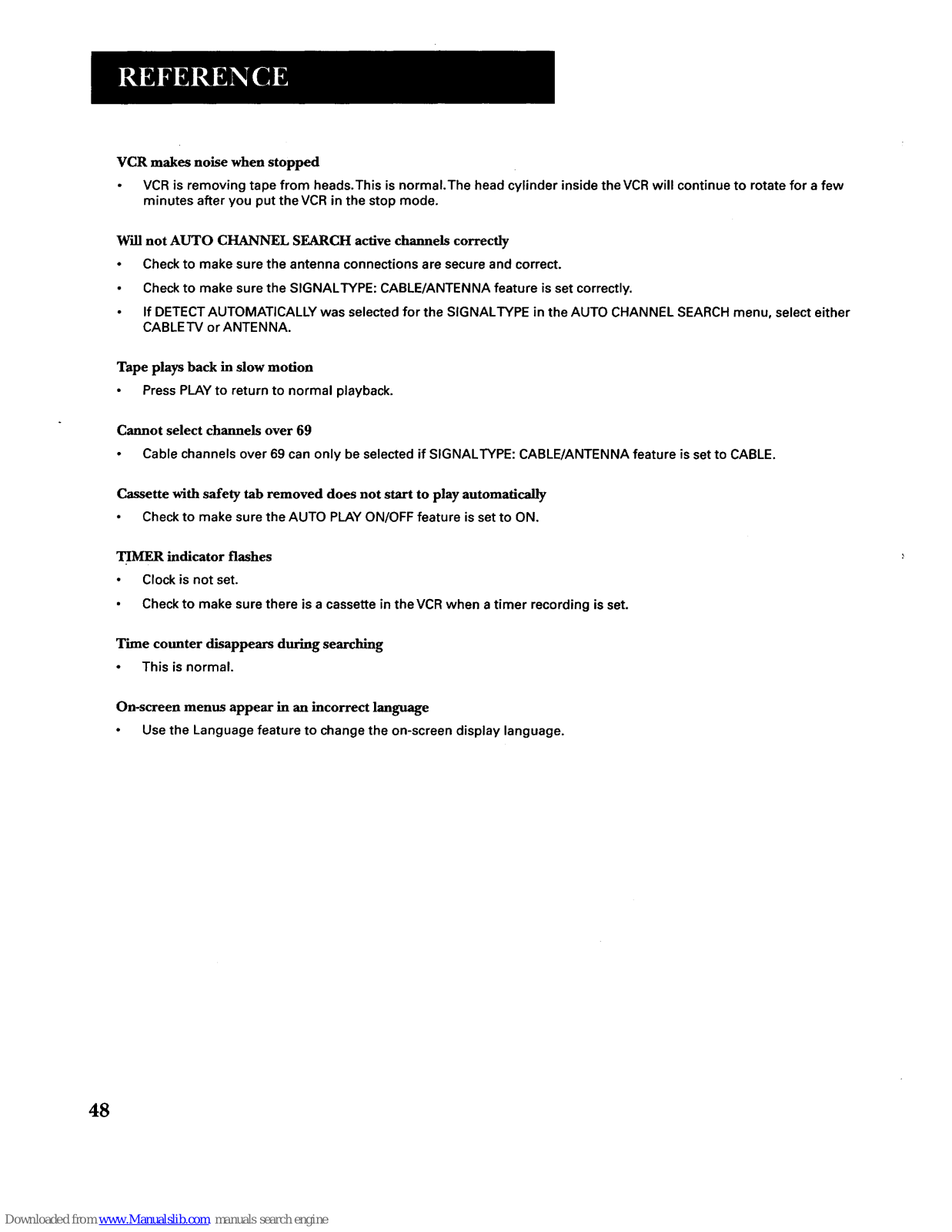

VCR makes noise when stopped

• VCR is removing tape from heads.This is normal.The head cylinder inside the VCR will continue to rotate for a few
minutes after you put the VCR in the stop mode.

W'dl not AUTO CHANNEL SEARCH active channels correctly

• Check to make sure the antenna connections are secure and correct.

• Check to make sure the SIGNALTYPE: CABLE/ANTENNA feature is set correctly.

• If DETECT AUTOMATICALLY was selected for the SIGNALTYPE in the AUTO CHANNEL SEARCH menu, select either
CABLE'IV or ANTENNA.

Tape plays back in slow motion

• PressPLAYto returnto normal playback.

Cannot select channels over 69

• Cable channels over 69 can only be selected if SIGNALTYPE: CABLE/ANTENNA feature is set to CABLE.

Cassette with safety tab removed does not start to play automatically

• Check to make sure the AUTO PLAY ON/OFF feature is set to ON.

TIMER indicator flashes

• Clock is not set.

• Check to make sure there is a cassette in the VCR when a timer recording is set.

Time counter disappears during searching

• This is normal.

On-screen menus appear in an incorrect language

• Use the Languagefeature to changethe on-screendisplay language.

48

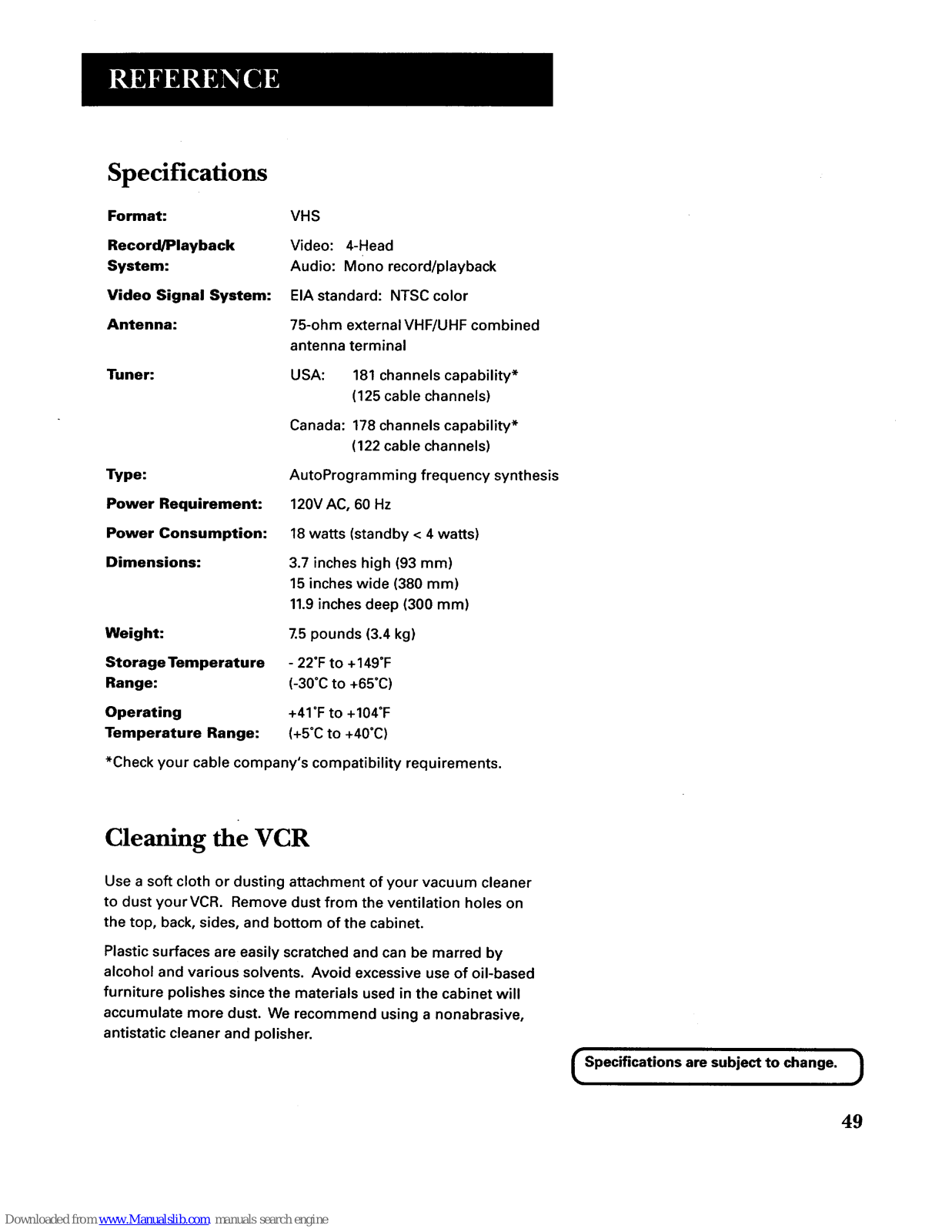

Specifications

Format:
Record/Playback

System:

Video Signal System:
Antenna:

Tuner:

Type:
Power Requirement:
Power Consumption:
Dimensions:

Weight:
Storage Temperature

Range:

Operating
Temperature Range:

VHS
Video: 4-Head

Audio: Mono record/playback
EIA standard: NTSC color
75-ohm external VHF/UHF combined

antenna terminal
USA: 181 channels capability*

(125 cable channels)

Canada: 178 channels capability*

(122 cable channels)

AutoProgramming frequency synthesis

120V AC, 60 Hz
18 watts (standby < 4 watts)

3.7 inches high (93 mm)
15 inches wide (380 mm)

11.9inches deep (300 mm)

7.5 pounds (3.4 kg)

- 22°F to +149°F
(-30°C to +65°C)

+41=F to +104°F

(+5°C to +40°C)

*Check your cable company's compatibility requirements.

Cleaning the VCR

Use a soft cloth or dusting attachment of your vacuum cleaner
to dust yourVCR. Remove dust from the ventilation holes on
the top, back, sides, and bottom of the cabinet.

Plastic surfaces are easily scratched and can be marred by

alcohol and various solvents. Avoid excessive use of oil-based
furniture polishes since the materials used in the cabinet will

accumulate more dust. We recommend using a nonabrasive,
antistatic cleaner and polisher.

Specifications are subject to change. )

49

Limited Warranty

What your warranty covers:

• Any defect in materials or workmanship.
For how long after your purchase:

• 90 days for labor charges.

• One year for parts.

The warranty period for rental units begins with the first rental or 45 days from date of shipment to the

rental firm, whichever comes first.

What we will do:

During the initial 90 days

• Pay any Authorized GE VCR Service Center the labor charges to repair your VCR.

• Pay any Authorized GE VCR Service Center for the new or, at our option, refurbished replacement parts
required to repair your VCR.

How you get service:

• Take your VCR to any Authorized GE VCR Service Center.To identify your nearest Authorized GE VCR
Service Center, ask your dealer, look in theYellow Pages, or call 1-800-447-1700.

• Show the Authorized Service Center Representative your evidence of purchase date or first rental.

• Pick up yourVCR when repairs are completed.

What your warranty does not cover:

• Customer instruction. (Your Owner's Manual clearly describes how to install, adjust, and operate your

VCR. Any additional information should be obtained from your Dealer.)

• Installation and related adjustments.

• Signal reception problems not caused by yourVCR.

• Damage from misuse or neglect.

• Cleaning of video/audio heads.

• Batteries.

• AVCR that has been modified or incorporated into other products or is used for institutional or other

commercial purposes.

• AVCR purchased or serviced outside the USA.

• Acts of God, such as but not limited to lightning damage.
Product Registration:

• Please complete and mail the Product Registration Card packed with yourVCR. It will make it easier to

contact you should it ever be necessary.The return of the card is not required for warranty coverage.

How state law relates to this warranty:

• This warranty gives you specific legal rights, and you also may have other rights that vary from state to

state.

If you purchased your VCR outside the United States:

• This warranty does not apply. Contact your dealer for warranty information.

50

3 CH. 4 switch 45

A

Accessing menus 5
Add or remove channels 11

Audio/Video jacks 29, 41, 45
AUTO CHANNEL SEARCH menu 10
AUTO DST: ON or OFF feature 12

Auto play feature 21
Automatic rewind 22

Automatic tracking 21

B

Back panel 45

Batteries

installing in the remote 4

C

Cable box setup 8
Cables 38

Cables, positioning 37
Cables, types of 38
CHANNEL buttons 20, 44
Channel, viewing 5
Channels, add or remove 11
Channels list, VCR 10
CHANNELS menu 9, 10, 11, 14, 26
Choosing a VCR connection 39
Cleaning theVCR 49
CLEAR button 20, 27, 28, 33, 34, 35
Commercial scan feature 32
Connections 37

audio/video cable 39
choosing 39
TV with audio/video jacks 41
TV with audio/video jacks and cable box
TV with RF jack only 40

Controls

back panel 45

front panel 44

F.

Eject, tape 22
EnergySaver 18
Express recording 24

F

EADV button 20, 33
FF button 20

42

First setup 3
First things first 3
Front panel controls 44
FWD button 20, 21, 32, 33, 35, 44

G

GO BACK button 20

IN FROM ANT. jack 45

INDEX SEARCH menu 33
Indicator panel 45

INFO button 20, 35
INPUT button 20, 25
Interactive Setup 5

J

Jacks, types of 38

L
LANGUAGE menu 8

Limited warranty 50
Locking feature 34
LP tape speed 18

M

Menus, accessing 5

N

Number buttons 13, 20

O

OUTTOTV jack 45
Overheating 37

P

Panel, indicator 45

PAUSE bUtton 20, 21, 22, 33, 36
Picture search options 32

PLAY button 20, 21, 32, 33
PLAY.PAUSE button 21, 22, 32, 33, 44
Playing aTape 21
POWER button 20, 22, 44
PREFERENCES menu 16

Pro-Tect Plus TM locking feature 34
Problem solving 46

PROGRAMS OVERLAP message 25, 27

51

R
RECORD button 20, 22, 24, 44

Recording

express 24
speeds 18
timer 25

Remote buttons 20
Remote control

installing batteries 4

Remote sensor 44
REMOTEVCR1NCR2 option 16

Remove or add channels 11
REV button 20, 21, 32, 33, 34, 44

Review programs screen 28

Rewind, automatic 22

S

Safety tab 22
Search

commercial scan 32

forward 32

reverse 32

slow motion 32
SEARCH button 20, 32, 33, 34
Sensor, remote 44

SETTIME and DATE screen 13
Set up

cable box 8

channel list 26

Setup, first 3
Signal type

changing 11

selecting 11

SLOW button 20, 32
SLP tape speed 18
Solving problems 46
SP tape speed 18

Specifications 49

Speed

LP 18

SLP 18

SP 18

SPEED button 18, 20, 27

Speeds, recording 18
STOP button 21, 22, 24, 28, 33, 34, 35
STOP-EJECT button 21, 22, 24, 44

Stopping a timer recording 28

52

T
Tab, safety 22

Tape eject 22
Tape, playing a 21
Tape speeds 18

Time and date

set 12
set daylight-saving 12

setting 12

Time counter 35
TIME menu 12, 13
Timer recording 25

stopping 28
TIMER RECORDINGS menu 25, 28
TRACKING buttons 21, 32, 36, 44

Troubleshooting tips 46
TV.VCR button 21, 44

V
VCR

cleaning 49

VCR channels list 10
VCR MAIN MENU 9, 10, 11, 12, 13, 16, 25, 26, 28

VCR Plus+

CHANNEL LIST screen 14, 26

PlusCode number 27

setting up channels 13

using 26

worksheet for channels 15

VCR PLUS+ menu 26
Viewing channel 5

W

Warranty, limited 50
Z

ZERO SEARCH menu 34

53

If yourVCR needs service, please contact your dealer or the
nearest Service Center from the yellow pages. Please do not
send any products to the Indianapolis address listed in this
manual or on the carton.This will only add delays in service

for your product.

'n'IOMSON CONSUMER ELECTRONICS

10330 North Meridian Street
Indianapolis, IN 46290

©1998Thomson Consumer Electronics, Inc.
Trademark(s)® Registered

Marca(s) Registrada(s)

Printed in Singapore
TOCOM 15336640

VQTS3467(A)

As an ENERGYSTARe Partner, Thomson Consumer
Electronics has determined that this product or

product model meets the ENERGY STAR e
guidelines for energy efficiency.
