GE V7768, V7769 Hardware Reference Manual
GE
Intelligent Platforms
Hardware Reference
V7768/V7769*
Intel® Core™ Duo Processor VME Single Board
Computer
THE V7768/V7769 IS DESIGNED TO MEET THE EUROPEAN UNION (EU) RESTRICTIONS OF
HAZARDOUS SUBSTANCE (ROHS) DIRECTIVE (2002/95/EC) CURRENT REVISION.
Publication No: 500-9300007768-000 Rev. E
Document History
Hardware Reference Document Number: 500-9300007768-000 Rev. E
January 4, 2012
Waste Electrical and Electronic Equipment (WEEE) Returns
GE is registered with an approved Producer Compliance Scheme (PCS) and, subject to suitable
contractual arrangements being in place, will ensure WEEE is processed in accordance with
the requirements of the WEEE Directive.
GE will evaluate requests to take back products purchased by our customers before
August 13, 2005 on a case by case basis. A WEEE management fee may apply.
Table of Contents
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
List of Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1 • Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.1 Unpacking Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.2 Hardware Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.2.1 V7768 Board Layout Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1.2.2 Mezzanine Board Layout Information (V7769) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.3 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
1.3.1 BIOS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
1.4 Front/Rear Panel Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
1.5 Front Panel Layouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
2 • Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.1 BGA CPU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
2.2 Physical Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
2.3 Memory Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
2.4 I/O Port Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
2.5 Interrupts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
2.5.1 Legacy PIC System Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.5.2 PCI Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
2.6 Integrated Peripherals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
2.7 Ethernet Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
2.8 Video Graphics Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
3 • Embedded PC/RTOS Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.1 VME Bridge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.1.2 I2C/SMBus Temperature Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
3.2 Embedded PCI Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
3.3 Timers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.3.1 Timer Control Status Register 1 (TCSR1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.3.2 Timer Control Status Register 2 (TCSR2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.3.3 Timer 1 & 2 Load Count Register (TMRLCR12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.3.4 Timer 3 Load Count Register (TMRLCR3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.3.5 Timer 4 Load Count Register (TMRLCR4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.3.6 Timer 1 & 2 Current Count Register (TMRCCR12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
3.3.7 Timer 3 Current Count Register (TMRCCR3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.8 Timer 4 Current Count Register (TMRCCR4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.9 Timer 1 IRQ Clear (T1IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3.3.10 Timer 2 IRQ Clear (T2IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3.3.11 Timer 3 IRQ Clear (T3IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.3.12 Timer 4 IRQ Clear (T4IC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Table of Contents 3
.
3.4 Watchdog Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.4.1 WDT Control Status Register (WCSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.4.2 WDT Keepalive Register (WKPA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
3.5 NVRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
3.6 VME Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.7 CompactFlash Disk (V7768 Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.7.1 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
3.8 Remote Ethernet Booting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
3.8.1 Boot BIOS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
A • Appendix A: Connector Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
A.1 V7768 VME Connectors and Pinouts (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
A.2 V7768 PCI-X PMC Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
A.2.1 V7768 PCI-X PMC Site Connector and Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
A.2.2 V7768 PCI-X PMC Site Connector and Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
A.2.3 V7768 PCI-X PMC Site Connector and Pinout (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
A.2.4 Mezzanine PCI-X PMC Site Connector and Pinout (J14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
A.3 V7769 Mezzanine Backplane Connectors (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
A.4 V7769 Mezzanine PCI-X PMC Site 1 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
A.4.1 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
A.4.2 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
A.4.3 Mezzanine PCI-X PMC Site 1 Connector and Pinout (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
A.5 V7769 Mezzanine PCI-X PMC Site 2 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
A.5.1 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
A.5.2 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
A.5.3 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J23) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
A.5.4 Mezzanine PCI-X PMC Site 2 Connector and Pinout (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
A.6 USB Connectors and Pinout (J29 and J30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
A.7 Gigabit Ethernet Connectors and Pinouts (J15 and J18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
A.8 Video Graphics Adapter and Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
A.9 Serial Connector and Pinout (J35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
A.10 Mouse/Keyboard Connector and Pinout (J38) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
A.11 V7769 Mezzanine SAS Connector and Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
B • Appendix B: AMI BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
B.1 First Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
B.2 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
B.3 Advanced BIOS Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
B.4 PCI/PnP Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
B.5 Boot Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
B.6 Security Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
B.7 Chipset Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
B.8 Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
C • Appendix C: Remote Booting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
C.1 Enabling the Front Panel (FP) LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
C.2 Boot Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
C.2.1 First Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
C.2.2 Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
C.3 BIOS Features Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
4 V7768/V7769 Hardware Reference Manual
List of Figures
Figure 1 V7768 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Figure 2 Illustration of V7768 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 3 V7769 Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Figure 4 Illustration of V7769 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 1-1 V7768 Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 1-2 COM1 Termination Headers (E13, E14, E17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Figure 1-3 Mezzanine Board Connector Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Figure 1-4 Installing the PMC Card on the V7768/V7769 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

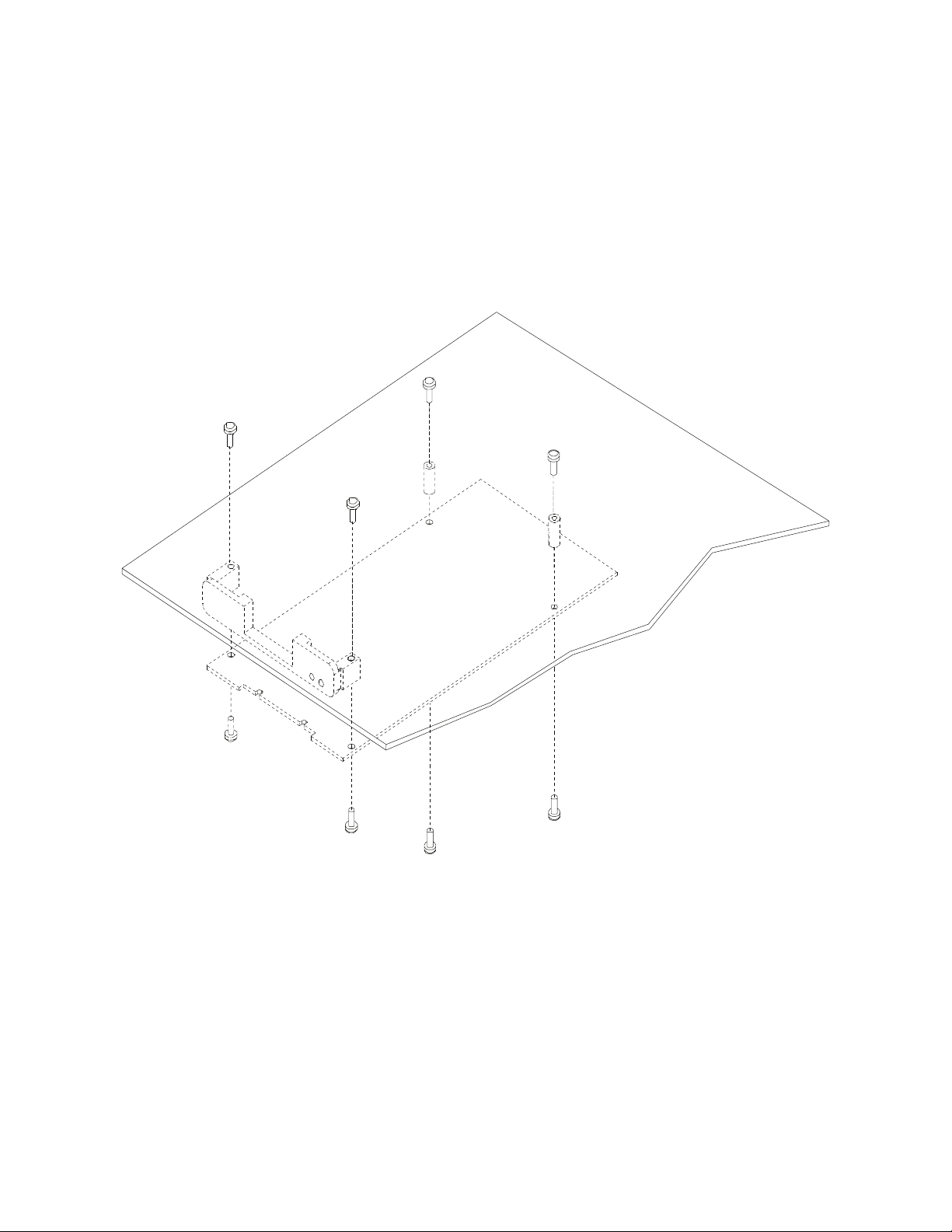

Figure 1-5 Backside Mounting for the PMC Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

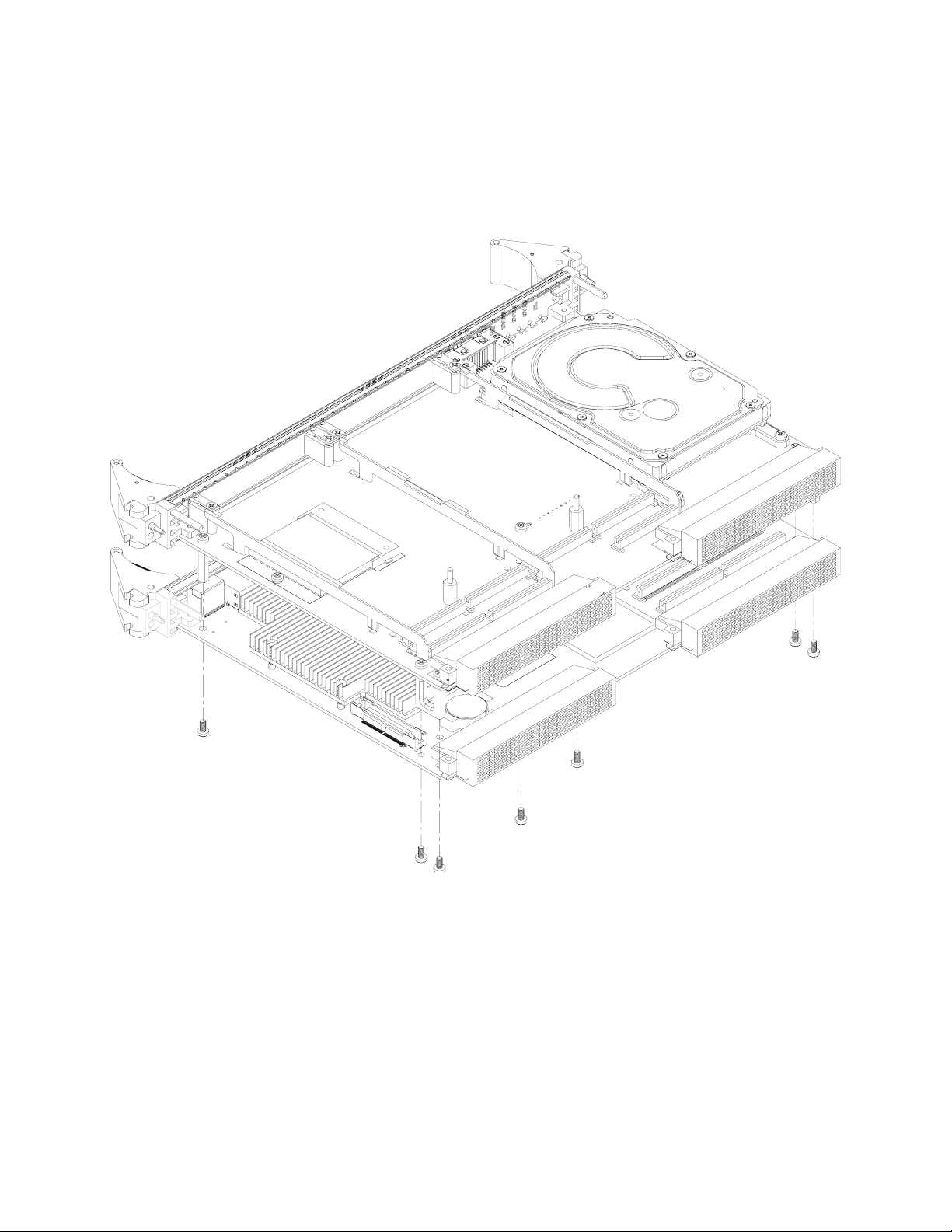

Figure 1-6 Installation of Mezzanine Board onto the Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

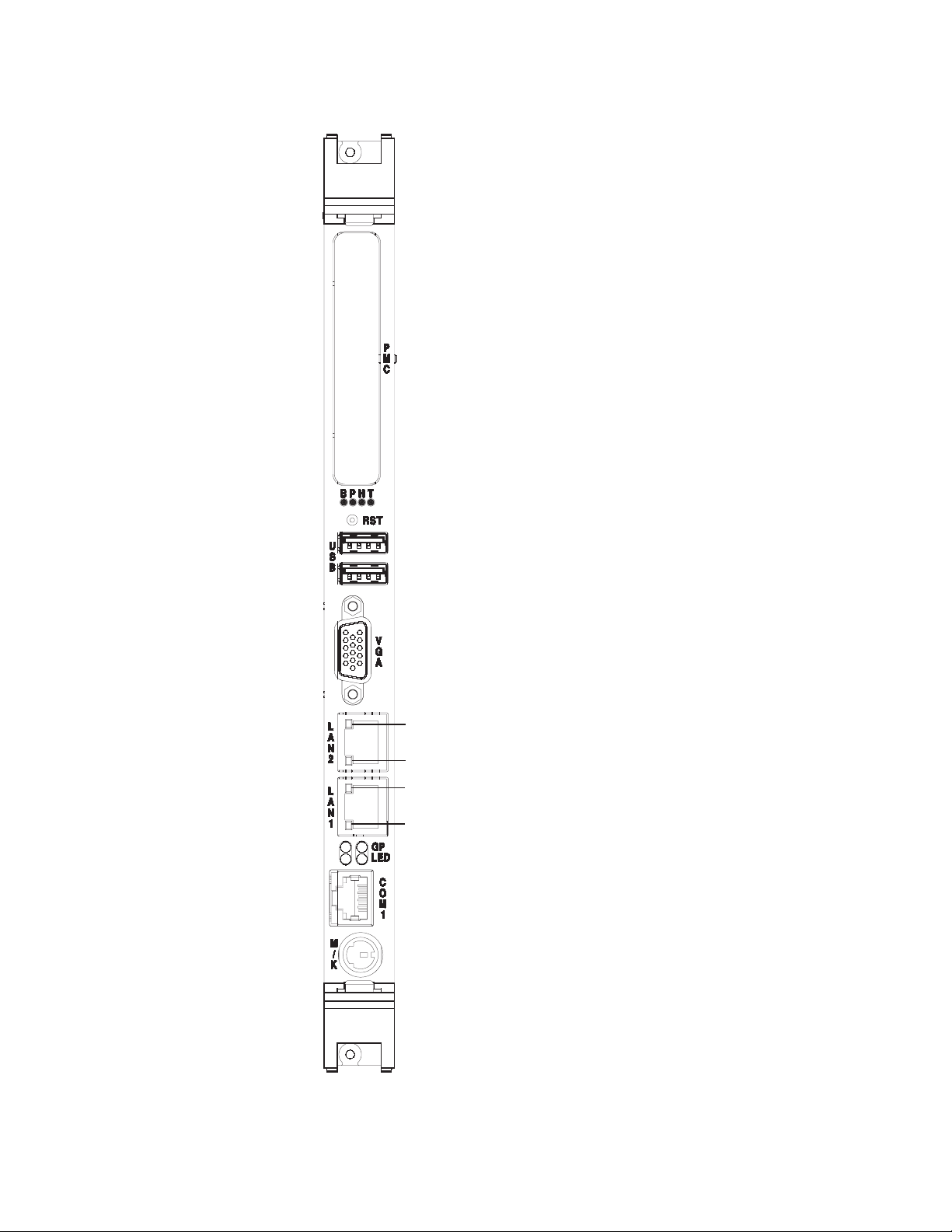

Figure 1-7 V7768 Front Panel Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

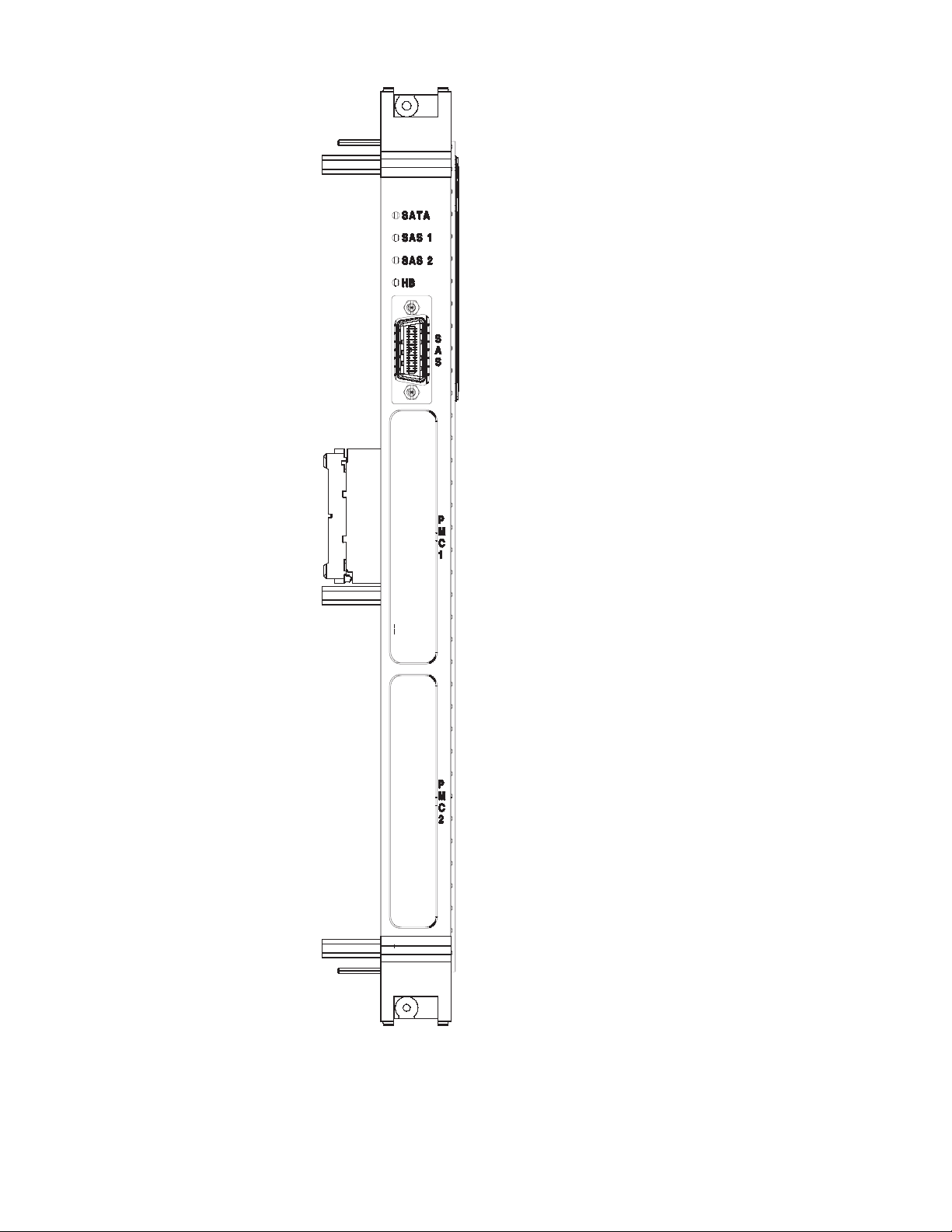

Figure 1-8 Mezzanine Front Panel Layout (for V7769) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Figure 2-1 Connections for the PC Interrupt Logic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Figure A-1 V7768 Connector Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Figure A-2 V7769 Connector Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Figure A-3 VME Connectors (P1/P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Figure A-4 V7768 PCI-X PMC Site Connector (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Figure A-5 V7768 PCI-X PMC Site Connector (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Figure A-6 V7768 PCI-X PMC Site Connector (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Figure A-7 Mezzanine PCI-X PMC Site Connector (J14 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Figure A-8 V7769 Backplane Connectors (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Figure A-9 Mezzanine PCI-X PMC Site Connector (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Figure A-10 Mezzanine PCI-X PMC Site Connector (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Figure A-11 Mezzanine PCI-X PMC Site Connector (J13 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Figure A-12 Mezzanine PCI-X PMC Site Connector (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Figure A-13 Mezzanine PCI-X PMC Site Connector (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Figure A-14 Mezzanine PCI-X PMC Site Connector (J23) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Figure A-15 Mezzanine PCI-X PMC Site Connector (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Figure A-16 USB Connector (J29 and J30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Figure A-17 Gigabit Ethernet Connector (J18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Figure A-18 SVGA Connector (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Figure A-19 Serial Connector (J35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Figure A-20 Mouse/Keyboard Connector (J38) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Figure A-21 Mouse/Keyboard Splitter Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Figure A-22 Mezzanine Connector (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
List of Figures 5
.
List of Tables
Table 1-1 V7768 Connectors and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 1-2 Universe IID Mapping/SYSFAIL Generation - Switch (S6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 1-3 VME Strapping - Switch (S7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Table 1-4 VME System Controller - Switch (S10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table 1-5 Battery Enable - Switch (S11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table 1-6 Password Clear/BIOS Boot Mode - Switch (S12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Table 1-7 COM1 Configuration (RS232/RS422 Select) - Header (E13, E14, E17) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Table 1-8 Mezzanine Connectors and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Table 1-9 Switch (S2) Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Table 2-1 Memory Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Table 2-2 V7768/V7769 I/O Address Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Table 2-3 Interrupt Line Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Table 2-4 Interrupt Vector Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Table 2-5 PCI Device Interrupt Mapping by the BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Table 2-6 Supported Graphics Video Resolutions for Windows XP (Analog) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Table 3-1 PCI Configuration Space Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Table 3-2 TCSR1 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Table 3-3 Selectable Clock Source for Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Table 3-4 TCSR2 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Table 3-5 TMRLCR12 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 3-6 TMRLCR3 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 3-7 TMRLCR4 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Table 3-8 TMRCCR12 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Table 3-9 TMRCCR3 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Table 3-10 TMRCCR4 Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Table 3-11 WCSR Bit Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Table 3-12 Selecting Timeout Value of the WDT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Table 3-13 Register Definitions Offset from BAR0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Table A-1 V7768 VME Connector Pinout (P1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Table A-2 V7768 VME Connector Pinout (P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Table A-3 V7768 PCI-X PMC Site Connector Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Table A-4 V7768 PCI-X PMC Site Connector Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Table A-5 V7768 PCI-X PMC Site Connector Pinout (J13) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Table A-6 Mezzanine PCI-X PMC Site Connector Pinout (J14 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Table A-7 V7769 Backplane Connector Pinouts (P1 and P2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Table A-8 Mezzanine PMC Site Connector Pinout (J11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Table A-9 Mezzanine PCI-X PMC Site Connector Pinout (J12) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Table A-10 Mezzanine PCI-X PMC Site Connector Pinout (J13 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Table A-11 Mezzanine PMC Site Connector Pinout (J21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Table A-12 Mezzanine PCI-X PMC Site Connector Pinout (J22) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
6 V7768/V7769 Hardware Reference Manual
Table A-13 Mezzanine PCI-X PMC Site Connector Pinout (J23) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Table A-14 Mezzanine PCI-X PMC Site Connector Pinout (J24) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Table A-15 USB Connector Pinout (J29 and J30) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Table A-16 Gigabit Ethernet Connector Pinout (J18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Table A-17 SVGA Connector Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76
Table A-18 Serial Connector Pinout (J35) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Table A-19 Mouse/Keyboard Connector Pinout (J38) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
Table A-20 Mouse/Keyboard Splitter Cable Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Table A-21 Mezzanine SAS Connector Pinout (J28) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Table B-1 AMI BIOS First Boot Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Table B-2 AMI BIOS Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Table B-3 AMI BIOS Advanced Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Table B-4 AMI BIOS PCI/PnP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Table B-5 AMI BIOS Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Table B-6 AMI BIOS Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Table B-7 AMI BIOS Chipset Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Table B-8 AMI BIOS Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Table C-1 Enable the Front Panel LAN for Remote Booting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Table C-2 Boot-from-LAN BIOS First Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Table C-3 Boot-from-LAN BIOS Boot Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
List of Tables 7
.
Overview
GE’s V7768/V7769* are single board computers (SBCs) in a dual-slot, passively
cooled, VME Eurocard form factor.
®
The V7768* is a full featured Intel
the V7769* is a full featured Intel Core 2 Duo-based SBC. The V7768/V7769 utilize
the advanced technology of Intel’s 945GM chipset and the ICH7-M I/O Controller
Hub. The 945GM chipset runs on a 533 MHz front-side bus with the Celeron M
processor and a 667 MHz front-side bus with the Core 2 Duo processor.
The V7768/V7769 are compliant with the VMEbus Specification VITA 1-1994 and
feature a transparent PCI-to-VME bridge, allowing your board to function as a
system controller or peripheral CPU in multi-CPU systems.
The V7768 is a single-slot board, and the V7769 is a dual-slot board. The V7769
has the same functionality as the V7768 and also connects to the ACC-0623*
(which will be referred to as the mezzanine board throughout this manual),
making it a dual-slot board. Because the functionality is so similar, this manual
will refer to both boards (V7768/V7769) throughout unless the material is
referring to the V7768 or V7769 only.
CoreTM 2 Duo or Celeron® M-based SBC, and
8 V7768/V7769 Hardware Reference Manual
Desktop Features of the V7768/V7769
• Up to 2.0 GByte DDR2 SDRAM (One SODIMM)
• SVGA port (front I/O)
• Dual Gigabit Ethernet (GbE) (front I/O)
• One RS232/422 COM port (front I/O)
• One RS232/422 COM support (rear I/O)
• Two USB 2.0 ports (front I/O)
• Four USB 2.0 support (rear I/O)
• Supports two SATA connections (rear I/O)
• One 2.5-in. SATA hard drive (optional for V7769 only)
• Dual SAS connector (front I/O on V7769 only)
• Real-Time clock/calendar
• Front panel reset switch
• PS/2 Keyboard/Mouse connection (front I/O)
• Onboard parallel connector
The 945GM chipset allows the V7768/V7769 to be capable of executing many of
today’s desktop operating systems such as Microsoft
®
Vista
V7768/V7769 are described in Chapter 2: Standard Features of this manual.
, Linux® 2.6.x, and VxWorks® 6.x. The standard desktop features of the
®
’s W in do w s® XP, Windows
Overview 9
Embedded Features of the V7768/V7769
• Remote booting out the front panel only
• Up to 8 GByte of bootable CompactFlash (optional)
• PCI-X capable PMC site with VITA 35 P2 I/O (factory populated on V7768
and main board of V7769)
• VITA 1-1994 with byte swap
• 32 KByte NVRAM
• Software-selectable Watchdog Timer with reset
• PMC expansion site Chapter 3: Embedded PC/RTOS Features
The embedded features of the V7768/V7769 are described in Chapter 3 of this
manual.
The V7768/V7769 are suitable for use in a variety of applications, such as:
telecommunications, simulation, instrumentation, industrial control, process
control and monitoring, factory automation, automated test systems, data
acquisition systems and anywhere that the highest performance processing
power for VME in a single or dual slot is desired.
10 V7768/V7769 Hardware Reference Manual
Intel 945GM Chipset
The V7768/V7769 incorporate the latest Intel chipset technology, the 945GM. The
Intel 945GM chipset is an optimized integrated graphics solution with up to a
667 MHz system bus. The chipset has a low power design, advanced power
management, supporting up to 2 GByte of DDR2 system memory. The 945GM is a
Memory Controller Hub (MCH) component, providing the processor interface,
system memory interface (DDR2 SDRAM) and SVGA port.
Key features for the 945GM:
• 533 MHz Processor system bus controller for the Celeron M
• 667 MHz Processor system bus controller for the Intel Core 2 Duo
• Up to 2 GByte DDR2 Memory via SODIMM
• High-speed DMI architecture interface for communication with the ICH7-M
The 945GM supports the Intel ICH7-M I/O controller hub. The ICH7-M supports
most of the high speed I/O interfaces of the V7768/V7769.
Key features for the ICH7-M:
• USB 2.0
(I/O controller)
• SATA
• IDE (Primary only)
• PCI
• PCI Express (PCIe)
Overview 11
Figure 1 V7768 Block Diagram
Intel
Core 2 Duo
or
Celeron M
Processor
LEDs
Reset
USB
USB
SVGA
RJ45
RJ45
RJ45
Mouse/
Keyboard
DDR2
Memory
Up to 2 GByte
SODIMM
LAN1
LAN2
COM 1 (RS232/RS422)
DDR2
Intel 82571
Dual
Gigabit
Ethernet
Up to 8 GByte
CompactFlash
USB 2.0 x2
PCIe x1
FWH
PATA
667MHz
FSB
Intel
945GM
Express
DMI
x 4
Intel
82801GMB
I/O Controller
(ICH7-M)
L
P
C
Super I/O
P
C
I
33
M
H
z
32
b
i
t
PCIe x4
PCIe x8
P
C
I
33
M
H
z
32
b
i
t
Tundra
Universe IID
VME
FPGA
PEX8114
PCIe-PCIX
Bridge
PCIX
133MHz
64-bit
PCIX
PMC
Site
NVRAM
M
e
a
z
z
a
n
i
n
e
C
o
n
n
PMC I/O (VITA-35)
Byte Swap Logic
P1
VME
VME
P2
USB 2.0 x 4
SATA x 2
12 V7768/V7769 Hardware Reference Manual
COM2 (RS232/RS422)
Figure 2 Illustration of V7768
Overview 13
Figure 3 V7769 Block Diagram
SAS
Connector
2.5 in.SATA Drive
2 x SAS
SATA
SATA to IDE
Converter
SATA
LSI1064
SAS/SATA
Controller
PCIE x4
PEX8518
PCIE Switch
M
e
a
z
z
a
n
i
n
e
C
o
n
n
PCIE x8
PCI-X 64, 100
PCI-X
PMC
Site 1
P1
IDE
Up to 4 GByte
CompactFlash
14 V7768/V7769 Hardware Reference Manual
PCIE x4
PEX8114
PCIE-PCIX
Bridge
PCI-X
PMC
Site 2
P2
Vita 35
Figure 4 Illustration of V7769
Overview 15
Organization
This manual is composed of the following chapters and appendices:
Chapter 1 - Installation and Setup describes unpacking, inspection, hardware
jumper settings, connector definitions, installation, system setup and operation of
the V7768/V7769.
Chapter 2 - Standard Features describes the unit design in terms of the standard
PC memory and I/O maps, along with the standard interrupt architecture.
Chapter 3 - Embedded PC/RTOS Features describes the unit features that are
beyond standard functions.
Maintenance provides information relative to the care and maintenance of the
unit.
Appendix A - Connector Pinouts illustrates and defines the connectors included
in the unit’s I/O ports.
Appendix B - AMI BIOS Setup Utility describes the menus and options
.
associated with the American Megatrends, Inc
(system) BIOS.
Appendix C - Remote Booting describes the menus and selections necessary to
boot from the SBC remotely.
16 V7768/V7769 Hardware Reference Manual
References
Intel Celeron M Processor on 65 nm Processor
January 2007, Order Number 312726-004
Intel Core 2 Duo Processor for Intel Centrino® Duo Processor Technology
Process Datasheet
September 2007, Revision 004, Order Number 314078-004
Mobile Intel 945 Express Chipset Family
November 2006, Order Number 309219-003
Intel I/O Controller Hub 7 (ICH 7) Family Datasheet
January 2006, Order Number 307013-002
Intel 82571EB/82572EI Gigabit Ethernet Controller Product Datasheet
December 2006, Revision 2.0
PCI Local Bus Specification, Rev. 2.2
PCI Special Interest Group
P.O. Box 14070
Portland, OR 97214
(800) 433-5177 (U.S.)
(503) 797-4207 (International)
(503) 234-6762 (FAX)
LPC47M107 100-Pin Enhanced Super I/O with LPC Interface for Consumer
Applications
Standard Microsystems Corp.
80 Askay Dr.
Hauppauge, NY 11788-8847
www.smsc.com
CMC Specification, 1386 from:
IEEE Standards Department
Copyrights and Permissions
445 Hoes Lanes, P.O. Box 1331
Piscataway, NJ 08855-1331
PMC Specification, 1386.1 from:
IEEE Standards Department
Copyrights and Permissions
445 Hoes Lanes, P.O. Box 1331
Piscataway, NJ 08855-1331, USA
Overview 17
Safety Summary
The following general safety precautions must be observed during all phases of
the operation, service and repair of this product. Failure to comply with these
precautions or with specific warnings elsewhere in this manual violates safety
standards of design, manufacture and intended use of this product.
GE assumes no liability for the customer's failure to comply with these
requirements.
Ground the
System
Do Not Operate in
an Explosive
Atmosphere
Keep Away from
Live Circuits
Do Not Service or
Adjust Alone
Do Not Substitute
Parts or Modify
System
Dangerous
Procedure
Warnings
To minimize shock hazard, the chassis and system cabinet must be connected to
an electrical ground. A three-conductor AC power cable should be used. The
power cable must either be plugged into an approved three-contact electrical
outlet or used with a three-contact to two-contact adapter with the grounding
wire (green) firmly connected to an electrical ground (safety ground) at the power
outlet.
Do not operate the system in the presence of flammable gases or fumes. Operation
of any electrical system in such an environment constitutes a definite safety
hazard.
Operating personnel must not remove product covers. Component replacement
and internal adjustments must be made by qualified maintenance personnel. Do
not replace components with power cable connected. Under certain conditions,
dangerous voltages may exist even with the power cable removed. To avoid
injuries, always disconnect power and discharge circuits before touching them.
Do not attempt internal service or adjustment unless another person capable of
rendering first aid and resuscitation is present.
Because of the danger of introducing additional hazards, do not install substitute
parts or perform any unauthorized modification to the product. Return the
product to GE for service and repair to ensure that safety features are maintained.
Warnings, such as the example below, precede only potentially dangerous
procedures throughout this manual. Instructions contained in the warnings must
be followed.
WARNING
Dangerous voltages, capable of causing death, are present in this system.
Use extreme caution when handling, testing and adjusting.
18 V7768/V7769 Hardware Reference Manual
Warnings,
Cautions
and Notes
STOP
Informs the operator that a practice or procedure should not be performed. Actions could result in
injury or death to personnel, or could result in damage to or destruction of part or all of the
system.
WARNING
WARNING denotes a hazard. It calls attention to a procedure, practice, or
condition, which, if not correctly performed or adhered to, could result in
injury or death to personnel.
CAUTION
CAUTION denotes a hazard. It calls attention to an operating procedure,
practice, or condition, which, if not correctly performed or adhered to, could
result in damage to or destruction of part or all of the system.
NOTE
NOTE denotes important information. It calls attention to a procedure, practice, or condition which
is essential to highlight.
TIP
Tip denotes a bit of expert information.
LINK
This is link text.
Overview 19
1 • Installation and Setup
This chapter describes the hardware jumper settings, connector descriptions,
installation, system setup and operation of the V7768/V7769.
1.1 Unpacking Procedures
Any precautions found in the shipping container should be observed. All items
should be carefully unpacked and thoroughly inspected for damage that might
have occurred during shipment. The board(s) should be checked for broken
components, damaged printed circuit board(s), heat damage and other visible
contamination. All claims arising from shipping damage should be filed with the
carrier and a complete report sent to GE Customer Care along with a request for
advice concerning the disposition of the damaged item(s).
CAUTION
Some of the components assembled on GE products may be
sensitive to electrostatic discharge and damage may occur on
boards that are subjected to a high energy electrostatic field. When
the board is placed on a bench for configuring, etc., it is suggested
that conductive material be inserted under the board to provide a
conductive shunt. Unused boards should be stored in the same
protective boxes in which they were shipped.
1.2 Hardware Setup
The V7768/V7769 are factory populated with user-specified options as part of the
V7768/V7769 ordering information. Contact Sales for ordering information at
1-800-322-3616. For option upgrades or for any type of repairs, contact customer
care to receive a Return Material Authorization (RMA).
GE Customer Care is available at:
(1-800-433-2682), 1-780-401-7700.
Or, visit our website www.ge-ip.com.
The V7768/V7769 are tested for system operation and shipped with factoryinstalled header jumpers. The physical locations of the headers and connectors for
the SBC with the PMC option are illustrated in Figure 1-1 on page 21 and
Figure 1-1 on page 21. The definitions of the connectors, headers and switches are
included in Table 1-1 on page 22.
CAUTION
All jumpers marked User Configured in the following tables may be
changed or modified by the user. All jumpers marked Factory
Configured should not be modified by the user.
Care must be taken when making jumper modifications to ensure
against improper settings or connections. Improper settings may
result in damage to the unit.
Modifying any jumper not marked User Configured will void the
Warranty and may damage the unit.
20 V7768/V7769 Hardware Reference Manual
1.2.1 V7768 Board Layout Information
Figure 1-1 V7768 Connector Locations
J11
J12
J30
J29
USB
USB
SVGA
J28
GbE
GbE
J33
J32
CompactFlash
P7
SODIMM
J34
P1
ON
1 2
S7
J13
J14
J37
(used for V7769 version)
1 2
ON
ON
1 2
S12
S8
E13
E14
13
5
1 2
1 2
E17
13
ON
1 2
S6
ON
S10
ON
S11
P2
M/K
COM1
J38
INDICATES PIN 1
J35
ON
1 2
S9
Installation and Setup 21
.
Table 1-1 V7768 Connectors and Switches
Connector Function
P1 VME interface connector
P2 USB 2.0, Serial ATA, digital video, COM3 and COM4, Gigabit Ethernet
P7 CompactFlash socket
J34 SODIMM socket
J29 and J30 USB ports
J38 Mouse/Keyboard PS/2 Type connector
J15 and J18 Gigabit Ethernet connectors
J11, J12, J13 and J14 PMC Site connectors
J35 Serial port connector (COM1)
J28 SVGA connector
J37 Board to Board connector for V7769
Header Function
E13 COM1 Configuration
E14 COM1 Configuration
E17 COM1 (RS422 Termination)
Switches Function
S6 Mapping/Sysfail generation
S7 VME SYSRESET
S8 Factory Conf igurable
S9 Factory Conf igurable
S10 System Controller
S11 Battery enable
S12 RTC Reset and Boot Pause
Table 1-2 Universe IID Mapping/SYSFAIL Generation - Switch (S6)
Position State Function
1-4 On Enable SYSFAIL Generation
1-4 Off NO SYSFAIL after reset
2-3 On Map UNIV2 to Memory Space
2-3 Off Map UNIV2 to I/O Space
Table 1-3 VME Strapping - Switch (S7)
Position State Function
1-4 On Enable VME SYSRESET Driver
2-3 On Enable SYSRESET Receiver
22 V7768/V7769 Hardware Reference Manual
CMOS Password
Table 1-4 VME System Controller - Switch (S10)
Position State Function
1-4 On Force VME controller based on 2-3 state
1-4 Off Enable auto system controller
2-3 On Force system controller (any slot)
2-3 Off Force non-system controller (any slot)
Table 1-5 Battery Enable - Switch (S11)
Position State Function
1-4 On Enable Battery
1-4 Off Disable Battery
2-3 On Factory Use Only
2-3 Off Factory Use Only
NOTE
The BIOS has the capability of password protecting casual access to
the unit’s CMOS setup screens. The CMOS Clear jumper allows the
user to clear the password in the case of a forgotten password.
Table 1-6 Password Clear/BIOS Boot Mode - Switch (S12)
Position State Function
1-4 Off Normal
1-4 On Clear CMOS/Password
2-3 On Boot with Post Errors
2-3 Off Boot Halt on Post Errors
NOTE
The default settings in the tables are in bold.
To clear the CMOS password:
1. Turn off power to the unit.
2. Move switch S12 position 1 to On.
3. Wait approximately 5 seconds.
4. Move switch S12 position 1 to Off.
5. Power up the unit.
When power is reapplied to the unit, the CMOS password will be cleared, and the
CMOS will be set to its defaults.
Installation and Setup 23
.
Table 1-7 COM1 Configuration (RS232/RS422 Select) - Header (E13, E14, E17)
Select E13 Position E14 Position E17 Position
RS232 In 3-5, 4-6 Both Out
RS422 w/Termination Out 1-3, 2-4 1-2, 3-4
RS422 w/o Termination Out 1-3, 2-4 Both Out
Figure 1-2 COM1 Termination Headers (E13, E14, E17)
E13
5
E17
13
E14
13
RS232 RS422 w/Termination RS422 w/o Termination
E13
E14
13
5
E17
13
E13
E14
13
5
E17
13
24 V7768/V7769 Hardware Reference Manual
1.2.2 Mezzanine Board Layout Information (V7769)
Figure 1-3 Mezzanine Board Connector Locations
J28
J27
P5
J11
J13
ON
1 2
ON
1 2
S1
S2
P1
E10
E9
J12
E6
J21
J23
J22
P2
J24
Installation and Setup 25
.
Table 1-8 Mezzanine Connectors and Switches
Connector Function
P1 VME interface connector
P2 Vita 35 PCI-X PMC connector
P5 Board to Board connector
J11, J12, and J13 PCI-X PMC Site 1 connectors
J21, J22, J23 and J24 PCI-X PMC Site 2 connectors
J27 2.5 in. SATA drive connector
J28 SAS connector
Header Function
E6 SMBus debug header
E9 Not Used
E10 Not Used
Switches Function
S1 Reserved
S2 Enable/Disable JTAG
Table 1-9 Switch (S2) Settings
Position State Function
1-4 Off Disable JTAG
1-4 On Enable JTAG
2-3 Off Not Used
2-3 On Not Used
26 V7768/V7769 Hardware Reference Manual
1.3 Installation
The V7768/V7769 conform to the VME physical specification for a 6U board. The
V7768/V7769 can be used for the system controller or as a peripheral board. It can
be plugged directly into any standard chassis accepting either type of board.
The following steps describe the GE-recommended method for installation and
powerup of the V7768/V7769:
1. If a PMC module is to be used, connect it to the V7768/V7769 prior to board
installation (as shown in Figure 1-4 on page 28). Refer to the Product Manual for the PMC module for configuration and setup.
NOTE
Air flow as measured at the output side of the heatsink is to be
greater than 450 LFM.
2. Insert the V7768/V7769 into a VME chassis system controller or peripheral
slot. While ensuring that the board is properly aligned and oriented in the
supporting board guides, slide the board smoothly forward against the mat
ing connector. Use the ejector handles to firmly seat the board.
3. All needed peripherals can be accessed from the front panel or the rear I/O.
Each connector is clearly labeled, and detailed pinouts are in
Connector Pinouts.
Appendix A:
-
4. Connect a keyboard and mouse if the system has not been previously configured.
5. The V7768 features an optional CompactFlash Disk resident on the board.
Refer to
6. If an external drive module is installed, the BIOS Setup program must be
used to configure the drive types. See
to properly configure the system.
7. If a drive module is present, install the operating system according to the
manufacturer’s instructions.
Chapter 3: Embedded PC/RTOS Features for setup details.
Appendix B: AMI BIOS Setup Utility
1.3.1 BIOS Setup
The V7768/V7769 has an onboard BIOS Setup program that controls many
configuration options. These options are saved in a special non-volatile, batterybacked memory chip and are collectively referred to as the board’s CMOS
Configuration. The CMOS configuration controls many details concerning the
behavior of the hardware from the moment power is applied.
Details of the V7768/V7769 BIOS setup program are included in
Appendix B: AMI BIOS Setup Utility.
Installation and Setup 27
.
Figure 1-4 Installing the PMC Card on the V7768/V7769
28 V7768/V7769 Hardware Reference Manual
Loading...
