GE UVW8301SLSS Specifications

30" models require a 30"-wide opening
*The supplied duct cover fits 7'-7" to 9'-6" ceiling heights
(10' ceiling height with optional high ceiling kit UX10DC83SS)
12-1/4"
13-13/16"
20"
29-7/8"
24" Min 36" Max
27-1/2"
to 39-1/2"
2-3/4"
30" models require a 30"-wide opening
12-1/4"
13-13/16"
20"
29-7/8"
27-1/2"
to 39-1/2"
2-3/4"

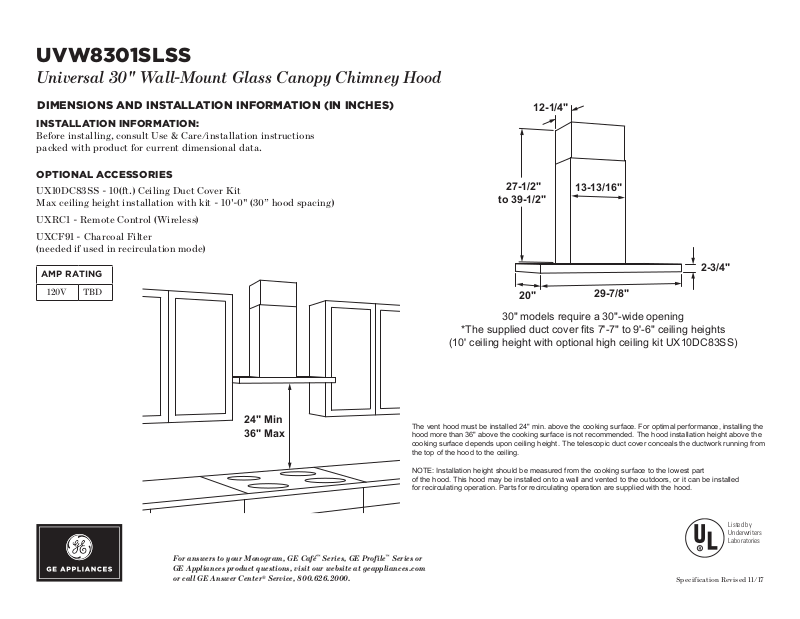

UVW8301SLSS
Universal 30" Wall-Mount Glass Canopy Chimney Hood
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
INS TA LLAT I ON IN FOR M ATION :
Before installing, consult Use & Care/installation instructions packed with product for current dimensional data.
OPTIONAL ACCESSORIES
UX10DC83SS - 10(ft.) Ceiling Duct Cover Kit Max ceiling height installation with kit - 10'-0" (30” hood spacing)
UXRC1 - Remote Control (Wireless)
UXCF91 - Charcoal Filter (needed if used in recirculation mode)
AMP RATING
120V TBD
12-1/4"
27-1/2"
13-13/16"
to 39-1/2"
2-3/4"
20"
29-7/8"
30" models require a 30"-wide opening
*The supplied duct cover fits 7'-7" to 9'-6" ceiling heights
(10' ceiling height with optional high ceiling kit UX10DC83SS)
24" Min 36" Max
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the hood more than 36" above the cooking surface is not recommended. The hood installation height above the cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed for recirculating operation. Parts for recirculating operation are supplied with the hood.
Listed by Underwriters Laboratories
Speci fication Revised 11/17
UVW8301SLSS
Universal 30" Wall-Mount Glass Canopy Chimney Hood
FEATURES AND BENEFITS 350-CFM blower – Powerful blower removes smoke, grease, odor and moisture
Dual LED dimmable lighting – bulbs included - Enjoy the right amount of bright LED lighting on the cooktop and surrounding areas
Electronic backlit controls – Add a sophisticated look with this up-front, easy­to-use display
Convertible venting options – Select recirculating or external venting
Chef Connect – Automatically control the hood's lights and fan by syncing with the range
9-ft. ceiling height – Included duct cover extensions reach up to 9' ceilings
Dishwasher safe filter – Filters grease and is dishwasher-safe
Optional remote control – Activate and adjust your hood functions from anywhere in the kitchen
Model UVW8301SLSS – Stainless steel
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Speci fication Revised 11/17
