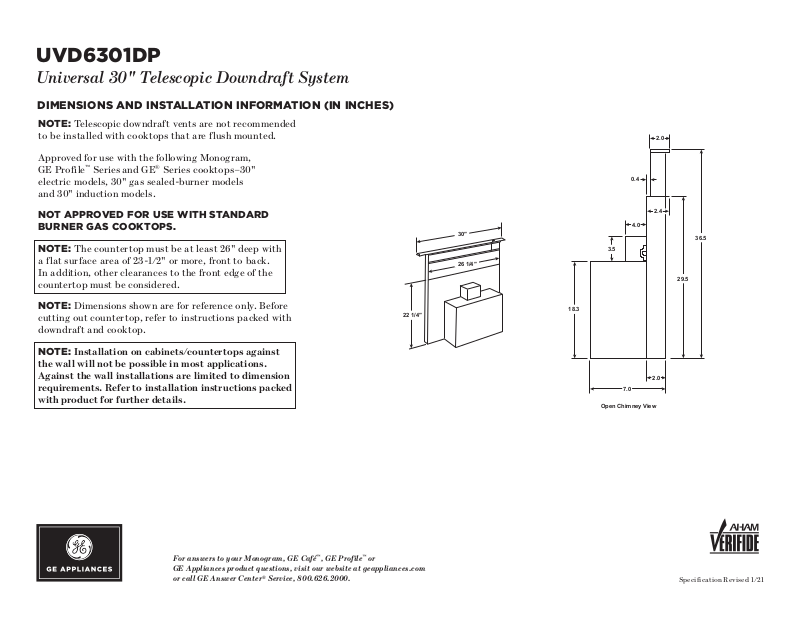

GE UVD6301DP Specification

UVD6301DP
Universal 30" Telescopic Downdraft System
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Telescopic downdraft vents are not recommended
to be installed with cooktops that are flush mounted.
Approved for use with the following Monogram, GE Profile™ Series and GE® Series cooktops–30" electric models, 30" gas sealed-burner models and 30" induction models.
NOT APPROVED FOR USE WITH STANDARD BURNER GAS COOKTOPS.
NOTE: The countertop must be at least 26" deep with
a flat surface area of 23-1/2" or more, front to back. In addition, other clearances to the front edge of the countertop must be considered.
30
26 1/4
2.0
0.4
2.4
4.0
36.5
3.5
29.5
NOTE: Dimensions shown are for reference only. Before cutting out countertop, refer to instructions packed with downdraft and cooktop.
NOTE: Installation on cabinets/countertops against the wall will not be possible in most applications. Against the wall installations are limited to dimension requirements. Refer to installation instructions packed with product for further details.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
22 1/4
18.3
2.0
7.0
Open Chimney View
Speci fication Revised 1/21
UVD6301DP
6" ROUND STRAIGHT
3-1/4" X 10" TO 6" ROUND
6" ROUND STRAIGHT
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION
6" ROUND STRAIGHT
3-1/4" X 10" STRAIGHT
6" 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND STRAIGHT
3-1/4" X 10" STRAIGHT
6" 90° ELBOW
6" 45° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
6" ROUND STRAIGHT
3-1/4" X 10" STRAIGHT
3-1/4" X 10" 90° ELBOW
6" 90° ELBOW
6" 45° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
6" ROUND STRAIGHT
3-1/4" X 10" STRAIGHT
3-1/4" X 10" 90° ELBOW
3-1/4" X 10" 45° ELBOW
6" 90° ELBOW
6" 45° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
6" ROUND ROOF CAP
3-1/4" X 10" WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
6" ROUND STRAIGHT
3-1/4" X 10" STRAIGHT
3-1/4" X 10" 90° ELBOW
3-1/4" X 10" 45° ELBOW
3-1/4" X 10" 45° ELBOW
6" 90° ELBOW
6" 45° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
6" ROUND ROOF CAP
3-1/4" X 10" WALL CAP WITH DAMPER
6" ROUND ROOF VENT
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
6" ROUND STRAIGHT
3-1/4" X 10" STRAIGHT
3-1/4" X 10" 90° ELBOW
3-1/4" X 10" 45° ELBOW
3-1/4" X 10" 45° ELBOW
6" 90° ELBOW
6" 45° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
6" ROUND ROOF CAP
3-1/4" X 10" WALL CAP WITH DAMPER
6" ROUND ROOF VENT
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
6" ROUND TO 3-1/4 X 10" TRANSITION
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
6" ROUND ROOF CAP
3-1/4" X 10" WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
90° ELBOW
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION 90
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION 90° ELBOW
3-1/4" X 10" WALL CAP WITH DAMPER
3-1/4" X 10" TO 6" ROUND TRANSITION 90° ELBOW
6" ROUND WALL CAP WITH DAMPER
Universal 30" Telescopic Downdraft System
VENTING DUCT INFORMATION
DUCT PIECES EQUIVALENT LENGTH* DUCT PIECES EQUIVALENT LENGTH*
3-1/4" X 10" STRAIGHT
1 ft. (per foot length)
1 ft. (per foot length)
12 ft.
7 ft.
3-1/4" X 10" TO 6" ROUND TRANSITION
6" ROUND TO 3-1/4 X 10" TRANSITION
° ELBOW
2 ft.
4 ft.
4 ft.
24 ft.
PLAN THE DUCTWORK
1. This downdraft blower system is designed for use with 3-1/4" x 10" ductwork (can be transitioned to 6" round). Two different discharge directions are available with side­to-side adjustment for the accurate alignment of ductwork.
2. For best performance: choose the ducting option which
allows the shortest length of ductwork and a minimum number of elbows and transitions. Check location of floor joists, wall joists, wall studs, electrical wiring or plumbing for possible interference.
14 ft.
12 ft.
33 ft.
2 ft.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
SHOULD NOT EXCEED 100 EQUIVALENT FT.
* Equivalent length of duct pieces is based on actual
test conducted by GE Evaluation Engineering and reflects requirements for good venting performance.
6" ROUND ROOF CAP
24 ft.
33 ft.
Right discharge
Left discharge (as shipped)
STEPS TO DETERMINE FLEXIBLE DUCTING’S EQUIVALENT LENGTH
1. Measure the actual amount of offset (Maximum 3" recommended). The effect upon airflow is dependent upon the amount of offset.
2. Calculate the equivalent ducting allowances using:
(__in. offset) x (14 ft. per inch) =__ft. equivalent length.
3. Total equivalent length of ducting should not exceed
the maximum recommendation of 100 feet for optimal venting performance.
Speci fication Revised 1/21
