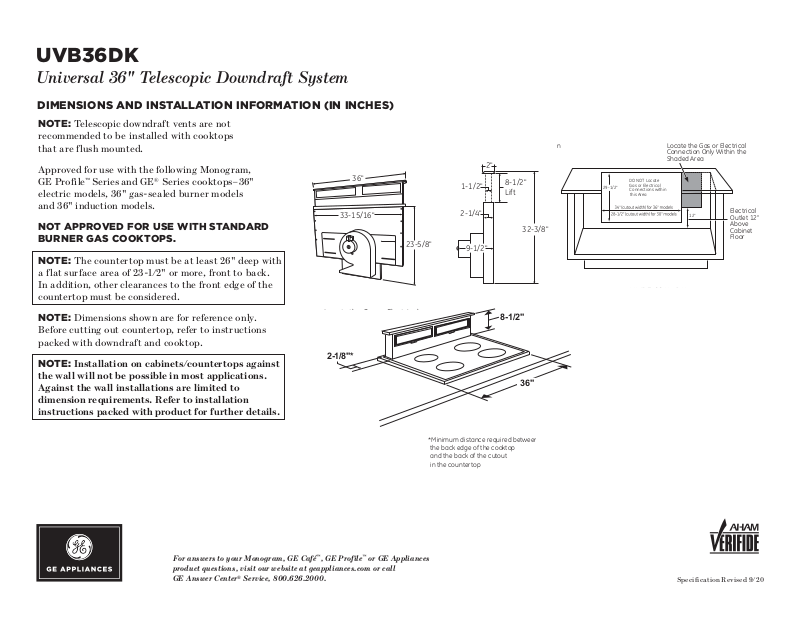

UVB36DK

Universal 36" Telescopic Downdraft System

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

NOTE: Telescopic downdraft vents are not recommended to be installed with cooktops that are flush mounted.

Approved for use with the following Monogram, GE Profile™ Series and GE® Series cooktops–36" electric models, 36" gas-sealed burner models and 36" induction models.

NOT APPROVED FOR USE WITH STANDARD BURNER GAS COOKTOPS.

NOTE: The countertop must be at least 26" deep with a flat surface area of 23-1/2" or more, front to back. In addition, other clearances to the front edge of the countertop must be considered.

2"

36"

		1-1/2"
33-15/16"		2-1/4"
	23-5/8"	9-1/2"

n	Locate the Gas or Electrical
	Connection Only Within the
	Shaded Area

8-1/2"		DO NOT Locate
	29-1/2"	Gas or Electrical
Lift		Connections within
		this Area
		12"	Electrical
			Outlet 12"
32-3/8"			Above
			Cabinet
			Floor

NOTE: Dimensions shown are for reference only.			8-1/2"
Before cutting out countertop, refer to instructions
packed with downdraft and cooktop.
	2-1/8"*
NOTE: Installation on cabinets/countertops against
the wall will not be possible in most applications.
				36"
Against the wall installations are limited to
dimension requirements. Refer to installation
instructions packed with product for further details.
	*Minimum distance required betwee
	the back edge of the cooktop
	and the back of the cutout
	in the countertop

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.	Specification Revised 9/20

UVB36DK

Universal 36" Telescopic Downdraft System

VENTING DUCT INFORMATION

	DUCT PIECES	EQUIVALENT LENGTH*	DUCT PIECES	EQUIVALENT LENGTH*
	6" ROUND	1 ft. (per foot length)	3-1/4" X 10"	2 ft.
			TO 6" ROUND
	STRAIGHT
			TRANSITION
	3-1/4" X 10"		6" ROUND	4 ft.
		1 ft. (per foot length)	TO 3-1/4 X 10"
	STRAIGHT		TRANSITION
			90° ELBOW
	6"		3-1/4" X 10"	4 ft.
		12 ft.	TO 6" ROUND
	90° ELBOW		TRANSITION
			90° ELBOW
	6"	7 ft.	6" ROUND	24 ft.
			WALL CAP
	45° ELBOW
			WITH DAMPER
	3-1/4" X 10"		3-1/4" X 10"	24 ft.
		14 ft.	WALL CAP
	90° ELBOW		WITH DAMPER
	3-1/4" X 10"	12 ft.	6" ROUND	33 ft.
	45° ELBOW		ROOF CAP
	3-1/4" X 10"	33 ft.	SHOULD NOT EXCEED 100 EQUIVALENT FT.
	45° ELBOW
			*Equivalent length of duct pieces is based on actual
	6" ROUND		test conducted by GE Evaluation Engineering and
		2 ft.	reflects requirements for good venting performance.
	TO 3-1/4 X 10"
	TRANSITION

PLAN THE DUCTWORK

1.This downdraft blower system is designed for use with 3-1/4" x 10" ductwork (can be transitioned to 6" round). Two different discharge directions are available with side- to-side adjustment for the accurate alignment of ductwork.

2.For best performance: choose the ducting option which allows the shortest length of ductwork and a minimum number of elbows and transitions. Check location of floor joists, wall joists, wall studs, electrical wiring or plumbing for possible interference.

Right discharge

Left discharge (as shipped)

STEPS TO DETERMINE FLEXIBLE DUCTING’S EQUIVALENT LENGTH

1.Measure the actual amount of offset (Maximum 3" recommended). The effect upon airflow is dependent upon the amount of offset.

2.Calculate the equivalent ducting allowances using: (__in. offset) x (14 ft. per inch) =__ft. equivalent length.

3.Total equivalent length of ducting should not exceed the maximum recommendation of 100 feet for optional venting performance.
